Whirlpool 9725, AWE User Manual
SERVICE
Model AWE 9725
Version 8593 972 10057 Page
Whirlpool Europe
Customer Services
AWE 9725
Service Manual
Washing machine
Toploader
AWE 9725
Technical data 2 - 3
Spare part list 4
Exploded view 5 - 6

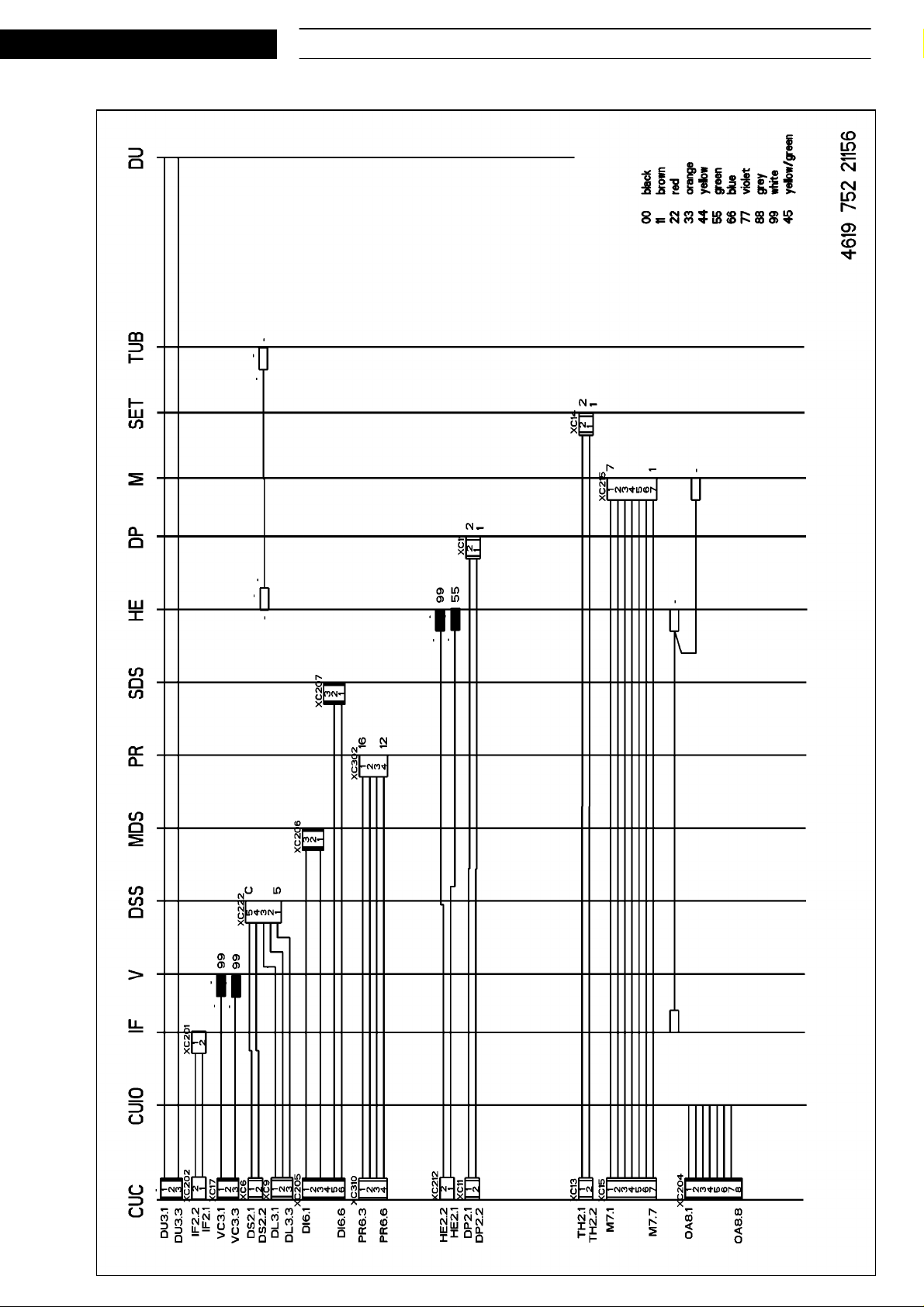

Wiring diagram 7

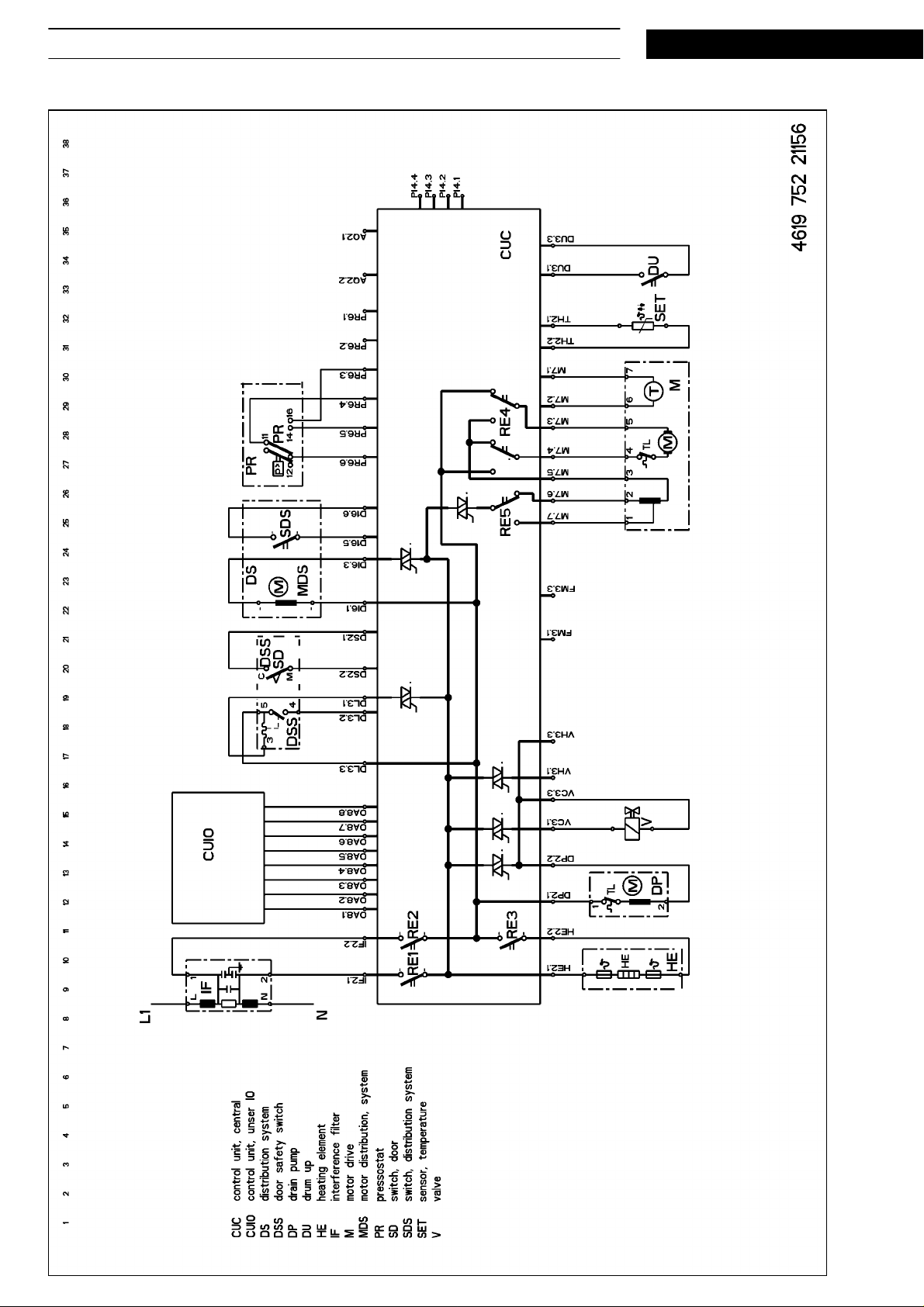

Circuit diagram 8

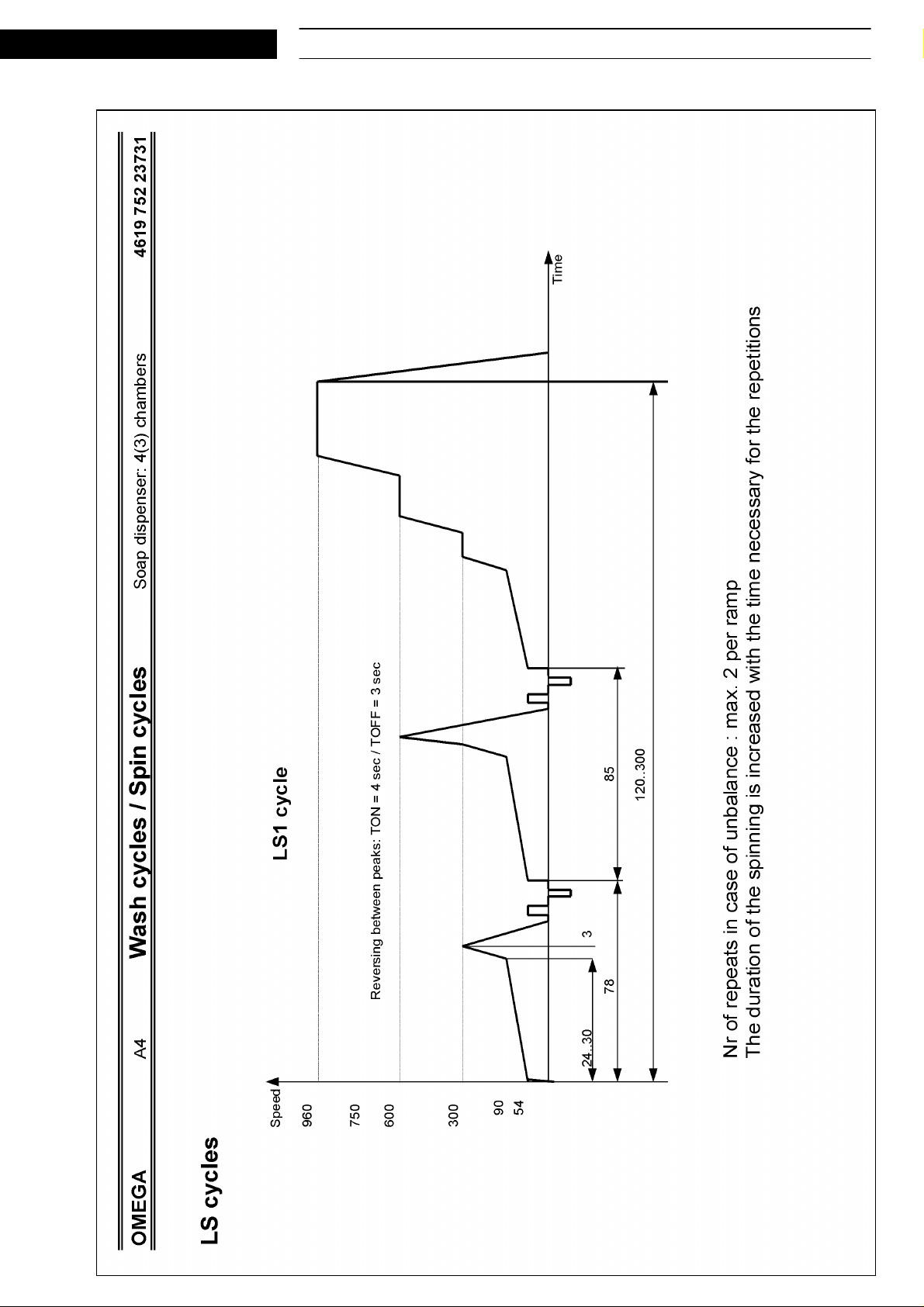

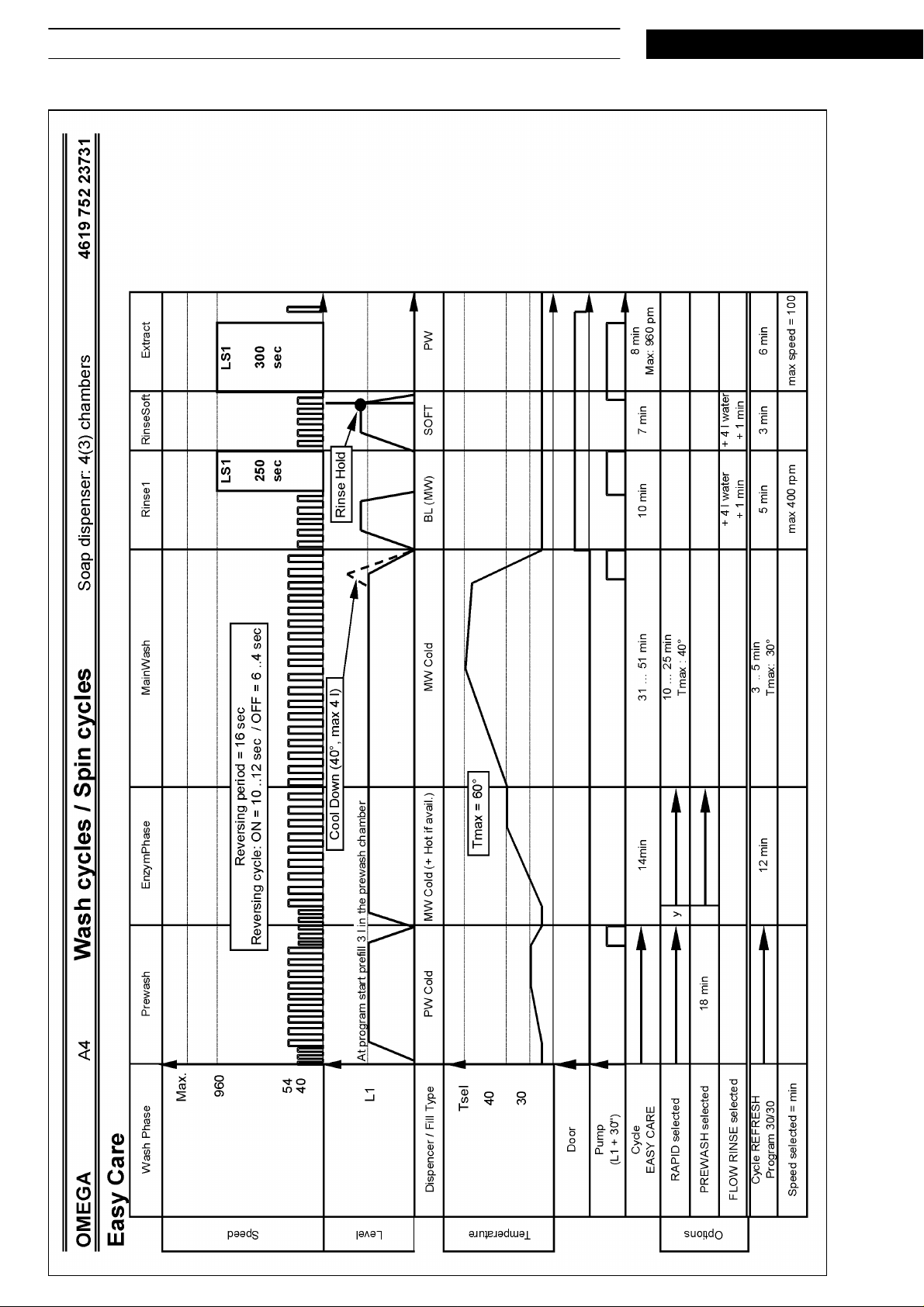

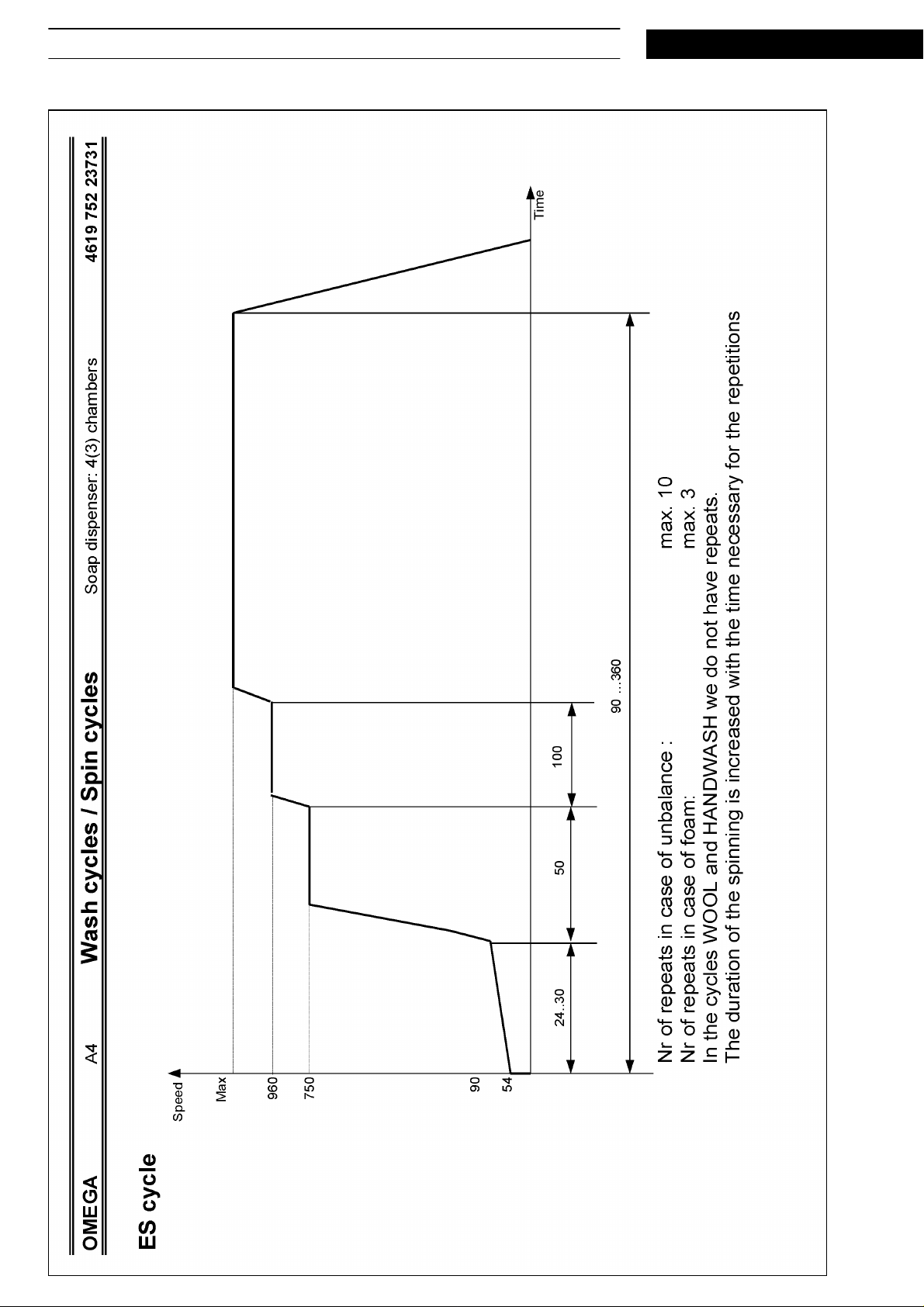

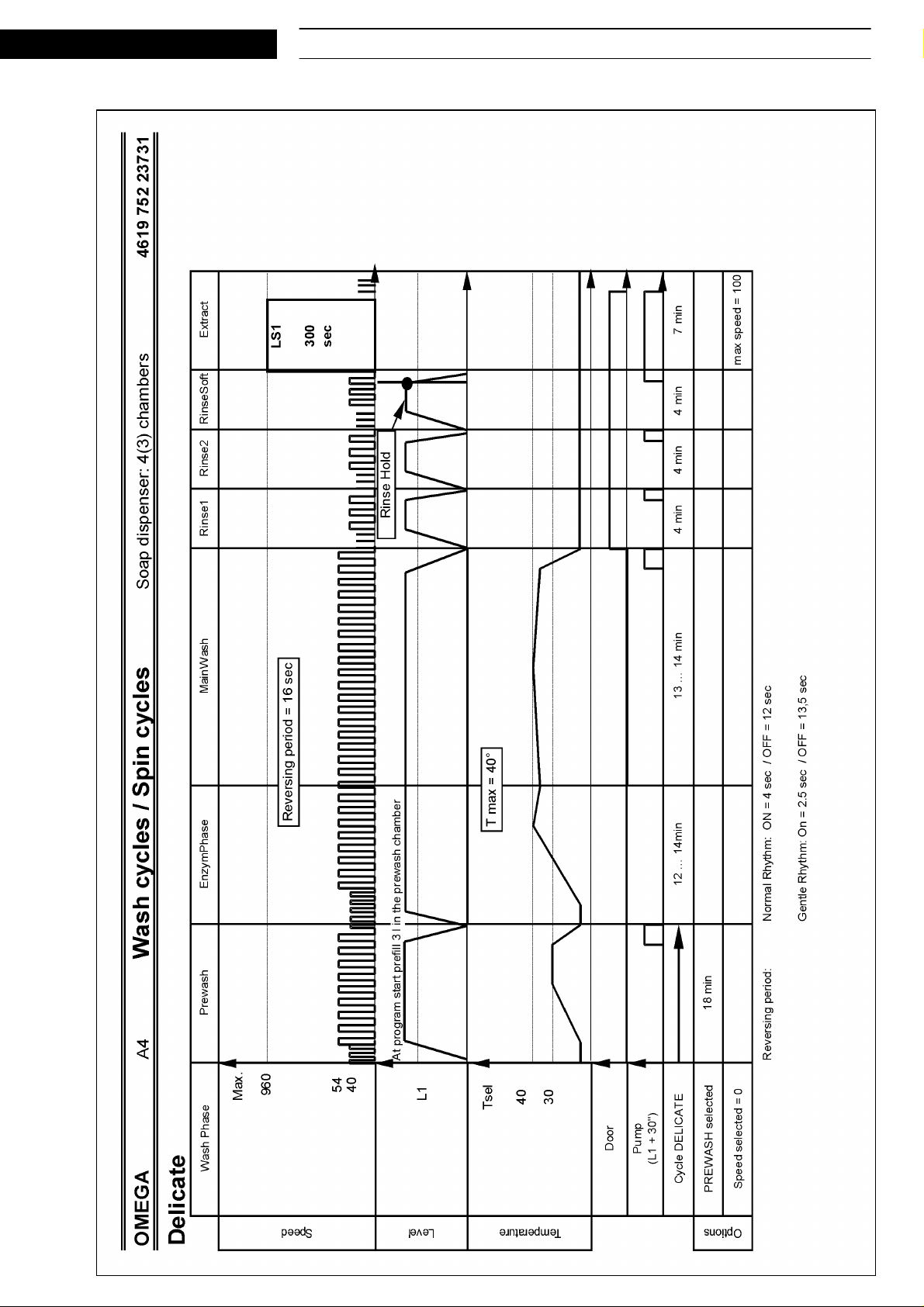

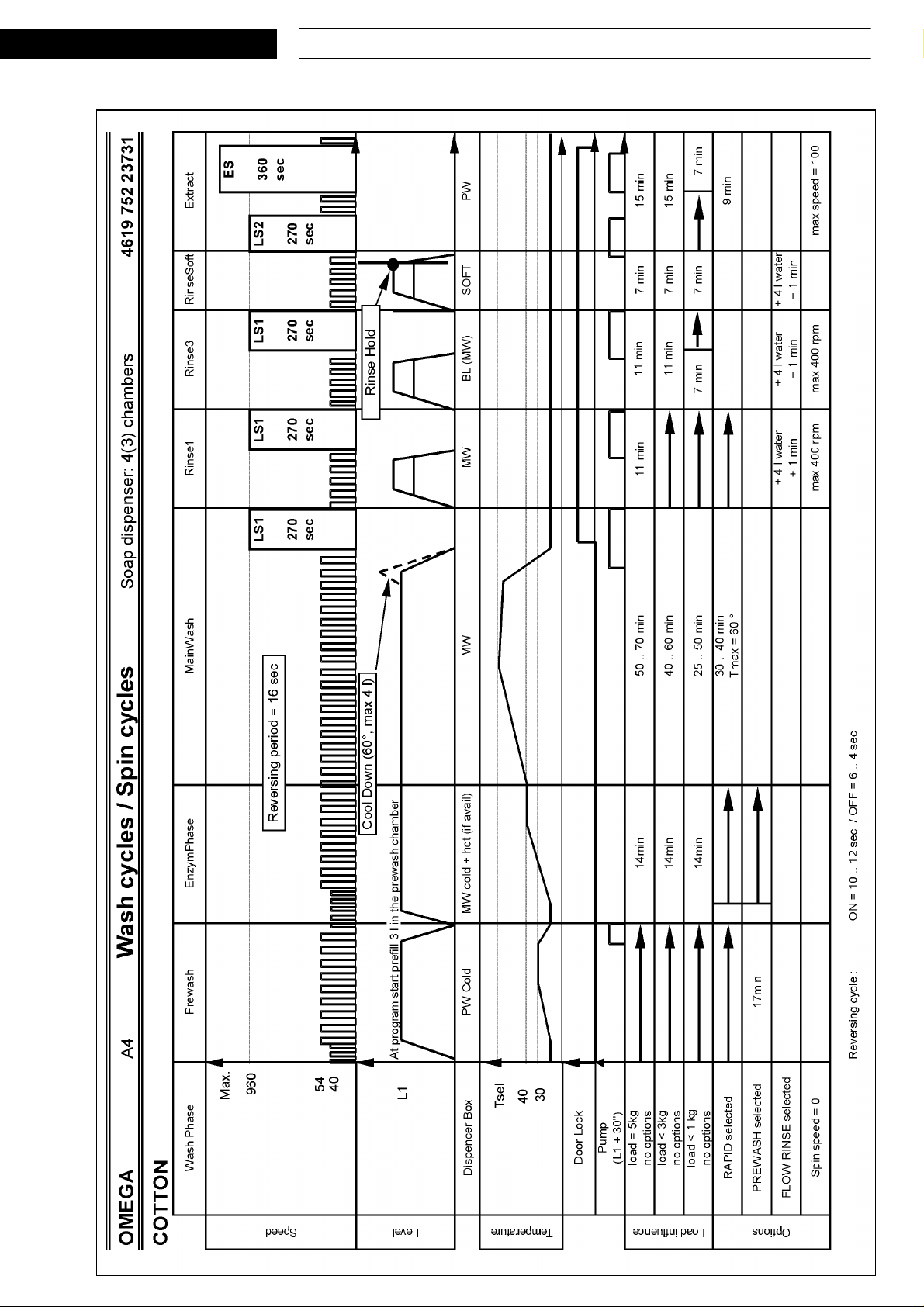

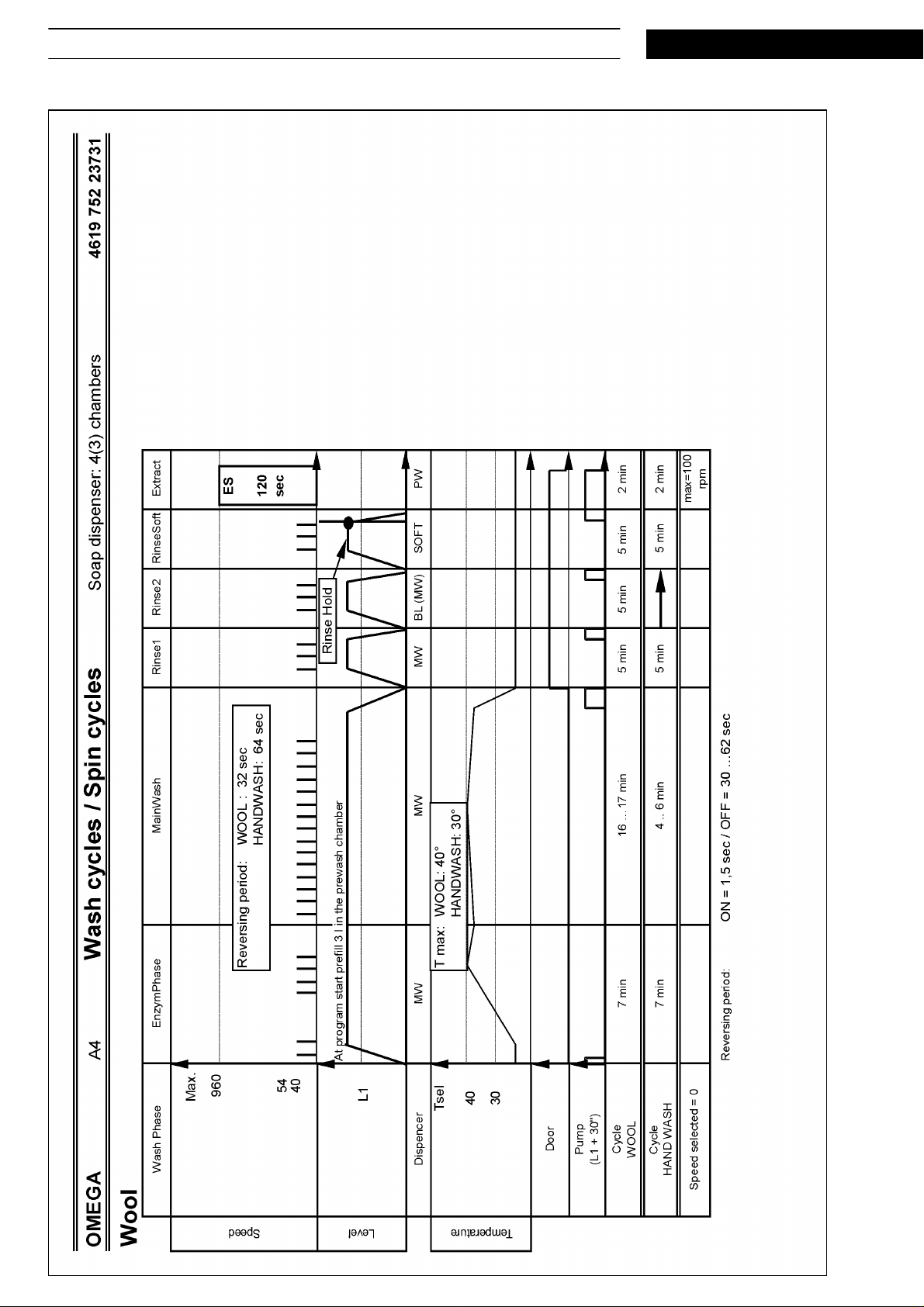

Program chart 9 - 14

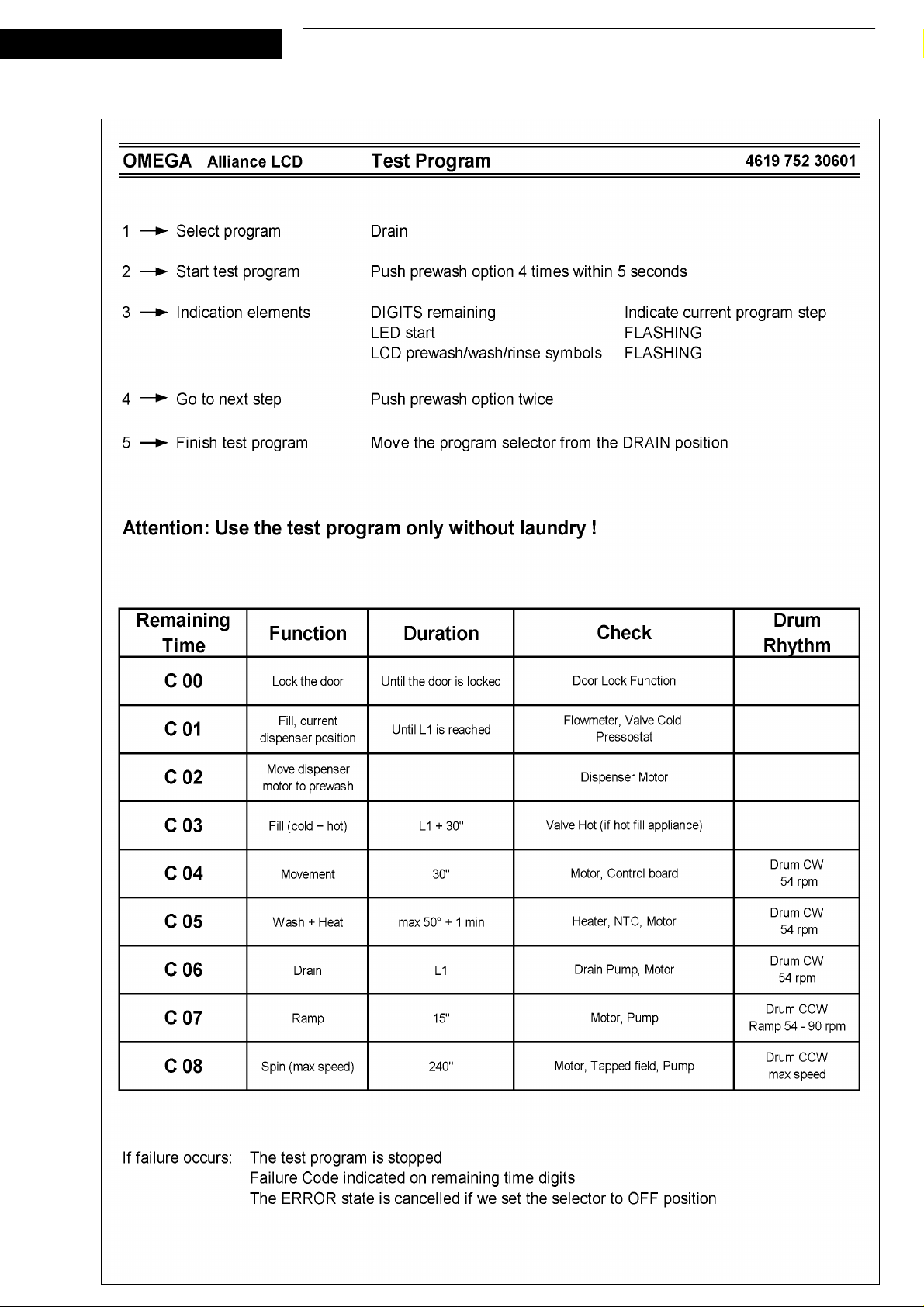

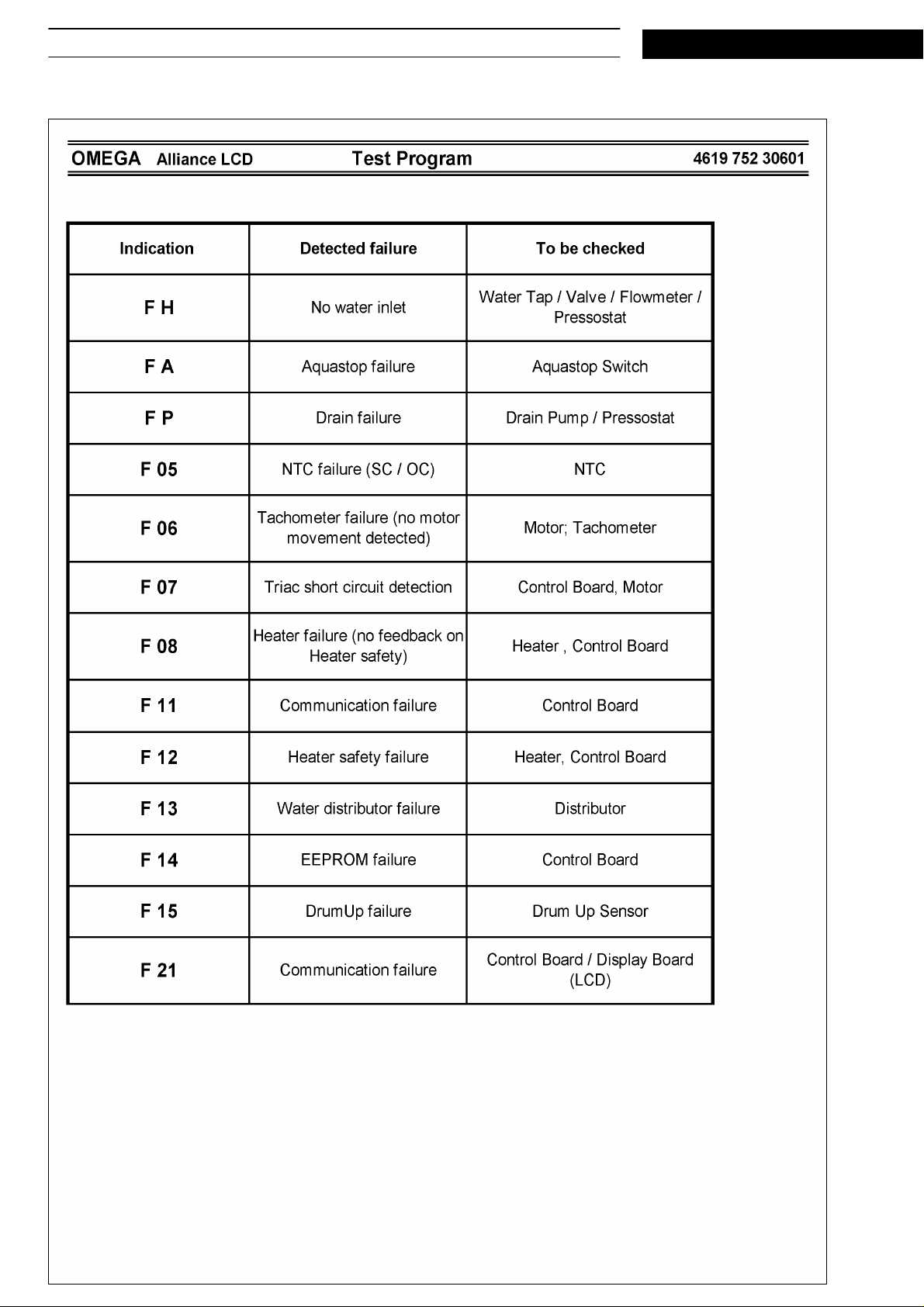

Text/Legend 15 - 17
Family OMEGA
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 07.11.2006 Subject to modification
Document-No.: 4812 722 26957
07.11.2006 / Page 2 AWE 9725 Whirlpool Europe
Doc. No: 4812 722 26957 8593 972 10057 Customer Service
Technical data
SERVICE
Dimensions
Height 85 cm
Width 40 cm
Depth 60 cm
Weight
Net weight ~62 kg
With package ~64 kg
Main Connection
Voltage 230 V ± 10%
Frequency 50 Hz
Power consumption ~2.3 kW
Fuse rating 10 A
Drum
Door wide 210 mm
Volume 42 l
Wash spin 52 rpm
Speed spinning max. 1200 rpm
Capacity of dry laundry
Cotton 5 kg
Cotton short 3 kg
Easy care 2 kg
Daily mixed 3 kg
Super rapid 1.5 kg
Delicate 1.5 kg
Handwash 1 kg
Wool 1 kg
Pressostat
Kind of switch 2-level pressoswitch
with overflow contact
Type B1-117
Nominal voltage 230 V
Door lock (5-pole)
Type BP P/5
Nominal voltage 230 (90 - 264) V
Nominal current:
Contact 4 - 5 16 (4) A
Lock time ≤5’’
Unlock time ≤180’’
Heating element
Kind of heating Tubular heating element
with NTC - sensor
Nominal voltage 230 +10%, -15% V
Nominal power 2050 W ± 5%
Resistance (20 ˚C) 23.9 Ω± 5%
Thermo-fuse (switch
OFF temperature) 152 ˚C
Leakage current (<99 ˚C) <0.8 mA
NTC sensor
Resistance NTC:
0 ˚C 35.9 kΩ ± 5.8%
30 ˚C 9.8 kΩ ± 3.7%
40 ˚C 6.6 kΩ ± 3.1%
50 ˚C 4.6 kΩ ± 2.6%
60 ˚C 3.2 kΩ ± 2.0%
70 ˚C 2.3 kΩ ± 2.5%
95 ˚C 1.1 kΩ ± 3.7%
Inlet valve
Kind of valve 1-way valve for cold
water
Water temperature <60 ˚C
Rated flow >1 bar 8 l/min ± 10%
Pressure range 0,2 - 10 bar
Nominal current 40 mA
Nominal power 8.8 VA ± 10%
Nominal resistance 3.8 kΩ± 10%
Water Level
Foam level (11 - 12, 14)
Switching point 50 ± 5 mmWc
Switching back point 30 ± 5 mmWc
Overflow (21 - 26) 280 ± 20 mmWc
Nominal currents
Contacts
11 - 12 4 (4) mA
11 - 14 16 (4) A
11 - 16 1 (1) A
SERVICE
Technical data
Whirlpool Europe AWE 9725 07.11.2006 / Page 3
Customer Service 8593 972 10057 Doc. No: 4812 722 26957
Drain pump (synchronous)
Type 68882/292079
Nominal/max. current 0.3/0.5/ A
0.2/0.22 A
Nominal power 30/26 W
Rotation speed 3000 rpm
Resistor (coil) (25 ˚C) 164/ Ω ± 7%
224 Ω ± 5%
Capacity 14 ± 2 l/min
Position of draining hose
outlet min. 0.9 m
max. 1.25 m

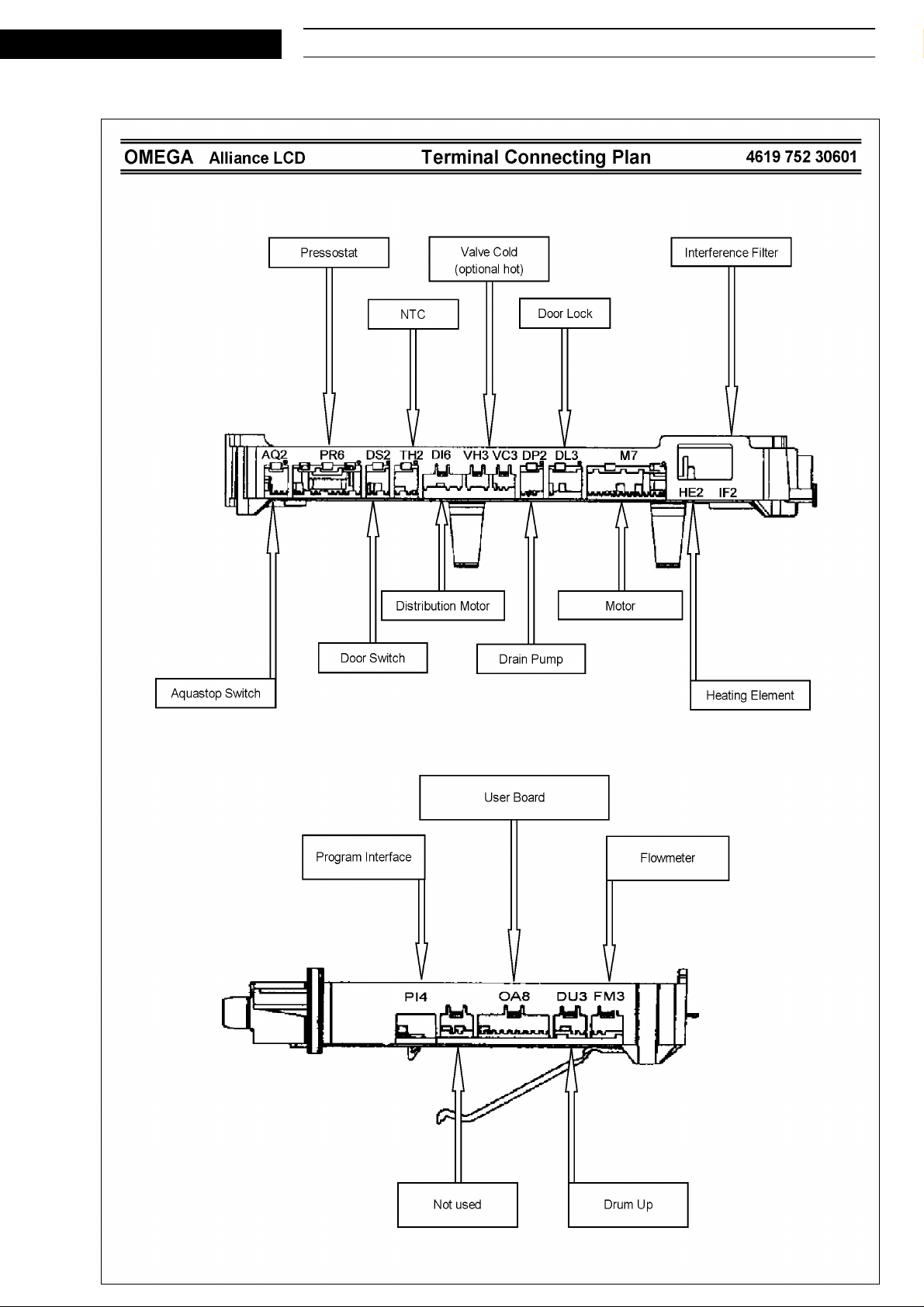

Control board
Type OMEGA
Timer basic 4619 710 90281
Timer programmed 4619 751 54431
Motor
Type MCA 52/64 - 148/ALE
Belt ratio i = 1:13.3
Resistance contacts (20 ˚C)
Stator (full field) 2.17 Ω ± 7%
Stator (tapped field) 1.35 Ω ± 7%
Rotor 1.90 Ω ± 7%
Tachogenerator 68.70 Ω ± 7%
Input power (230 V AC)
Washing 240 W ± 7%
Rinsing 350 W ± 7%
Spinning (full field) 320 W ± 10%
Spinning (tapped field) 400 W ± 10%
Drum up sensor
Nominal voltage 5 V DC
Nominal current 0,5 mA
Poles 1
Resistance 150 mΩ
Connection Wires + RAST 2.5
Distrubution actuator
Motor:
Nominal voltage 230 +10% -15% V
Nominal current 13 ± 5mA
Nominal resistance (20 ˚C) 6.5 kΩ± 10%
Contacts:
Nominal current 1 mA
Nominal voltage 24 V
Display module
Type DM LCDE
WH03 TL OM
12NC 4619 730 71103
Programs 11
Push button switch
Favorites
Easy ironing
Eco
Pre wash
Intensive rinse
Rinse hold
Selector
Radio interference supression
Rated voltage 90 - 250 V
Rated current 16 A
Frequency 50/60 Hz
Nominal capacity 680 nF X1 + 2 x 22 nF Y
± 20%
Nominal inductance 2 x 1 mH-30+50%
Nominal resistance 680 kΩ± 10%
Derivation current
(u = 250 V AC) ≤ 4.15 (2 x 2.075) mA
Temperature +/Spin/Start delay
07.11.2006 / Page 4 AWE 9725 Whirlpool Europe
Doc. No: 4812 722 26957 8593 972 10057 Customer Service
Spare part list
Model AWE 9725
Service No. 859397210057
Version 859397210057
SERVICE
Pos. No. 12NC Code Description
002 0 4812 459 38057 Flap round GW
002 1 4812 459 38058 Hinge flap GW
004 0 4812 440 10727 Drip tray assy
010 0 4812 459 48185 Door frame inner, soft opening GW
010 1 4812 440 10741 Frame lid outer MH/RFI GW
011 0 4812 462 48054 Foot
012 7 4812 310 18497 Trolley kit front
012 8 4812 528 78046 Foot adjustable rear
021 0 4812 440 10742 Front panel GW
022 0 4812 440 10743 Side panel right GW
022 1 4812 440 10744 Side panel left GW
024 0 4812 440 10732 Rear panel
040 0 4812 417 19155 Hinge bolt lid GW
061 0 4812 466 88466 Counter weight left
061 1 4812 466 88465 Counter weight right
081 4 4812 466 88699 Shock absorber
086 2 4812 401 18412 Stopper
086 4 4812 529 18045 Pin f. Shock absorber
086 5 4812 529 18052 Damper f. Shock absorber
100 1 4812 440 10745 Lid outer GW
100 3 4812 440 10746 Lid inner+hook+spring GW
100 5 4812 440 10747 Lid cpl. WH/MH GW
110 4 4812 498 18248 Handle cpl. WH/MH GW
130 0 4812 417 19156 Hook f. Lid GW
191 0 4812 466 68749 Door bellow
Pos. No. 12NC Code Description
571 1 4812 281 18049 Cover f. valve
581 0 4812 271 28382 Pressostat single EATON
623 3 4812 418 18446 Drum up OMEGA
630 0 4812 271 38364 Door lock
691 0 4812 282 19485 Sensor NTC SC1,OMEGA3
701 0 4812 530 29329 Hose inlet EN 11770 Reflex
702 2 4812 530 28871 Hose VALVE-DISPENSER
707 0 4812 526 48122 Nozzle box cold cpl.
707 1 4812 526 48049 Clamp f. nozzle box
712 4 4812 418 68302 Siphon f. softener
712 5 4812 418 68303 Siphon f. bleach
712 6 4812 418 68164 Clip SOAP DISPENSER
712 9 4812 418 68359 Soap dispenser cpl. 4 ch.
717 6 4812 323 18005 Distributor System
753 0 4812 530 28874 Chamber,air
754 0 4812 530 29267 Drainhose
754 1 4812 530 28832 Lock eco
760 0 4812 480 58089 Filter set pump
781 0 4819 530 29035 Hose draining
782 0 4812 530 29268 Hose Pressostat
787 0 4812 530 18043 Hose Exhaust W/O hole
787 1 4812 580 38007 Sponge
794 0 4812 530 58098 Gasket Airtrap
900 0 4819 401 18686 Clamp hose
900 1 4812 401 18431 Clamp to pump
191 1 4812 492 98012 Strap f. Doorbellow
191 2 4812 466 88703 Seal
200 0 4812 418 18407 Tub f.Drum latch
201 0 4812 440 19487 Cover f. Tub
220 0 4812 418 18595 Drum soft op. 210mm
221 1 4812 310 18843 Kit latch f.drum
223 0 4819 418 49713 Drum lifter
223 1 4812 418 48605 Drum lifter 54 mm with weight
271 0 4812 358 18206 Belt PV 1236 J4 EL
272 0 4812 528 88111 Pulley with fastener
290 0 4812 532 68078 Gasket
301 0 4812 452 15491 Control panel AWE 9725
321 0 4812 452 15497 Insert panel
331 0 4812 412 59089 Knob timer EBL
332 0 4812 410 29015 Button Start GW
332 1 4812 410 29016 Button option with LED GW
332 2 4812 410 29017 Button option GW
332 5 4812 410 29243 Button temperature
332 6 4812 410 29244 Button spinning
350 1 4812 214 58334 Display Module 1400
400 0 4812 361 58387 Motor MCA 52/64-148 ALE
421 0 4812 121 18285 Interf.filter 1,00 µ F
421 2 4812 404 38708 Holder RFI
430 0 4812 360 18529 Pump,draining
451 0 4812 259 28919 Heating element 2050W, 230V + NTC
900 2 4812 404 38711 Holder Hose
900 3 4819 401 18529 Clamp hose
900 6 4812 400 18048 Pin
900 7 4812 401 18447 Clamp top frame
901 0 4812 401 18462 Clamp hose drain hose
910 0 4812 502 48347 Screw,selftap 3,5x14SS
910 1 4812 502 38151 Screw 4x14
910 3 4812 502 18404 Screw
910 4 4812 502 18402 Screw 7x18
910 5 4812 502 18401 Screw M8X 35
910 6 4812 502 18399 Nut Push in M 8
921 0 4812 400 18047 Washer
930 1 4812 492 48171 Torsions spring
930 2 4812 492 48086 Spring
930 3 4812 323 18011 Spring f. Lever
941 1 4812 520 28002 Bearing,ball 6203 2Z C3
941 2 4812 520 28182 Bearing,ball kit
953 0 4812 325 68001 Shaft seal
953 1 4812 520 28073 Ring counterface
953 2 4812 530 68017 O-Ring
962 0 4812 440 19497 Cover f. Motor
993 0 4819 530 29028 Bow
993 1 4812 290 18031 Clamp heatingelement+screw
490 0 4819 321 18136 Cable mains 2m SA
490 1 4812 321 28367 Strain relief
521 0 4812 214 79589 Control board OMEGA, programmed
521 1 4812 323 18006 Actuator f. Distribution
571 0 4812 281 28393 Valve magnet
SERVICE
Exploded view
Whirlpool Europe AWE 9725 07.11.2006 / Page 5
Customer Service 8593 972 10057 Doc. No: 4812 722 26957
07.11.2006 / Page 6 AWE 9725 Whirlpool Europe
Doc. No: 4812 722 26957 8593 972 10057 Customer Service
Exploded view
SERVICE
