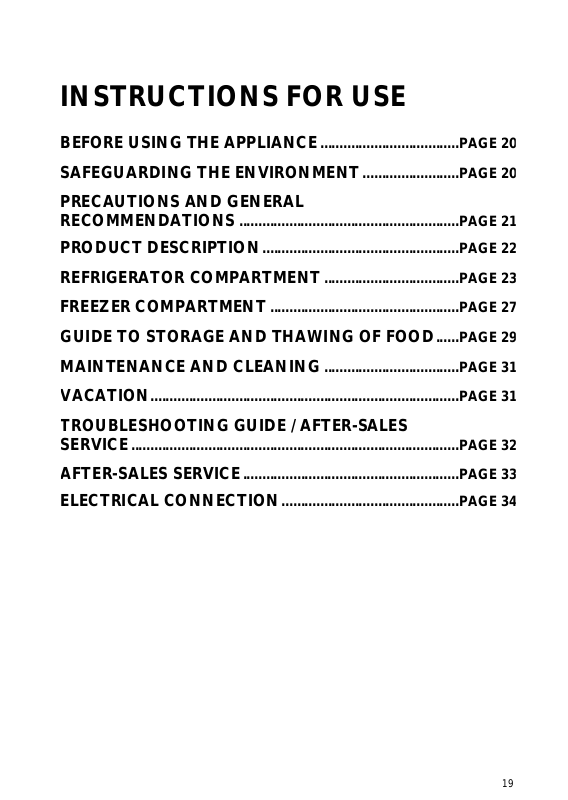

INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
....................................PAGE 20
.........................PAGE 20
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
PRODUCT DESCRIPTION
REFRIGERATOR COMPARTMENT
FREEZER COMPARTMENT
.........................................................PAGE 21
...................................................PAGE 22
...................................PAGE 23
.................................................PAGE 27
GUIDE TO STORAGE AND THAWING OF FOOD
MAINTENANCE AND CLEANING
VACATION
................................................................................PAGE 31
...................................PAGE 31
TROUBLESHOOTING GUIDE / AFTER-SALES
SERVICE
AFTER-SALES SERVICE
.....................................................................................PAGE 32
........................................................PAGE 33
......PAGE 29
ELECTRICAL CONNECTION
..............................................PAGE 34
19
BEFORE USING THE APPLIANCE
Your new appliance is a combined ventilated, no
frost fridge-freezer exclusively for domestic use.
The great advantage of this appliance is that the
refrigerator and freezer compartments are
ventilated, therefore there is no ice or frost
formation on the walls, thanks to the process
described below. The cold is produced by an
evaporator and distributed to the single
compartments by means of a fan.
The air, after circulating in the compartments, is
absorbed again by the evaporator, which also
retains any humidity in the air. This prevents frost
from forming on the compartment walls,
therefore there is no need to defrost the
appliance.
The humidity absorbed by the evaporator is
transformed into water, which is automatically
routed to a container located on the compressor,
from where it evaporates. The ventilated
refrigeration system guarantees optimal food
storage, maintaining the original characteristics
longer.
To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.
Keep this handbook for future consultation.
1.
After unpacking, make sure that the appliance
is undamaged and that the door closes
properly. Any damage must be reported to
your dealer within 24 hours after delivery of
the appliance.
2.
Wait at least two hours before switching the
appliance on in order to ensure the refrigerant
circuit is fully efficient.
3.
Installation of the appliance and electrical
connections must be carried out by a qualified
electrician, in accordance with the
manufacturer's instructions and local safety
regulations.
4.
Clean the inside of the appliance before using it.
SAFEGUARDING THE ENVIRONMENT
1.Packing
The packaging material is 100% recyclable and
carries the recycling symbol. Disposal must be
carried out in accordance with local regulations
for waste disposal.
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous.
2.Scrapping
The appliance is manufactured using recyclable
material.
Before scrapping, make the appliance unusable
by cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside the appliance.
Disposal must be carried out in accordance with
local environmental regulations for waste
disposal. Deliver the appliance immediately to
an authorized dump; do not leave it unattended
even for a few days, since it is potentially
dangerous for children.
3.Information:
This appliance does not contain CFCs (replaced
with R134a) or HFCs (replaced with R600a).
Appliances with Isobutane (R600a):
Isobutane is a natural gas with low
environmental impact. Caution is required,
however, since isobutane is flammable.
Therefore, it is essential to ensure that
refrigerant pipelines are not damaged.
4.Declaration of conformity
•
This appliance is designed to store food and is
manufactured in conformity with European
directive 89/109/CEE, 90/128/CEE and
02/72/CEE.
•
This appliance is designed, manufactured, and
retailed in compliance with:
- the safety objectives of the Low Voltage
Directive 73/23/EEC;
- the protection requirements of the “EMC”
Directive 89/336/EEC amended by Directive
93/68/EEC
- the electrical safety of the appliance can only
be guaranteed if the product is connected to
an approved earth connection.
20
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
Use the refrigerator compartment only for
storing fresh food and beverages and use the
freezer compartment only for storing frozen
food, freezing fresh food and making ice
cubes.
•
After installation, make sure that the
refrigerator is not standing on the power
supply cable.
•
Do not store glass containers with liquids in
the freezer since they may burst.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
•
Before servicing or cleaning the appliance,
unplug it from the mains or disconnect the
electrical power supply.
•
Make sure that your refrigerator is not near a
heat source.
•
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity of
this or any other appliance. The fumes can
create a fire hazard or explosion.
•
To ensure proper ventilation, leave a 10 cm
space above, 3 cm on both sides and 2.5 cm at
the rear of the appliance.
•
Ensure that the vent outlets on the appliance
casing or housing unit are unobstructed in
order to allow correct air circulation.
•
Do not cover or obstruct the air vents of the
appliance.
•
Install and level the refrigerator on a floor strong
enough to take its weight and in an area suitable
for its size and use.
•
Do not use the refrigerator in an area where the
room temperature may fall below 13°C. Install it
in a dry and well ventilated room.
•
Be careful not to damage the floors when you
move the appliance (e.g. parquet flooring).
•
Do not use mechanical devices or any means
other than those recommended by the
manufacturer to speed up the defrosting
process.
•
Do not damage the refrigerant circuit.
•
This appliance is not designed for use by
young children or the infirm.
•
To avoid the risk of children being trapped
and therefore suffocating, do not allow them
to play or hide inside the refrigerator.
•
Do not ingest the contents (non-toxic) of the
ice packs (if provided).
Electrical Connection
•
Electrical connections must be made in
accordance with local regulations.
•
Ensure that the voltage indicated on the
appliance data plate corresponds to the
domestic supply voltage.
• Regulations require that the appliance is
earthed. The Manufacturer declines all
liabilities for injury to persons or damage
to property resulting from failure to
observe these regulations.
•
If the plug and socket are not of the same
type, have the socket replaced by a qualified
electrician.
•
The power cable may only be replaced by an
authorized person.
•
Do not use extension leads or adapters.
21
PRODUCT DESCRIPTION
10
11
15
C
2a
1
7a
2
3a
3
6
8
A. Refrigerator Compartment
1.
Light
2.
Shelves/Shelf area
2a.
Bottle holder (depending on model)
3.
Crisper drawer
3a.
Moisture control
4.
Door trays
5.
Removable bottle holder
6.
Rating plate (at the side of the crisper
drawer)
7.
Can holder
7a.
Multiflow outlets
8.
Crisper drawer divider
9.
Divider
13
14
12
7
9
4
5
B. Freezer Compartment
10.
Ice maker
11.
Freezer shelves
12.
Egg tray
13.
Freezer compartment door
14.
Freezer compartment door trays
15.
Fresh control compartment
C. Control panel
Note:
The number of shelves and shape of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.
DO NOT obstruct the fan intake area with food.
Important: refrigerator/freezer accessories must not be washed in a dishwasher.
22
REFRIGERATOR COMPARTMENT
This appliance is equipped with a no frost system that does not require manual defrosting.
The appliance is also provided with a venti lated system, thanks to which the internal temperature is to all
intents and purposes uniform.
Foods can be arranged on any shelf paying attention not to obstruct the air vents, so that air can circulate.
Optimal performance is obtained at temperatures between +18°C and +43°C.
SWITCHING ON THE APPLIANCE
•
Plug in the appliance.
•
The appliance will switch on automatically
•
The inside light switches on when the refrigerator door is opened
USING THE REFRIGERATOR
•
Adjusting the temperature
For correct operation and optimum storage of food, adjust the temperature in the refrigerator and
freezer compartments separately.
REFRIGERATOR THERMOSTAT
To adjust the temperature in the refrigerator compartment, turn the thermostat knob to the desired
position.
Temperature Type of use
Minimun
Medium
Maximum
•
After being switched on, the refrigerator needs approximately 2 hours to reach the correct
temperature to store a typical volume of food in the refrigerator compartment.
•
Small amounts of food stored
•
The door is seldom opened
•
Normal use
•
Large amount of food stored
•
The door is opened frequently
Storing food in the refrigerator compartment
Position the food as shown in the figure.
A.
Cooked food
B.
Fish, meat
C.
Fruit and vegetables
D.
Bottles
E.
Butter
F.
Dairy products, cheese
To maintain the vitamins, aroma, substance and
freshness of the food to be stored, it is advisable to
wrap food in aluminium foil, cling film or place it in
special freezer containers with lids. This will
prevent odours from mixing.
NOTES
•
•
•
•
•
•
•
:
The space between the shelves and the rear wall must be unobstructed to allow circulation of air.
Do not place food in direct contact with the rear wall of the refrigerator compartment.
Do not place hot food in the refrigerator.
Store liquids in closed containers.
Storing vegetables with a high water content can result in condensation in the crisper drawer: this will
not affect the correct operation of the appliance.
Defrosting of the refrigerator compartment is completely automatic.
The refrigerator can operate at ambient temperatures between +16°C and +43°C.
