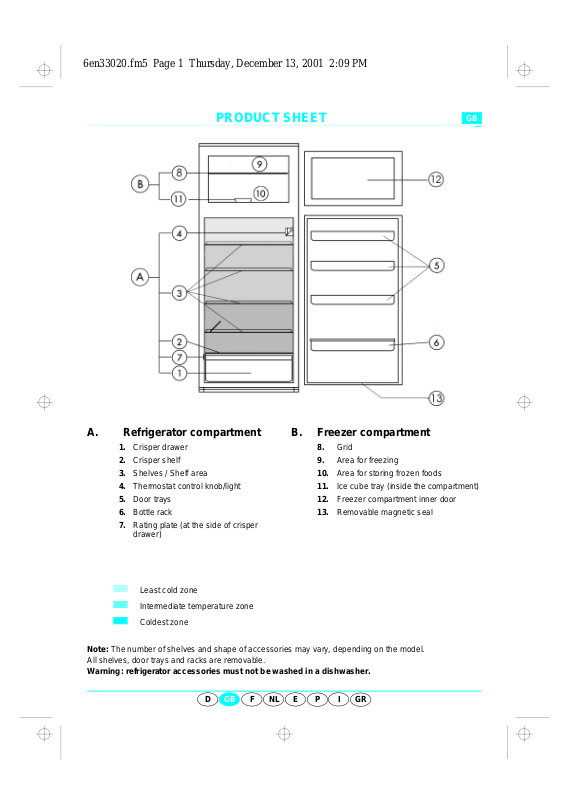

PRODUCT SHEET

A. Refrigerator compartment

Crisper drawer

Crisper shelf

Shelves / Shelf area

Thermostat control knob/light

Door trays

Bottle rack

Rating plate (at the side of crisper drawer)

Least cold zone Intermediate temperature zone Coldest zone

Note:

The number of shelves and shape of accessories may vary, depending on the model.

All shelves, door trays and racks are removable.

Warning: refrigerator accessories must not be washed in a dishwasher.

B. Freezer compartment

Grid

Area for freezing

10.

Area for storing frozen foods

11.

Ice cube tray (inside the compartment)

12.

Freezer compartment inner door

13.

Removable magnetic seal

ID F NL E

6en33020.fm5 Page 2 Thursday, December 13, 2001 2:09 PM

The Refrigerator/Freezer is switched on by means of the t hermostat located inside the refrigerator compartment. The thermostat also serves to adjust the temperature in both the refrigerator and freezer compartments.

Refrigerator/Freezer compartment controls

Thermostat knob

Light switch

Light diffuser

Thermostat control reference

Light bulb (max 15 W)

Thermostat set to z: Off (no refrigeration, no light) Thermostat set to Thermostat set to Thermostat set to

1-3 coldest ambient temperature (10-17°C)

3-5 intermediate ambient temperature (18-31°C) 2-4 least cold ambient temperature (32-38°C)

The average recommended thermostat setting is 3.

The refrigerator can operate at ambient temperatures between +10°C and +38°C. Optimal performance is obtained at temperatures between +16°C and +38°C

Note:

The ambient air temperature, the frequency of door opening and the position of the appliance can affect the internal temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.

Removing the light diffuser

1 - Hold the diffuser as shown and squeeze it slightly 2 - Slide it towards the rear of the appliance.

5019 636 33020

Printed in Italy 12/01
