Whirlpool AMB 865 Schematic

Page 1
SERVICE
Model AMB 865 Version 8528 865 10000 Page
Whirlpool Europe Customer Services
AMB 865

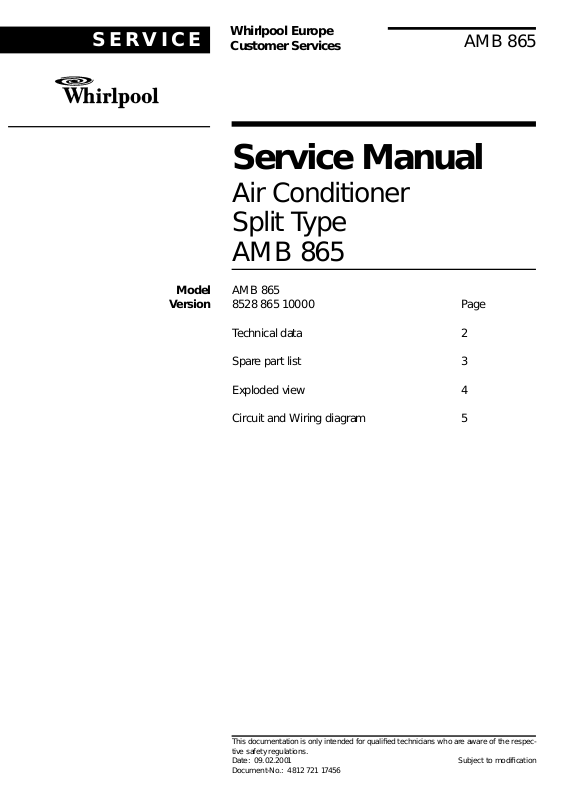

Service Manual
Air Conditioner Split Type AMB 865
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respec­tive safety regulations. Date: 09.02.2001 Subject to modification Document-No.: 4812 721 17456
Page 2
09.02.2001 / Page 2 AMB 865 Whirlpool Europe Doc. No: 4812 721 17456 8528 865 10000 Customer Service
Technical data
SERVICE
Operation type
Cooling / Heating
Dimensions
Indoor - unit
Height 897 mm Width 297 mm Depth 179 mm
Outdoor - unit
Height 800 mm Width 535 mm Depth 268 mm
Weight
Indoor - unit 10 kg / net Outdoor - unit 43 kg / net
Electrical connection
Cooling / Heating Capacity
3500 Watt 12000 BTU / h
Airflow / Evaporator Airvolume
600 m3 / h
Dehumidifying Capacity
1.8 l / h
Noise Level
Indoor - unit 44 dB(A) Outdoor - unit 55 dB(A)
Outdoor IP class
IPX 4
Voltage 220 V Frequency 50 Hz Rated Current 5.9 A
Power Supply
Input (max.) 1500 W
Power Consumption
Cooling / Heating 1260 W
Refrigerant
Type R 22 Quantity 1240 g
Page 3
Whirlpool Europe AMB 865 09.02.2001 / Page 3
SERVICE
Customer Service 8528 865 10000 Doc. No: 4812 721 17456
Spare part list
Model AMB 865 Service No. 852886510000 Version 852886510000
Pos. No. 12NC Code Description
021 0 4812 440 29352 Cabinet 021 1 4812 440 98086 Grille 021 2 4812 440 98084 Insulation 024 0 4812 440 29351 Chassis 033 0 4812 440 69098 Small plate
033 1 4812 440 98085 Sealing plate 034 0 4812 462 29352 Small plate right 034 1 4812 462 28205 Small plate left 034 2 4812 462 28203 Cover control box 065 0 4812 440 98081 Insulation
074 1 4812 530 38034 Insulation 303 0 4812 440 48283 Bracket 320 0 4812 442 29109 Front, panel 402 0 4812 360 38729 Compressor 440 0 4812 361 18324 Motor fan outdoor
440 1 4812 462 28206 Bracket motor stay 443 0 4812 282 68029 Fan 443 1 4812 280 48618 Capacitor motor 443 2 4812 530 29103 Set screw fan 491 0 4812 462 28192 Cover
491 1 4812 290 68242 Terminal Board (2U) 491 2 4812 280 78006 Terminal Board (5PU) 491 3 4812 280 78005 Switch pcb set 521 3 4812 290 68244 Control unit 521 4 4812 452 28151 Control board
Pos. No. 12NC Code Description
910 7 4812 530 78053 Arm, lifting left 910 8 4812 530 78054 Arm, lifting right 910 9 4812 530 78055 Cordwinder 921 1 4812 462 28193 Bearing 993 0 4812 690 28023 Remote control
554 0 4812 271 28473 Thermostat defrost n.shown 556 1 4812 280 78004 Switch 561 0 4812 280 48621 Capacitor compressor 561 1 4812 440 78974 Fixation capacitor band 726 0 4812 462 28194 Cover pipe
726 1 4812 404 48758 Clip pipe 740 0 4812 360 58254 Condenser 741 3 4812 440 29338 Flap air outlet 741 4 4812 440 29339 Flap 741 5 4812 442 29108 Flap air inlet
741 6 4812 404 18158 Lever air deflector 745 0 4812 511 38158 Evaporator 764 0 4812 481 28161 Air clean filter 781 0 4812 530 38029 Pipe 781 1 4812 530 38031 Pipe set
781 2 4812 530 78056 Bolt 781 3 4812 530 38025 Valve (n.shown) 781 4 4812 530 38032 Valve 3 way (n.shown) 781 6 4812 530 38035 Capillary tube assembly 781 7 4812 530 38033 Valve rev. (n.shown)
781 8 4812 530 38028 Valve (n.shown) 781 9 4812 440 29342 Drain strip 900 0 4812 462 28204 Clamp cord clamp 910 0 4812 404 38584 Clamp 910 1 4812 404 38585 Clamp cord
910 2 4812 404 38586 Thermister holder 910 3 4812 404 38587 Thermister assembly 910 4 4812 530 38017 Hose, draining 910 5 4812 530 78051 Arm left 910 6 4812 530 78052 Arm right
Page 4
09.02.2001 / Page 4 AMB 865 Whirlpool Europe Doc. No: 4812 721 17456 8528 865 10000 Customer Service

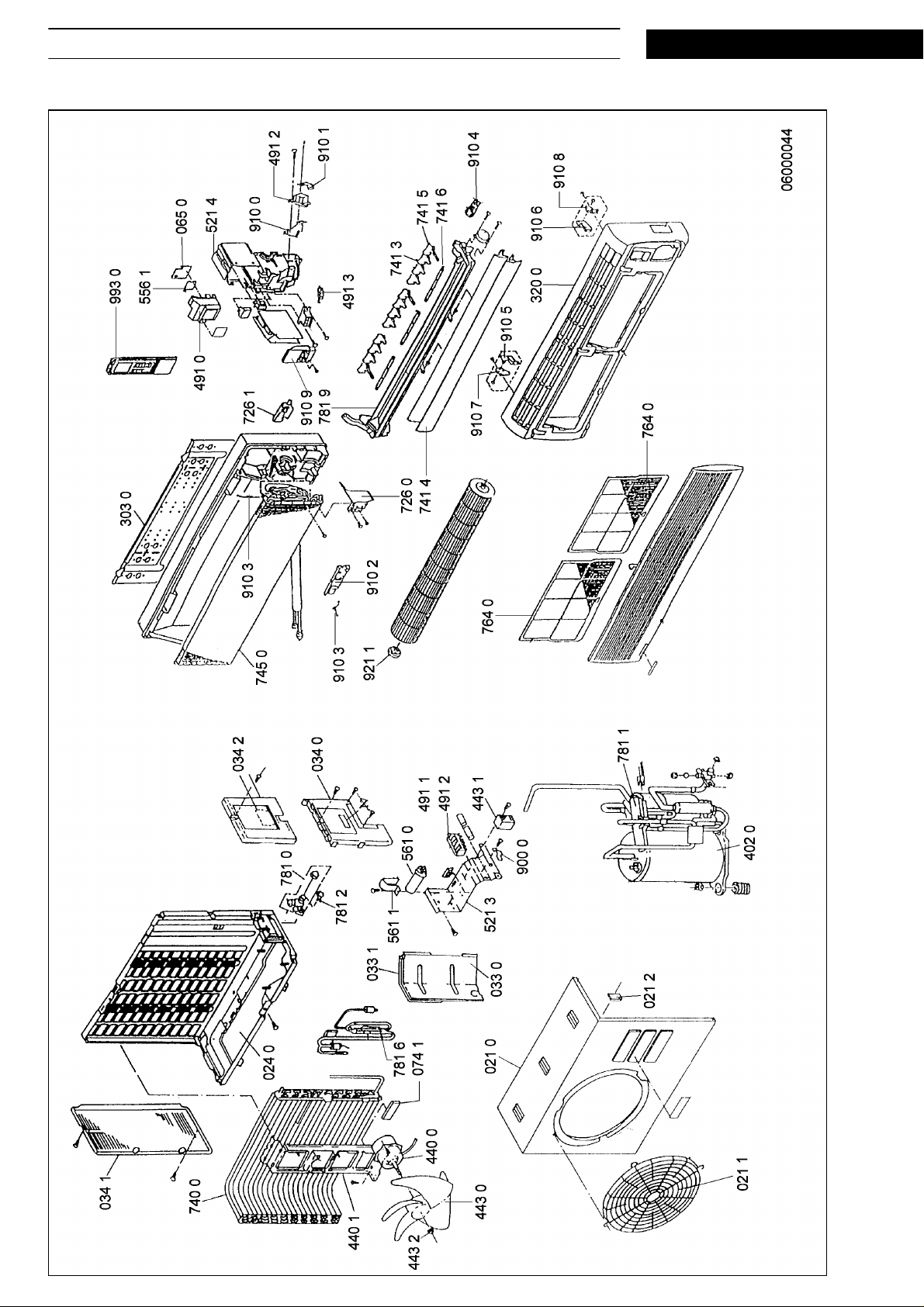

Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe AMB 865 09.02.2001 / Page 5 Customer Service 8528 865 10000 Doc. No: 4812 721 17456

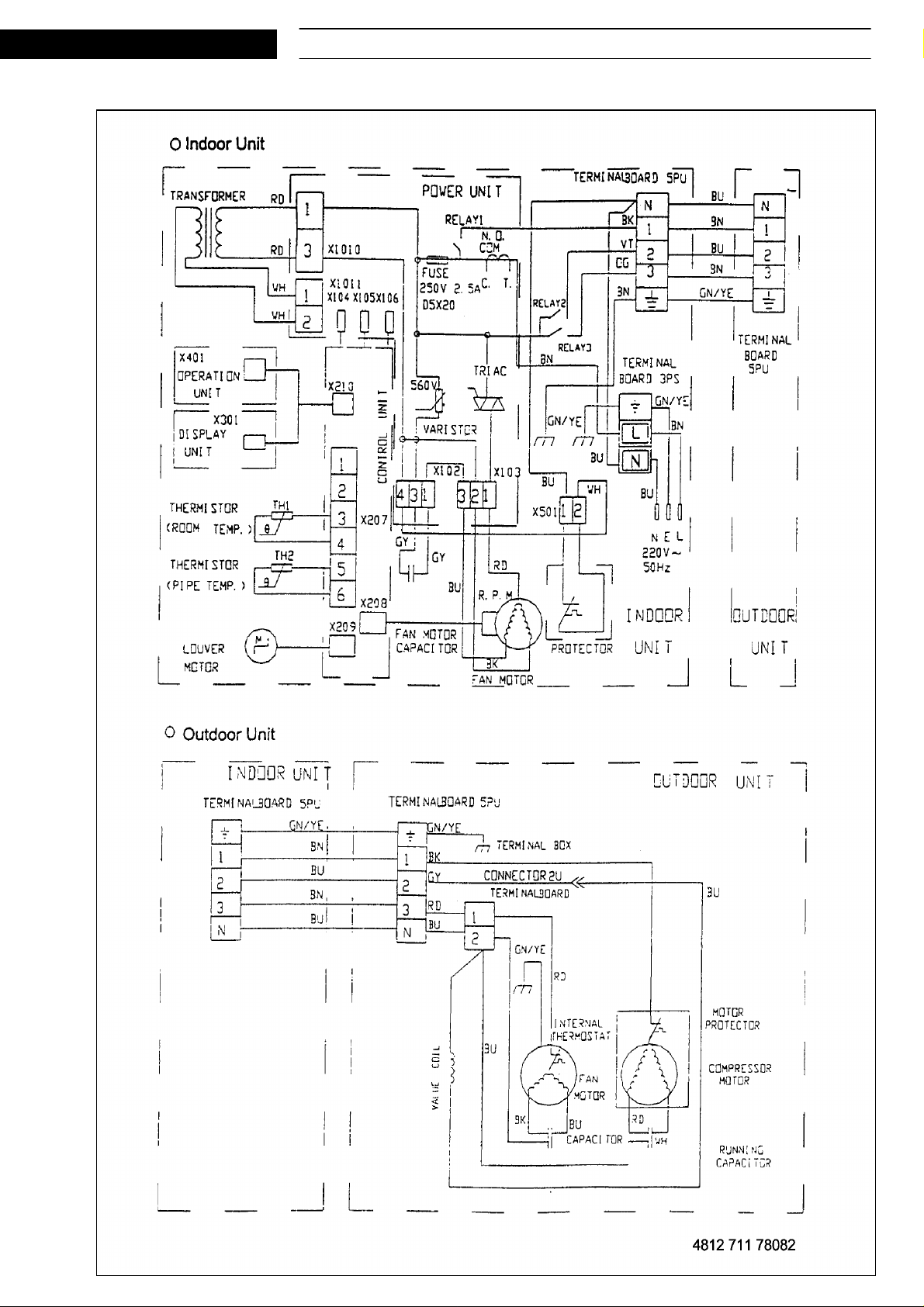

Circuit and Wiring diagram
