SERVICE
Model AKR 951 IX
Version 8578 951 10000 Page
Whirlpool Europe
Customer Services
AKR 951 IX
Service Manual
Cooker hood
AKR 951 IX
Technical data 2
Spare part list 3
Exploded view 4
Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 15.12.2003 Subject to modification
Document-No.: 4812 716 14917
15.12.2003 / Page 2 AKR 951 IX Whirlpool Europe
Doc. No: 4812 716 14917 8578 951 10000 Customer Service
Technical data
SERVICE
Electricity
Voltage 220-240 V
Frequency 50-60 Hz
Power
Total 255 W
Fan motor 175 W
Illumination 4x20 W
Nominal air flow
Speed 1
External exhaustion 280 m3 /h
Recirculation 238 m3 /h
Speed 2
External exhaustion 489 m3 /h
Recirculation 366 m3 /h
Speed 3
External exhaustion 570 m3 /h
Recirculation 408 m3 /h
Distance from cooking area
Electric 650 mm
Gas 750 mm
Air exhaust
Flange ø 150 mm
Note: In the exploded view position numbers that end with a * may not be
used on the product and are missing from the spare part list.
Whirlpool Europe AKR 951 IX 15.12.2003 / Page 3
SERVICE
Customer Service 8578 951 10000 Doc. No: 4812 716 14917
Spare part list
Model AKR 951 IX
Service No. 857895110000
Version 857895110000
Pos. No. 12NC Code Description
001 0 4812 530 48566 Chimney part lower front
001 1 4812 310 88401 Chimney
001 3 4812 310 88402 Chimney
002 0 4812 440 48356 Cover hood
005 3 4812 460 49261 Profile upper chimney
005 4 4812 460 48999 Profile lower chimney
025 3 4812 466 99045 Gasket
071 0 4812 404 78432 Support Motor
071 1 4812 532 38012 Fitting
301 0 4812 310 28176 Unit, push button cpl.
401 0 4812 361 18396 Motor
420 0 4812 120 18015 Capacitor
421 0 4812 121 18254 Filter
493 0 4812 290 68268 Terminal Board
493 1 4812 462 79829 Cover
521 0 4812 214 78453 Unit electrical cpl.
651 0 4819 134 48538 Lamp, halogen cpl.
727 1 4812 515 28098 Impeller
741 3 4819 462 88062 Flap back pressure
743 0 4812 310 88404 Fitting recirculation
762 0 4812 480 58332 Filter grease
765 0 4812 480 48141 Carbon filter DKF 43
765 1 4812 464 18093 Frame carbon filter
910 0 4812 502 18585 Screw glass panel
15.12.2003 / Page 4 AKR 951 IX Whirlpool Europe
Doc. No: 4812 716 14917 8578 951 10000 Customer Service
Exploded view
SERVICE
SERVICE

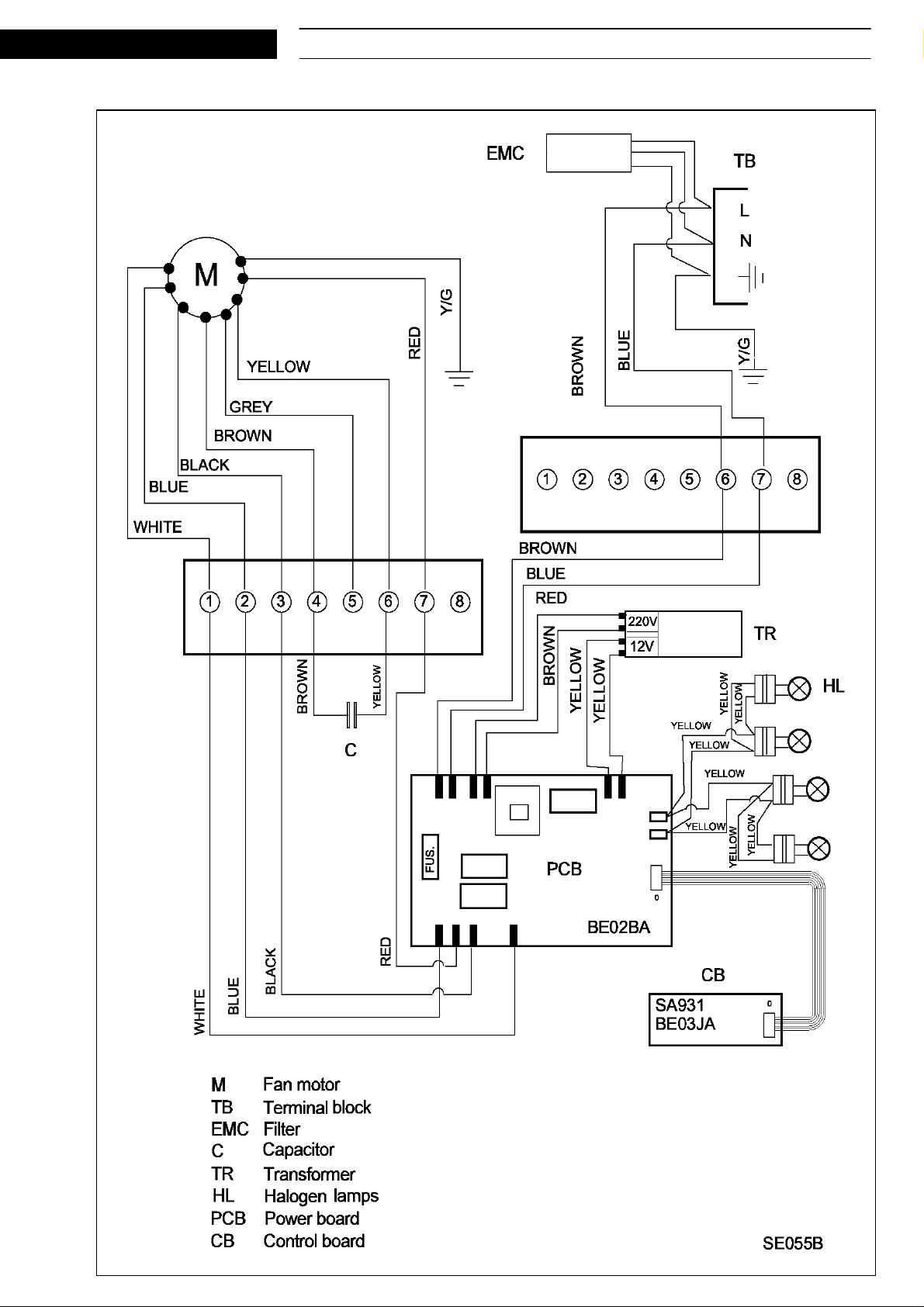

Wiring diagram
Whirlpool Europe AKR 951 IX 15.12.2003 / Page 5
Customer Service 8578 951 10000 Doc. No: 4812 716 14917
