Whirlpool AKM 927/BA, AKM 927/BA/01 PROGRAM CHART

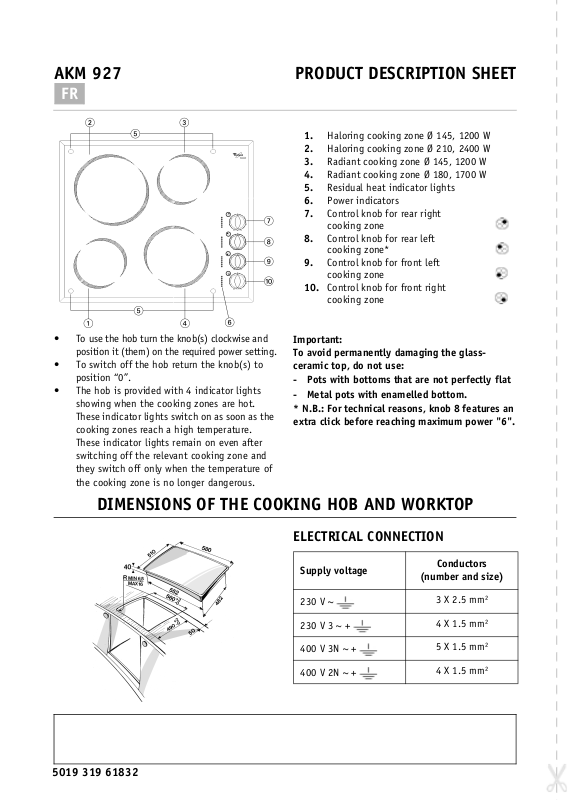

AKM 927	PRODUCT DESCRIPTION SHEET

FR

•To use the hob turn the knob(s) clockwise and position it (them) on the required power setting.

•To switch off the hob return the knob(s) to position “0”.

•The hob is provided with 4 indicator lights showing when the cooking zones are hot. These indicator lights switch on as soon as the cooking zones reach a high temperature. These indicator lights remain on even after switching off the relevant cooking zone and they switch off only when the temperature of the cooking zone is no longer dangerous.

1.Haloring cooking zone Ø 145, 1200 W

2.Haloring cooking zone Ø 210, 2400 W

3.Radiant cooking zone Ø 145, 1200 W

4.Radiant cooking zone Ø 180, 1700 W

5.Residual heat indicator lights

6.Power indicators

7.Control knob for rear right

cooking zone

8.Control knob for rear left

cooking zone*

9.Control knob for front left

cooking zone

10. Control knob for front right cooking zone

Important:

To avoid permanently damaging the glassceramic top, do not use:

-Pots with bottoms that are not perfectly flat

-Metal pots with enamelled bottom.

* N.B.: For technical reasons, knob 8 features an extra click before reaching maximum power "6".

DIMENSIONS OF THE COOKING HOB AND WORKTOP

ELECTRICAL CONNECTION

	Supply voltage		Conductors
			(number and size)
	230	V ~	3 X 2.5 mm2
	230	V 3 ~ +	4 X 1.5 mm2
	400	V 3N ~ +	5 X 1.5 mm2
	400	V 2N ~ +	4 X 1.5 mm2

5019 319 61832
