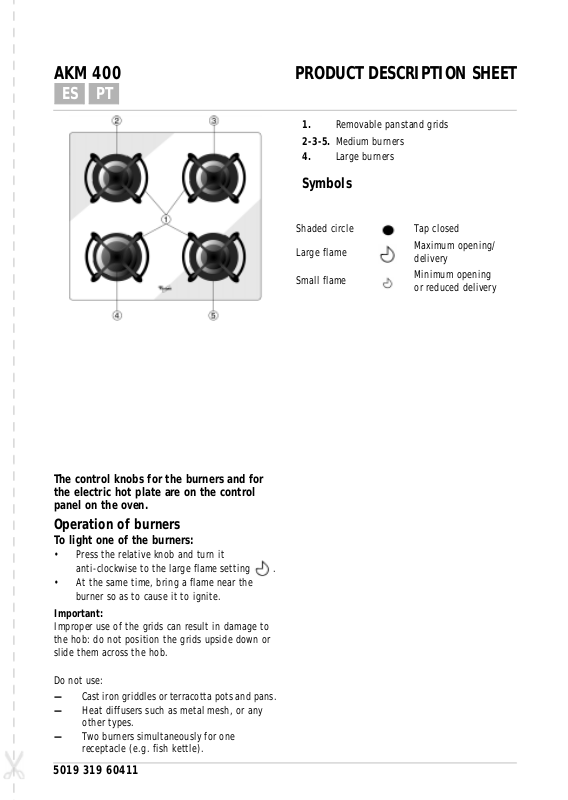

AKM 400 PRODUCT DESCRIPTION SHEET
ES PT
1. Removable panstand grids
2-3-5. Medium burners
4. Large burners
Symbols
Shaded circle Tap closed
Large flame
Small flame
Maximum opening/
delivery
Minimum opening
or reduced delivery
The control knobs for the burners and for
the electric hot plate are on the control
panel on the oven.
Operation of burners
To light one of the burners:
• Press the relative knob and turn it
anti-clockwise to the large flame setting .
• At the same time, bring a flame near the
burner so as to cause it to ignite.
Important:
Improper use of the grids can result in damage to
the hob: do not position the grids upside down or
slide them across the hob.
Do not use:
— Cast iron griddles or terracotta pots and pans.
— Heat diffusers such as metal mesh, or any
other types.
— Two burners simultaneously for one
receptacle (e.g. fish kettle).
5019 319 60411
DIMENSIONS OF COOKING HOB AND WORKTOP
NOTE: In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance.
INJECTORS TABLE CATEGORY II2H3+
Type of gas used
NATURAL GAS
(Methane) G 20
LIQUID
PETROLEUM GAS
(Cylinder) G 30
LIQUID
PETROLEUM GAS
(Cylinder) G 31
Type of gas used
G20 20 mbar
G30 28-30 mbar
G31 37 mbar
Type of
burner
large
medium
large
medium8565
large
medium8565
Appliance
model
4 gas 7.95 757 l/h 15.9
4 gas 7.95 578 g/h 15.9
4 gas 7.95 568 g/h 15.9
Injector
marking
128
94
Rated
heat
capacity
Pcs-kW
3.00
1.65
3.00
1.65
3.00
1.65
Total rated heat
capacity Pcs-kW
Rated
consumption
286 l/h
157 l/h
218 g/h
120 g/h
214 g/h
118 g/h
Reduced
heat
capacity
Pcs-kW
0.60
0.35
0.60
0.35
0.60
0.35
Total rated
consumption
Gas pressure
min. rat. max.
17 20 25
20 28-30 35
25 37 45
Air required
for burning
m
3
/h
