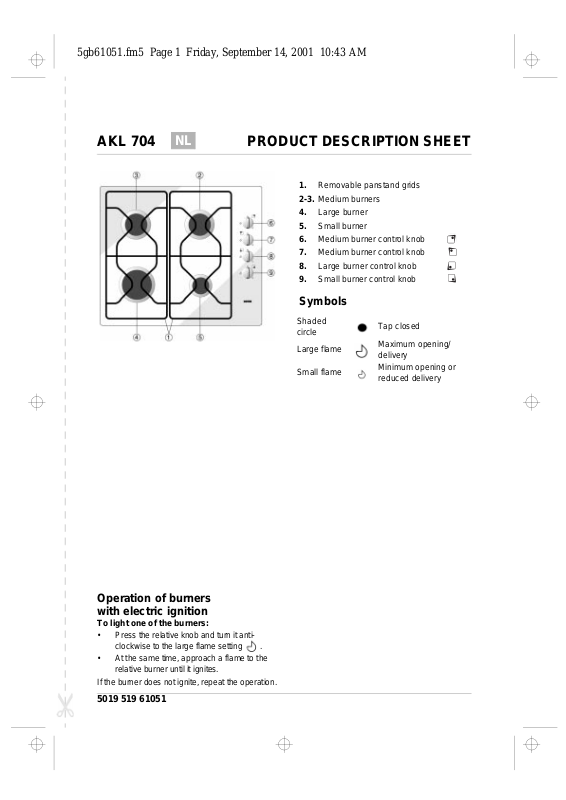

AKL 704 PRODUCT DESCRIPTION SHEET

1. Removable panstand grids 2-3. Medium burners

4. Large burner

5. Small burner

6. Medium burner control knob

7. Medium burner control knob

8. Large burner control knob

9. Small burner control knob

Symbols

Shaded circle

Large flame

Small flame

Tap closed Maximum opening/

delivery Minimum opening or

reduced delivery

Operation of burners with electric ignition

To light one of the burners:

• Press the relative knob and turn it anticlockwise to the large flame setting .

• At the same time, approach a flame to the relative burner until it ignites.

If the burner does not ignite, repeat the operation.

5019 519 61051

5gb61051.fm5 Page 2 Friday, September 14, 2001 10:43 AM

DIMENSIONS OF COOKING HOB AND WORKTOP

NOTES: In case of installation of a hood above the cooktop, please refer to the

hood instructions for the correct distance.

INJECTORS TABLE CATEGORY I2L

Type of gas used

NATURAL GAS (Methane) G 25

Type of gas used

G 25 25 mbar 4 gas 7.30 809 l/h 14.6

Type of burner

large medium small

Appliance model

Injector marking

129

99 78

Rated heat capacity Pcs-kW

3.00

1.65

1.00

Total rated heat capacity Pcs-kW

Rated consumption

332 l/h 183 l/h 111 l/h

Total rated consumption

Reduced heat capacity Pcs-kW

0.60

0.35

Gas pressure

min. rat. max.

20 25 30

Air required for burning
