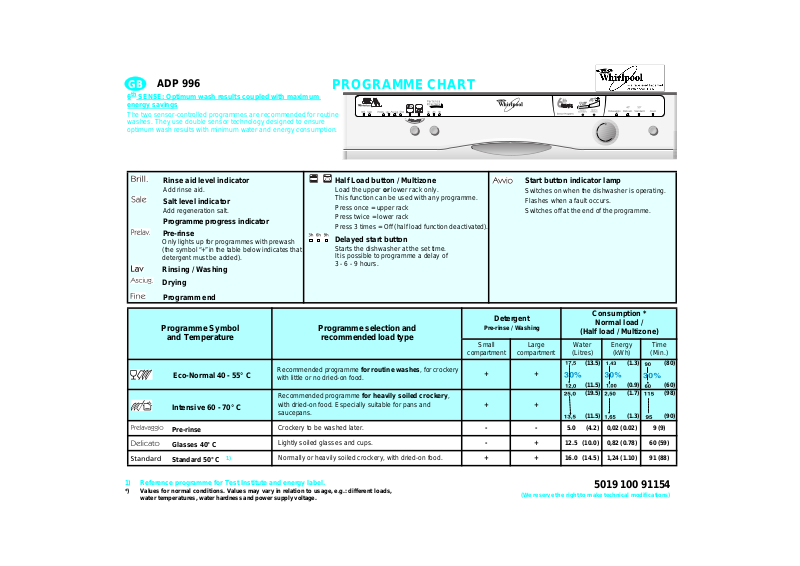

Whirlpool ADP 996 WHM, ADP 996 NBM, ADP 996 GRM PROGRAM CHART

GB ADP 996

PROGRAMME CHART

6th SENSE: Optimum wash results coupled with maximum energy savings

The two sensor-controlled programmes are recommended for routine washes. They use double sensor technology designed to ensure optimum wash results with minimum water and energy consumption.

Rinse aid level indicator

Half Load button / Multizone

Start button indicator lamp

Add rinse aid.

Load the upper or lower rack only.

Switches on when the dishwasher is operating.

Salt level indicator

This function can be used with any programme.

Flashes when a fault occurs.

Press once = upper rack

Add regeneration salt.

Switches off at the end of the programme.

Press twice = lower rack

Programme progress indicator

Press 3 times = Off (half load function deactivated).

Pre-rinse

Delayed start button

Only lights up for programmes with prewash

(the symbol “+” in the table below indicates that

Starts the dishwasher at the set time.

detergent must be added).

It is possible to programme a delay of

Rinsing / Washing

3 - 6 - 9 hours.

Drying

Programm end

Detergent

Consumption *

Programme Symbol

Programme selection and

Normal load /

Pre-rinse / Washing

(Half load / Multizone)

and Temperature

recommended load type

Small

Large

Water

Energy

Time

compartment

compartment

(Litres)

(kWh)

(Min.)

Recommended programme for routine washes, for crockery

(13.5)

(1.3)

(80)

Eco-Normal 40 - 55° C

+

+

with little or no dried-on food.

(11.5)

(0.9)

(60)

Recommended programme for heavily soiled crockery,

(19.5)

(1.7)

(98)

Intensive 60 - 70° C

with dried-on food. Especially suitable for pans and

+

+

saucepans.

(11.5)

(1.3)

(90)

Pre-rinse

Crockery to be washed later.

-

-

5.0

(4.2)

0,02 (0.02)

9 (9)

Glasses 40° C

Lightly soiled glasses and cups.

-

+

12.5

(10.0)

0,82 (0.78)

60 (59)

Standard 50° C 1)

Normally or heavily soiled crockery, with dried-on food.

+

+

16.0

(14.5)

1,24 (1.10)

91 (88)

1)

Reference programme for Test Institute and energy label.

5019 100 91154

*)

Values for normal conditions. Values may vary in relation to usage, e.g.: different loads,

(We reserve the right to make technical modifications)

water temperatures, water hardness and power supply voltage.

Quick Reference Guide

GB

Daily check list

1.Arrange crockery so that items do not touch each other.

2.Load cups at an inclination to facilitate water circulation.

3.In general, place the cutlery in the basket with the handles positioned downwards, but ensure that sharp knives and forks that might cause injury are placed in the basket with the handles positioned upwards.

4.Make sure the water jet can reach all loaded items and that the spray arms rotate freely.

5.Turn on the water supply tap before starting the dishwasher.

Important

•Switch off the dishwasher once the “Start” indicator lamp has switched off. If the dishwasher is turned off during the washing programme, it will start again from the same point in the programme when it is turned back on.

•If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

•If a regeneration salt is to be

added, IMMEDIATELY start a washing programme, in order to eliminate any residual salt.

•Sometimes even when the regeneration salt container is full, the corresponding indicator lamp may illuminate during the first wash cycle.

Upper rack

Crockery holders:

•Down: cups and long-stemmed glasses.

•Raised: plates.

Cutlery holder for long utensils:

•Up: glass holder (gently lift up and release).

•Down: large cutlery (gently lift up).

•Place knives with blades facing downwards.

Glass holder:

•The glass holder can be moved sideways.

•Below: small glasses.

•Above: long-stemmed glasses.

Half load button / Multizone:

If only the upper rack is to be loaded, remove the cutlery basket from the lower rack and place it in the upper one.

Height adjustment:

(The dishwasher is delivered with the upper rack in the top position).

The rack height can also be changed when loaded.

•To lower: pull out the two side handles and gently lower the rack.

•To raise: pull up the two side handles until the rack clicks into place.

•The rack must be level on both sides.

Lower rack

Half load button / Multizone:

Loading the lower rack only: greater washing power, especially for plates and saucepans.

Cutlery basket:

The cutlery basket can be removed to increase available space.

Plate holders:

•The plate holders may be removed to increase available space.

•To remove: pull the handle up.

•To reposition: simply insert in the required position (normal or crosswise).
