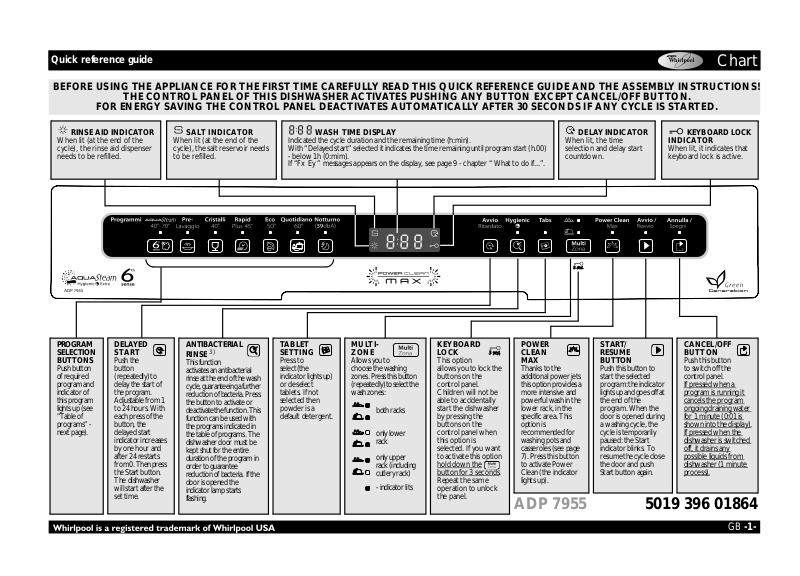

Whirlpool ADP 7955 SL PROGRAM CHART

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS! THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF ANY CYCLE IS STARTED.

RINSE AID INDICATOR

SALT INDICATOR

WASH TIME DISPLAY

DELAY INDICATOR

KEYBOARD LOCK

When lit (at the end of the

When lit (at the end of the

Indicated the cycle duration and the remaining time (h:min).

When lit, the time

INDICATOR

cycle), the rinse aid dispenser

cycle), the salt reservoir needs

With “Delayed start” selected it indicates the time remaining until program start (h.00)

selection and delay start

When lit, it indicates that

needs to be refilled.

to be refilled.

- below 1h (0:mim).

countdown.

keyboard lock is active.

If “Fx Ey ” messages appears on the display, see page 9 - chapter “ What to do if...”.

PROGRAM						DELAYED
SELECTION						START
BUTTONS						Push the
Push button						button
of required						(repeatedly) to
program and						delay the start of
indicator of						the program.
this program						Adjustable from 1
lights up (see						to 24 hours. With
“Table of						each press of the
programs” -						button, the
next page).						delayed start
						indicator increases
						by one hour and
						after 24 restarts
						from0.Thenpress
						the Start button.
						The dishwasher
						will start after the
						set time.

ANTIBACTERIAL

RINSE 3)

This function

activates an antibacterial rinseattheendofthewash cycle,guaranteeingafurther reduction of bacteria. Press the button to activate or deactivatethefunction.This function can be used with the programs indicated in the table of programs. The dishwasher door must be kept shut for the entire duration of the program in order to guarantee reduction of bacteria. If the door is opened the indicator lamp starts flashing.

TABLET	MULTI-
SETTING	ZONE
Press to	Allows you to
select(the	choose the washing
indicatorlightsup)	zones. Press this button
or deselect	(repeatedly)toselectthe
tablets. If not	wash zones:
selected then
powder is a	both racks
default detergent.
	only lower
	rack
	only upper
	rack (including
	cutlery rack)
	- indicator lits

KEYBOARD

POWER

START/

CANCEL/OFF

LOCK

CLEAN

RESUME

BUTTON

This option

MAX

BUTTON

Push this button

allows you to lock the

Thanks to the

Push this button to

to switch off the

buttons on the

additional power jets

start the selected

control panel.

control panel.

thisoptionprovidesa

program:theindicator

If pressed when a

Children will not be

more intensive and

lightsupandgoesoffat

program is running it

able to accidentally

powerful wash in the

the end of the

cancels the program

start the dishwasher

lower rack, in the

program. When the

ongoing draining water

by pressing the

specific area. This

door is opened during

for 1 minute (0:01 is

buttons on the

option is

a washing cycle, the

shown into the display).

control panel when

recommended for

cycle is temporarily

If pressed when the

this option is

washing pots and

paused: the Start

dishwasher is switched

selected. If you want

casseroles (see page

indicator blinks. To

off, it drains any

to activate this option

7). Press this button

resumethecycleclose

possible liquids from

hold down the

to activate Power

the door and push

dishwasher (1 minute

button for 3 seconds.

Clean (the indicator

Start button again.

process).

Repeat the same

lights up).

operation to unlock

the panel.

ADP 7955

5019

396 01864

GB -1-

	Quick reference guide								Chart
			Table of programs			Deter-		Consumption
				Available
	P	Programs			Loading instructions	gent	Litres	kWh	Minutes 1)
				options
					Soaking or hand pre-treatment is no longer needed on
				Delay	any kind of items. Steam is used to soften soil and its
					action is particularly effective on coffee, tea and lipstick
	1	Aqua Steam 40-70°C		Multizone	stain on glasses and cups. Furthermore, thanks to the	X	7-14	0.99-1.80	70-185
				Antibacterial rinse
				Power Clean	combination with 6th Sense, optimization of time,
					energy and water is guaranteed because it adapts the
					washing cycle to the level of soil.
	2	Pre-Wash	cold	Delay	Crockery to be washed later.	—	4.0	0.03	14
				Multizone
	3	Glasses	40°C	Delay	Light soiling, for example glasses and cups.	X	10.0	0.85	100
				Multizone
	4	Quickwash	45°C	Delay	Lightly soiled crockery, with no dried-on food.	X	11.0	0.80	30
				Multizone
		Eco 2)		Delay
	5		50°C	Multizone	Normally soiled crockery.	X	11.0	0.98	150
				Antibacterial rinse
				Power Clean
	6	Daily	60°C	Delay	Normally to heavily soiled crockery.	X	13.0	1.25	120
				Multizone
				Antibacterial rinse
	7	Overnight	55°C	Delay	Normally soiled crockery, gentle and quiet thanks	X	13.0	1.20	290
				Multizone	to the lower spray pressure (39dbA).

1)Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2)Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

3)The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.

GB -2-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10spray arms

Water hardness should be set only before the first wash or if water hardness has been changed

Water hardness level is factory set for mediumhard water (level 4).

Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.

-Press and hold together Eco Program and CANCEL/Off buttons for minimum 3 seconds.

-The current water hardness setting will be visible on the display.

-Press the Eco Program button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press of the start button will set the level back to 1).

-Wait 30 seconds (control panel switches off) or press Start/Resume button to save setting.

	1. Ask your water supply company what the water hardness is...						2. ...enter this value	Suggestions for detergent use
							on your dishwasher
	German		French		English	Water hardness	Insert value is shown	Gel or Powder	Tablets
	degrees °dH		degrees °fH		degrees °eH	level	in the display	(rinse aid and salt)
	0	- 5	0	- 9	0 - 6.3	Soft	1
	6 - 10		10	- 18	7 - 12.6	Medium	2
	11	- 15	19	- 27	13.3 - 18.9	Average	3	go to step 1
	16	- 21	28	- 37	19.6 - 25.9	Medium-hard	4		if water is
								(see “Daily
								check”)	HARD extra salt
	22	- 28	38	- 50	26.6 - 35	Hard	5
									needs to be
	29	- 35	51	- 63	35.7 - 44.1	Very hard	6		added
									(go to step 1,
	36	- 60	64 - 107		44.8 - 74.9	Extremely hard	7
									“Daily check”)

At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).

Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

1	Visual indicator
	(depending
	on the model).
	Unscrew cap.

Fill the salt reservoir with water	Add salt (never add detergent!)
before the first wash only.	min. 1.5 kg/max. 2 kg

Screw on the cap. Salt residual around the cap need to be removed. Some salt reservoir have a level indicator integrated in the cap (see below how to check).

		(depending on the model)
	The salt level indicator lamp may remain lit Salt indicator on the control panel		Salt indicator on the salt reservoir cap
	at the end of several wash cycles. If the	The indicator lamp lights up when SALT	orange:	clear: NEEDS TO
	water hardness level falls within category
		NEEDS TO BE ADDED.	OK.	BE ADDED
	(soft), no salt is required.

GB -3-

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

2	Visual
	indicator
	If required,
	open the
	cover B	Add rinse
	(press the	aid to the
	dedicated	max. line
	button).	~150 ml

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Check the rinse aid indicator to check the level into the dispenser.

	(depending on the model)
	Rinse aid indicator on the control panel	Rinse aid indicator on the dispenser
	The indicator lamp lights up when	dark: OK.	clear: NEEDS TO BE ADDED
	RINSE AID NEEDS TO BE ADDED.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations		Daily use
Open the cover A	Insert detergent: Tablet / powder / liquid	Shut the cover
(press the dedicated button).	into the big chamber.	by pressing dedicated ribs.
3	Only fill the	Use only one tablet per one cycle,
	detergent	only placed in detergent
	dispenser prior to	dispenser.
	starting a wash
	program.	All types of tablets can be used,
		but for 2 in 1 type adding of salt is
		mandatory.

GB -4-
