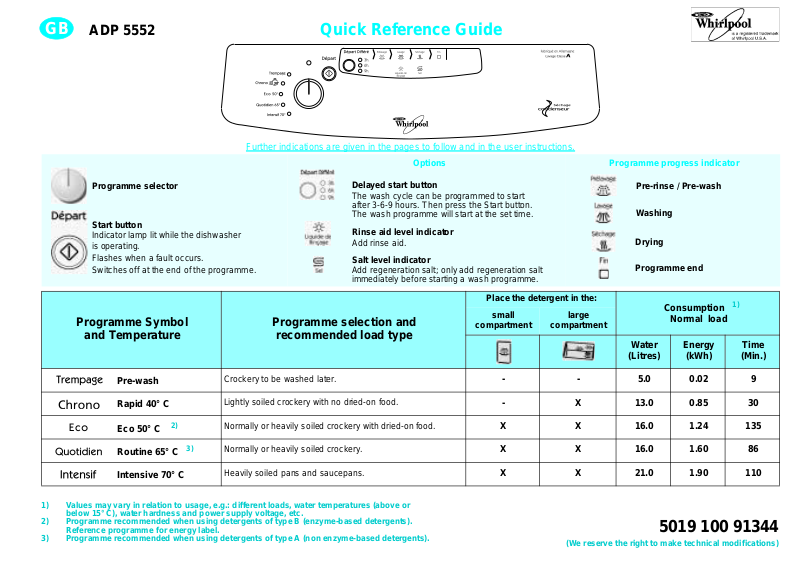

Whirlpool ADP 5552 BR, ADP 5552 SIL, ADP 5552 WH PROGRAM CHART
GB
ADP 5552
Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
Options
Programme progress indicator
Programme selector
Start button
Indicator lamp lit while the dishwasher
is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme Symbol
and Temperature
Pre-wash
Rapid 40° C
Eco 50° C
Routine 65° C
Intensive 70° C
1) Values may vary in relation to usage, e.g.: different loads, water temperatures (above or
below 15° C), water hardness and power supply voltage, etc.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
2)
3)
Crockery to be washed later.
Lightly soiled crockery with no dried-on food.
Normally or heavily soiled crockery with dried-on food.
Normally or heavily soiled crockery.
Heavily soiled pans and saucepans.
Programme selection and
recommended load type
Delayed start button
The wash cycle can be programmed to start
after 3-6-9 hours. Then press the Start button.
The wash programme will start at the set time.
Rinse aid level indicator
Add rinse aid.
Salt level indicator
Add regeneration salt; only add regeneration salt
immediately before starting a wash programme.
Pre-rinse / Pre-wash
Washing
Drying
Programme end
Place the detergent in the:
small
compartment
- - 5.0 0.02 9
- X 13.0 0.85 30
X X 16.0 1.24 135
X X 16.0 1.60 86
X X 21.0 1.90 110
large
compartment
(Litres)
Water
Consumption
Normal load
Energy
(kWh)
5019 100 91344
(We reserve the right to make technical modifications)
1)
Time
(Min.)
C
D
How to use the dishwasher
1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the
programme selector knob is turned.
One of the programme indicator
lamps will switch on.
3. Turn the selector knob to select the
desired programme.
indicator lamp lights up.
select options (if supplied).
4. Press the Start button to start the
selected programme.
indicator lamp will light up.
the programmed data cannot be
altered by turning the programme
selector knob.
once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the programme
selected, press the Start button for
about 5 seconds. The Start
indicator lamp will switch off.
Select a new programme and
press the Start button.
if the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the wash
cycle from where it was interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and
the End indicator lamp (if fitted)
lights up
(for about 30 min.)
The corresponding
If required,
The Start
Once set,
.
6. Once the Start indicator lamp has
switched off, turn the programme
selector knob to the initial position to
switch off the dishwasher.
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
All the

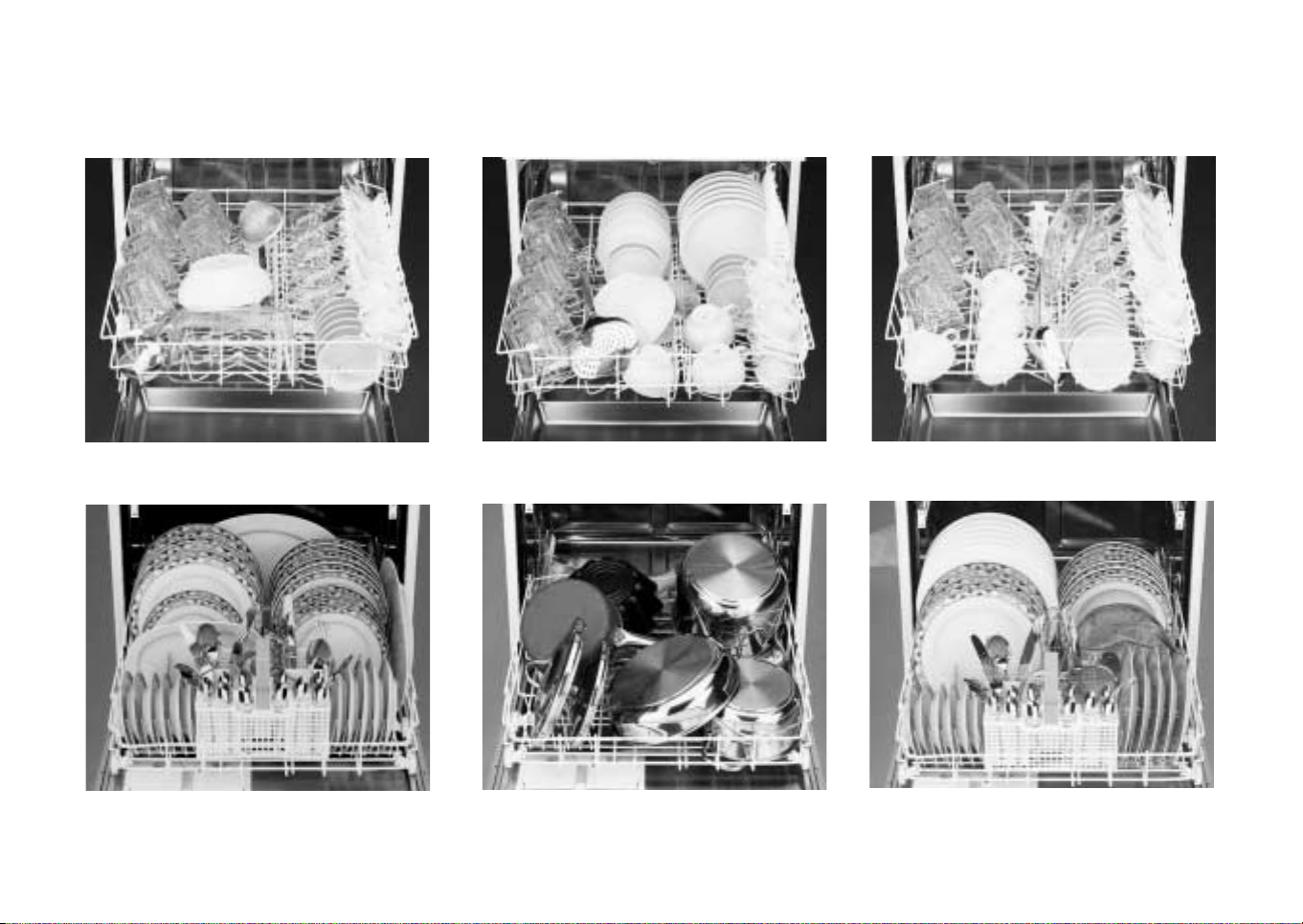

Upper rack
Rack height adjustment:
(The dishwasher is delivered with the
upper rack in the top position).
The rack height can also be changed
when loaded.
Upper and lower rack
• To lower: pull out the
handles and gently lower the rack.
• To raise: pull up the
until the rack clicks into place.
• The rack must be level on both
sides.
Crockery holders:
• Down: cups and long-stemmed
glasses.
•
Up: plates.
Glass holder:
side
two
side handles
two
Lower rack
A
A
C
Plate holders:
•(A) May be lowered to increase
available space.
Cutlery basket:
• The cutlery basket (C) can
be removed to increase
available space.
• Some models are provided
with a grid (D) that can be fitted
onto the cutlery basket.
Please read the user instructions carefully.
