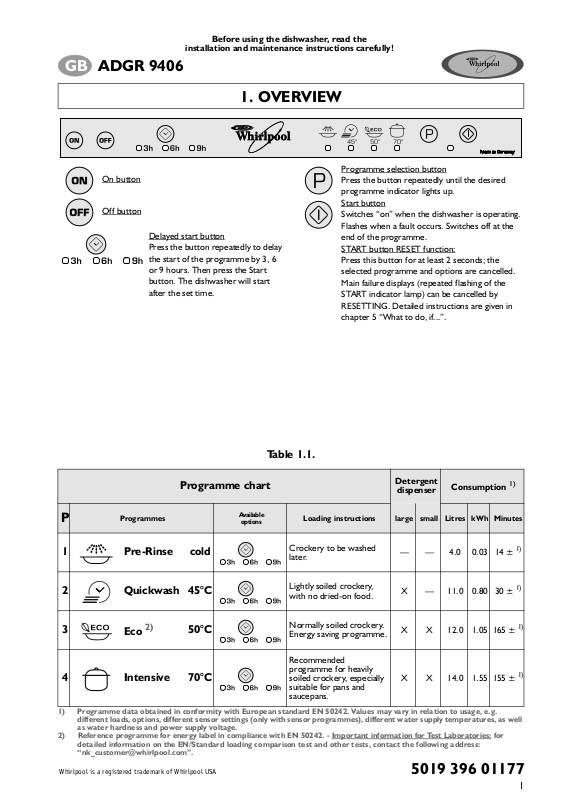

Whirlpool ADGR 9406 PROGRAM CHART
ADGR 9406
GB
Before using the dishwasher, read the
installation and maintenance instructions carefully!
1. OVERVIEW
On button
Off button
Delayed start button
Press the button repeatedly to delay
the start of the programme by 3, 6
or 9 hours. Then press the Start
button. The dishwasher will start
after the set time.
Table 1.1.
Programme chart
Programme selection button
Press the button repeatedly until the desired
programme indicator lights up.
Start button
Switches “on” when the dishwasher is operating.
Flashes when a fault occurs. Switches off at the
end of the programme.
START button RESET function:
Press this button for at least 2 seconds; the
selected programme and options are cancelled.
Main failure displays (repeated flashing of the
START indicator lamp) can be cancelled by
RESETTING. Detailed instructions are given in
chapter 5 “What to do, if...”.
Detergent
dispenser
Consumption
1)
P
Programmes
1 Pre-Rinse cold
2 Quickwash 45°C
3
Eco
2)
50°C
4 Intensive 70°C
1) Programme data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.
different loads, options, different sensor settings (only with sensor programmes), different water supply temperatures, as well
as water hardness and power supply voltage.
2) Reference programme for energy label in compliance with EN 50242. - Important information for Test Laboratories:
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA
Available
options
Loading instructions large small Litres kWh Minutes
Crockery to be washed
later.
Lightly soiled crockery,
with no dried-on food.
Normally soiled crockery.
Energy saving programme.
Recommended
programme for heavily
soiled crockery, especially
suitable for pans and
saucepans.
— — 4.0 0.03 14 ±
X — 11.0 0.80 30 ±
X X 12.0 1.05 165 ±
X X 14.0 1.55 155 ±
5019 396 01177
1)
1)
1)
1)
for
1
