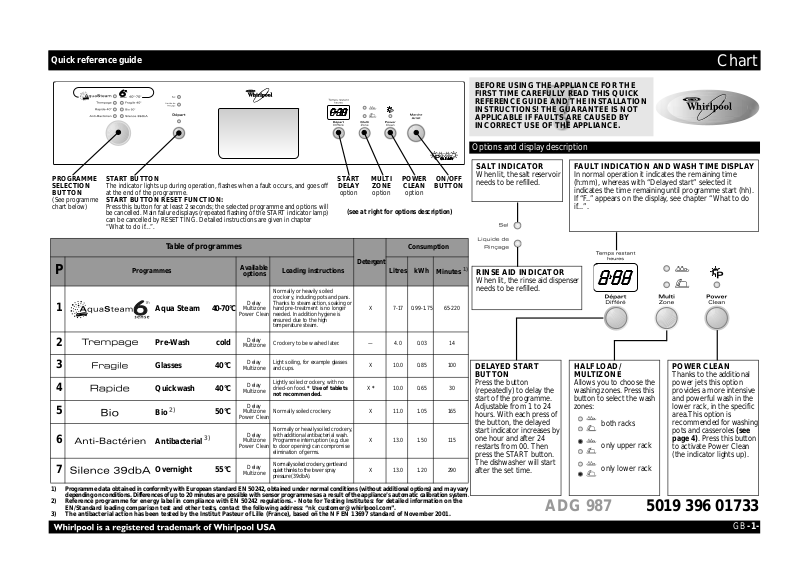

Quick reference guide |
Chart |
PROGRAMME |
START BUTTON |
SELECTION |
The indicator lights up during operation, flashes when a fault occurs, and goes off |
BUTTON |
at the end of the programme. |
(See programme |
START BUTTON RESET FUNCTION: |
chart below) |
Press this button for at least 2 seconds; the selected programme and options will |
|
be cancelled. Main failure displays (repeated flashing of the START indicator lamp) |
|
can be cancelled by RESETTING. Detailed instructions are given in chapter |
|
“What to do if...”. |
START |
MULTI |
POWER |
ON/OFF |
DELAY |
ZONE |
CLEAN |
BUTTON |
option |
option |
option |
|
(see at right for options description)
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME CAREFULLY READ THIS QUICK
REFERENCE GUIDE AND THE INSTALLATION
INSTRUCTIONS! THE GUARANTEE IS NOT
APPLICABLE IF FAULTS ARE CAUSED BY
INCORRECT USE OF THE APPLIANCE.
Options and display description
SALT INDICATOR |
|
FAULT INDICATION AND WASH TIME DISPLAY |
|
When lit, the salt reservoir |
|
In normal operation it indicates the remaining time |
|
needs to be refilled. |
|
(h:mm), whereas with “Delayed start” selected it |
|
|
|
|
indicates the time remaining until programme start (hh). |
|
|
|
If “F..” appears on the display, see chapter “What to do |
|
|
|
if...”. |
|
|
|
|
|
|
|
|
|
|
|
Table of programmes |
|
|
|
Consumption |
|
|||
|
|
|
|
|
|
|
Detergent |
|
|
|
|
P |
|
|
Programmes |
|
Available |
Loading instructions |
Litres |
kWh |
Minutes |
1) |
|
|
|
|
|
||||||||
|
|
|
options |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normally or heavily soiled |
|
|
|
|
|
|
|
|
|
|
|
crockery, including pots and pans. |
|
|
|
|
|
1 |
|
|
Aqua Steam |
40-70°C |
Delay |
Thanks to steam action, soaking or |
|
|
|
|
|
|
|
Multizone |
hand pre-treatment is no longer |
X |
7-17 |
0.99-1.75 |
65-220 |
|
|||
|
|
|
|
|
Power Clean |
needed. In addition hygiene is |
|
|
|
|
|
|
|
|
|
|
|
ensured due to the high |
|
|
|
|
|
|
|
|
|
|
|
temperature steam. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
Pre-Wash |
cold |
Delay |
Crockery to be washed later. |
— |
4.0 |
0.03 |
14 |
|
|
|
Multizone |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
Glasses |
40°C |
Delay |
Light soiling, for example glasses |
X |
10.0 |
0.85 |
100 |
|
|
|
Multizone |
and cups. |
|
|||||||
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
Quickwash |
40°C |
Delay |
Lightly soiled crockery, with no |
|
|
|
|
|
|
|
dried-on food. * Use of tablets |
X * |
10.0 |
0.65 |
30 |
|
||||
|
|
Multizone |
|
||||||||
|
|
|
|
|
|
not recommended. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
Bio 2) |
50°C |
Delay |
|
|
|
|
|
|
|
|
Multizone |
Normally soiled crockery. |
X |
11.0 |
1.05 |
165 |
|
|||
|
|
|
|
|
Power Clean |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Delay |
Normally or heavily soiled crockery, |
|
|
|
|
|
6 |
|
|
Antibacterial 3) |
|
with additional antibacterial wash. |
|
|
|
|
|
|
|
|
|
Multizone |
Programme interruption (e.g. due |
X |
13.0 |
1.50 |
115 |
|
||
|
|
|
|
|
Power Clean |
to door opening) can compromise |
|
|
|
|
|
|
|
|
|
|
|
elimination of germs. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
Overnight |
55°C |
Delay |
Normally soiled crockery, gentle and |
|
|
|
|
|
|
|
Multizone |
quiet thanks to the lower spray |
X |
13.0 |
1.20 |
290 |
|
|||
|
|
pressure (39 dbA). |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.
2)Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
3)The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.
RINSE AID INDICATOR
When lit, the rinse aid dispenser needs to be refilled.
DELAYED START BUTTON
Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time.
HALF LOAD/
MULTIZONE
Allows you to choose the washing zones. Press this button to select the wash zones:
both racks
only upper rack
only lower rack
POWER CLEAN
Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area.This option is recommended for washing pots and casseroles (see page 4). Press this button to activate Power Clean (the indicator lights up).
ADG 987 5019 396 01733
GB -1-
How to set detergent type: powder/gel/tablet (if option is available) |
First time use |
In order to always ensure the best cleaning results, you NEED to set:
DETERGENT type and WATER HARDNESS.
1. Select 3rd programme |
2. Press START button |
3a. Check your |
3b....and set it on your dishwasher |
4. Remember to use salt and rinse |
5. Switch off and switch on |
(see Table of programmes |
for 7 seconds |
detergent type... |
using the START button |
aid when needed (as indicated |
again to save setting |
- page 1) |
|
|
(as per table below) |
below) |
|
Dishwasher models
Detergent |
model without |
|
|
|
|
types |
model with display |
|
|
||
|
display |
|
|
||
|
|
|
|
||
Powder or gel |
3h 6h 9h |
no symbol |
add salt |
add rinse aid |
|
(factory setting) |
|||||
|
|
|
|
||
Tablet 2 in 1 |
|
|
add salt |
rinse aid |
|
Tablet 3 in 1 |
|
|
|
|
|
|
|
|
salt |
rinse aid |
|
Tablet All in 1 |
|
|
|
|
For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10spray arms
How to set water hardness
|
Switch on the appliance |
|
- Select the 2nd programme “P2” - consult the table in the Programme Chart. |
* only before the first wash or if the |
- Press the START button for at least 5 seconds until the START indicator lamp flashes. |
water hardness has been changed |
- The water hardness setting is shown on the display (if present) or the START button flashes. |
|
- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again. |
|
- The appliance must be switched off to memorise the new setting. |
|
|
1. Ask your water supply |
|
|
|
|
|||
company what the water |
2. ...enter this value on your dishwasher |
Suggestions for detergent use |
|||||
hardness is... |
|
|
|
|
|||
French |
Water |
Dishwasher with |
Dishwasher without |
Gel or Powder |
|
||
display: insert value |
display: count START |
Tablets |
|||||
degrees °fH |
hardness |
(rinse aid and salt) |
|||||
in the display |
button led flashes |
|
|||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
0 |
- 9 |
Soft |
1 |
1x |
go to step 2 |
go to step 3 |
|
|
|
|
|
|
|
|
|
10 |
- 18 |
Medium |
2 |
2x |
|
go to step 3 |
|
|
|
|
|
|
|
||
19 |
- 27 |
Average |
3 |
3x |
|
||
|
|
||||||
|
|
|
|
|
|
|
|
28 |
- 37 |
Medium-hard |
4 |
4x |
go to step 1 |
|
|
|
|
|
|
|
|
||
38 |
- 50 |
Hard |
5 |
5x |
if extra salt is needed go |
||
|
|||||||
|
|
|
|
|
|
||
51 |
- 63 |
Very hard |
6 |
6x |
|
to step 1 and then 3 |
|
|
|
||||||
|
|
|
|
|
|
||
64 - 107 |
Extremely hard |
7 |
7x |
|
|
||
|
|
|
|
|
|
|
|
Water hardness level is factory set for medium hard water (a number “4” is shown on the display or the START indicator lamp flashes 4 times).
Even if you use tablets which include salt, you must still add salt since such detergents are not effective enough at softening hard water.
GB -2-
Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)
Daily check
1 |
Visual indicator |
Fill the salt |
Add salt |
|
(depending |
reservoir with |
(never add |
|
detergent!). |
||
|
on model). |
water before the |
|
|
min. 1.5 kg |
||
|
Unscrew cap. |
first wash only. |
|
|
max. 2 kg |
||
|
|
|
Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.
The salt level indicator lamp may remain lit for the duration of several wash cycles. If the |
Salt indicator |
The indicator lamp on the control panel |
|
|
|
(depending on |
lights up when SALT NEEDS TO BE |
orange: OK. |
clear: NEEDS TO BE ADDED |
||
water hardness level falls within category (soft), no salt is required. |
|||||
the model) |
ADDED. |
|
|
||
|
|
|
Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator
2 |
Visual |
Add rinse aid |
|
to max. |
|||
indicator B |
|||
line ~100 ml |
|||
|
If required, open the cover (press lever).
The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the lever to open the cover. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.
Rinse aid indicator (depending on model)
The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE |
dark: OK. |
clear: NEEDS TO BE ADDED |
|
ADDED. |
|||
|
|
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.
Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations.
3 |
Tablet / gel / powder |
Only fill the |
|
Open the cover A |
detergent dispenser |
(press lever). |
prior to starting a |
|
wash programme. |
Daily use
Use only one tablet per cycle, placed in the detergent dispenser.
GB -3-
