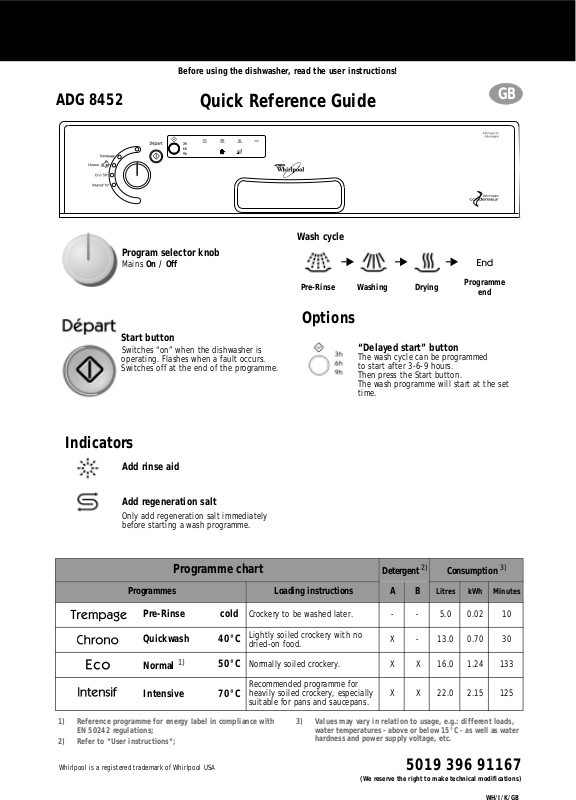

Whirlpool ADG 8452 Quick Reference Guide

Before using the dishwasher, read the user instructions!

ADG 8452

Quick Reference Guide

Program selector knob

On / Off

Mains

Start button

Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.

Wash cycle

Pre-Rinse Washing Drying

Options

“Delayed start” button

The wash cycle can be programmed
to start after 3-6-9 hours.
Then press the Start button.
The wash programme will start at the set
time.

GB

Programme

end

Indicators

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately
before starting a wash programme.

Programme chart

Programmes Loading instructions A B

Pre-Rinse cold

Quickwash 40°C

Normal

1)

Intensive 70°C

1) Reference programme for energy label in compliance with
EN 50242 regulations;

2) Refer to “User instructions“;

Whirlpool is a registered trademark of Whirlpool USA

Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no

dried-on food.
Normally soiled crockery. X X 16.0 1.24 133

50°C

Recommended programme for
heavily soiled crockery, especially
suitable for pans and saucepans.

Detergent

3) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15°C - as well as water
hardness and power supply voltage, etc.

2)

Consumption

Litres kWh Minutes

X - 13.0 0.70 30

X X 22.0 2.15 125

3)

5019 396 91167

(We reserve the right to make technical modifications)

WH/I/K/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Switch on the appliance

How to fill the detergent

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Close the dishwasher door,

turn on the water tap

Select a programme

Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).

Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.

Mechanical indicator lamp C.
Electric indicator on control panel (if provided).

On models with water softener
system only.

Mechanical indicator lamp D. Electric
indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

Select the desired programme.
The corresponding indicator lamp comes on.

AB

C

Select options

Press the Start button

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

If necessary (and if provided) the corresponding indicator lamp lights up.

The selected programme is
then memorised (even in the
event of power failure).

Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

“Change programme”

Press the START button for 2 sec. until
the Start indicator lamp switches off;

Select another programme and
press the START button again.

- Only open the dishwasher if necessary
(Warning: beware of hot steam).

- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.

WH/II/K/GB
