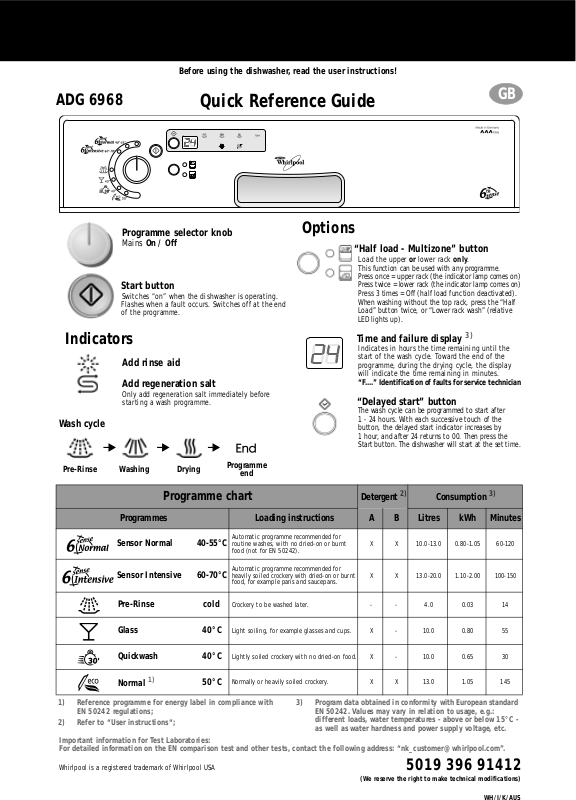

Before using the dishwasher, read the user instructions!
ADG 6968 |
|
Quick Reference Guide |
GB |
||
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Programme selector knob
Mains On / Off
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before starting a wash programme.
Wash cycle
Options
“Half load - Multizone” button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack (the indicator lamp comes on) Press twice = lower rack (the indicator lamp comes on) Press 3 times = Off (half load function deactivated).
When washing without the top rack, press the “Half Load” button twice, or “Lower rack wash” (relative LED lights up).
Time and failure display 3)
Indicates in hours the time remaining until the start of the wash cycle. Toward the end of the programme, during the drying cycle, the display will indicate the time remaining in minutes.
“F....” Identification of faults for service technician
“Delayed start” button
The wash cycle can be programmed to start after 1 - 24 hours. With each successive touch of the button, the delayed start indicator increases by 1 hour, and after 24 returns to 00. Then press the
Start button. The dishwasher will start at the set time.
Pre-Rinse |
Washing |
Drying |
Programme |
|
end |
||||
|
|
|
Programme chart |
Detergent 2) |
Consumption 3) |
|||||
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
|
|
|
|
|
|
|
|
Sensor Normal |
40-55°C |
Automatic programme recommended for |
|
|
|
|
|
routine washes, with no dried-on or burnt |
X |
X |
10.0-13.0 |
0.80-1.05 |
60-120 |
||
|
|
food (not for EN 50242). |
|
|
|
|
|
|
|
|
|
|
|
|
|
Sensor Intensive |
60-70°C |
Automatic programme recommended for |
|
|
|
|
|
heavily soiled crockery with dried-on or burnt |
X |
X |
13.0-20.0 |
1.10-2.00 |
100-150 |
||
|
|
food, for example pans and saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Pre-Rinse |
cold |
Crockery to be washed later. |
- |
- |
4.0 |
0.03 |
14 |
|
|
|
|
|
|
|
|
Glass |
40°C |
Light soiling, for example glasses and cups. |
X |
- |
10.0 |
0.80 |
55 |
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no dried-on food. |
X |
- |
10.0 |
0.65 |
30 |
|
|
|
|
|
|
|
|
Normal 1) |
50°C |
Normally or heavily soiled crockery. |
X |
X |
13.0 |
1.05 |
145 |
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions“;
3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 91412 |
|
(We reserve the right to make technical modifications) |
WH/I/K/AUS
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Close the dishwasher door, turn on the water tap
Select a programme
Select options
Press the Start button
Automatic start by turning the programme selector knob (in case of retractable knob, first press the knob to access it).
Large compartment A: |
|
|
|
|
|
|
With each wash cycle. |
|
|
A |
B C |
||
Small compartment B: |
|
|
|
|
|
|
For programmes with pre-wash only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical indicator C. |
|
|
|
|
||
Electric indicator on control panel (if provided). |
|
|
|
|
||
On models with water softener |
|
|
|
|
|
|
|
|
|
|
|
||
system only. |
|
|
|
|
|
|
Mechanical indicator D. Electric |
|
|
|
|
|
|
indicator on control panel (if provided). |
|
|
|
|
|
|
|
|
|
|
|
|
|

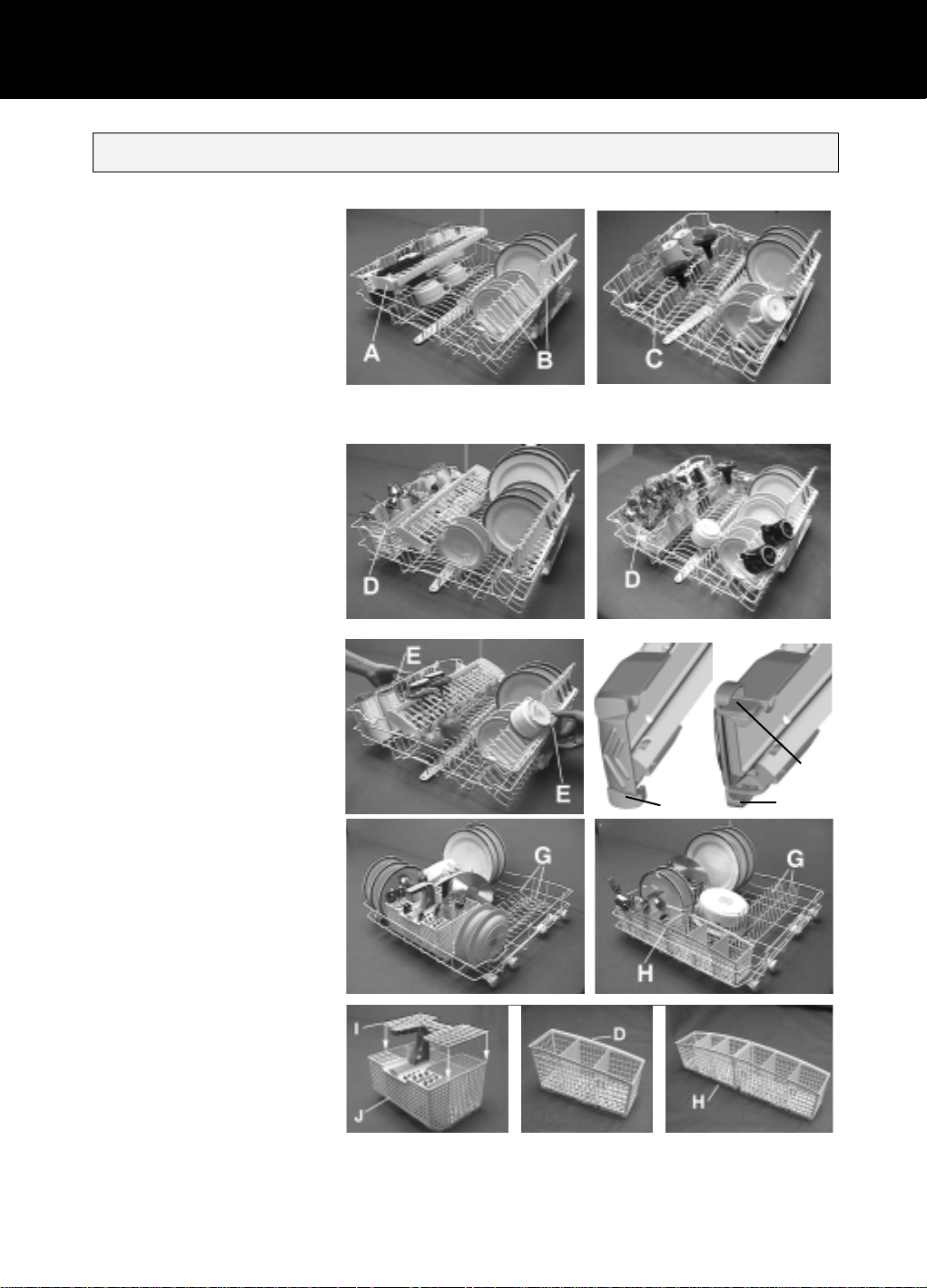

Refer to the dishwasher loading instructions. |
|
|
|
|
||
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is |
“Change programme” |
|
|
Press the START button for 2 sec. until |
|
then memorised (even in the |
|
|
|
the Start indicator lamp switches off; |
|
event of power failure). |
|
Select another programme and |
|
|
|
|
|
press the START button again. |
|
|
|
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
-Only open the dishwasher if necessary (Warning: beware of hot steam).
- If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
Only after the START button has switched off: Access the knob (in case of retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
