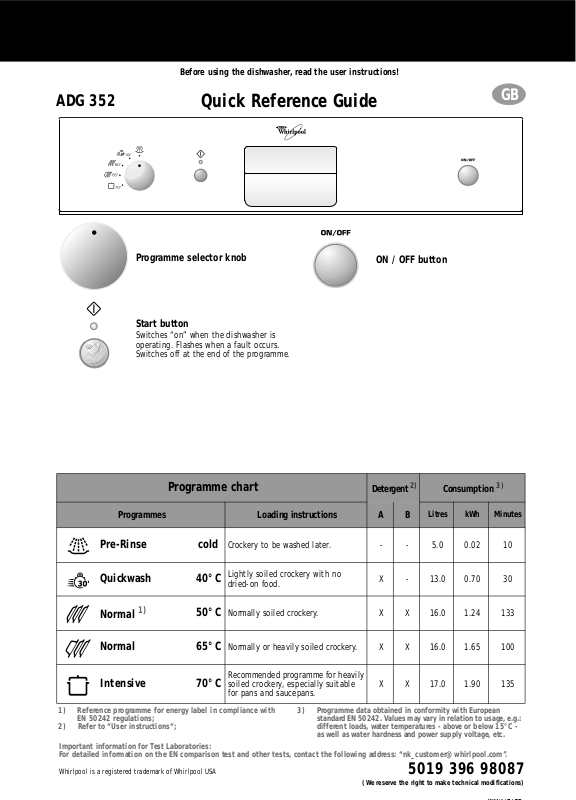

Whirlpool ADG 352 Quick Reference Guide
Before using the dishwasher, read the user instructions!
ADG 352
Quick Reference Guide
Programme selector knob
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the en d o f th e progr amm e .
GB
ON / OFF button
Programme chart
Programmes Loading instructions A B
Pre-Rinse cold
Quickwash 40°C
Normal
1)
Normal 65°C
Intensive 70°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no
dried-on food.
Normally soiled crockery. X X 16.0 1.24 133
50°C
Normally or heavily soiled crockery. X X 16.0 1.65 100
Recommended progr amme f or heavily
soiled crockery, especially suitable
for pans and saucepans.
3) Programme data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C as well as water hardness and power supply v oltage, etc.
Detergent
(We reserve the right to make technical modifications)
2)
Consumption
Litres kWh Minutes
X - 13.0 0.70 30
X X 17.0 1.90 135
5019 396 98087
3)
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Press the ON/OFF button.
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash only.
If using combined action dishwash er
tabs, follow the user instructions!
Mechanical indi cator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).

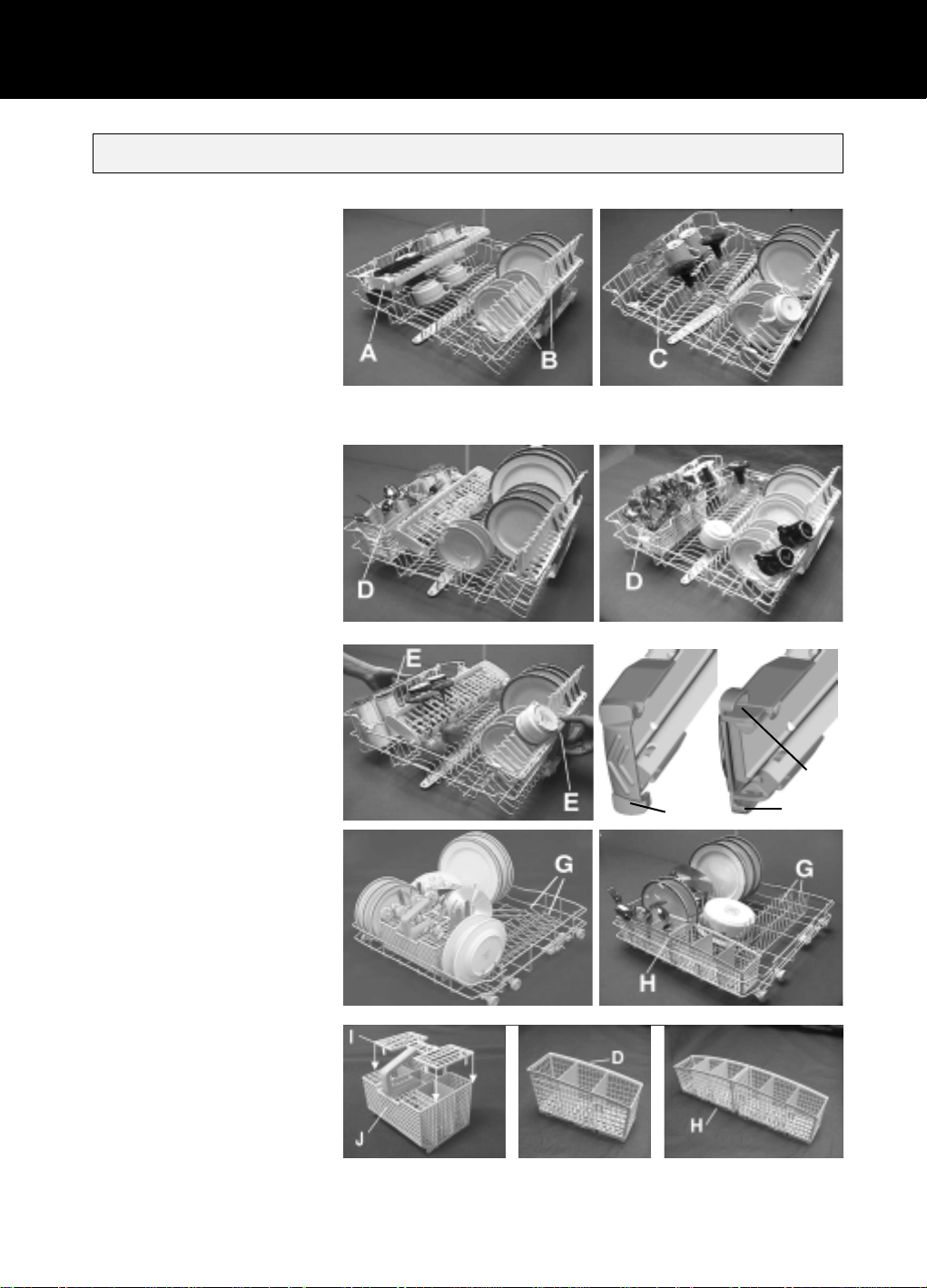

Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
A:
B:
ABC
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON/
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and press
the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switch ed of f d uring a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
button.
OFF
