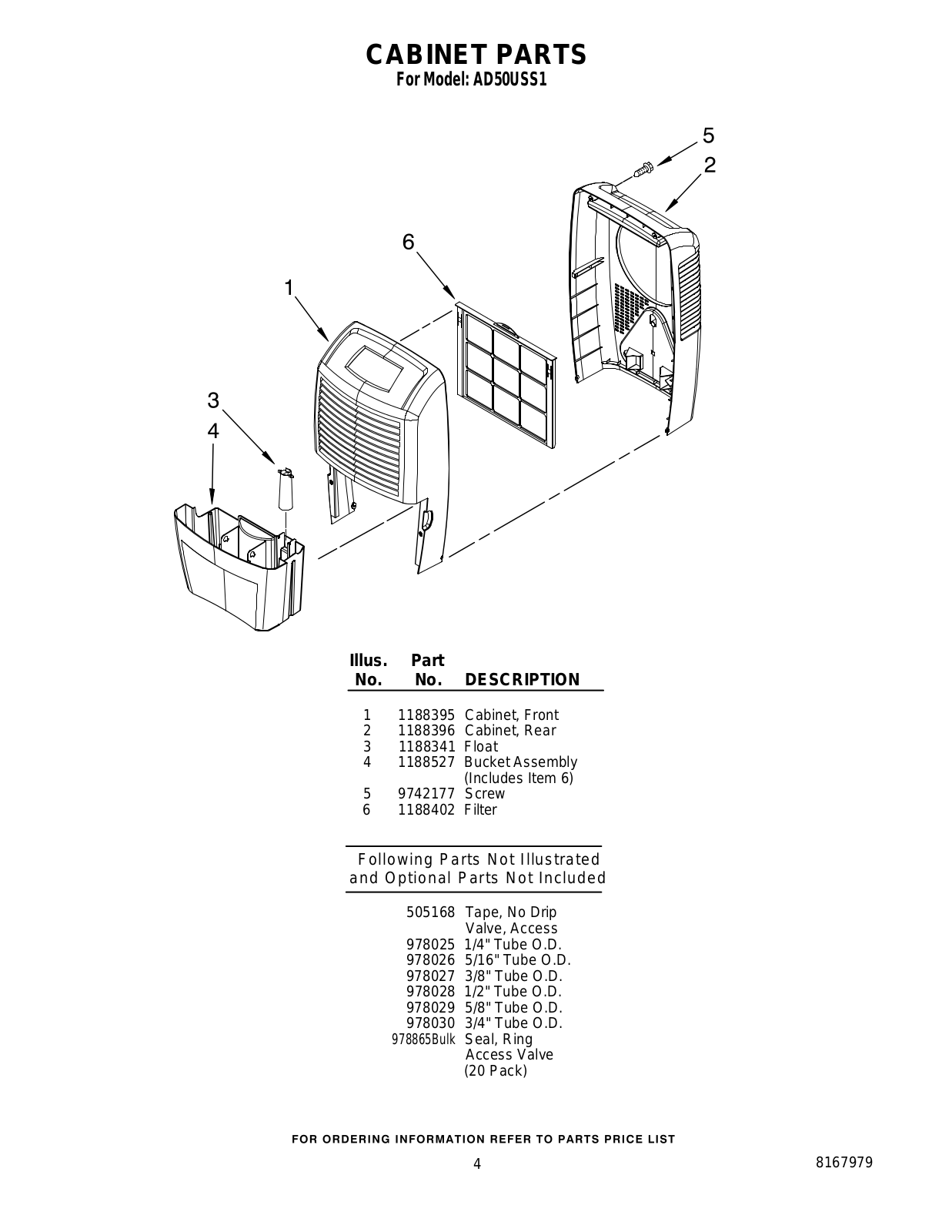

Whirlpool Ad50uss1 Installation Template

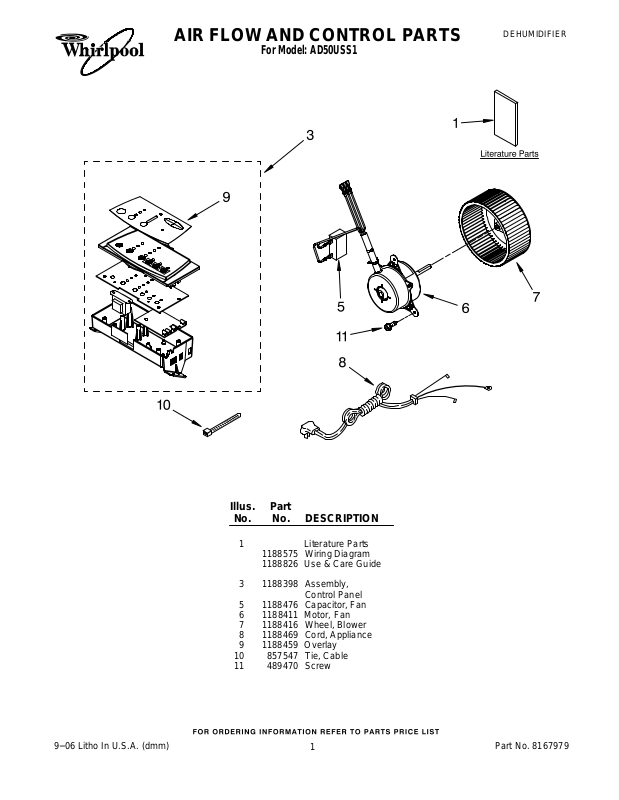

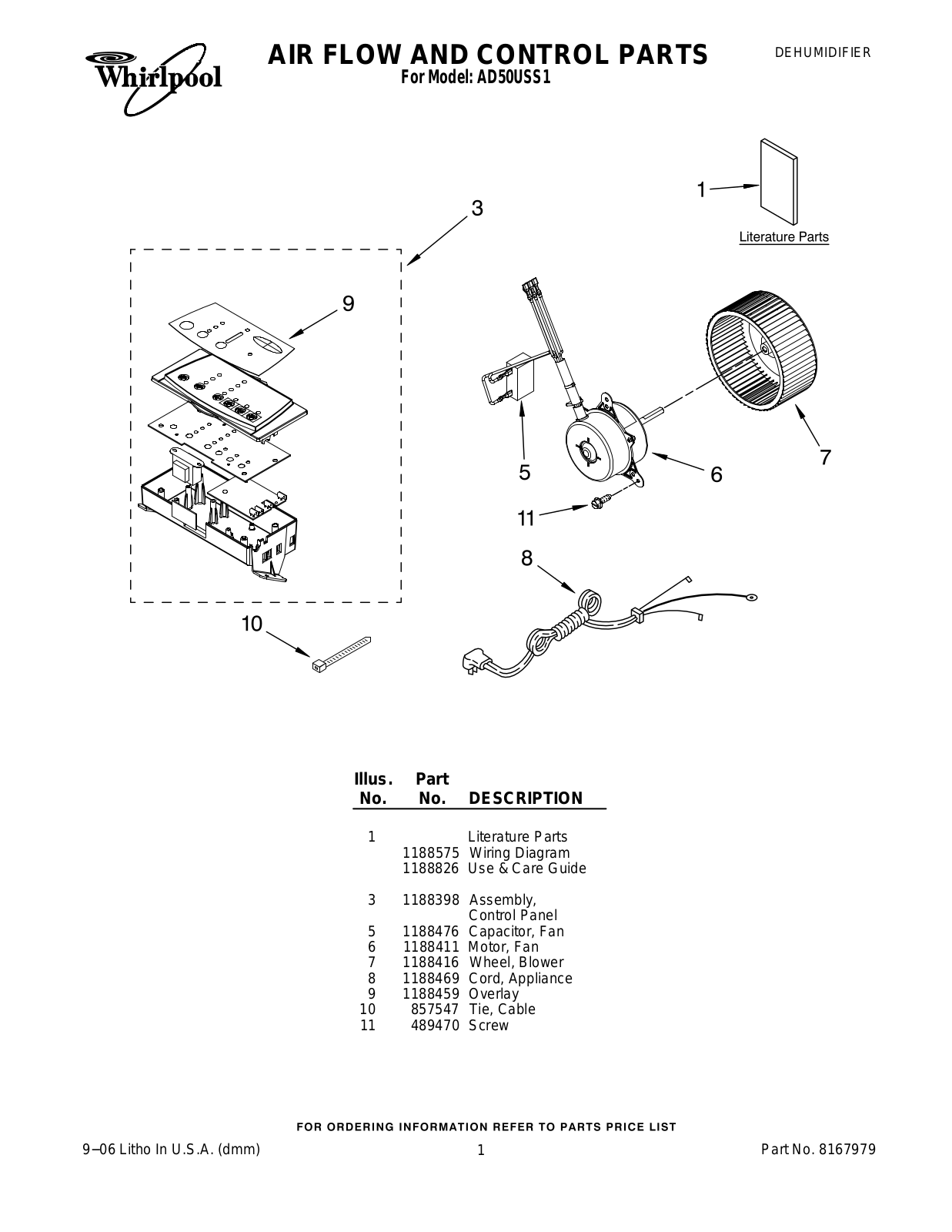

AIR FLOW AND CONTROL PARTS
For Model: AD50USS1
DEHUMIDIFIER
9−06 Litho In U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1188575 Wiring Diagram 1188826 Use & Care Guide
3 1188398 Assembly,
Control Panel 5 1188476 Capacitor, Fan 6 1188411 Motor, Fan 7 1188416 Wheel, Blower 8 1188469 Cord, Appliance 9 1188459 Overlay
10 857547 Tie, Cable 11 489470 Screw
1
Part No. 8167979

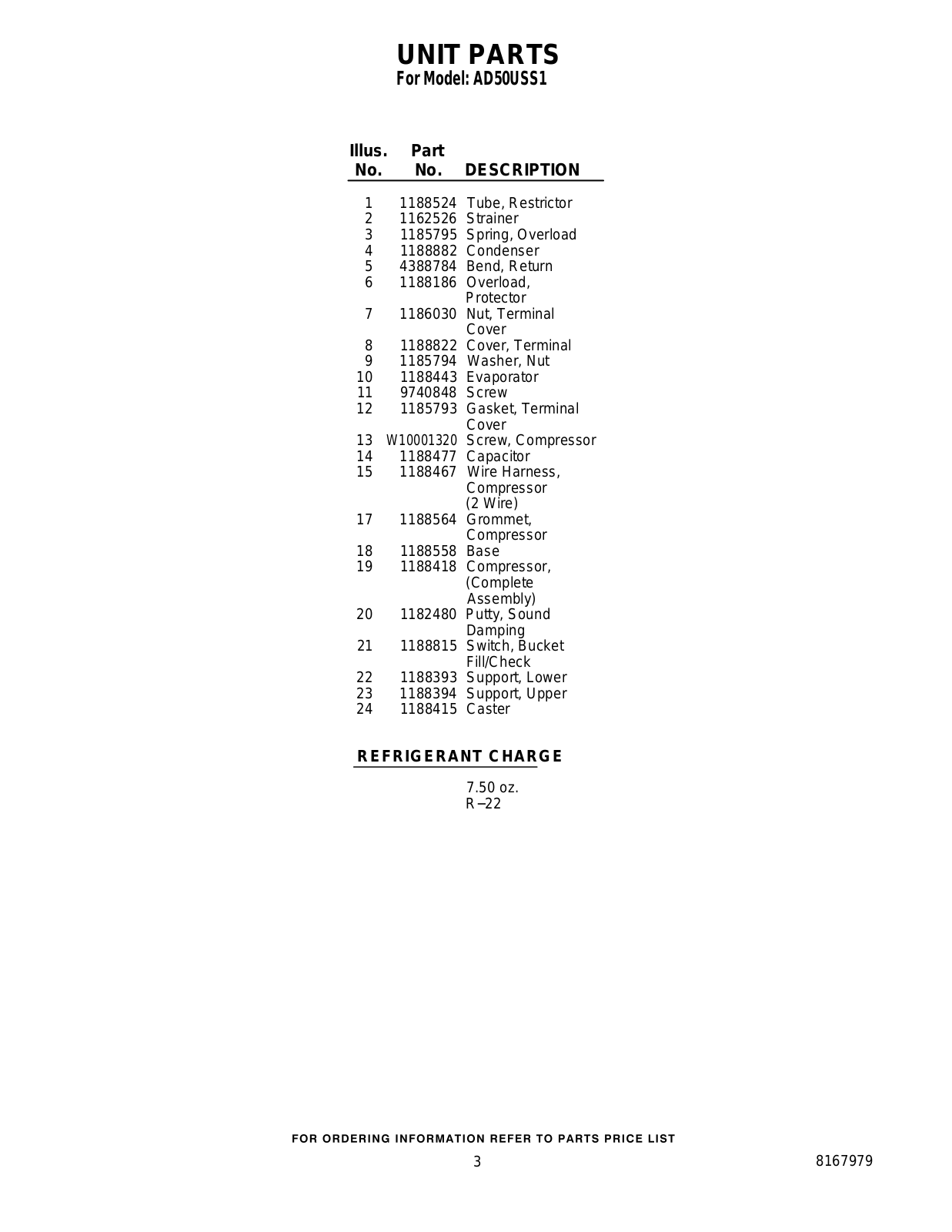

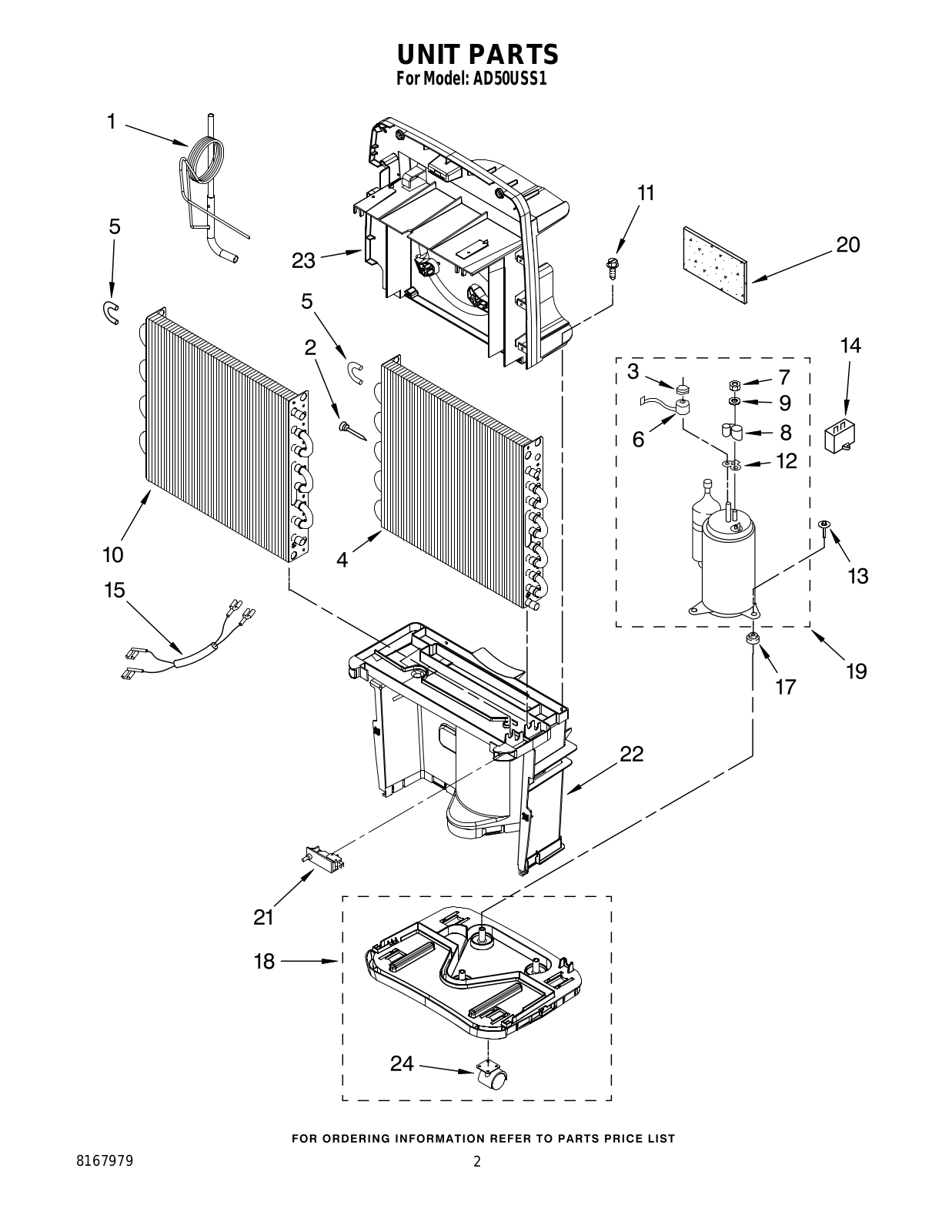

UNIT PARTS
For Model: AD50USS1
8167979
2
