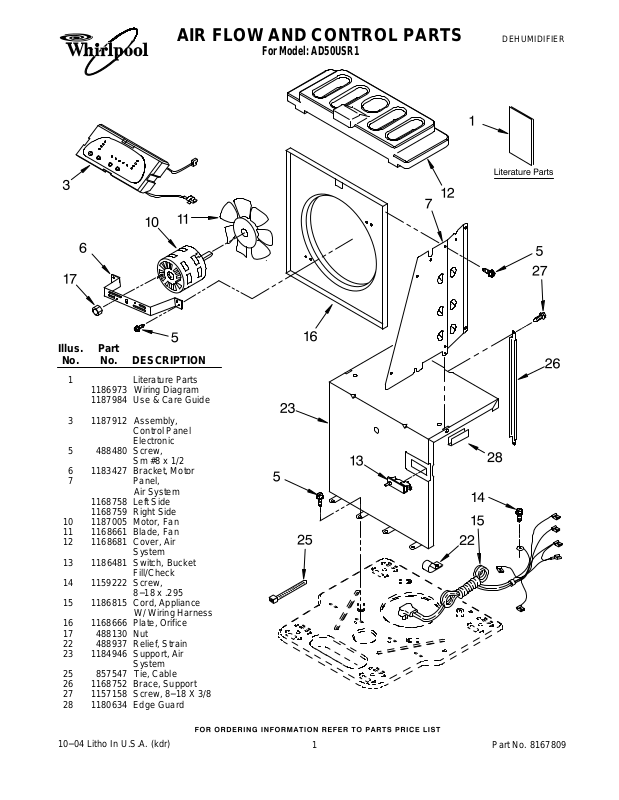

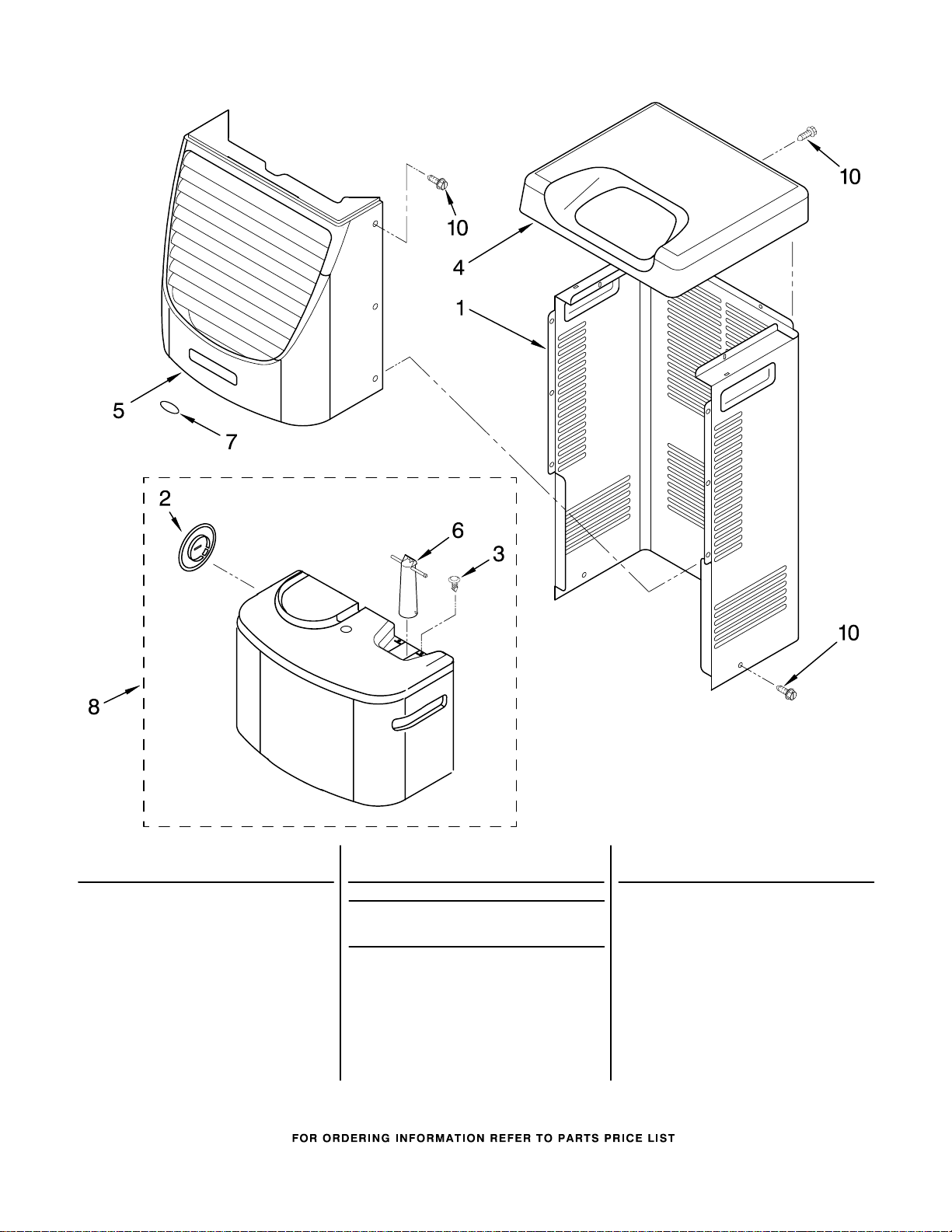

AIR FLOW AND CONTROL PARTS

For Model: AD50USR1

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

1186973 Wiring Diagram
1187984 Use & Care Guide

3 1187912 Assembly,

Control Panel
Electronic

5 488480 Screw,

Sm #8 x 1/2
6 1183427 Bracket, Motor
7 Panel,

Air System

1168758 Left Side

1168759 Right Side
10 1187005 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air

System

13 1186481 Switch, Bucket

Fill/Check

14 1159222 Screw,

8−18 x .295

15 1186815 Cord, Appliance

W/ Wiring Harness
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

10−04 Litho In U.S.A. (kdr)

1

Part No. 8167809

UNIT PARTS

For Model: AD50USR1

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor

(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return

Evaporator (9)
5 1185795 Spring, Overload
6 708531 Bend, Return
7 1187544 Condenser

10 1188186 Overload,

Protector

11 1186030 Nut, Terminal

Cover

Illus. Part

No. No. DESCRIPTION

12 1185792 Cover, Terminal
13 1185794 Washer, Nut
14 1185204 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1185793 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1188137 Capacitor
20 950212 Grommet (3)
21 1186674 Base

2

Illus. Part

No. No. DESCRIPTION

22 1164241 Caster (4)
25 1188149 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

8.00 oz.

8167809
