Whirlpool Ad50usl3, Ad50usl4 Installation Template

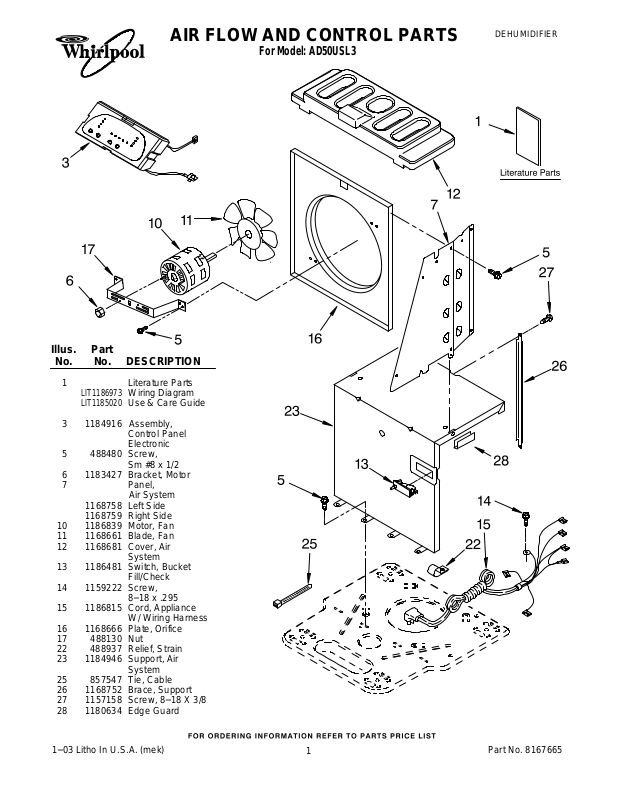

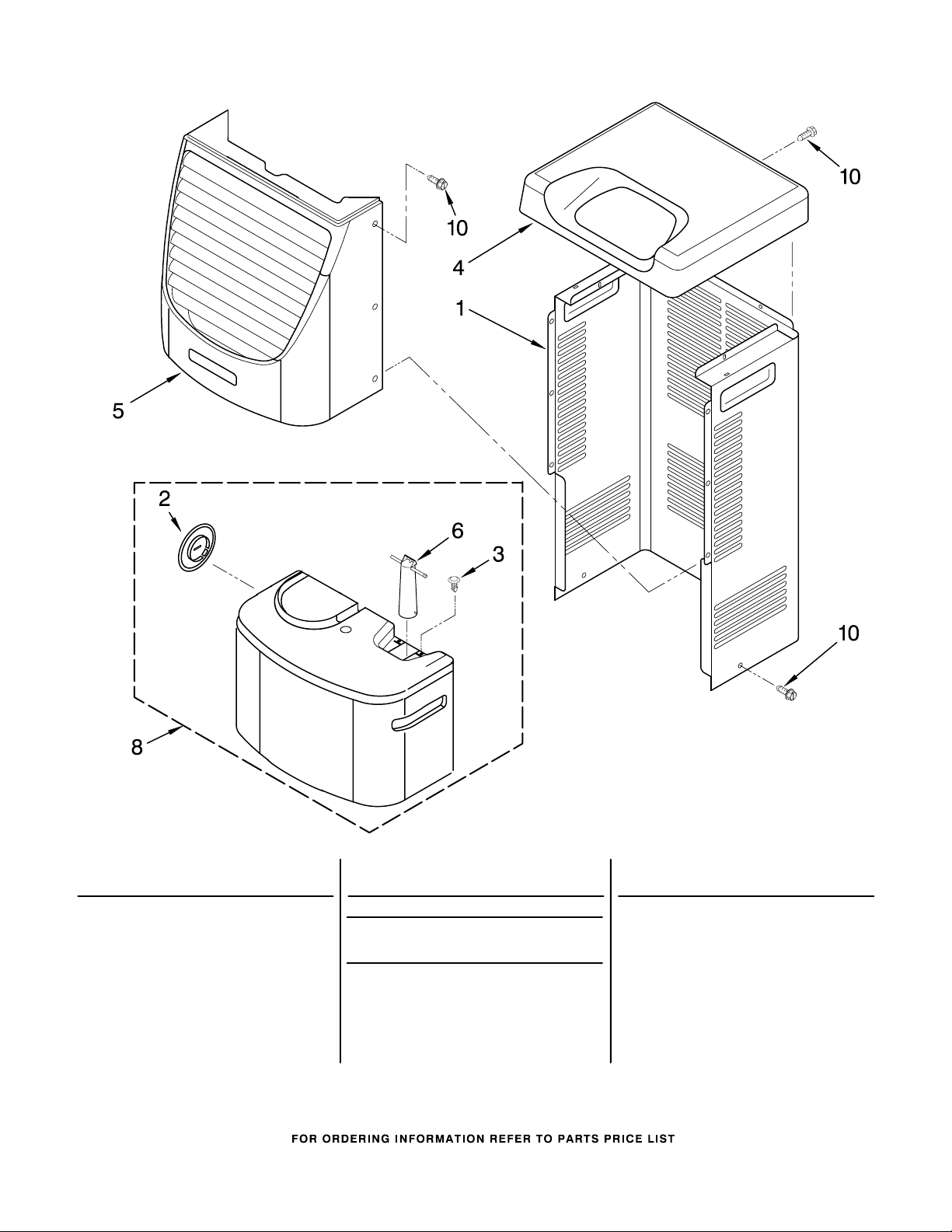

AIR FLOW AND CONTROL PARTS

For Model: AD50USL3

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1186973
LIT1185020

3 1184916 Assembly,

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
10 1186839 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air

13 1186481 Switch, Bucket
14 1159222 Screw,
15 1186815 Cord, Appliance
16 1168666 Plate, Orifice

17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Electronic
Sm #8 x 1/2

Air System

System
Fill/Check
8−18 x .295

W/ Wiring Harness

System

1−03 Litho In U.S.A. (mek)

1

Part No. 8167665

UNIT PARTS

For Model: AD50USL3

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor

(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return

Evaporator (9)
6 8031223 Bend, Return

Condenser (2)
7 1186756 Condenser
8 8031222 Bend, Return (15)

10 1186712 Overload,

Protector

Illus. Part

No. No. DESCRIPTION

11 1186128 Nut, Terminal

Cover
12 1184748 Cover, Terminal
13 1182120 Gasket, Nut
14 1185204 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1182118 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1186186 Capacitor
20 1186709 Grommet (3)

21 1186674 Base

2

Illus. Part

No. No. DESCRIPTION

22 1164241 Caster (4)
25 1186706 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

9.50 oz.

8167665
