Whirlpool Ad50usl1 Installation Template

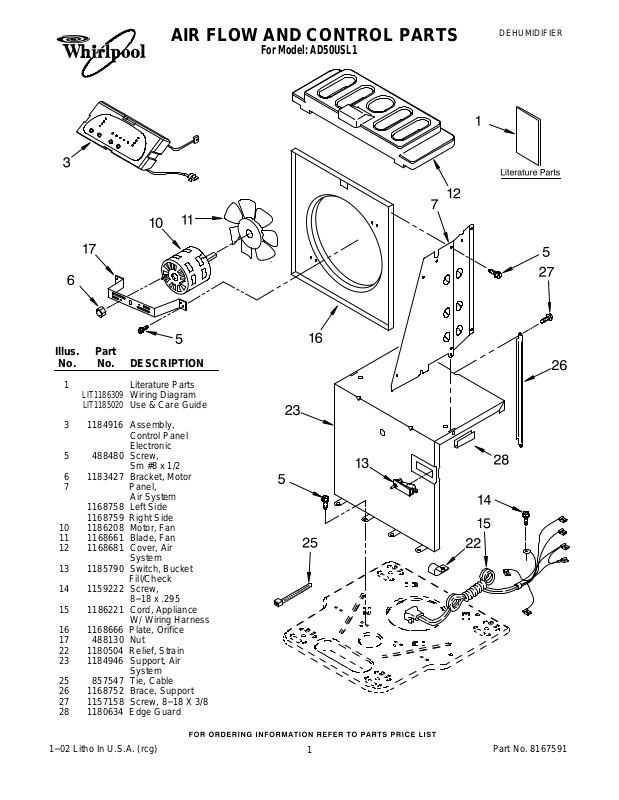

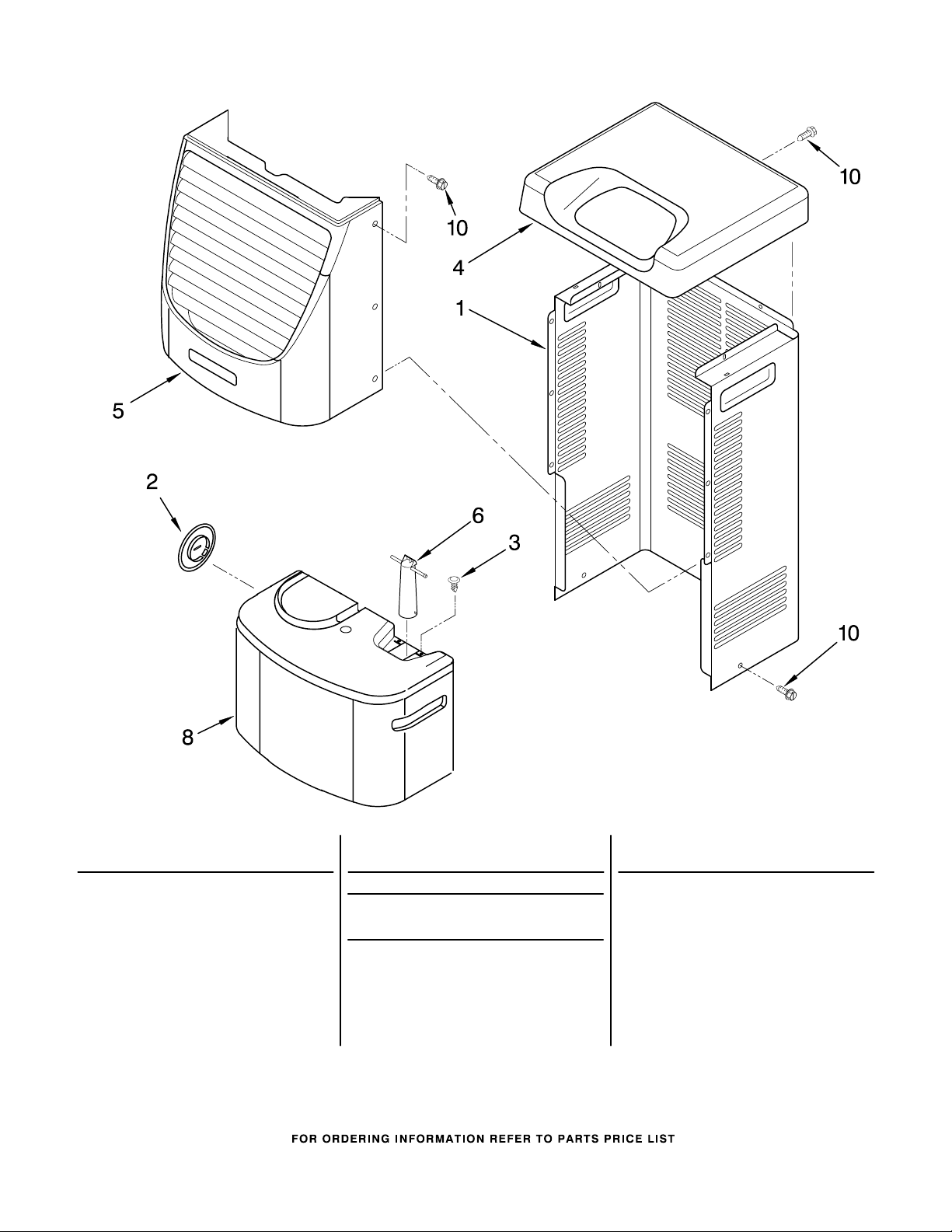

AIR FLOW AND CONTROL PARTS

For Model: AD50USL1

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1186309
LIT1185020

3 1184916 Assembly,

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
10 1186208 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air

13 1185790 Switch, Bucket
14 1159222 Screw,
15 1186221 Cord, Appliance
16 1168666 Plate, Orifice

17 488130 Nut
22 1180504 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Electronic
Sm #8 x 1/2

Air System

System
Fill/Check
8−18 x .295

W/ Wiring Harness

System

1−02 Litho In U.S.A. (rcg)

1

Part No. 8167591

UNIT PARTS

For Model: AD50USL1

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor

(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return

Evaporator (9)
6 8031223 Bend, Return

Condenser (2)
7 1184770 Condenser
8 8031222 Bend, Return (15)

10 1182783 Overload,

Protector

Illus. Part

No. No. DESCRIPTION

11 950058 Relay, Start
12 1182781 Cover, Terminal
14 1185204 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1182780 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

12.0 oz.

8167591
