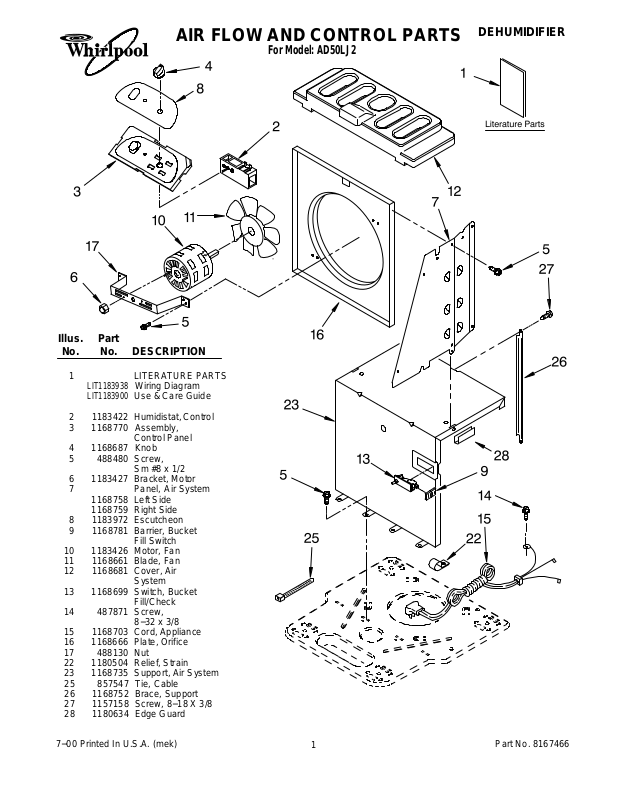

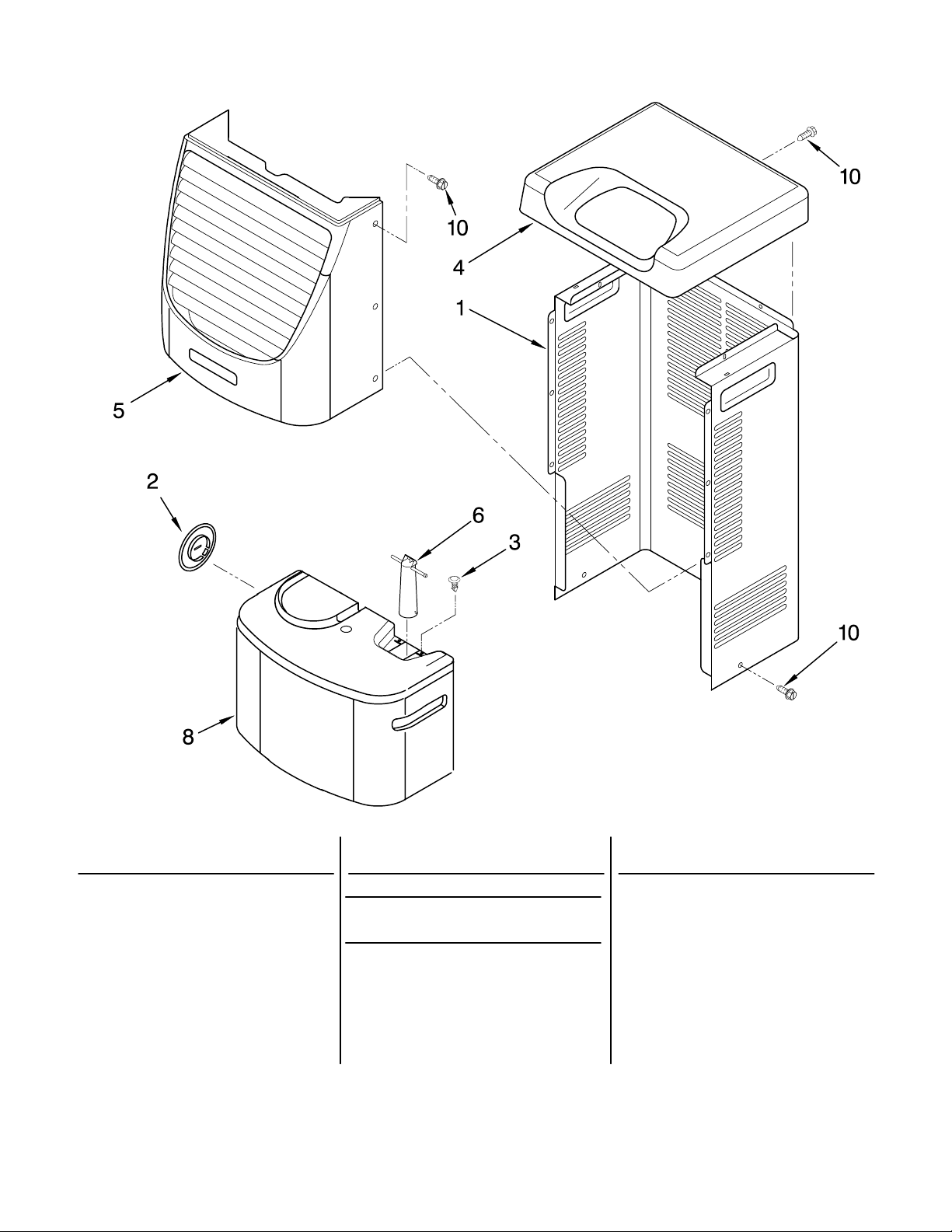

AIR FLOW AND CONTROL PARTS DEHUMIDIFIER
For Model: AD50LJ2
Illus. |
Part |
|
|
No. |
No. |
DESCRIPTION |
|
1 |
|
LITERATURE PARTS |
|
|
LIT1183938 |
Wiring Diagram |
|
|
LIT1183900 |
Use & Care Guide |
|
2 |
1183422 |
Humidistat, Control |
|
3 |
1168770 |
Assembly, |
|
|
|
Control Panel |
|
4 |
1168687 |
Knob |
|
5 |
488480 |
Screw, |
|
|
|
Sm #8 x 1/2 |
|
6 |
1183427 |
Bracket, Motor |
|
7 |
|
Panel, Air System |
|
|
1168758 |
Left Side |
|
|
1168759 |
Right Side |
|
8 |
1183972 |
Escutcheon |
|
9 |
1168781 |
Barrier, Bucket |
|
|
|
Fill Switch |
|
101183426 Motor, Fan
111168661 Blade, Fan
12 1168681 Cover, Air
System
13 1168699 Switch, Bucket
Fill/Check
14 487871 Screw,
8−32 x 3/8
151168703 Cord, Appliance
161168666 Plate, Orifice
17488130 Nut
22 1180504 Relief, Strain
23 1168735 Support, Air System
25857547 Tie, Cable
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
7−00 Printed In U.S.A. (mek) |
1 |
Part No. 8167466 |
