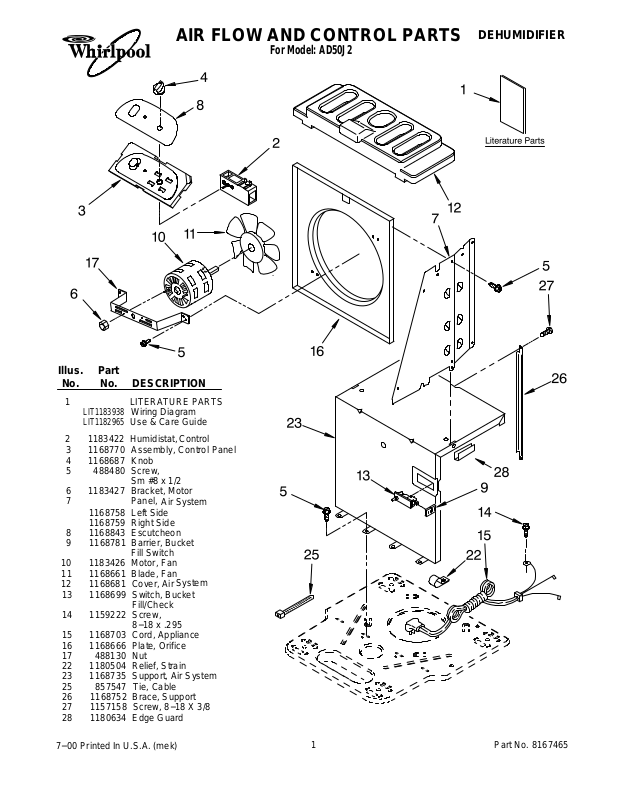

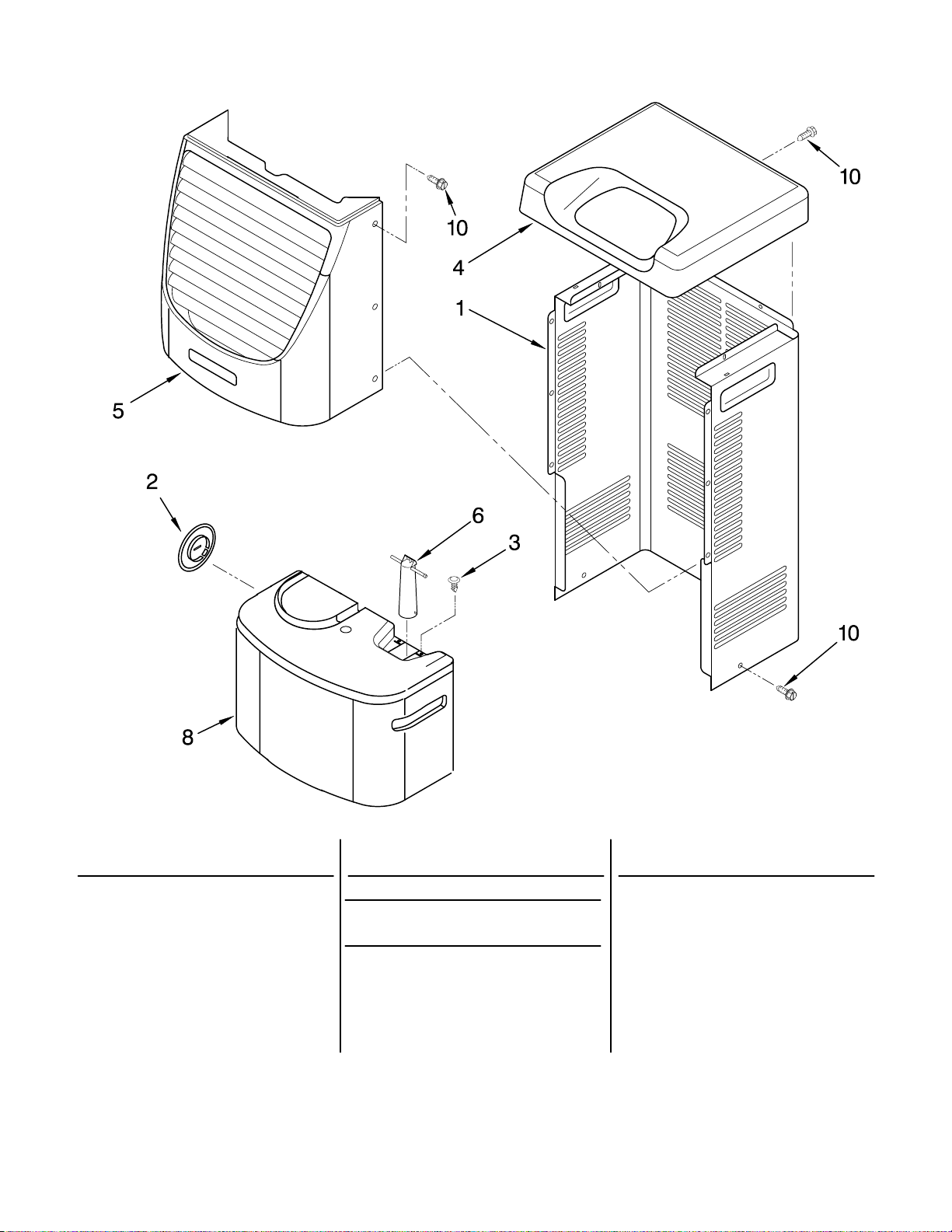

AIR FLOW AND CONTROL PARTS DEHUMIDIFIER
For Model: AD50J2
Illus. |
Part |
|
|
No. |
No. |
DESCRIPTION |
|
1 |
|
LITERATURE PARTS |
|
|
LIT1183938 |
Wiring Diagram |
|
|
LIT1182965 |
Use & Care Guide |
|
2 |
1183422 |
Humidistat, Control |
|
3 |
1168770 |
Assembly, Control Panel |
|
4 |
1168687 |
Knob |
|
5 |
488480 |
Screw, |
|
|
|
Sm #8 x 1/2 |
|
6 |
1183427 |
Bracket, Motor |
|
7 |
|
Panel, Air System |
|
|
1168758 |
Left Side |
|
|
1168759 |
Right Side |
|
8 |
1168843 Escutcheon |
||
9 |
1168781 |
Barrier, Bucket |
|
|
|
Fill Switch |
|
10 |
1183426 |
Motor, Fan |
|
11 |
1168661 Blade, Fan |
||
12 |
1168681 |
Cover, Air System |
|
13 |
1168699 |
Switch, Bucket |
|
|
|
Fill/Check |
|
14 |
1159222 |
Screw, |
|
|
|
8−18 x .295 |
|
15 |
1168703 |
Cord, Appliance |
|
16 |
1168666 |
Plate, Orifice |
|
17 |
488130 |
Nut |
|
22 |
1180504 |
Relief, Strain |
|
23 |
1168735 |
Support, Air System |
|
25 |
857547 |
Tie, Cable |
|
26 |
1168752 |
Brace, Support |
|
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
7−00 Printed In U.S.A. (mek) |
1 |
Part No. 8167465 |
