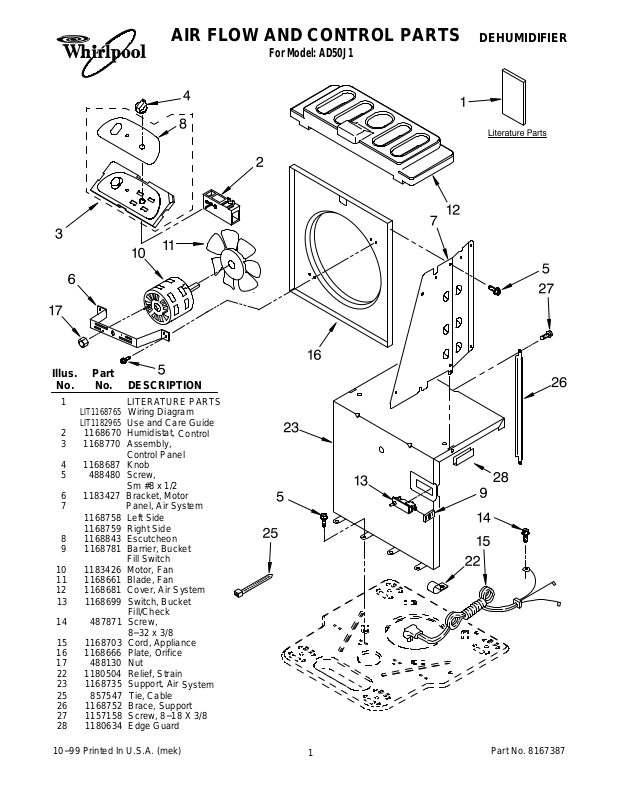

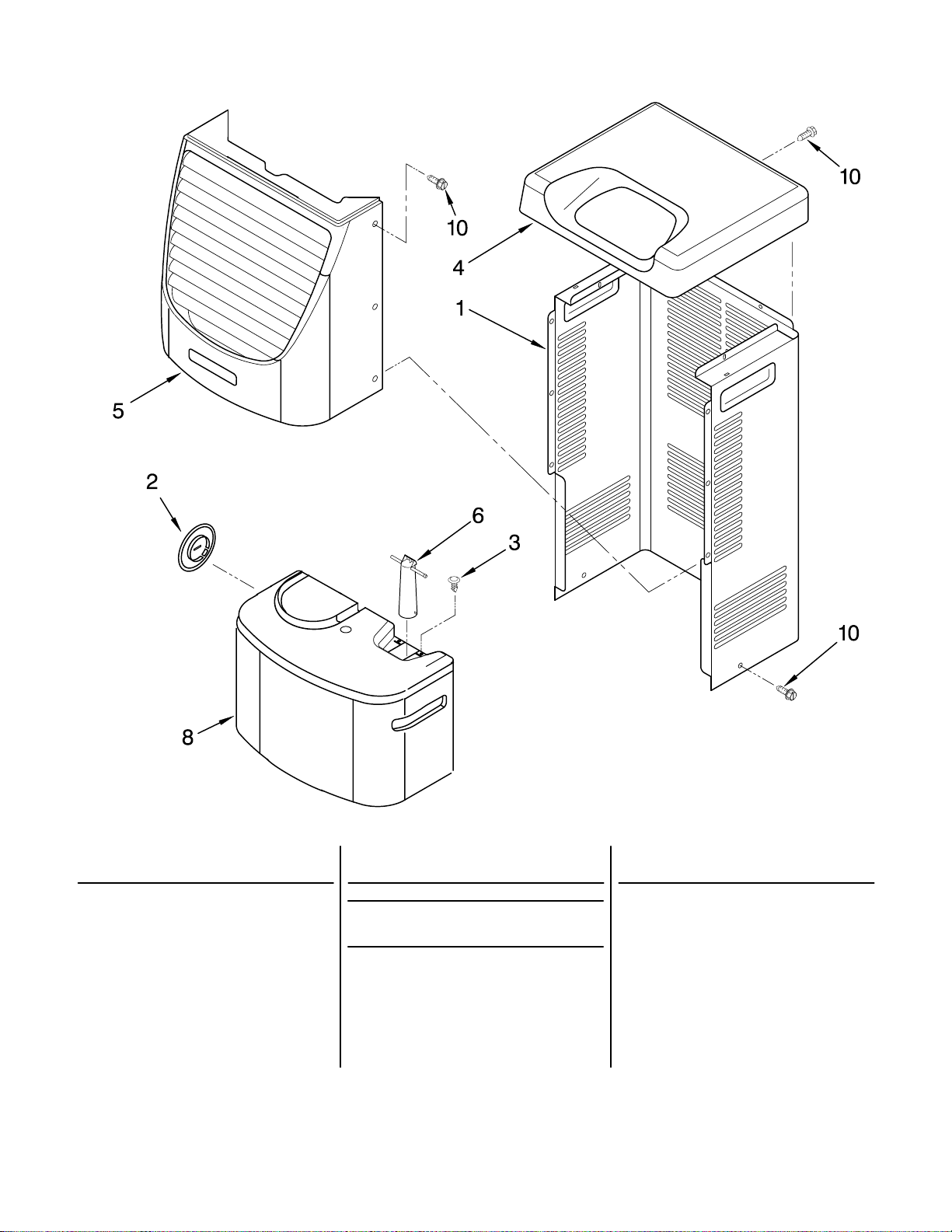

AIR FLOW AND CONTROL PARTS
For Model: AD50J1
DEHUMIDIFIER
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
LIT1168765
LIT1182965
2 1168670 Humidistat,
3 1168770 Assembly,
4 1168687 Knob
5 488480 Screw,
6 1183427 Bracket, Motor
7 Panel,
1168758 Left Side
1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket
10 1183426 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air
13 1168699 Switch, Bucket
14 487871 Screw,
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 1180504 Relief, Strain
23 1168735 Support, Air
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard
Wiring Diagram
Use and Care Guide
Control
Control Panel
Sm #8 x 1/2
Air System
Fill Switch
System
Fill/Check
8−32 x 3/8
System
10−99 Printed In U.S.A. (mek)
1
Part No. 8167387
UNIT PARTS
For Model: AD50J1
Illus. Part
No. No. DESCRIPTION
2 1168677 Tube, Restrictor
(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return (2)
6 950061 Spring, Overload
7 1168657 Condenser
8 708531 Bend, Return (12)
9 1168777 Deicer, Bimetal
10 1163837 Overload,
Protector
11 950058 Relay, Start
12 950055 Cover, Terminal
Production Compressor Requires Production Electrical Components.
Service Compressor Requires Service Electrical Components.
For Further Information, Refer to Filmcard 19.1.
Illus. Part
No. No. DESCRIPTION
13 950056 Retainer, Cover
14 1168655 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
25 1168669 Compressor,
(Complete
Assembly)
2
Illus. Part
No. No. DESCRIPTION
26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation
(Restrictor Tube)
REFRIGERANT CHARGE
10.00 Oz.
8167387
