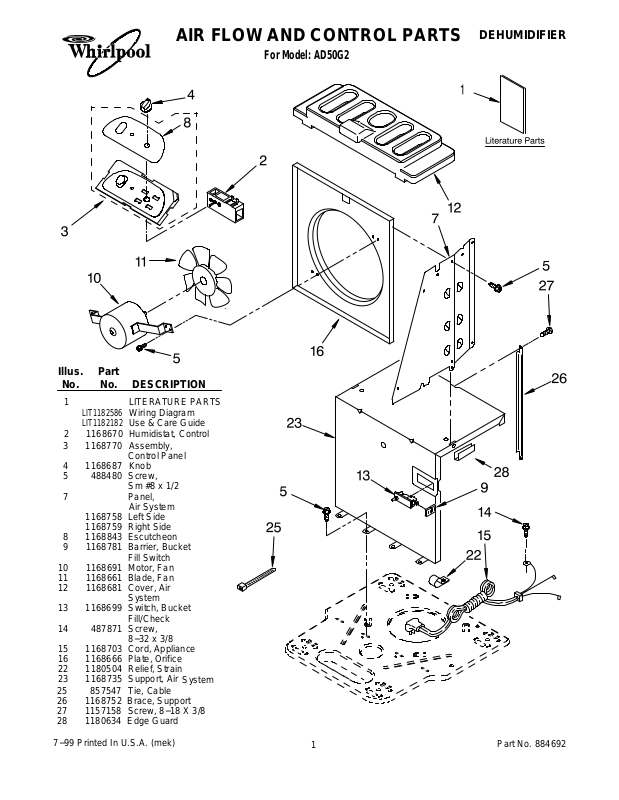

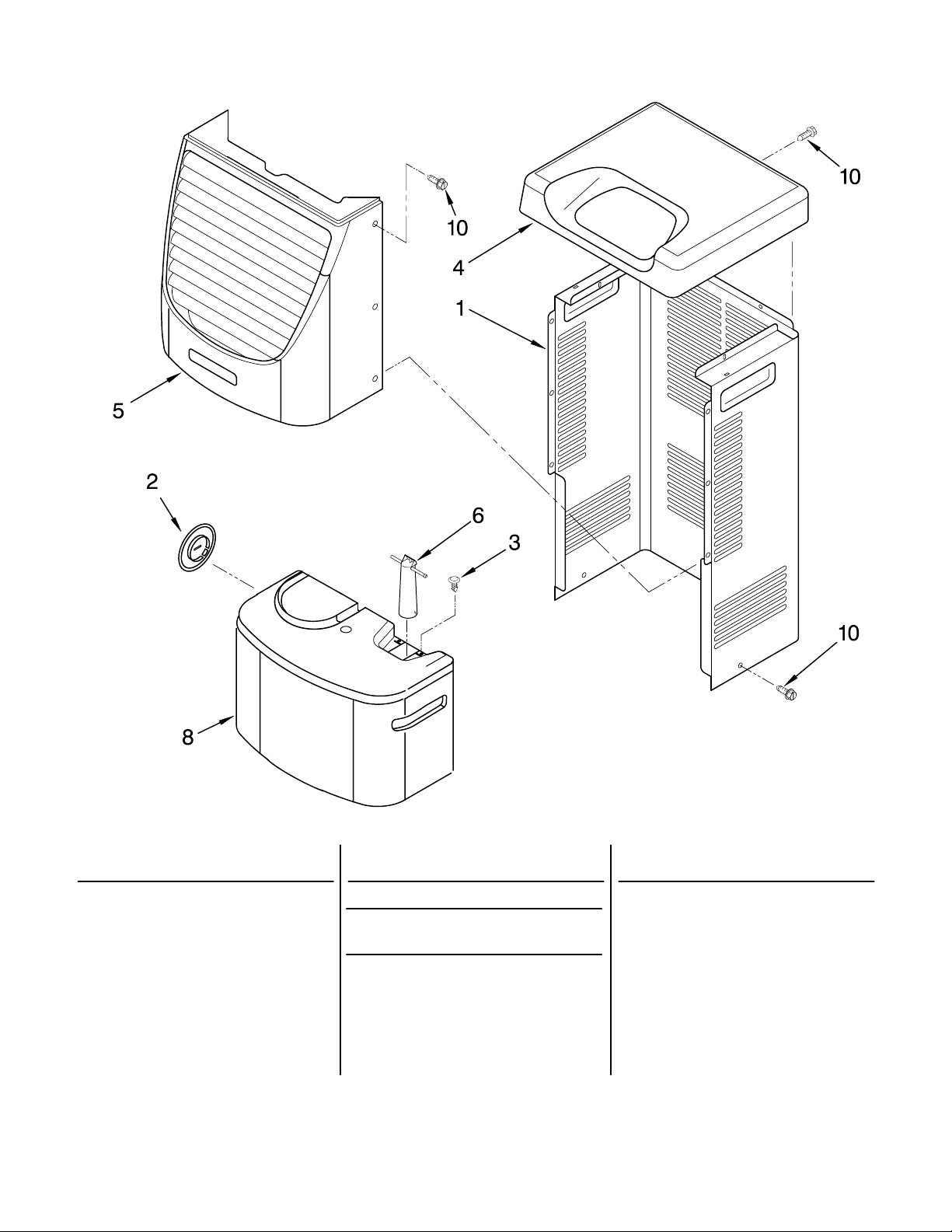

AIR FLOW AND CONTROL PARTS DEHUMIDIFIER
For Model: AD50G2
Illus. |
Part |
|
No. |
No. |
DESCRIPTION |
1 |
|
LITERATURE PARTS |
LIT1182586 |
Wiring Diagram |
|
LIT1182182 |
Use & Care Guide |
|
2 |
1168670 |
Humidistat, Control |
3 |
1168770 |
Assembly, |
|
|
Control Panel |
4 |
1168687 |
Knob |
5 |
488480 |
Screw, |
|
|
Sm #8 x 1/2 |
7 |
|
Panel, |
|
|
Air System |
|
1168758 |
Left Side |
|
1168759 |
Right Side |
8 |
1168843 |
Escutcheon |
9 |
1168781 |
Barrier, Bucket |
|
|
Fill Switch |
101168691 Motor, Fan
111168661 Blade, Fan
12 1168681 Cover, Air
System
13 1168699 Switch, Bucket
Fill/Check
14 487871 Screw,
8−32 x 3/8
151168703 Cord, Appliance
161168666 Plate, Orifice
221180504 Relief, Strain
23 1168735 Support, Air System
25 857547 Tie, Cable
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
7−99 Printed In U.S.A. (mek) |
