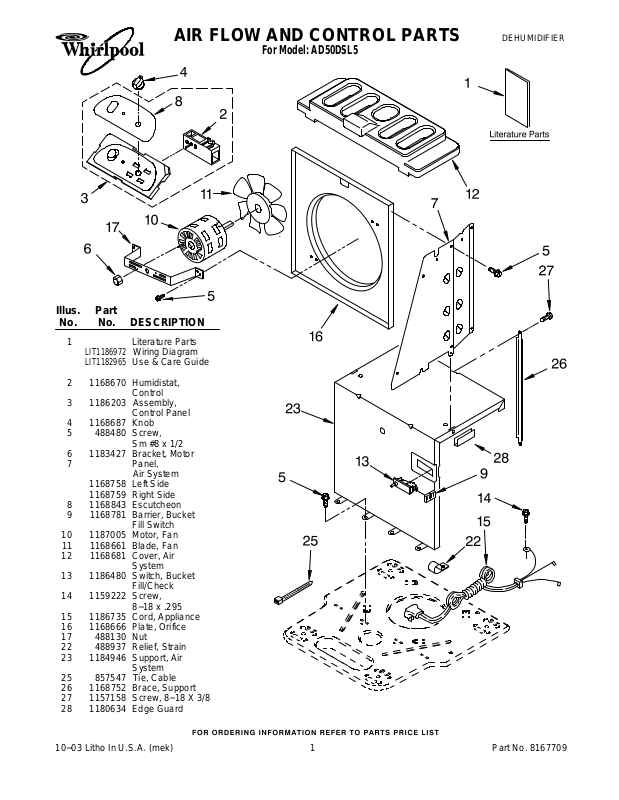

AIR FLOW AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION

DEHUMIDIFIER

For Model: AD50DSL5

1 Literature Parts

LIT1186972

LIT1182965
2 1168670 Humidistat,
3 1186203 Assembly,
4 1168687 Knob

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket

10 1187005 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air

13 1186480 Switch, Bucket
14 1159222 Screw,
15 1186735 Cord, Appliance

16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control
Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check
8−18 x .295

System

10−03 Litho In U.S.A. (mek)

1

Part No. 8167709

UNIT PARTS

For Model: AD50DSL5

Illus. Part

No. No. DESCRIPTION

1 1182118 Gasket, Terminal

Cover

2 1168734 Tube, Restrictor

(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return

Evaporator
5 1186128 Nut, Hex
6 708531 Bend, Return

Condenser
7 1187544 Condenser

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

9 1182120 Gasket, Nut

10 1186960 Overload,

Protector
11 1186186 Capacitor
12 1184748 Cover, Terminal
14 1185204 Evaporator
15 488480 Screw, 8 x 1/2 (4)
17 8011446 Clip, Compressor
19 1187006 Harness, Wire
20 950212 Grommet (3)
21 1186674 Base

2

Illus. Part

No. No. DESCRIPTION

22 1164241 Caster (4)
25 1187683 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

8.00 oz.

8167709
