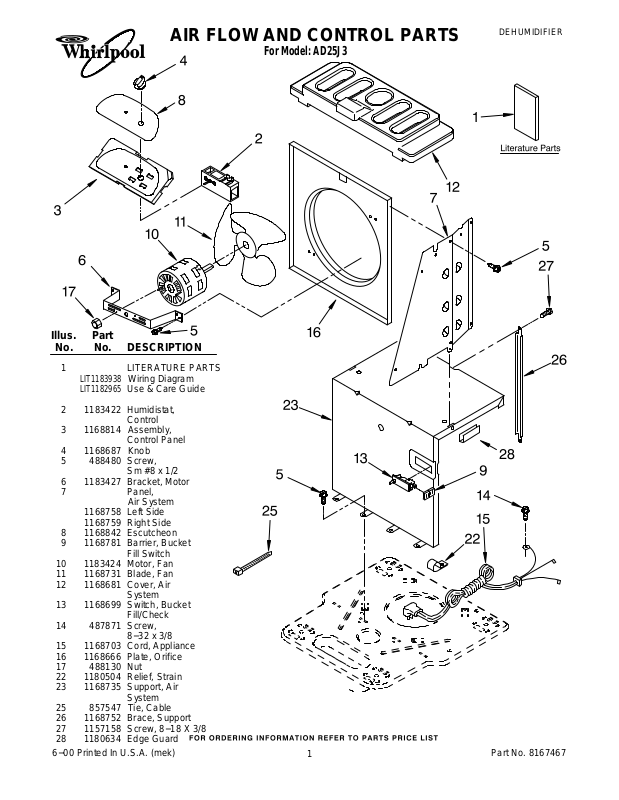

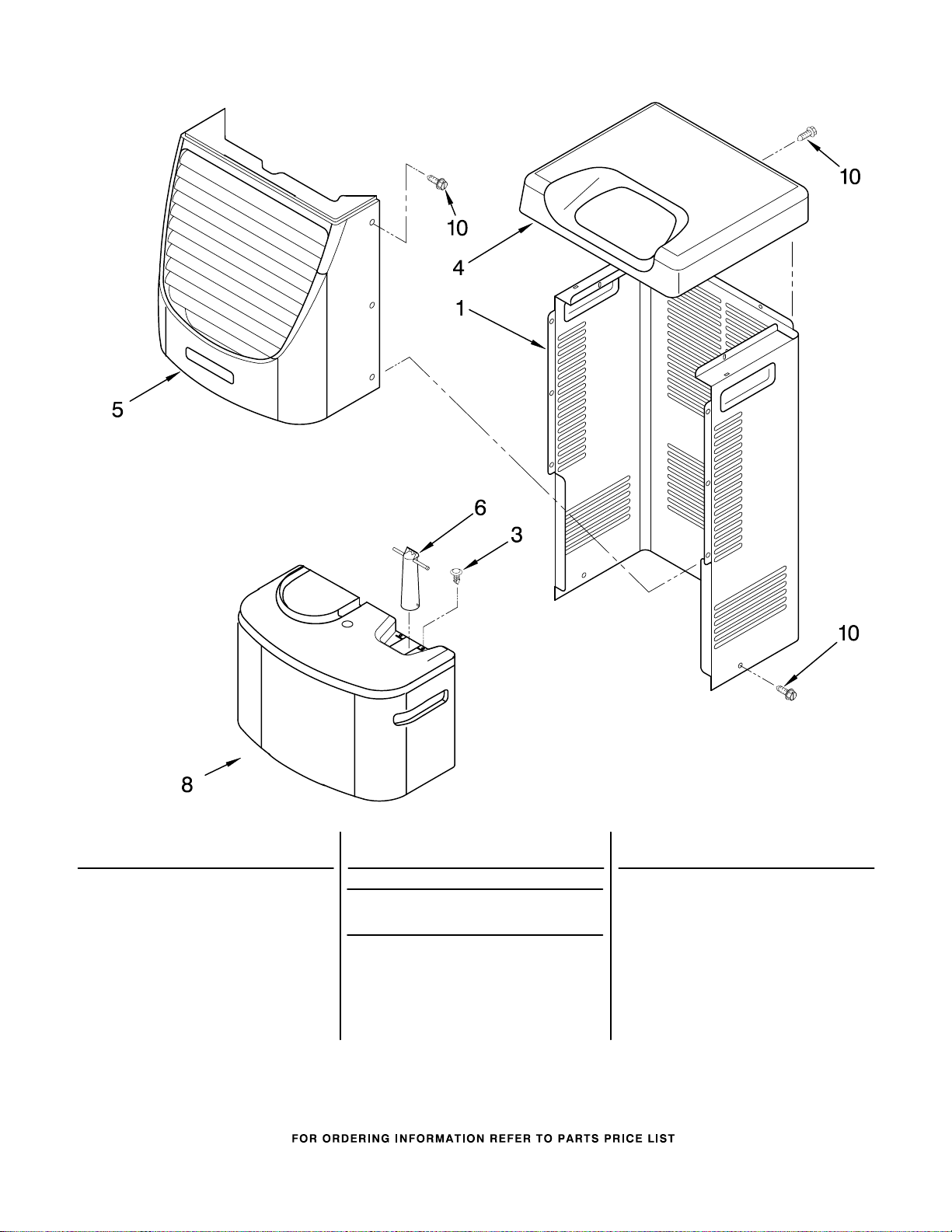

AIR FLOW AND CONTROL PARTS
For Model: AD25J3
Illus. |
Part |
|
No. |
No. |
DESCRIPTION |
1 |
|
LITERATURE PARTS |
|
LIT1183938 |
Wiring Diagram |
|
LIT1182965 |
Use & Care Guide |
2 1183422 Humidistat,
Control
3 1168814 Assembly,
Control Panel
41168687 Knob
5488480 Screw,
|
|
Sm #8 x 1/2 |
6 |
1183427 |
Bracket, Motor |
7 |
|
Panel, |
|
|
Air System |
|
1168758 |
Left Side |
|
1168759 |
Right Side |
8 |
1168842 |
Escutcheon |
9 |
1168781 |
Barrier, Bucket |
|
|
Fill Switch |
10 |
1183424 |
Motor, Fan |
11 |
1168731 |
Blade, Fan |
12 |
1168681 |
Cover, Air |
|
|
System |
13 |
1168699 |
Switch, Bucket |
|
|
Fill/Check |
14 |
487871 |
Screw, |
|
|
8−32 x 3/8 |
151168703 Cord, Appliance
161168666 Plate, Orifice
17 |
488130 |
Nut |
22 |
1180504 |
Relief, Strain |
23 |
1168735 |
Support, Air |
|
|
System |
25857547 Tie, Cable
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard
6−00 Printed In U.S.A. (mek) |
1 |
DEHUMIDIFIER
Part No. 8167467
