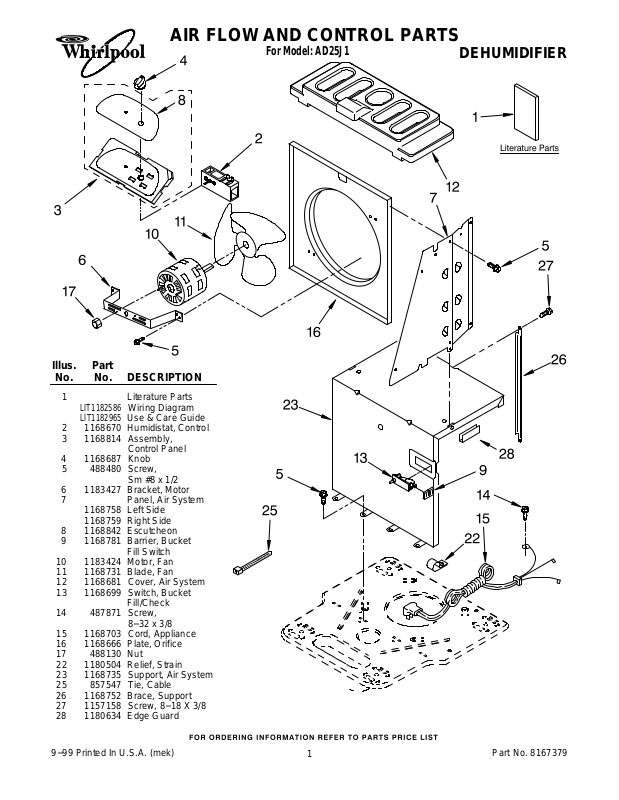

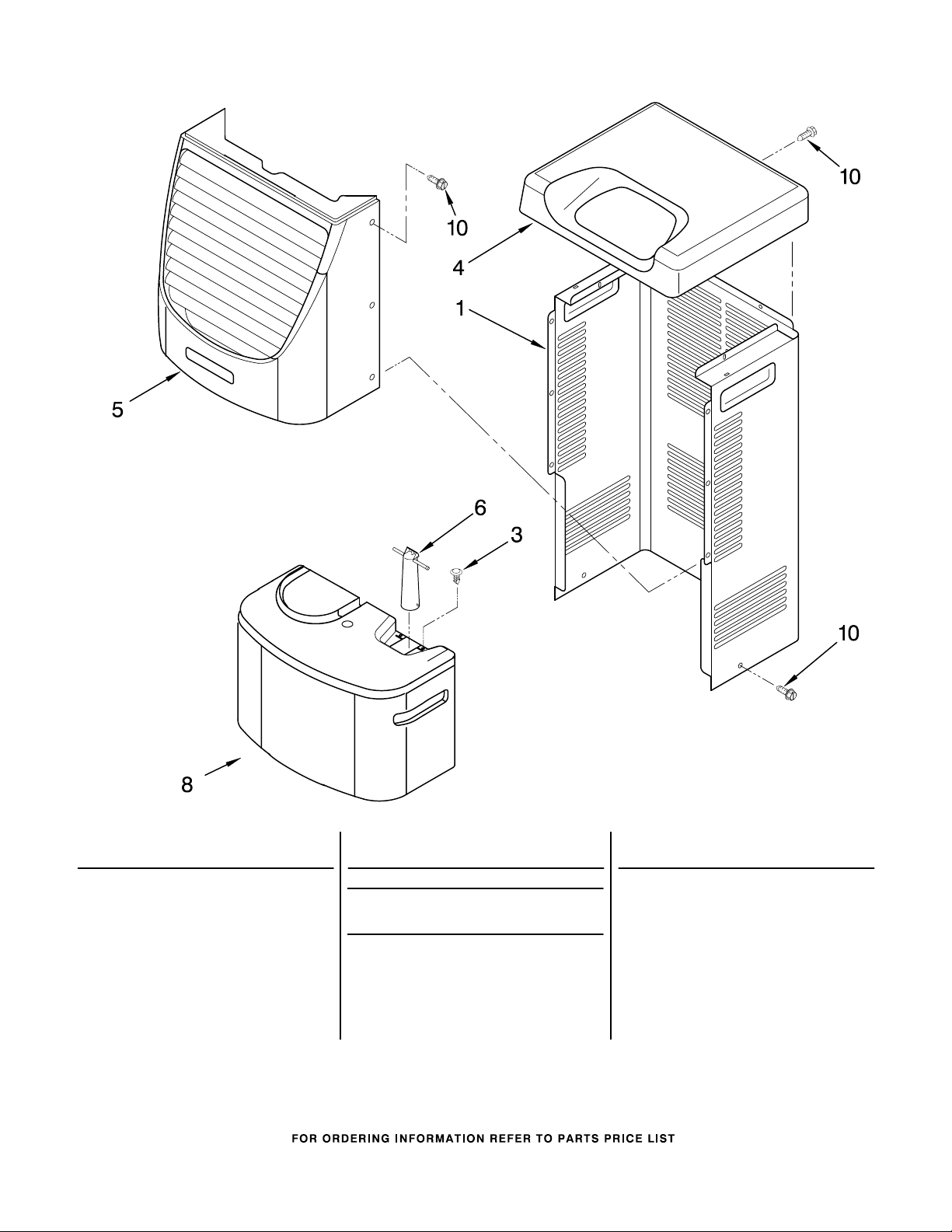

AIR FLOW AND CONTROL PARTS

For Model: AD25J1

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1182586

LIT1182965
2 1168670 Humidistat, Control
3 1168814 Assembly,

4 1168687 Knob
5 488480 Screw,

6 1183427 Bracket, Motor
7 Panel, Air System

1168758 Left Side

1168759 Right Side
8 1168842 Escutcheon
9 1168781 Barrier, Bucket

10 1183424 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air System
13 1168699 Switch, Bucket

14 487871 Screw,
15 1168703 Cord, Appliance

16 1168666 Plate, Orifice
17 488130 Nut
22 1180504 Relief, Strain
23 1168735 Support, Air System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Sm #8 x 1/2

Fill Switch

Fill/Check
8−32 x 3/8

9−99 Printed In U.S.A. (mek)

1

Part No. 8167379

UNIT PARTS

For Model: AD25J1

Illus. Part

No. No. DESCRIPTION

2 1172076 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (2)
7 1181854 Condenser
8 708531 Bend, Return (12)

10 1182782 Overload,

Protector

11 950058 Relay, Start
12 1182781 Cover, Terminal

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

14 1168726 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168810 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
25 1182778 Compressor,

(Complete

Assembly)

2

Illus. Part

No. No. DESCRIPTION

26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

6.75 oz.

8167379
