Whirlpool Ad25ch0 Installation Template

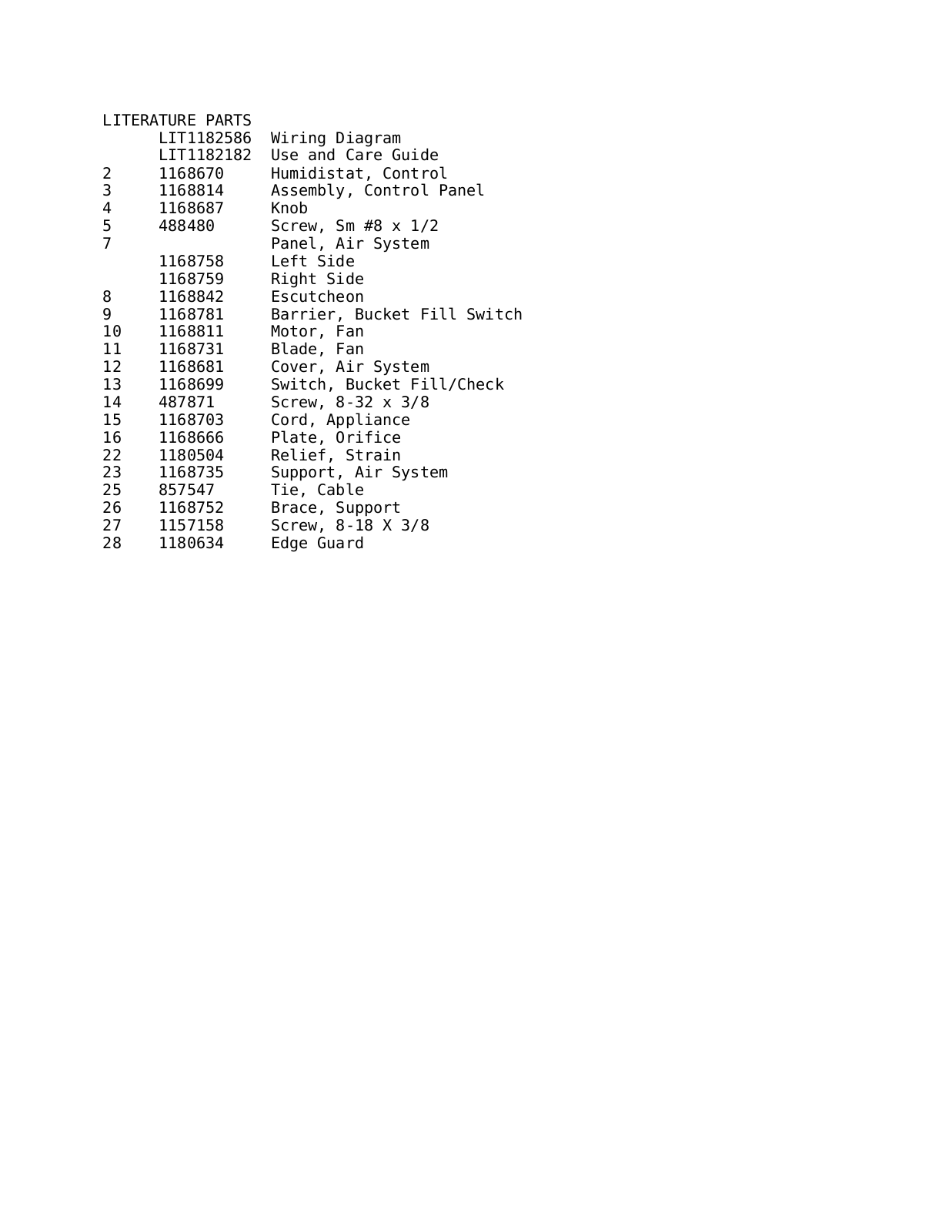

LITERATURE PARTS

LIT1182586 Wiring Diagram

LIT1182182 Use and Care Guide
2 1168670 Humidistat, Control
3 1168814 Assembly, Control Panel
4 1168687 Knob
5 488480 Screw, Sm #8 x 1/2

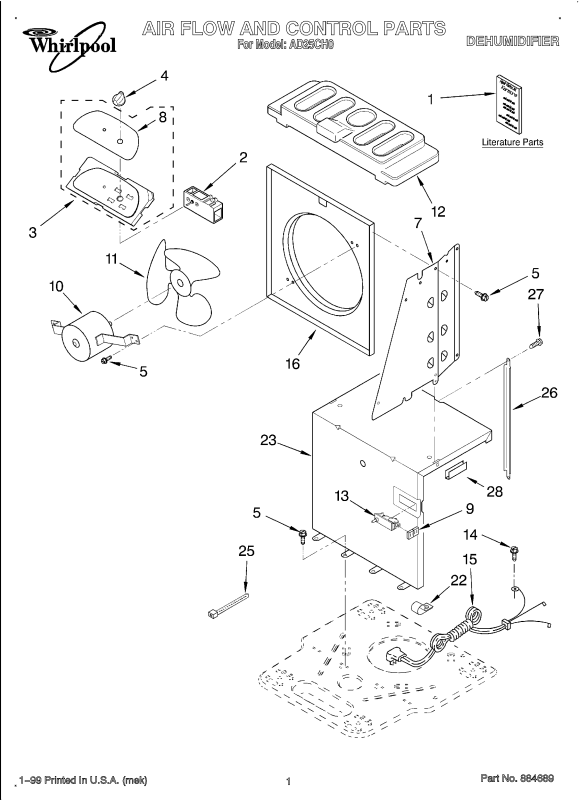

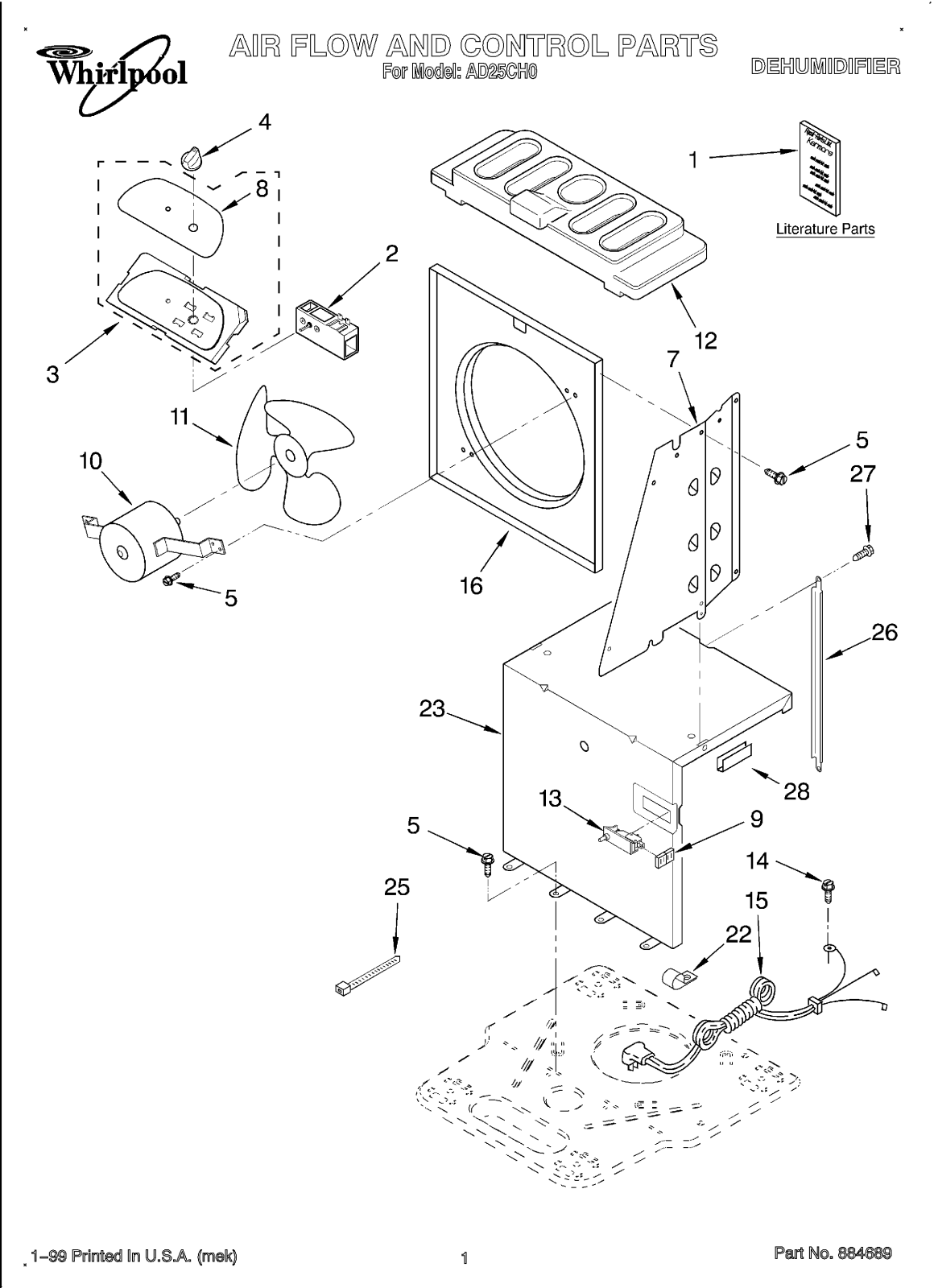

7 Panel, Air System

1168758 Left Side

1168759 Right Side
8 1168842 Escutcheon
9 1168781 Barrier, Bucket Fill Switch
10 1168811 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air System
13 1168699 Switch, Bucket Fill/Check
14 487871 Screw, 8-32 x 3/8
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8-18 X 3/8
28 1180634 Edge Guard
