Whirlpool Ad25bbr1 Installation Template

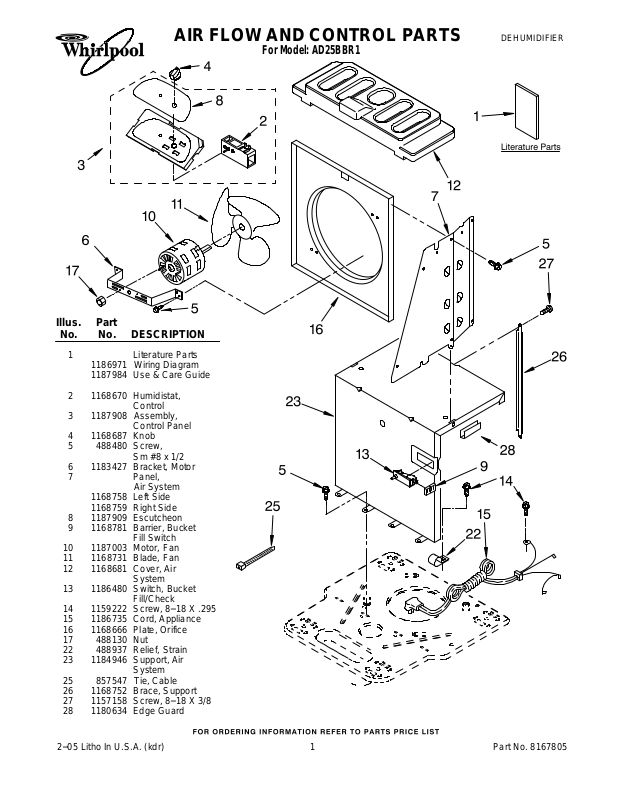

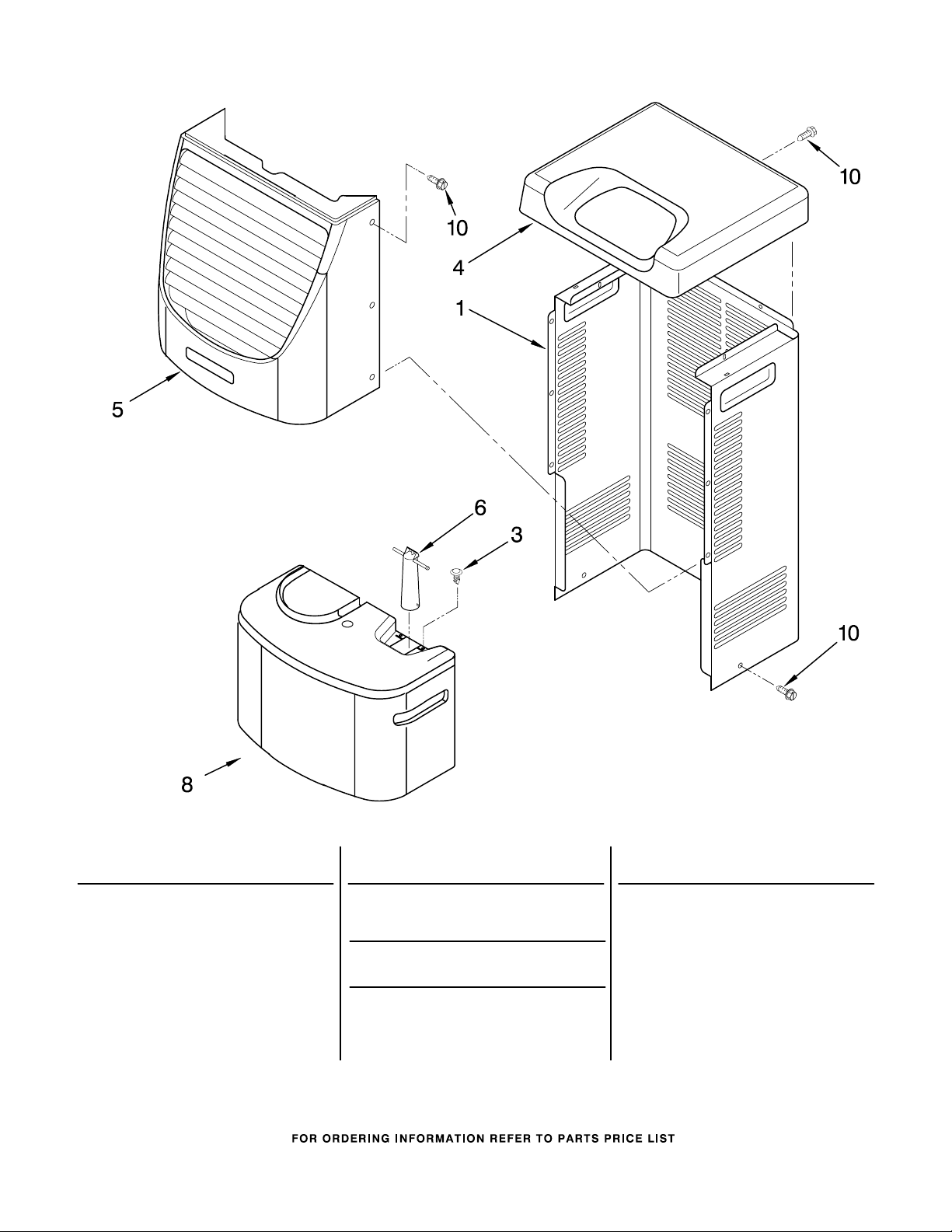

AIR FLOW AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION

DEHUMIDIFIER

For Model: AD25BBR1

1 Literature Parts

1186971 Wiring Diagram
1187984 Use & Care Guide

2 1168670 Humidistat,

Control

3 1187908 Assembly,

Control Panel
4 1168687 Knob
5 488480 Screw,

Sm #8 x 1/2
6 1183427 Bracket, Motor
7 Panel,

Air System

1168758 Left Side

1168759 Right Side
8 1187909 Escutcheon
9 1168781 Barrier, Bucket

Fill Switch
10 1187003 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

System
13 1186480 Switch, Bucket

Fill/Check
14 1159222 Screw, 8−18 X .295
15 1186735 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

2−05 Litho In U.S.A. (kdr)

1

Part No. 8167805

UNIT PARTS

For Model: AD25BBR1

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor
3 1162526 Strainer
6 1185795 Spring, Overload
7 1187540 Condenser
8 708531 Bend, Return (2)

10 1188185 Overload,

Protector

11 1186030 Nut, Terminal

Cover
12 1185792 Cover, Terminal
13 1185794 Washer, Nut

Illus. Part

No. No. DESCRIPTION

14 1186718 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1185793 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1188137 Capacitor
19 1186726 Harness, Wire
20 950212 Grommet (3)
21 1186674 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1188172 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

4.50 oz.
R−22

8167805
