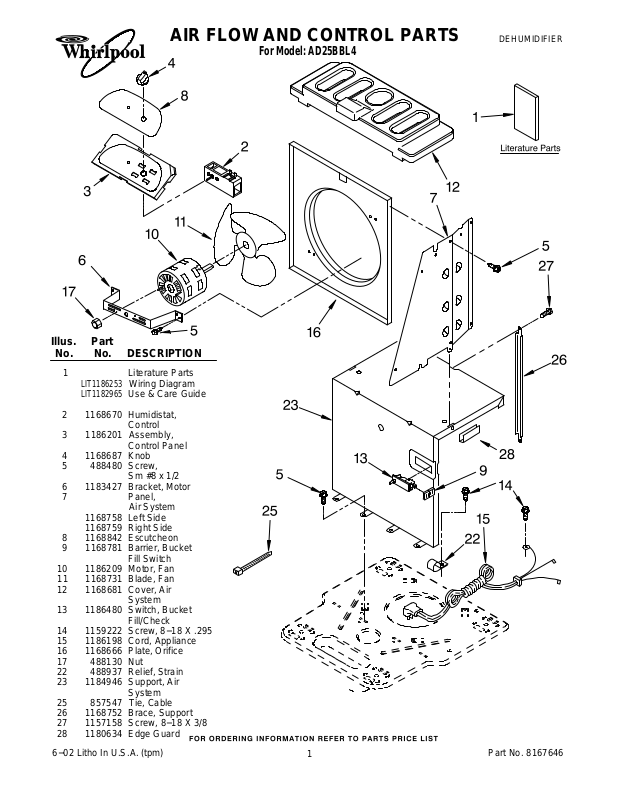

AIR FLOW AND CONTROL PARTS

For Model: AD25BBL4

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1186253

LIT1182965
2 1168670 Humidistat,
3 1186201 Assembly,
4 1168687 Knob

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
8 1168842 Escutcheon
9 1168781 Barrier, Bucket

10 1186209 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

13 1186480 Switch, Bucket
14 1159222 Screw, 8−18 X .295

15 1186198 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control
Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

System

6−02 Litho In U.S.A. (tpm)

1

Part No. 8167646

UNIT PARTS

For Model: AD25BBL4

Illus. Part

No. No. DESCRIPTION

2 1184271 Tube, Restrictor
3 1162526 Strainer
4 8031222 Bend, Return (5)
7 1184759 Condenser
8 708531 Bend, Return (2)

10 1184416 Overload,

Protector
11 1184725 Relay, Start
12 1182781 Cover, Terminal
13 1184415 Retainer, Cover

Illus. Part

No. No. DESCRIPTION

14 1186523 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1186210 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
25 1184723 Compressor,

(Complete

Assembly)

2

Illus. Part

No. No. DESCRIPTION

26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

4.25 oz.

R−22

8167646
