Whirlpool Ad0302xz0 Installation Template

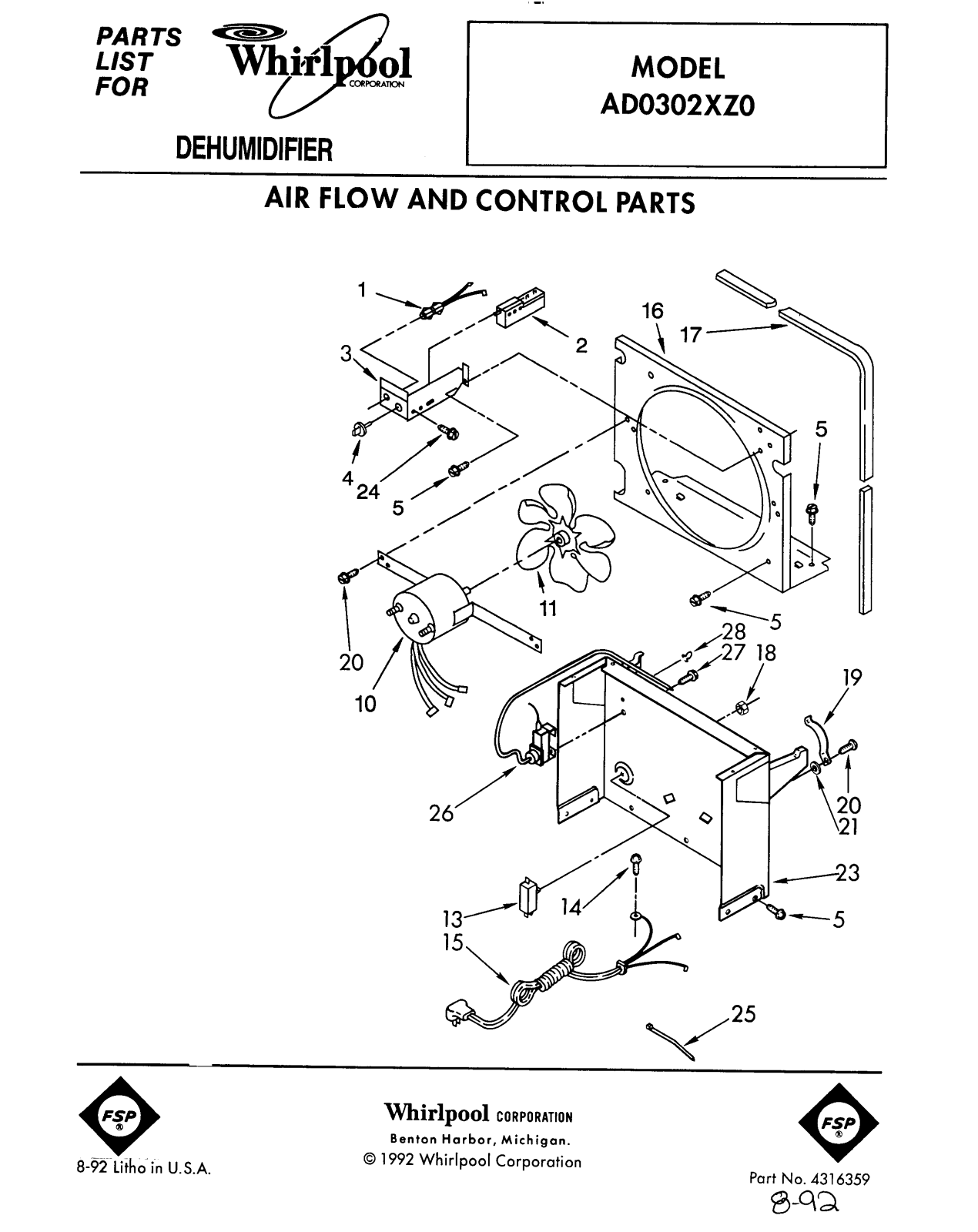

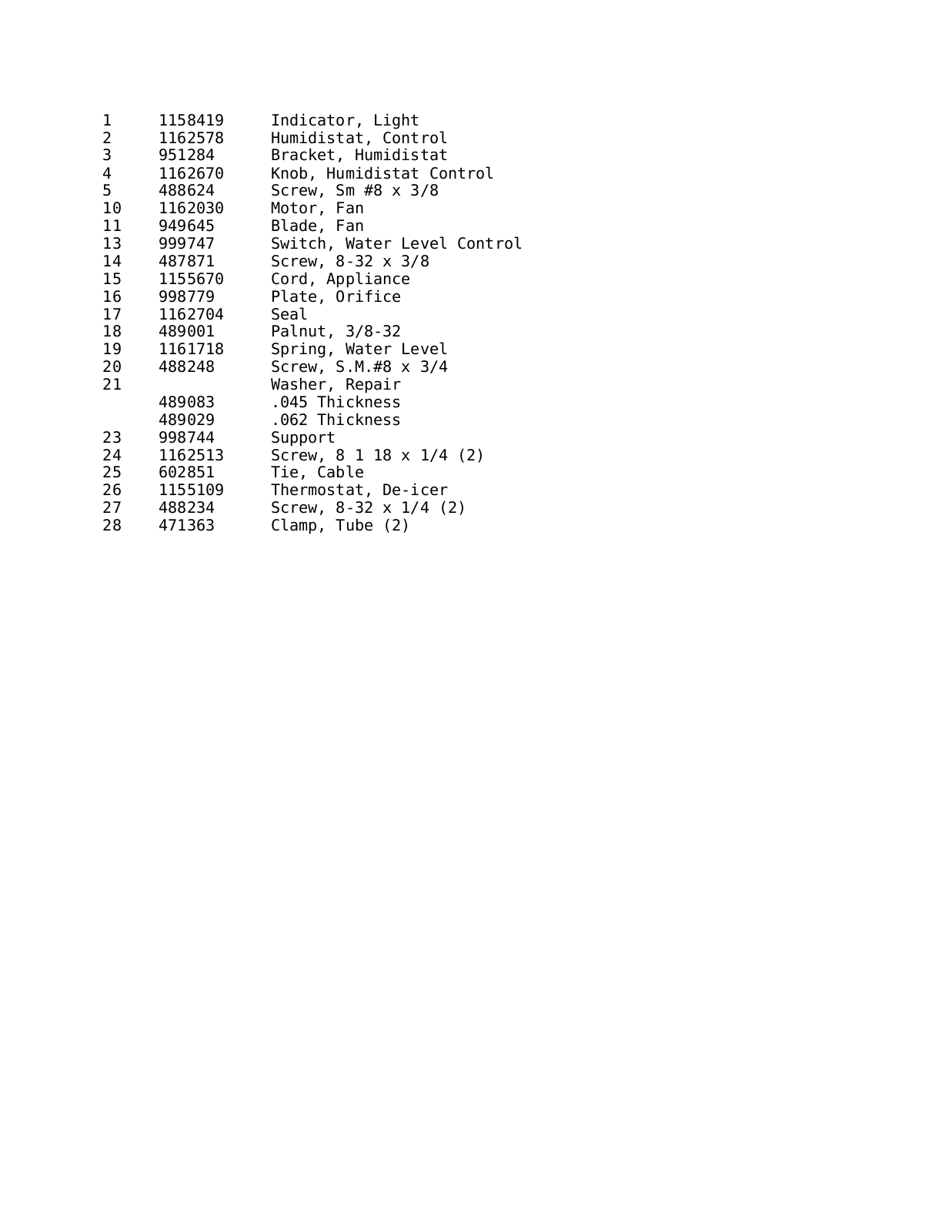

1 1158419 Indicator, Light 2 1162578 Humidistat, Control 3 951284 Bracket, Humidistat 4 1162670 Knob, Humidistat Control 5 488624 Screw, Sm #8 x 3/8 10 1162030 Motor, Fan 11 949645 Blade, Fan 13 999747 Switch, Water Level Control 14 487871 Screw, 8-32 x 3/8 15 1155670 Cord, Appliance 16 998779 Plate, Orifice 17 1162704 Seal 18 489001 Palnut, 3/8-32 19 1161718 Spring, Water Level 20 488248 Screw, S.M.#8 x 3/4 21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness 23 998744 Support 24 1162513 Screw,8118x1/4(2) 25 602851 Tie, Cable 26 1155109 Thermostat, De-icer 27 488234 Screw, 8-32 x 1/4 (2) 28 471363 Clamp, Tube (2)
