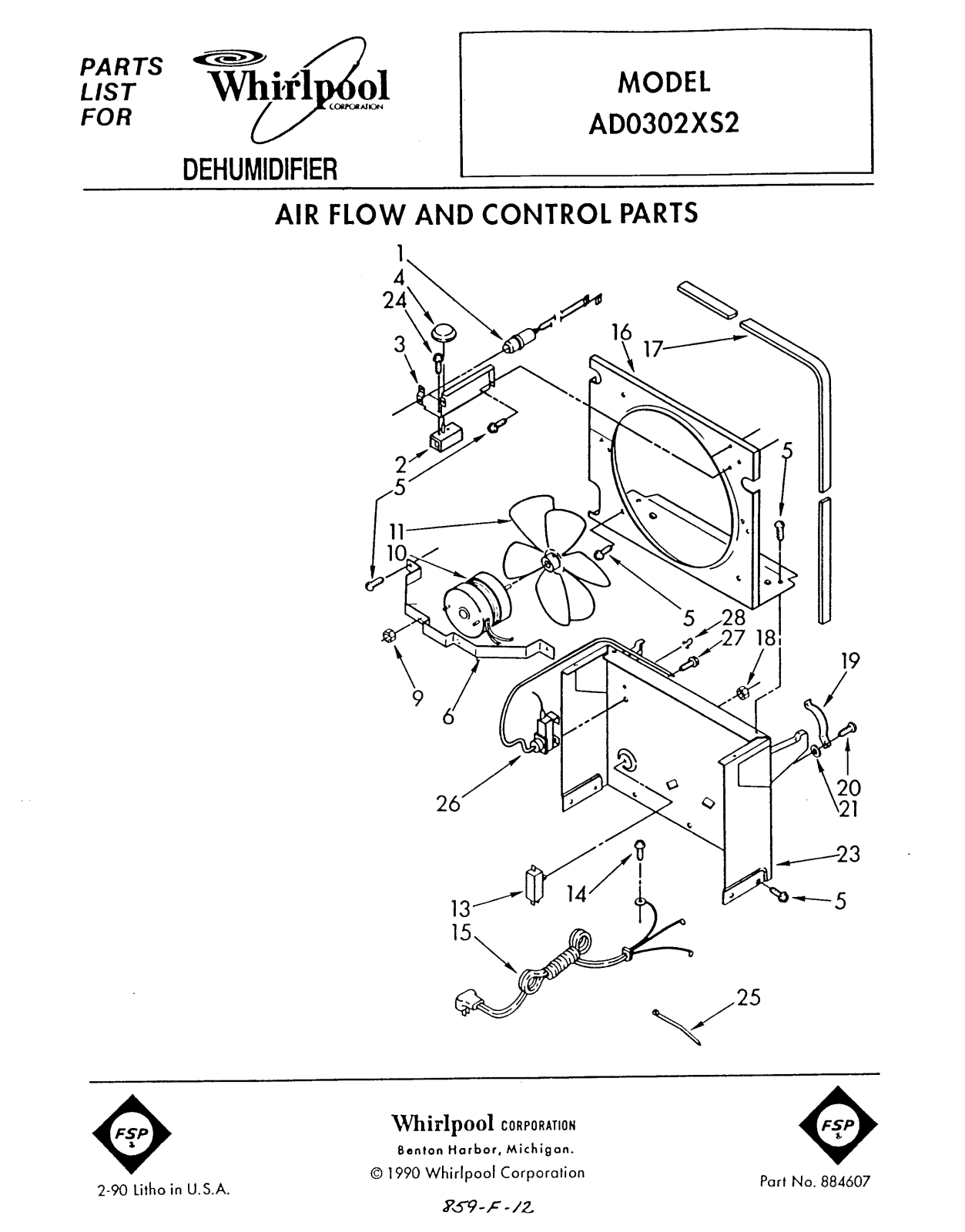

Whirlpool Ad0302xs2 Installation Template

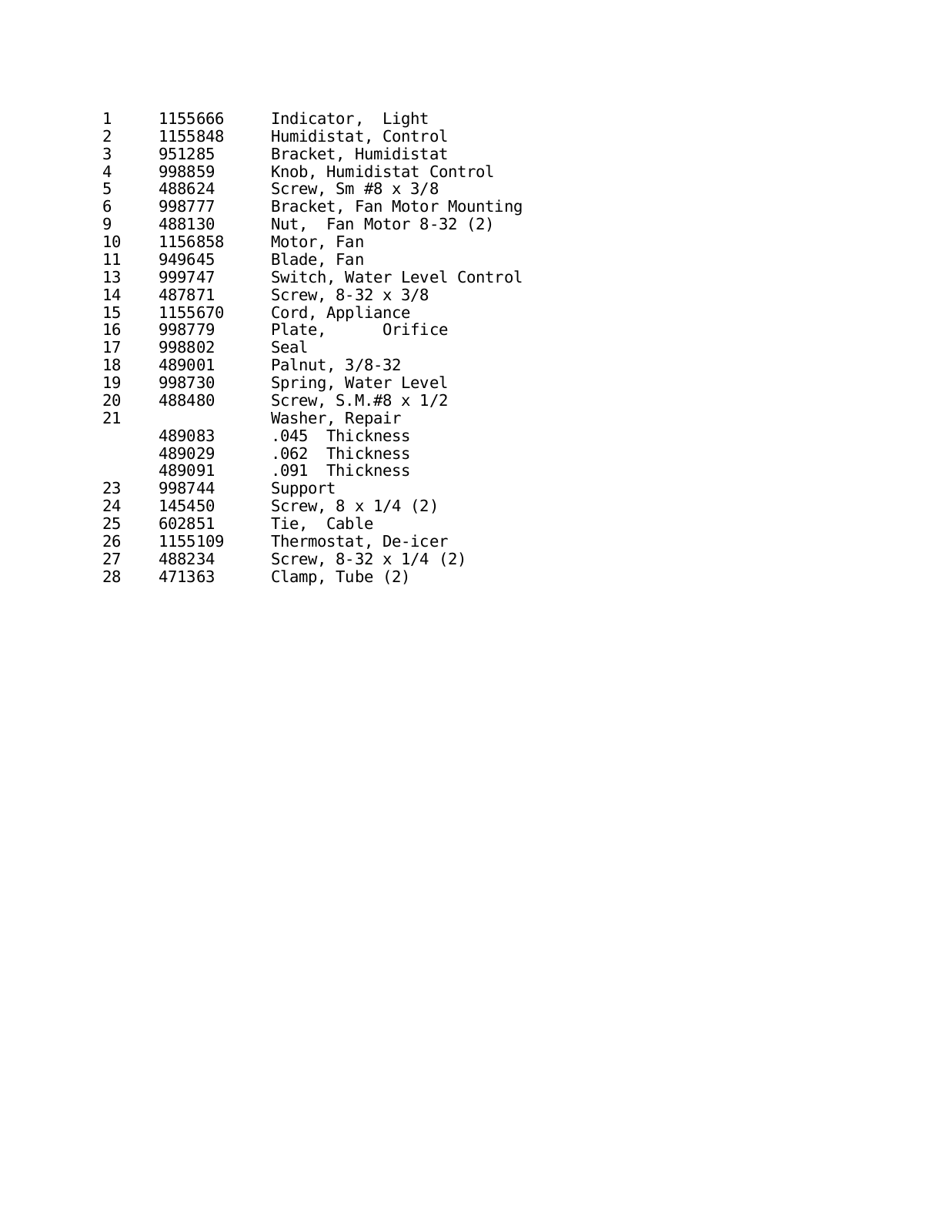

1 1155666 Indicator, Light
2 1155848 Humidistat, Control
3 951285 Bracket, Humidistat
4 998859 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8
6 998777 Bracket, Fan Motor Mounting
9 488130 Nut, Fan Motor 8-32 (2)
10 1156858 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1155670 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, S.M.#8 x 1/2
21 Washer, Repair

489083 .045 Thickness
489029 .062 Thickness

489091 .091 Thickness
23 998744 Support
24 145450 Screw, 8 x 1/4 (2)
25 602851 Tie, Cable
26 1155109 Thermostat, De-icer
27 488234 Screw, 8-32 x 1/4 (2)
28 471363 Clamp, Tube (2)
