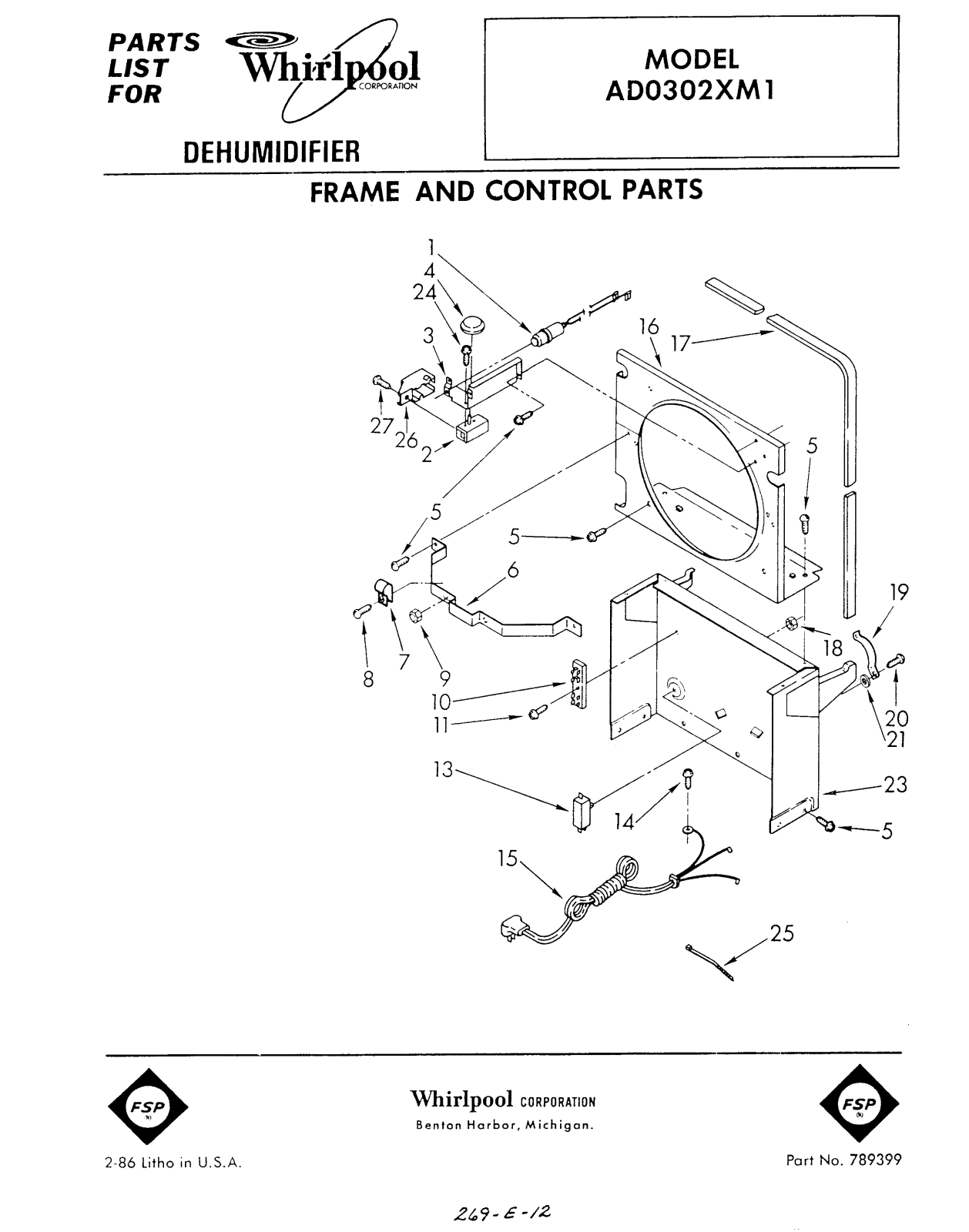

Whirlpool Ad0302xm1 Installation Template

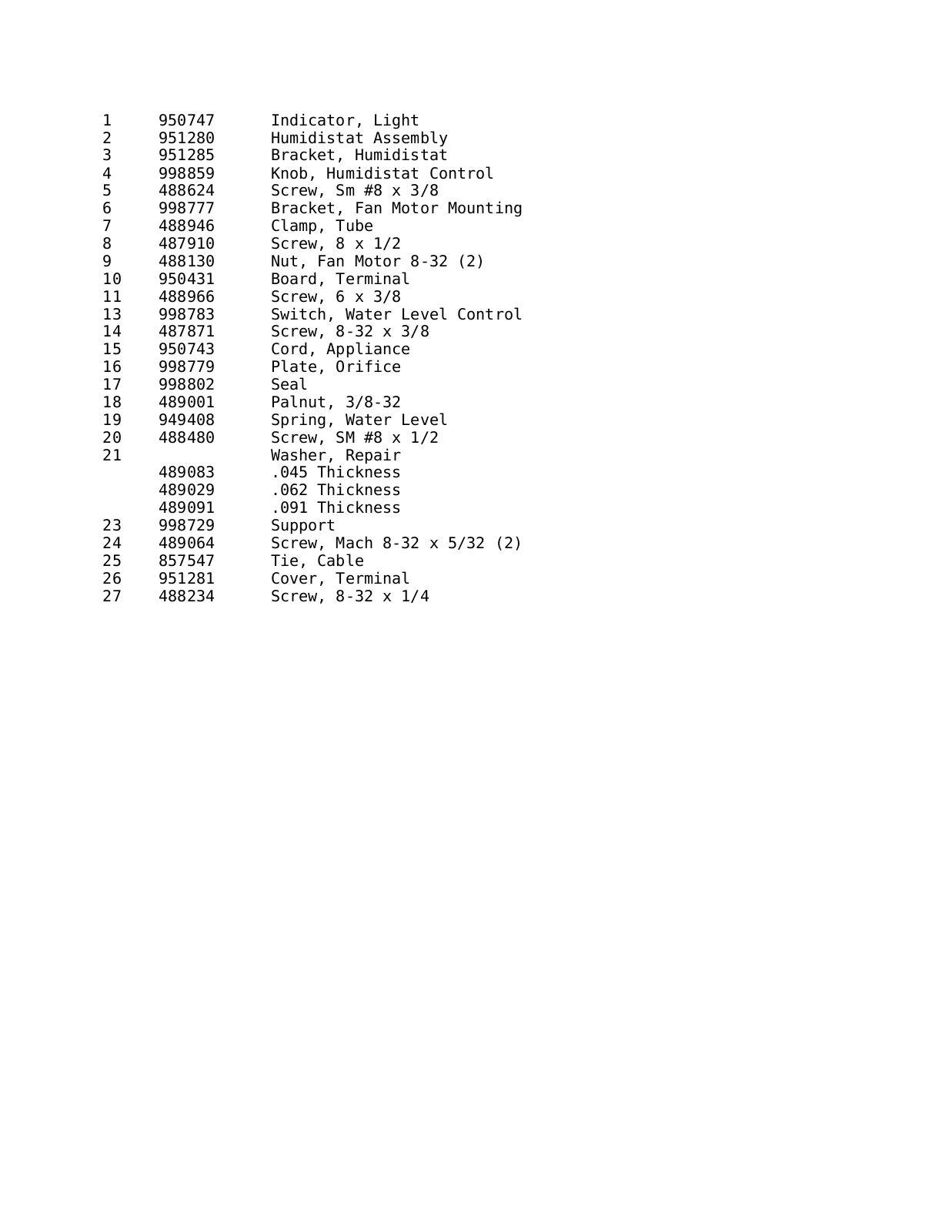

1 950747 Indicator, Light
2 951280 Humidistat Assembly
3 951285 Bracket, Humidistat
4 998859 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube
8 487910 Screw,8x1/2
9 488130 Nut, Fan Motor 8-32 (2)
10 950431 Board, Terminal
11 488966 Screw,6x3/8
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 950743 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 949408 Spring, Water Level
20 488480 Screw, SM #8 x 1/2
21 Washer, Repair

489083 .045 Thickness
489029 .062 Thickness

489091 .091 Thickness
23 998729 Support
24 489064 Screw, Mach 8-32 x 5/32 (2)
25 857547 Tie, Cable
26 951281 Cover, Terminal
27 488234 Screw, 8-32 x 1/4
