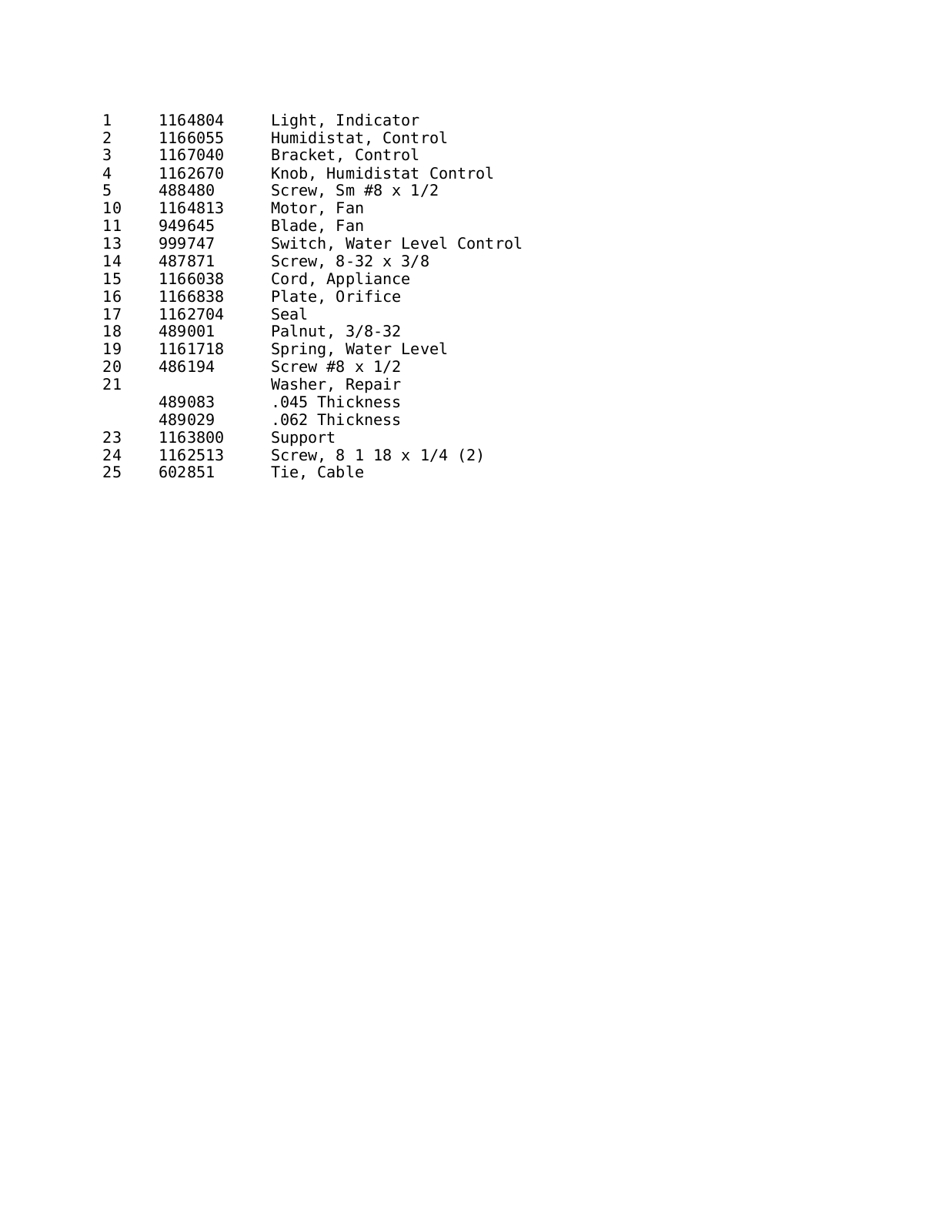

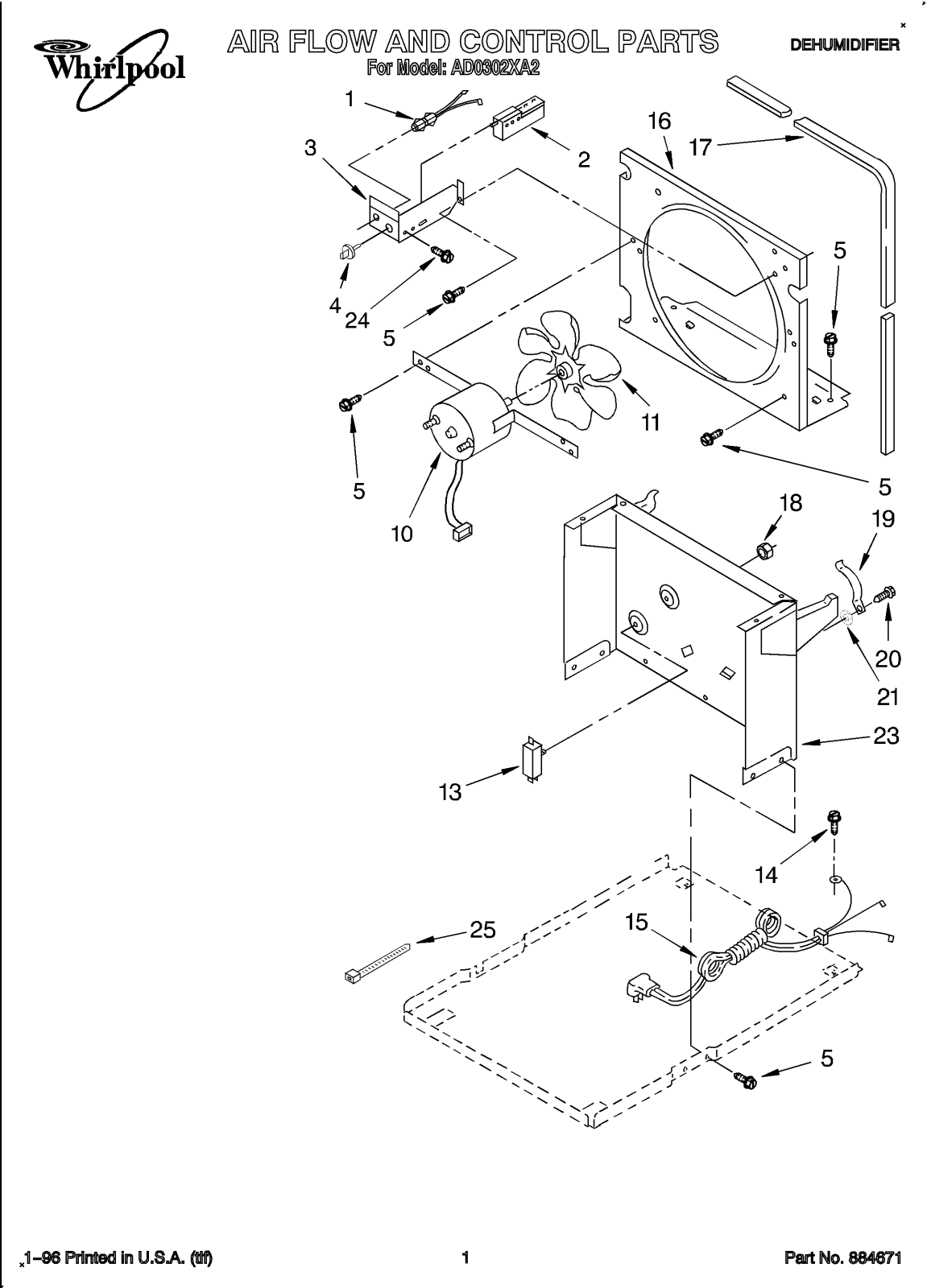

1 1164804 Light, Indicator
2 1166055 Humidistat, Control
3 1167040 Bracket, Control
4 1162670 Knob, Humidistat Control
5 488480 Screw, Sm #8 x 1/2
10 1164813 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1166038 Cord, Appliance
16 1166838 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 486194 Screw #8 x 1/2
21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness
23 1163800 Support
24 1162513 Screw,8118x1/4(2)
25 602851 Tie, Cable

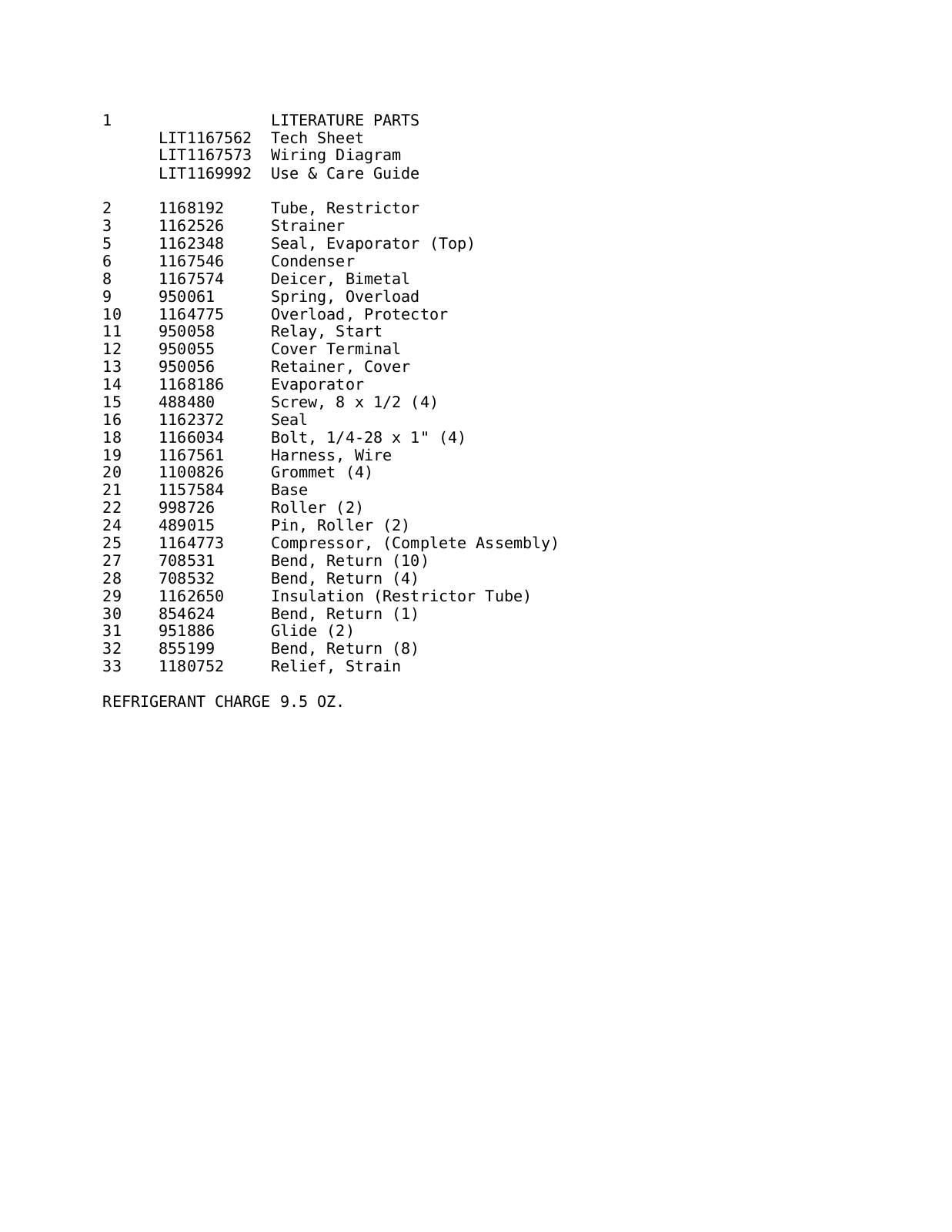

1 LITERATURE PARTS
LIT1167562 Tech Sheet
LIT1167573 Wiring Diagram
LIT1169992 Use & Care Guide

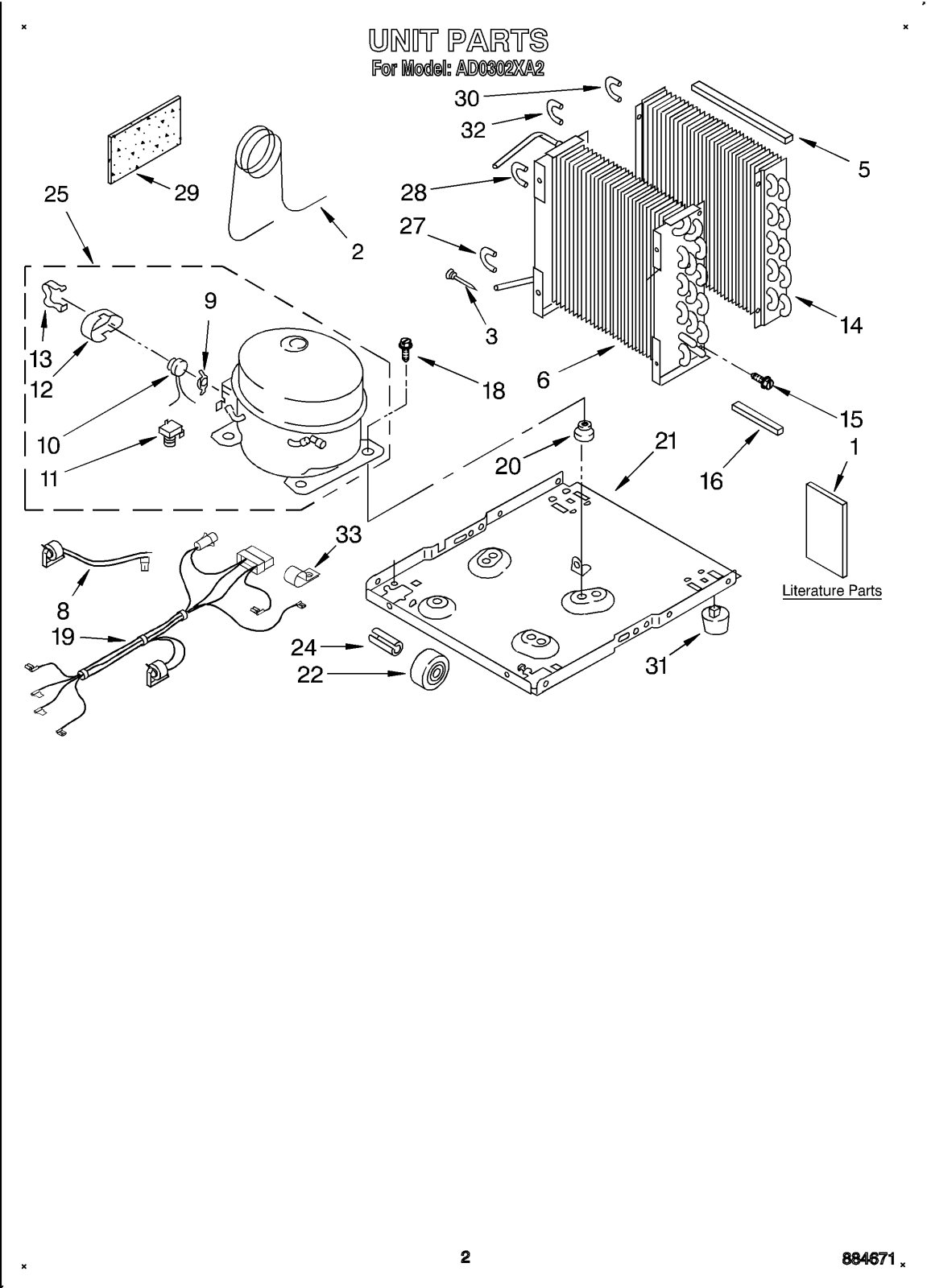

2 1168192 Tube, Restrictor
3 1162526 Strainer
5 1162348 Seal, Evaporator (Top)
6 1167546 Condenser
8 1167574 Deicer, Bimetal
9 950061 Spring, Overload
10 1164775 Overload, Protector
11 950058 Relay, Start
12 950055 Cover Terminal
13 950056 Retainer, Cover
14 1168186 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1162372 Seal
18 1166034 Bolt, 1/4-28 x 1" (4)
19 1167561 Harness, Wire
20 1100826 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
24 489015 Pin, Roller (2)
25 1164773 Compressor, (Complete Assembly)
27 708531 Bend, Return (10)
28 708532 Bend, Return (4)
29 1162650 Insulation (Restrictor Tube)
30 854624 Bend, Return (1)
31 951886 Glide (2)
32 855199 Bend, Return (8)
33 1180752 Relief, Strain
REFRIGERANT CHARGE 9.5 OZ.

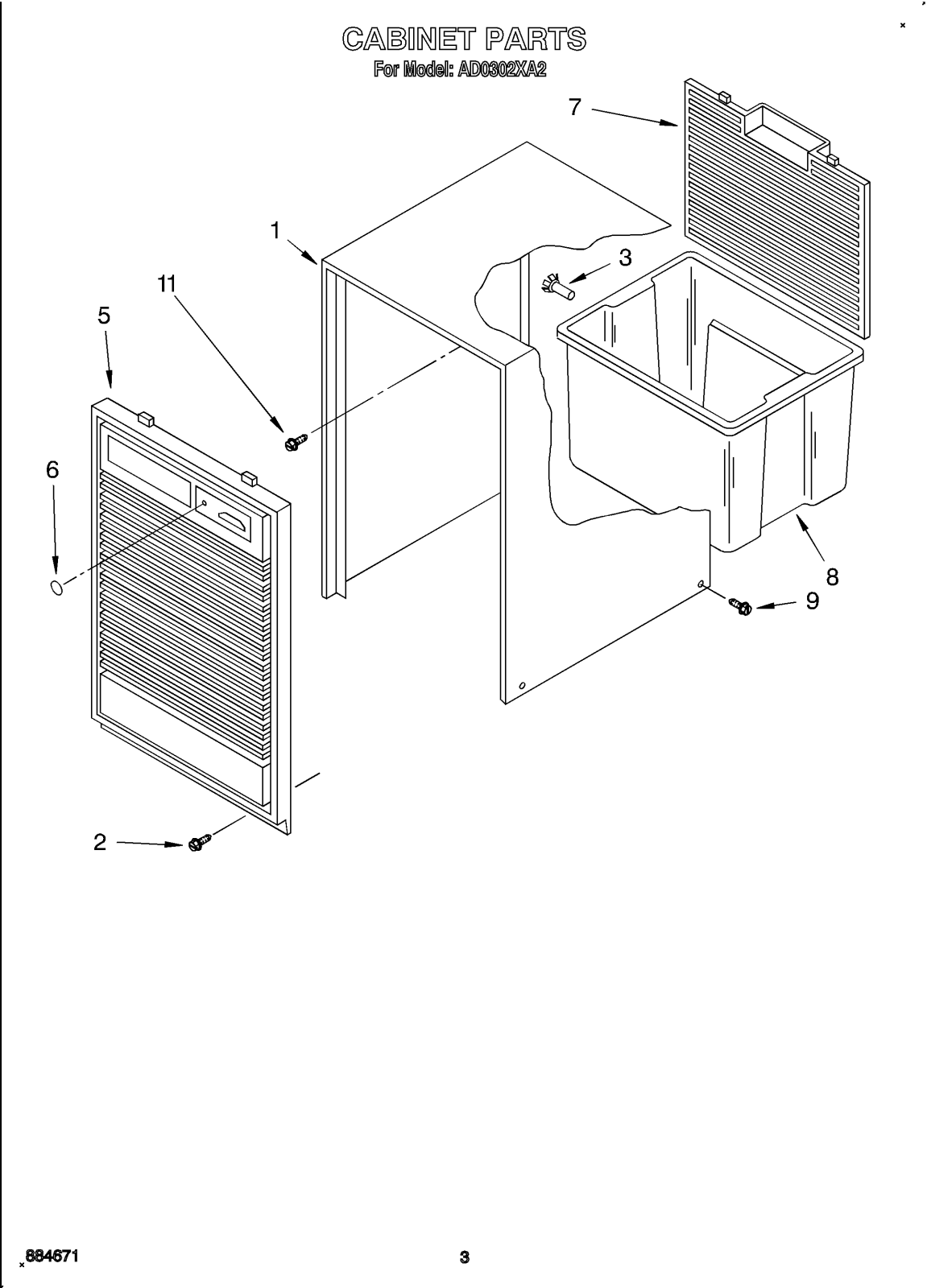

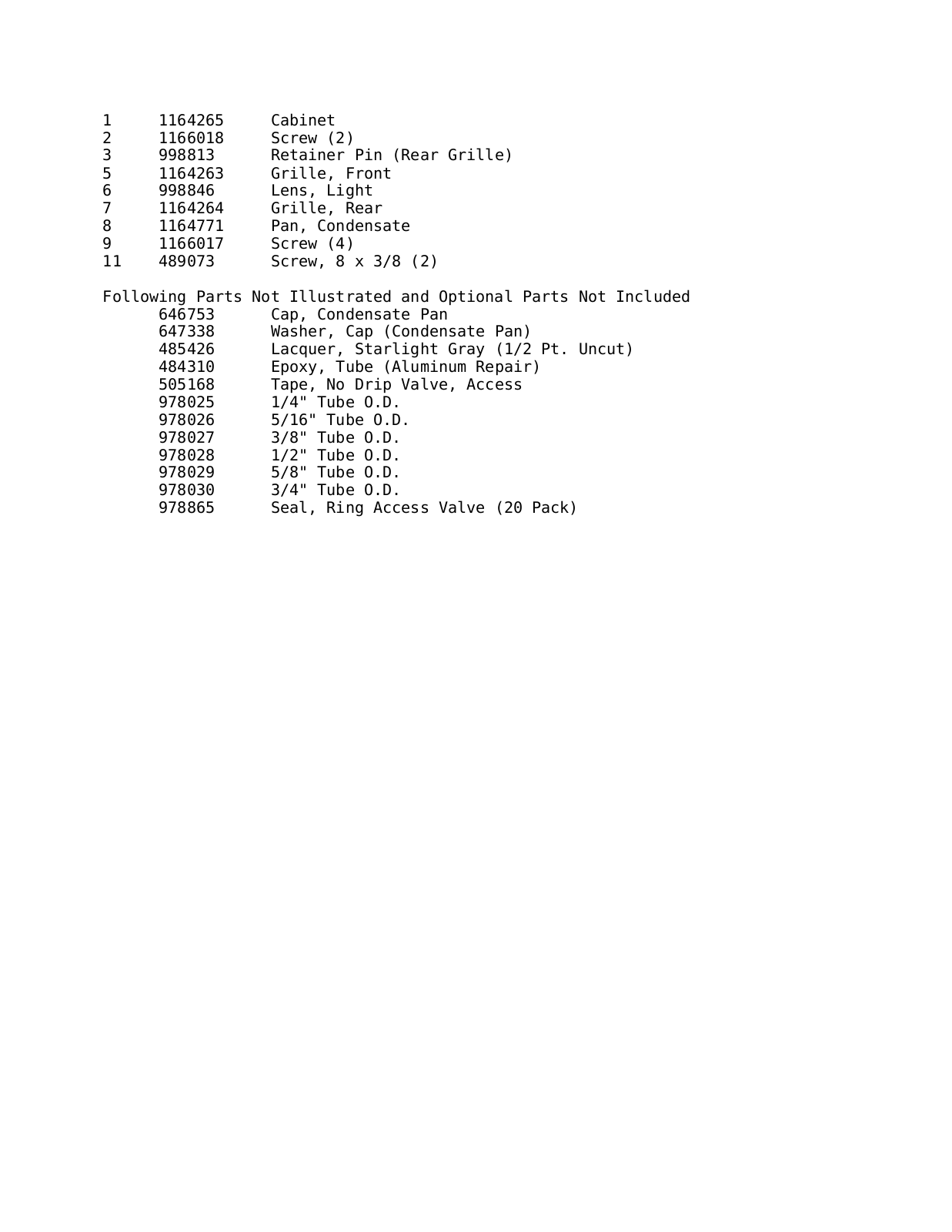

1 1164265 Cabinet
2 1166018 Screw (2)
3 998813 Retainer Pin (Rear Grille)
5 1164263 Grille, Front
6 998846 Lens, Light
7 1164264 Grille, Rear
8 1164771 Pan, Condensate
9 1166017 Screw (4)
11 489073 Screw, 8 x 3/8 (2)
Following Parts Not Illustrated and Optional Parts Not Included
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
484310 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
