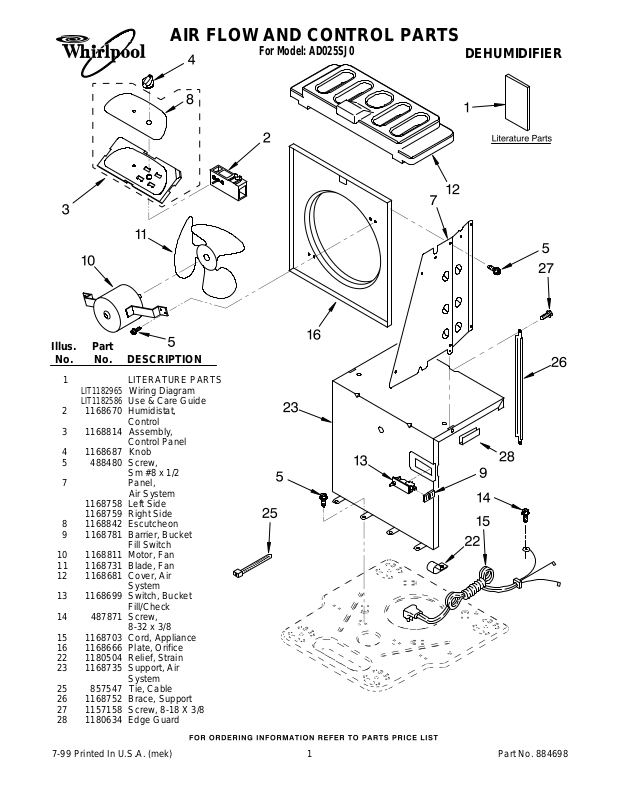

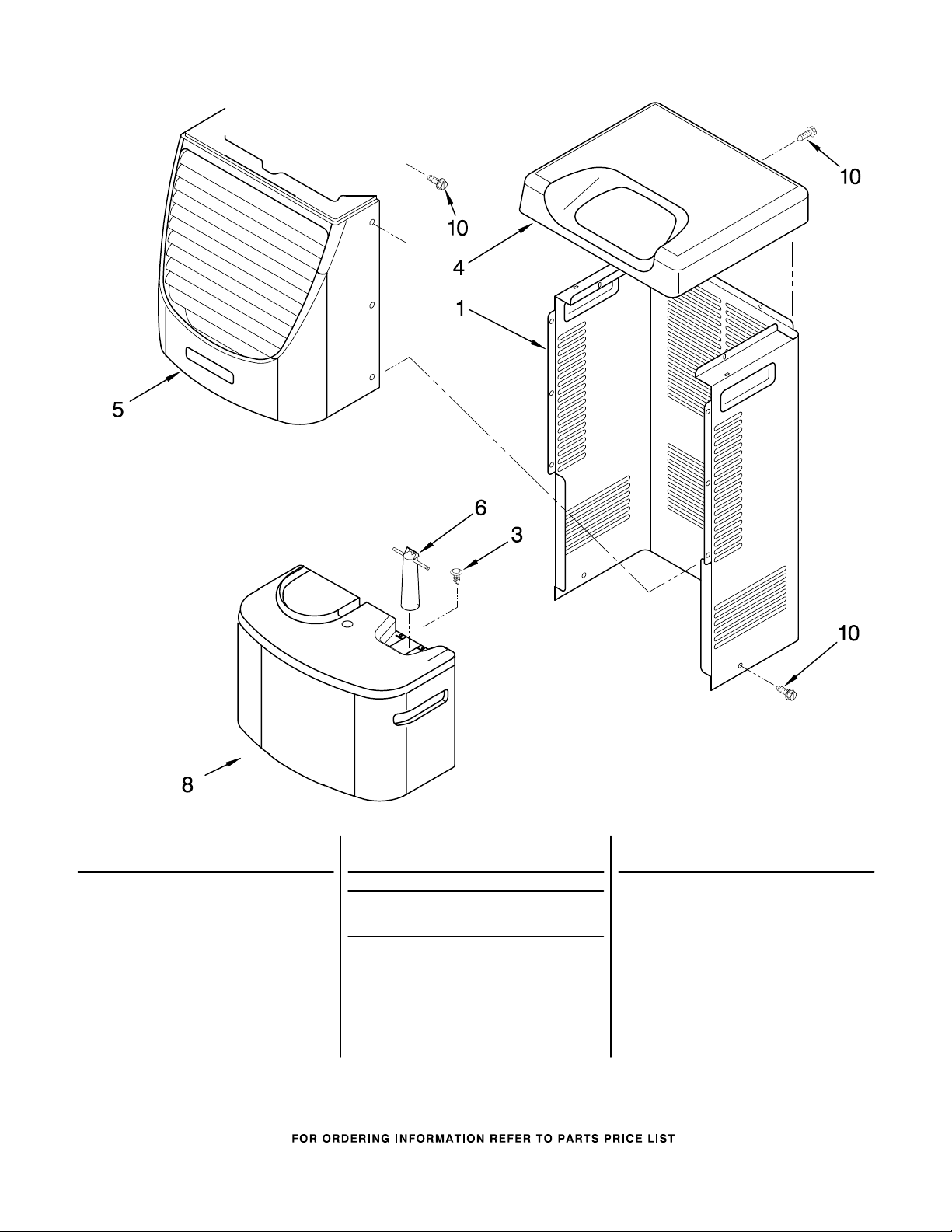

AIR FLOW AND CONTROL PARTS

For Model: AD025SJ0

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT1182965
LIT1182586

2 1168670 Humidistat,
3 1168814 Assembly,
4 1168687 Knob

5 488480 Screw,
7 Panel,

1168758 Left Side

1168759 Right Side
8 1168842 Escutcheon
9 1168781 Barrier, Bucket

10 1168811 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

13 1168699 Switch, Bucket
14 487871 Screw,
15 1168703 Cord, Appliance

16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8-18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control
Control Panel

Sm #8 x 1/2
Air System

Fill Switch

System
Fill/Check
8-32 x 3/8

System

7-99 Printed In U.S.A. (mek)

1

Part No. 884698

UNIT PARTS

For Model: AD025SJ0

Illus. Part

No. No. DESCRIPTION

2 1172076 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
7 1182896 Condenser
8 708531 Bend, Return (8)

10 1182892 Overload,

Protector
11 1182893 Relay, Start
12 1182890 Cover, Terminal
13 1182891 Retainer, Cover

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

14 1182898 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168810 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
25 1182889 Compressor,

(Complete

Assembly)

2

Illus. Part

No. No. DESCRIPTION

26 1168761 Pan, Drain
27 855199 Bend, Return (4)
29 1162650 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

5.00 oz.

884698
