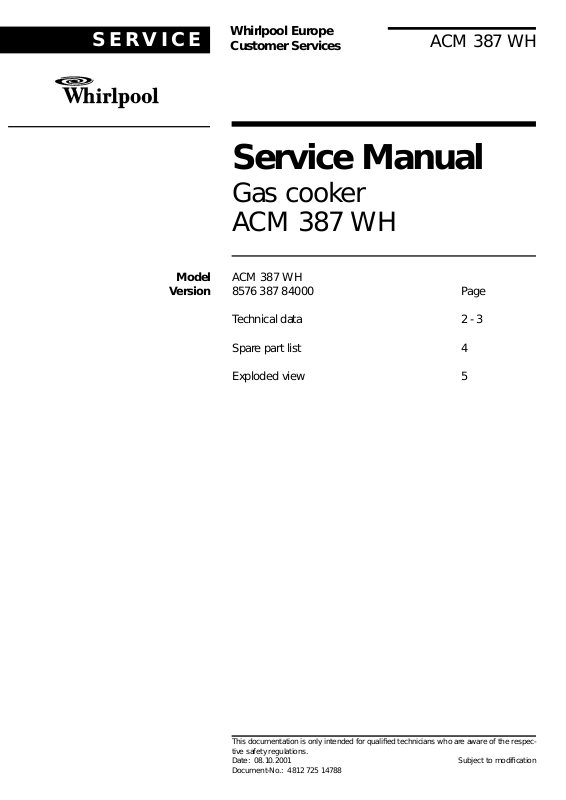

Page 1
SERVICE
Model ACM 387 WH
Version 8576 387 84000 Page
Whirlpool Europe
Customer Services
ACM 387 WH
Service Manual
Gas cooker
ACM 387 WH
Technical data 2 - 3
Spare part list 4
Exploded view 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 08.10.2001 Subject to modification
Document-No.: 4812 725 14788
Page 2
08.10.2001 / Page 2 ACM 387 WH Whirlpool Europe
Doc. No: 4812 725 14788 8576 387 84000 Customer Service
Technical data
Dimensions hob
Width 50 cm
Depth 60 cm
Dimensions oven
Height 29 cm
Width 38 cm
Depth 48 cm
Volume 53 l
Weight
Gross 48 kg
Net 41 kg
SERVICE
Gas power
Cooktop power
Front left burner Auxiliary
A 1000 W
Rear left burner Rapid
R 2700 W
Rear right burner Semirapid
SR 1700 W
Front right burner Semirapid
SR 1700 W
Oven power
Oven burner 3300 W
Type of gas used Type of
burner
Natural gas
G20
LPG
G30
large (R)
medium (SR)
small (A)
oven
large (R)
medium (SR)
small (A)
oven
Injector
marking
(mm)
1.25
1.00
0.76
1.35
0.85
0.65
0.50
0.90
Rated heat
capacity
(W)
2700
1700
1000
3300
2700
1700
1000
3300
Rated
consumption
286 l/h
180 l/h
106 l/h
350 l/h
222 g/h
140 g/h
82 g/h
272 g/h
Gas pressure
(mbar)
20
28
R
A
SR
SR
R Rapid
SR Semirapid
A Auxilliary
Page 3
SERVICE

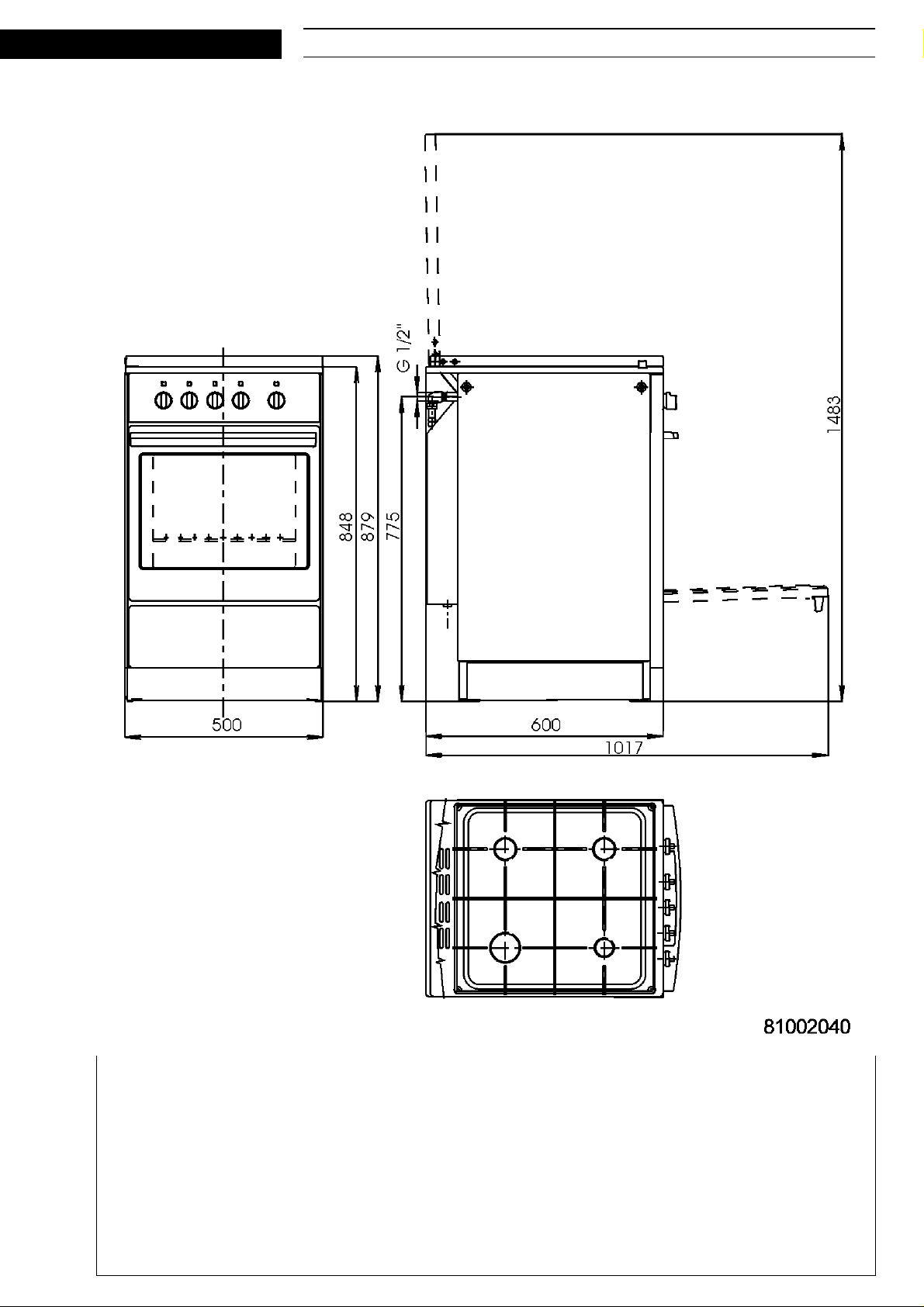

Technical data
Whirlpool Europe ACM 387 WH 08.10.2001 / Page 3
Customer Service 8576 387 84000 Doc. No: 4812 725 14788
Page 4
08.10.2001 / Page 4 ACM 387 WH Whirlpool Europe
Doc. No: 4812 725 14788 8576 387 84000 Customer Service
Spare part list
Model ACM 387 WH
Service No. 857638784000
Version 857638784000
SERVICE
Pos. No. 12NC Code Description
002 0 4812 440 58171 Cover
011 0 4812 404 78331 Screw set
011 8 4819 532 68684 Bushing
011 9 4819 502 18419 Screw
022 0 4819 440 59562 Side panel
025 1 4819 460 78104 Trim, side left
025 2 4819 460 78105 Trim, side right
025 9 4819 466 98774 Cap
031 0 4819 440 59563 Hob
031 7 4812 532 28917 Buffer
031 8 4819 532 28238 Washer
031 9 4819 502 18373 Screw
033 5 4819 458 38037 Small pan supp.
040 0 4812 535 48012 Hinge
040 1 4819 535 91436 Axle
041 8 4819 417 19295 Hinge bearing
043 0 4819 417 19297 Hinge right
043 1 4819 417 19296 Hinge left
043 2 4819 462 58133 Cover,hinge right
043 3 4819 462 58132 Cover,hinge left
043 4 4819 532 28252 Washer
043 5 4819 532 28253 Washer
043 6 4819 404 79051 Bracket
044 0 4819 492 48158 Spring oven door right
044 1 4819 492 48157 Spring oven door left
Pos. No. 12NC Code Description
472 0 4819 360 69468 Spreader,burner small
472 1 4819 360 69469 Spreader,burner medium
472 2 4819 360 69391 Spreader,burner large
473 0 4819 360 69392 Burner cap small
473 1 4819 360 69393 Burner cap medium
473 2 4819 360 69394 Burner cap large
474 0 4812 310 38589 Nozzle set - ZP G20
474 0 4812 310 38591 Nozzle set - PB G30
474 9 4819 360 61377 Injector holder
558 0 4812 271 28487 Thermostat
562 0 4819 530 41097 Fuse
562 1 4812 360 68206 Nozzle Oven
571 0 4819 360 58752 Tap R
571 1 4819 360 58751 Tap SR
571 2 4819 360 58745 Tap A
592 0 4819 138 38094 Thermo couple oven
595 4 4812 360 68204 Nozzle middle
595 6 4812 360 68203 Nozzle small
595 8 4812 360 68205 Nozzle
703 0 4819 530 41101 Gas pipe rear right
703 1 4819 530 41102 Gas pipe front right
703 2 4819 530 41099 Gas pipe rear left
703 3 4819 530 41098 Gas pipe front left
703 5 4812 530 48368 Gas pipe oven feeder
703 9 4812 530 48241 Gas pipe knee
044 9 4819 492 68667 Spring hinge lid
050 0 4819 440 59937 Plinth cover
050 1 4819 417 19298 Hook left
050 2 4819 417 19299 Hook right
050 3 4819 535 98516 Pin
105 9 4819 535 98471 Pin
110 0 4819 498 78343 Handle,door
121 0 4812 440 38804 Door frame inner
141 0 4819 450 58435 Door glass
142 0 4819 450 58434 Glass inner
143 0 4819 450 58436 Frame,door glas
191 0 4819 466 69942 Gasket oven
202 0 4819 442 38601 Bottom
241 0 4819 458 58425 Grid for hob
245 0 4819 458 68246 Grid
246 0 4819 418 38362 Baking tray
247 0 4819 418 38332 Fat pan
255 0 4819 440 59561 Bottom, oven
320 0 4812 453 59428 Control panel
331 0 4819 411 29417 Knob
331 9 4812 492 28211 Spring
334 0 4812 411 28735 Knob control
341 0 4819 413 79205 Indication disc gas hob
455 0 4819 360 69471 Burner oven
470 0 4819 360 69385 Burner body small
794 0 4812 530 68023 Seal
904 0 4819 462 48394 Shock absorber drawer
904 1 4819 466 98775 Fixation
904 8 4819 532 28242 Washer spring
904 9 4819 532 68893 Spacer
910 0 4812 502 18438 Screw
910 2 4819 505 18379 Nut
470 1 4819 360 69386 Burner body medium
470 2 4819 360 69387 Burner body large
471 0 4819 360 78332 Injector holder
471 1 4819 360 78333 Injector holder
471 2 4819 360 78334 Injector holder
Page 5
SERVICE

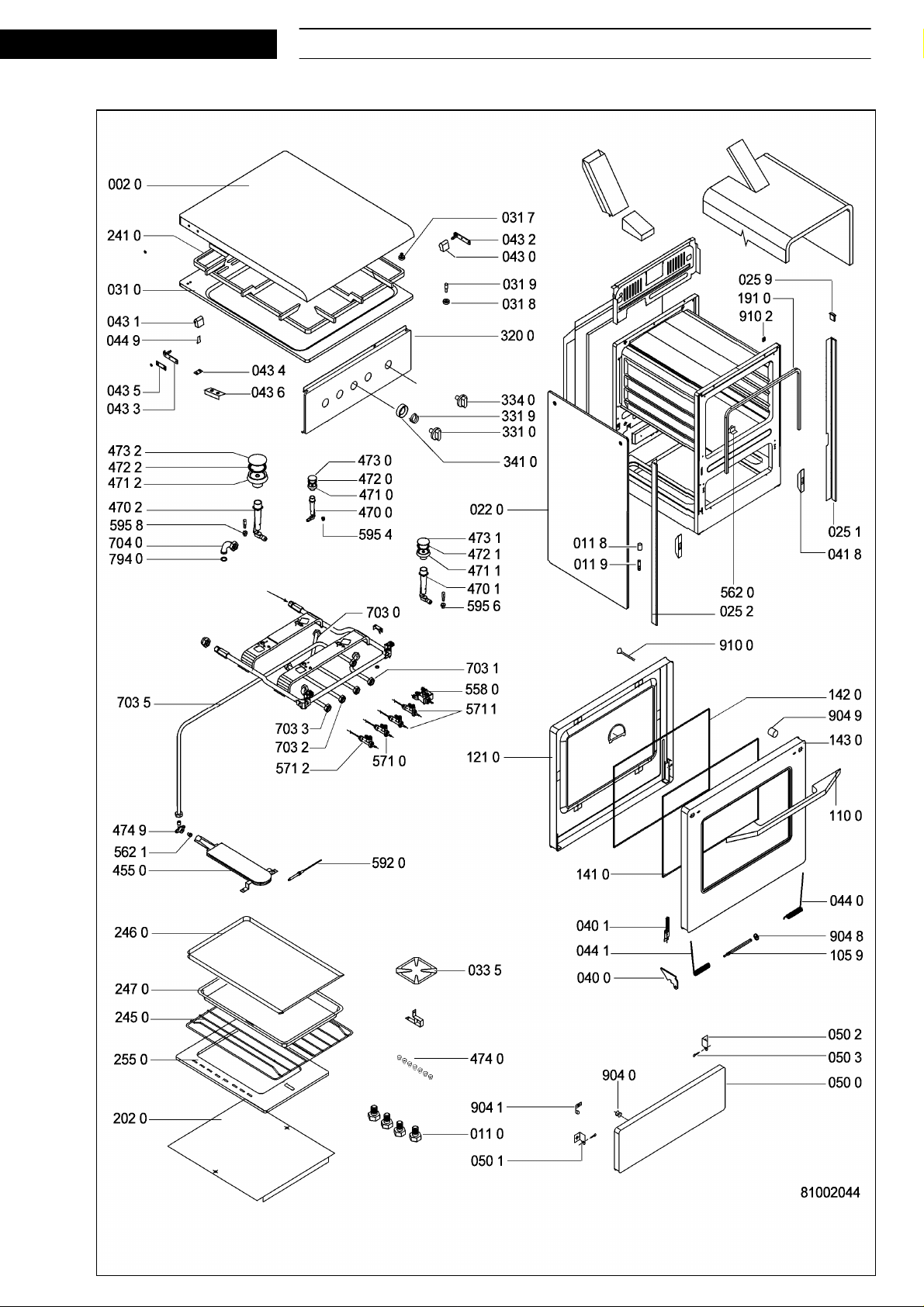

Exploded view
Whirlpool Europe ACM 387 WH 08.10.2001 / Page 5
Customer Service 8576 387 84000 Doc. No: 4812 725 14788
