Whirlpool 940991 User Manual

30" AND 36" (76.2 AND 91.4 CM)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONL

IMPOR

POUR UTILISA

WALL‑MOUNT CANOPY RANGE HOOD

Installation Instructions and Use and Care Guide

For questions about features, operation/performance, parts, accessories, or service, call: 1-800-253-1301

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca.

or visit our website at www.whirlpool.com.

HOTTE DE CUISINIÈRE À MONTAGE MURAL

DE30" ET 36" (76,2 ET 91,4 CM)

Instructions d’installation et Guide d’utilisation et d’entretien

Au Canada, pour assistance, installation ou service, composer le 1-800-807-6777

ou visiter notre site Web à www.whirlpool.ca.

Table of Contents/Table des matières

.....................................2

TANT : LIRE ET CONSERVER CES INSTRUCTIONS.

LIB0098810D/W11134239B

TION RÉSIDENTIELLE UNIQUEMENT

TABLE OF CONTENTS TABLE DES MATIÈRES

RANGE HOOD SAFETY .................................................................2

INSTALLATION REQUIREMENTS ................................................. 4

Tools and Parts .............................................................................4

Location Requirements ................................................................4

Venting Requirements ..................................................................5

Electrical Requirements ...............................................................6

INSTALLATION INSTRUCTIONS ................................................... 7

Prepare Location ..........................................................................7

Install Range Hood .......................................................................8

Connect Vent System ..................................................................8

Make Electrical Connection .........................................................9

Install Vent Covers ........................................................................9

Complete Installation .................................................................10

RANGE HOOD USE ......................................................................10

Range Hood Controls ................................................................10

RANGE HOOD CARE ...................................................................11

Cleaning .....................................................................................11

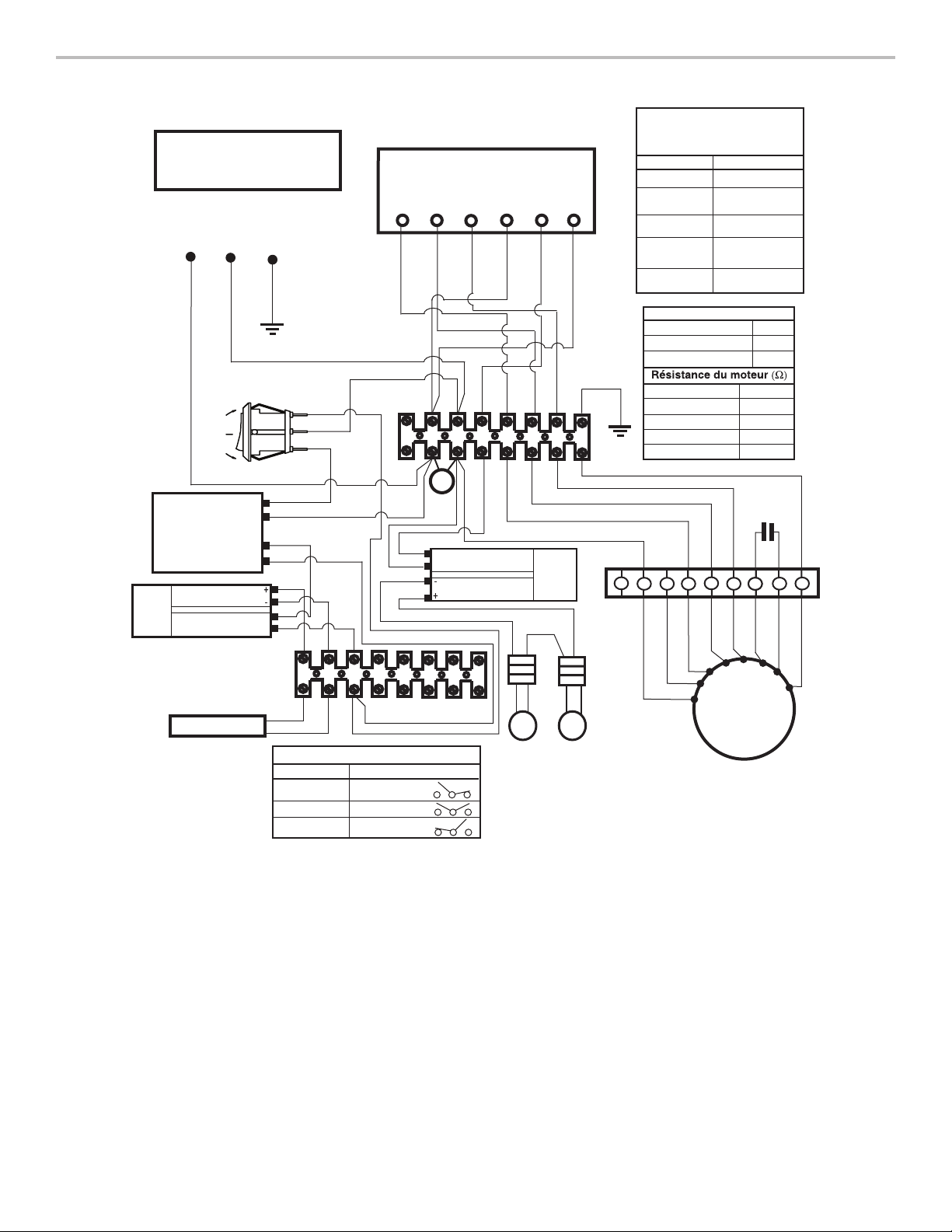

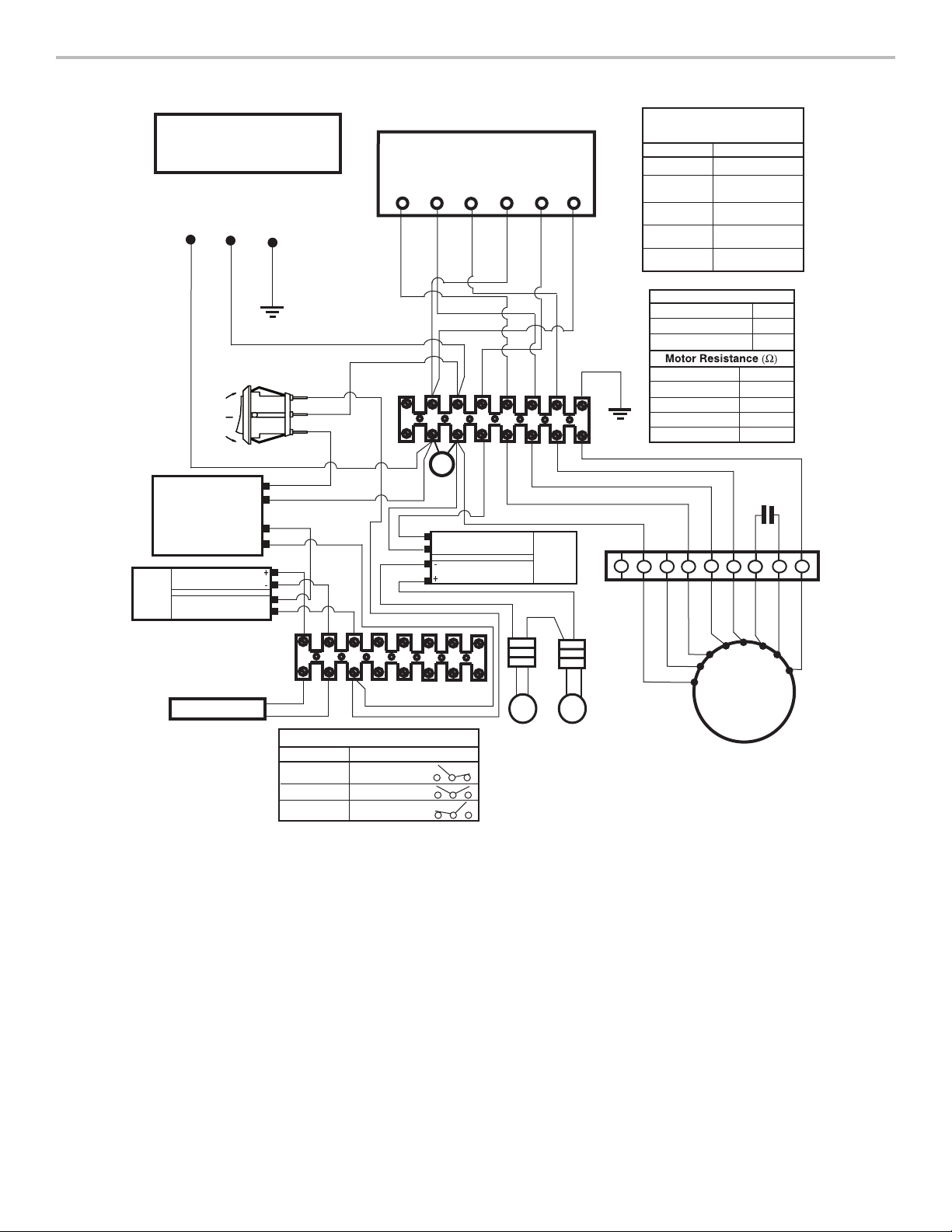

WIRING DIAGRAM .......................................................................12

ASSISTANCE OR SERVICE .........................................................13

In the U.S.A. ...............................................................................13

In Canada ...................................................................................13

Accessories ................................................................................13

WARRANTY ..................................................................................14

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE ...............................15

EXIGENCES D’INSTALLATION ...................................................17

Outils et pièces ...........................................................................17

Exigences d’emplacement .........................................................17

Exigences concernant l’évacuation ...........................................18

Spéciﬁcations électriques ..........................................................20

INSTRUCTIONS D’INSTALLATION .............................................20

Préparation de l’emplacement ...................................................20

Installation de la hotte ................................................................21

Raccordement du circuit d’évacuation ......................................22

Raccordement électrique ...........................................................22

Installation des cache-conduits .................................................23

Achever l’installation ..................................................................23

UTILISATION DE LA HOTTE .......................................................24

Commandes de la hotte de cuisinière .......................................24

ENTRETIEN DE LA HOTTE .........................................................25

Nettoyage ...................................................................................25

SCHÉMA DE CÂBLAGE ...............................................................26

ASSISTANCE OU SERVICE .........................................................27

Au Canada ..................................................................................27

Accessoires ................................................................................27

GARANTIE .....................................................................................27

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings: WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

follow instructions.

You

can be killed or seriously injured if you don't

instructions.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

(50.8 cm)

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Level

■ Drill with 1

and 5/16" (7.9 mm) drill bits

■ Pencil

■ Wire stripper or utility knife

■ Tape measure or ruler

■ Pliers

■ Caulking gun and weatherproof caulking compound

■ Vent clamps

■ Jigsaw or keyhole saw

■ Flat-blade screwdriver

■ Metal snips

■ Phillips screwdriver

Parts Needed

■ Home power supply cable

■ 1/2" (12.7 mm) UL Listed or CSA approved strain relief

■ Three UL Listed wire connectors

For Vented Installations, You Will Also Need:

■ One wall or roof cap

■ Metal vent system

For Non-Vented (Recirculating) Installations, You Will Also Need:

■ Recirculation Kit - See the “Assistance or Service” section to

order.

■ 6" (15.2 cm) diameter round metal vent duct -

length required is determined by ceiling height.

/4" (3.2 cm), 1/8" (3.2 mm),

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Have a qualiﬁed technician install the range hood. It is the

installer’s responsibility to comply with installation clearances speciﬁed on the model/serial/rating plate. The model/serial/ rating plate is located behind the left ﬁlter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

This range hood is recommended for use with cooktops with a maximum total rating of 65,000 BTUs or less.

Grounded electrical outlet is required. See the “Electrical Requirements” section.

The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) installation see “For non-vented (recirculating) installation only” in the “Connect Vent System” section. Recirculation Kit is available from your dealer or an authorized parts distributor. See the “Assistance or Service” section to order.

All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

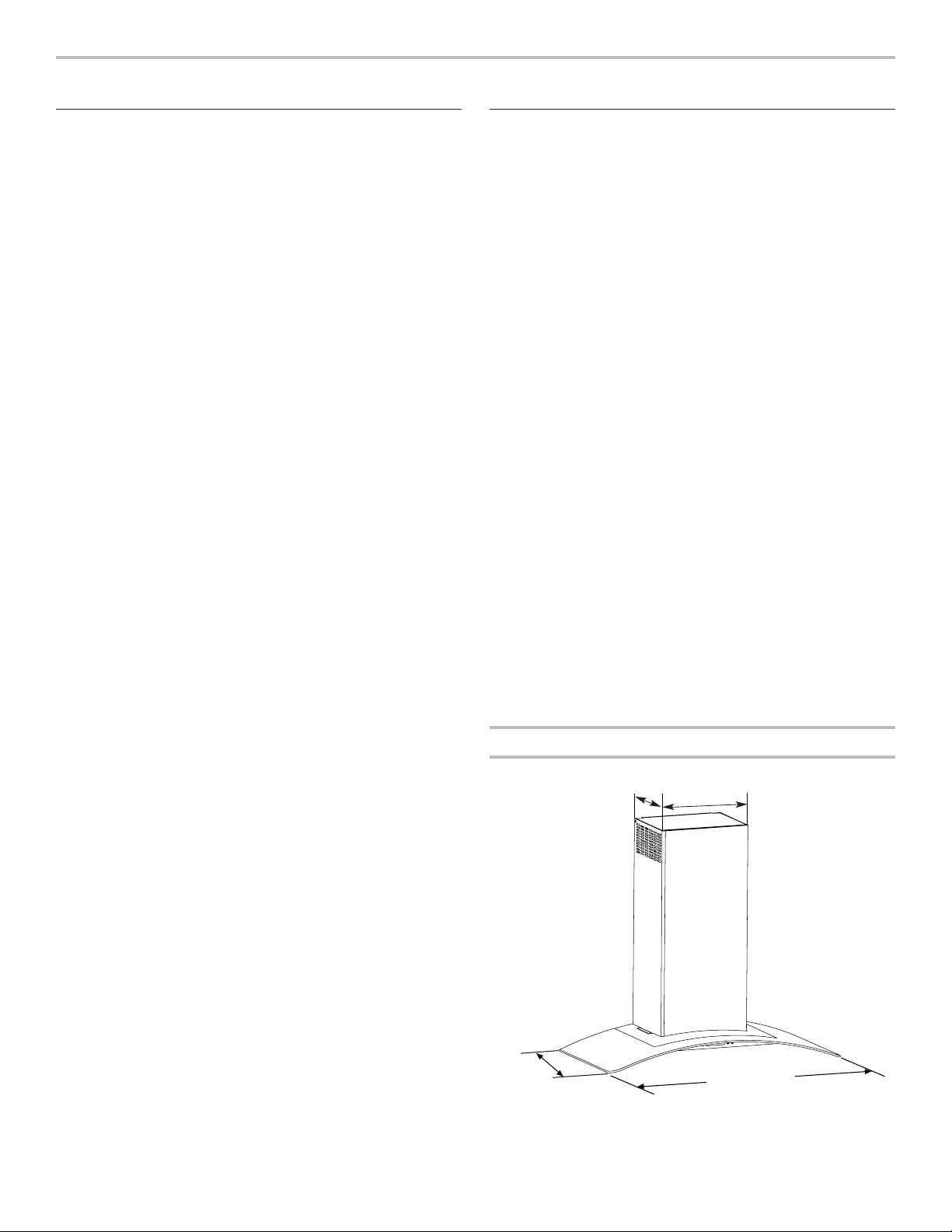

Product Dimensions

⁷⁄₈

(27.6 cm)

13³⁄₁₆"

(33.5 cm)

Parts Supplied

Remove parts from packages. Check that all parts are included.

■ Hood canopy assembly with blower, lights ,and canopy glass

already installed

■ Vent transition with back draft dampers installed

■ Metal grease ﬁlter

■ Vent cover support bracket

■ Mounting template

■ Two piece vent cover

■ Four 4.2 x 8 mm screws

■ Six 5 x 45 mm mounting screws

■ Two 3.5 x 9.5 mm mounting screws

■ Two 8 x 40 mm wall anchors

■ Four 10 x 60 mm wall anchors

■ Four 5.4 x 75 mm screws (for 10 x 60 mm wall anchors)

■ T10 Torx

■ T20

†®TORX® and T20® are registered trademarks of Acument Intellectual Properties, LLC.

®†

adapter

®†

Torx® adapter

20"

30" (76.2 cm) or 36" (91.4 cm)

³⁄₁₆" (43.7 cm)

" (104.5 cm) max.

10" (25.4 cm) min.

wer

Cooking surface

* For non-vented (recirculating) installations

** For vented installations

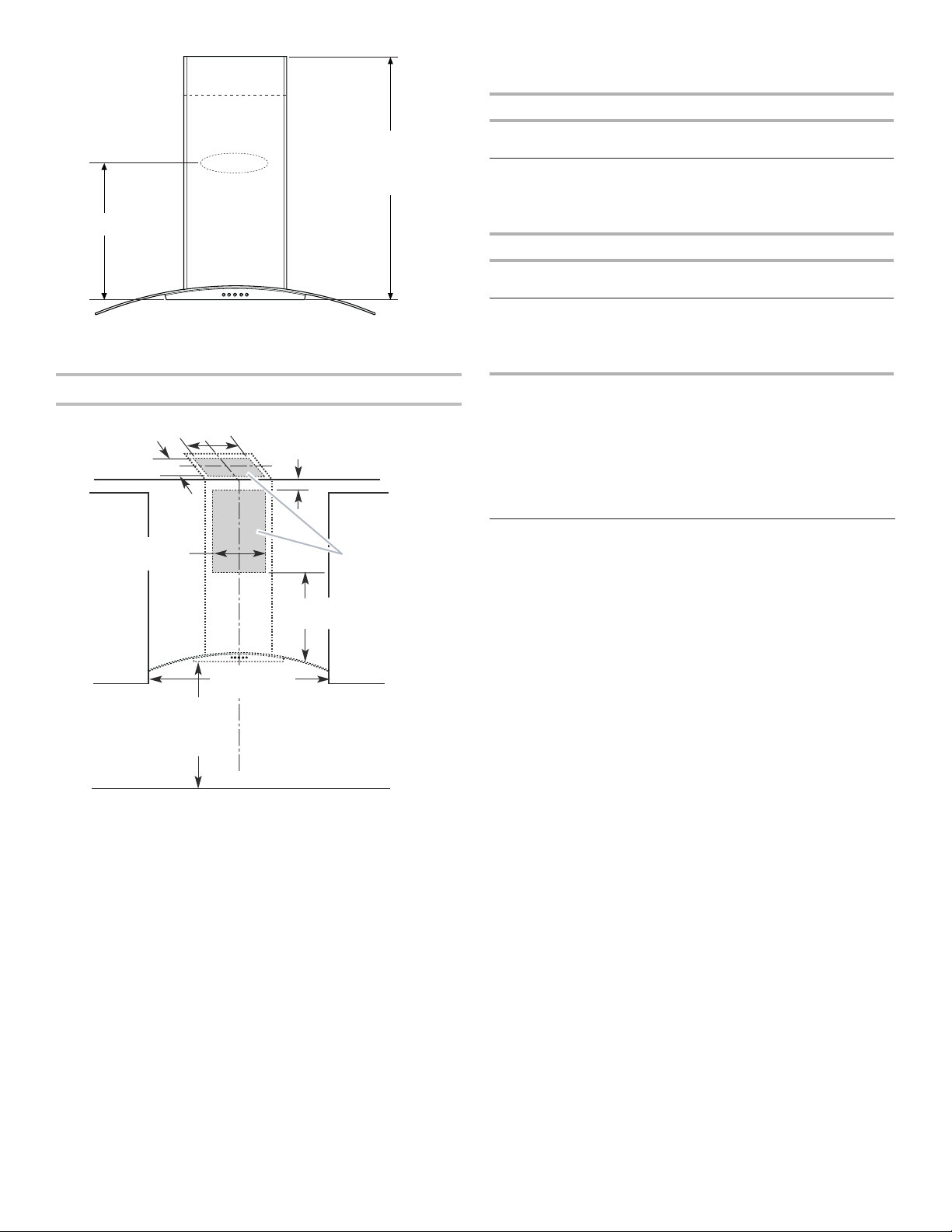

Cabinet Dimensions

13" (33.0 cm) max.

9¹⁄₂" (24.1 cm)

10" (25.4 cm) min. 13" (33.0 cm) max.

Side cabinet

30" (76.2 cm) or 36" (91.4 cm)

“X”

bottom of

canopy

to cooking

surface

* For non-vented (recirculating) installations

IMPORTANT:

Minimum distance “X”: 24" (61 cm) from electric cooking surface

Minimum distance “X”: 27" (68.6 cm) from gas cooking surface

Suggested maximum distance “X”: 36" (91.4 cm)

2" (5.1 cm) min. 9" (22.9 cm) min.*

20" (50.8 cm)* min.

Centerline

**27¹⁄₈" (68.9 cm) min. **41¹⁄₈

*27¹⁄₈" (68.9 cm) min. *45¹⁄₂" (115.6 cm) max.

Vent and po

supply cable

entry location

Side cabinet

The chimneys can be adjusted for different ceiling heights. See the following chart.

Vented Installations

Min. ceiling height Max. ceiling height

Electric cooking

7' 4" (2.23 m) 9' 5" (2.87 m)

surface Gas cooking

7' 7" (2.31 m) 9' 5" (2.87 m)

surface

Non-Vented (Recirculating) Installations

Min. ceiling height Max. ceiling height

Electric cooking

7' 4" (2.23 m) 9' 9" (2.97 m)

surface Gas cooking

7' 7" (2.31 m) 9' 9" (2.97 m)

surface

NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or sofﬁt heights depending on the distance “X” between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the “Assistance or Service” section to order.

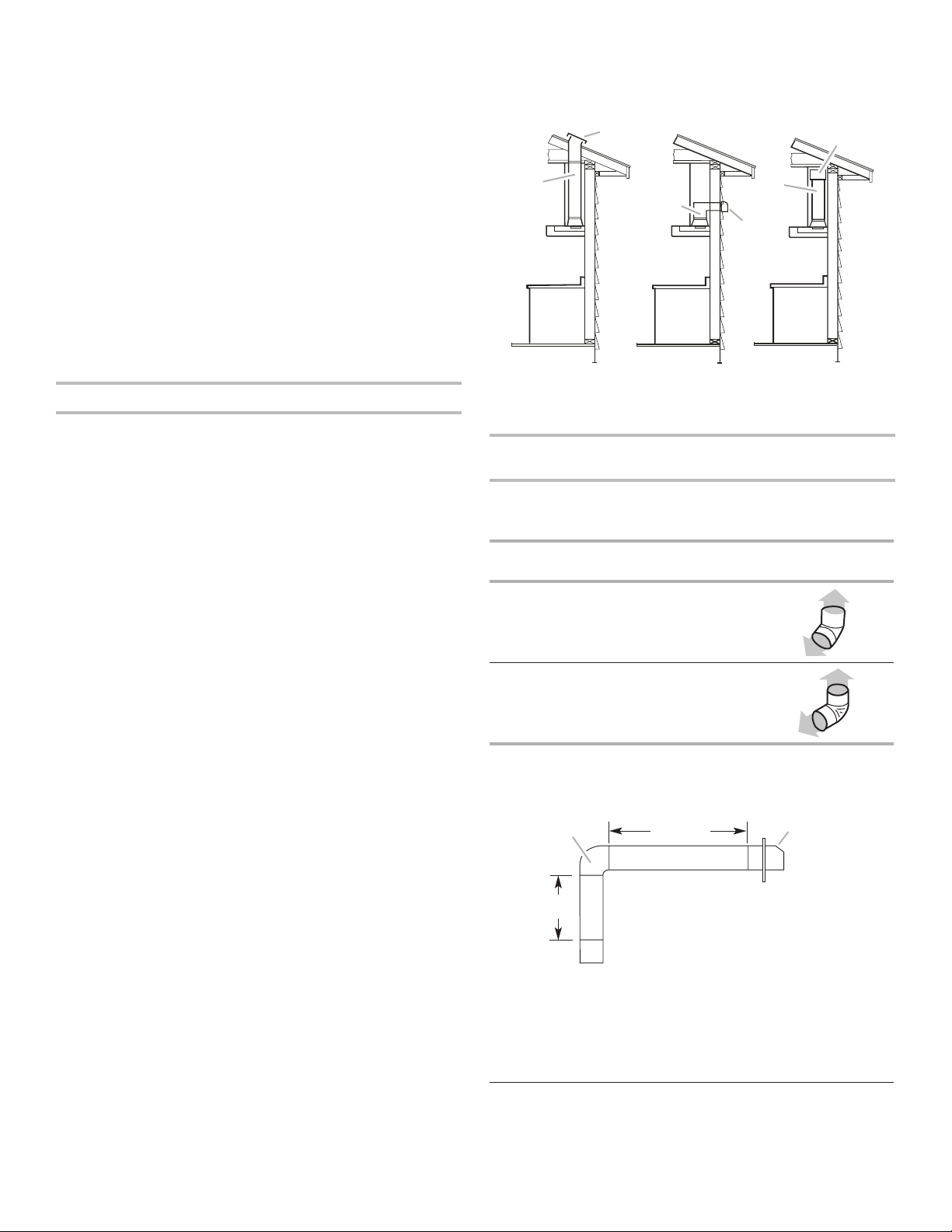

Venting Requirements

(vented models only)

■ Vent system must terminate to the outdoors except

for non-vented (recirculating) installations.

■ Do not terminate the vent system in an attic or other

enclosed area.

■ Do not use 4" (10.2 cm) laundry-type wall cap.

■ Use metal vent only. Rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

■ The length of vent system and number of elbows should

be kept to a minimum to provide efﬁcient performance.

For the Most Efﬁcient and Quiet Operation:

■ Use no more than three 90° elbows.

■ Make sure there is a minimum of 24" (61 cm) of straight

vent between the elbows if more than one elbow is used.

■ Do not install two elbows together.

■ Use clamps to seal all joints in the vent system.

■ The vent system must have a damper. If the roof

or wall cap has a damper, do not use the damper supplied with the range hood.

■ Use caulking to seal exterior wall or roof opening

around the cap.

■ The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air ﬂow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

90 elbo

Wall cap

Local building codes may require the use of makeup air systems when using ventilation systems greater than speciﬁed CFM of air movement. The speciﬁed CFM varies from locale to locale. Consult your HVAC professional for speciﬁc requirements in your area.

Venting Methods

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

Rear Discharge

A 90° elbow may be installed immediately above the hood.

Example Vent System

2 ft

(0.6 m)

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1 – 90° elbow = 5 ft (1.5 m) 1 – wall cap = 0 ft (0 m) 8 ft (2.4 m) straight = 8 ft (2.4 m) Length of system = 13 ft (3.9 m)

6 ft (1.8 m)

For Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, ﬁtting a charcoal ﬁlter and the deﬂector. Fumes and vapors are recycled through the top grille.

Non-Vented

Roof Venting

Wall Venting

(Recirculating)

A. Roof cap B. 6" (15.2 cm)

round vent

A. Wall cap B. 6" (15.2 cm)

round vent

A. Deﬂector B. 6" (15.2 cm)

round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

Electrical Requirements

Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualiﬁed electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical

circuit is required.

■ If the house has aluminum wiring, follow the

procedure below:

1. Connect a section of solid copper wire to the

pigtail leads.

2. Connect the aluminum wiring to the added section

of copper wire using special connectors and/or tools designed and UL Listed for joining copper to aluminum.

Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of

the appliance as speciﬁed on the model/serial/rating plate. The model/serial/rating plate is located behind the left ﬁlter on the rear wall of the range hood.

■ Wire sizes must conform to the requirements of the National

Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

90° elbow 5 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

INSTALLATION INSTRUCTIONS

(6.4 mm)

■ It is recommended that the vent system be installed

before hood is installed.

■ Before making cutouts, make sure there is proper

clearance within the ceiling or wall for exhaust vent.

■ Check your ceiling height and the hood height

maximum before you select your hood.

1. Disconnect power.

2. Determine which venting method to use: roof, wall,

or non-vented.

3. Select a ﬂat surface for assembling the range hood.

Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

4. Using two or more people, lift range hood onto

covered surface.

Prepare Location

5. For wood, drill 3/16" (4.8 mm) pilot holes at all locations

where screws are being installed into wood. For wall anchors, drill 7/16" (10 mm) holes at all locations

where wall anchors are being used.

6. For wood, install (2) 5 x 45 mm mounting screws. Leave

a 1/4" (6.4 mm) gap between the wall and the back of the screw head to slide range hood into place.

For wall anchors, install the 10 x 60 mm wall anchors and install the 5.4 x 75 mm screws into the wall anchors. Tighten until the wall anchors are secure. Back the screws out 1/4" (6.4 mm).

¹⁄₄

Vent Cover Bracket Installation

7. Attach vent cover bracket to wall ﬂush to the ceiling using (2)

5 x 45 mm screws. Use the optional wall anchors if needed.

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where

the canopy hood will be installed.

2. Select a mounting height between a minimum of 24" (61 cm)

for an electric cooking surface, a minimum of 27" (68.6 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall.

3. Tape template in place, aligning the template centerline

and bottom of template with hood bottom line and with the centerline marked on the wall.

TROPPUS LLAW RAER RO SDUTS HGUORHT SELOH TOLIP "61/3 )OWT( 2 LLIRD

Vertical Centerline

LLAW RAER

ETALPMET GNITNUOM

eniL latnoziroH

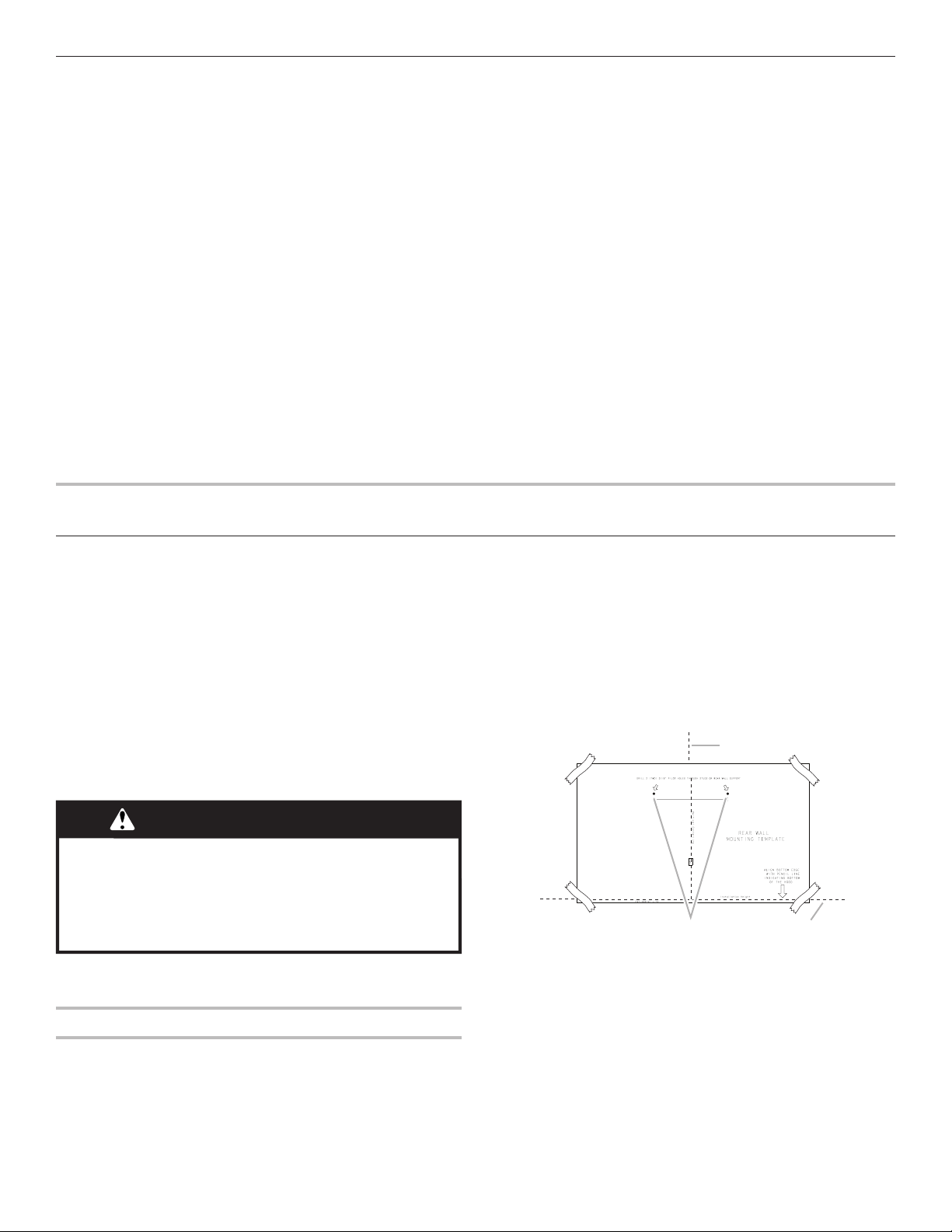

A. Centerline B. Fastener locations C. Mounting height reference (hood bottom line)

thgieH noitallatsnI

4. Mark centers of the fastener locations through the template

to the wall. IMPORTANT: All canopy mounting screws must be installed

into wood where possible. If there is no wood to screw into, additional wall framing supports may be required, or use the (4) 10 x 60 mm wall anchors and 5.4 x 75 mm screws.

Remove the template.

EGDE MOTTOB NGILA

ENIL LICNEP HTIW

MOTTOB GNITACIDNI

DOOH EHT FO

A. Ceiling B. Wall C. Centerline

Complete Preparation

1. Determine and make all necessary cuts in the wall for the

vent system. Install the vent system before installing the hood. See “Venting Requirements” section.

2. Determine the required height for the home power supply

cable and drill a 1

3. Run the home power supply cable according to the National

Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" (12.7 mm) conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood’s electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

4. Use caulk to seal all openings.

/4" (3.2 cm) hole at this location.

Install In-Line Smart Kit—Optional

NOTE: Your range hood can work with either an internal or an inline (external) blower motor system. An optional In-Line Smart Kit (purchased separately) allows the blower motor that comes with this range hood to be installed in a location other than inside the range hood cavity.

CAUTION: To reduce the risk of ﬁre and electric shock, install this range hood only with the In-Line Smart Kit manufactured by Whirlpool. See the “Assistance or Service” section to order.

For installation see the In-Line Smart Kit installation instructions. See the “Assistance or Service” section to order.

For vented installations only:

1. Fit vent system over the exhaust outlet.

2. Seal connection with clamps.

3. Check that back draft dampers work properly. For non-vented (recirculating) installation only:

1. Assemble the air deﬂector with the duct cover bracket

using (4) 4.2 x 8 mm screws.

Install Range Hood

1. Using two or more people, hang range hood on two

mounting screws through the mounting slots on back of hood.

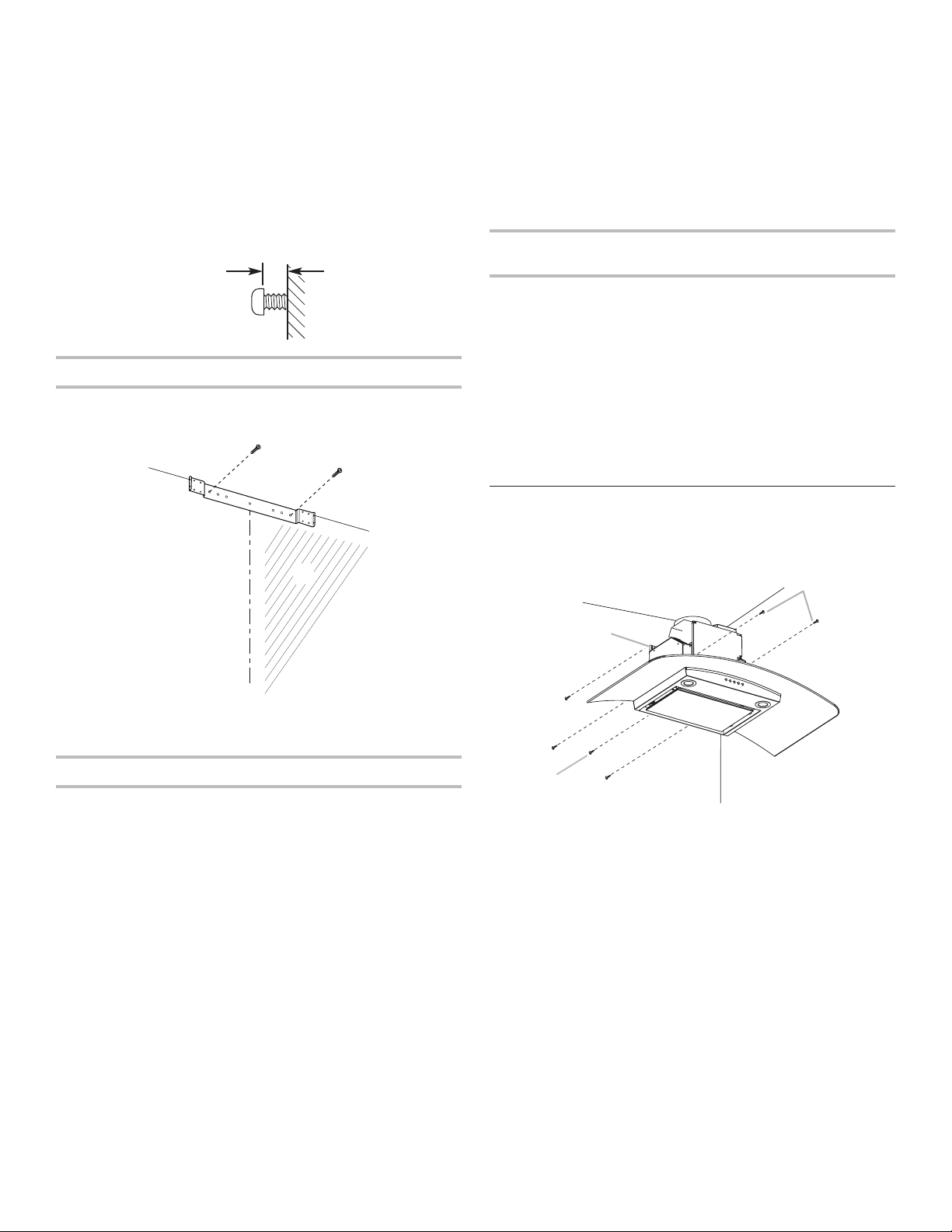

A. Mounting screws B. Mounting slots C. Lower mounting screws

2. Remove the grease ﬁlter. See “Range Hood Care” section.

3. Level the range hood and tighten upper mounting screws.

4. Install (2) 5 x 45 mm lower mounting screws and tighten.

Use the optional wall anchors if needed.

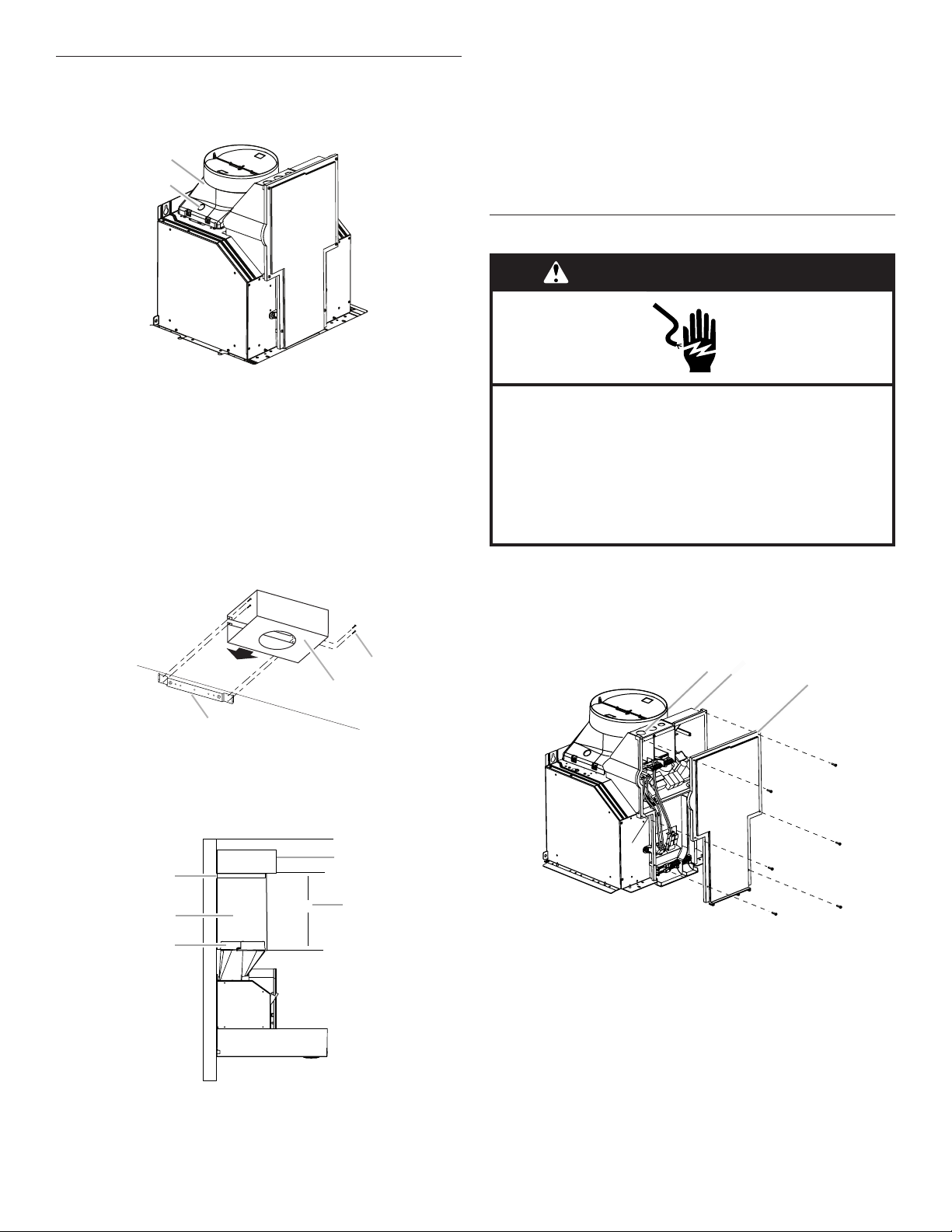

Connect Vent System

1. Install transition on top of hood (if removed for shipping)

with (2) 3.5 x 9.5 mm sheet metal screws.

A. Assembly screws B. Air deﬂector C. Duct cover bracket

2. Measure from the bottom of the air deﬂector to the bottom

of the hood outlet.

A. Air deﬂector B. Vent clamp C. X = length to cut vent duct D. Vent duct E. Exhaust outlet

3. Cut the duct to the measured size “X.”

4. Remove the air deﬂector.

5. Slide the duct onto the bottom of the air deﬂector.

6. Place the assembled air deﬂector and duct over

the exhaust outlet from the hood.

7. Reassemble the air deﬂector to the duct cover bracket

with the four assembly screws.

8. Seal connections with vent clamps.

A. Vent transition B. 3.5 x 9.5 mm screw

Make Electrical Connection

6. Use UL Listed wire connectors and connect

white wires (E) together.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box and install

a UL Listed or CSA approved 1/2" (12.7 mm) strain relief.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

7. Connect green (or bare) ground wire from home power

supply to yellow-green ground wire (F) in terminal box using UL Listed wire connectors.

8. Tighten strain relief screw.

9. Install terminal box cover.

10. Check that all light bulbs are secure in their sockets.

11. Reconnect power.

Optional Power Cord Kit Installations

For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the “Assistance or Service” section for information on ordering.

NOTE: Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

Install Vent Covers

1. When using both upper and lower vent covers, push lower

cover down onto hood and lift upper cover to ceiling and

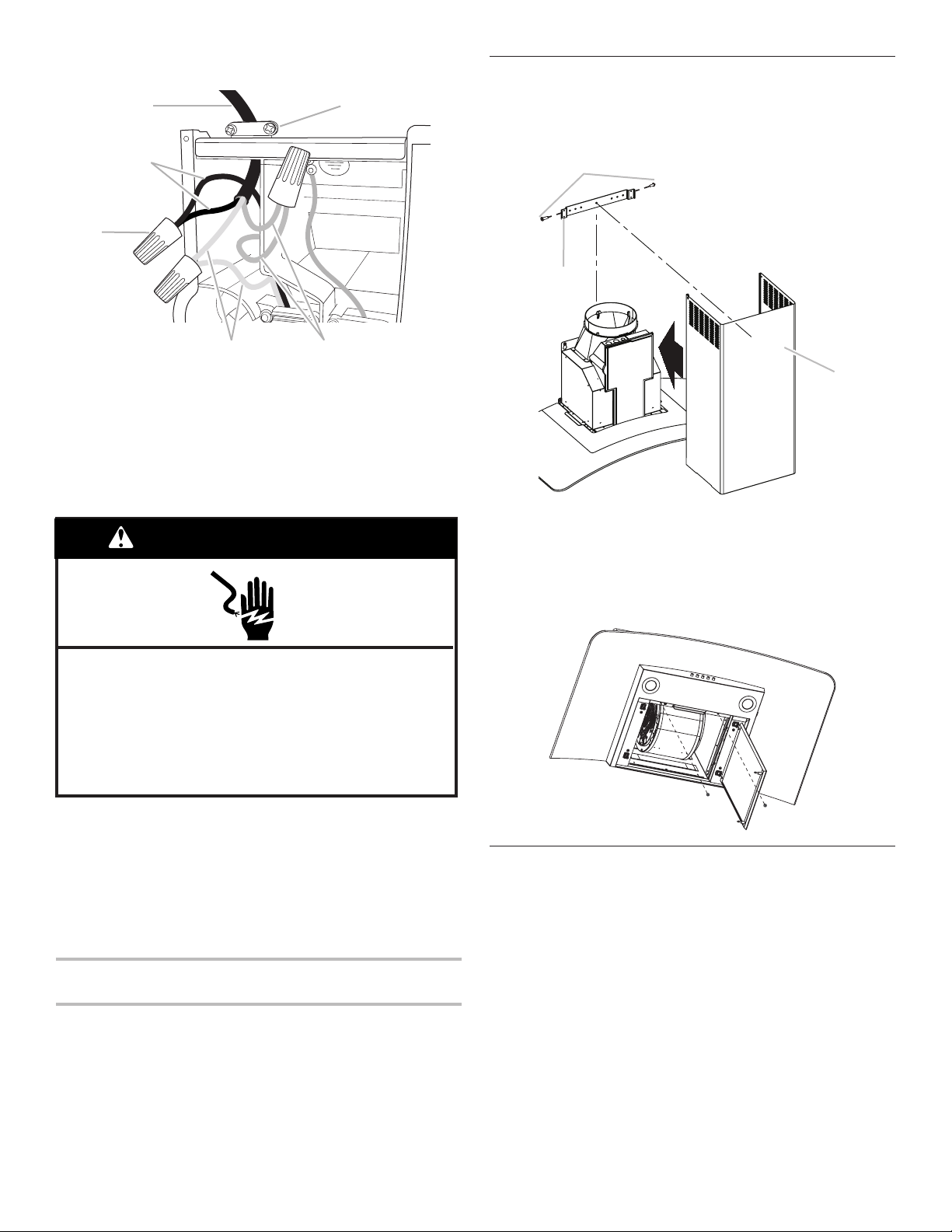

A. Knockout B. Terminal box C. Terminal box cover

4. Run home power supply cable through strain relief

into terminal box.

A. Home power supply cable B. UL Listed or CSA

approved strain relief

C. Black wires

5. Use UL Listed wire connectors and connect

black wires (C) together.

D. UL Listed wire connectors E. White wires F. Green (or bare) and

yellow-green ground wires

install with two 4.2 x 8 mm screws.

A. Bracket B. 4.2 x 8 mm screws C. Vent cover

NOTE: For vented installations, the upper vent cover may be reversed to hide slots.

+ 19 hidden pages
