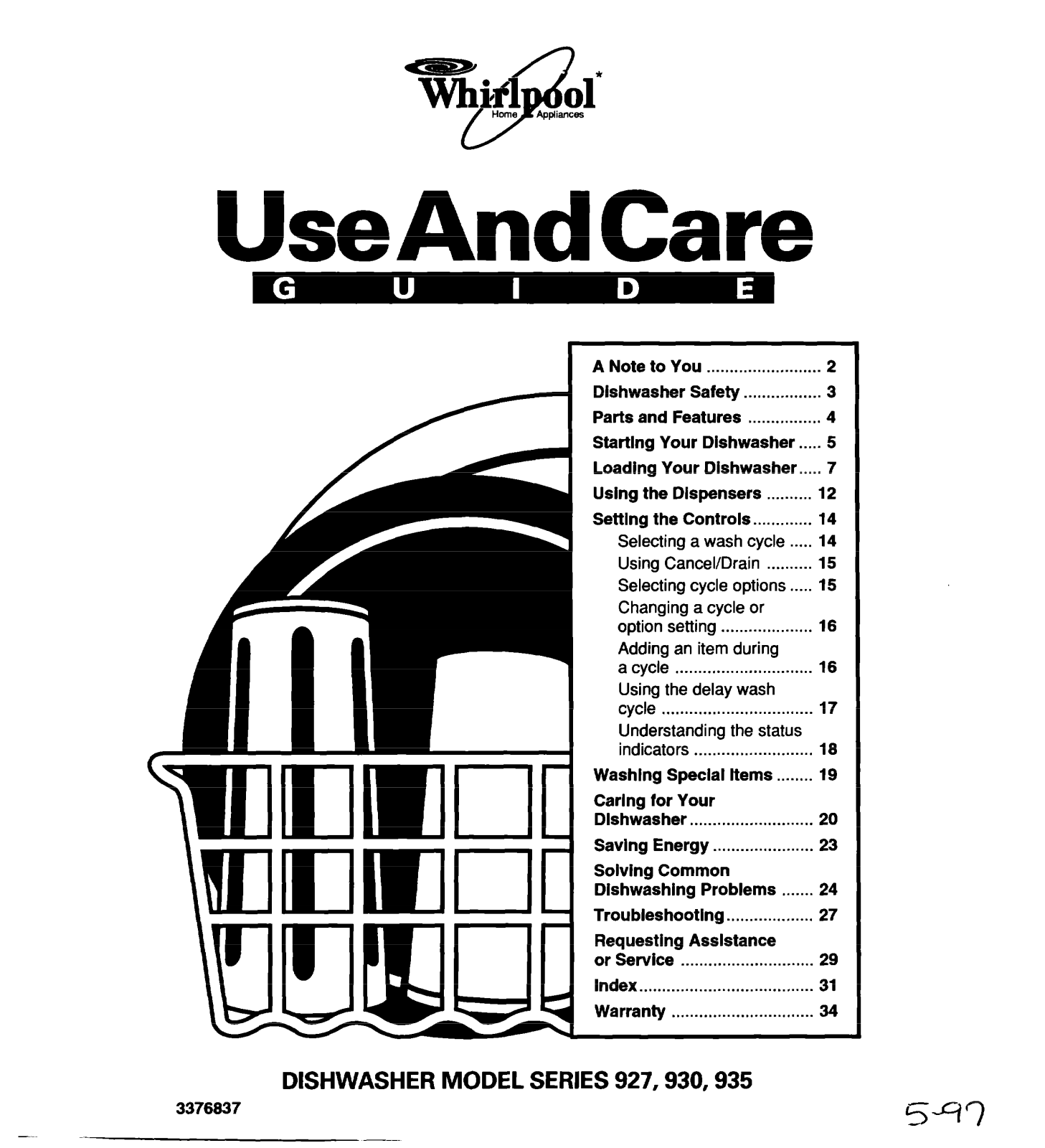

Whirlpool 927, 935, 930 User Manual
Tih 01
Home
Appliances
4a
UseAndCare
A Note to You
Dlshwasher Safety
Parts and Features
Startlng Your Dishwasher..

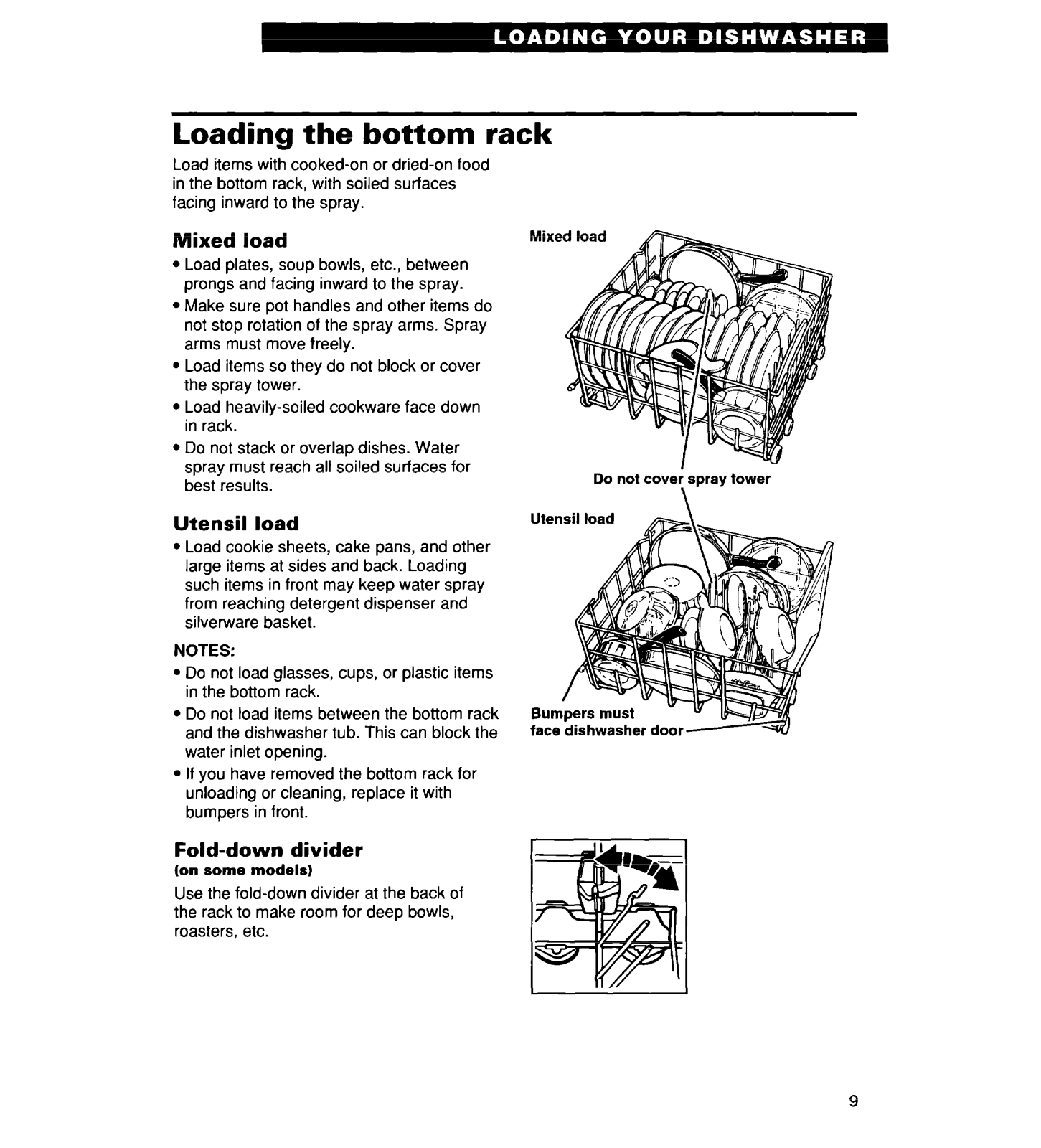

Loading Your Dishwasher

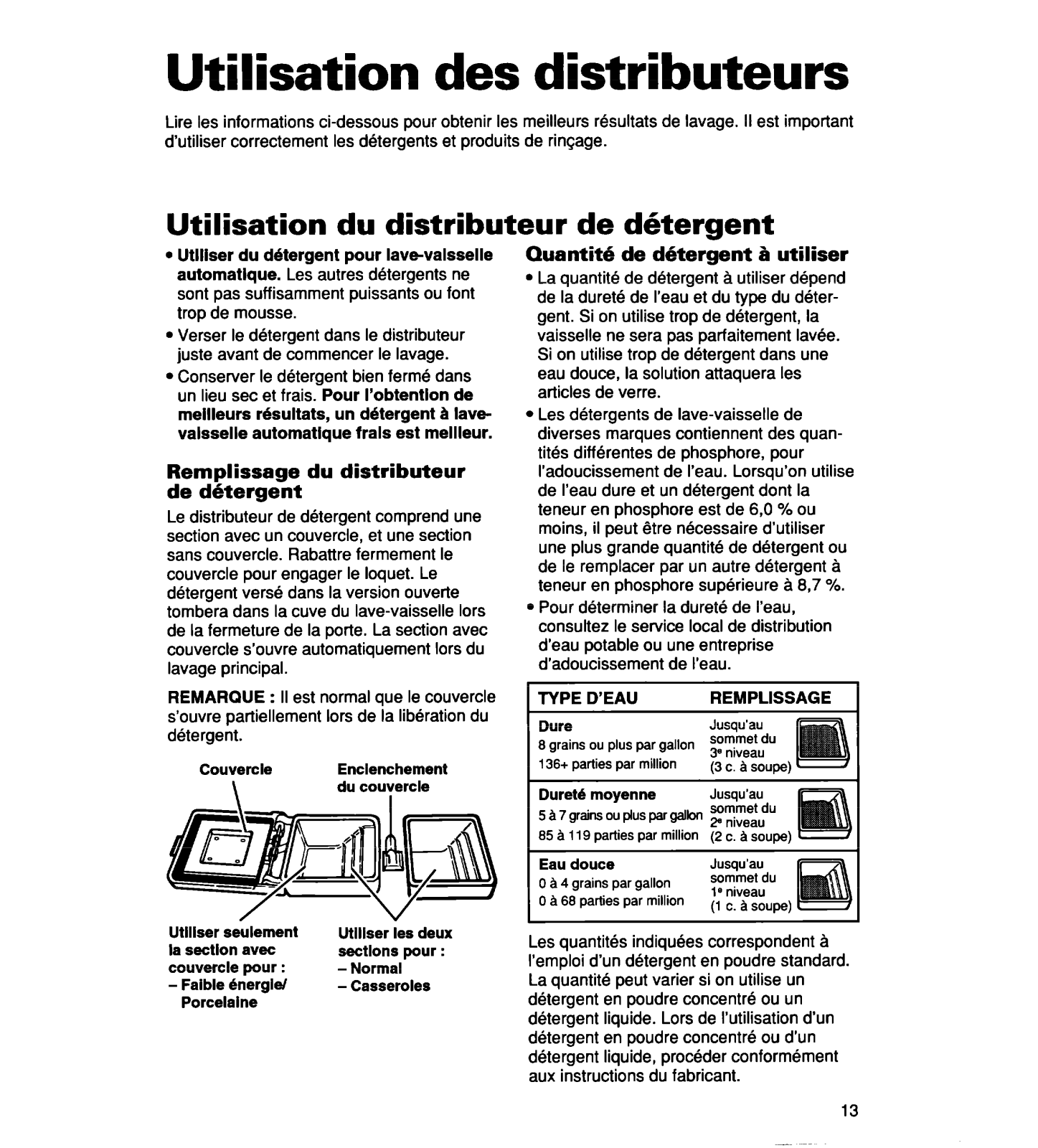

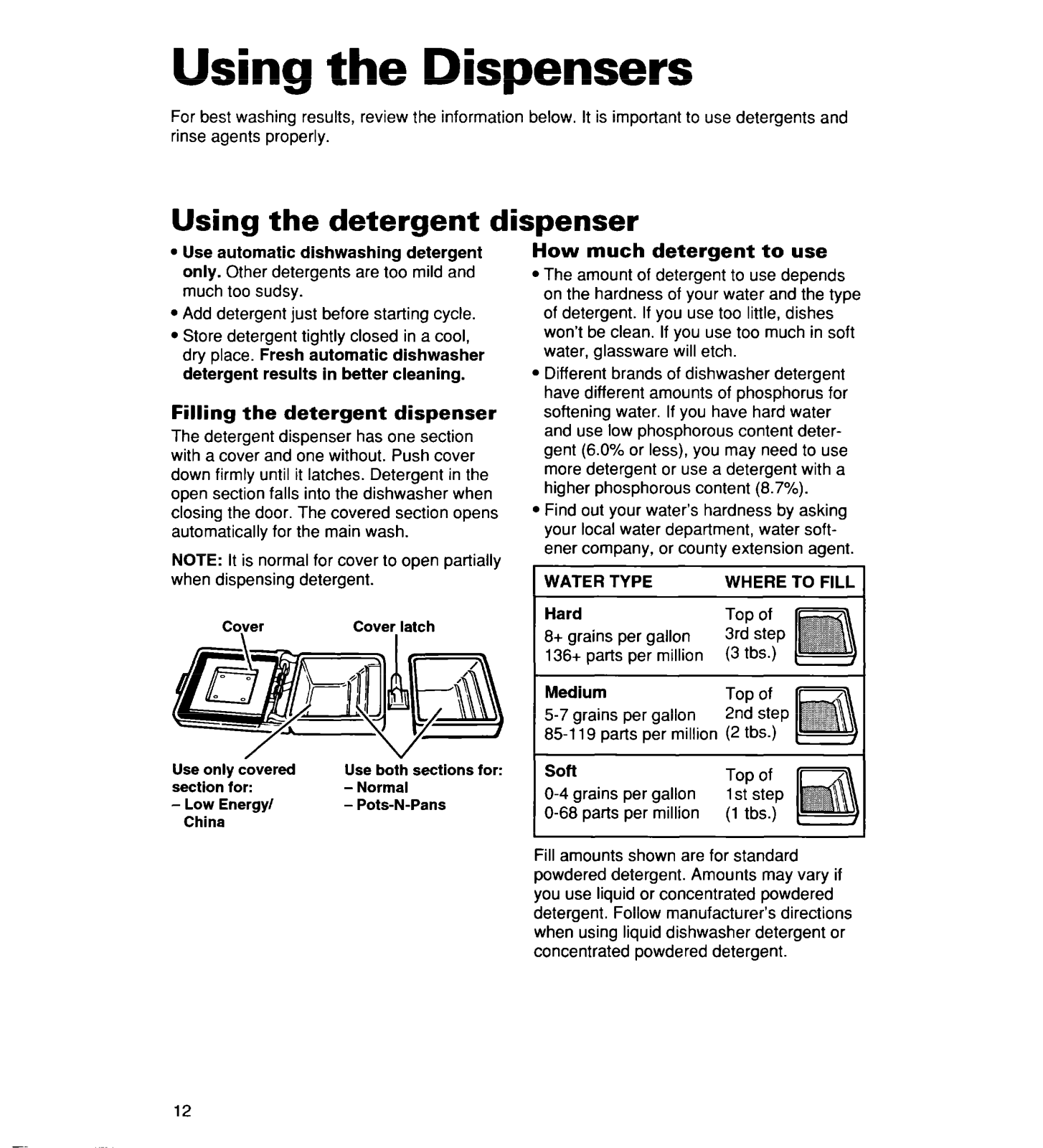

Using the Dlspensers

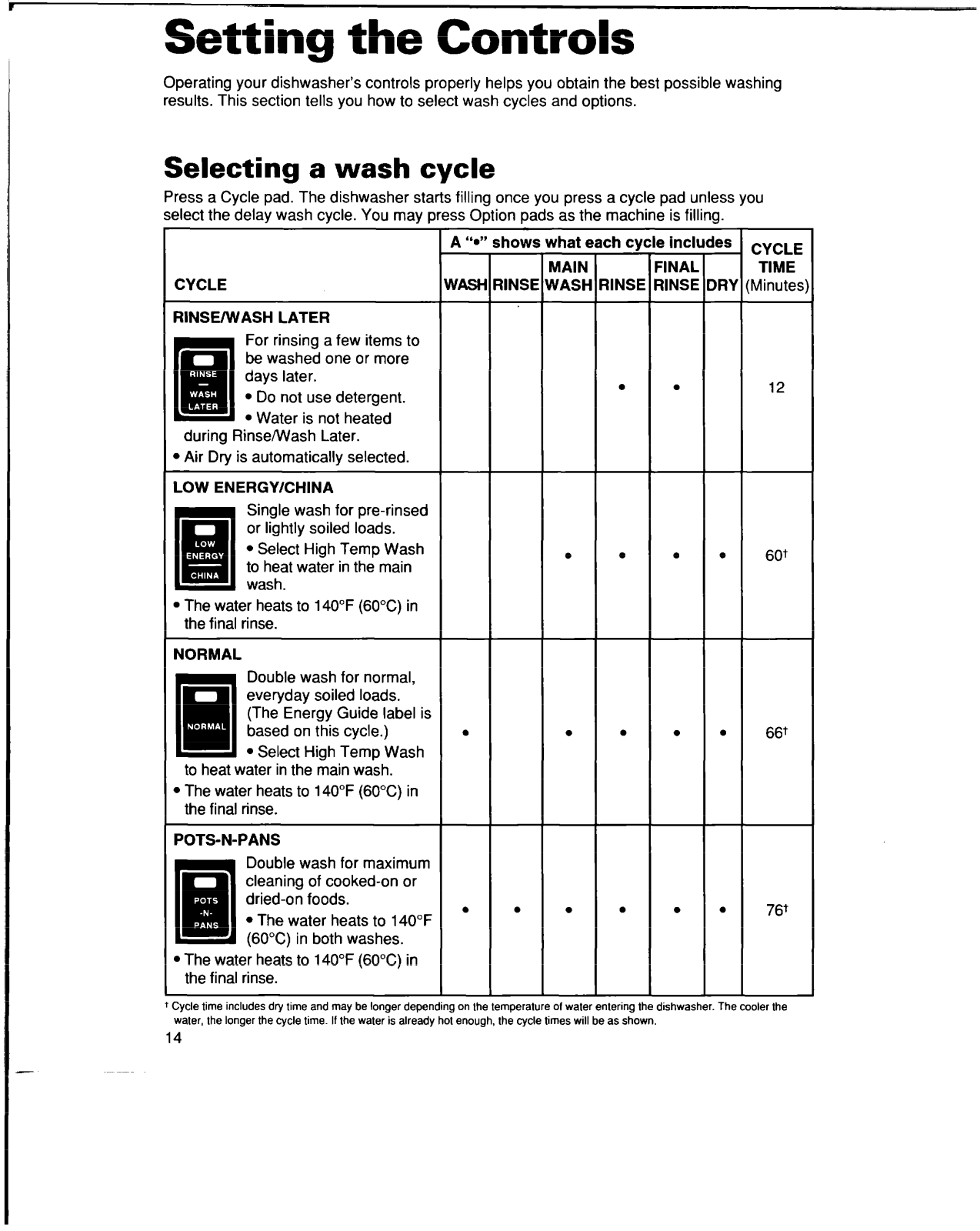

Settlng the Controls..

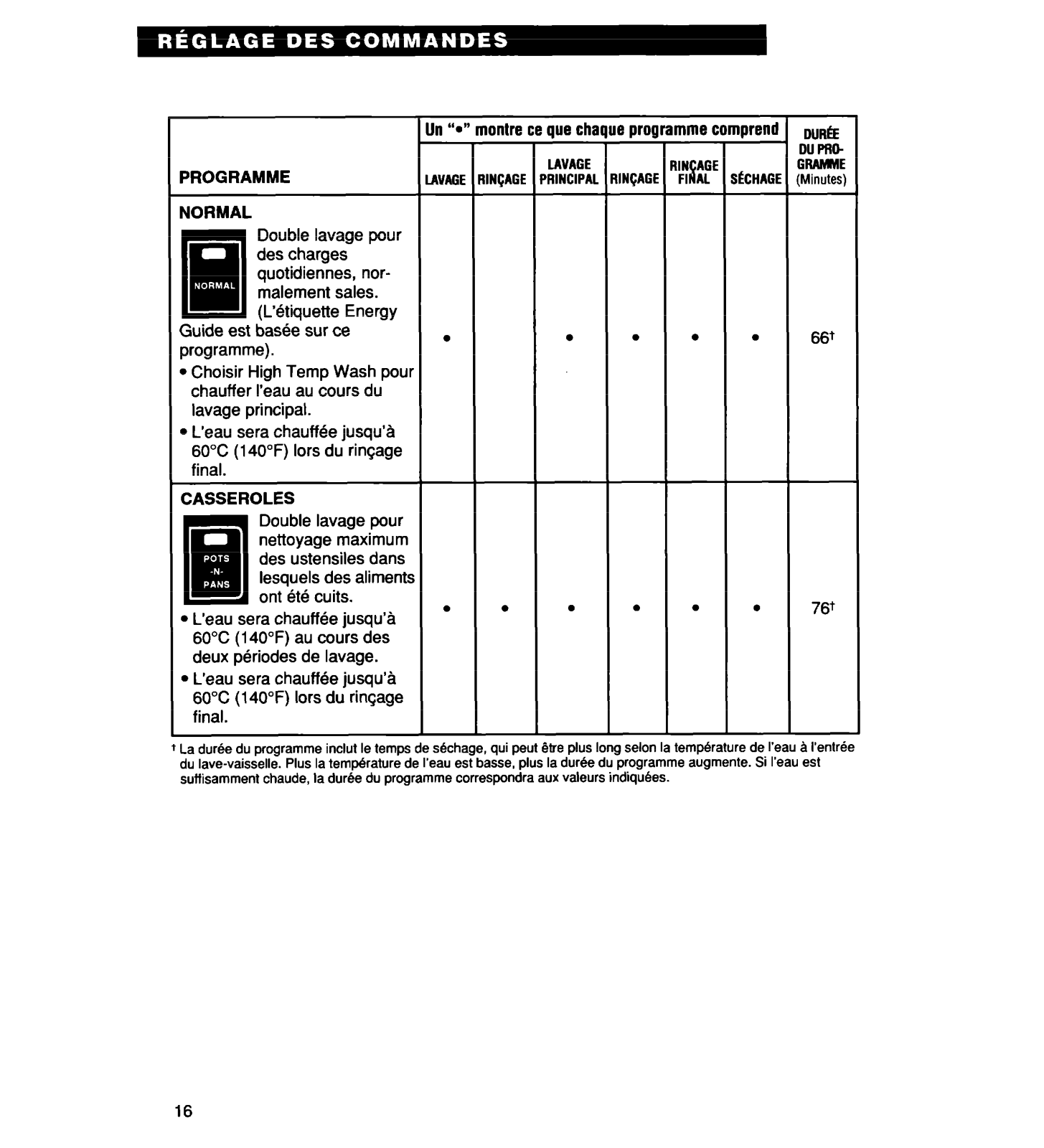

Selecting a wash cycle

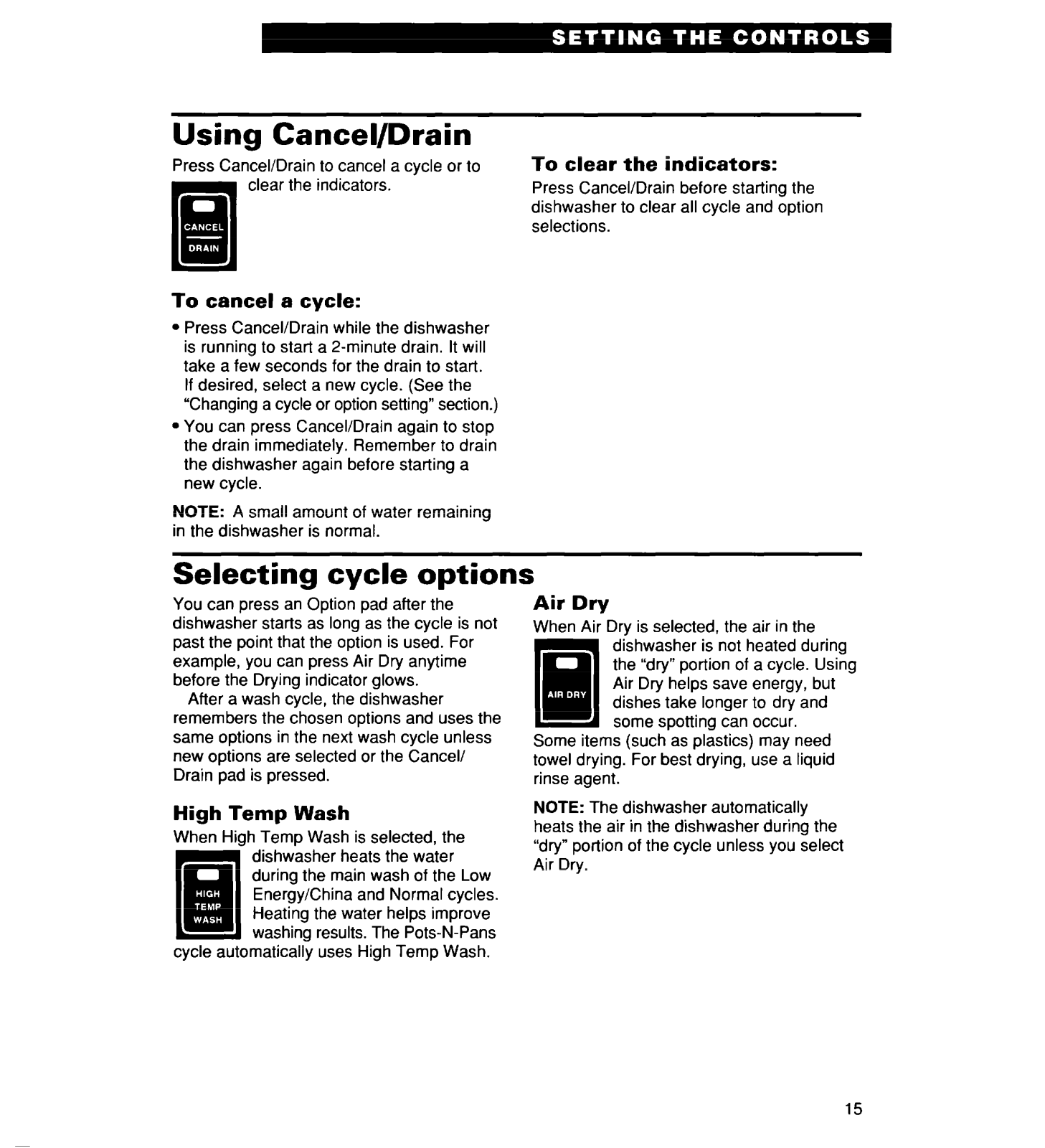

Using Cancel/Drain
Selecting cycle options..

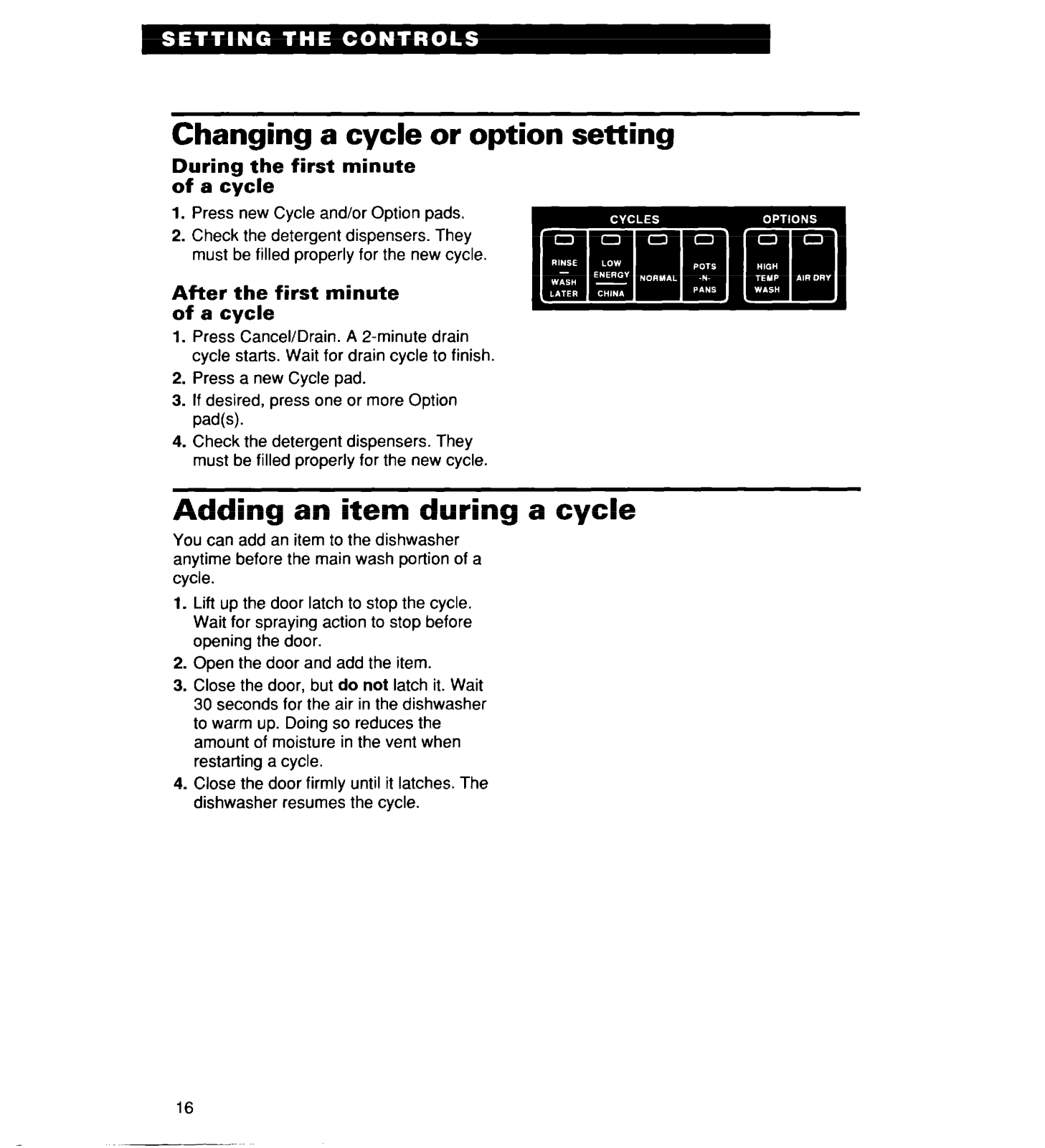

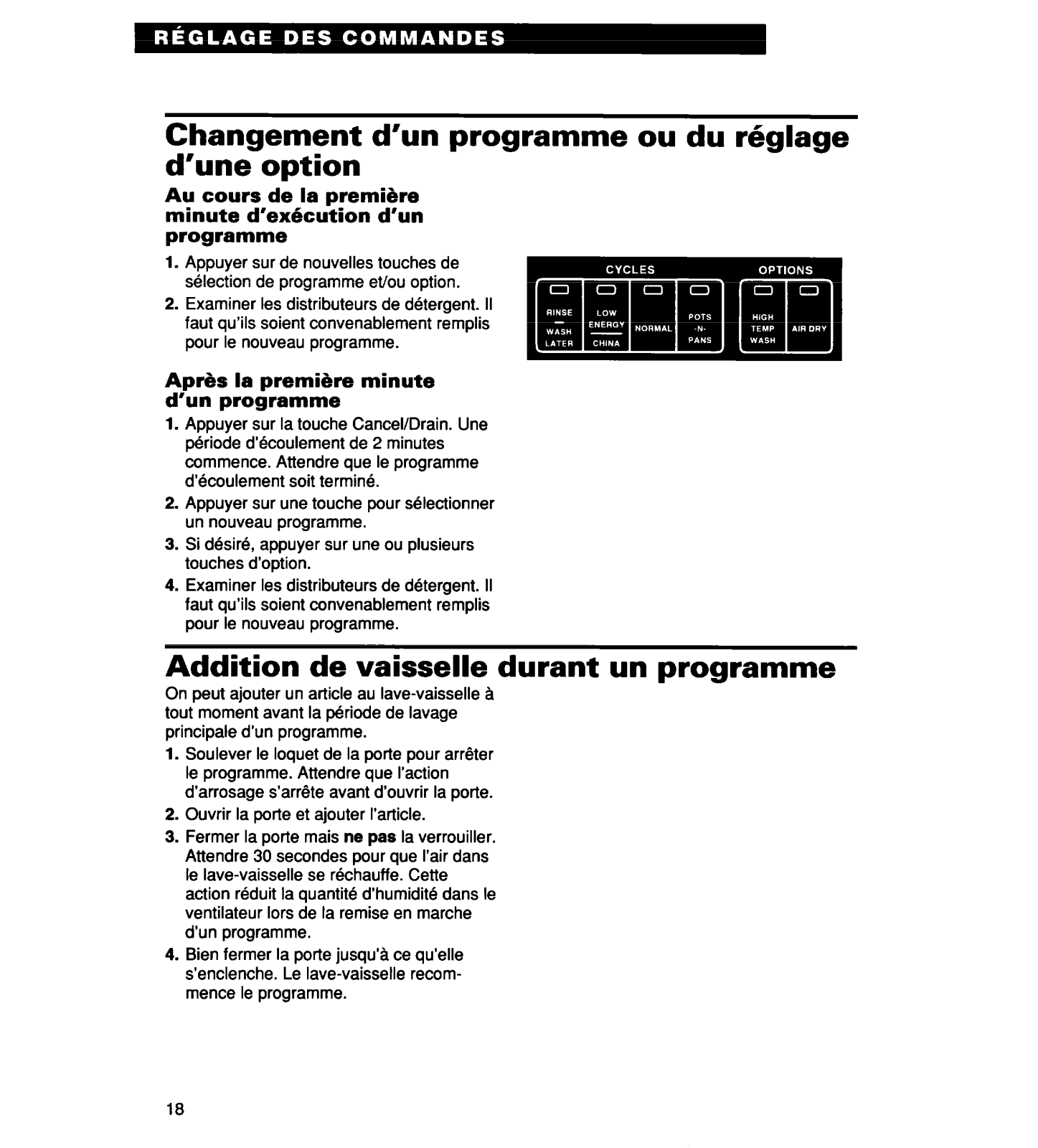

Changing a cycle or
option
Adding an item during
a cycle

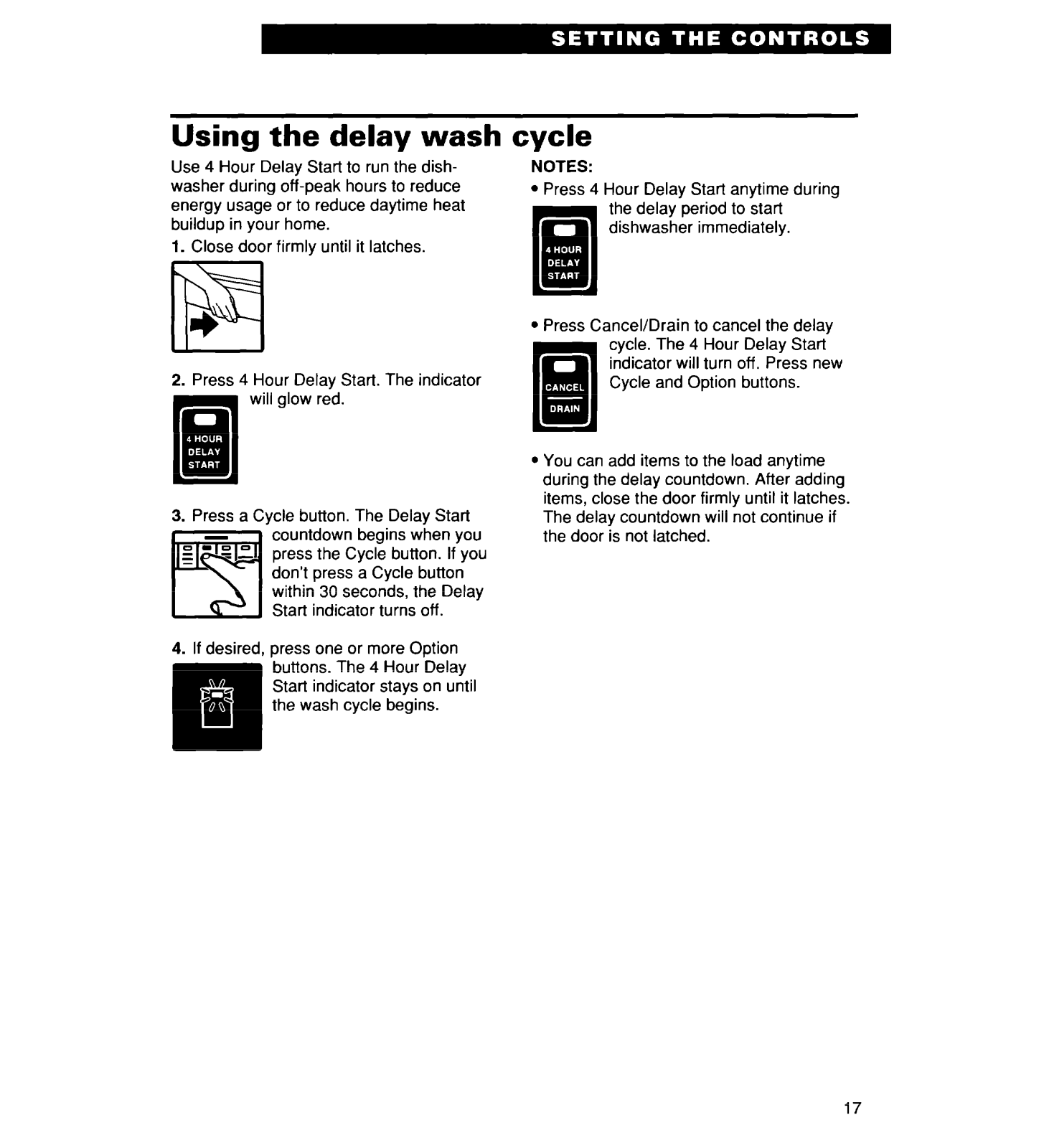

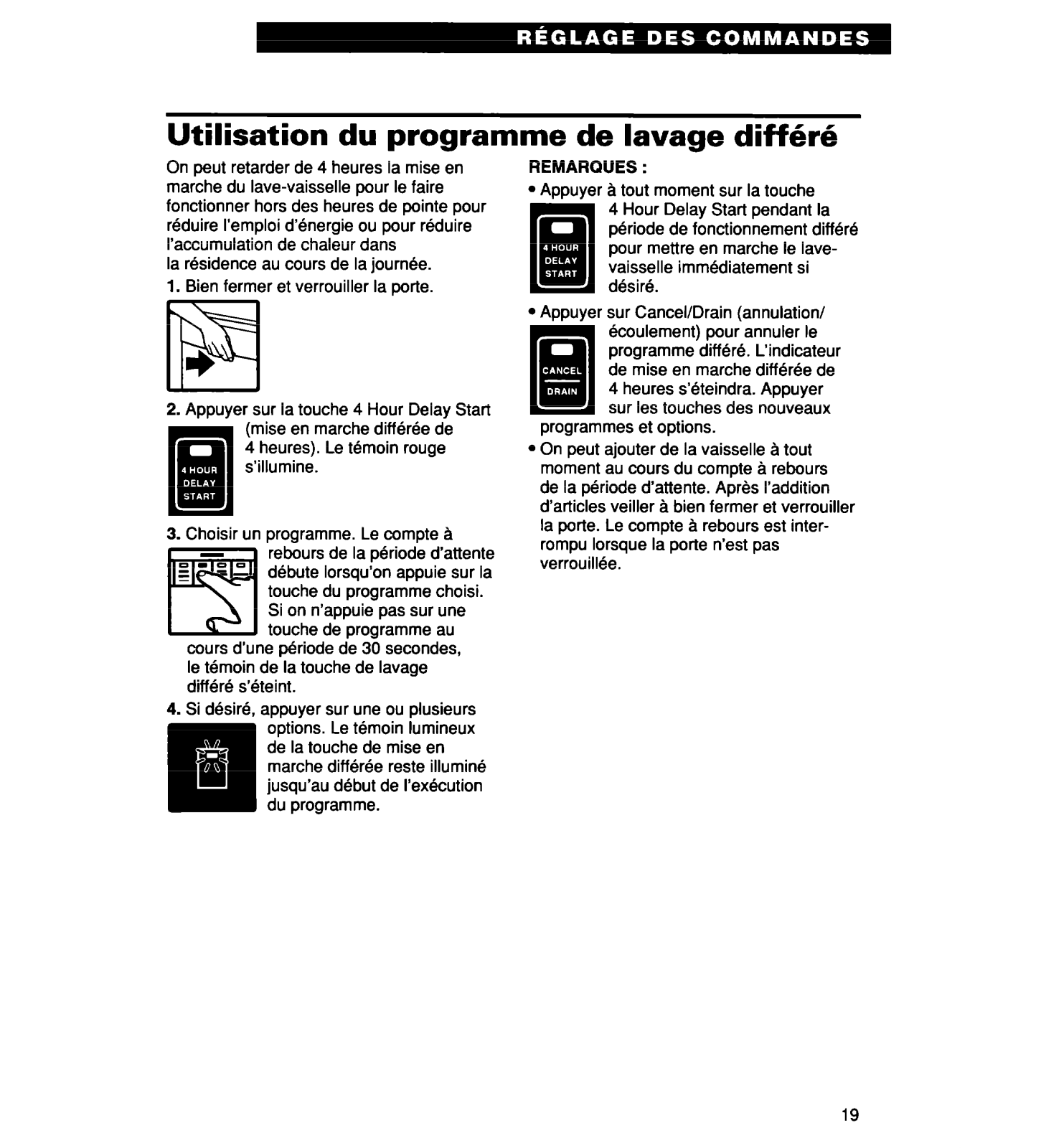

Using the delay wash
cycle

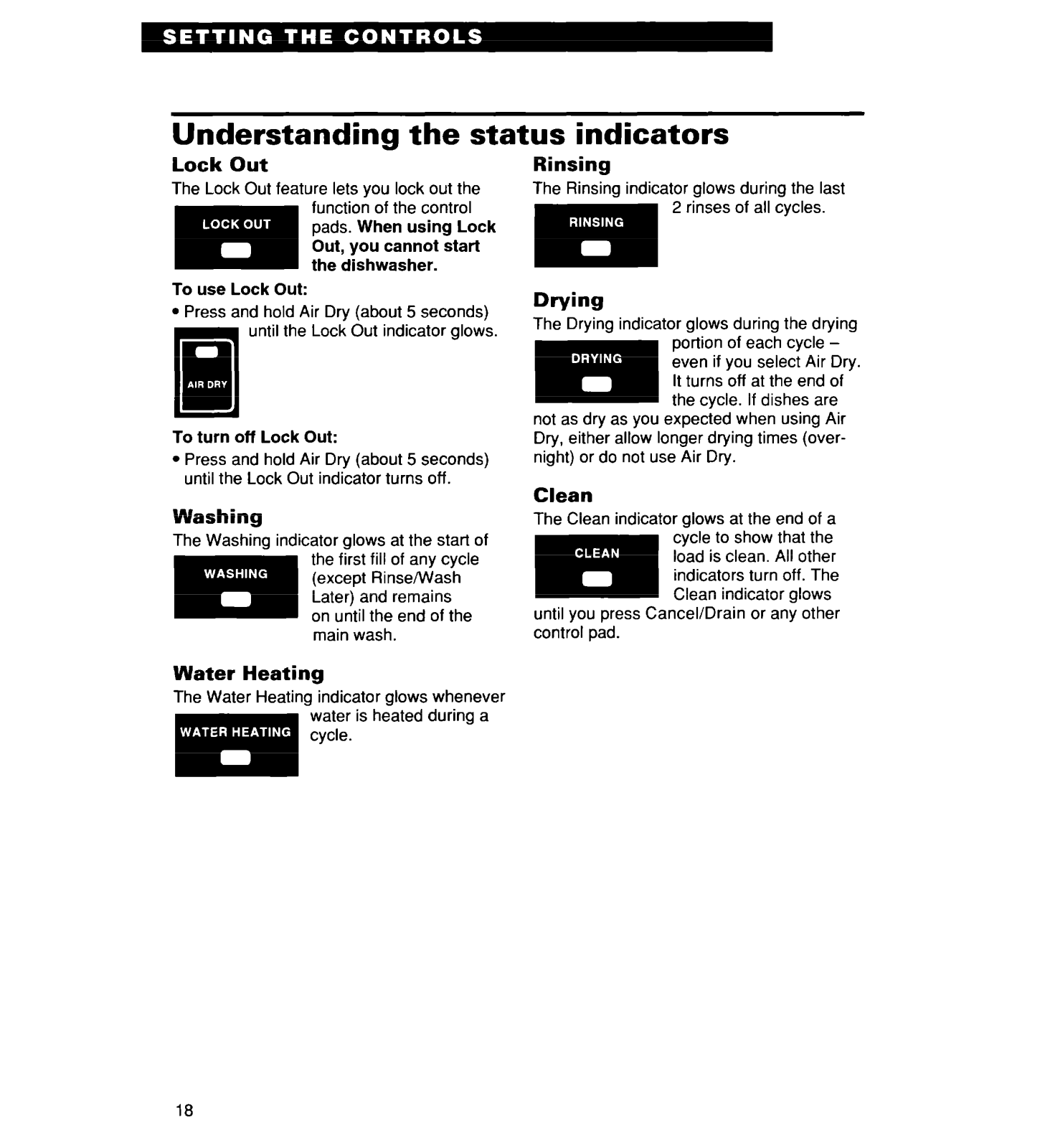

Understanding the status
indicators

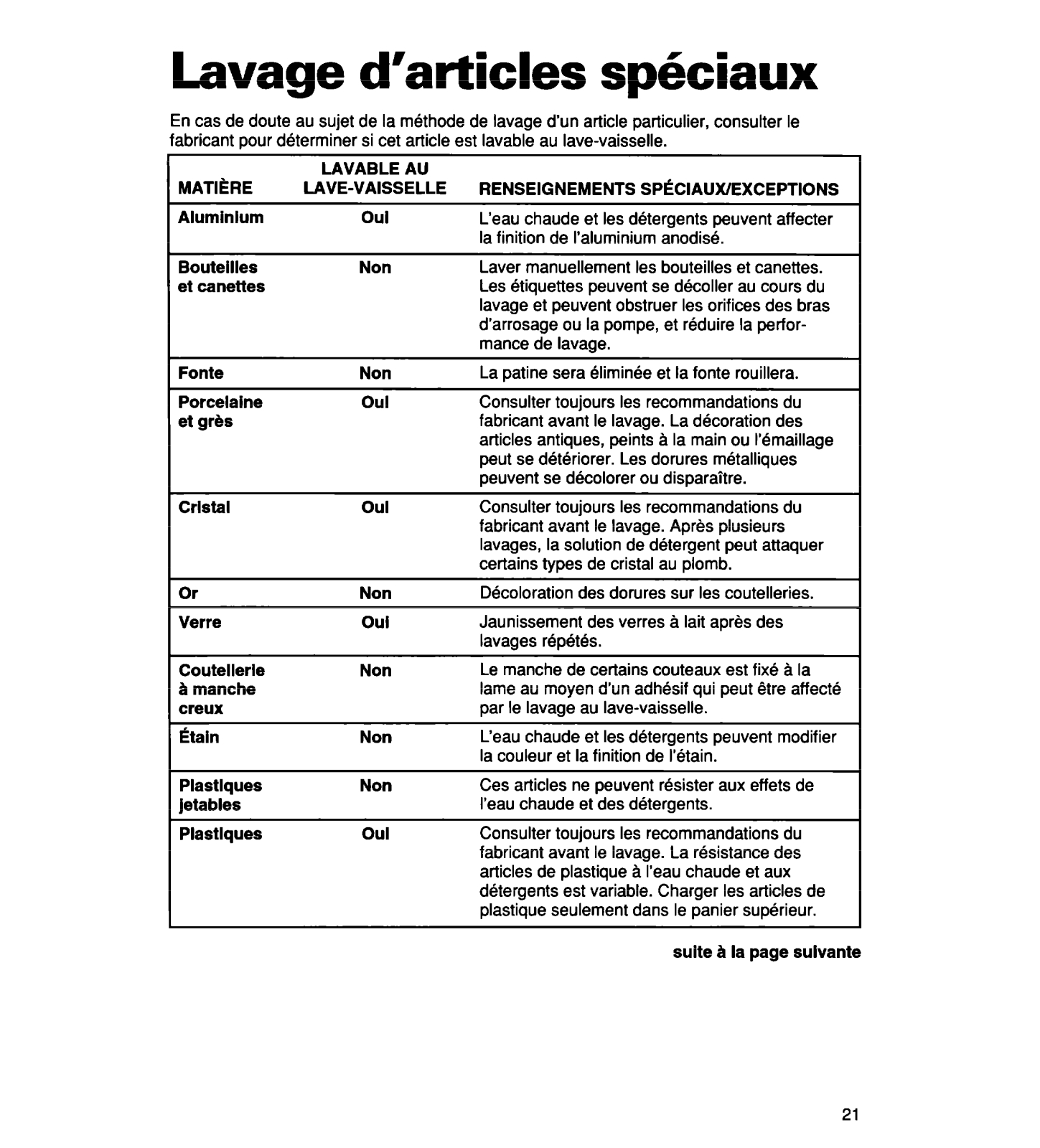

Washlng Special Items

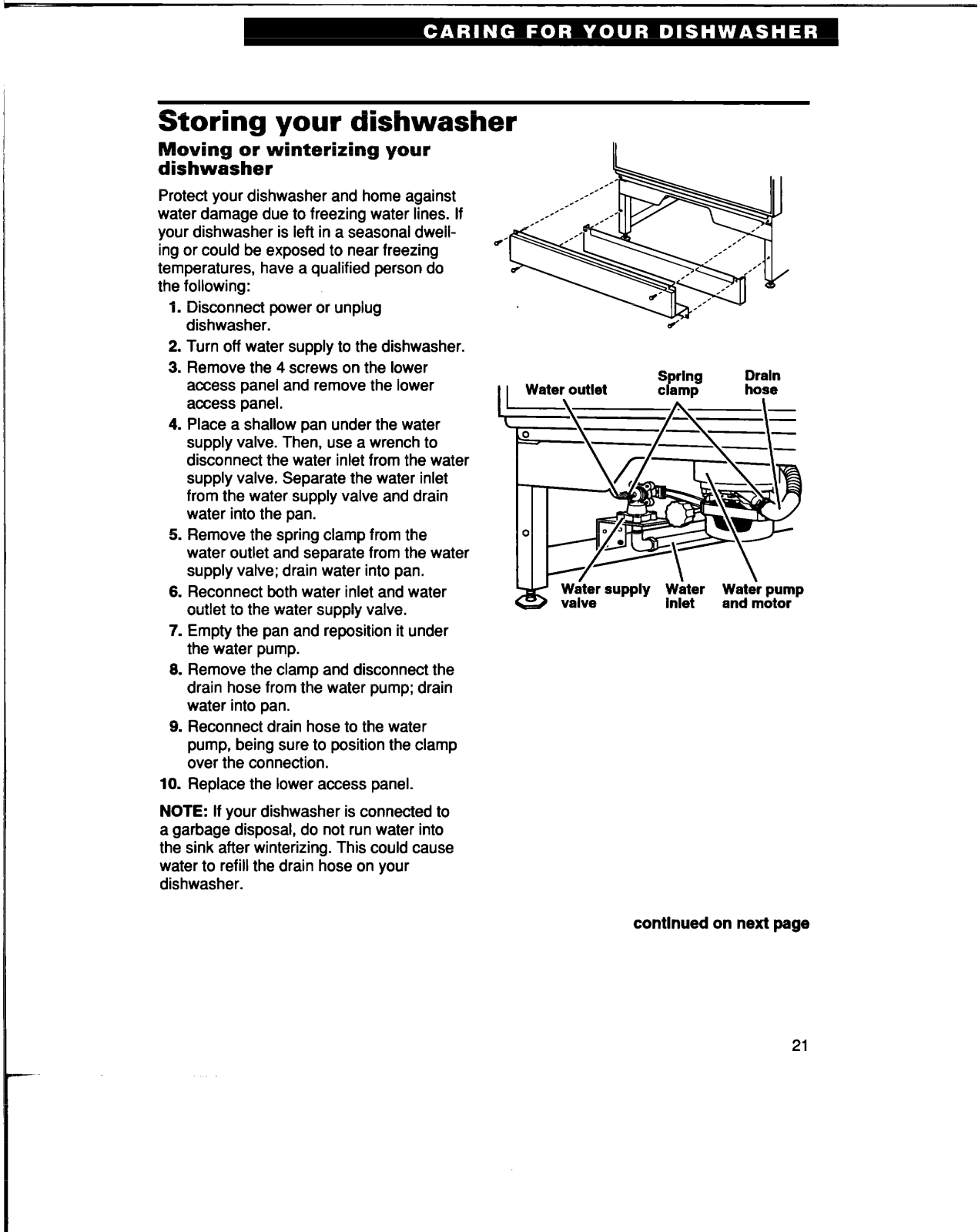

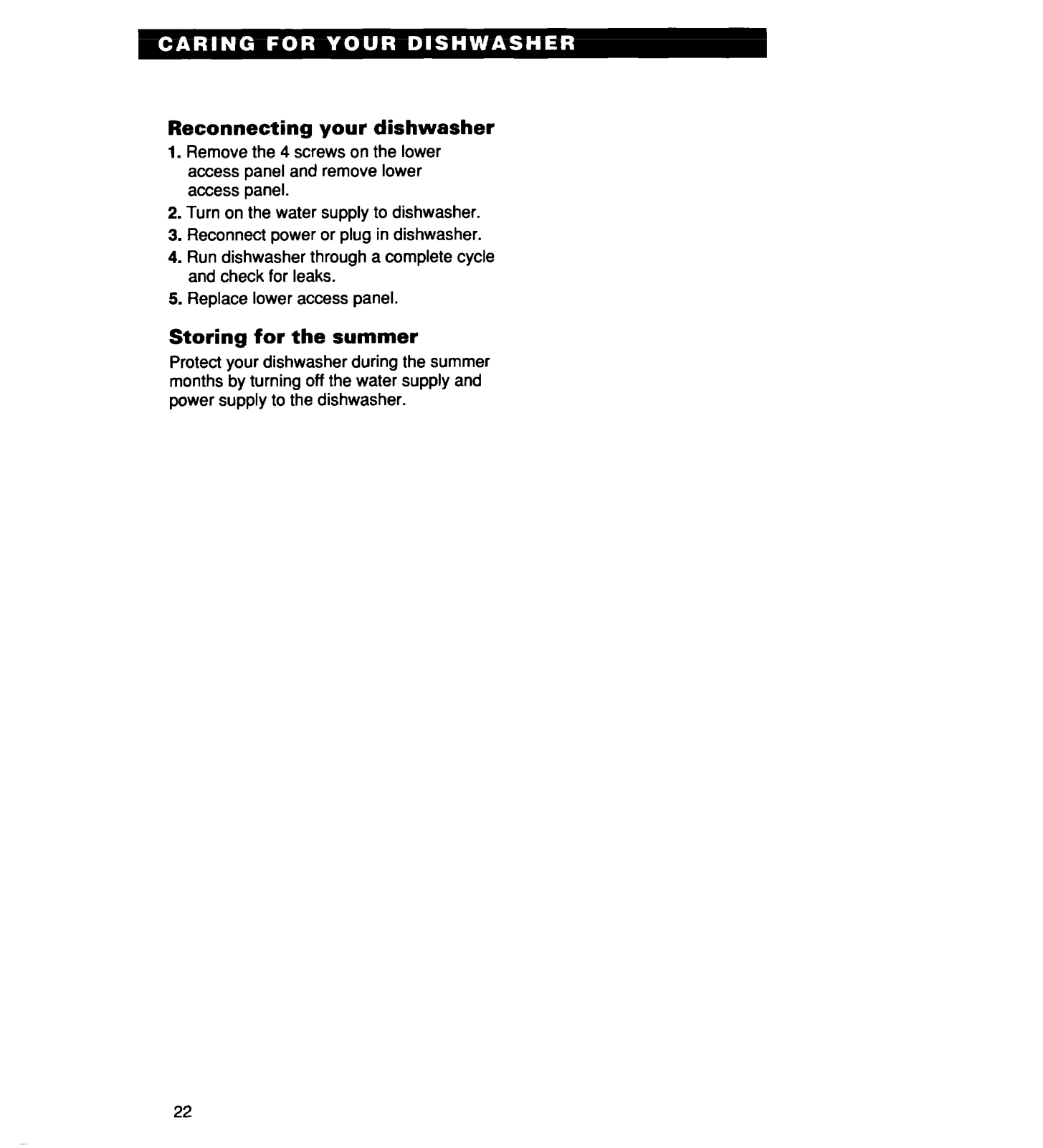

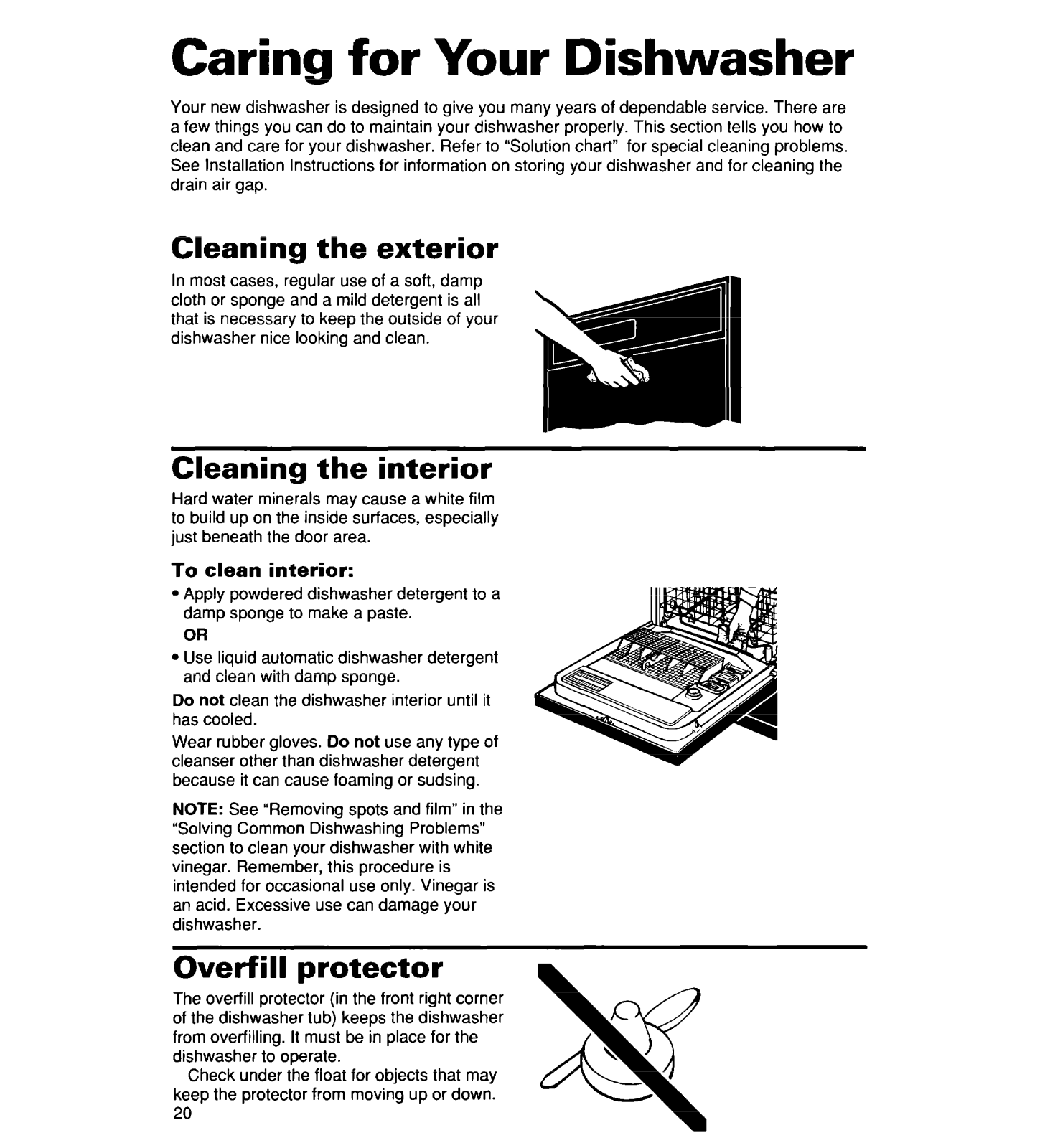

Carlng for Your
Dlshwasher..

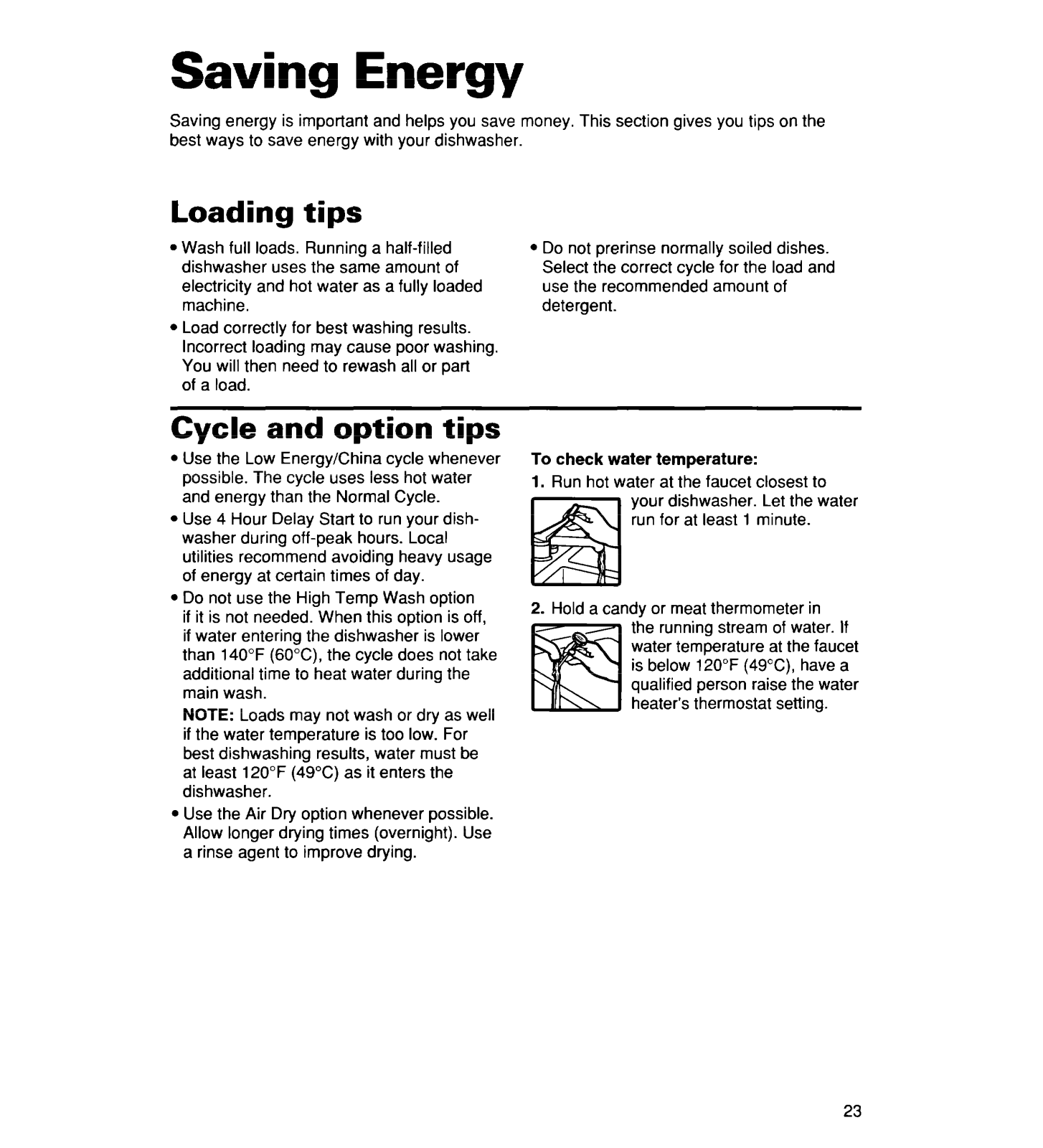

Savlng Energy

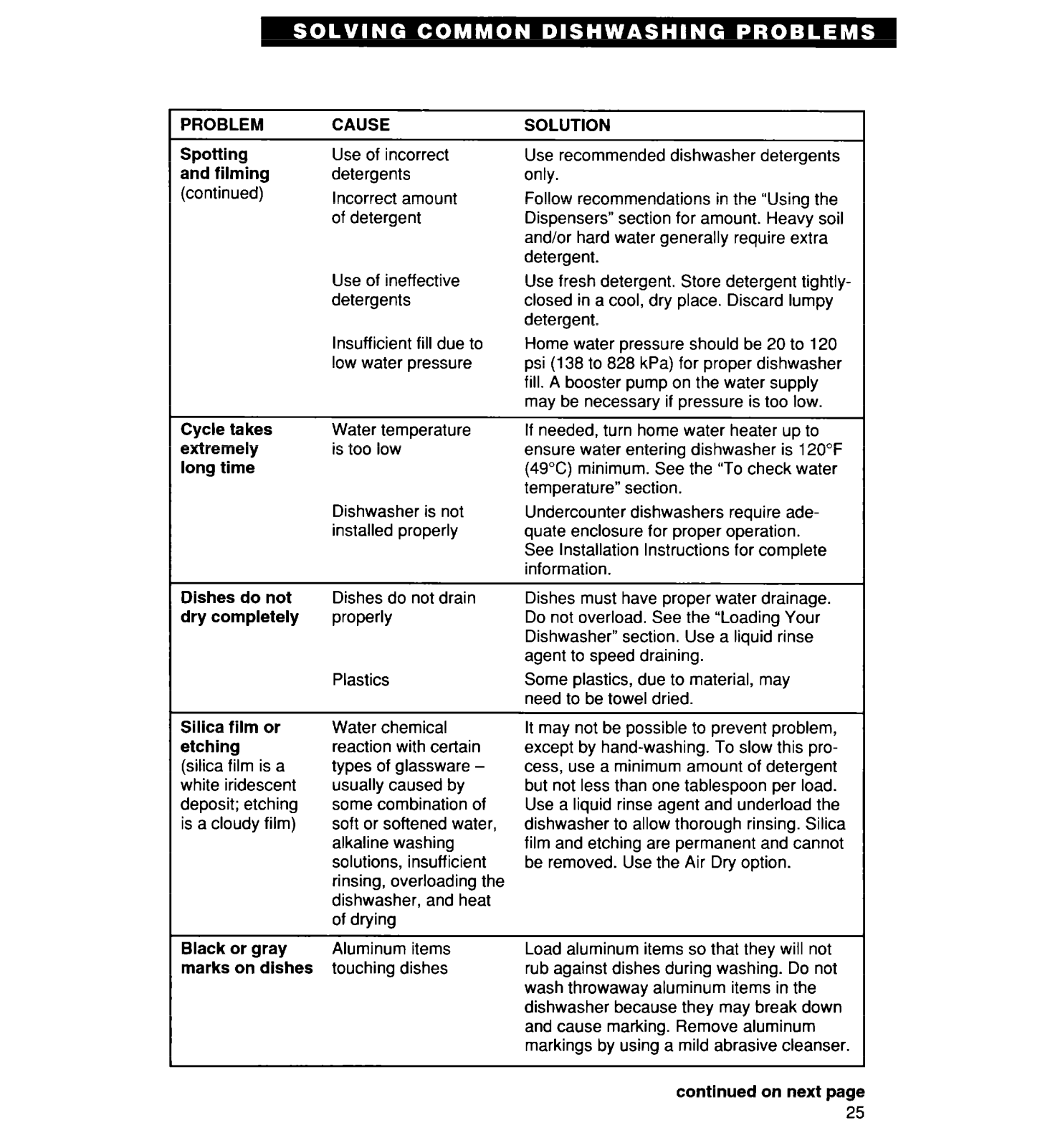

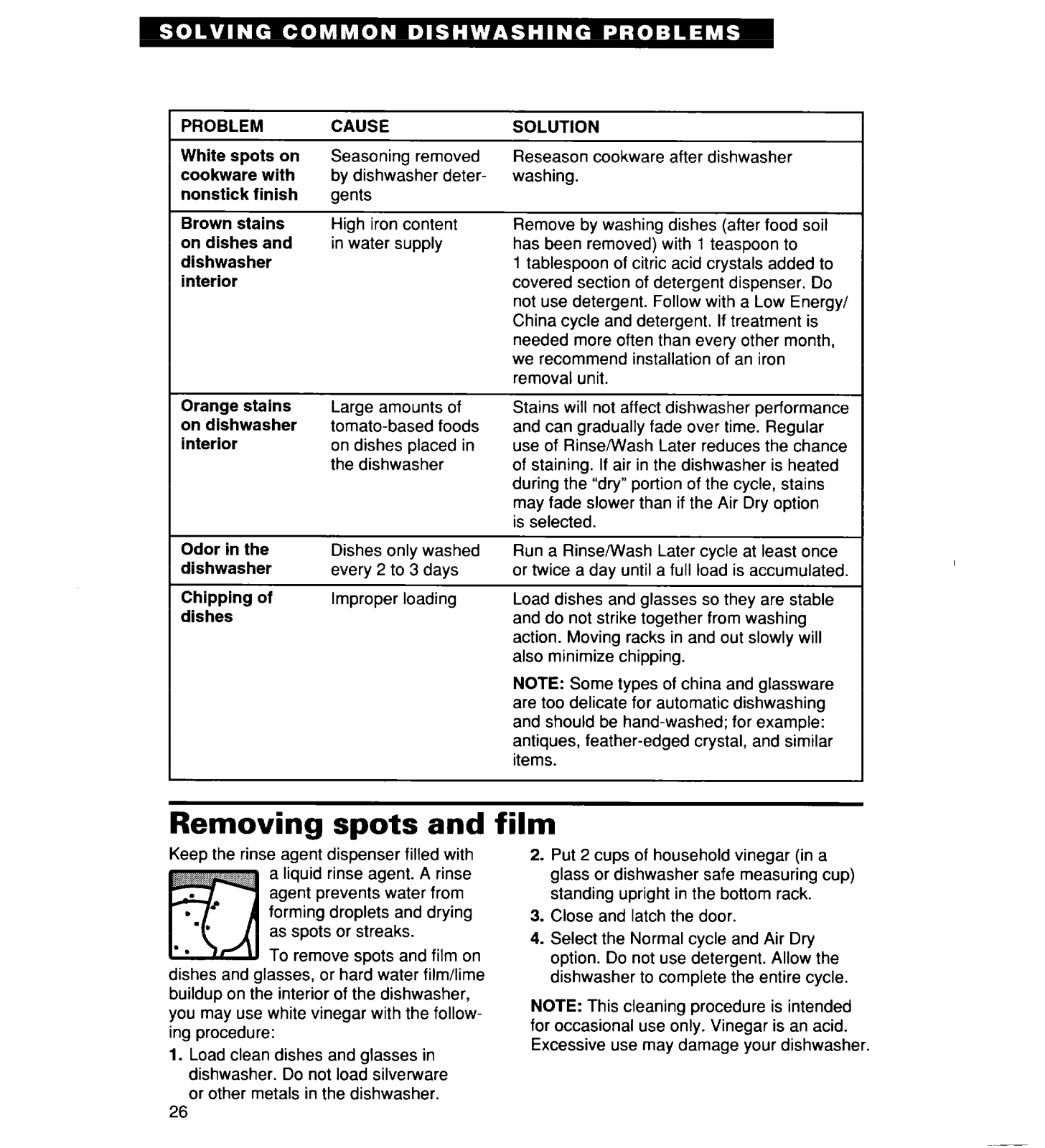

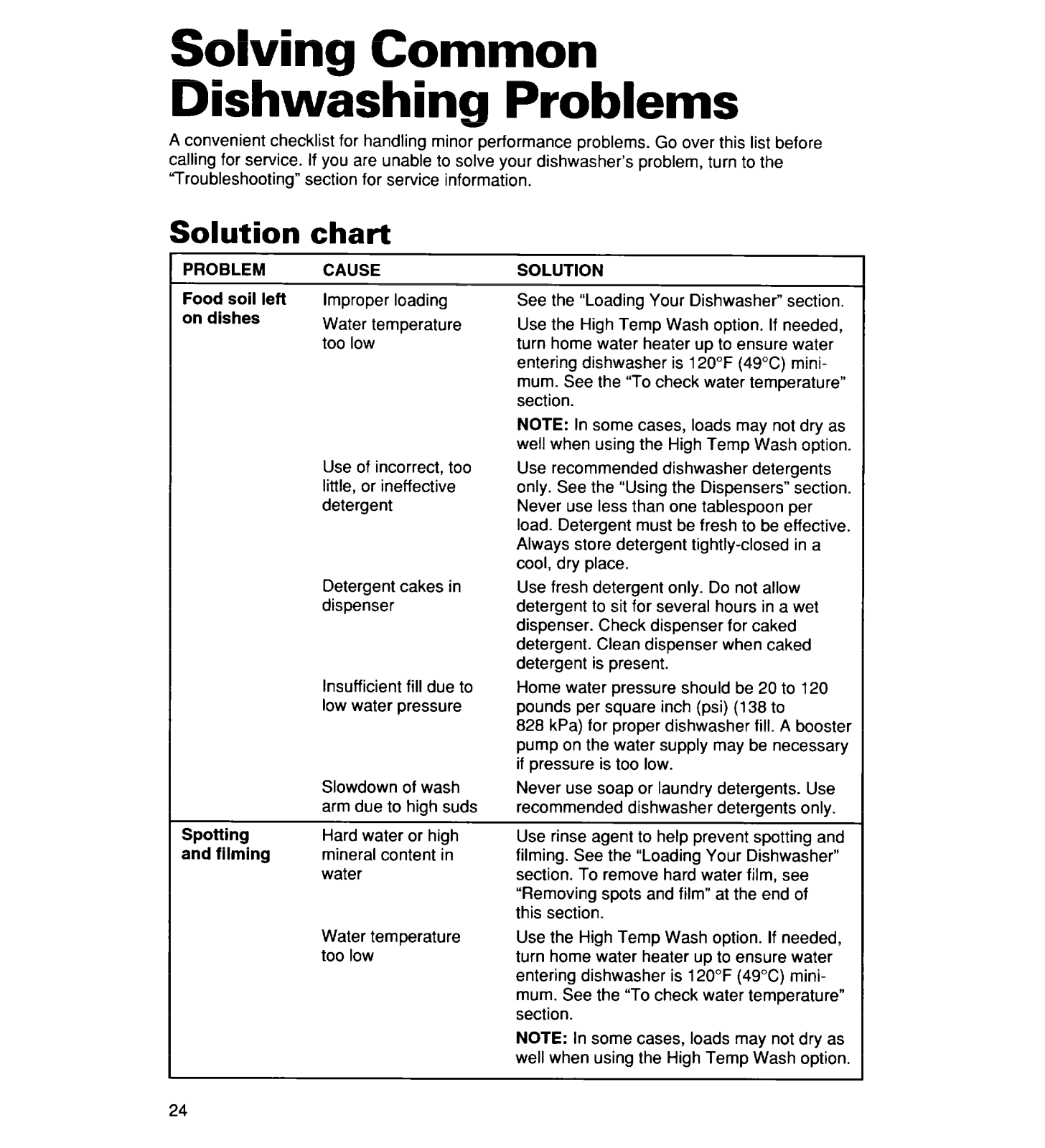

Solving Common
Dishwashing Problems

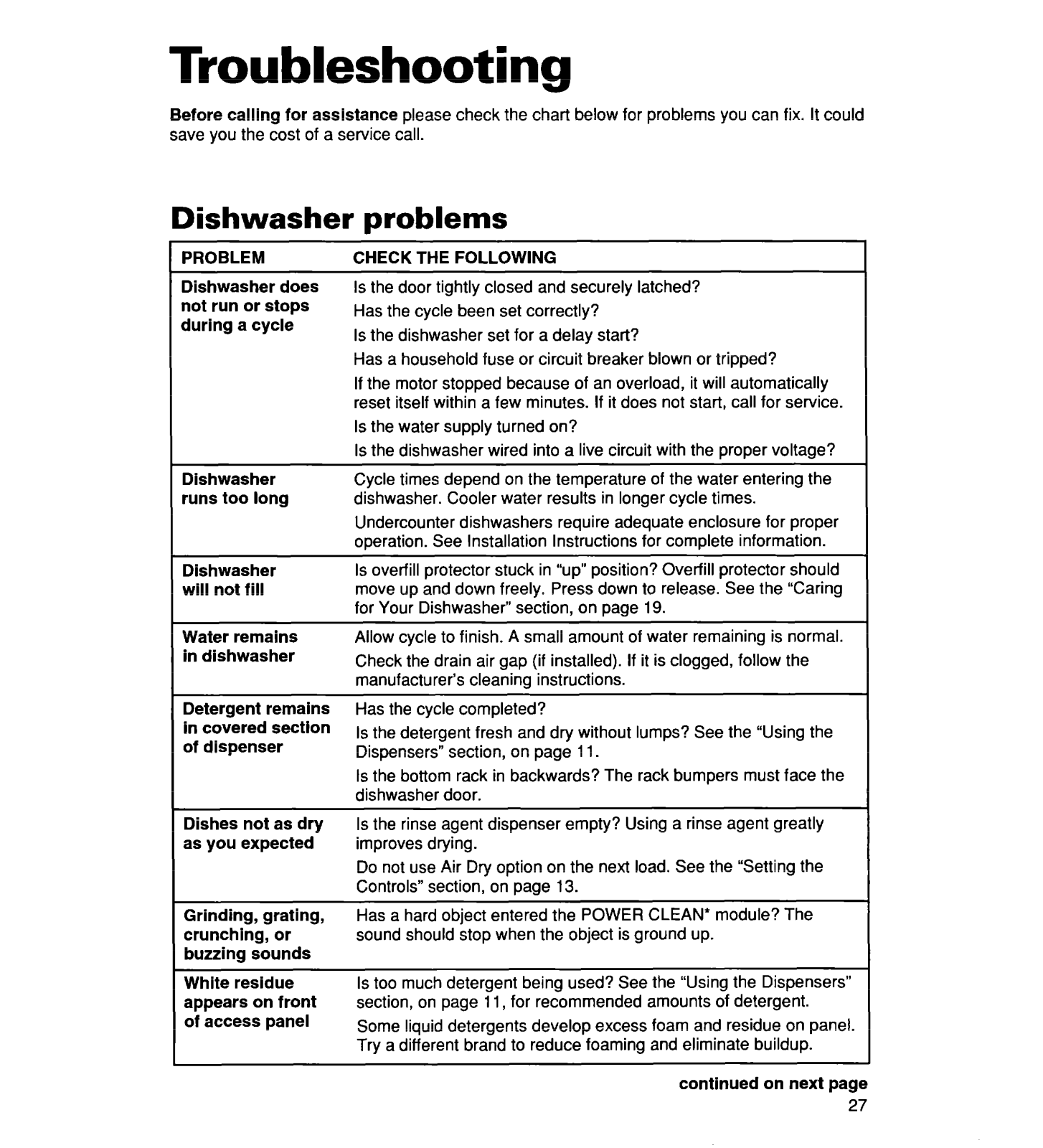

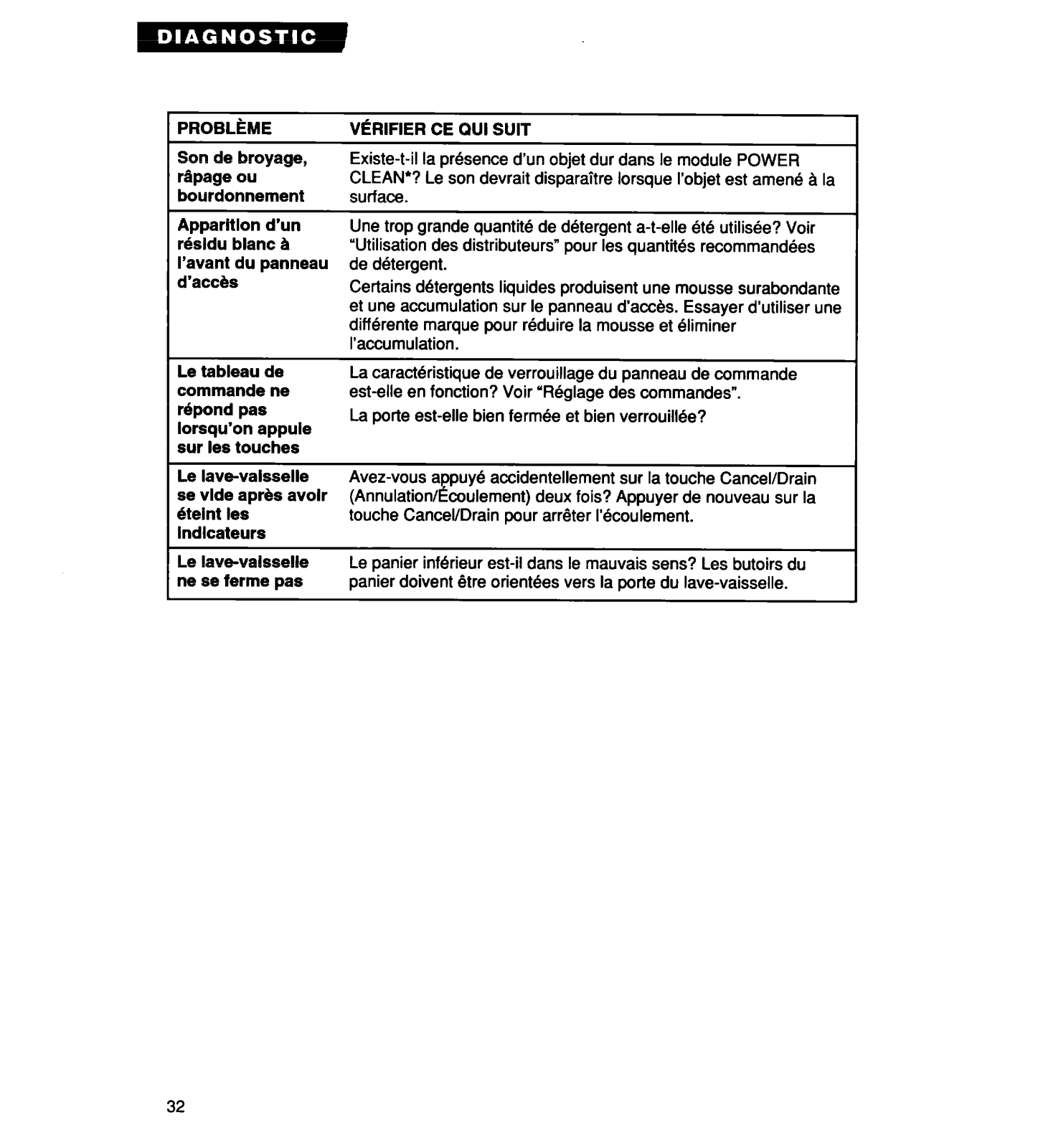

Troubleshootlng..

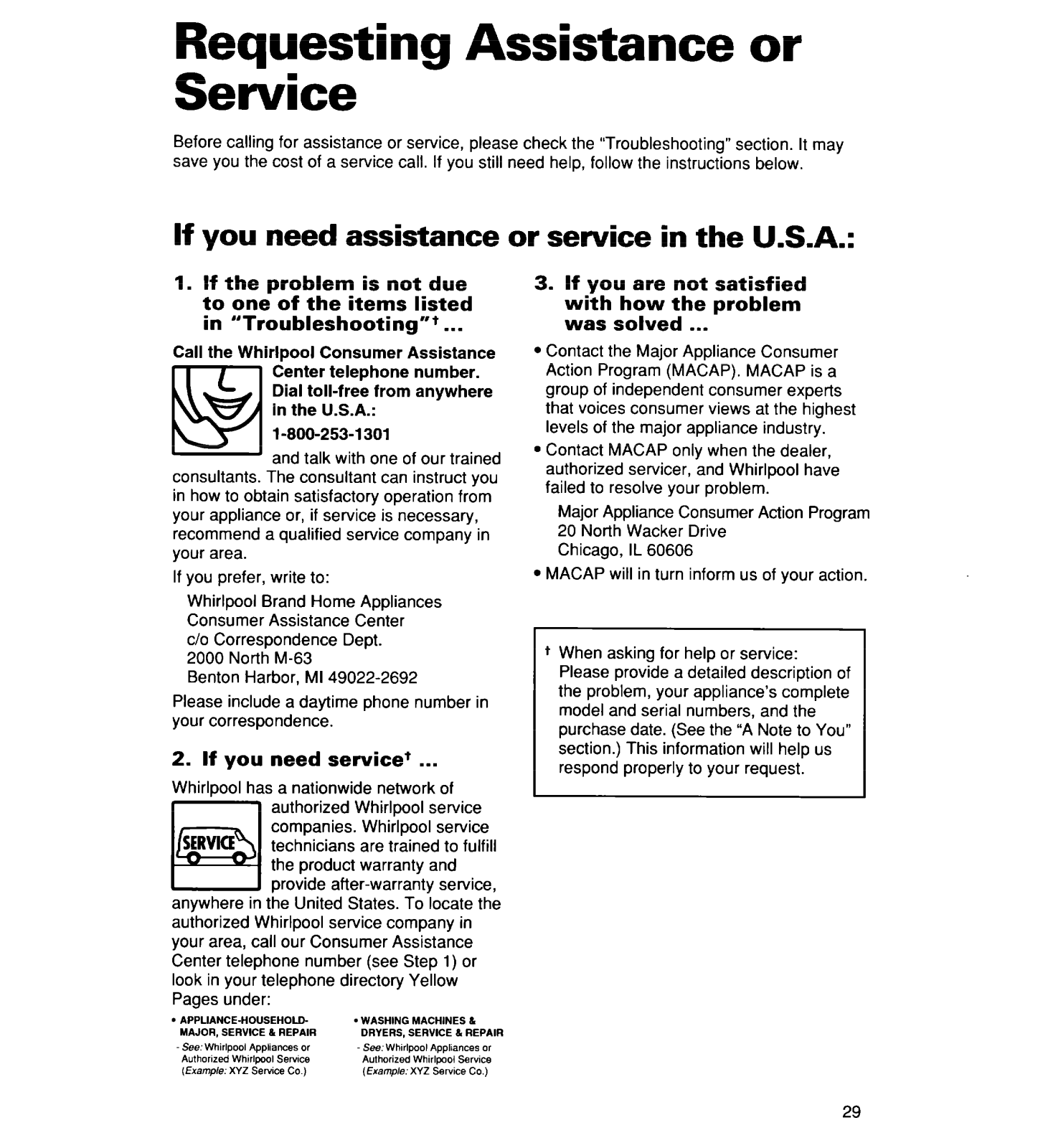

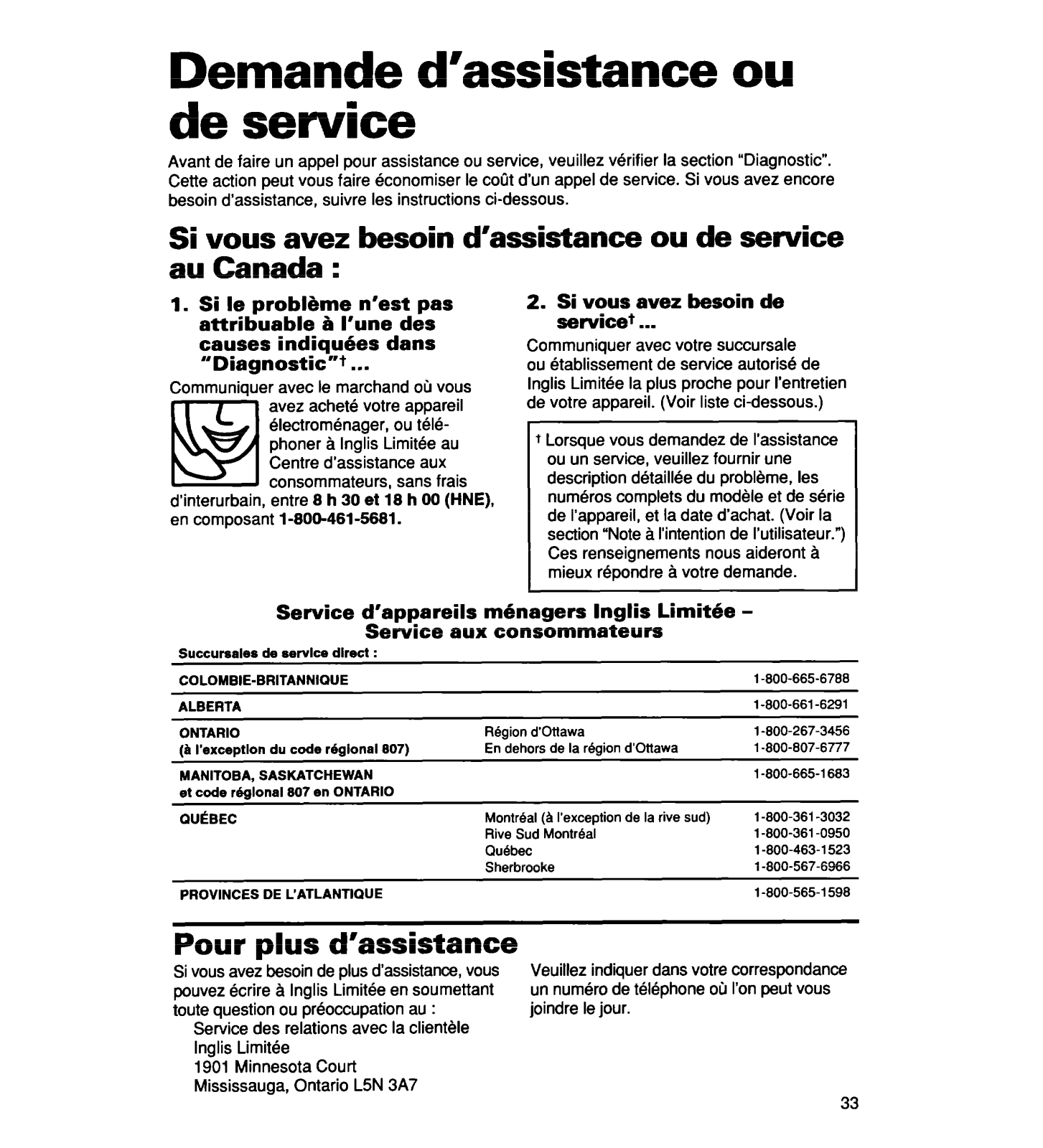

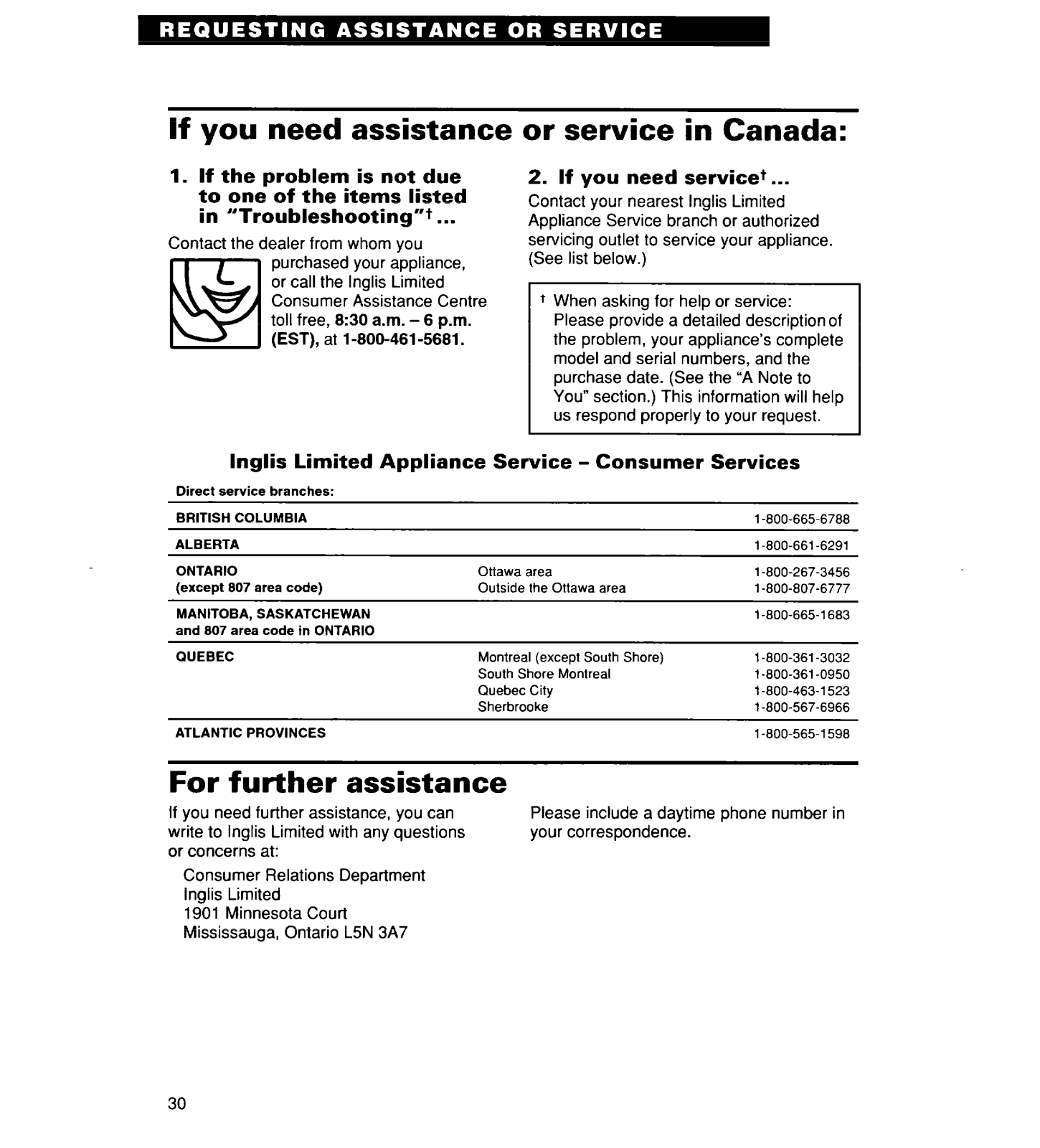

Requesting Assistance
or Service .............................

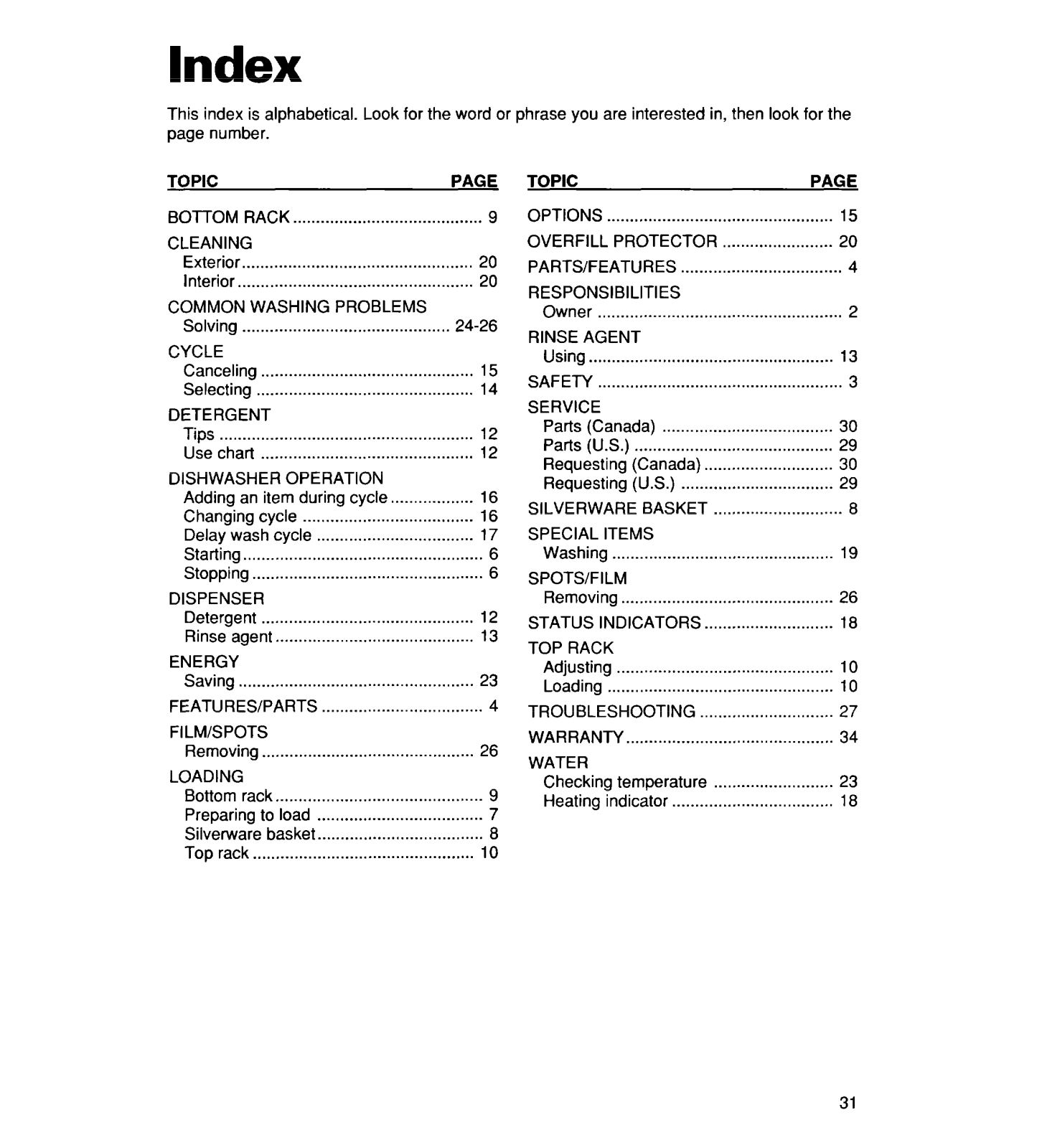

Index.. ....................................

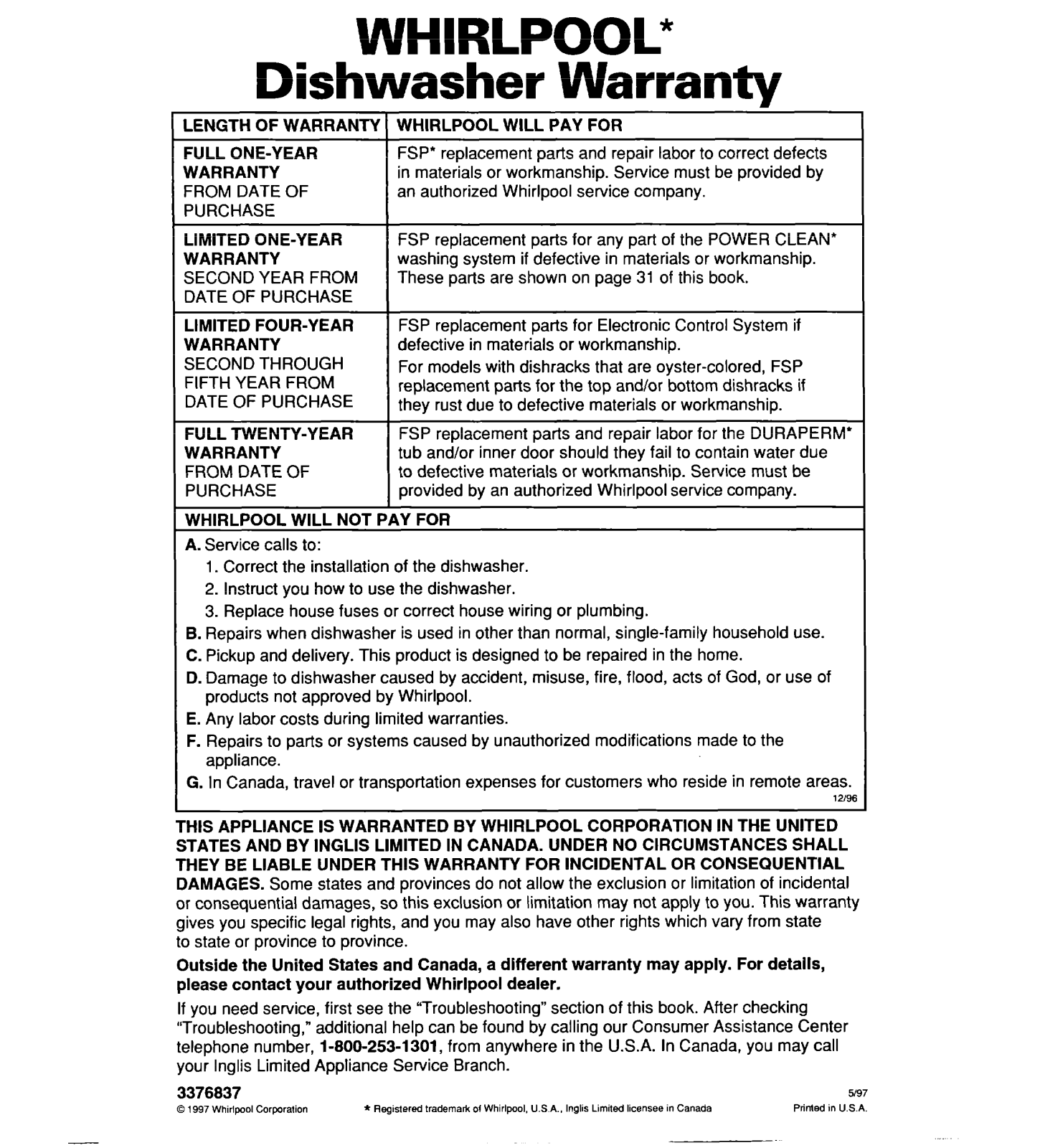

Warranty
.........................
.................
................
... 5
..... 7
..........
...........
.....
..........
...
setting ....................
..............................
.................................
..........................
........
.........................
......................
.......
.................
...............................
2
3
4
12
14
14
15
15
16
16
17
16
19
20
23
24
27
29
31
34
3376637
DISHWASHER MODEL SERIES 927,930,935
~.

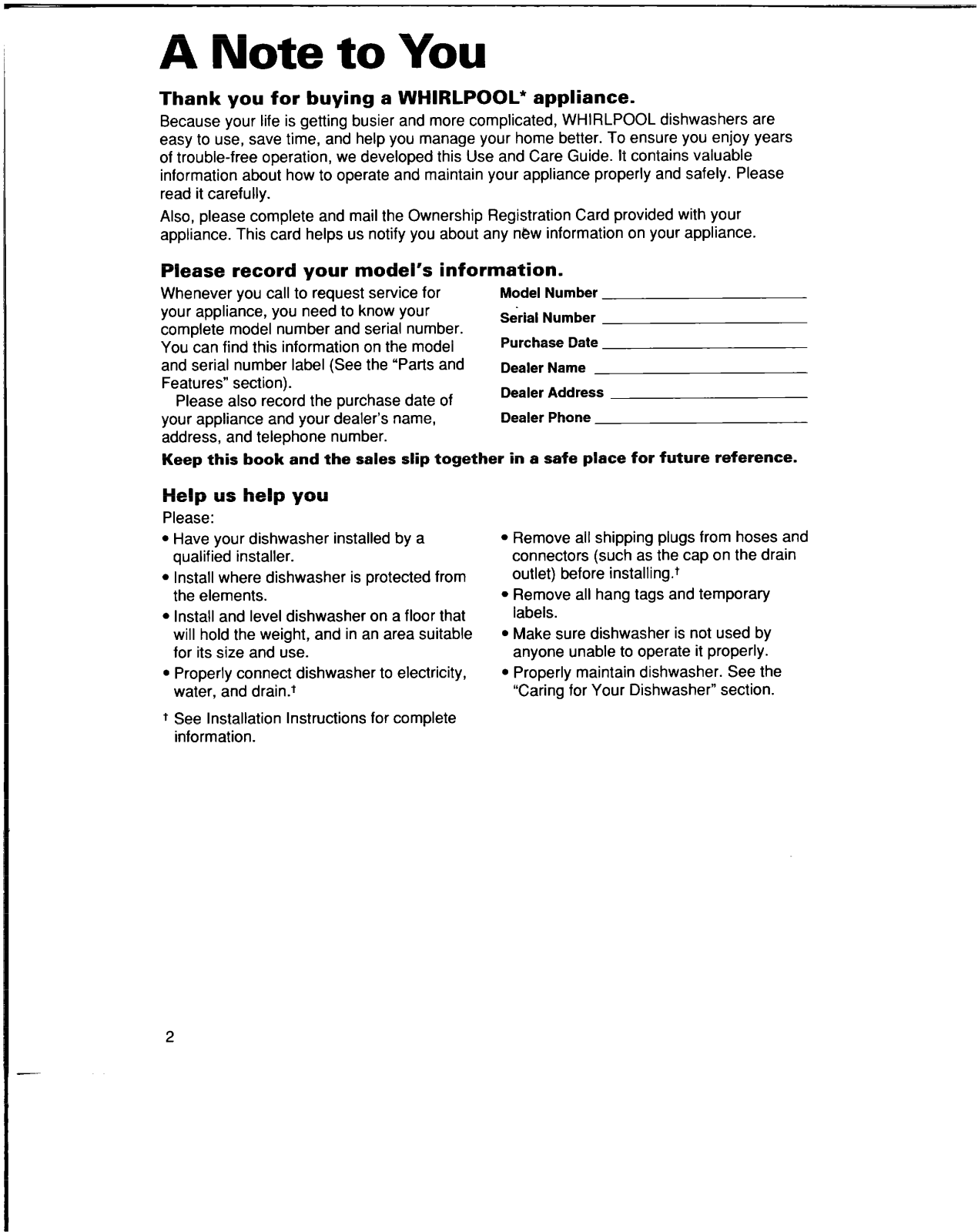

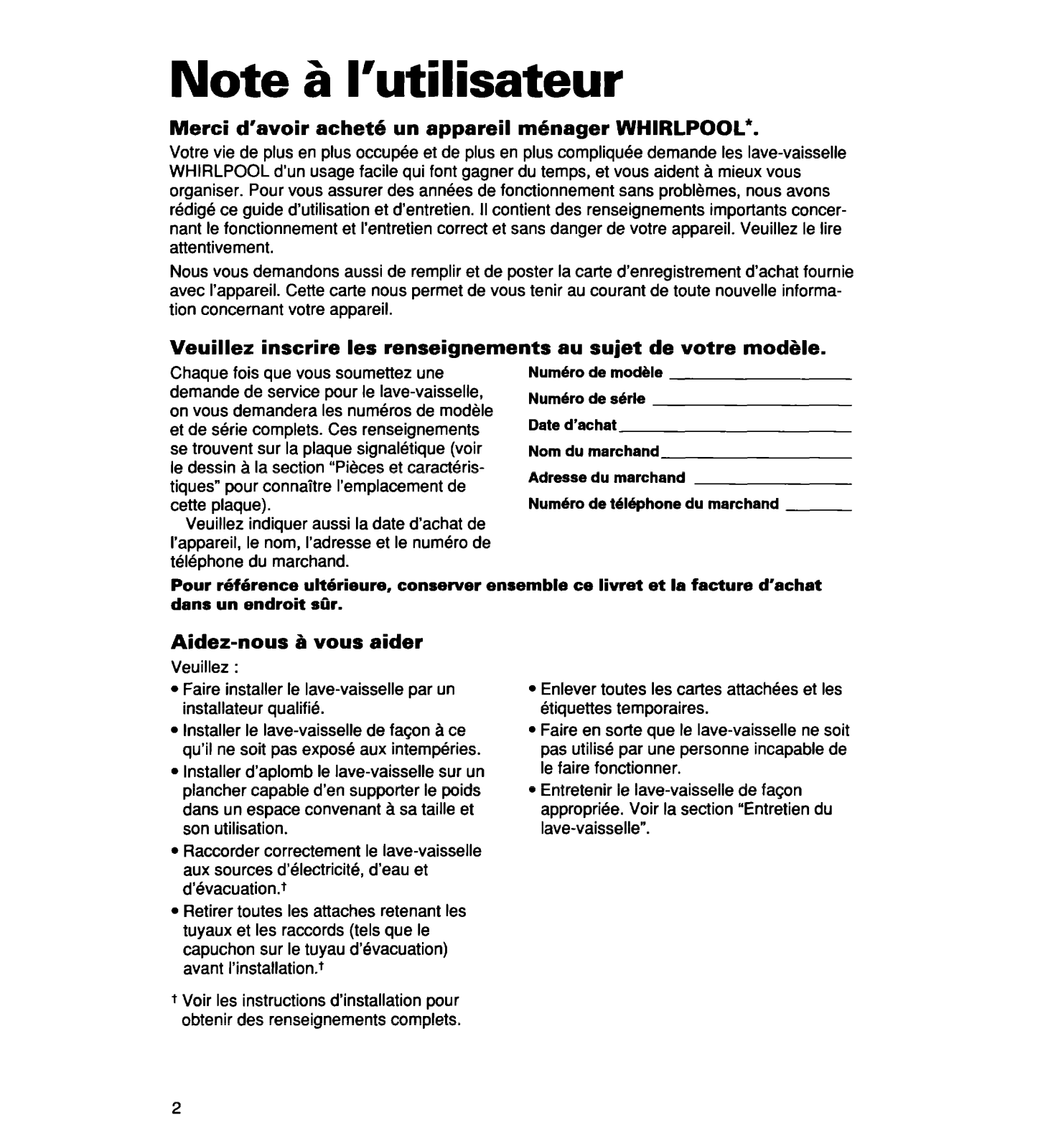

A Note to You
Thank you for buying a WHIRLPOOL* appliance.
Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are
easy to use, save time, and help you manage your home better. To ensure you enjoy years
of trouble-free operation, we developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your
appliance. This card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label (See the “Parts and
Features” section).
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
Help us help you
Please:
l Have your dishwasher installed by a
qualified installer.
l Install where dishwasher is protected from
the elements.
l Install and level dishwasher on a floor that
will hold the weight, and in an area suitable
for its size and use.
l Properly connect dishwasher to electricity,
water, and drain.+
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
l Remove all shipping plugs from hoses and
connectors (such as the cap on the drain
outlet) before installing.+
l Remove all hang tags and temporary
labels.
l Make sure dishwasher is not used by
anyone unable to operate it properly.
l Properly maintain dishwasher. See the
“Caring for Your Dishwasher” section.
+ See Installation Instructions for complete
information.

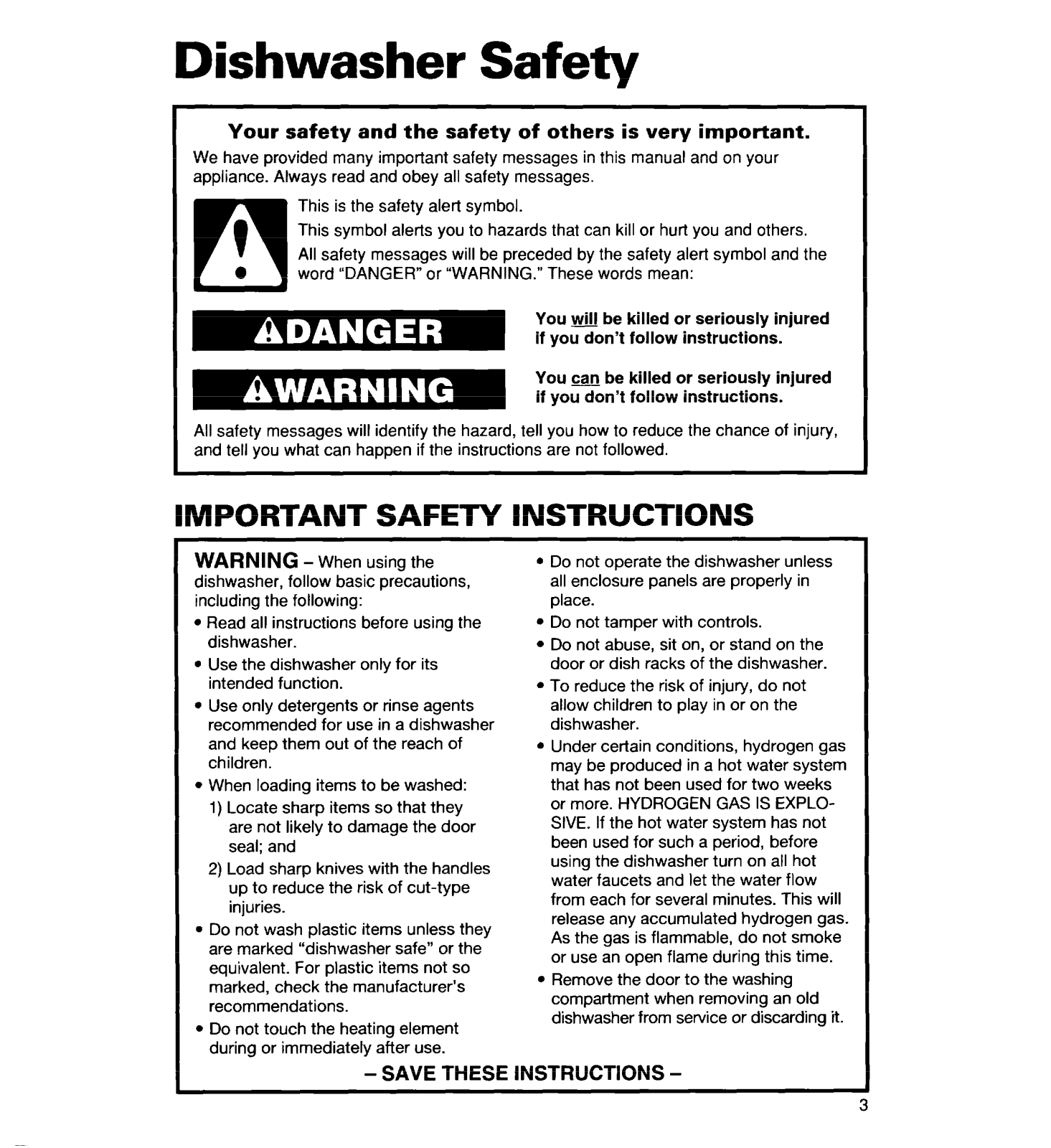

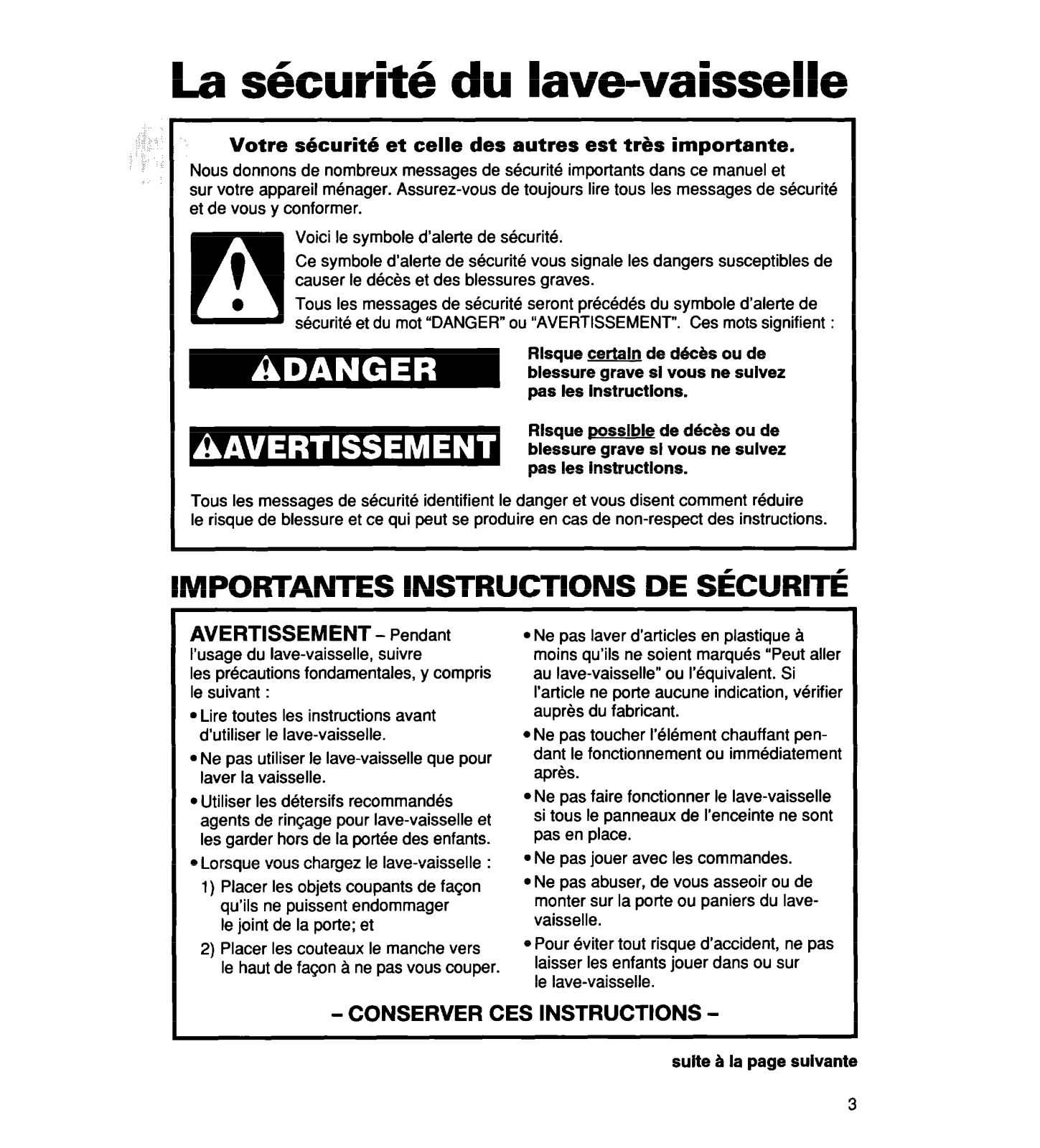

Dishwasher Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word “DANGER” or “WARNING.” These words mean:
You @Jl be killed or seriously injured
if you don’t follow instructions.
You gag be killed or seriously injured
if you don’t follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
-When using the
dishwasher, follow basic precautions,
including the following:
l Read all instructions before using the
dishwasher.
l Use the dishwasher only for its
intended function.
l Use only detergents or rinse agents
recommended for use in a dishwasher
and keep them out of the reach of
children.
l When loading items to be washed:
1) Locate sharp items so that they
are not likely to damage the door
seal; and
2) Load sharp knives with the handles
up to reduce the risk of cut-type
injuries.
l Do not wash plastic items unless they
are marked “dishwasher safe” or the
equivalent. For plastic items not so
marked, check the manufacturer’s
recommendations.
l
Do
not touch the heating element
during or immediately after use.
- SAVE THESE INSTRUCTIONS -
l Do not operate the dishwasher unless
all enclosure panels are properly in
place.
l Do not tamper with controls.
l Do not abuse, sit on, or stand on the
door or dish racks of the dishwasher.
l To reduce the risk of injury, do not
allow children to play in or on the
dishwasher.

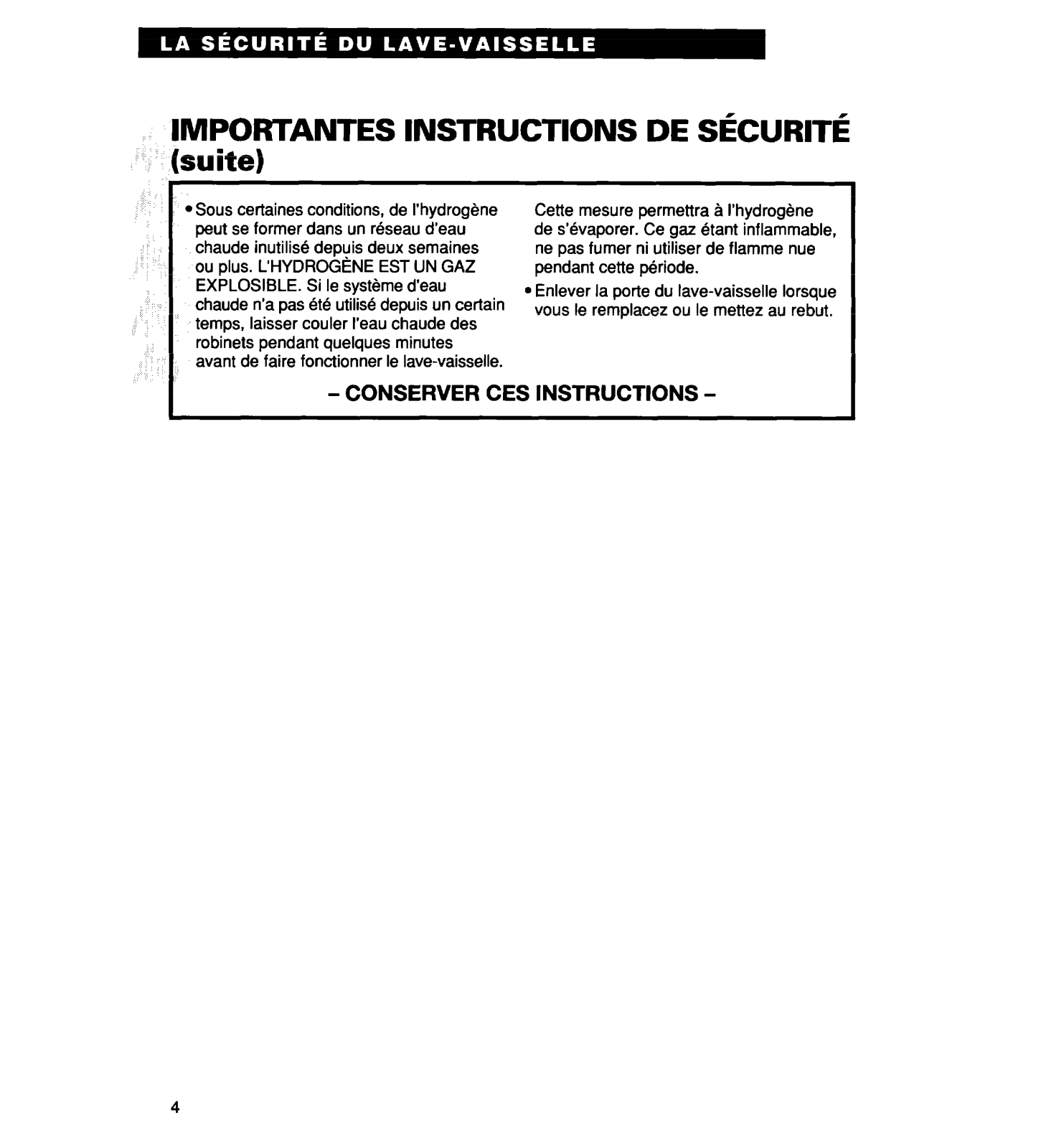

. Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not
been used for such a period, before
using the dishwasher turn on all hot
water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
As the gas is flammable, do not smoke
or use an open flame during this time.
l Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
3

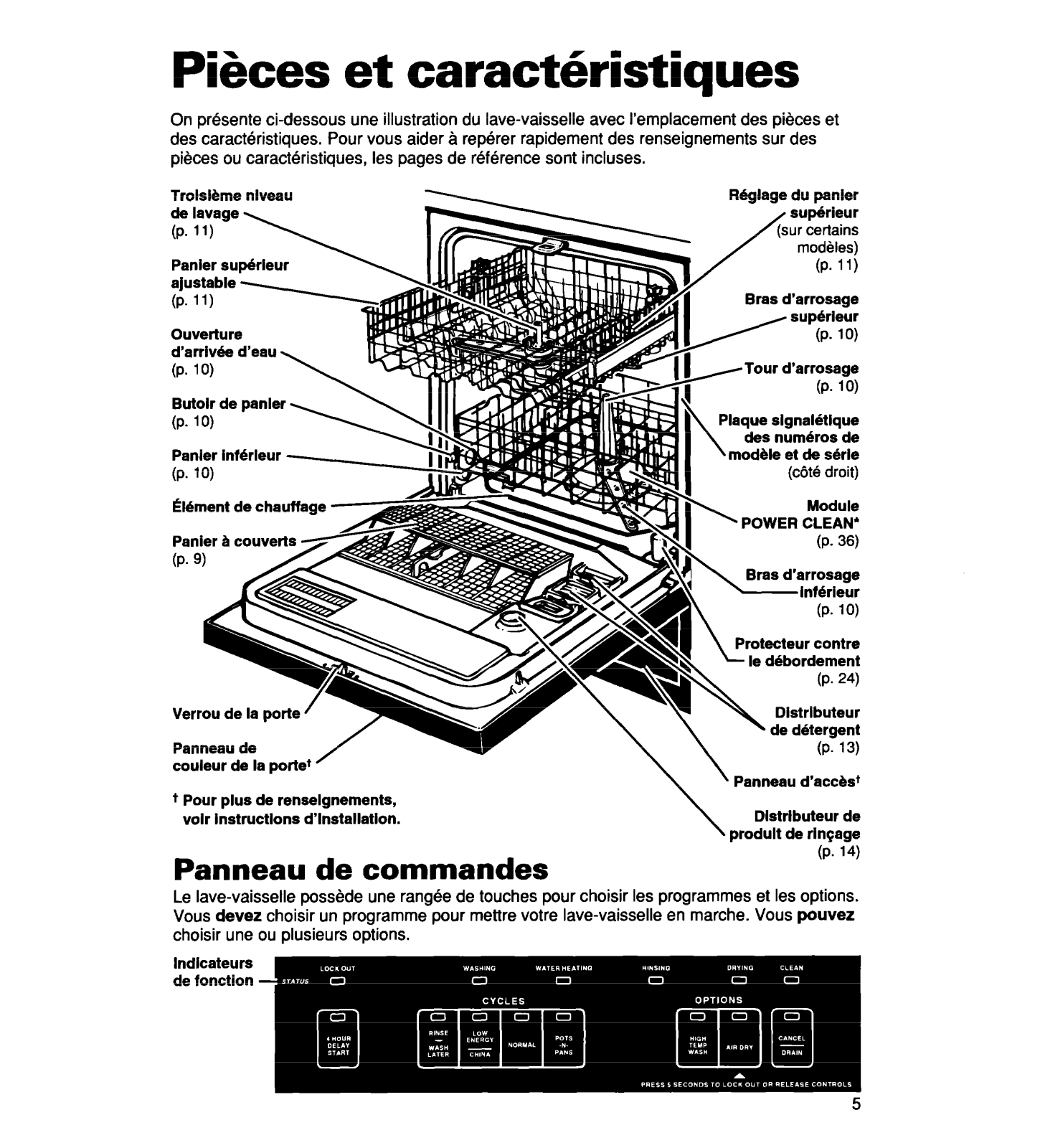

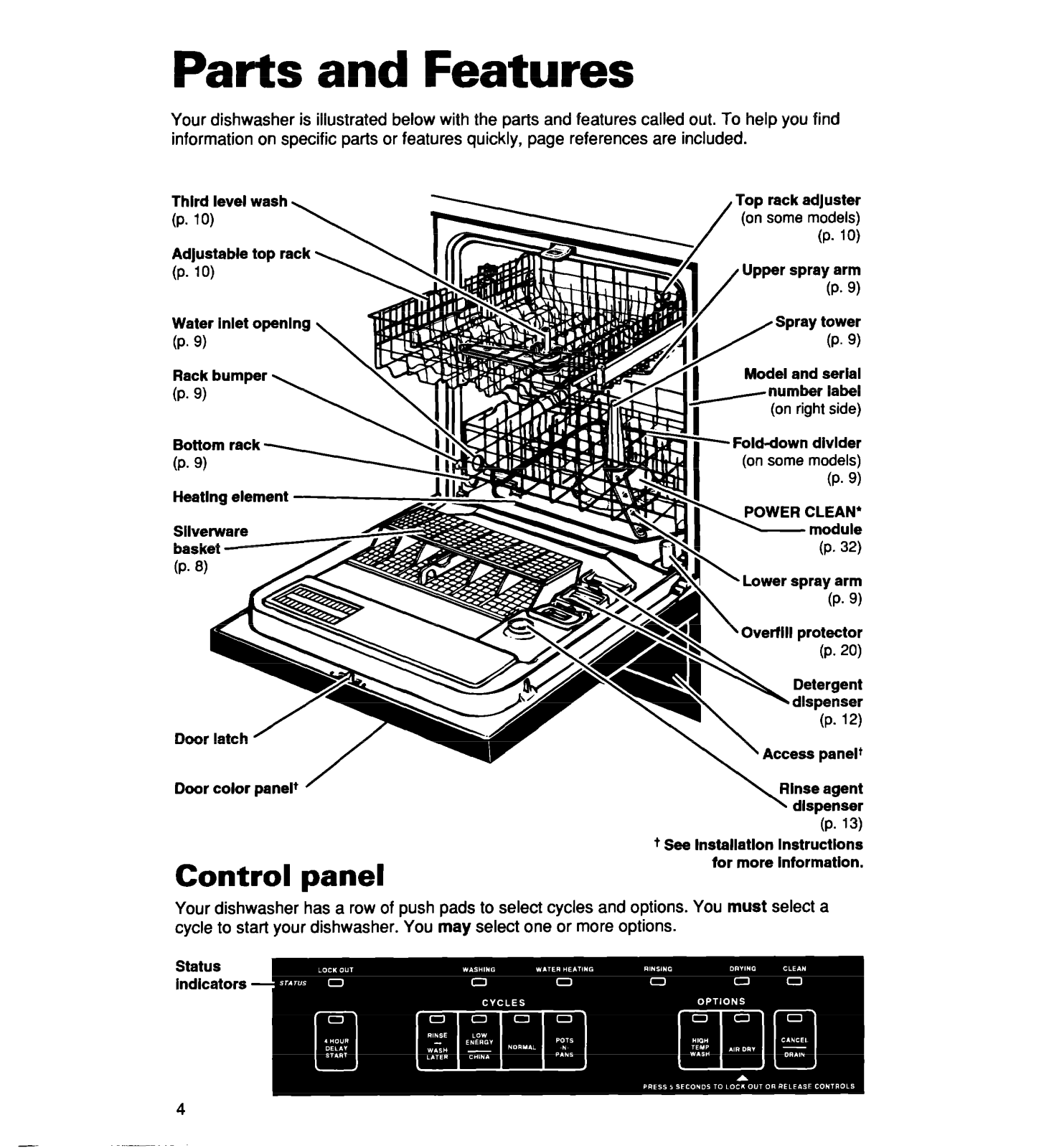

Parts and Features
Your dishwasher is illustrated below with the parts and features called out. To help you find
information on specific parts or features quickly, page references are included.
Thlm
.I,,,” ..e.-. ..I”..
(P. 10)
A$.!;table top rak/
Water inlet openlng
Top rack adjuster
(on some models)
/
Upper spray arm
/
/
Model and serial
-number label
- Fold-down divlder
(on some models)
POWER CLEAN*
1 module
\
Lower spray arm
\
OverfIll protector
(P- 10)
(P. 9)
Spray tower
(P. 9)
(on right side)
(P. 9)
(P. 32)
(P. 9)
(P. 20)
Door latch
Door color panelt
/
t See lnstallatlon Instructions
\
Control panel
Your dishwasher has a row of push pads to select cycles and options. You
cycle to start your dishwasher. You
may
select one or more options.
Detergent
dlspenser
(P- 12)
(P. 13)
for more Information.
must
select a

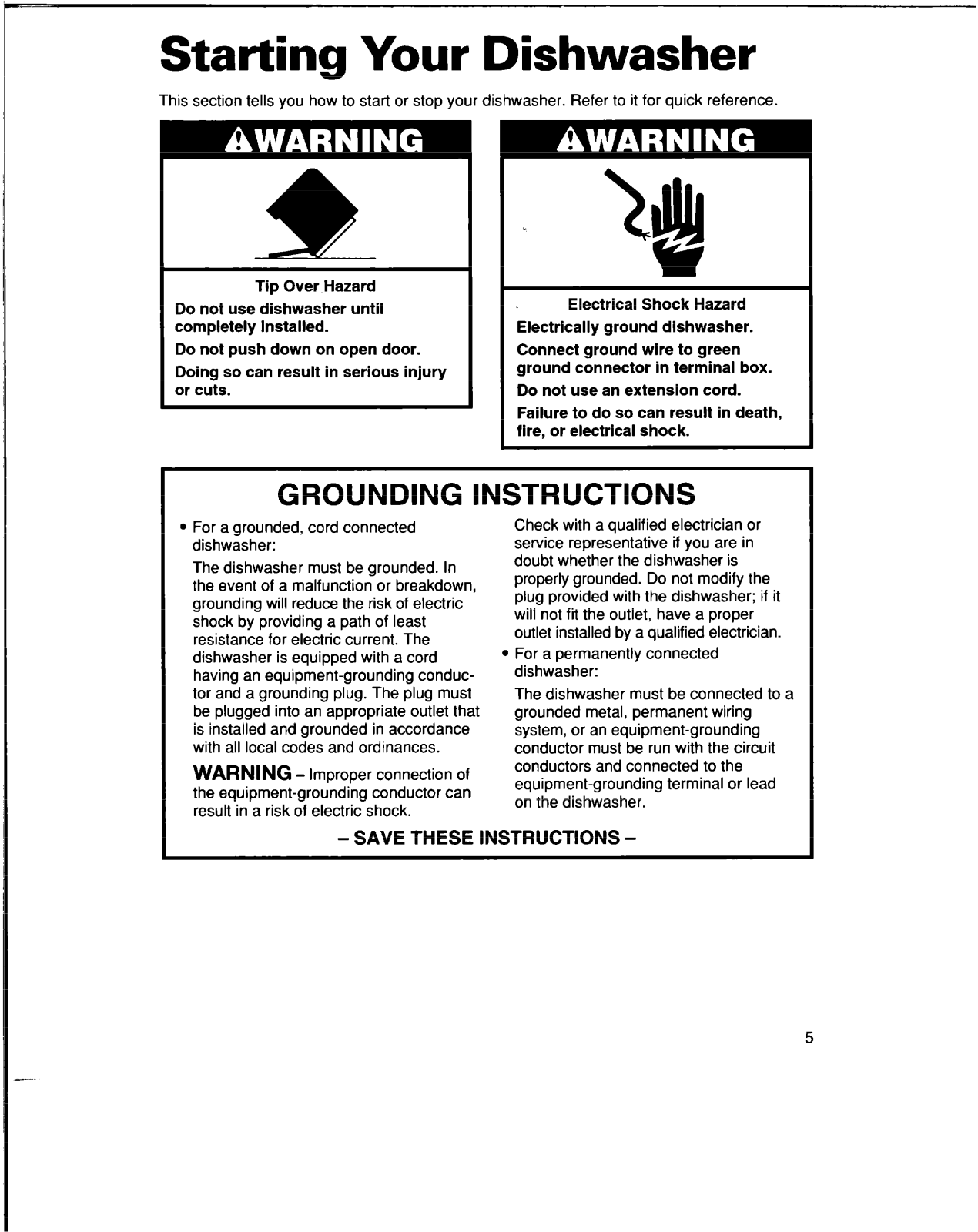

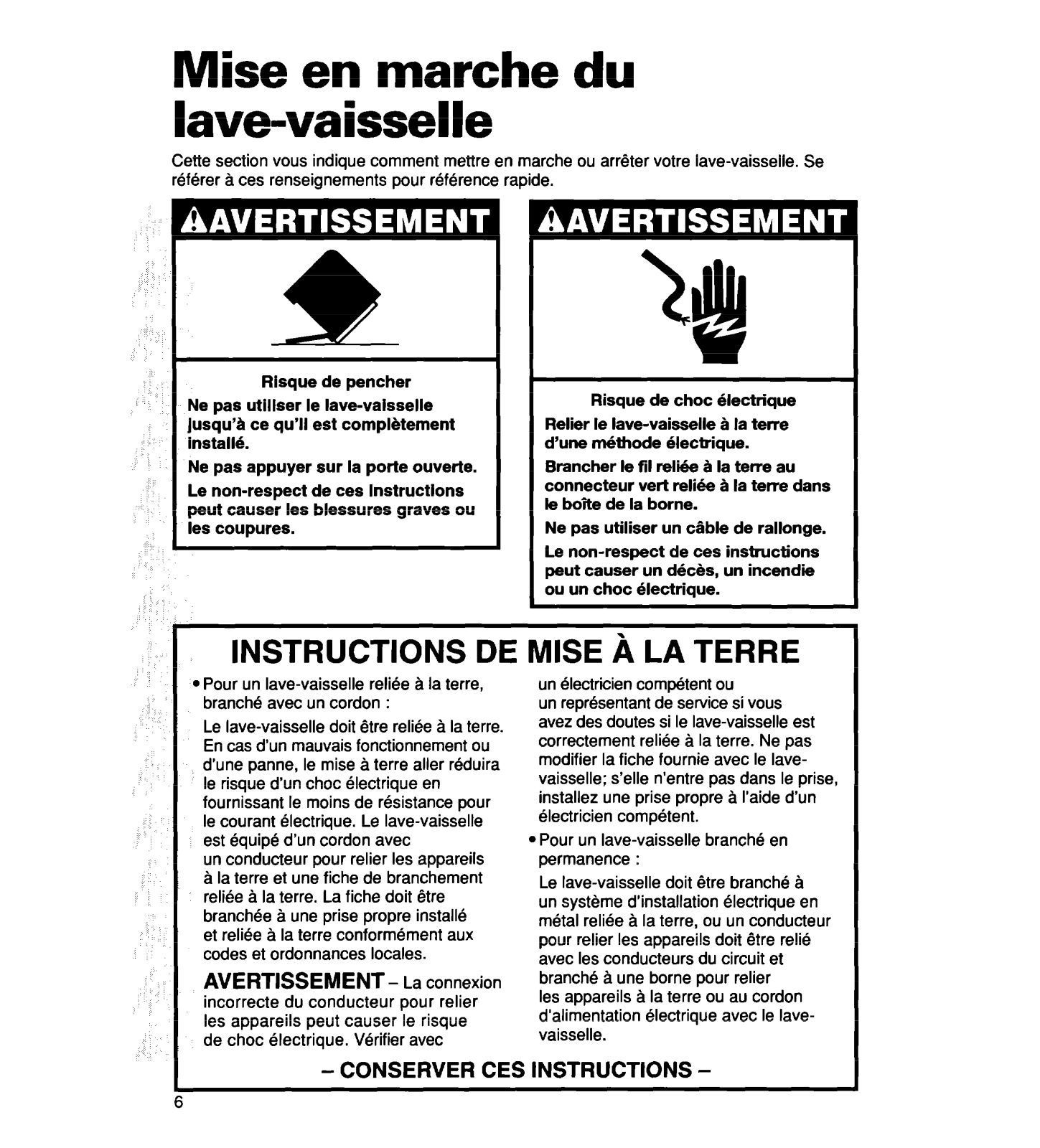

Starting Your Dishwasher
This section tells you how to start or stop your dishwasher. Refer to it for quick reference.
Tip Over Hazard
Do not use dishwasher until
completely installed.
Do not push down on open door.
Doing so can result in serious injury
or cuts.
GROUNDING INSTRUCTIONS
l For a grounded, cord connected
dishwasher:
The dishwasher must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The
dishwasher is equipped with a cord
having an equipment-grounding conduc-
tor and a grounding plug. The plug must
be plugged into an appropriate outlet that
is installed and grounded in accordance
with all local codes and ordinances.
WARNING
the equipment-grounding conductor can
result in a risk of electric shock.
- Improper connection of
Electrlcally ground dishwasher.
Connect ground wire to green
ground connector in terminal box.
Do not use an extension cord.
Failure to do so can result in death,
fire, or electrical shock.
Check with a qualified electrician or
service representative if you are in
doubt whether the dishwasher is
properly grounded. Do not modify the
plug provided with the dishwasher; if it
will not fit the outlet, have a proper
outlet installed by a qualified electrician.
l For a permanently connected
dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the dishwasher.
Electrical Shock Hazard
- SAVE THESE INSTRUCTIONS -
5

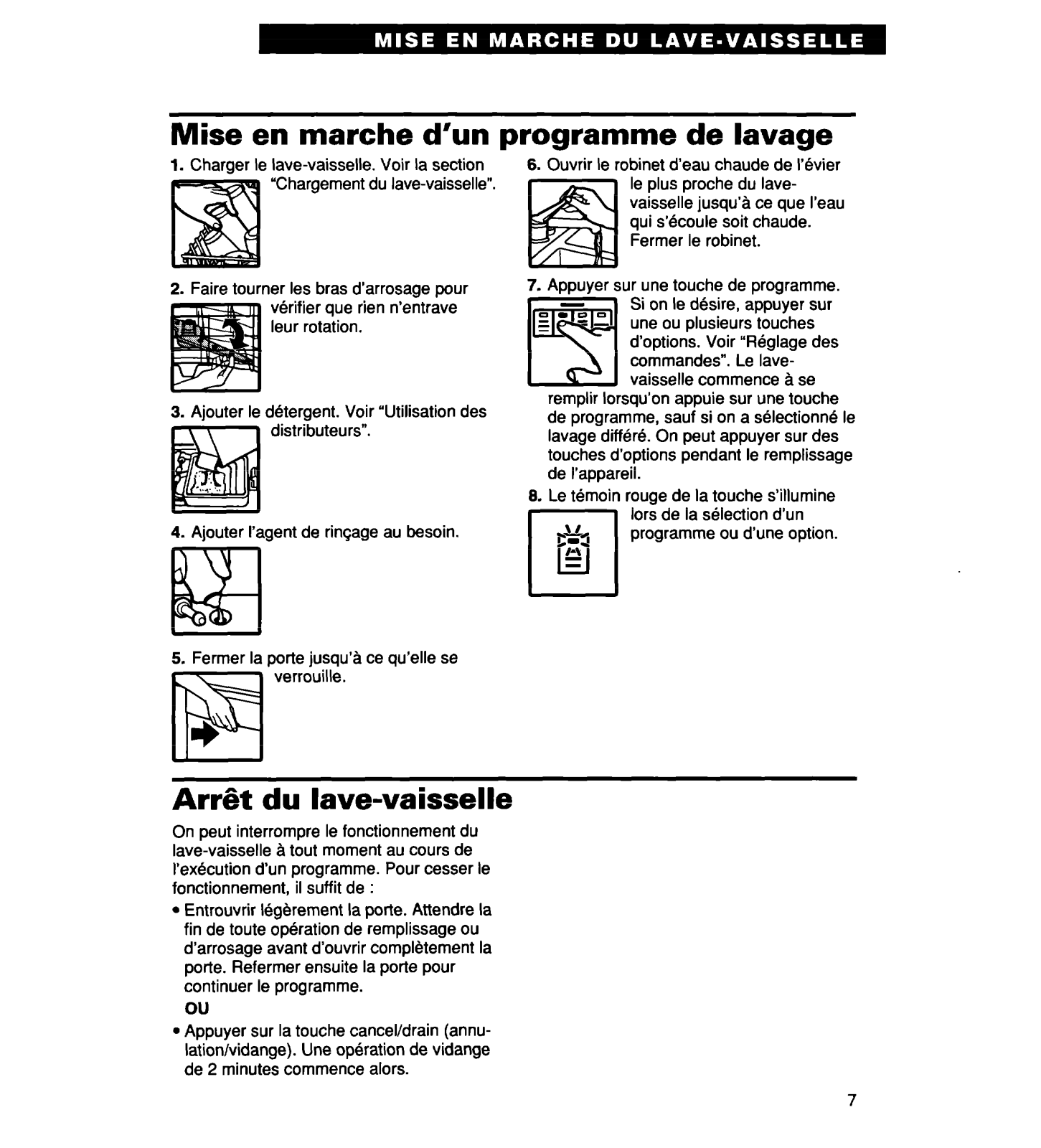

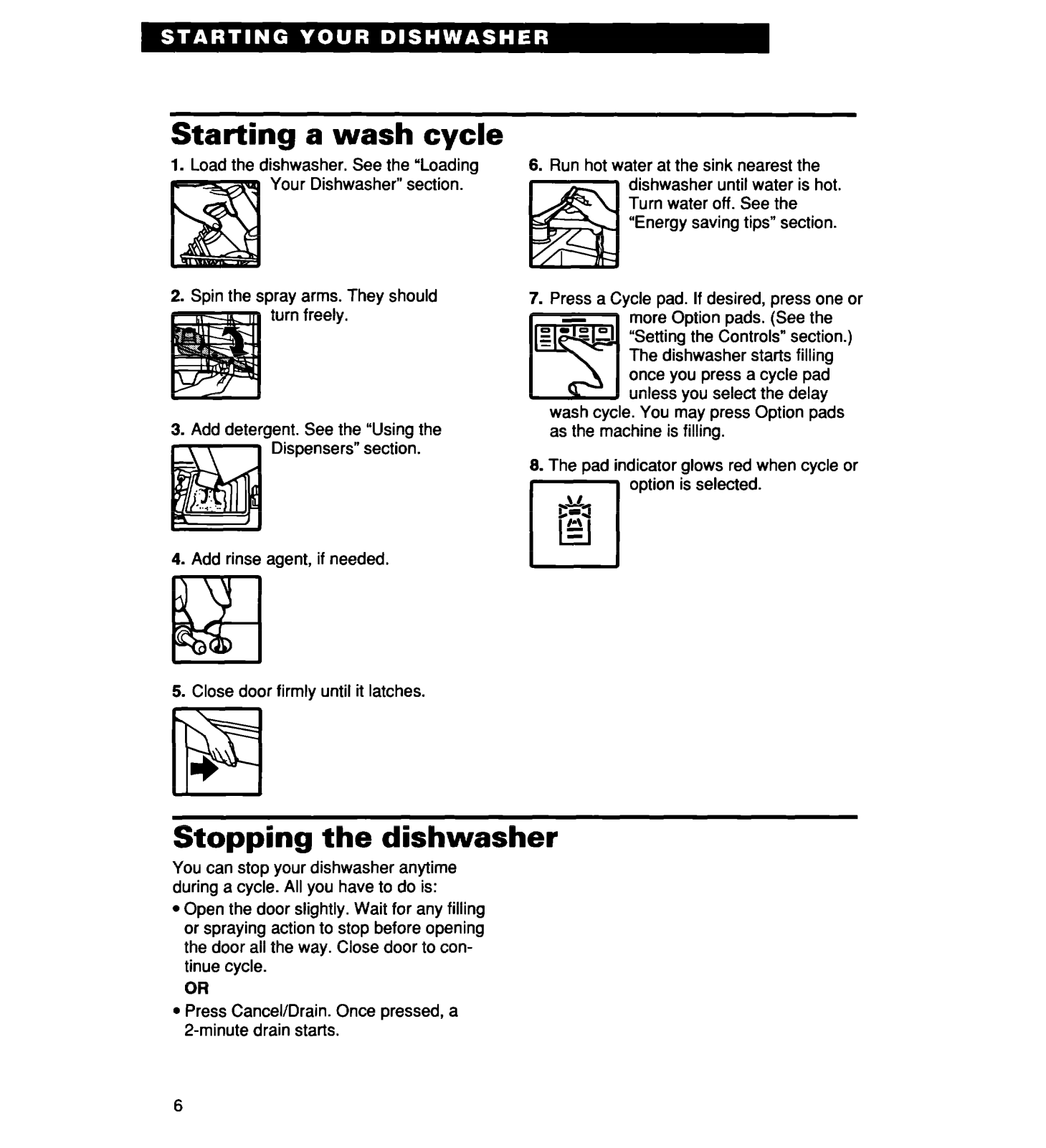

Starting a wash cycle
1. Load the dishwasher. See the ‘Loading
Your Dishwasher” section.
6. Run hot water at the sink nearest the
dishwasher until water is hot.
Turn water off. See the
“Energy saving tips” section.
2. Spin the spray arms. They should
turn freely.
3. Add detergent. See the “Using the
Dispensers” section.
4. Add rinse agent, if needed.
5. Close door firmly until it latches.
7. Press a Cycle pad. If desired, press one or
-
=-=a
=
l!!!fzl
wash cycle. You may press Option pads
as the machine is filling.
6. The pad indicator glows red when cycle or
1-1 option is selected.
more Option pads. (See the
“Setting the Controls” section.)
The dishwasher starts filling
once you press a cycle pad
unless you select the delay
Stopping the dishwasher
You can stop your dishwasher anytime
during a cycle. All you have to do is:
l
Open the door slightly. Wait for any filling
or spraying action to stop before opening
the door all the way. Close door to continue cycle.
OR
l
Press Cancel/Drain. Once pressed, a
2-minute drain starts.
6

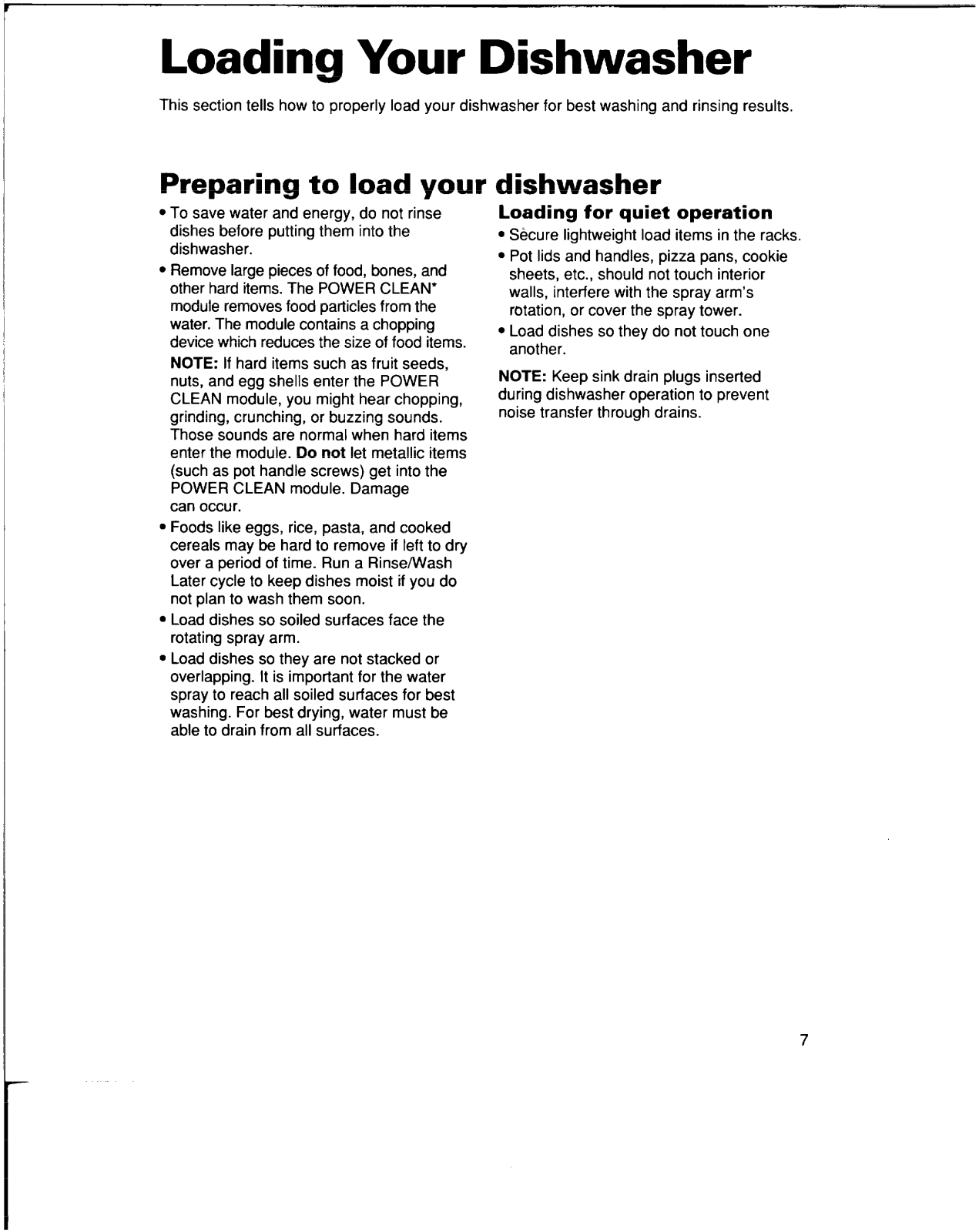

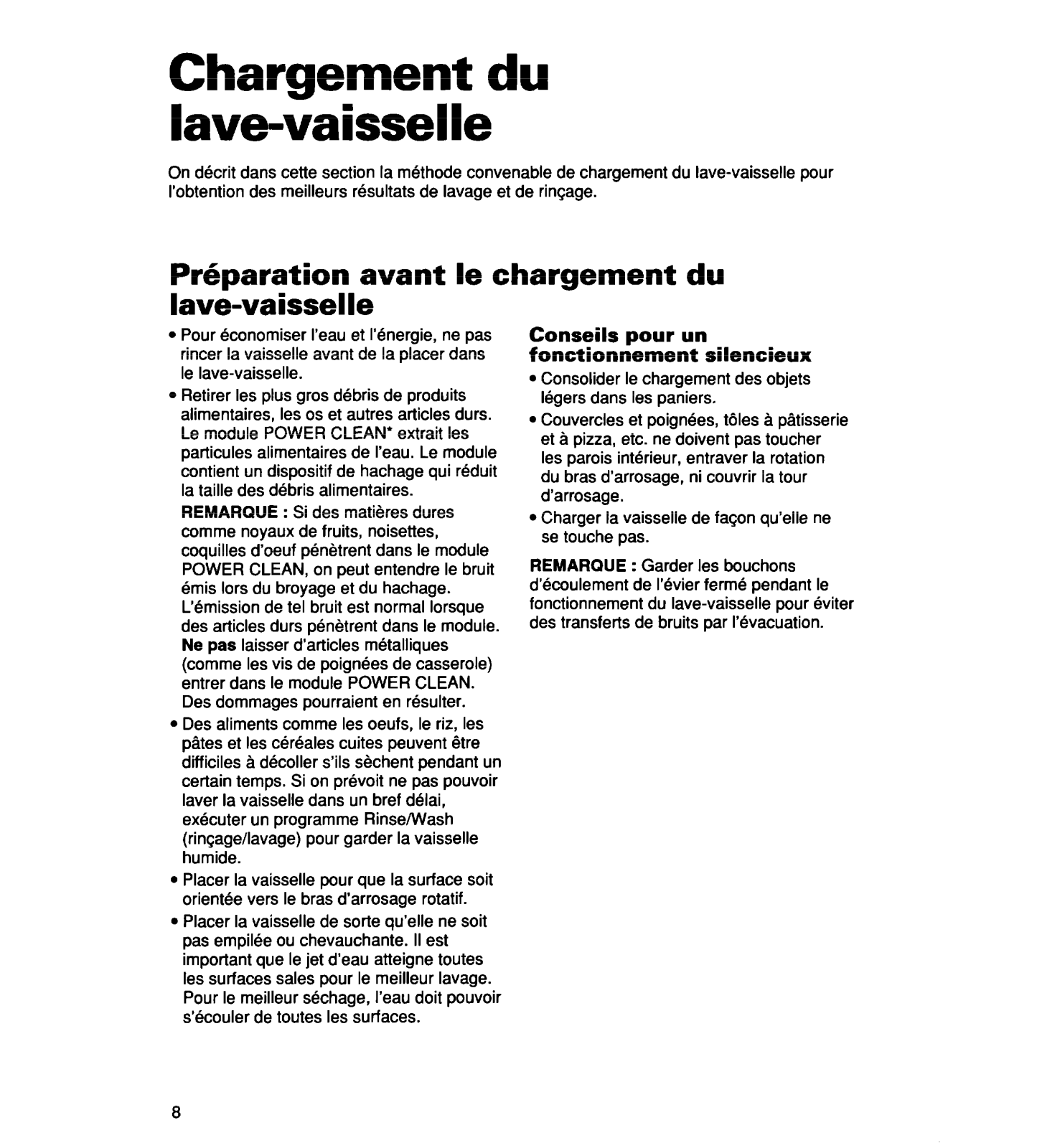

Loading Your Dishwasher
This section tells how to properly load your dishwasher for best washing and rinsing results.
Preparing to load your dishwasher
l To save water and energy, do not rinse
dishes before putting them into the
dishwasher.
l Remove large pieces of food, bones, and

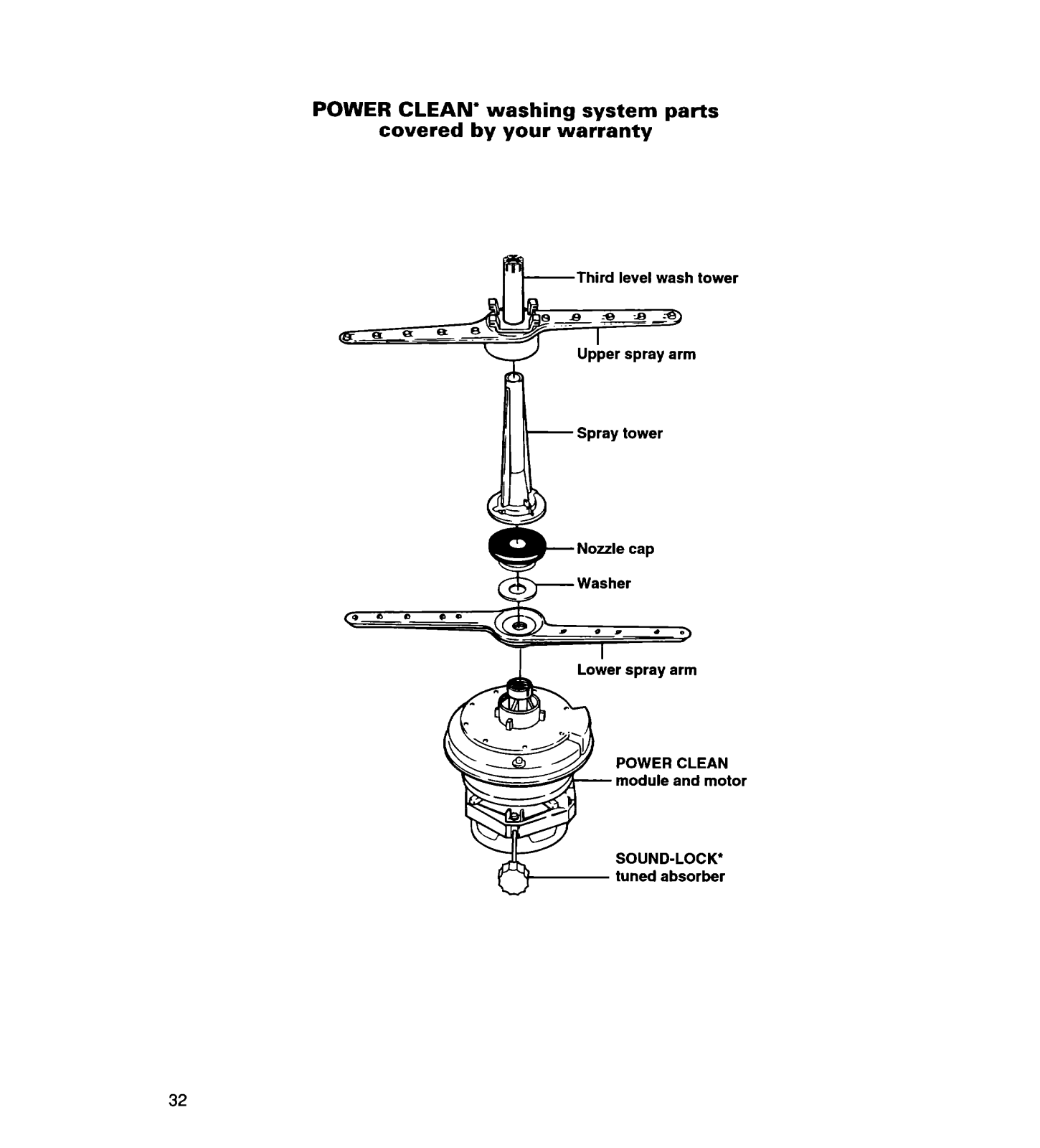

other hard items. The POWER CLEAN*
module removes food particles from the
water. The module contains a chopping
device which reduces the size of food items.
NOTE: If hard items such as fruit seeds,
nuts, and egg shells enter the POWER
CLEAN module, you might hear chopping,
grinding, crunching, or buzzing sounds.
Those sounds are normal when hard items
enter the module. Do
not
let metallic items
(such as pot handle screws) get into the
POWER CLEAN module. Damage
can occur.
l Foods like eggs, rice, pasta, and cooked
cereals may be hard to remove if left to dry
over a period of time. Run a Rinse/Wash
Later cycle to keep dishes moist if you do
not plan to wash them soon.
l Load dishes so soiled surfaces face the
rotating spray arm.
l Load dishes so they are not stacked or
overlapping. It is important for the water
spray to reach all soiled surfaces for best
washing. For best drying, water must be
able to drain from all surfaces.
Loading for quiet operation
l Secure lightweight load items in the racks.
l Pot lids and handles, pizza pans, cookie
sheets, etc., should not touch interior
walls, interfere with the spray arm’s
rotation, or cover the spray tower.
l Load dishes so they do not touch one
another.
NOTE: Keep sink drain plugs inserted
during dishwasher operation to prevent
noise transfer through drains.
7
-

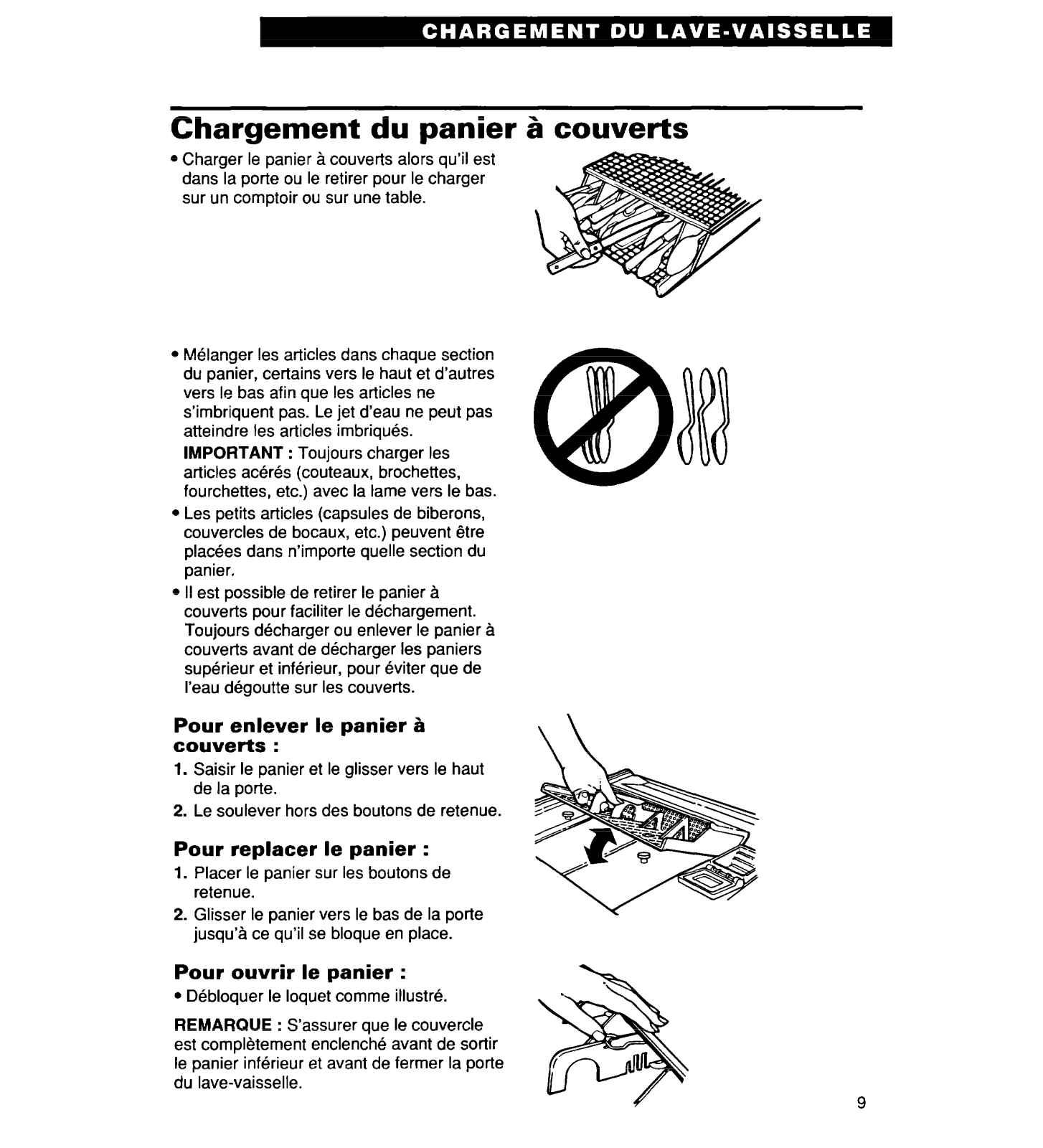

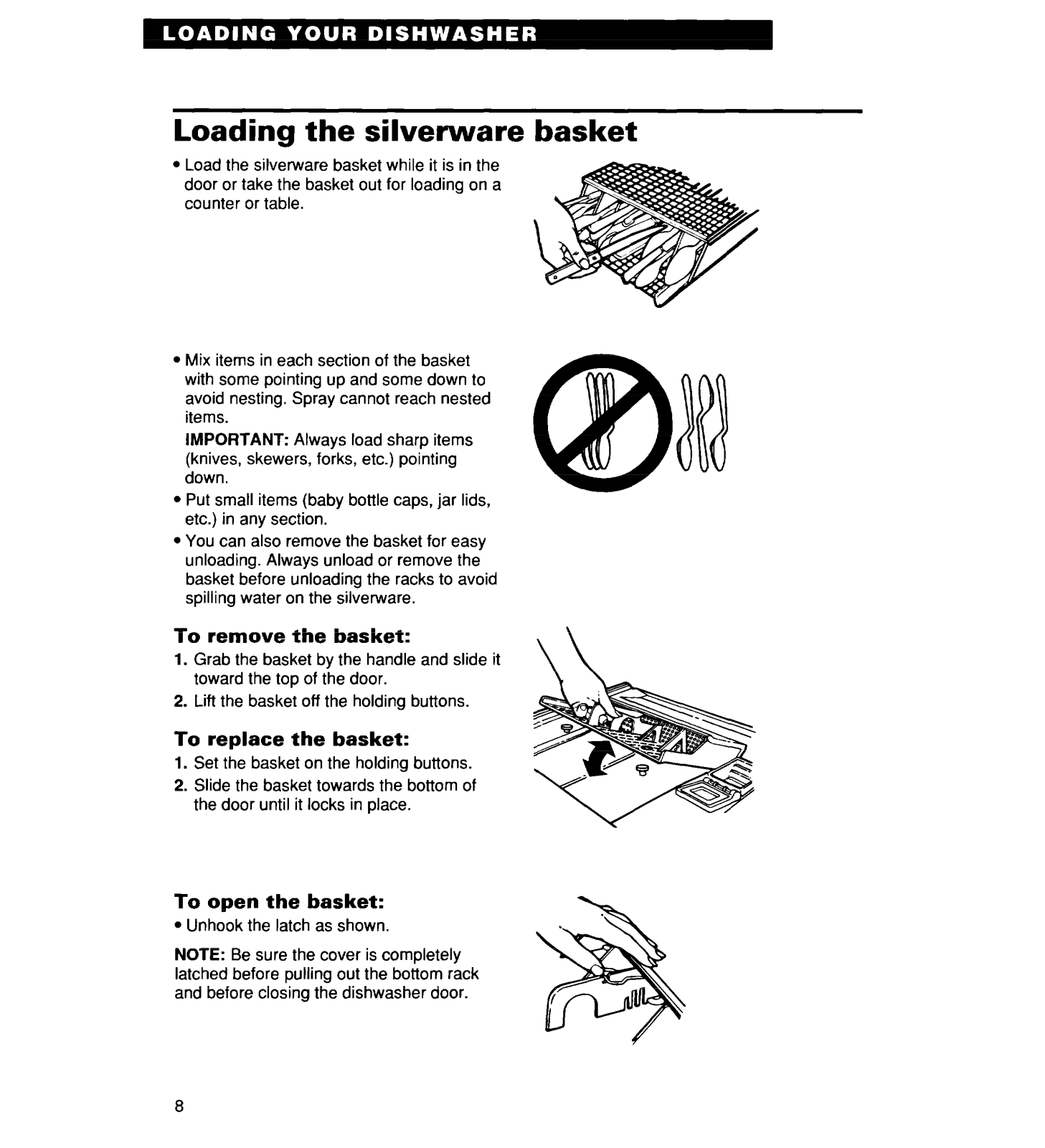

Loading the silverware basket
l Load the silverware basket while it is in the
door or take the basket out for loading on a
counter or table.
l Mix items in each section of the basket
with some pointing up and some down to
avoid nesting. Spray cannot reach nested
items.
IMPORTANT:
(knives, skewers, forks, etc.) pointing
down.
l Put small items (baby bottle caps, jar lids,
etc.) in any section.
l You can also remove the basket for easy
unloading. Always unload or remove the
basket before unloading the racks to avoid
spilling water on the silverware.
Always load sharp items
To remove the basket:
1.
Grab the basket by the handle and slide it
toward the top of the door.
2. Lift the basket off the holding buttons.
To replace the basket:
1.
Set the basket on the holding buttons.
2. Slide the basket towards the bottom of
the door until it locks in place.
To open the basket:
l Unhook the latch as shown.
NOTE:
latched before pulling out the bottom rack
and before closing the dishwasher door.
8
Be sure the cover is completely

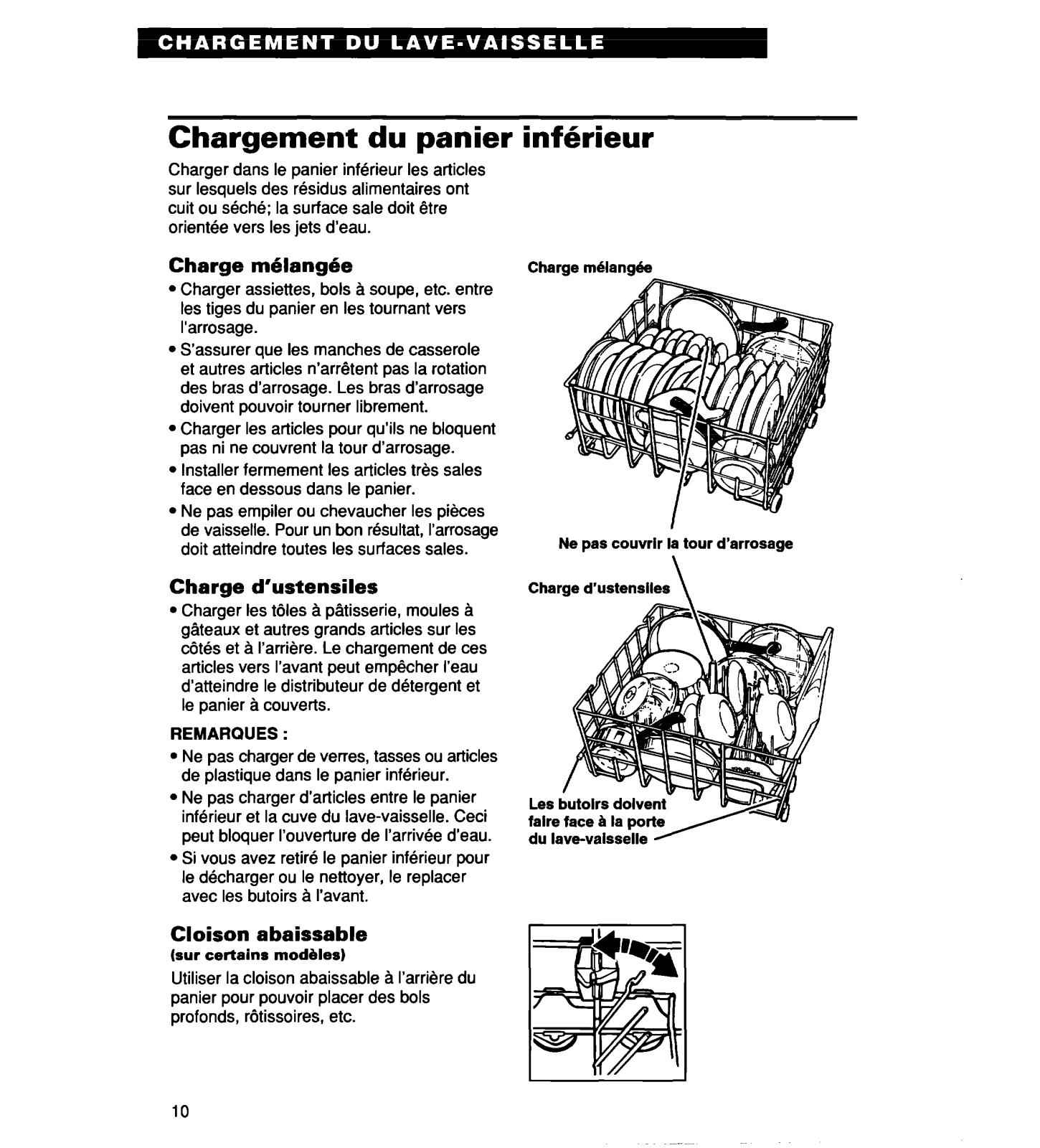

Loading the bottom rack
Load items with cooked-on or dried-on food
in the bottom rack, with soiled surfaces
facing inward to the spray.
Mixed load
l Load plates, soup bowls, etc., between
prongs and facing inward to the spray.
l Make sure pot handles and other items do
not stop rotation of the spray arms. Spray
arms
must
move freely.
l Load items so they do not block or cover
the spray tower.
l Load heavily-soiled cookware face down
in rack.
l Do not stack or overlap dishes. Water
spray must reach all soiled
surfaces
for
best results.
Utensil load
l Load cookie sheets, cake pans, and other
large items at sides and back. Loading
such items in front may keep water spray
from reaching detergent dispenser and
silverware basket.
NOTES:
l Do not load glasses, cups, or plastic items
in the bottom rack.
l Do not load items between the bottom rack
and the dishwasher tub. This can block the
water inlet opening.
l If you have removed the bottom rack for
unloading or cleaning, replace it with
bumpers in front.
Mixed load
Do not cover spray tower
Utensil load
BU
face dishwasher door-w
Fold-down divider
(on some models)
Use the fold-down divider at the back of
the rack to make room for deep bowls,
roasters, etc.
9

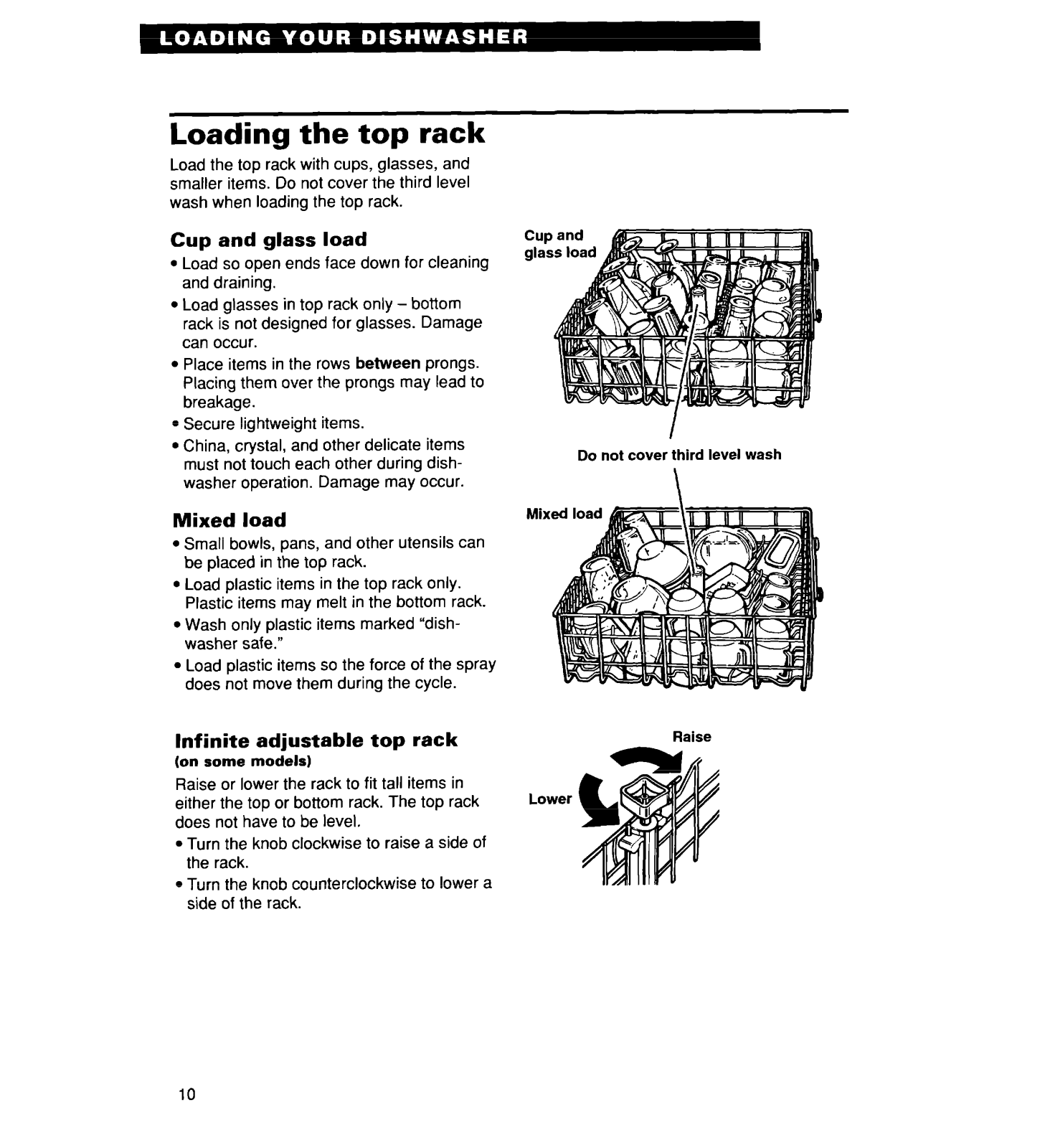

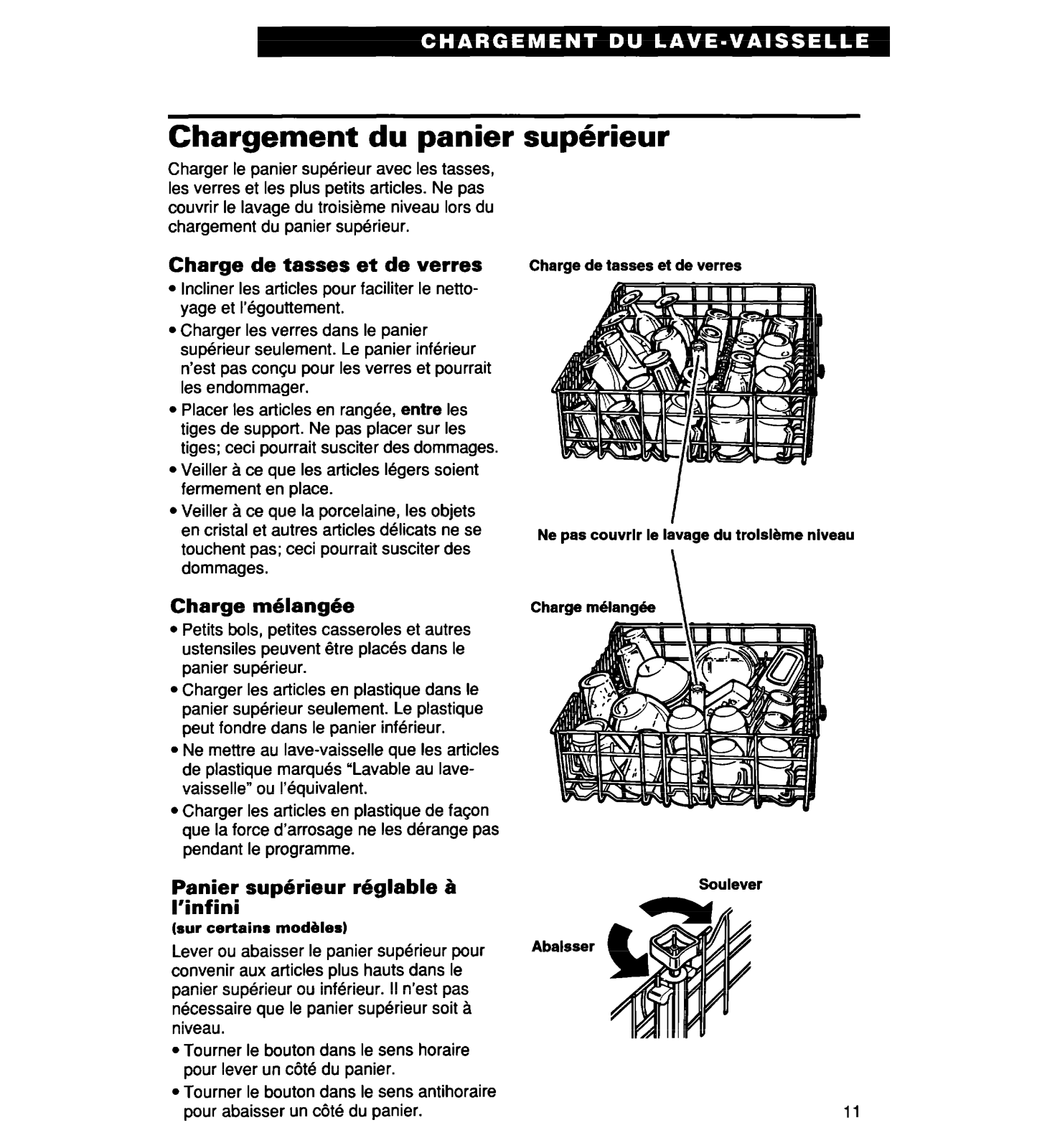

Loading the top rack
Load the top rack with cups, glasses, and
smaller items. Do not cover the third level
wash when loading the top rack.
Cup and glass load
l Load so open ends face down for cleaning
and draining.
. Load glasses in top rack only - bottom
rack is not designed for glasses. Damage
can occur.
l Place items in the rows
Placing them over the prongs may lead to
breakage.
l Secure lightweight items.
l China, crystal, and other delicate items
must not touch each other during dish-
washer operation. Damage may occur.
Mixed load
l Small bowls, pans, and other utensils can
be placed in the top rack.
l Load plastic items in the top rack only.
Plastic items may melt in the bottom rack.
l Wash only plastic items marked “dish-
washer safe.”
l Load plastic items so the force of the spray
does not move them during the cycle.
between
prongs.
Do not cover third level wash
Infinite adjustable top rack
(on some models)
Raise or lower the rack to fit tall items in
either the top or bottom rack. The top rack
does not have to be level.
l Turn the knob clockwise to raise a side of
the rack.
. Turn the knob counterclockwise to lower a
side of the rack.
10
Raise
Lower

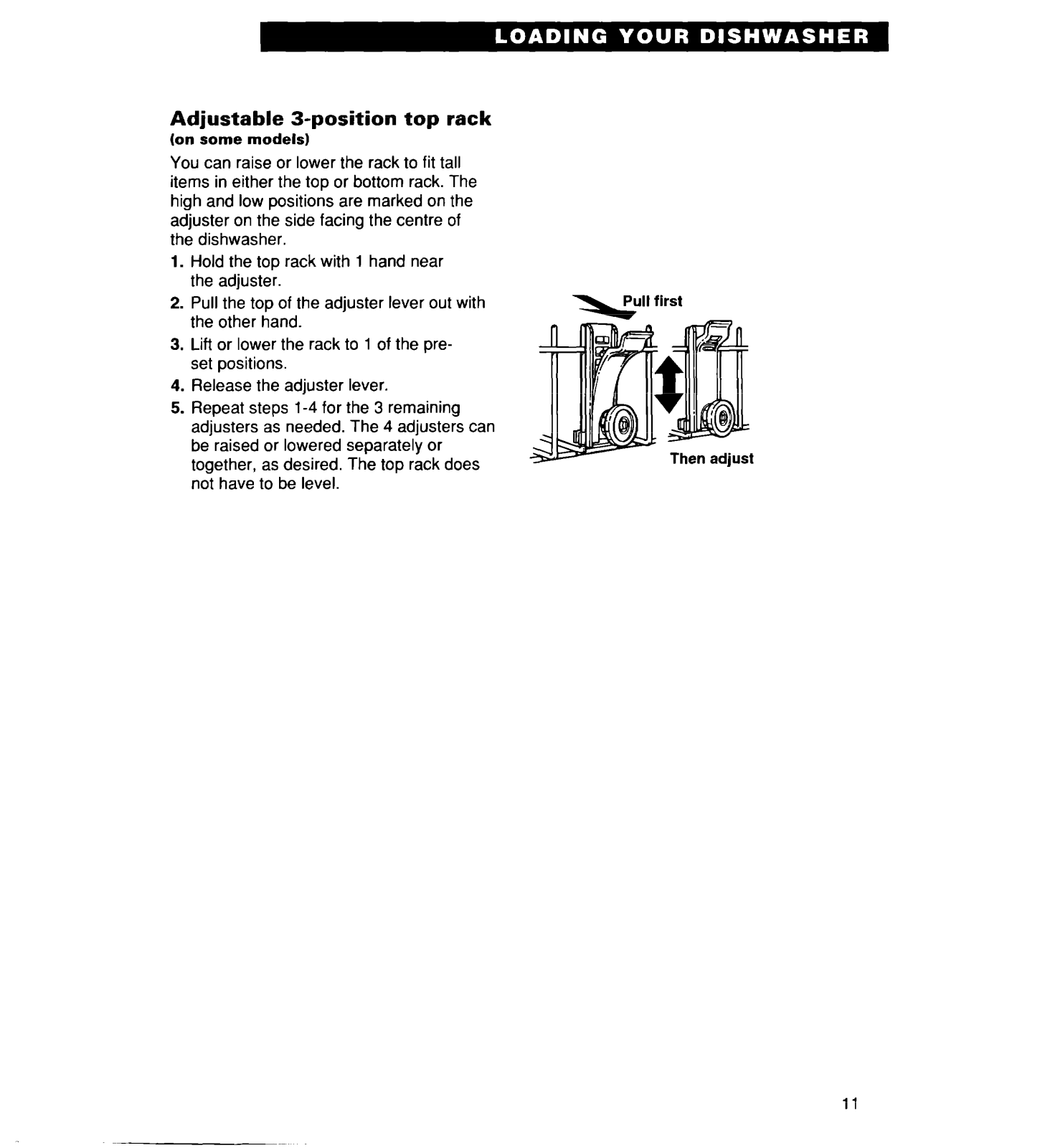

Adjustable 3-position top rack
(on some models)
You can raise or lower the rack to fit tall
items in either the top or bottom rack. The
high and low positions are marked on the
adjuster on the side facing the centre of
the dishwasher.
1.
Hold the top rack with 1 hand near
the adjuster.
2.
Pull the top of the adjuster lever out with
the other hand.
Lift or lower the rack to 1 of the pre-
3.
set positions.
4.
Release the adjuster lever.
5.
Repeat steps l-4 for the 3 remaining
adjusters as needed. The 4 adjusters can
be raised or lowered separately or
together, as desired. The top rack does
not have to be level.
11
Using the Dispensers
For best washing results, review the information below. It is important to use detergents and
rinse agents properly.
Using the detergent dispenser
l
Use automatic dishwashing detergent
only.
Other detergents are too mild and
much too sudsy.
l Add detergent just before starting cycle.
l Store detergent tightly closed in a cool,
dry place.
Fresh automatic dishwasher
detergent results in better cleaning.
Filling the detergent dispenser
The detergent dispenser has one section
with a cover and one without. Push cover
down firmly until it latches. Detergent in the
open section falls into the dishwasher when
closing the door. The covered section opens
automatically for the main wash.
NOTE:
when dispensing detergent.
It is normal for cover to open partially
How much detergent to use
l The amount of detergent to use depends
on the hardness of your water and the type
of detergent. If you use too little, dishes
won’t be clean. If you use too much in soft
water, glassware will etch.
l Different brands of dishwasher detergent
have different amounts of phosphorus for
softening water. If you have hard water
and use low phosphorous content detergent (6.0% or less), you may need to use
more detergent or use a detergent with a
higher phosphorous content (8.7%).
l Find out your water’s hardness by asking
your local water department, water softener company, or county extension agent.
1 WATER TYPE
WHERE TO FILL
Use only covered
section for:
- Low Energy/
China
Use both sections for:
- Normal
- Pots-N-Pans
Hard
8+ grains per gallon
136+ parts per million (3 tbs.)
Medium
5-7 grains per gallon
85-l 19 parts per million (2 tbs.)
Sofl
O-4 grains per gallon
O-68 Darts per million
I . .
Fill amounts shown are for standard
powdered detergent. Amounts may vary if
you use liquid or concentrated powdered
detergent. Follow manufacturer’s directions
when using liquid dishwasher detergent or
concentrated powdered detergent.
Top of
3rd step
Top of
2nd step
Top of
1 st step
(1 tbs.)
‘I
12

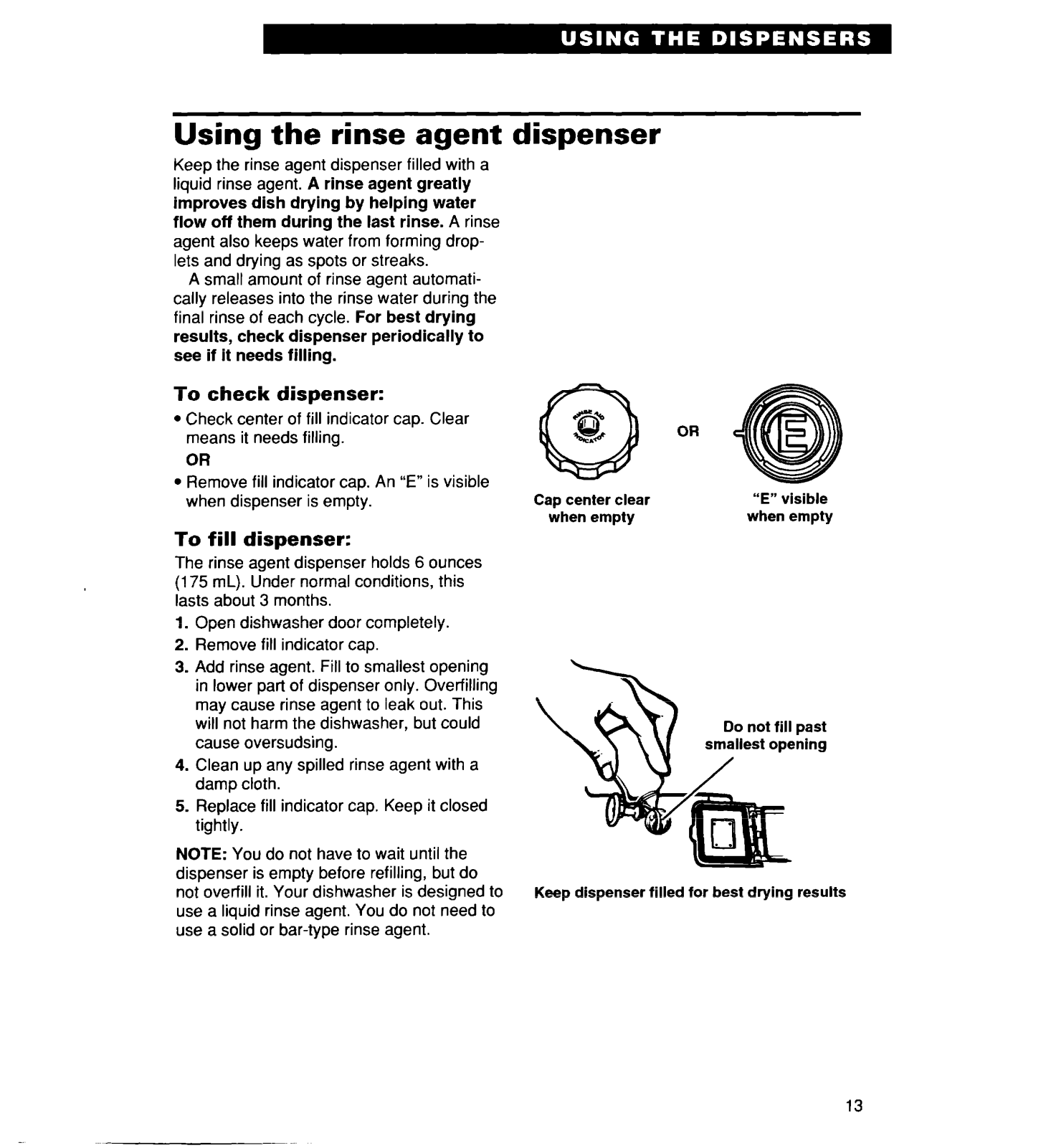

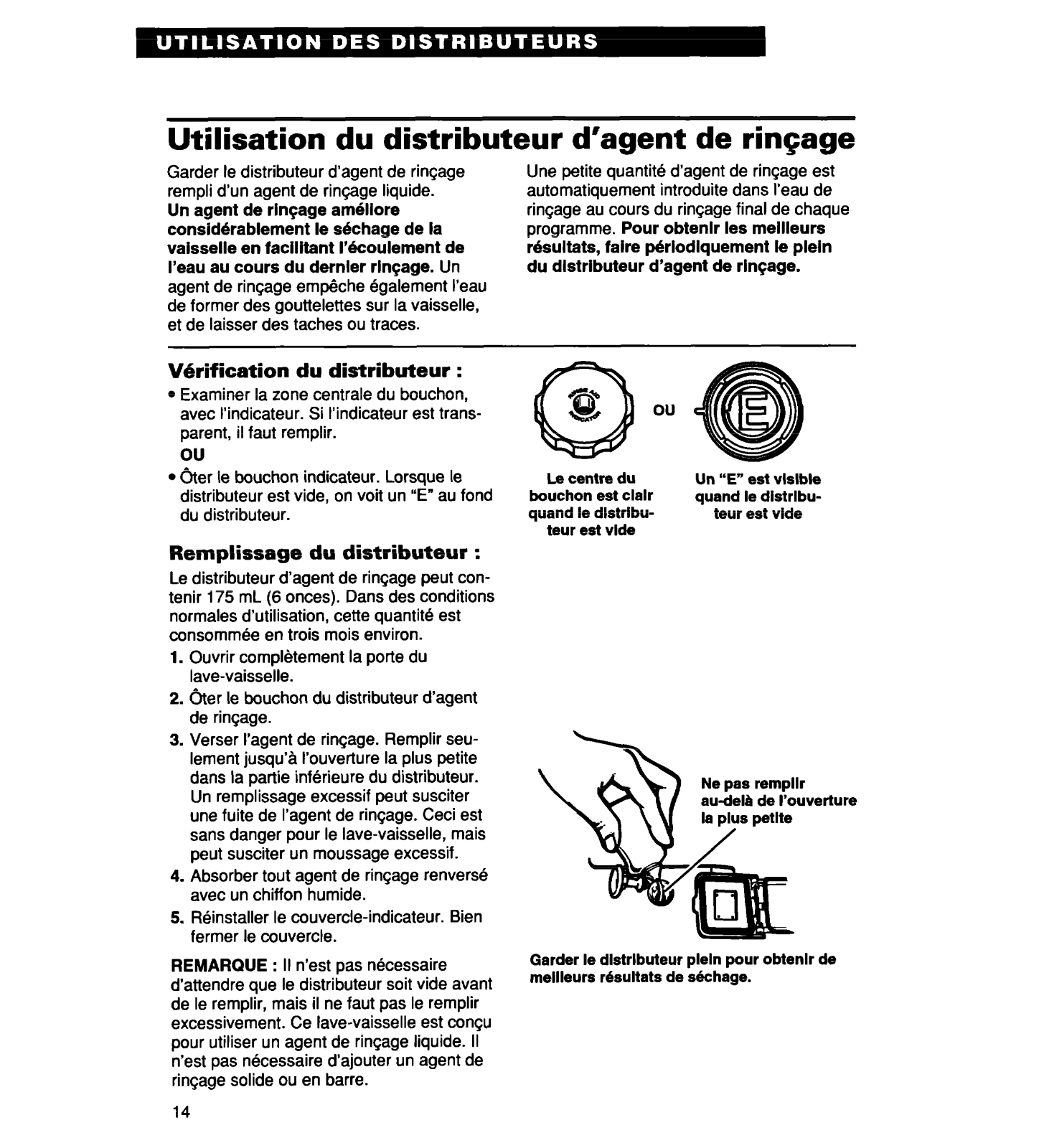

Using the rinse agent dispenser
Keep the rinse agent dispenser filled with a
liquid rinse agent.
improves dish drying by helping water
flow off them during the last rinse.
agent also keeps water from forming droplets and drying
A small amount of rinse agent automatically releases into the rinse water during the
final rinse of each cycle.
results, check dispenser periodically to
see if it needs filling.
To check dispenser:
l Check center of fill indicator cap. Clear
means it needs filling.
OR
l Remove fill indicator cap. An “E” is visible
when dispenser is empty.
To fill dispenser:
The rinse agent dispenser holds 6 ounces
(175 mL). Under normal conditions, this
lasts about 3 months.
1.
Open dishwasher door completely.
2. Remove fill indicator cap.
3. Add rinse agent. Fill to smallest opening
in lower part of dispenser only. Overfilling
may cause rinse agent to leak out. This
will not harm the dishwasher, but could
cause oversudsing.
4. Clean up any spilled rinse agent with a
damp cloth.
5. Replace fill indicator cap. Keep it closed
tightly.
A rinse agent greatly
as
spots or streaks.
For best drying
A rinse
Cap center clear
when empty
OR
“E” visible
when empty
Do not fill past
smallest opening
NOTE: You
dispenser is empty before refilling, but do
not overfill it. Your dishwasher is designed to
use a liquid rinse agent. You do not need to
use a solid or bar-type rinse agent.
do not have to wait until the
Keep dispenser filled for best drying results
13

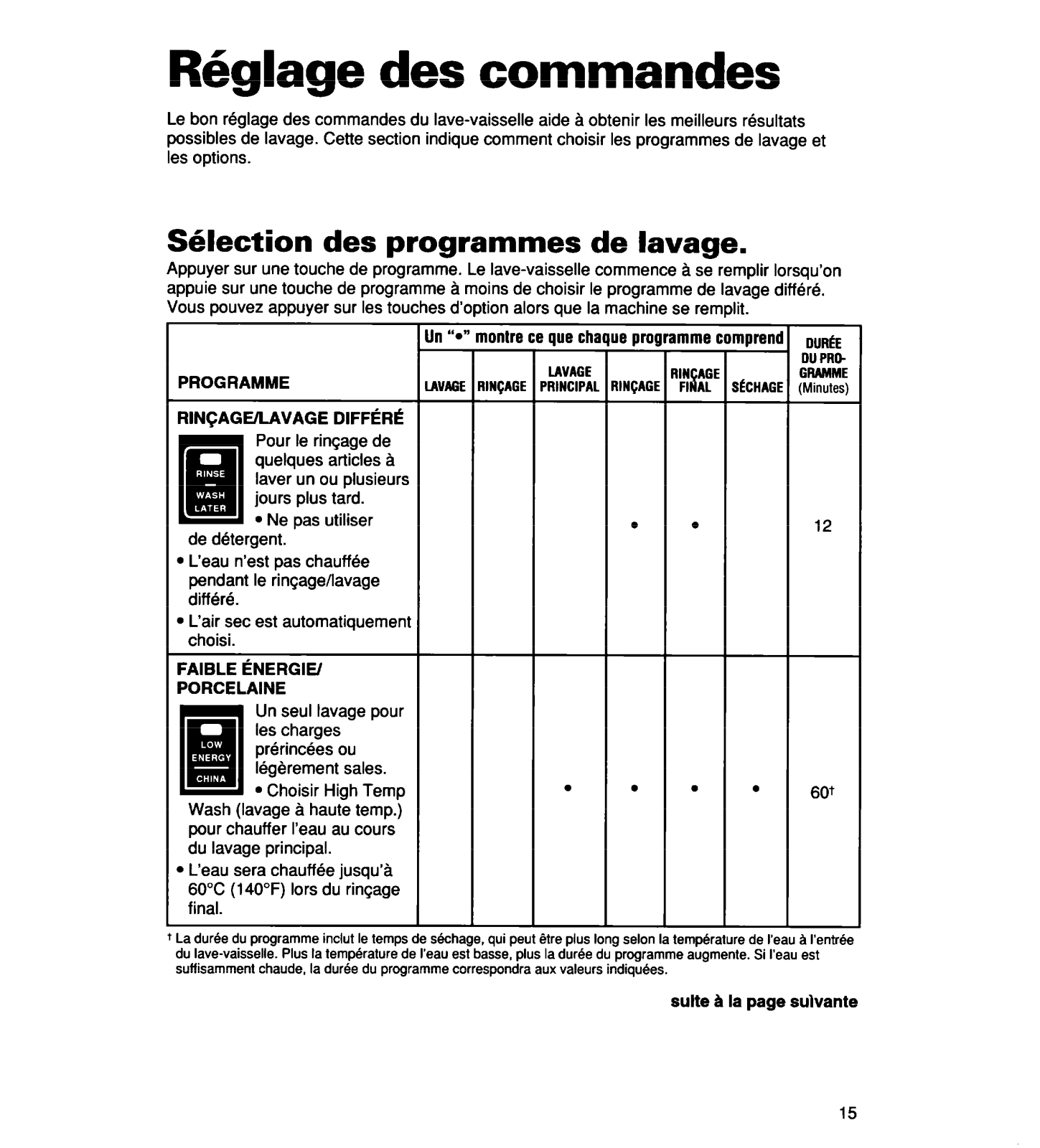

Setting the Controls
Operating your dishwasher’s controls properly helps you obtain the best possible washing
results. This section tells you how to select wash cycles and options.
Selecting a wash cycle
Press a Cycle pad. The dishwasher starts filling once you press a cycle pad unless you
select the delay wash cycle. You may press Option pads as the machine is filling.
CYCLE
RINSE/WASH LATER
For rinsing a few items to
be washed one or more
days later.
l Do not use detergent.
l Water is not heated
during Rinse/Wash Later.
. Air Dry is automatically selected.
LOW ENERGY/CHINA
Single wash for pre-rinsed
or lightly soiled loads.
l Select High Temp Wash
to heat water in the main
wash.
. The water heats to 140°F (60°C) in
the final rinse.
NORMAL
Double wash for normal,
everyday soiled loads.
. .
ii
to heat water in the main wash.
l The water heats to 140°F (60°C) in
the final rinse.
(The Energy Guide label is
based on this cycle.)
l Select High Temp Wash
A “@” shows what each cycle includes
MAIN
FINAL
WASH RINSE WASH RINSE RINSE DRY
. .
.
. .
. . .
.
.
.
CYCLE
TIME
(Minutes
12
60+
66+
POTS-N-PANS
Double wash for maximum
cleaning of cooked-on or
-.
.
i!ii
l The water heats to 140°F (60%) in
the final rinse.
+ Cycle time includes dry time and may be longer depending on Ihe temperature of water entering the dishwasher. The cuoler the
waler, the longer the cycle time. If the water is already hot enough, the cycle times will be as shown.
14
dried-on foods.
l The water heats to 140°F
(60%) in both washes.
l
.
.
.
.
.
76+

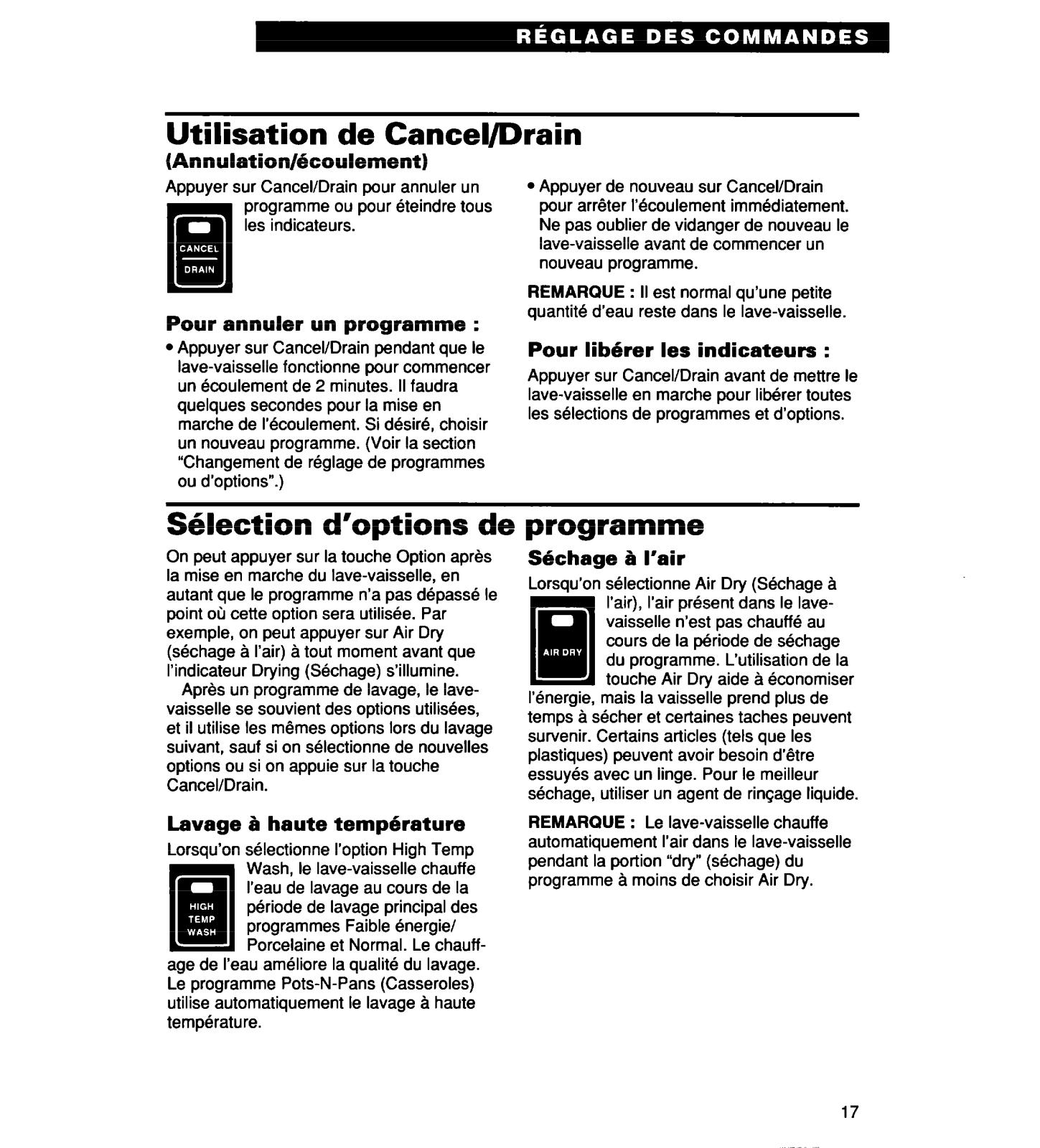

Using Cancel/Drain
Press Cancel/Drain to cancel a cycle or to
clear the indicators.
To cancel a cycle:
l Press Cancel/Drain while the dishwasher
is running to start a 2-minute drain. It will
take a few seconds for the drain to start.
If desired, select a new cycle. (See the
“Changing a cycle or option setting” section.)
l You can press Cancel/Drain again to stop
the drain immediately. Remember to drain
the dishwasher again before starting a
new cycle.
To clear the indicators:
Press Cancel/Drain before starting the
dishwasher to clear all cycle and option
selections.
NOTE:
in the dishwasher is normal.
A small amount of water remaining
Selecting cycle options
You can press an Option pad after the
dishwasher starts as long as the cycle is not
past the point that the option is used. For
example, you can press Air Dry anytime
before the Drying indicator glows.
After a wash cycle, the dishwasher
remembers the chosen options and uses the
same options in the next wash cycle unless
new options are selected or the Cancel/
Drain pad is pressed.
High Temp Wash
When High Temp Wash is selected, the
dishwasher heats the water
during the main wash of the Low
Energy/China and Normal cycles.
Heating the water helps improve
liiiii
cycle automatically uses High Temp Wash.
washing results. The Pots-N-Pans
Air Dry
When Air Dry is selected, the air in the
dishwasher is not heated during
the “dry” portion of a cycle. Using
. I-
iiiiiii
Some items (such as plastics) may need
towel drying. For best drying, use a liquid
rinse agent.
NOTE:
heats the air in the dishwasher during the
“dry” portion of the cycle unless you select
Air Dry.
Air Dry helps save energy, but
dishes take longer to dry and
some spotting can occur.
The dishwasher automatically
15
Changing a cycle or option setting
During the first minute
of a cycle
1. Press Cancel/Drain. A 2-minute drain
cycle starts. Wait for drain cycle to finish.
2. Press a new Cycle pad.
3. If desired, press one or more Option
pad(s).
4. Check the detergent dispensers. They
must be filled properly for the new cycle.
Adding an item during a cycle
You can add an item to the dishwasher
anytime before the main wash portion of a
cycle.
1. Lift up the door latch to stop the cycle.
Wait for spraying action to stop before
opening the door.
2. Open the door and add the item.
3. Close the door, but do
30 seconds for the air in the dishwasher
to warm up. Doing so reduces the
amount of moisture in the vent when
restarting a cycle.
4. Close the door firmly until it latches. The
dishwasher resumes the cycle.
not
latch it. Wait
16
Using the delay wash cycle
Use 4 Hour Delay Start to run the dish-
washer during off-peak hours to reduce
energy usage or to reduce daytime heat
buildup in your home.
1. Close door firmly until it latches.
2. Press 4 Hour Delay Start. The indicator
3. Press a Cycle button. The Delay Start
countdown begins when you
press the Cycle button. If you
don’t press a Cycle button
within 30 seconds, the Delay
Start indicator turns off.
NOTES:
l Press 4 Hour Delay Start anytime during
l Press Cancel/Drain to cancel the delay
l You can add items to the load anytime
during the delay countdown. After adding
items, close the door firmly until it latches.
The delay countdown will not continue if
the door is not latched.
cycle. The 4 Hour Delay Start
indicator will turn off. Press new
Cycle and Option buttons.
4. If desired,
press one or more Option
buttons. The 4 Hour Delay
Start indicator stays on until
the wash cycle begins.
17

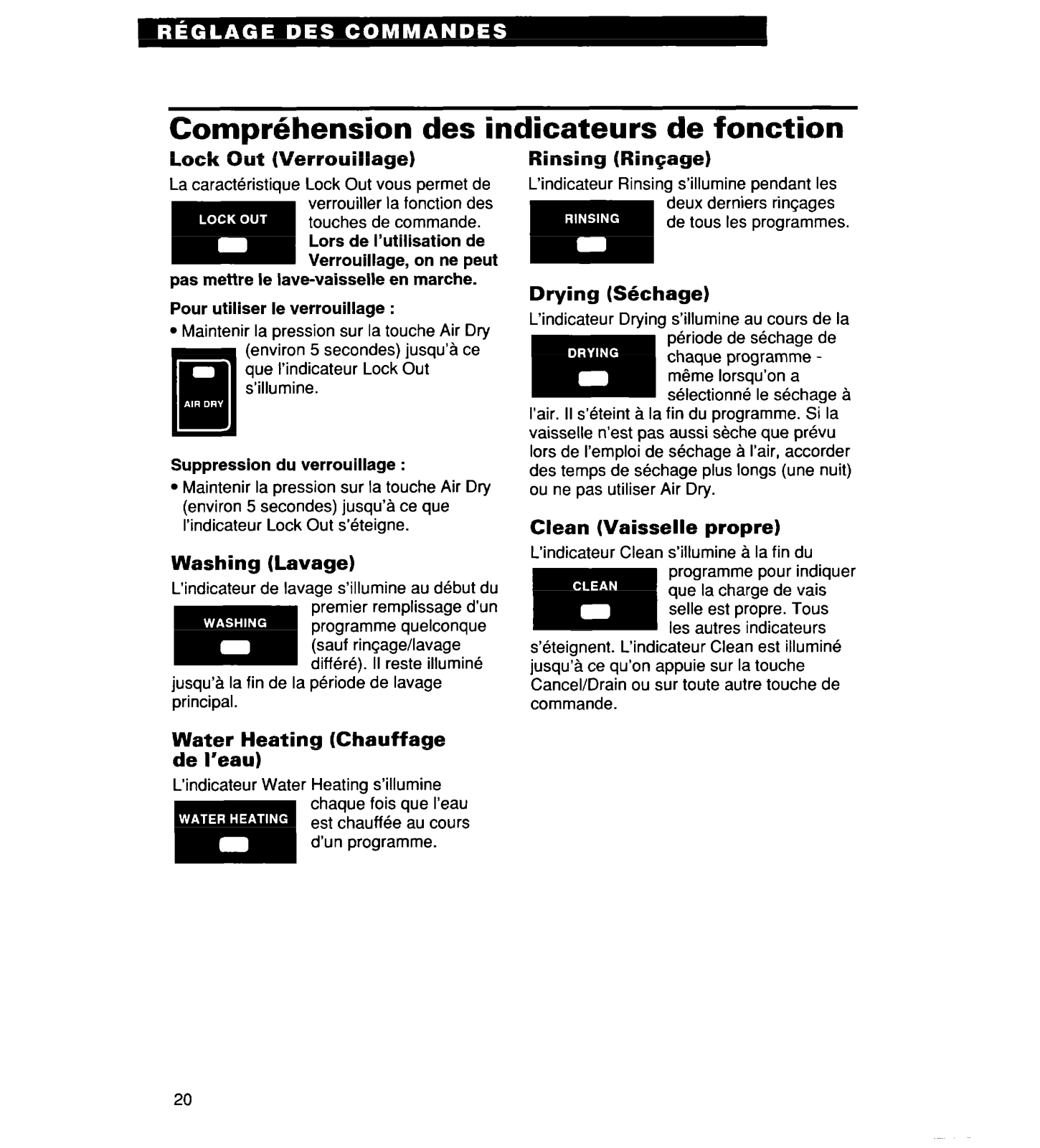

Understanding the status
Lock out
The Lock Out feature lets you lock out the
function of the control
pads.
When using Lock
Out, you cannot start
the dishwasher.
To use Lock Out:
l Press and hold Air
Dry (about 5 seconds)
Drying
The Drying indicator glows during the drying
indicators
To turn off Lock Out:
l Press and hold Air Dry (about 5 seconds)
until the Lock Out indicator turns off.
Washing
The Washing indicator glows at the start of
the first fill of any cycle
(except Rinse/Wash
Later) and remains
on until the end of the
main wash.
Water Heating
The Water Heating indicator glows whenever
water is heated during a
cycle.
not as dry as you
Dry, either allow longer drying times (overnight) or do not use Air Dry.
expected when using Air
Clean
The Clean indicator glows at the end of a
cycle to show that the
load is clean. All other
indicators turn off. The
Em
until you press Cancel/Drain or any other
control pad.
Clean indicator glows
18

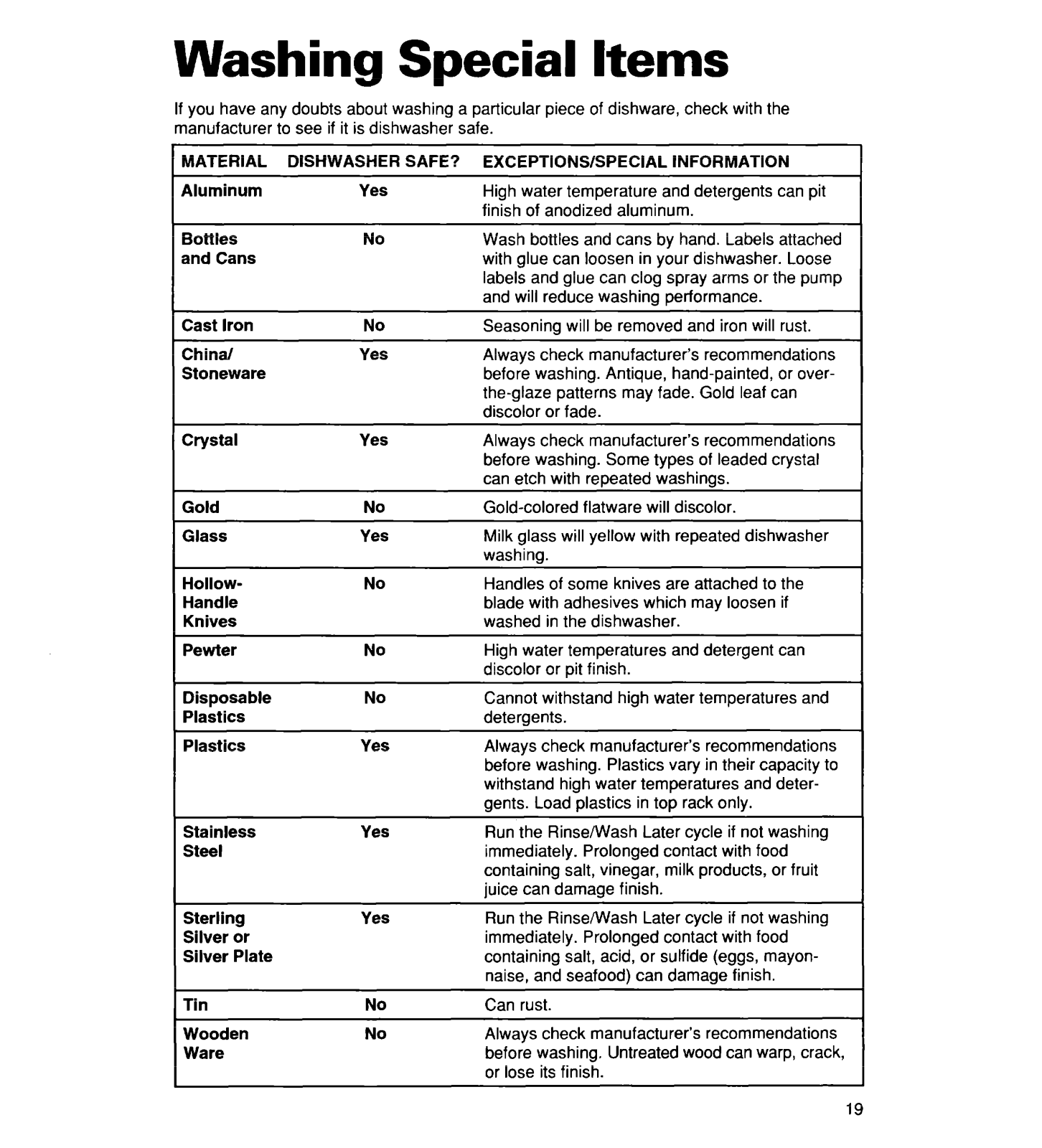

Washing Special Items
If you have any doubts about washing a particular piece of dishware, check with the
manufacturer to see if it is dishwasher safe.
MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION
Aluminum Yes
Bottles
No
and Cans
Cast Iron
China/
No
Yes
Stoneware
Crystal Yes
Gold
Glass
Hollow-
No
Yes
No
Handle
Knives
Pewter
No
High water temperature and detergents can pit
finish of anodized aluminum.
Wash bottles and cans by hand. Labels attached
with glue can loosen in your dishwasher. Loose
labels and glue can clog spray arms or the pump
and will reduce washing performance.
Seasoning will be removed and iron will rust.
Always check manufacturer’s recommendations
before washing. Antique, hand-painted, or overthe-glaze patterns may fade. Gold leaf can
discolor or fade.
Always check manufacturer’s recommendations
before washing. Some types of leaded crystal
can etch with repeated washings.
Gold-colored flatware will discolor.
Milk glass will yellow with repeated dishwasher
washing.
Handles of some knives are attached to the
blade with adhesives which may loosen if
washed in the dishwasher.
High water temperatures and detergent can
discolor or pit finish.
Disposable
Plastics
Plastics

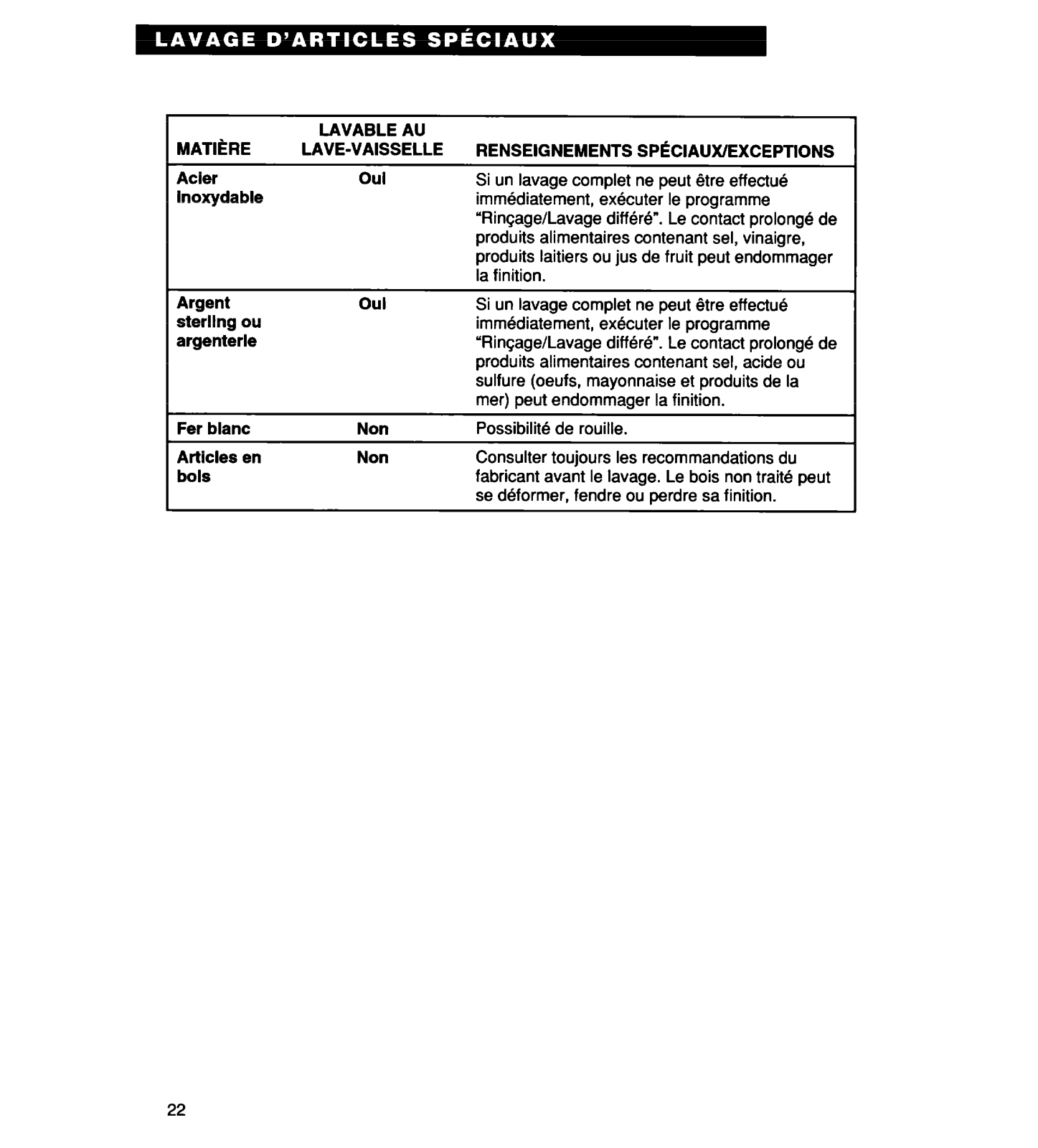

Stainless
Steel
Sterling
Silver or
Silver Plate
Tin
Wooden
Ware
No
Yes
Yes
Yes
No
No
Cannot withstand high water temperatures and
detergents.
Always check manufacturer’s recommendations
before washing. Plastics vary in their capacity to
withstand high water temperatures and detergents. Load plastics in top rack only.
Run the Rinse/Wash Later cycle if not washing
immediately. Prolonged contact with food
containing salt, vinegar, milk products, or fruit
juice can damage finish.
Run the Rinse/Wash Later cycle if not washing
immediately. Prolonged contact with food
containing salt, acid, or sulfide (eggs, mayon-
naise, and seafood) can damage finish.
Can rust.
Always check manufacturer’s recommendations
before washing. Untreated wood can warp, crack,
or lose its finish.
19

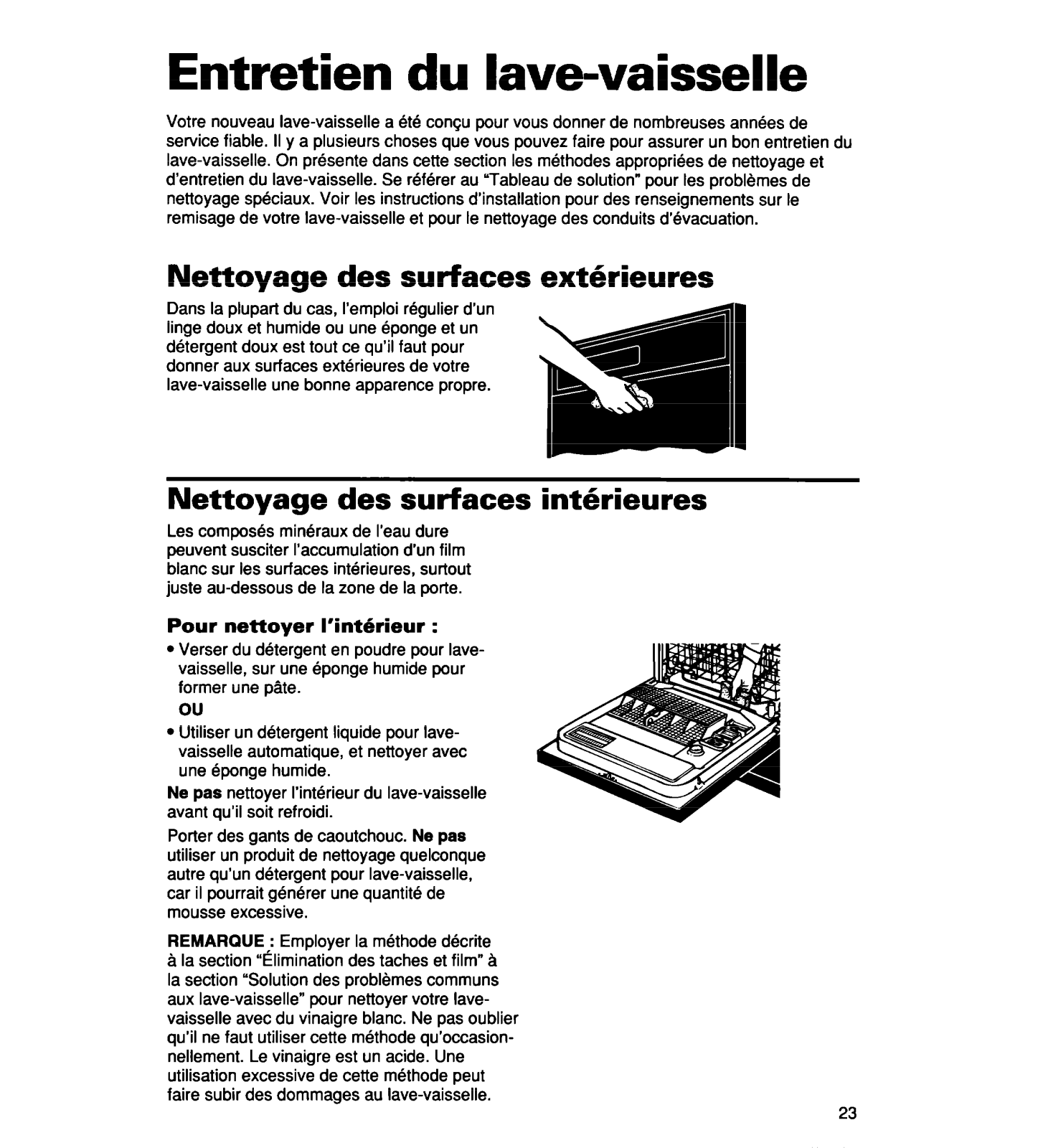

Caring for Your Dishwasher
Your new dishwasher is designed to give you many years of dependable service. There are
a few things you can do to maintain your dishwasher properly. This section tells you how to
clean and care for your dishwasher. Refer to “Solution chart” for special cleaning problems.
See Installation Instructions for information on storing your dishwasher and for cleaning the
drain air gap.
Cleaning the exterior
Cleaning the interior
Hard water minerals may cause a white film
to build up on the inside surfaces, especially
just beneath the door area.
To clean interior:
l Apply powdered dishwasher detergent to a
damp sponge to make a paste.
OR
l Use liquid automatic dishwasher detergent
and clean with damp sponge.
Do
not
clean the dishwasher interior until it
has cooled.
Wear rubber gloves. Do
cleanser other than dishwasher detergent
because it can cause foaming or sudsing.
NOTE: See “Removing spots and film” in the
“Solving Common Dishwashing Problems”
section to clean your dishwasher with white
vinegar. Remember, this procedure is
intended for occasional use only. Vinegar is
an acid. Excessive use can damage your
dishwasher.
not
use any type of

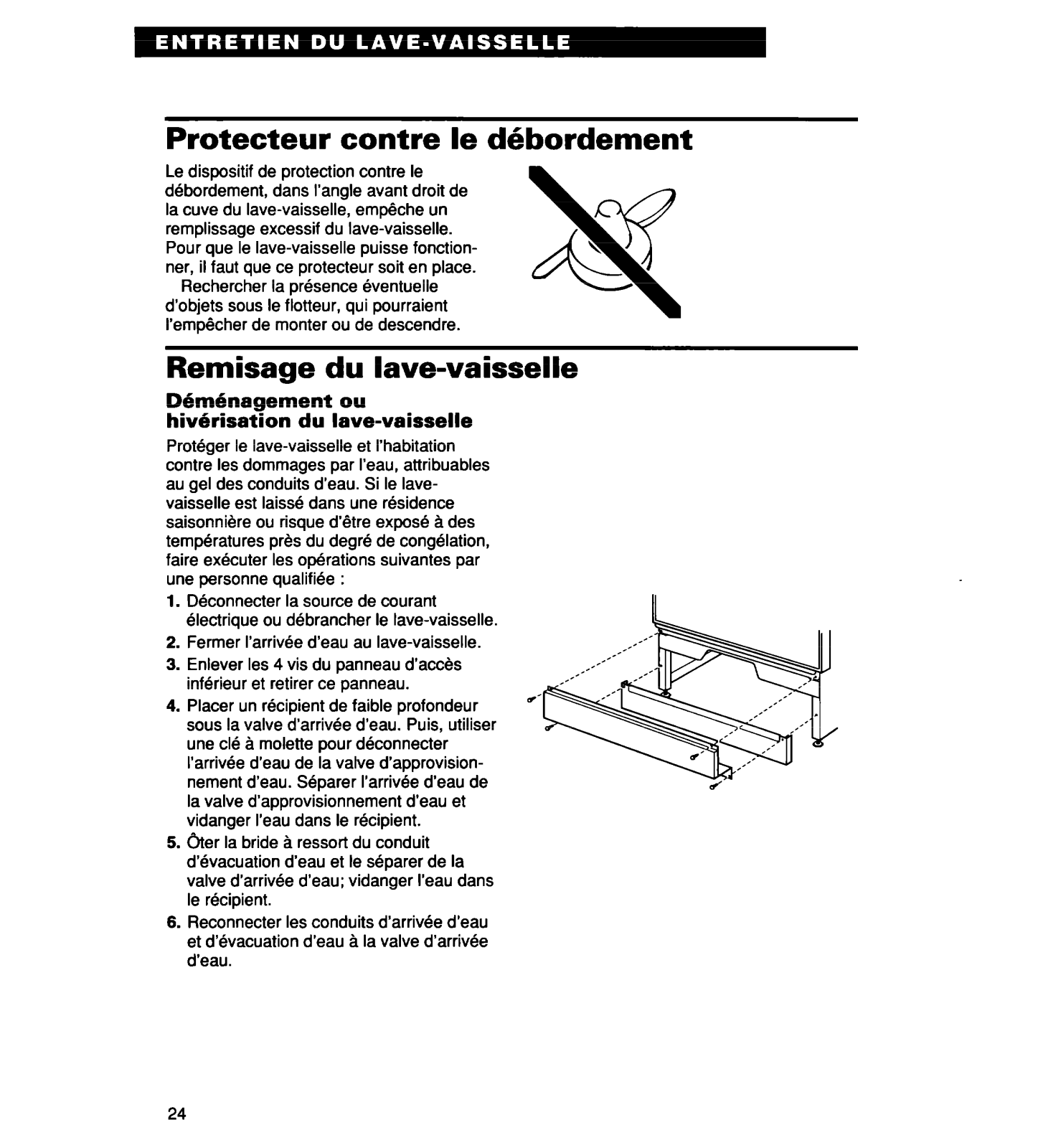

Overfill protector
The overfill protector (in the front right corner
of the dishwasher tub) keeps the dishwasher
from overfilling. It must be in place for the
dishwasher to operate.
Check under the float for objects that may
keep the protector from moving up or down.
20
Storing your dishwasher
Moving or winterizing your
dishwasher
Protect your dishwasher and home against
water damage due to freezing water lines. If
your dishwasher is left in a seasonal dwelling or could be exposed to near freezing
temperatures, have a qualified person do
the following:
1. Disconnect power or unplug
dishwasher.
2. Turn off water supply to the dishwasher.
3. Remove the 4 screws on the lower
access panel and remove the lower
access panel.
4. Place a shallow pan under the water
supply valve. Then, use a wrench to
disconnect the water inlet from the water
supply valve. Separate the water inlet
from the water supply valve and drain
water into the pan.
5. Remove the spring clamp from the
water outlet and separate from the water
supply valve; drain water into pan.
6. Reconnect both water inlet and water
outlet to the water supply valve.
7. Empty the pan and reposition it under
the water pump.
6. Remove the clamp and disconnect the
drain hose from the water pump; drain
water into pan.
9. Reconnect drain hose to the water
pump, being sure to position the clamp
over the connection.
10. Replace the lower access panel.

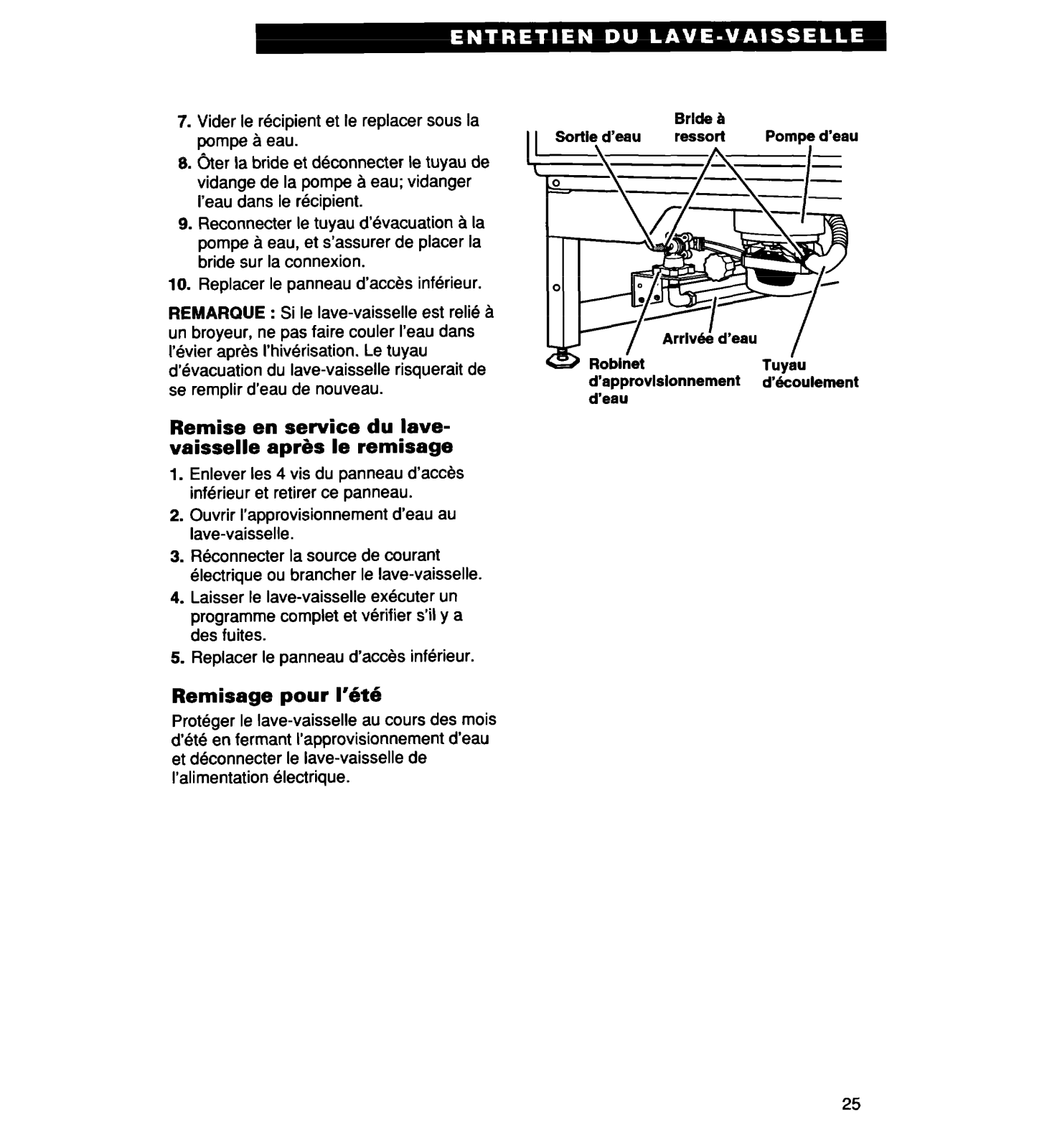

Water outlet
VfafFer supply Wat& pump
S ring
P c amD
and motor
Drab
hose
NOTE: If your dishwasher is connected to
a garbage disposal, do not run water into
the sink after winterizing. This could cause
water to refill the drain hose on your
dishwasher.
continued on next page
21
Loading...
