Whirlpool 8578901 User Manual

ELECTRONIC

ELECTRIC DRYER

Use & Care Guide

For assistance, installation and service call: 1-800-807-6777

or visit our website at... www.whirlpool.ca

SÉCHEUSE

ÉLECTRIQUE

ÉLECTRONIQUE

Guide d’utilisation et d’entretien

Pour assistance, installation ou service, composez le

ou visitez notre site web à www.whirlpool.ca

Table of Contents/Table des matières......................... 2

1-800-807-6777

8578901

TABLE OF CONTENTS

DRYER SAFETY..............................................................................3

INSTALLATION INSTRUCTIONS..................................................4

Tools and Parts ............................................................................4

Optional Pedestal.........................................................................4

Location Requirements................................................................5

Electrical Requirements ...............................................................7

Venting Requirements..................................................................7

Plan Vent System.........................................................................9

Install Vent System.....................................................................10

Install Leveling Legs...................................................................10

Connect Vent..............................................................................10

Level Dryer .................................................................................11

Reverse Door Swing ..................................................................11

Complete Installation .................................................................12

DRYER USE ..................................................................................13

Starting Your Dryer.....................................................................13

Stopping or Restarting Your Dryer ............................................14

TABLE DES MATIÈRES

SÉCURITÉ DE LA SÉCHEUSE....................................................23

INSTRUCTIONS D’INSTALLATION ............................................24

Outillage et pièces......................................................................24

Piédestal facultatif......................................................................24

Exigences d'emplacement.........................................................25

Spécifications électriques..........................................................27

Exigences concernant l'évacuation...........................................27

Planification du système d’évacuation......................................29

Installation du système d’évacuation ........................................30

Installation des pieds de nivellement.........................................30

Raccordement du conduit d’évacuation ...................................30

Mise à niveau de la sécheuse....................................................31

Inversion du sens d'ouverture de la porte.................................31

Achever l'installation ..................................................................32

UTILISATION DE LA SÉCHEUSE................................................33

Mise en marche de la sécheuse ................................................33

Arrêt ou remise en marche de la sécheuse ...............................34

Lock Controls .............................................................................14

Drying and Cycle Tips ................................................................14

Status Lights...............................................................................14

Cycles.........................................................................................15

Additional Features ....................................................................16

Changing Cycles, Options and Modifiers..................................16

Drying Rack Option ....................................................................17

DRYER CARE...............................................................................17

Cleaning the Dryer Location.......................................................17

Cleaning the Lint Screen............................................................18

Cleaning the Dryer Interior .........................................................18

Removing Accumulated Lint......................................................18

Vacation and Moving Care.........................................................18

TROUBLESHOOTING ..................................................................19

ASSISTANCE OR SERVICE.........................................................20

WARRANTY ..................................................................................21

Verrouillage des commandes.....................................................34

Conseils pour le séchage et les programmes ...........................34

Témoins lumineux ......................................................................35

Programmes...............................................................................35

Caractéristiques supplémentaires .............................................36

Changement des programmes, options et modificateurs.........37

Option de grille de séchage .......................................................37

ENTRETIEN DE LA SÉCHEUSE.................................................38

Nettoyage de l'emplacement de la sécheuse ...........................38

Nettoyage du filtre à charpie......................................................38

Nettoyage de l'intérieur de la sécheuse.....................................39

Retrait de la charpie accumulée ................................................39

Précautions à prendre pour les vacances et avant un

déménagement ..........................................................................39

DÉPANNAGE.................................................................................40

ASSISTANCE OU SERVICE.........................................................42

GARANTIE ....................................................................................43

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

including the following:

■

Read all instructions before using the dryer.

■

Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

■

Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, drycleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

■

Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.

■

Before the dryer is removed from service or discarded, remove the door to the drying compartment.

■

Do not reach into the dryer if the drum is moving.

■

Do not install or store the dryer where it will be exposed to the weather.

■

Do not tamper with controls.

To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■

Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

■

Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

■

Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

■

Clean lint screen before or after each load.

■

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

■

The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

■

See installation instructions for grounding requirements.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Tool s and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Flat-blade screwdriver

■ #2 Phillips screwdriver

■ Adjustable wrench that

opens to 1" (2.54 cm) or hex-head socket wrench (for adjusting dryer feet)

■ Level

■ Vent clamps

Parts supplied

Remove parts packages from dryer drum. Check that all parts are included.

■ Parts package.

4 Leveling legs

NOTE: Do not use leveling legs if installing the dryer on a pedestal.

Parts needed

Check local codes. Check existing electrical supply and venting. See “Electrical Requirements” and “Venting Requirements” before purchasing parts.

■ For close-clearance installations between 28.65" (72.77 cm)

and 34.15" (86.74 cm), see “Plan Vent System” section for venting requirements.

■ Caulking gun and

compound (for installing new exhaust vent)

■ Tin snips (new vent

installations)

■ ¼" nut driver or socket

wrench (recommended)

■ Tape measure

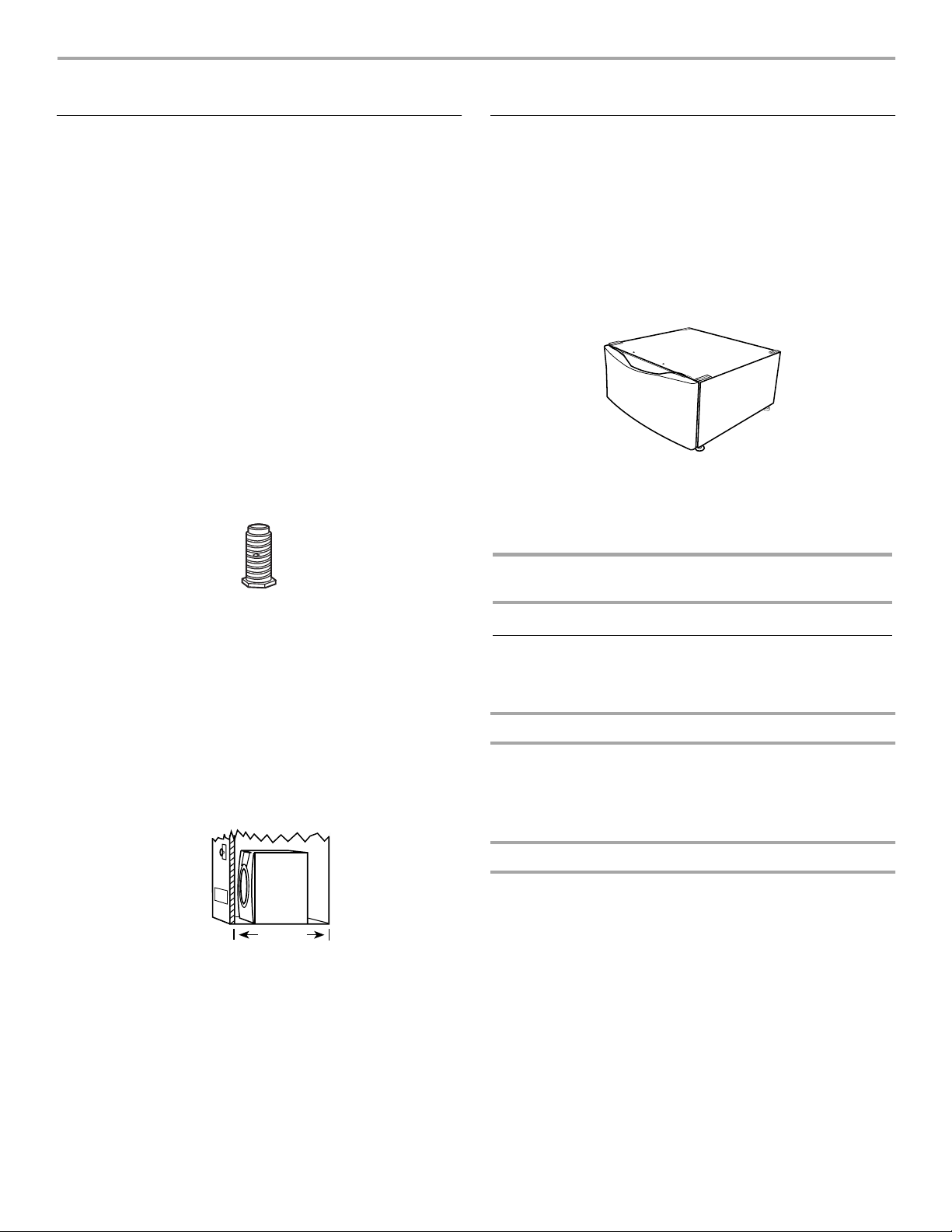

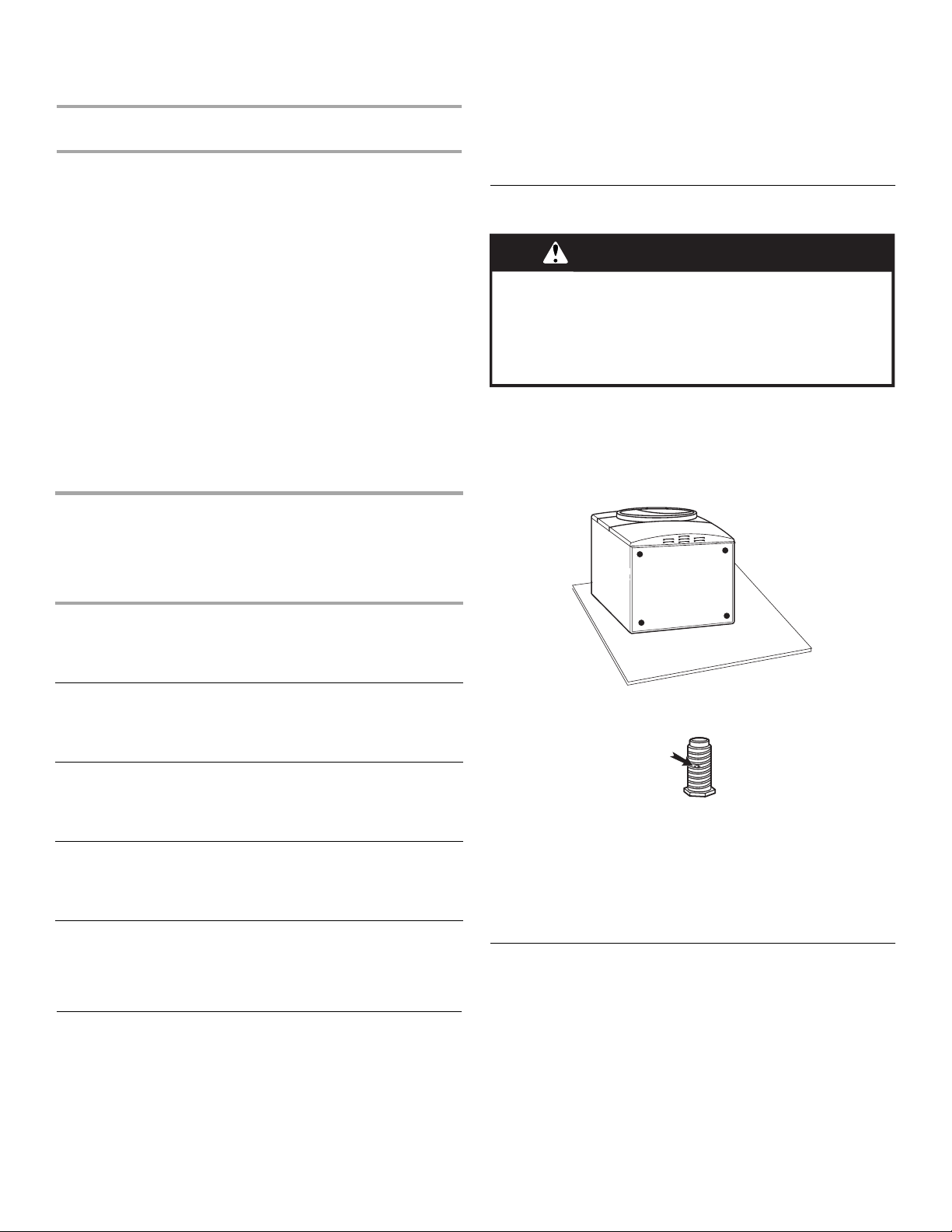

Optional Pedestal

Are you placing the dryer on a pedestal? You have the option of purchasing pedestals of different heights separately for this dryer. You may select a 10" (25.4 cm) pedestal or a 15.5" (39.4 cm) pedestal with a shelf and bin dividers. These pedestals will add to the total height of the unit for a total height of approximately 46" (116.8 cm) or 51.5" (130.8 cm).

For a garage installation, you will need to place the dryer at least 18" (46 cm) above the floor.

Optional pedestal (15.5" [39.4 cm] model

shown)

To order, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section of this manual.

Pedestal

Height

10" (25.4 cm) White WHP1000SQ

15.5" (39.4 cm) with shelf and bin dividers

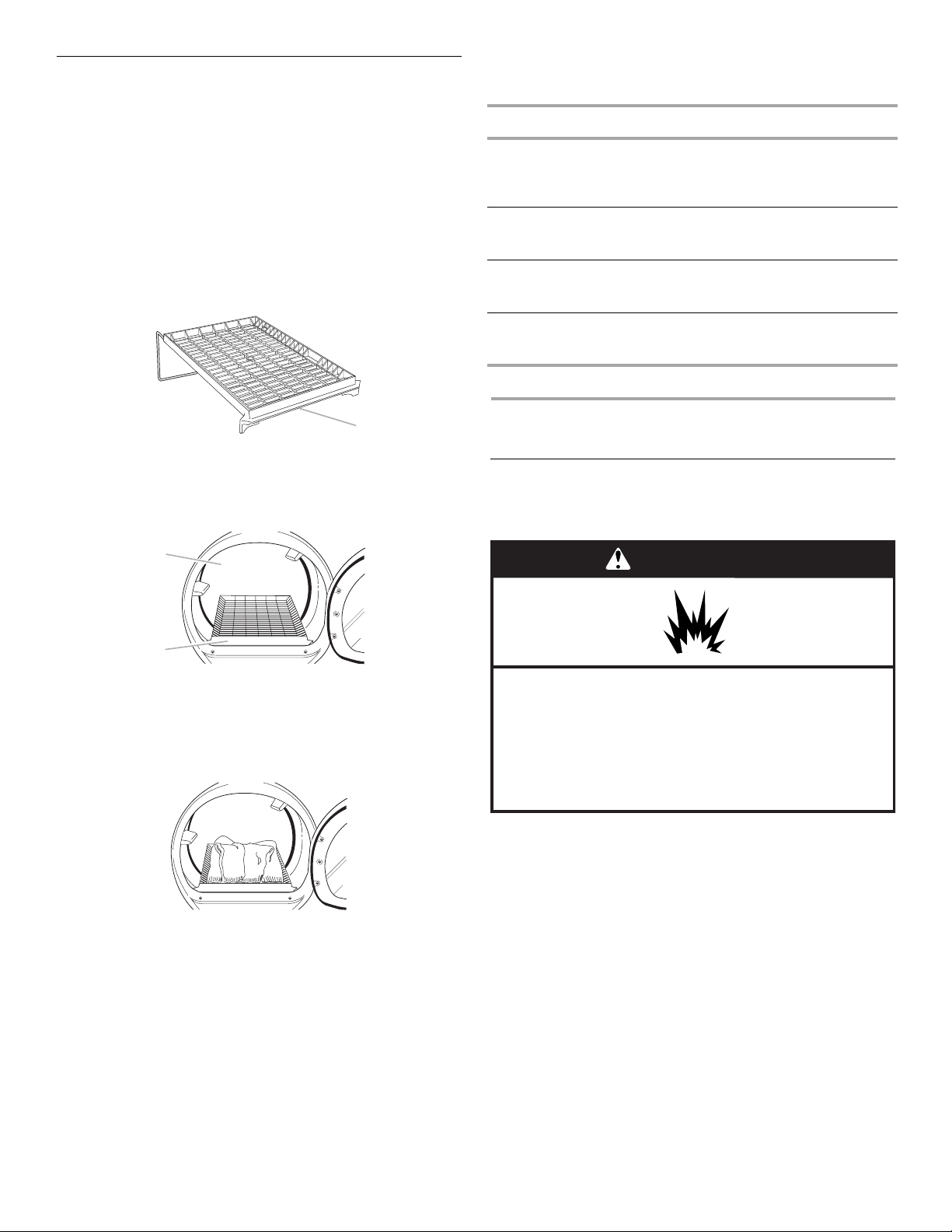

Drying Rack

To order a drying rack, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section of this manual. Ask for Part Number 8563738. For more information, see “Drying Rack.”

Color Part Number

White WHP1500SQ

34.15" (86.74 cm)

Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the “Assistance or Service” section of this manual.

Stack Kit

Are you planning to stack your DUET SPORT™ washer and dryer? To do so, you will need to purchase a Stack Kit.

To order, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section of this manual. Ask for Part Number 8572546.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18 inches (46 cm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need

■ A location that allows for proper exhaust installation. See

“Venting Requirements.”

■ A separate 30-amp circuit.

■ A grounded electrical outlet located within 2 ft (61 cm) of

either side of the dryer. See “Electrical Requirements.”

■ A sturdy floor to support the total dryer weight of 127 lbs

(57.6 kg). The combined weight of a companion appliance should also be considered.

■ A level floor with a maximum slope of 1" (2.5 cm) under entire

dryer. (If slope is greater than 1" [2.5 cm], install Extended Dryer Feet Kit, Part No. 279810.) Clothes may not tumble properly and automatic sensor cycles may not operate correctly if dryer is not level.

■ For a garage installation, you will need to place the dryer at

least 18" (46 cm) above the floor. If using a pedestal, you will need 18" (46 cm) to the bottom of the dryer.

Do not operate your dryer at temperatures below 45ºF (7ºC). At lower temperatures, the dryer might not shut off at the end of an automatic cycle. Drying times can be extended.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.

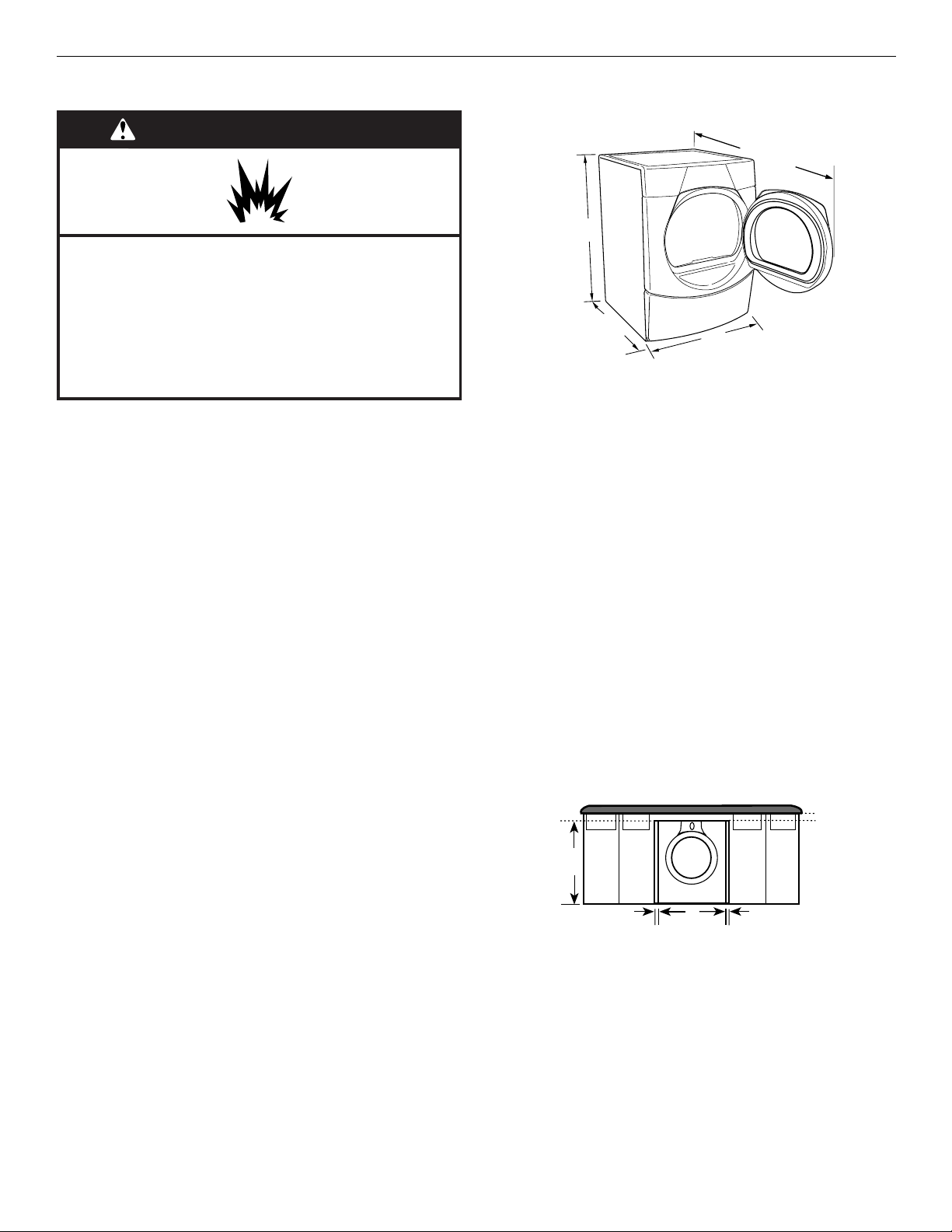

Installation clearances

The location must be large enough to allow the dryer door to open fully.

Dryer Dimensions

50¹⁄₂"

(128.27 cm)

36"

(91.4 cm)

*28.65"

(72.77 cm)

27"

(68.6 cm)

*Most installations require a minimum 5" (12.7 cm) clearance

behind the dryer for the exhaust vent with elbow. See “Venting Requirements.”

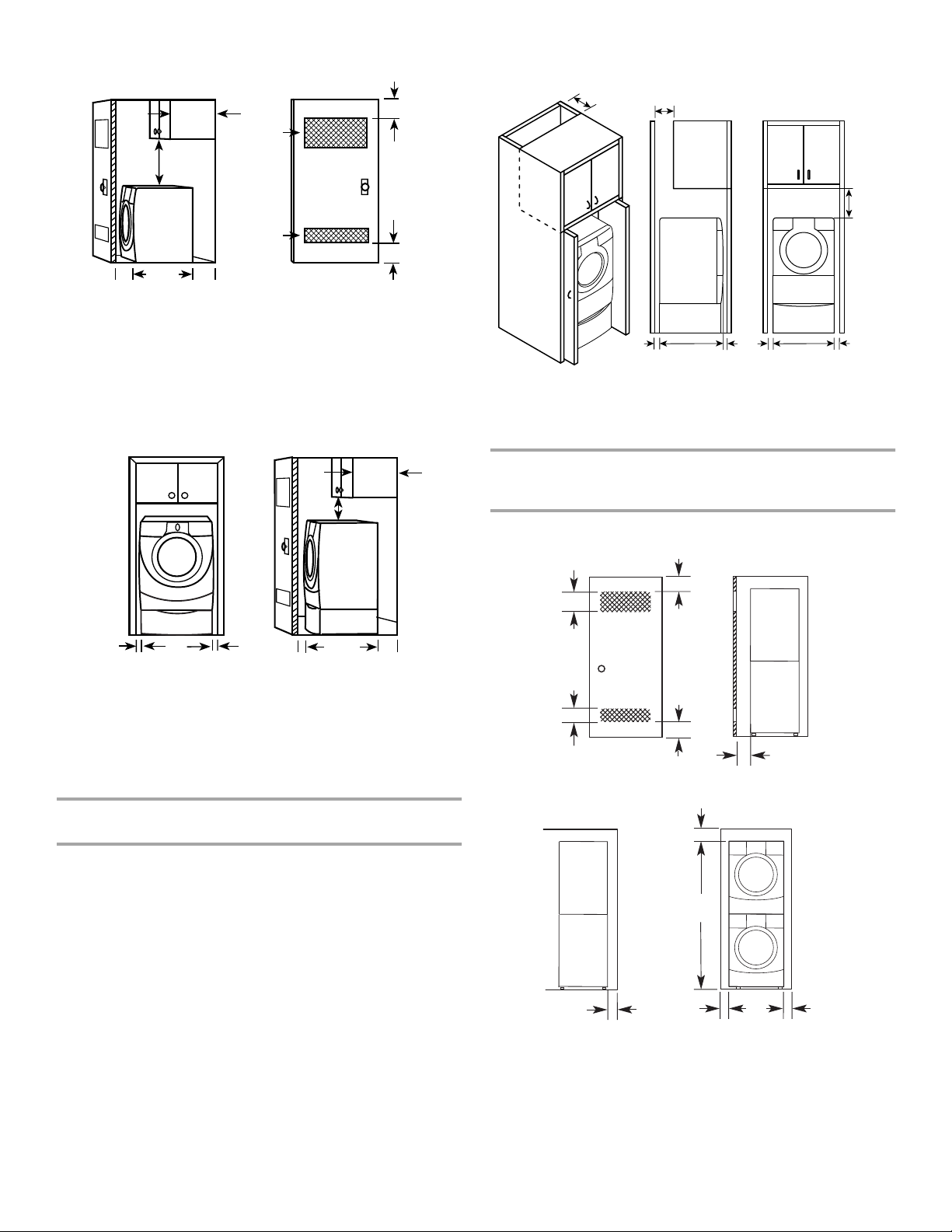

Installation spacing for recessed area or closet installation

The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of 0" (0 cm) clearance on the sides and rear. Recommended spacing should be considered for the following reasons:

■ Additional spacing should be considered for ease of

installation and servicing.

■ Additional clearances might be required for wall, door and

floor moldings.

■ Additional spacing should be considered on all sides of the

dryer to reduce noise transfer.

■ For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

■ Companion appliance spacing should also be considered.

Custom undercounter installation - Dryer only

2"* (5 cm)

36" min

(91.4 cm)

*Required spacing

1"*

(2.5 cm)

27"

(68.6 cm)

1"*

(2.5 cm)

Closet installation - Dryer only

(7.6 cm)

1"*

(2.5 cm)

14" max.* (35.6 cm)

15" min.* (38.1 cm)

5"**

28.65" (12.7 cm)

(72.77 cm)

48 in.

(310 cm2)

24 in.

(155 cm2)

A. Side view - closet or confined area B. Closet door with vents

*Required spacing

**For side or bottom venting, 0" (0 cm) spacing is allowed.

Recessed or closet installation - Dryer on pedestal

14" max.* (35.6 cm)

15" min.*

(38.1 cm)

3"*

7"* (17.8 cm)

5"**

(12.7 cm)

28.65"

(72.77 cm)

1" (2.5 cm)

(2.5 cm)

27"

(68.6 cm)

1" (2.5 cm)

*Required spacing

**For side or bottom venting, 0" (0 cm) spacing is allowed.

Recommended installation spacing for recessed or closet installation, with stacked washer and dryer

The dimensions shown are for the recommended spacing.

48 in.2 *

(310 cm2)

3"* (7.6 cm)

9"* (22.9 cm)

(2.5 cm)

27"

(68.6 cm)

(2.5 cm)

28.65"

(72.77 cm)

"**

(12.7 cm)

A. Recessed area B. Side view - closet or confined area

*Required spacing

**For side or bottom venting, 0" (0 cm) spacing is allowed.

Installation spacing for cabinet installation

■ The dimensions shown are for the recommended spacing.

■ For cabinet installation, with a door, minimum ventilation

openings in the top of the cabinet are required.

24 in.

(155 cm2)

*Required spacing

5"* (12.7 cm)

*Required spacing

3"* (7.6 cm)

6"* (15.2 cm)

72" (182.9 cm)

1" (2.5 cm)

27" (68.6 cm)

1"* (2.5 cm)

1" (2.5 cm)

Mobile home - additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Canadian Manufactured Home Standard, CAN/CSA Z240 MH.

Mobile home installations require:

■ Metal exhaust system hardware, which is available for

purchase from your dealer.

■ Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

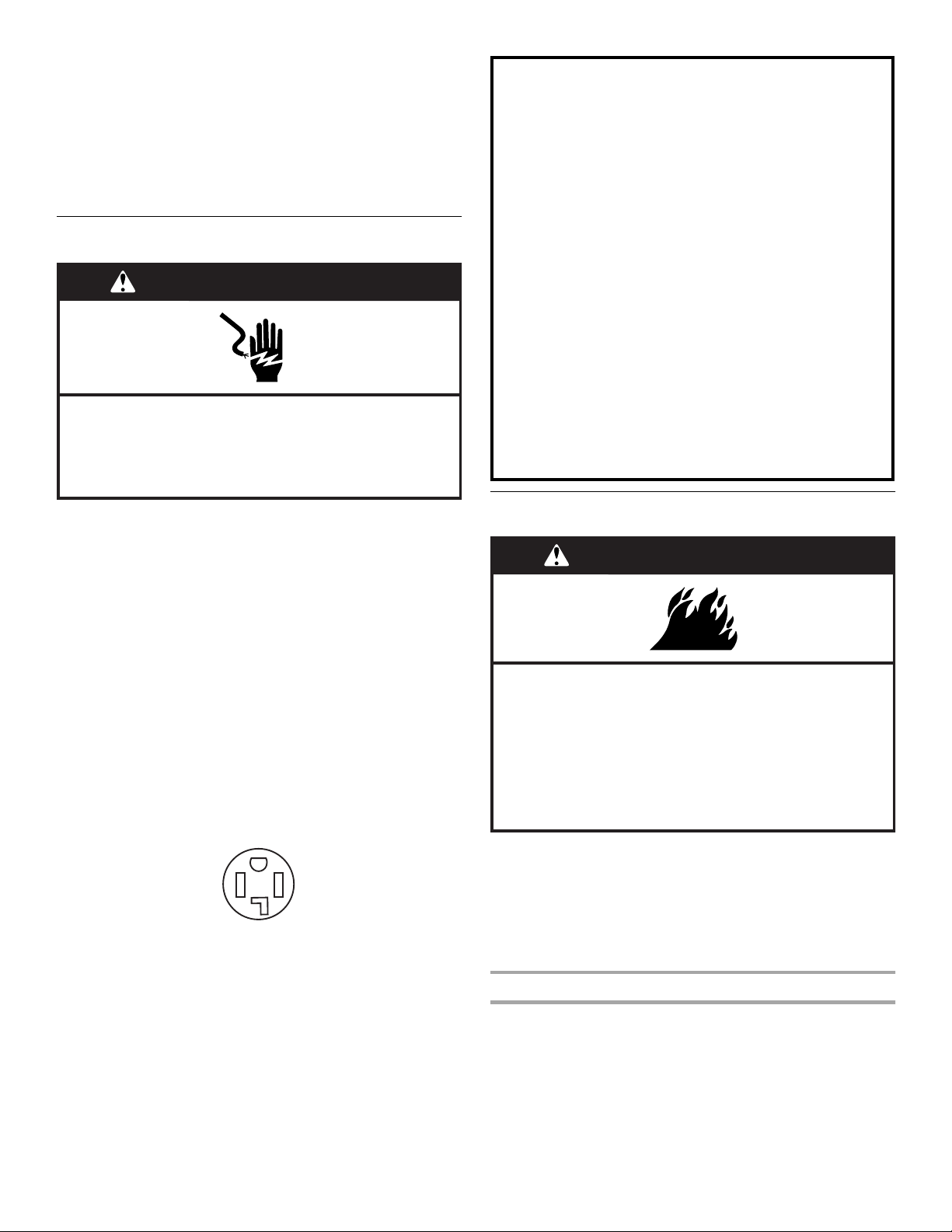

Electrical Requirements

If using a replacement power supply cord, it is recommended that you use Power Supply Cord Replacement Part Number

9831317. numbers located in the “Assistance or Service” section of this manual.

This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

For further information, please reference the service

For a grounded, cord-connected dryer:

WARNING

Electrical Shock Hazard Plug into a grounded 4 prong outlet. Failure to do so can result in death or electrical shock.

It is your responsibility

■ To contact a qualified electrical installer.

■ To be sure that the electrical connection is adequate and in

conformance with the Canadian Electrical Code, C22.1-latest edition and all local codes. A copy of the above codes standard may be obtained from: Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

■ To supply the required 4 wire, single phase, 120/240 volt,

60 Hz., AC only electrical supply on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.

■ This dryer is equipped with a CSA International Certified

Power Cord intended to be plugged into a standard 14-30R wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure wall receptacle is within reach of dryer’s final location.

WARNING:

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Improper connection of the equipment-

Venting Requirements

WARNING

Fire Hazard Use a heavy metal vent. Do not use a plastic vent. Do not use a metal foil vent. Failure to follow these instructions can result in death

or fire.

4-wire receptacle 14-30R

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS. IMPORTANT: Observe all governing codes and ordinances. The dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling or a concealed space of a building.

If using an existing vent system

■ Clean lint from the entire length of the system and make sure

exhaust hood is not plugged with lint.

■ Replace any plastic or metal foil vent with rigid or flexible

heavy metal vent.

■ Review Vent system chart. Modify existing vent system if

necessary to achieve the best drying performance.

If this is a new vent system

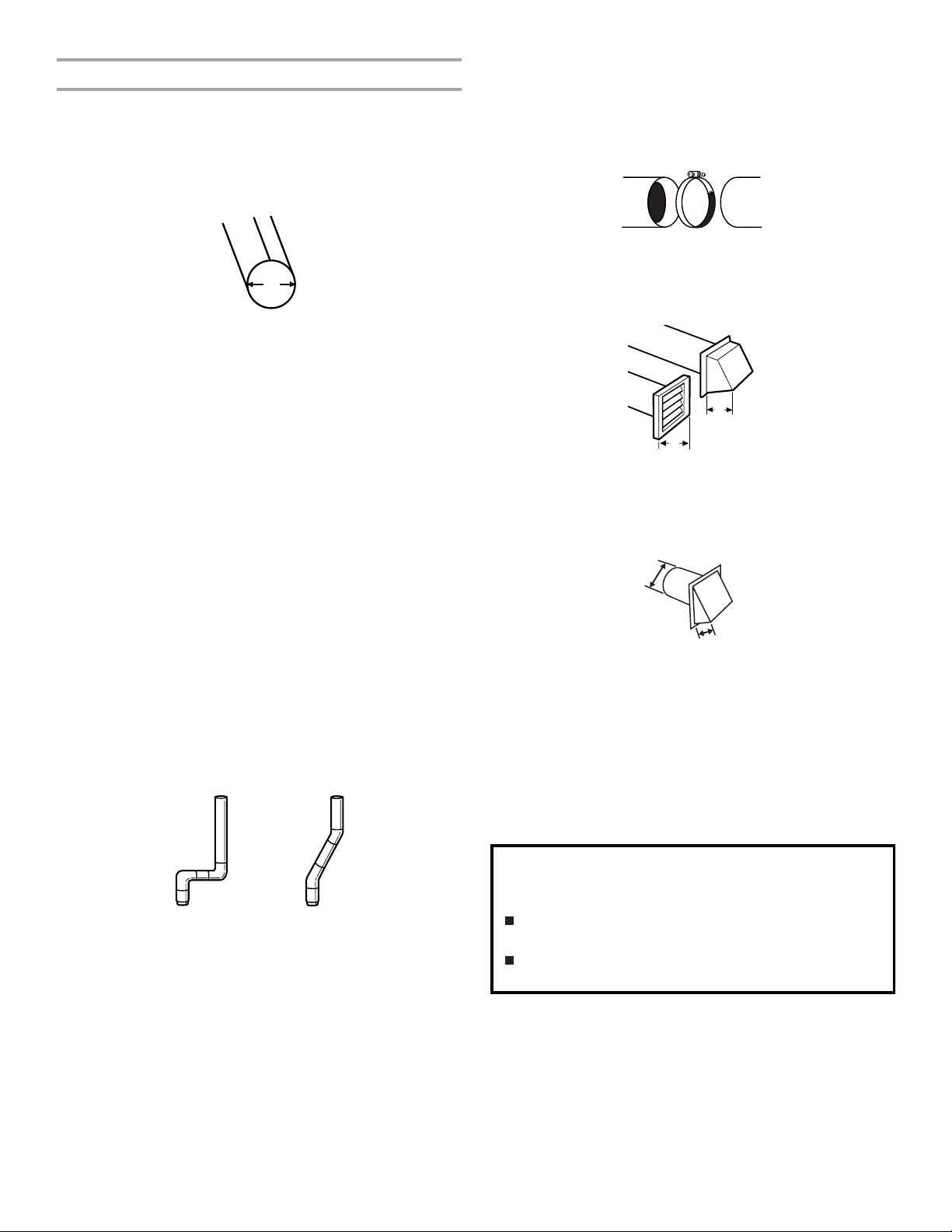

Vent material

■ Use a heavy metal vent. Do not use plastic or metal foil vent.

■ 4" (10.2 cm) heavy metal exhaust vent and clamps must be

used. DURASAFE™ venting products are recommended.

10.2 cm

4" (10.2 cm) heavy metal exhaust vent

DURASAFE™ vent products can be purchased from your dealer or by calling Whirlpool Parts and Accessories. For more information, see the “Assistance or Service” section of this manual.

Rigid metal vent

■ For best drying performance, rigid metal vents are

recommended.

■ Rigid metal vent is recommended to avoid crushing and

kinking.

Flexible metal vent

■ Flexible metal vents are acceptable only if accessible for

cleaning.

■ Flexible metal vent must be fully extended and supported

when the dryer is in its final location.

■ Remove excess flexible metal vent to avoid sagging and

kinking that may result in reduced airflow and poor performance.

■ Do not install flexible metal vent in enclosed walls, ceilings or

floors.

Elbows

45° elbows provide better airflow than 90° elbows.

Clamps

■ Use clamps to seal all joints.

■ Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into the interior of the duct. Do not use duct tape.

Clamp

Exhaust

Recommended hood styles are shown here.

(10.2 cm)

4" (10.2 cm)

A. Louvered hood style B. Box hood style

The angled hood style (shown here) is acceptable.

(10.2 cm)

2½"

(6.4 cm)

■ An exhaust hood should cap the vent to keep rodents and

insects from entering the home.

■ Exhaust hood must be at least 12" (30.5 cm) from the ground

or any object that may be in the path of the exhaust (such as flowers, rocks or bushes, snow line, etc.).

■ Do not use an exhaust hood with a magnetic latch.

Improper venting can cause moisture and lint to collect indoors, which may result in:

Moisture damage to woodwork, furniture, paint, wallpaper, carpets, etc.

Good Better

Housecleaning problems and health problems.

Plan Vent System

Choose your exhaust installation type

Recommended exhaust installations

Typical installations vent the dryer from the rear of the dryer. Other installations are possible.

E F G

A. Dryer B. Elbow C. Wall D. Exhaust hood E. Clamps

F. Rigid metal or flexible metal vent G. Vent length necessary to connect elbows H. Exhaust outlet

Optional exhaust installations

WARNING

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best for your installation. Two close-clearance installations are shown. Refer to the manufacturer’s instructions.

A. Over-the-top installation (also available with one

offset elbow)

B. Periscope installation

NOTE: The following kits for close clearance alternate installations are available for purchase. Please see the “Assistance or Service” section of this manual to order.

■ Over-the-Top Installation:

Part Number 4396028

■ Periscope Installation (For use with dryer vent to wall vent

mismatch): Part Number 4396037 - 0" (0 cm) to 18" (45.72 cm)

mismatch Part Number 4396011 - 18" (45.72 cm) to 29" (73.66 cm)

mismatch Part Number 4396014 - 29" (73.66 cm) to 50" (127 cm)

mismatch

Fire Hazard Cover unused exhaust holes with the following kit: 279818 (white) Contact your local dealer. Failure to follow these instructions can result in death,

fire, electrical shock, or serious injury.

This dryer can be converted to exhaust out the right side, left side, or through the bottom.

Contact your local dealer to have the

dryer converted.

A. Standard rear offset exhaust installation B. Left or right side exhaust installation C. Bottom exhaust installation (not an option

with pedestal installations)

Special provisions for mobile home installations

The exhaust vent must be securely fastened to a noncombustible portion of the mobile home structure and must not terminate beneath the mobile home. Terminate the exhaust vent outside.

Determine vent path

■ Select the route that will provide the straightest and most

direct path outdoors.

■ Plan the installation to use the fewest number of elbows and

turns.

■ When using elbows or making turns, allow as much room as

possible.

■ Bend vent gradually to avoid kinking.

■ Use the fewest 90° turns possible.

Determine vent length and elbows needed for best drying performance

Install Leveling Legs

■ Use the following Vent system chart to determine type of vent

material and hood combinations acceptable to use. NOTE: Do not use vent runs longer than those specified in

the Vent system chart. Exhaust systems longer than those specified will:

■ Shorten the life of the dryer.

■ Reduce performance, resulting in longer drying times and

increased energy usage.

The Vent system chart provides venting requirements that will help to achieve the best drying performance.

Vent system chart

NOTE: Side and bottom exhaust installations have a 90º turn

inside the dryer. To determine maximum exhaust length, add one 90º turn to the chart.

Number of 90º turns or elbows

0 Rigid metal

1 Rigid metal

2 Rigid metal

Type of vent

Flexible metal

Box or louvered hoods

64 ft (20 m) 36 ft (11 m)

54 ft (16.5 m) 31 ft (9.4 m)

44 ft (13.4 m) 27 ft (8.2 m)

Angled hoods

58 ft (17.7 m) 28 ft (8.5 m)

48 ft (14.6 m) 23 ft (7 m)

38 ft (11.6 m) 19 ft (5.8 m)

WARNING

Excessive Weight Hazard Use two or more people to move and install dryer. Failure to do so can result in back or other injury.

1. To protect the floor, use a large flat piece of cardboard from

the dryer carton. Place cardboard under the entire back edge of the dryer.

2. Firmly grasp the body of the dryer (not the console panel).

Gently lay the dryer on the cardboard. See illustration.

3. Examine the leveling legs. Find the diamond marking.

3 Rigid metal

Flexible metal

4 Rigid metal

Flexible metal

35 ft (10.7 m) 25 ft (7.6 m)

27 ft (8.2 m) 23 ft (7 m)

29 ft (8.8 m) 17 ft (5.2 m)

21 ft (6.4 m) 15 ft (4.6 m)

Install Vent System

1. Install exhaust hood. Use caulking compound to seal exterior

wall opening around exhaust hood.

2. Connect vent to exhaust hood. Vent must fit inside exhaust

hood. Secure vent to exhaust hood with 4" (10.2 cm) clamp.

3. Run vent to dryer location. Use the straightest path possible.

See “Determine vent path” in “Plan Vent System.” Avoid 90º turns. Use clamps to seal all joints. Do not use duct tape, screws or other fastening devices that extend into the interior of the vent to secure vent.

4. Screw the legs into the leg holes by hand. Use a wrench to

finish turning the legs until the diamond marking is no longer visible.

5. Place a carton corner post from dryer packaging under each

of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its final location. Leave enough room to connect the exhaust vent.

Connect Vent

1. Using a 4" (10.2 cm) clamp, connect vent to exhaust outlet in

dryer. If connecting to existing vent, make sure the vent is clean. The dryer vent must fit over the dryer exhaust outlet and inside the exhaust hood. Make sure the vent is secured to exhaust hood with a 4" (10.2 cm) clamp.

2. Move dryer into its final location. Do not crush or kink vent.

3. (On gas models) Make sure that there are no kinks in the

flexible gas line.

4. Once the exhaust vent connection is made, remove the

corner posts and cardboard.

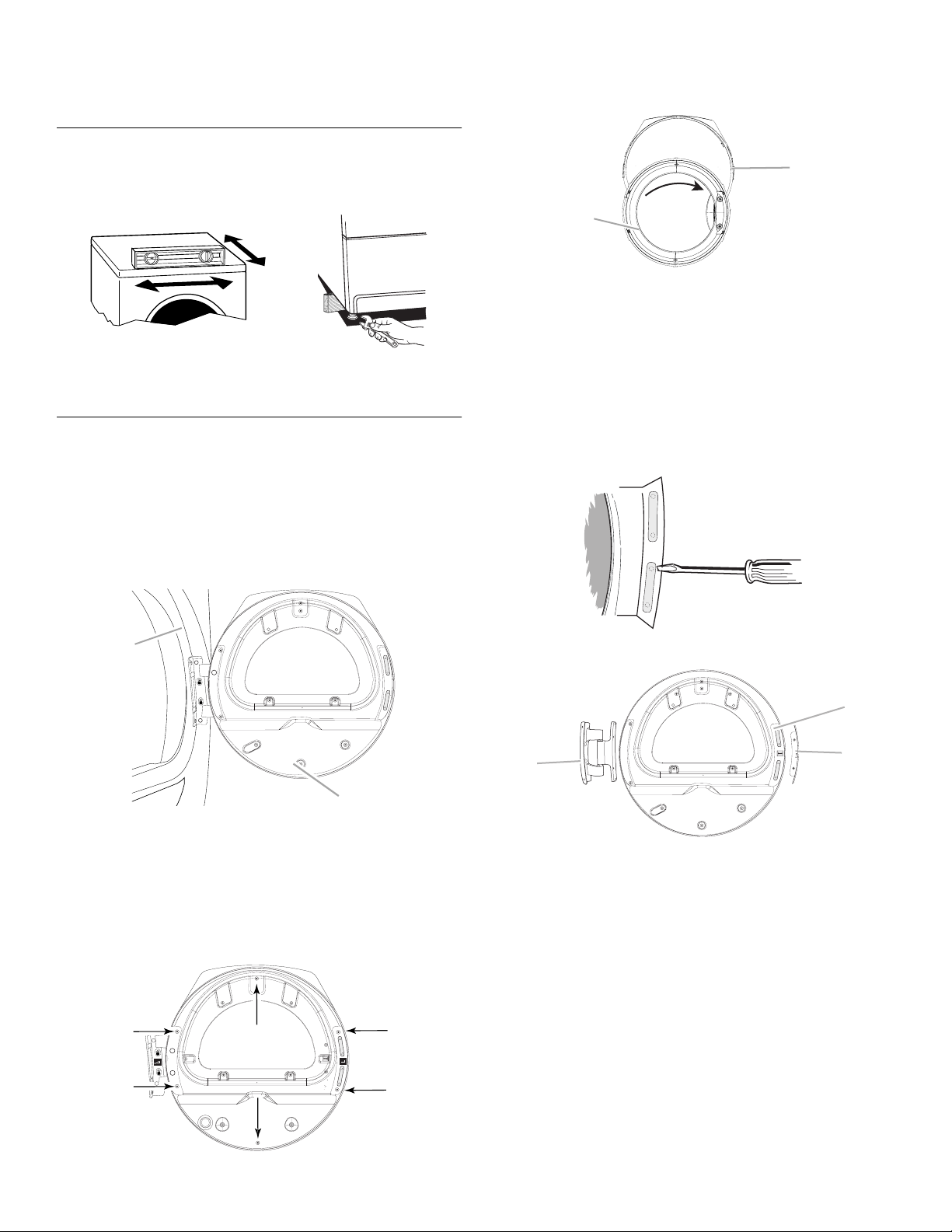

Level Dryer

Check the levelness of the dryer. Check levelness first side to side, then front to back.

If the dryer is not level, prop up the dryer using a wood block. Use a wrench to adjust the legs up or down and check again for levelness.

Reverse Door Swing

You can change your door swing from a right-side opening to a left-side opening, if desired.

1. Place a towel or soft cloth on top of the dryer or work space

to protect the surface.

Remove the door assembly

1. Remove the 4 screws that hold the door hinge on the front

panel of the dryer.

5. Disengage locking tabs by rotating inner ring clockwise. See

illustration.

A. Inner ring B. Outer ring

6. Turn inner ring 180° and lock tabs into place. Reverse hinge

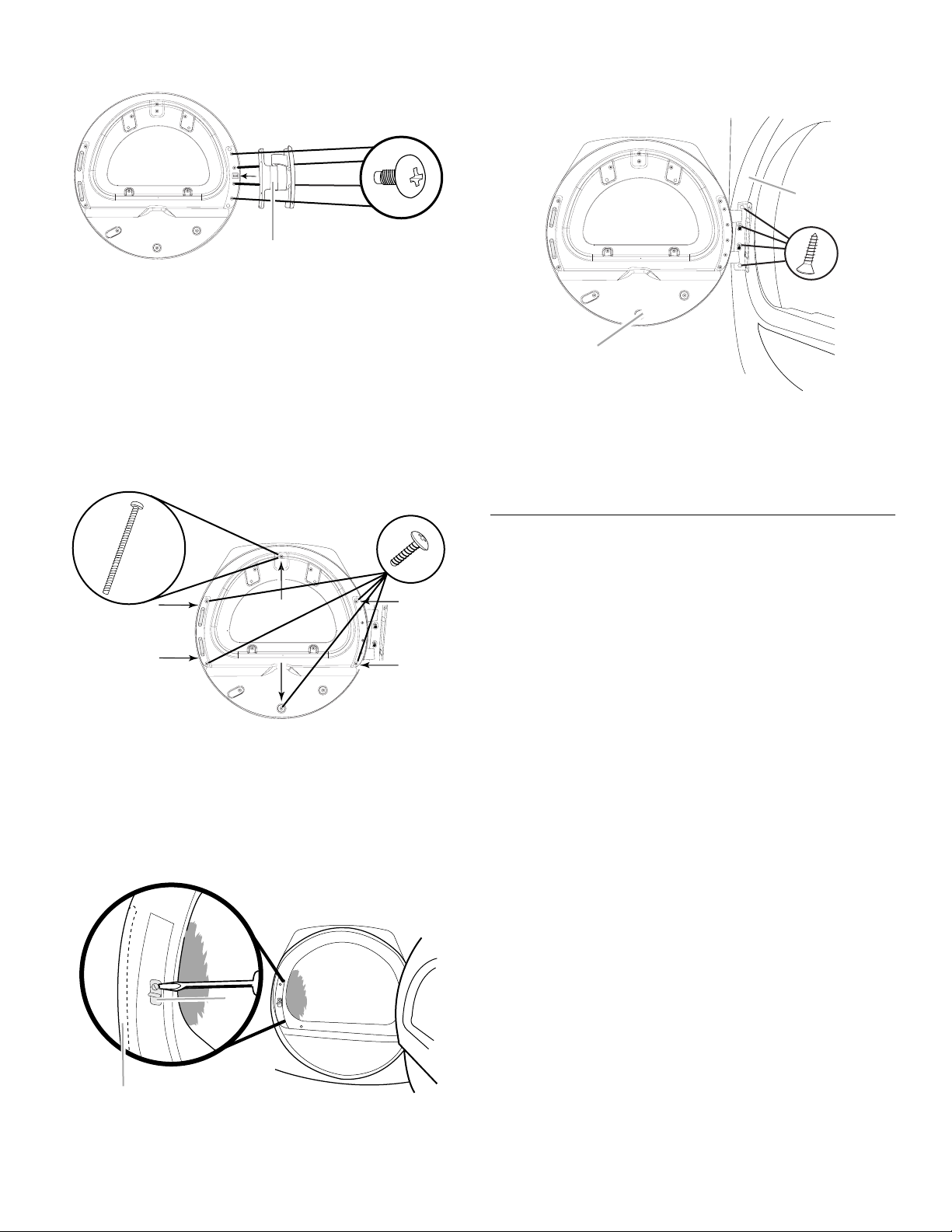

1. Use a small flat-blade screwdriver to remove 2 plug strips

from the inner door. Slide the head of the screwdriver under the plugs, being certain not to scratch the inner door surface. Lift up.

A. Dryer front panel B. Door assembly

2. Lay the door assembly on a flat, protected surface with the

inside (inner door assembly) facing up.

3. Remove the 6 Phillips head screws to release the outer door

assembly from the inner door assembly, as indicated below. See illustration. It is important that you remove only the 6 indicated screws.

2. Remove hinge cover.

A. Door hinge B. Plug strips

C. Hinge cover

3. Remove the 4 screws that attach to the inner door hinge and

move the hinge to the other side. Reinstall the 4 screws.

4. Lift the inner door assembly off the outer door assembly.

A. Door hinge

4. Reinstall plug strips on opposite side of the inner door.

5. Check for fingerprints on the glass. Clean glass if necessary.

6. Place the inner door assembly inside the outer door

assembly. To fit correctly, the inner door assembly edge fits completely inside the outer door assembly edge.

7. Reassemble the inner and outer door assemblies with the

6screws.

Reverse the strike

1. Use a small flat-blade screwdriver to remove plug strip from

the dryer door opening. Slide the head of the screwdriver under the plugs, being certain not to scratch the dryer surface. Lift up.

2. Remove the strike.

3. Insert strike and plug strip on the opposite side.

A. Plug strip (cannot be seen from this angle) B. Door strike

Reinstall the door

1. Reattach door to dryer front panel with the 4 screws.

2. Check for fingerprints on the glass. Clean the glass if

necessary.

3. Close door and check that it latches securely.

Complete Installation

1. Check that all parts are now installed. If there is an extra part,

go back through the steps to see which step was skipped.

2. Check that you have all of your tools.

3. Dispose of/recycle all packaging materials.

4. Check the dryer’s final location. Be sure the vent is not

crushed or kinked.

5. Check that the dryer is level. See “Level Dryer.”

6. Plug into a grounded 4 prong outlet. Turn on power.

7. Remove any protective film or tape remaining on the dryer.

8. Read “Dryer Use.”

9. Wipe the dryer drum interior thoroughly with a damp cloth to

remove any dust.

10. Select a Timed Dry heated cycle, and start the dryer. Do not

select the Air Only modifier.

If the dryer will not start, check the following:

■ Controls are set in a running or “On” position.

■ Start button has been pushed firmly.

■ Dryer is plugged into a grounded outlet.

■ Electrical supply is connected.

■ Household fuse is intact and tight, or circuit breaker has

not tripped.

■ Dryer door is closed.

11. When the dryer has been running for 5 minutes, open the

dryer door and feel for heat. If you feel heat, cancel cycle and close the door.

If you do not feel heat, turn off the dryer and check the following:

■ There may be 2 fuses or circuit breakers for the dryer.

Make sure both fuses are intact and tight, or that both circuit breakers have not tripped. If there is still no heat, contact a qualified technician.

NOTE: You may notice a burning odor when the dryer is first heated. This odor is common when the heating element is first used. The odor will go away.

A. Dryer front panel B. Door assembly

DRYER USE

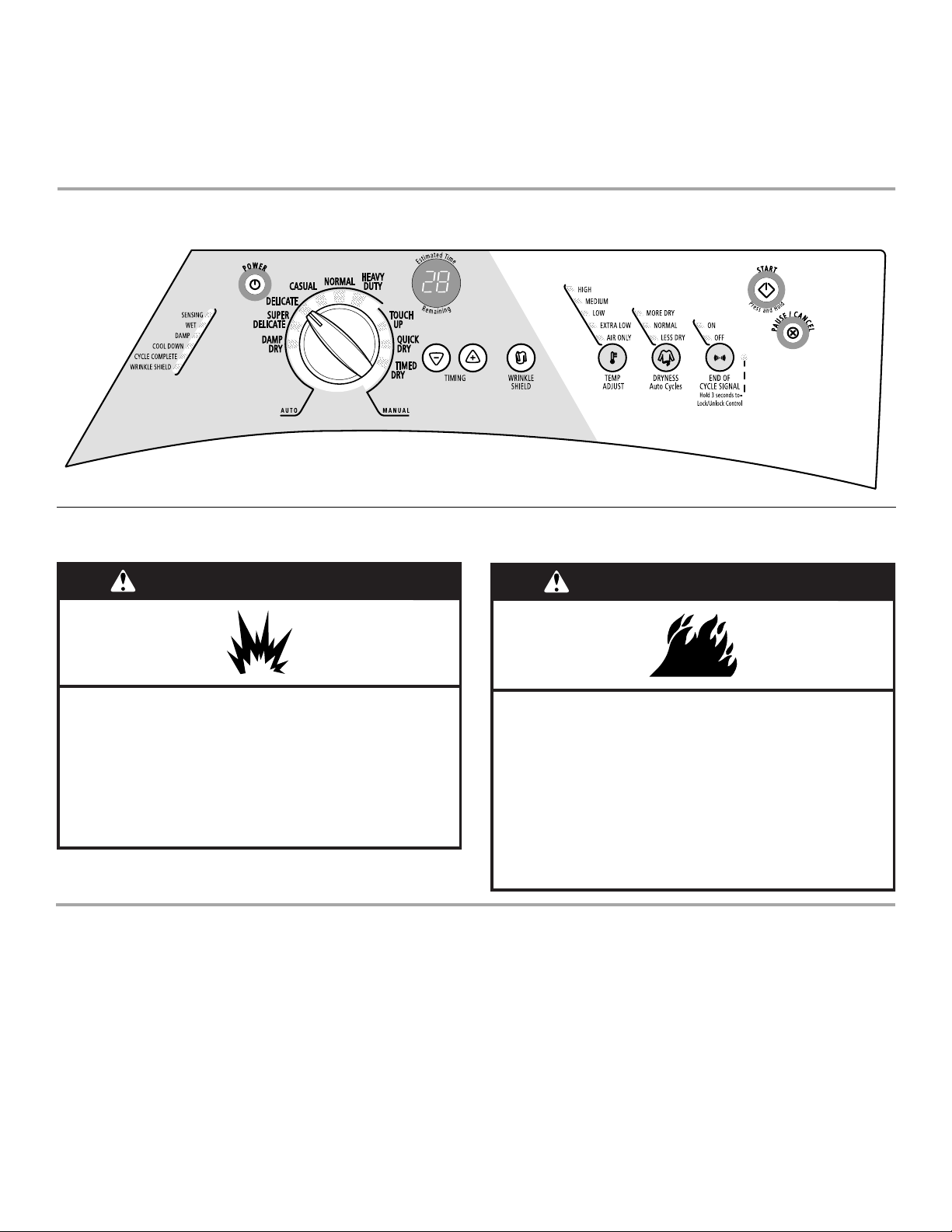

Starting Your Dryer

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not dry anything that has ever had anything flammable on it (even after washing).

Failure to follow these instructions can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

Follow these basic steps to start your dryer. Please refer to specific sections of this manual for more detailed information.

1. Clean lint screen before each load. See “Cleaning the Lint

Screen.”

2. Place laundry into dryer and shut door.

3. Press POWER.

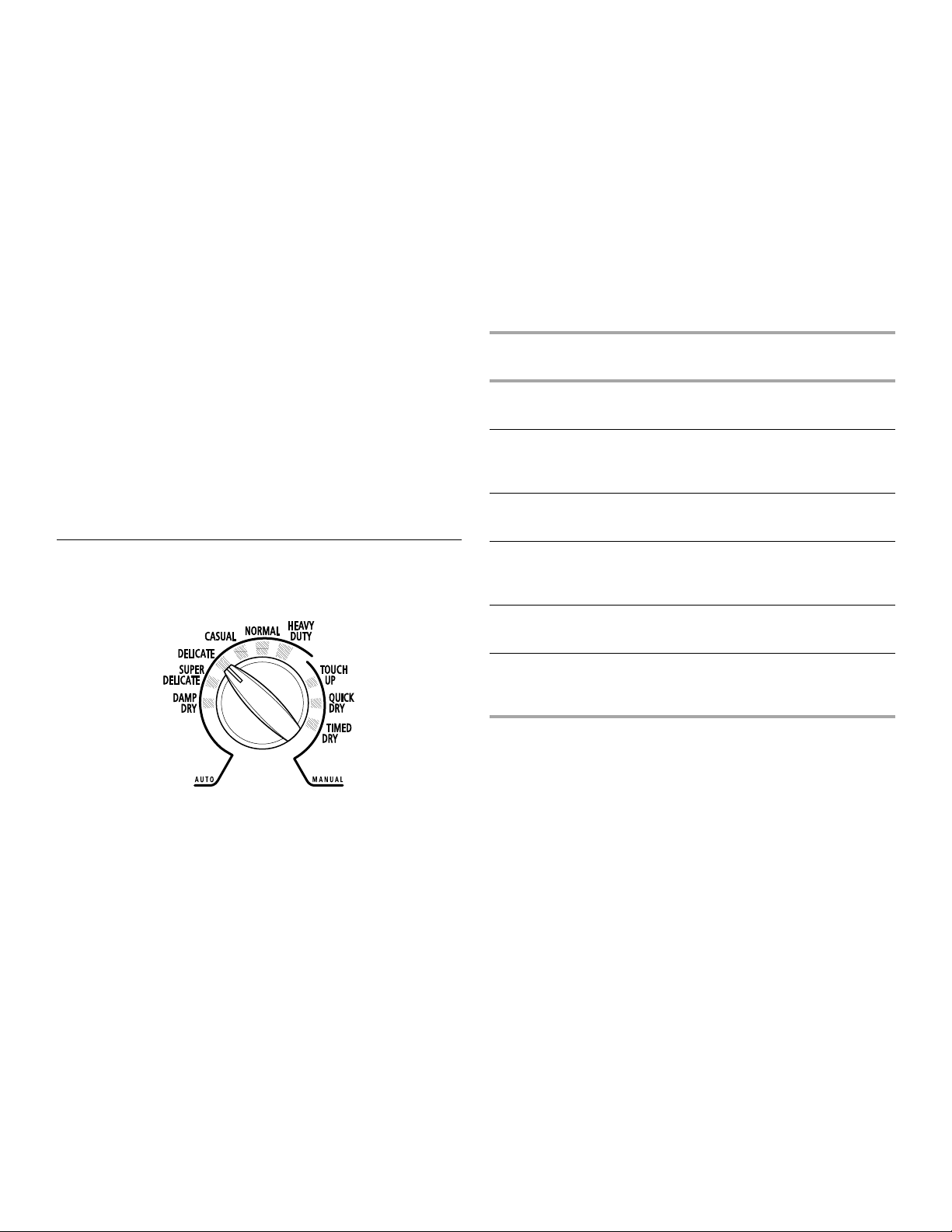

4. Point the dial to an Auto or Manual Cycle. The preset settings

for Auto or Manual Cycles will illuminate. The estimated (auto cycle) or actual (manual) cycle time (in minutes) will show in the display.

NOTE: A preset time is displayed when an automatic cycle is selected. During the first few minutes of the drying process, the cycle time may automatically vary from the preset time based on the size and fabric type of the load. Toward the end of the drying process, the estimated time display will adjust again, showing the final drying time.

To use an Auto Cycle

■ Select an Auto Cycle. Auto cycles will default to the last

dryness setting used for that cycle.

WARNING

Fire Hazard No washer can completely remove oil. Do not dry anything that has ever had any type of oil on

it (including cooking oils). Items containing foam, rubber, or plastic must be dried

on a clothesline or by using an Air Cycle. Failure to follow these instructions can result in death

or fire.

■ Select DRYNESS to adjust how dry you want the load.

The time displayed is an estimated length of the cycle based on the Dryness selected. As the cycle runs, the control senses the dryness of the load and adjusts the time automatically for the selected dryness level.

NOTE: Time is not adjustable for Automatic Cycles. Pressing the Timing Up or Down buttons will cause a triple beep, indicating that the time cannot be changed.

To make changes to the Dryness and/or Options during an Auto Cycle:

■ Press PAUSE/CANCEL once.

■ Adjust Dryness and/or Options.

NOTE: Dryness level selections can be made only while using Auto Cycles. Selecting More Dry, Normal or Less Dry automatically adjusts the sensed time needed.

Auto Dry cycles take the guesswork out of drying time and enhance fabric care. The amount of time that is displayed is the estimated time remaining in the cycle.

To use a Manual Cycle

■ Point the dial to a Manual Cycle.

■ Press TIMING Up or Down until the desired drying time is

displayed. Tap TIMING Up or Down, and the time will change by 1-minute intervals. Press and hold TIMING Up or Down, and the time will change by 5-minute intervals.

NOTE: The Timing feature can be used only with Manual Cycles.

■ Press TEMP ADJUST until the desired temperature

illuminates.

To make changes to Time, Temperature, WRINKLE SHIELD™ feature and Cycle Signal during a Manual Cycle:

■ Press PAUSE/CANCEL once.

■ Adjust the Time, Temperature, WRINKLE SHIELD™

feature and End of Cycle Signal.

5. (OPTIONAL STEP) If desired, select WRINKLE SHIELD™

feature. For more details, see “WRINKLE SHIELD™ Feature” in “Additional Features.”

6. (OPTIONAL STEP) The Cycle Signal is preset to ON. If

desired, you may turn the Cycle Signal OFF.

7. Press and hold START for approximately 1 second until dryer

starts. Be sure the door is closed.

■ If you do not press Start within 5 minutes of selecting a

cycle, the dryer automatically shuts off.

Stopping or Restarting Your Dryer

To pause/stop the dryer at any time

Open the door or press PAUSE/CANCEL once.

To restart the dryer

Close the door. Press and hold START until dryer starts.

To cancel your dryer at any time

Press PAUSE/CANCEL twice. NOTE: Drying will continue from where the cycle was interrupted

if you close the door and press Start within 5 minutes. If the cycle is interrupted for more than 5 minutes, the dryer will shut off. Select new cycle settings before restarting the dryer.

Drying and Cycle Tips

Select the correct cycle and dryness level or temperature for your load. If an Auto Cycle is running, the display shows the estimated cycle time when your dryer is automatically sensing the dryness level of your load. If a Manual Cycle is running, the display shows the exact number of minutes remaining in the cycle.

Cool Down tumbles the load without heat during the last few minutes of all cycles. Cool Down makes the loads easier to handle and reduces wrinkling. The length of the Cool Down depends on the load size and dryness level.

Drying tips

■ Follow care label directions when they are available.

■ If desired, add a fabric softener sheet. Follow package

instructions.

■ Remove the load from the dryer as soon as tumbling stops to

reduce wrinkling. This is especially important for permanent press, knits and synthetic fabrics.

■ Avoid drying heavy work clothes with lighter fabrics. This

could cause overdrying of lighter fabrics, leading to increased shrinkage or wrinkling.

Cycle tips

■ Dry most loads using the preset cycle settings.

■ Refer to the Auto or Manual Preset Cycle Settings chart (in

the “Cycles” section) for a guide to drying various loads.

■ Drying temperature and Dryness are preset when you

choose an Auto Cycle. You can choose a different dryness level, depending on your load by pressing the DRYNESS button to select MORE DRY or LESS DRY.

■ If you wish to adjust the cycle length of a Manual Cycle,

you must press TIMING Up or Down. Adjust the temperature of a Manual Cycle by pressing TEMP ADJUST until the desired temperature is selected.

NOTE: You cannot choose a Dryness Level with Manual Cycles.

Status Lights

You may follow the progress of your dryer with the drying Status indicator lights.

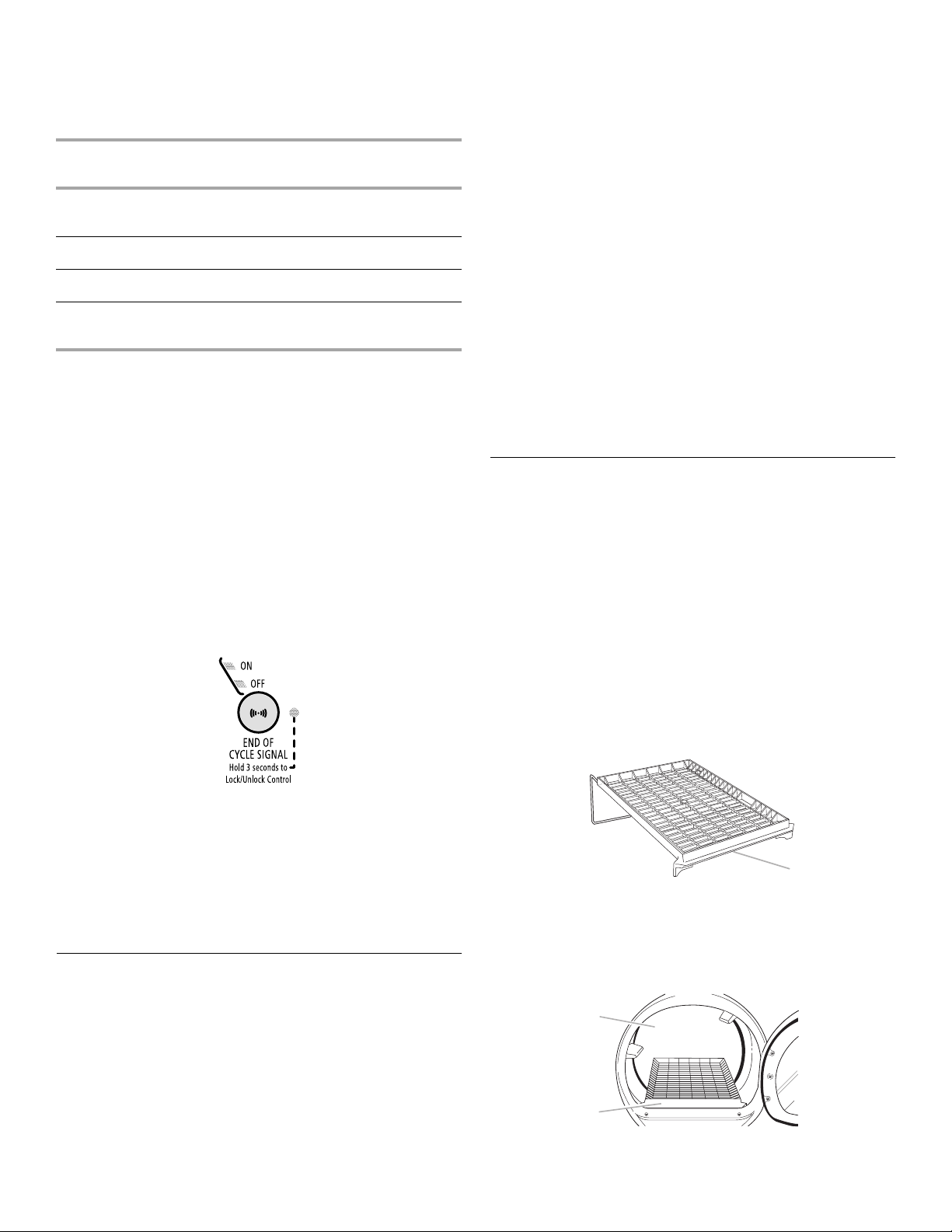

Lock Controls

This feature allows you to lock your settings to avoid unintended use of the dryer. You can also use the control lock feature to avoid unintended cycle or option changes during dryer operation.

To enable the control lock feature:

Press and hold END OF CYCLE SIGNAL button for 3 seconds. The Lock/Unlock Control icon lights up, and a single beep tone is heard. To unlock, press and hold END OF CYCLE SIGNAL button for 3 seconds. The indicator light turns off.

Sensing

When a cycle is first turned on, the SENSING light illuminates until a wet item is detected.

■ In an Auto Cycle, if a wet item has not been detected within

5 minutes, the Sensing light will turn off.

■ In a Manual Cycle, if a wet item is not detected within

5 minutes, the Sensing light will turn off and the Damp light will turn on.

+ 30 hidden pages
