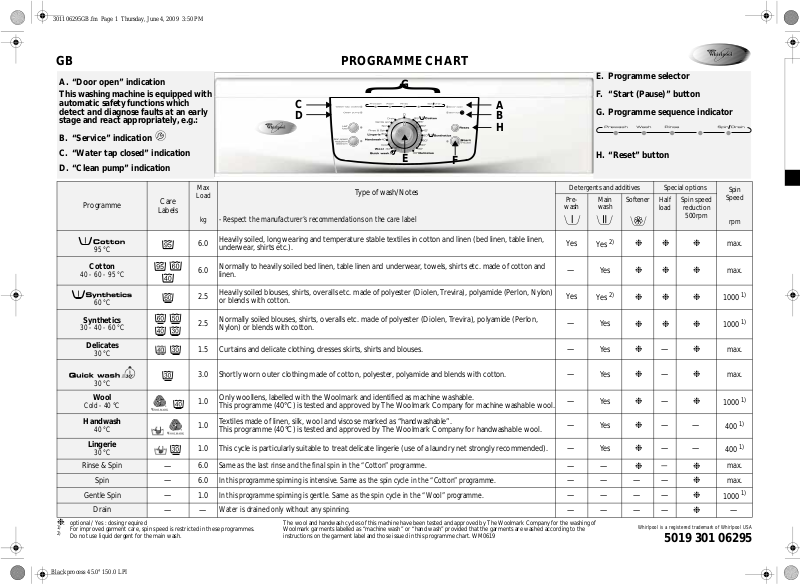

GB PROGRAMME CHART

A. “Door open” indication This washing machine is equipped with

automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication

C D

}

A B

E. Programme selector F. “Start (Pause)” button G. Programme sequence indicator

C. “Water tap closed” indication D. “Clean pump” indication

Programme

95 °C

Cotton

40 - 60 - 95 °C

60 °C

Synthetics

30 - 40 - 60 °C

Delicates

30 °C

Wool

Cold - 40 °C

Care

Labels

Max

Load

- Respect the manufacturer’s recommendations on the care label

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen,

6.0

underwear, shirts etc.). Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and

6.0

linen. Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon)

2.5

or blends with cotton. Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,

2.5

Nylon) or blends with cotton.

1.5 Curtains and delicate clothing, dresses skirts, shirts and blouses.

3.0 Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.

Only woollens, labelled with the Woolmark and identified as machine washable.

1.0

This programme (40°C) is tested and approved by The Woolmark Company for machine washable wool.

Type of wash/Notes

H. “Reset” button

Detergents and additives Special options

Pre-

wash

Yes

—

Yes

—

Main wash

Yes

Softener Half

load

❉❉ ❉

—

❉

—

❉

—

❉

Spin speed

reduction

500rpm

Spin

Speed

rpm

max.

1000

❉

max.

1000

Handwash

40 °C

Lingerie

30 °C

Rinse & Spin

Spin

Gentle Spin

Drain

optional / Yes : dosing required

❉

For improved garment care, spin speed is restricted in these programmes.

Do not use liquid dergent for the main wash.

Black process 45.0° 150.0 LPI

— — — ——

1.0

1.0 This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly recommended).

6.0

1.0

Textiles made of linen, silk, wool and viscose marked as “handwashable”. This programme (40°C) is tested and approved by The Woolmark Company for handwashable wool.

Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. Water is drained only without any spinning.

The wool and handwash cycles of this machine have been tested and approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” or “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued in this programme chart. WM0619

—

Yes

——

❉

——

❉

—

❉

———— ———— ————

Whirlpool is a registered trademark of Whirlpool USA

5019 301 06295

400

❉ ❉ ❉ ❉

max. max.

1000

—

301106295GB.fm Page 2 Thursday, June 4, 2009 3:50 PM

CONSUMPTION DATA

Programme

Temper ature

(°C) Cotton 95 6.0 59 Cotton

***

60 6.0 49 1.02 2:20

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme Duration

(hours : minutes)

1.90 2:00

Cotton 40 6.0 54 0.65 2:00

Synthetics 60 2.5 50

0.70 1:30

Synthetics 40 2.5 45 0.55 1:15

Delicates 30 1.5 50 0.50 0:45

Quick wash 30 3.0 41 0.40 0:30

Wool 40 1.0 55 0.60 0:45

Handwash 40 1.0 45 0.60 0:40

Lingerie 30 1.0 45 0.50 0:36

Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The remaining time indicator can deviate from the values in the table, because it takes into account the household conditions

applicable at that time. To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

Reference Programme for Energy Label.

***

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in your Instructions for Use. Close the door and turn the

programme selector

to the desired programme and temperature. The indication lamp next to the

“Start (Pause)”

button

flashes.

SELECT ANY DESIRED OPTION

Push the button(s) of any option(s) desired - the respective indication lamp lights up.

When the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Half load” button

• Reduces water consumption, above all during rinsing.

• Suitable for lightly soiled laundry and small loads (max. 3 kg).

“Spin speed reduction” button

• Reduces the predetermined automatic maximum spin speed to treat your laundry more gently.

PROGR AMME START

Open the tap and press the

“Start (Pause)”

button. The indication lamp next to the

(Pause)”

button lights up. The programme

“Start

sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain.

When the programme phase is finished, the corresponding indication goes out.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

• All the lights of the programme sequence indicator are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press the

“Start (Pause)”

button to pause the

programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want.

3. Press the

“Start (Pause)”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The

“Reset”

button cancels a programme before

the end.

• Press the

“Reset”

button for at least 3 seconds. Any existing water is drained out before the door can be opened.
