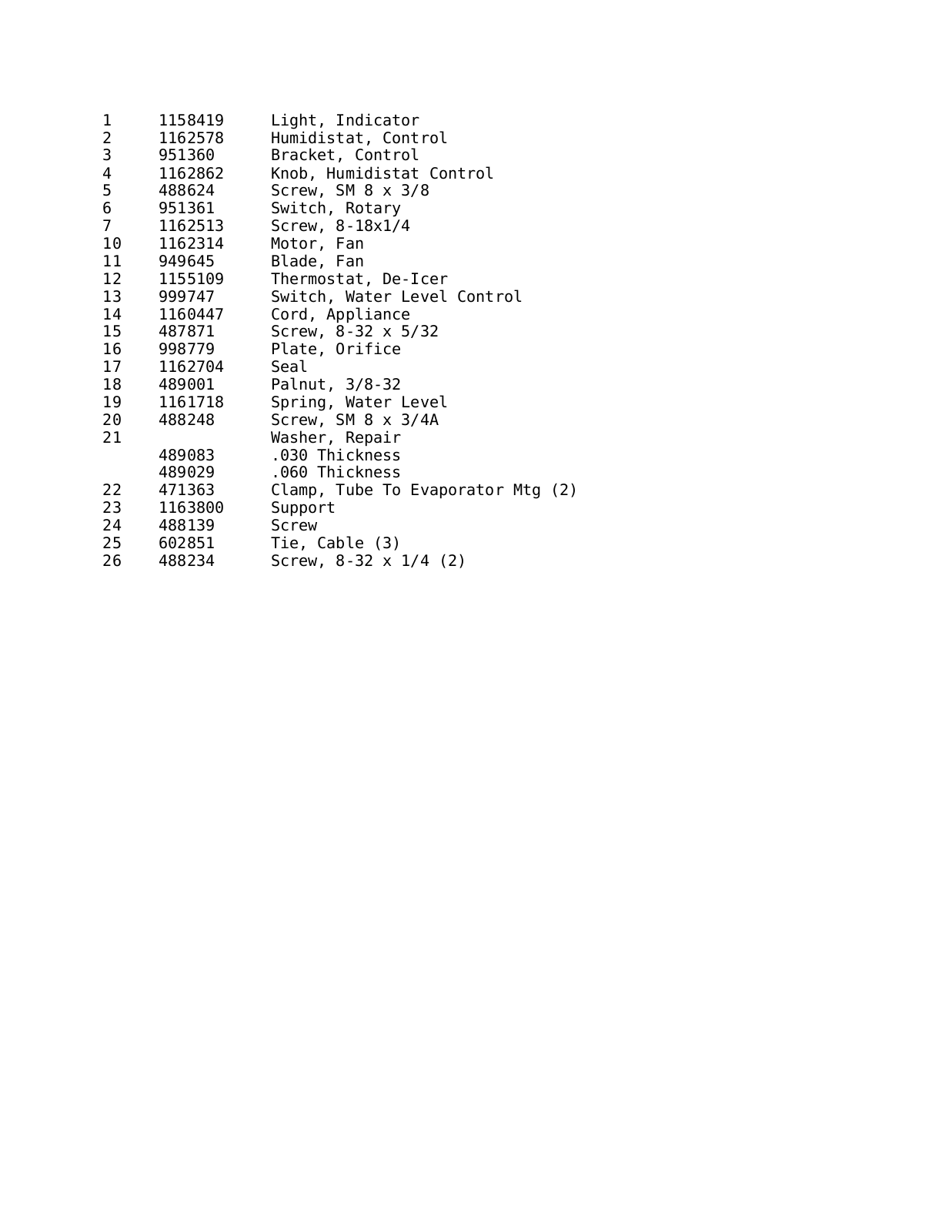

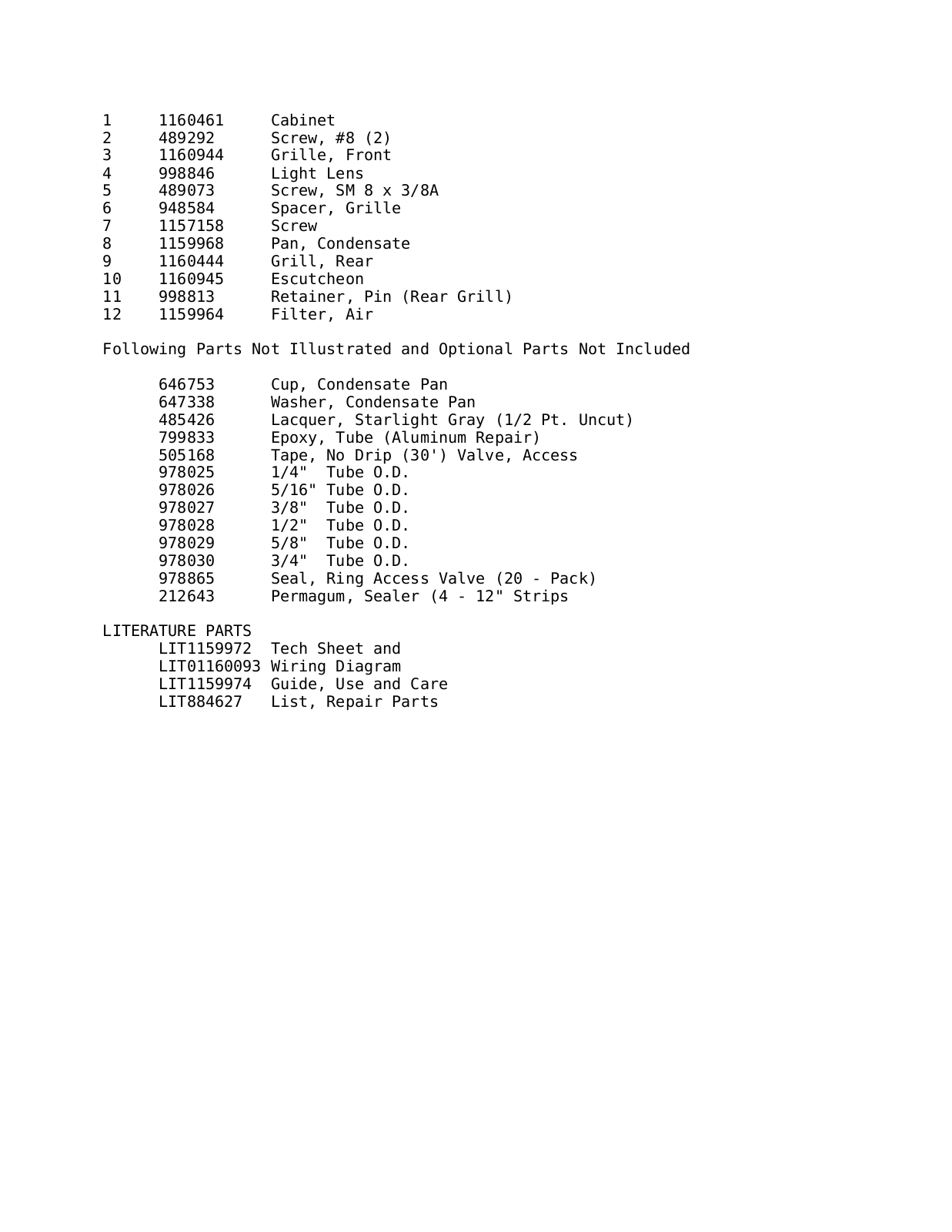

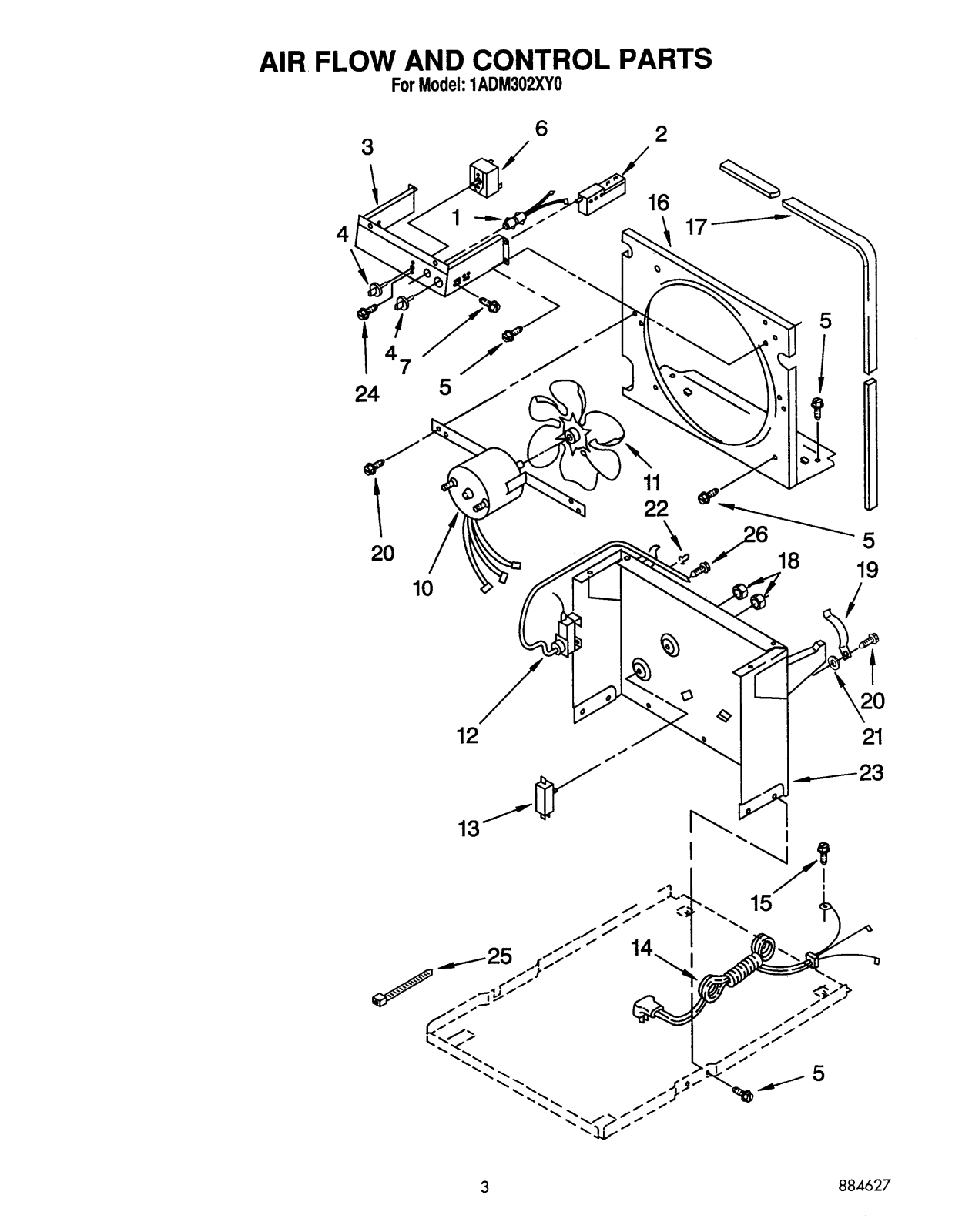

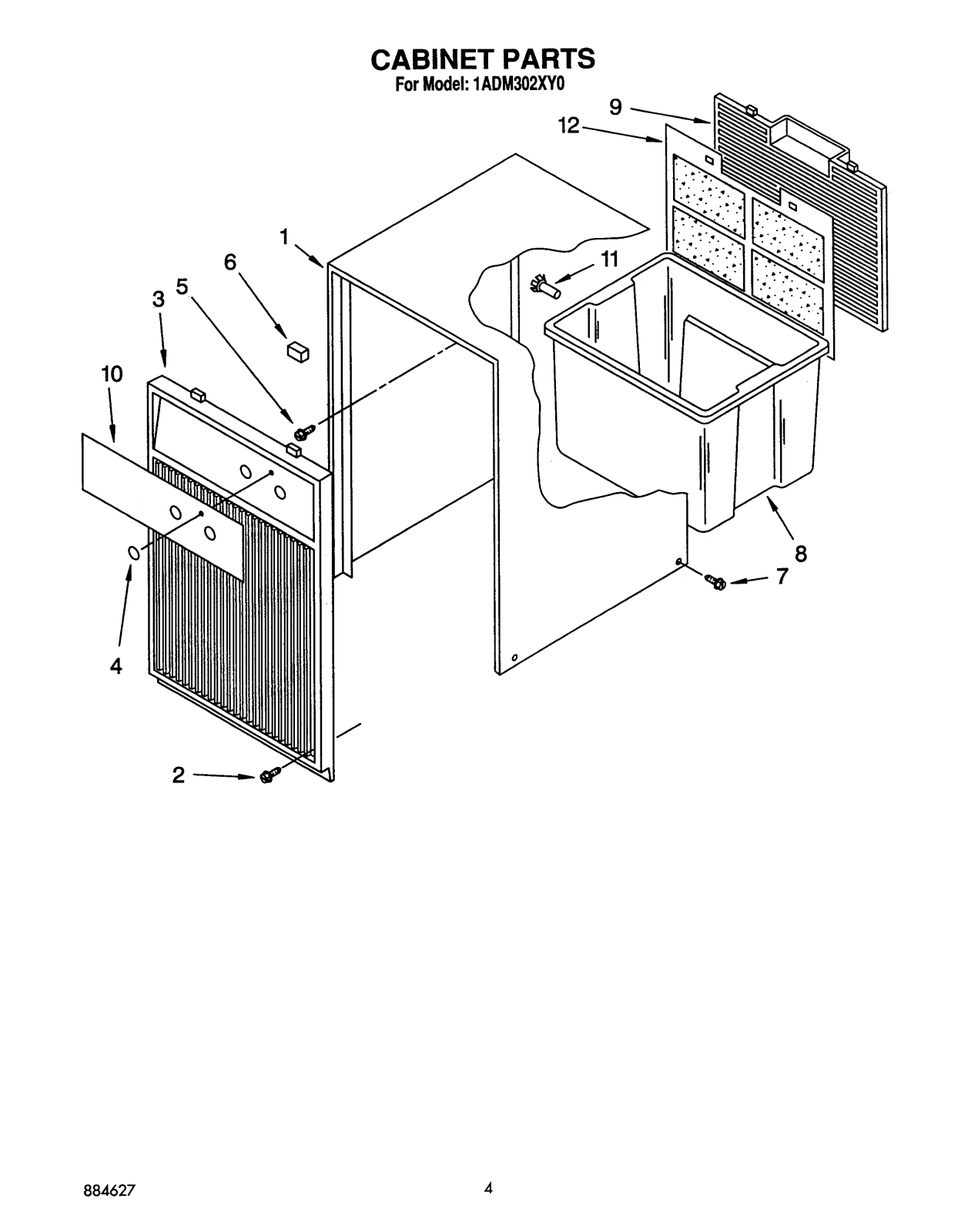

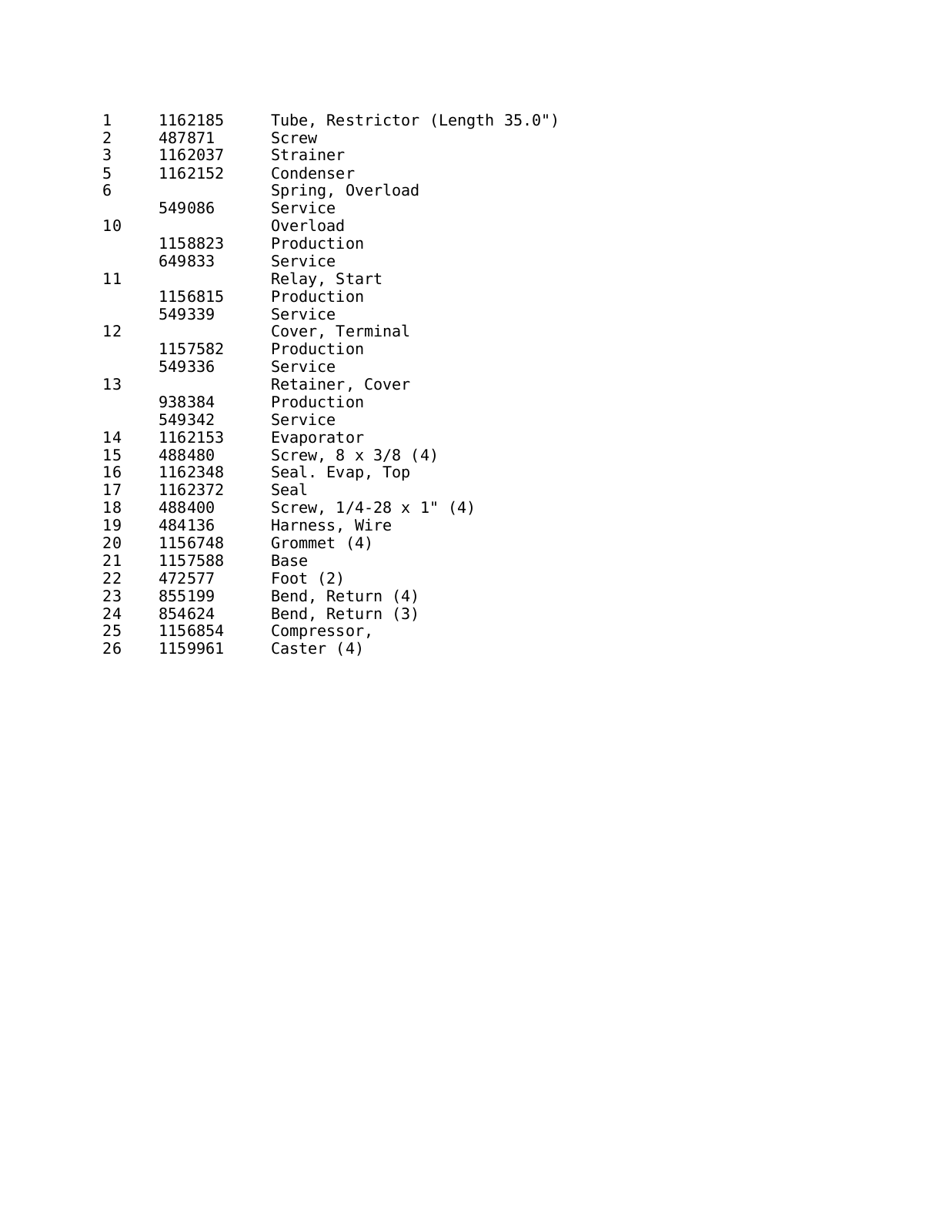

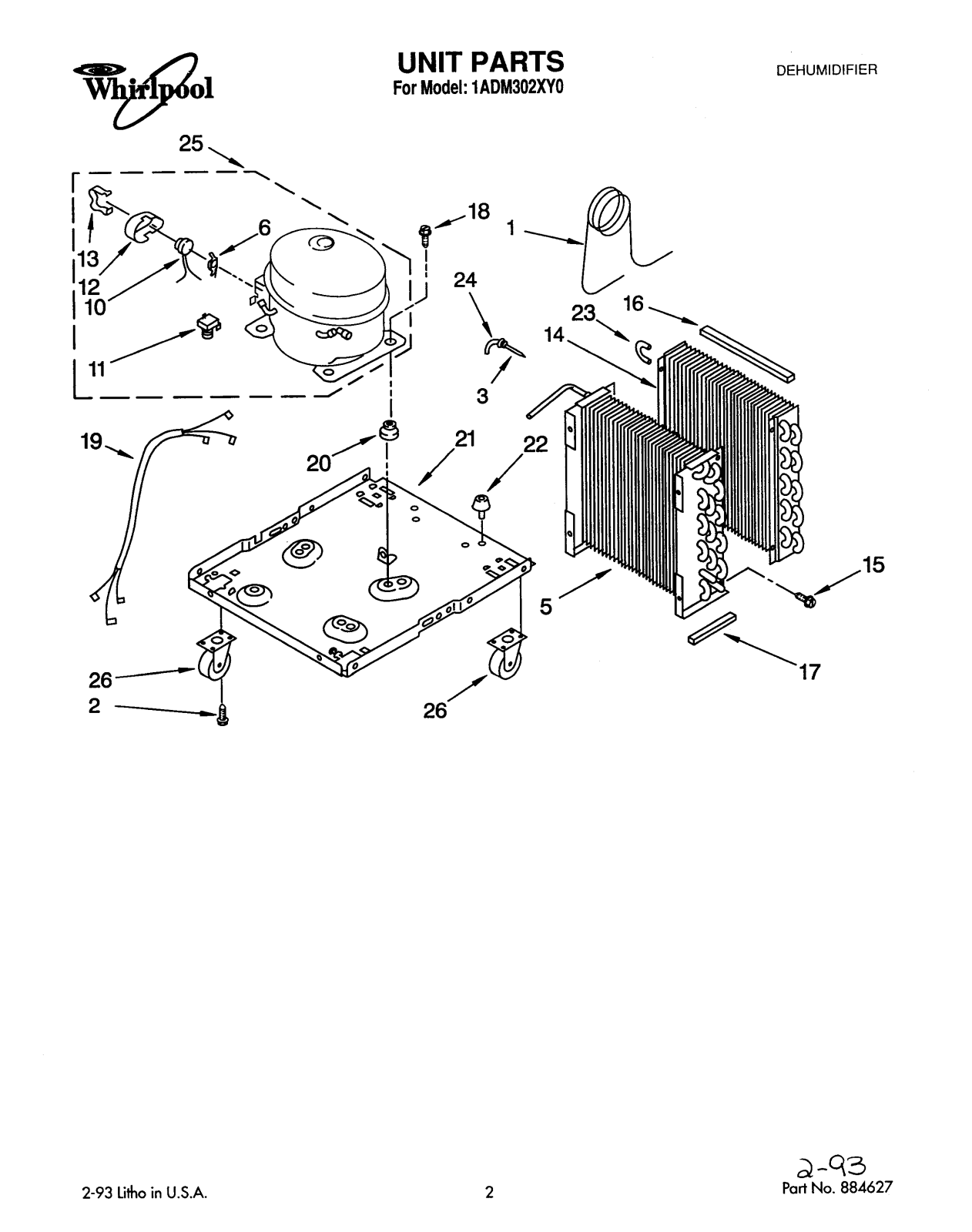

1 1162185 Tube, Restrictor (Length 35.0")
2 487871 Screw
3 1162037 Strainer
5 1162152 Condenser
6 Spring, Overload

549086 Service

10 Overload

1158823 Production
649833 Service

11 Relay, Start

1156815 Production
549339 Service

12 Cover, Terminal

1157582 Production
549336 Service

13 Retainer, Cover

938384 Production

549342 Service
14 1162153 Evaporator
15 488480 Screw, 8 x 3/8 (4)
16 1162348 Seal. Evap, Top
17 1162372 Seal
18 488400 Screw, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 1156748 Grommet (4)
21 1157588 Base
22 472577 Foot (2)
23 855199 Bend, Return (4)
24 854624 Bend, Return (3)
25 1156854 Compressor,
26 1159961 Caster (4)
