USER MANUAL

ELECTRIC BUILT-IN OVENS

WVE606, WVE607, WVE613, WVES613L/R, WVE614,

WVE615, WVEP615, WVE616, WVE617, WVEP618,

WVE626, WVE636, WVE645, WVE655, WVE665

WARNING

TIPS & INFORMATION

ENVIRONMENTAL TIPS

CONTENTSCONGRATULATIONS

Dear customer,

Congratulations and thank you for choosing our oven.

We are sure you will find it a pleasure to use. Before you use the oven, we recommend that you read through the relevant sections of this manual, which provides a description of your appliance and its functions.

To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the appliance, please check it is not damaged. If in doubt, do not use the appliance but contact your local customer care centre.

This appliance complies with requirements of Australian Standard AS/NZS 60335.2.6.

Conditions of use

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Farm houses

• By clients in hotels, motels and other residential type environments

• Bed and breakfast type environments

Please ensure you read the instruction manual fully before you call for service, or a full service fee could be applicable.

Record model and serial number here:

Important safety instructions ........................................................3

Product description WVE613, WVES613, WVE614, WVE615,

WVE616, WVE606, WVE607, WVE617, WVEP618, .............5

Product description WVE645S, WVEP615, WVE626, WVE636,

WVE655, WVE665 ............................................................................ 6

Before first use ....................................................................................7

Installing your oven accessories ................................................. 8

Using your oven .................................................................................. 11

Cooking guide .................................................................................. 22

Grilling guide ..................................................................................... 23

Steam cooking guide .....................................................................24

Dealing with cooking problems ................................................26

Getting to know the oven ............................................................ 27

Care and cleaning ...........................................................................28

Using your cooktop.........................................................................39

Troubleshooting ............................................................................... 40

Installing your appliance ...............................................................42

Warranty ............................................................................................... 47

Please read the user manual carefully and store in a handy place for later reference.

The symbols you will see in this booklet have these meanings:

WARNING

This symbol indicates information concerning your personal safety.

CAUTION

This symbol indicates information on how to avoid damaging the appliance.

Model number:........................................................................................

Serial number: .........................................................................................

PNC: .............................................................................................................

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER’S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere to this manual.

2 CONTENTS

IMPORTANT

This symbol indicates tips and information about use of the appliance.

ENVIRONMENT

This symbol indicates tips and information about economical and ecological use of the appliance.

TIPS & INFORMATION

ENVIRONMENTAL TIPS

WARNING

IMPORTANT SAFETY INSTRUCTIONS

Please read the user manual carefully and store in a handy place for later reference.

IMPORTANT

Important – check for any damages or marks.

• If you find the oven is damaged or marked, you must report it within 7 days if you wish to claim for damage/marks under the manufacturer’s warranty. This does not affect your statutory rights.

• Discolouration of the enamel has no effect on the performance of the appliance.

ENVIRONMENT

Information on disposal for users

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

WARNING

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

• An authorised person must install this appliance and carry out servicing. (Certificate of Compliance to be retained)

• Before using the appliance, ensure that all packing materials are removed from the appliance.

• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

• Do not pull the appliance by the door handle.

• This appliance must be earthed.

• In order to avoid any potential hazard, the enclosed installation instructions must be followed.

• Ensure that all specified vents, openings and air spaces are not blocked.

• Do not modify this appliance.

• This appliance must not be used as a space heater.

• Where the appliance is built into a cabinet, the cabinet material must be capable of withstanding 70°C. If adjacent to vinyl wrapped surfaces, use installation kit from vinyl wrap supplier.

• Ensure the appliance is switched off before cleaning or replacing parts. This can be done by switching off the appliance via the powerpoint or isolating switch (if available), or the switchboard.

• Do not use steam cleaners, as this may cause moisture build up.

• Switch the appliance off before removing the oven light glass for globe replacement.

• Do not open the oven door during steam cooking.

Steam can be released. There is a risk of skin burns. There is a risk that steam causes moisture damage to cabinets.

• Allow the oven to cool down for 30 minutes before you drain the water tank in a steam oven. Scalding water may be released.

• Always keep the appliance clean. Ensure fats and oils do not accumulate around elements, burners or fans.

• Care must be taken when wiping exposed stainless steel edges.…they can be sharp!

• Do not spray flammable materials in or under the appliance, e.g. aerosols.

• Do not leave the grill on unattended.

• Always turn the grill off immediately after use as fat left behind may catch fire.

• Do not cover the grill insert with foil, as fat left there may catch fire.

• Always keep the oven dish, grill dish and bake trays clean as any fat residue may catch fire.

• To avoid an accident, ensure that the oven shelves and fittings are always inserted into the appliance in accordance with the instructions.

• The door glass on this appliance is made from a tough, durable material that withstands heating and cooling without breaking. As a precaution however, do not put cold water on hot glass.

• Door glass that is damaged should be immediately replaced.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Accessible parts will become hot when in use. To avoid burns and scalds, children should be kept away.

• During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. oven door, heating elements or internal surfaces of the oven.

• Always use gloves when handling hot items inside the oven.

• To maintain safe operation, it is recommended that the product be inspected every 5 years by an authorised service person.

• New appliances can have an odour during the first operation. It is recommended to ‘run in’ the oven before you cook. Run the oven(s) at 180°C for 30 minutes and ensure the room is well ventilated.

• This appliance must not be installed behind a decorative door.

• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

3SAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Cooktop only

• If the ceramic glass on cooktop is accidently cracked, switch off the appliance to avoid the possibility of electric shock.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

CAUTION

Read the following carefully to avoid damage to the appliance.

• The grill door must be left fully open whilst grilling in a separate grill wall oven and a separate grill underbench oven.

• The grill tray must be fully inserted whilst grilling.

• Do not place thick portions of food under the grill. Foods may curl, catch and ignite.

• Do not use the door as a shelf.

• Do not push down on the open oven door.

• Do not use harsh abrasive cleaners or metal scrapers to clean the oven door glass since they can scratch the surface which may result in shattering of the glass.

• Do not use harsh abrasive cleaners, powder cleaners, steel wool or wax polishes on enamel.

• Do not use sharp metal implements or utensils on any surface, as these may leave permanent scratches or marks.

• Do not use stainless steel cleaners, abrasive cleaners or harsh solvents to clean your stainless steel appliance.

• Do not line the bottom of the oven or grill with foil or cookware, it will damage the enamel.

• Do not use the base of the oven for cooking – it will damage the enamel.

• Do not put water directly into the hot appliance.

• Always clean the appliance immediately after any food spills.

• Do not place heat resistant mats, wire mats or aluminium foil under pots or pans.

• Do not cook food directly on the ceramic glass surface.

• Do not use round bottom woks, wok stands or similar utensils that could lead to overheating of hotplates and possible damage to the cooking surface.

• Do not operate this appliance by means of an external timer or separate remote control system.

• Danger of fire: Do not store items on cooking surfaces.

NOTE: You must read these warnings carefully before installing or using the appliance. If you need assistance, contact your Customer Care Centre. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

Cooktop only

• Do not allow pots to boil dry as damage to both pan and cooktop may result.

• Do not operate the cooktop for an extended period of time without a utensil on the hot plate.

• Do not allow large cookware to overhand onto the adjacent benchtop. This will cause scorching to the benchtop surface.

4 IMPORTANT SAFETY INSTRUCTIONS

PRODUCT DESCRIPTION

WVE613 & WVES613

WVE614

WVE615 & WVE606

WVE616

function selector

oven/grill indicator light

oven/grill temperature selector

oven/grill indicator light

temperature selector

function indicator light

‘auto-off’ timeroven/grill

oven indicator lightfunction indicator light

electronic clock

oven indicator light

‘auto-off’ timer

oven/grill temperature selector

WVE607

WVE617

WVEP618

function selector

electronic clock

programmable controller

oven/grill temperature selector

water drawer

5PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

WVE645S

WVEP615

WVE626

inner element indicator light

inner & outer element indicator light

left rear

function selector

element indicator light

right frontleft front right rear

upper oven indicator light

function selector

oven/grill indicator light

oven/grill temperature selector

temperature selector

lower oven indicator light

‘auto-off’ timer

WVE636

WVE655

WVE665

upper function selector

function selector

upper oven/grill temperature selector

upper oven indicator light

upper oven/grill temperature selector

oven indicator light

oven temperature selector

oven indicator light

electronic clock

electronic clockupper

electronic clock

grill indicator light

lower function selector

lower oven indicator light

lower function selector

grill indicator light

grill temperature selector

lower oven/grill temperature selector

6 PRODUCT DESCRIPTION

function selector

oven temperature selector

electronic clock

full and half grill temperature selector

WARNING

BEFORE FIRST USE

Preparing your appliance for the first time

• Please remove all internal boxes and bags from the oven before operation.

• Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. Do not close the oven door until the oven is completely dry.

• If your appliance is fitted with a mechanical “Auto Off” timer, make sure it is set to “Off” marker for manual operation.

CAUTION

• Do not line the oven with foil as it will damage the enamel.

• New appliances can have an odour during first use. It is recommended to ‘run in’ the oven before cooking for the first time. Operate the oven(s), empty, at a temperature of 180°C for approximately 30 minutes. For appliances with a separate grill, run the grill on maximum for 15 minutes WITH GRILL DOOR OPEN. Please ensure that the room is well ventilated during this process.

WVEP615 controller

• After the appliance has been electrically connected, “12” and the “Set Clock” symbol “

• To set the time of day “Hours” press the buttons.

• Press the “Clock” button and the time of day “Minutes” will flash and can be set in the same manner.

• After 5 seconds from the last change, the clock display will stop flashing, confirming the time is set.

NOTE: The clock has a 24-hour display.

“ will flash.

Programmable controller (WVE607, WVE617 & WVEP618)

• After the appliance has been electrically connected, the “Set clock” symbol display.

• To set the time of day, press

• After 5 seconds from the last change the “Timer arrow” symbol has been set.

NOTE: The clock has a 24-hour display.

will disappear, confirming the time

will flash on the clock

or symbols.

Setting the time of day

If you have purchased a model fitted with an electronic clock or programmable controller, you must set the time of day before you can operate your appliance.

Electronic clock

• After the appliance has been electrically connected, “12.00” will be displayed and the “Clock” indicator symbol

• To set the time of day, press the

• After 5 seconds from the last change, the “Clock” indicator symbol time has been set.

NOTE: The clock has a 24-hour display.

will flash.

or symbols.

will disappear, confirming the

7BEFORE FIRST USE

TIPS & INFORMATION

INSTALLING YOUR OVEN ACCESSORIES

Left Hand

Slides (Telescopic runners)

1. Obtain left hand side rack and left hand slide – see

image to identify.

L = left hand side R = right hand side

2. Fit slide rear clips to the rear of wire at an angle as

shown below.

• The catalytic liners attach to each side of your oven. There is a left hand and right hand version. The black, shiny side of the liner needs to touch the oven wall, while the coarse side faces the centre of the oven.

• Depending on the model, catalytic liners may or may not have a cutout for the side light.

• To install the catalytic liner, firstly fit the liner onto the side rack. The combined liner and side rack can then be fitted onto the side of the oven.

Side racks

• The side racks attach to each side of your oven. There is a left hand and right hand version (see image below for details).

• Insert the rear peg into the rear access hole provided, ensuring that the peg is fully inserted.

• Then locate the front peg into the front access hole and push in firmly.

• For the grill compartments on WVE626 and WVE665

models, the side rack fitment is the same as above.

Front Peg

Side Rack

Rear Peg

3. Push slide front clip over wire until secure.

CLICK!

Catalytic liners (on selected models)

IMPORTANT

Models which contain catalytic liners have 2 catalytic side liners (to be fitted by you) and a catalytic fan cover (already fitted).

NOTE: If your model does not have catalytic liners, they are available for purchase from the Customer Care Centre.

Catalytic liners are coated with a specially formulated enamel coating. This porous coating enables a “self cleaning” process. Catalytic liners must be installed first but you can omit them, if you wish, with no effect to cooking performance. Their sole purpose is to make oven cleaning easier.

Left hand side rack

front peg rear peg

Left hand liner (shiny side touches the oven wall)

OPERATION

8 INSTALLING OVEN ACCESSORIES

Shelves and trays

TIPS & INFORMATION

IMPORTANT

The shelves are designed so that they have maximum travel but cannot be accidentally pulled right out. The trays are designed the same way and fit straight into the side racks.

To fit a shelf or tray to side racks:

• Locate the rear edge of the shelf/tray in between 2 guide rails of the side rack - see diagram. Ensure the same rail positions on both sides of the oven are being engaged.

• With the front edge raised, begin to slide the shelf into the oven.

• Once the detents have passed the front edge of the side rack, the shelf can be pushed completely in.

• The grill/baking tray for separate grill wall oven models slides into the wire runners in a similar manner.

• When fully inserted the shelf/tray should not interfere with the closed oven door.

• Remove extra trays and dishes before roasting or baking.

To fit a shelf or tray to telescopic slides (where fitted):

• With the slides fully pushed in, push the shelf or tray along the top of the slide until it hits the back post.

• Drop the front of the shelf or tray onto the slide ensuring it sits behind the front post of the slide.

• When fully inserted the shelf/tray should not interfere with the closed oven door.

Front post

Back post

9INSTALLING OVEN ACCESSORIES

TIPS & INFORMATION

INSTALLING YOUR OVEN ACCESSORIES

Shelves and trays (WVEP615 only)

IMPORTANT

Your oven comes with formed “easy clean” runners. The shelves are designed to travel freely on runners without being pulled out accidentally. Make sure you have the shelf in the correct orientation before you slide it in, otherwise it could become jammed.

• Locate the rear edge of the shelf in the recess between 2 formed runners.

NOTE: The Top ‘Ledge’ is not a shelf position.

• With the front edge raised, begin to slide the shelf into the oven. Lower the front edge as you push the shelf completely in.

• The grill/baking tray for underbench oven models sits into a wire carrier that fits into the oven exactly like the shelves.

• When fully inserted, the shelf/tray should not interfere with the closed oven door.

NOTE: Shelves and accessories must be removed when using pyrolytic cleaning function.

Shelves and trays (WVE655 only)

• To insert the grill tray in a separate grill underbench product, open the grill door and fully extend the grill drawer. Position the grill tray so that the slots on the outer edges fit over the tabs on the slides.

note the orientation of the side and rear features

10 INSTALLING OVEN ACCESSORIES

USING YOUR OVEN

Understanding your oven functions

Your oven will have a selection of the following functions. Refer to “Description of your appliance” to confirm what functions are available to you.

Large oven

Rapid Heat/Fast Heat Up (FHU)

Heat comes from the element surrounding the fan as well as the smaller element above the food. This allows you to preheat your oven 30% quicker than with standard “Bake”. “Rapid heat” is ideal for cooking frozen precooked foods such as savoury pastries, pizzas, mini meals (TV dinners), meat pies and fruit pies. Simply place the food in the oven straight from the freezer and heat – ideal for busy people.

Fan Bake

Heat comes from the element surrounding the fan. This fan circulates the hot air around the oven cavity so that you can put your food in different places in the oven and still cook them at the same time. You can use the “Fan bake” function for multi-shelf cooking, reheating cooked foods, pastries and complete oven meals. It will cook at a lower temperature and be faster than baking. Please note that some variation in browning is normal.

Steam Assisted Cooking (WVE617 model only)

Perfect for all kinds of meat, poultry and fish dishes. The hot air ensures the outside of the food is sealed whilst the steam keeps the inside tender. Steam comes from the outlet pipe and heat comes from the element surrounding the fan. This fan circulates the hot air and steam around the oven cavity so that you can position the food anywhere in the oven. The browning of meat or fish will be perfect, with the best cooking result at the core. Shape will be preserved and evenly firm. Vegetables will retain a high level of nutrients.

NOTE: Steam will only start if the water tank has been filled and the oven temperature is above 130°C.

Base Heat

Heat comes from the element below the food. The element is controlled by the thermostat and will turn on and off to maintain the set temperature. The “Base heat” function can be used to add extra browning to the bases of pizzas, pies and pastries. Cook in the lower half of the oven when you are using only one shelf. For best results, use silver or shiny trays.

Bake/Pizza

Heat comes from two elements, one above and one below the food. The bottom element is a clean heat element and is below the floor of the oven. Both elements are controlled by the thermostat and will turn on and off to maintain the set temperature. You can use the “Bake” function for a single tray of biscuits, scones, muffins, cakes, slices, casseroles, baked puddings, roasts and delicate egg dishes.

Fan Assist

Heat comes from two elements, one above and one below the food. The fan circulates the hot air around the oven cavity so that you can put the food in different places in the oven and still cook them at the same time. You should only use a maximum of 2 shelves with “Fan assist”. Do not use the bottom shelf. If two shelves are used, the food on the shelf in the higher position will cook first and should then be removed to allow the food on the lower shelf to finish cooking.

11USING YOUR OVEN

USING YOUR OVEN (CONTINUED)

Pizza

“Pizza” is a combination of “Base heat” and “Fan bake” and offers you the combined benefits of both functions. Heat comes from the element surrounding the fan as well as the clean heat element below the oven floor. The “Pizza” function is ideal for foods that require cooking and browning on the base. It is great for foods such as pizzas, quiches, meat pies and fruit pies. Simply place the food in the middle of the oven and set the desired temperature.

Pizza + Steam (WVE617 model only)

This function creates a great pizza in terms of crispy crust and uniform browning on top. “Pizza + Steam” is a combination of “Base heat”, “Fan bake” and “Steam” and offers you the combined benefits of each of these functions. Heat comes from the element surrounding the fan as well as the clean heat element below the oven floor.

NOTE: Steam will only start if the water tank has been filled and the oven temperature is above 130°C.

Defrost

The “Defrost” function uses low temperature air which is circulated by the fan. You can defrost (thaw) your food before you cook it. Also you may use “Defrost” to raise yeast dough or to dry fruit, vegetables or herbs.

Fan Grill (grill in oven models only)

“Fan grill” offers you the benefits of both “Bake” and traditional “Grill” functions. The grill element turns on and off to maintain the set temperature while the fan circulates the heated air. The oven door remains closed for fan grill. You can use “Fan grill” for large cuts of meat in the oven which gives you a result that is similar to “rotisserie” cooked meat. Put your food on a shelf in the second lowest shelf position. Put the grill dish on the lowest shelf position to catch any spills. When using “Fan grill” it is not necessary to turn the food over during the cooking cycle. Set temperature to 180°C.

Steam Reheat (WVE617 model only)

A great function for reheating dishes like rice, pasta and pizza that can suffer from dryness in normal ovens or sogginess in microwave ovens. Steam comes from the outlet pipe and heat switches from between the element surrounding the fan and the clean heat element below the oven floor. This function has a set temperature of 130°C.

NOTE: Steam will only start if the water tank has been filled and the oven temperature is above 130°C.

130°C

Grill (grill in oven models only)

“Grill” directs radiant heat from the powerful upper element onto the food. You can use the “Grill” function for tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking foods. Grill with the oven door closed. Preheat your grill for 3 minutes to get the best results. This will help seal in the natural juices of steak, chops etc. for a better flavour. You can slide your grill dish into either of the 2 spaces within the upper pairs of support rails.

12 USING YOUR OVEN

Maxi Grill (grill in oven models only)

Fan Assist (duo small oven only)

“Maxi grill” directs radiant heat from 2 powerful upper elements onto the food. You can use the “Maxi grill” function for tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking foods. Grill with the oven door closed. “Maxi grill” allows you to take full advantage of the large grill dish area and will cook faster than normal “Grill”. For best results it is recommended to preheat your grill for 3 minutes. This will help seal in the natural juices of steak, chops etc. for a better flavour.

Pyro Clean (WVEP615 & WVEP618 models only)

The “Pyrolytic cleaning” function is used for cleaning the main oven. It cleans by burning off the spatters and temperature. This process produces ash which can be wiped out of the oven cavity.

Heat comes from two elements, one above and one below the food. The fan circulates the hot air around the oven cavity to deliver very even cooking.

Grill (small oven only)

The “Grill” directs radiant heat from the powerful upper element onto the food. You can use the “Grill” function for tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking foods. Preheat your grill for 3 minutes to get the best results. This will help seal in the natural juices of steak, chops etc. for a better flavour. The grill dish should be positioned between the upper pair of support rails.

NOTE: Grill with the grill door open.

Small oven/grill

1. Bake (duo small oven only)

Split Grill (small oven only)

The “Split grill” works in the same way as a full width grill but with the added advantage of being able to optimise the energy usage for smaller servings.

NOTE: Grill with the grill door open.

13USING YOUR OVEN

WARNING

USING YOUR OVEN (CONTINUED)

TIPS & INFORMATION

IMPORTANT

Cooling/Venting fan

This appliance is fitted with a cooling fan. This prevents your kitchen cabinet from overheating and reduces the condensation inside the oven. It will operate whenever you are using the oven and blow warm air across the top of the oven door.

NOTE: For selected models only. When setting delayed start, the cooling fan will operate as soon as the function is selected. This will minimise condensation build up in the appliance..

Condensation and steam

This appliance is supplied with an exclusive system which produces a natural circulation of air and the constant recycling of steam. This steam makes it possible to cook in a steamy environment ensuring that dishes are soft inside and crusty on the outside. This process also reduces cooking time and energy consumption. During cooking, steam may be produced and released when the door is opened. This is absolutely normal. When food is heated, it produces steam in the same way a boiling kettle does. When steam comes into contact with the oven door glass, it will condense and produce water droplets. To reduce condensation, ensure that the oven is pre-heated before placing food in the oven cavity. It is recommended that condensation is wiped away after each use of the oven.

The effects of dishes on cooking results

Dishes and tins vary in their thickness, conductivity, colour etc. which affects the way they transfer heat to the food.

• Aluminium, earthenware, oven glassware and bright shiny utensils reduce cooking and base browning.

• Enamelled cast iron, anodized aluminium, aluminium with non-stick interior and coloured exterior and dark, heavy utensils increase cooking and base browning.

• To increase base browning simply lower the shelf position. To increase top browning, raise the shelf position.

• Always place dishes centrally on the shelf to ensure even browning.

• Single level cooking gives best results in conventional modes. If cooking on more than one level use a fan cooking function.

Operating your oven temperature selector (selected models only)

A thermostat controls the temperature in your appliance. The temperature can be selected within the specified range. To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on. When the set temperature is reached, the element switches off and the indicator light goes off. When the oven temperature falls below the set temperature, the element switches on and the oven indicator light comes on again.

CAUTION

Once the food is cooked, turn the temperature selector back in an anti-clockwise direction. Do not force it right round in a clockwise direction as this will result in damage to the thermostat.

NOTE: For multifunction ovens the desired cooking function must be selected before the oven will operate. Once the desired function has been selected, use the temperature selector to set the required temperature.

Pre-heating your appliance

For best results when baking you must pre-heat the oven for 30 minutes. Pre-heat the grill for 3 minutes to obtain best results. Pre-heating your appliance allows it to reach the required temperature quickly and efficiently. When baking bread or cakes, load the oven as quickly as possible after pre-heating and leave the oven door open for the shortest time. This will minimise loss of heat from the oven and ensure the best results.

Pre-heating with “Rapid Heat” (selected models only)

For electric multifunction appliances preheat your oven by selecting the “rapid heat” function. This function allows your oven to reach the preset temperature quicker than any other cooking function.

• Turn the function selector to “Rapid Heat”.

• Set the desired pre-heat temperature, by rotating your oven temperature selector. When the indicator light goes out the oven has reached the desired preset temperature. Select the oven function you require for cooking or baking and place your food into the oven.

Pre-heating with “Fast Heat Up - FHU” (WVE617 and WVEP618 models only)

“Fast Heat Up” can be selected in the initial heat up phase of any cooking function. During “Fast Heat Up”, the heat comes from the element surrounding the fan as well as the smaller element above the food. This allows you to preheat your oven 30% quicker than on standard “Bake”.

Pre-heating with other functions

• It is recommended you preheat your appliance when cooking or baking.

• Set the desired pre-heat temperature, by rotating your oven temperature selector. When the indicator light goes out the oven has reached the desired preset temperature, place your food into the oven.

Pre-heating “grill”

• Preheat the grill for at least 3 minutes to obtain best results. This will help to seal the natural juices of steak, chops and other meats for a better flavour.

14 USING YOUR OVEN

Cooking with your timer (selected models only)

WARNING

CAUTION

Set the timer clockwise. Do not force anticlockwise or damage to the timer will result.

120 minute “Auto off” timer

The 120 minute timer features an automatic oven cut off This means that a cooking period of up to 120 minutes can be set. When the timer has counted back to “Auto off”, a bell will sound and the oven will automatically switch off.

Once automatic baking is complete, return to manual operation by setting the timer to the “OFF” mark.

General features

The oven is equipped with an electronic clock that can be used to turn the oven on and off automatically. The ‘Cook time’ function automatically turns the oven off after a set amount of time. The ‘End time’ function is used to set the time of day you want the cooking cycle to finish. A “Delayed start” is possible by combining the “Cook time” and “End time” features to switch the oven on and off at a specific time during the day.

NOTE: Your touch control clock only operates with your main oven.

Setting the time of day (after electrical connection)

1. After the appliance has been electrically connected, “12.00” will be displayed and the “Clock” indicator symbol

2. To set the time of day, press the while the “Clock” indicator symbol

3. After 5 seconds from the last change, the “Clock” indicator symbol time has been set.

NOTE: The clock has a 24-hour display.

will flash.

or symbols

is flashing.

will disappear, confirming the

Changing the time of day

90 minute “Auto Off” timer

The 90 minute timer features an automatic oven “cut off”. This means that a cooking period of up to 90 minutes can be set. When the timer has counted back to “Auto Off”, a ding will sound and the oven will automatically switch off.

Once automatic baking is complete, return to manual operation by setting the timer to the “OFF” mark.

NOTE: It is not recommended to use this timer for short durations (e.g. boiling eggs).

NOTE: For any time below fifteen minutes turn the knob past the forty minute mark then turn back to the required number of minutes. When the timer returns to zero/off position, the timer gives a short ring/ding.

Operating the electronic clock (selected models only)

1. Press “Mode” until the “Clock” indicator symbol begins flashing.

2. To set the time of day, press the while the “Clock” indicator symbol

3. After 5 seconds from the last change, the “Clock” indicator symbol time has been set.

will disappear, confirming the

or symbols

is flashing.

Setting the minute minder

1. Press “Mode“ until the “Timer” indicator symbol begins flashing.

2. Set the countdown time by using while the “Timer” indicator symbol

3. After 5 seconds from the last change, the “Timer” indicator symbol timer has been set. The countdown time remaining will appear on the display.

4. Once the set time has elapsed, a beeper will sound for 1 minute. The time indication “0.00” and a flashing “Timer” indicator symbol

5. To stop the beeper, press

NOTE: This feature has no effect on the oven operation. With the minder operating, the time of day cannot be displayed.

will stop flashing, confirming the

will appear on the display.

, symbols or “mode”.

and symbols

is flashing.

15USING YOUR OVEN

USING YOUR OVEN (CONTINUED)

Setting the cooking duration

1. Select the desired oven and

. The oven indicator light will appear and the

heating source will switch on.

2. Press until the indicator symbol begins flashing.

3. Set the cooking duration by using or

symbols while the

indicator symbol

is flashing.

4. After 5 seconds from the last change, the

indicator symbol will stop flashing,

and the time of day will be displayed.

NOTE: Do not forget to add pre-heating time if necessary.

Setting the cooking end time

1. Select the desired oven and .

2. Press

begins flashing.

3. Enter the time of day to finish cooking by pressing

or is flashing.

4. After 5 seconds from the last change, the

indicator symbol time of day will be displayed.

until the indicator symbol

symbols while the indicator symbol

will stop flashing and the current

Setting the delayed start cooking time

1. Program the and as described in

the relevant sections. Once both the

have been set, the and indicators will stop flashing and the current time of day will be displayed.

NOTE: Do not forget to add pre-heating time if necessary.

and

To check or cancel settings settings

1. To check your settings, press until the indicator symbol flashes next to the mode ( , etc) that you want to display. After 5 seconds from the last change, the indicator will stop flashing and the time of day will be displayed.

2. To cancel “delayed start”, press indicator symbol flashes next to . Press and hold and symbols together until the current time of day is displayed.

3. To cancel a setting, press “Mode” until the indicator symbol flashes next to the setting to be cancelled. Press and hold setting is cleared.

and symbols together until the

until the

On completion of cooking

When the set time has elapsed, the oven will turn off, the timer will beep and the and/or indicators will flash.

1. Turn the position.

and controls to the off

2. Press beeping.

or symbols or to stop the clock from

Switching the clock display ON and OFF

1. Press together and symbols for 3 seconds to switch off the display.

2. Press together switch the clock display on again.

NOTE: If a timer mode is set, then it is not possible to switch the display off.

and symbols for 3 seconds to

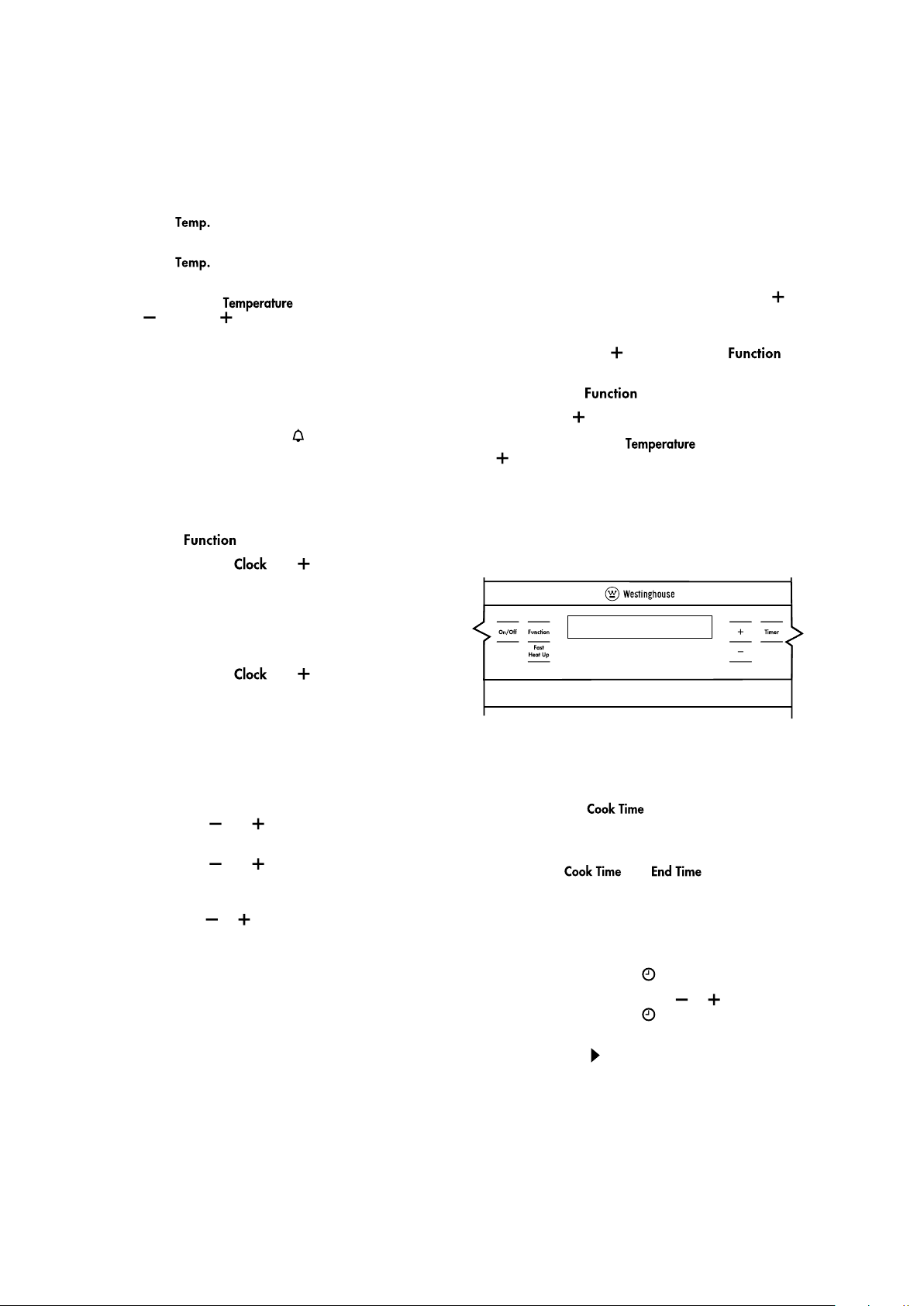

Operating the Electronic Clock (WVEP615)

General features

The oven is equipped with an electronic clock that can be used to turn the oven on and off automatically. The

function automatically turns the oven off after a set amount of time. The function is used to set the time of day you want the cooking cycle to finish. A “Delayed start” is possible by combining the and features to switch the oven on and off at a specific time during the day.

Setting the time of day (after electrical connection):

1. After the appliance has been electrically connected,

“12” and the “Set Clock” symbol

2. To set the time of day “Hours” press the

buttons while the “Set Clock” symbol

3. Press the

will flash and can be set in the same manner.

4. After 5 seconds from the last change, the clock

display will stop flashing, confirming the time is set.

NOTE: The clock has a 24-hour display.

button and the time of day “Minutes”

will flash.

is flashing.

Changing the time of day

1. Press button until the “Set clock” symbol

begins to flash on the clock display.

2. To set the time of day “Hours” press the

buttons while the “Set Clock” symbol

3. Press the

will flash and can be set in the same manner.

4. After 5 seconds from the last change, the clock

display will stop flashing, confirming the time is set.

NOTE: The clock has a 24-hour display.

button and the time of day “Minutes”

is flashing.

16 USING YOUR OVEN

Setting the oven function

1. Turn the oven selector clockwise to select the desired oven function. The default temperature for that function will be shown on the display.

2. After 5 seconds from the last change, the oven will begin heating and the “Elapsed time” commences on the display.

Changing the oven temperature

1. Toggle the selector left ( ) or right ( ) as required to set the desired cooking temperature. The temperature setting changes in increments of 5°C.

2. The set temperature is displayed for 5 seconds from the last change.

NOTE: The temperature can be adjusted at any time. Oven temperature cannot be changed for the Defrost or Pyro function.

Setting the cooking duration

1. Select the desired oven function and cooking temperature.

2. Press “Clock” button until the

appears flashing.

3. Set the desired cooking duration “Minutes” by using

or buttons while the symbol

is flashing.

4. Press the “Hours” will flash and can be set in the same manner.

5. After 5 seconds from the last change, the symbol will stop flashing confirming the cooking duration is set.

6. A countdown of the “Cooking time remaining” will be shown on the display.

7. When the set time has elapsed, a signal will sound and the oven will turn off. To stop the signal, press any button on the clock and then turn the oven

NOTE: Do not forget to add pre-heating time if necessary. Cooking duration cannot be set for the Rapid Heat function. The cooking duration can be cancelled at any time by turning the “Function” selector to “Off”.

button and the cooking duration

selector to “Off”.

symbol

Setting the cooking end time

1. Select the desired oven function and cooking temperature.

2. Press appears flashing.

3. Set the desired time of day “Hours” to finish cooking by pressing

is flashing.

4. Press the to finish cooking will flash and can be set in the same manner.

button until the symbol

or buttons while the symbol

button and the time of day “Minutes”

5. After 5 seconds from last change, the symbol will stop flashing confirming the cooking end time

is set.

6. The “Cooking end time” will be shown on the display.

7. When the set time has elapsed, a signal will sound

and the oven will turn off. To stop the signal, press any button on the clock and then turn the oven

selector to “Off”.

NOTE: Cooking end time cannot be set for the Rapid Heat function. The cooking duration can be cancelled at any time by turning the “Function” selector to “Off”.

Setting the delayed start cooking time

1. Program the and as described in

the relevant sections. Once both the

have been set, the and indicators will stop flashing and the “Set temperature” will be displayed.

NOTE: Do not forget to add pre-heating time if necessary. Delayed start cooking time cannot be set for the Rapid Heat function. The delayed start cooking time can be cancelled at any time by turning the “Function” selector to “Off”.

and

Setting the minute minder

1. Press the button and the “Minute minder” symbol begins to flash.

2. Set the countdown time “Seconds” by using

buttons while the minute minder symbol

3. Press the

“Minutes” will flash and can be set in the same manner.

4. Press the

“Hours” will flash and can be set in the same manner.

5. After 5 seconds from the last change, the “Minute

minder” symbol been set.

6. Once the set time has elapsed, a signal will sound for

1 minute. The time indication “0.00” and a flashing “Minute minder” symbol

7. To stop the signal, press any button on the clock.

8. To cancel the minute minder, press the

the display will flash. Then press and hold and buttons together until the minute minder is cleared.

NOTE: This feature has no effect on the oven operation. With the oven “Off’ and minute minder operating, the time of day cannot be displayed.

button and the countdown time

button and set the countdown time

will stop flashing confirming it has

will appear on the display.

and

is flashing.

button and

Elapsed time

When an oven function is selected (other than pyrolytic clean), after 5 seconds the “Elapsed time” is displayed.

1. To reset the “Elapsed time”, press and hold both the and buttons until the timer is reset.

17USING YOUR OVEN

USING YOUR OVEN (CONTINUED)

Displaying the oven centre and set temperature (other than pyrolytic clean function)

1. Press the and the “Oven centre temperature” is displayed.

2. Press the the “Oven set temperature” is displayed.

3. Alternatively, the left (

) or right ( ) for 1 second and the “Oven set

temperature” is displayed.

NOTE: This temperature is displayed for 5 seconds.

button when the oven is operating

button again within 5 seconds and

selector can be toggled

Light operation (WVEP615 only)

1. At any time, the oven lamp can be switched on or off by pressing and holding the

button for 5 seconds.

Activating the child-proof lock

When the child lock is engaged, the oven cannot be operated and the door cannot be opened.

1. Switch the

2. Press and hold the time until the word ‘SAFE’ is displayed and a double beep sounds. The word safe will be replaced by a padlock symbol on the display after 5 seconds.

selector to “Off”.

and buttons at the same

DEMO mode

The oven can be set to operate in a demo (e.g. in a retail store) mode. In this mode the oven does not actually heat if the oven has been inadvertently supplied in this mode. The following instructions demonstrate how to exit this mode.

1. Ensure the oven is “Off”. Press and hold the until a beep sounds. The ‘Demo’ text on the display will flash.

2. While holding the to the first oven function until another beep is heard.

3. Then turn the

4. Release the

5. Toggle and hold the

) until 3 beeps sound. The ‘Demo’ text will no longer be displayed and the oven will function normally. If the ‘Demo’ text is still displayed repeat the above procedure.

button, turn the selector

selector to the ‘Off’ position.

button.

selector to the right (

button

Operating the Programmable Controller (WVE607, WVE617 & WVEP618)

De-activating the child-proof lock

1. Press and hold the and buttons at the same time until a double beep sounds. This will commence to unlock the door and after 5 seconds the oven is ready for use.

Switching the clock display ON and OFF

When the oven is off, the clock display can be switched on and off.

1. Press together switch off the display.

2. Press together switch the clock display on again.

When the oven is off and the display is set to the ‘off’ state, pressing the day for 5 seconds then turn off the display.

NOTE: If a timer mode is set or the oven is operating, then it is not possible to switch the display off.

and symbols for 2 seconds to

or buttons will display the time of

Safety cut-out feature

The oven will automatically switch “Off” if the temperature is not adjusted or the appliance is left operating for a period of time. The oven switches itself off after:

1. 12.5 hours when the temperature is set between 30°C and 120°C.

2. 8.5 hours when the temperature is set between 120°C and 200°C.

3. 5.5 hours when the temperature is set between 200°C and 250°C.

4. 3.0 hours when the temperature is set at 250°C.

General features

The oven is equipped with a programmable controller that can be used to turn the oven on and off automatically. The function automatically turns the oven off after a set amount of time. The ‘End time’ function is used to set the time of day you want the cooking cycle to finish. A “Delayed start” is possible by combining the and features to switch the oven on and off at a specific time during the day.

Setting the time of day (after electrical connection):

1. After the appliance has been electrically connected, the “Set clock” symbol

2. To set the time of day, press the “Set clock” symbol

3. After 5 seconds from the last change, the “Timer arrow” symbol has been set.

NOTE: The clock has a 24-hour display.

will disappear confirming the time

will flash on the display.

or symbols while

is flashing.

18 USING YOUR OVEN

Changing the time of day

Setting the cooking end time

1. Switch the appliance “Off” by pressing “On / Off”.

2. Press symbol symbol

3. To set the time of day, press the “Set clock” symbol

4. After 5 seconds from the last change, the “Set clock” symbol confirming the time has been set.

button repeatedly until the “Set clock”

appears flashing with the “Timer arrow”

on the display.

or symbols while

is flashing.

and “Timer arrow” symbol will disappear,

Setting the oven function

1. Switch the appliance “On” by pressing “On / Off”. The oven light will turn on.

2. Press oven function appears. The suggested cooking temperature for that function will appear in the display which can be changed as described below. After 5 seconds from the last change, the oven will begin to heat.

NOTE: If the oven temperature is less than the set temperature, the oven temperature and a rising thermometer icon is displayed. When the oven temperature reaches the set temperature, 4 beeps sound and the set temperature and full thermometer icon are displayed. If the set temperature is less than the oven temperature, the set temperature and a full thermometer icon is displayed.

button repeatedly until the desired

1. Select the desired oven function and cooking temperature.

2. Press symbol symbol

3. Set the desired time of day to finish cooking by pressing symbol

4. After 5 seconds from the last change, the “Timer arrow” symbol cooking end time is set.

5. A countdown of the “Cooking time remaining” will be shown on the display.

6. When the set time has elapsed, signal will sound and the oven will turn off. To stop the signal, press any button on the clock and then turn the oven selector to “Off”

button repeatedly until the

appears flashing with the “Timer arrow”

on the display.

or symbols while the “Timer arrow”

remains flashing.

will disappear confirming the

Setting the delayed start cooking time

1. Program the “Cooking duration” and “Cooking end time” Once both “Cooking duration” and “Cooking end time”

will stop flashing. Cooking duration and oven set

temperature will be displayed.

NOTE: Do not forget to add pre-heating time if necessary.

as described in the relevant sections.

has been set, the cooking end time symbol

Changing the oven temperature

1. Press or symbols to decrease or increase the temperature setting. The temperature setting changes in increments of 5°C.

NOTE: The temperature can be adjusted at any time. Oven temperature cannot be changed for the Defrost function. For model WVEP 618, oven temperature cannot be changed for the Pyro function.

Setting the cooking duration

1. Select the desired oven function and cooking temperature.

2. Press symbol appears flashing with the “Timer arrow” symbol

3. Set the desired cooking duration by pressing symbols while the “Timer arrow” symbol

4. After 5 seconds from the last change, the “Timer arrow” symbol cooking duration is set.

5. A countdown of the “Cooking time remaining” will be shown onthe display.

6. When the set time has elapsed, signal will sound and the oven will turn off. To stop the signal, press any button on the clock and then turn the oven selector to “Off”

NOTE: Do not forget to add pre-heating time if necessary.

button repeatedly until the

on the display.

is flashing.

will disappear confirming the

To check or cancel settings

1. To check your settings, press until the setting you want to check is displayed.

2. To cancel “cooking end time” press

symbol appears flashing with the “Timer arrow” symbol the clock no longer reverses you will hear a beep. If the oven is set, the oven will start once the “Timer arrow” symbol

3. To cancel “cooking duration” press

arrow” symbol clock no longer reverses you will hear a beep. This automatically cancels “delayed start” and if the oven “Function” is set, the oven will start once the “Timer arrow” symbol cancelled “auto shut off” the oven will continue to heat until you manually turn it off.

. Press and hold symbol until

stops flashing.

symbol appears flashing with the “Timer

. Press and hold symbol until the

stops flashing. Because you have

until

On completion of cooking

When the set time has elapsed, the oven will turn off and a beeper will sound. The remaining time indication “0:00” will appear on the display.

1. Press beeping.

or symbols to stop the clock from

19USING YOUR OVEN

TIPS & INFORMATION

USING YOUR OVEN (CONTINUED)

Setting the minute minder

The minute minder can be used with the oven on or off.

1. Press minder” symbol arrow” symbol

2. Set the countdown time by pressing symbols.

3. After 5 seconds from the last change, the “Timer arrow” symbol been set.

Once the set time has elapsed, a beeper will sound

4. for 1 minute. The time indication “0.00” and a flashing “Minute minder” symbol

5. Press or symbols to stop the clock from beeping.

NOTE: This feature has no effect on the oven operation.

button repeatedly until the “Minute

appears flashing with the “Timer

and

will stop flashing confirming it has

will appear on the display.

Using FHU (Fast Heat Up) mode

To quickly and efficiently pre-heat your oven, it is recommended to select the “Fast Heat Up” cooking feature.

1. Ensure the appliance is on by pressing “On/Off”.

2. Press oven function appears.

3. Press temperature setting.

Press “Fast Heat Up” and the letters “FHU” will appear

4. and alternate with “Oven temperature” on the display.

5. When the oven temperature reaches the set temperature, 4 beeps sound and the set temperature and full thermometer icon are displayed.

NOTE: “Fast Heat Up” cannot be selected if the oven temperature is above the set temperature.

button repeatedly until the desired

or symbols to decrease or increase the

Demo Mode

The oven can be set to operate in a demo (eg. in a retail store) mode. In this mode, the oven does not actually heat if the oven has been inadvertently supplied in this mode. The following instructions demonstrate how to exit this mode.

1. Ensure the oven is “Off”

2. Press and hold “On/Off” until the display returns to standby (unit will beep repeatedly whilst “On/Off” is pressed)

3. Press and hold simultaneously the “Timer” and “-” keys until three quick beeps are heard (approximately 2 seconds). The unit is now in Demo Mode and the clock symbol will be displayed.

4. To deactivate Demo Mode, repeat the same procedure above.

Activating the child-proof lock

When the child lock is activated, the oven cannot be switched on.

1. Switch off the appliance using “On/Off”.

2. Press and hold until the word “SAFE” appears on the display. The childproof lock is now engaged.

NOTE: When the child-proof lock function is activated, only the time of day and minute minder can be set. For model WVEP618, the oven door is also locked when the child lock is activated.

and symbol at the same time

De-activating the child-proof lock

1. Press and hold and symbol at the same time until the word “SAFE” is cleared from the display. The child-proof lock is now disengaged and the oven is ready to use.

Beep on touch

The “beep on touch” mode can be activated to sound anytime a button is pressed.

1. Switch the appliance “Off” by pressing “On / Off”.

2. Press and hold A single beep confirms mode is activated.

3. Repeat the procedure to de-activate.

NOTE: “On / Off” will continue to “beep on touch” when mode is de-activated.

and symbol at the same time.

Safety cut-out feature

The oven will automatically switch “Off” if the temperature is not adjusted or the appliance is left operating for a period of time. The oven switches itself off after:

1. 20 hours when the temperature is set between 30°C and 120°C.

2. 8.5 hours when the temperature is set between 120°C and 200°C.

3. 5.5 hours when the temperature is set between 200°C and 250°C.

Oven shelves

IMPORTANT

• Select the correct shelf location for food being cooked.

• Make sure dishes will fit into the oven before you switch it on.

• Keep edges of baking dishes at least 40mm from the side of the oven. This allows free circulation of heat and ensures even cooking.

• Do not open the oven door more than necessary.

• Do not place foods with a lot of liquid into the oven with other foods. This will cause food to steam and not brown.

After the oven is turned off it retains the heat for some

• time. Use this heat to finish custards or to dry bread.

20 USING YOUR OVEN

• Do not use a lot of cooking oil when roasting. This will prevent the splattering of oil on the sides of the oven and the oven door. Polyunsaturated fats can leave residue which is very difficult to remove.

• When cooking things which require a high heat from below (e.g. tarts), place the cooking dish on a scone tray in the desired shelf position.

• For sponges and cakes use aluminium, bright finished or non-stick utensils.

• Always remove unnecessary trays or dishes when roasting or baking.

Use the oven efficiently, by cooking many trays of food at the same time. For example:

• Cook 2 trays of scones, small cakes or sausage rolls.

• Cook a roast dinner at the same time as you cook chips or vegetables.

It is not recommended to use more than 2 shelves at a time. When cooking with 2 shelves use an oven fan function.

Oven shelf location (excluding WVEP615)

Your oven has seven positions for shelves. These are numbered from 1 (the lowest shelf position) to 7 (the highest shelf position). See diagram.

To give maximum space above and below the shelves, load them in this way:

• When cooking with 1 shelf, use position 3 or 4.

• When cooking with 2 shelves, use positions 3 and 5.

7 6

2 1

7 Position Rack

Oven shelf location (WVEP615)

Your oven comes with formed “easy clean” runners that allow five positions for shelves. These are numbered from 1 (the lowest shelf position) to 5 (the highest shelf position). See diagram.

To give maximum space above and below the shelves, load them in this way:

• When cooking with 1 shelf, use position 3.

• When cooking with 2 shelves, use positions 2 and 4.

Not a shelf position

Roasting meat

•

Place the meat in the oven and set the temperature between 180°C and 200°C. (It is recommended to wrap your meats in an oven roasting bag or foil to prevent fats and oils from splattering, making it easier to clean your oven.)

• Use the grill/oven dish and grill insert. Place the meat on the insert.

Do not pierce the meat, as this will allow juices to escape.

•

When the meat is cooked, take the roast out of the oven, wrap in aluminium foil and leave to stand for about 10 minutes. This will help retain the juices when the meat is carved.

The table shows temperatures and cooking times for different kinds of meat. These may vary depending on the thickness or bone content of the meat.

MEAT

RECOMMENDED TEMPERATURE 0C

RESULT

MINUTES PER KG

Rare 35 - 40

Beef 200

Medium 45 - 50

Well done 55 - 60

Lamb 200

Medium 40

Well done 60

Veal 180 Well done 60

Pork 200 Well done 60

Roasting poultry and fish

• Place the poultry or fish in an oven set at a moderate temperature of 180°C.

• Place a layer of foil over the fish for about three quarters of the cooking time.

The table shows temperatures and cooking times for different kinds of fish and poultry. These may vary depending on the thickness or bone content of the meat.

MEAT

RECOMMENDED TEMPERATURE 0C

MINUTES PER KG

Chicken 180 45 - 50

Duck 180 - 200 60 - 70

Turkey 180

40 - 45 (<10kg)

35 - 40 (>10kg)

Fish 180 20

21USING YOUR OVEN

COOKING GUIDE

Choosing the best oven settings

The following table is intended as a guide and experience may show some variation in cooking times necessary to meet individual requirements. It may be necessary to change some cooking times and temperatures from your previous oven. For best results when baking preheat your oven for 30 minutes.

Conventional cooking

FOOD TEMPERATURE 0C

Scones Plain or fruit 220 2 10 – 15

Biscuits Rolled

Spooned

Shortbread biscuits

Meringues Hard – individual

Soft – individual

Pavlova – 6 egg

Cakes Patty cakes

Sponge – 4 egg

Shallow butter cake

Rich fruit cake

Pastry – shortcrust

Pastry – choux Cream puffs 210 2 25 – 30

Yeast goods Bread 210 1 25 – 30

Cornish pasties

Custard tart

170

190

160

110

180

110

190

180

140

200

200/180

OVEN SHELF POSITION*

TIME IN MINUTES

10 – 15

12 – 15

30 – 35

15 – 20

20 – 30

30 – 40

180

40 – 45

10/20 – 30

Fan forced cooking

FOOD TEMPERATURE 0C

Scones Plain or fruit 210 Any 10 – 15

Biscuits Rolled

Meringues Hard – individual

Cakes Patty cakes

Pastry – shortcrust

Pastry – choux Cream puffs 200 Any 25 – 30

Yeast goods Bread 200 Any 25 – 30

* Counting from the bottom shelf up.

22 COOKING GUIDE

Spooned

Shortbread biscuits

Soft – individual

Pavlova – 6 egg

Sponge – 4 egg

Shallow butter cake

Rich fruit cake

Cornish pasties

Custard tart

150

180

150

100

165

100

180

170

130

180

190/170

OVEN SHELF POSITION*

Any

TIME IN MINUTES

10 – 15

12 – 15

30 – 35

15 – 20

20 – 30

30 – 40

180

40 – 45

20 – 30

OPERATION

WARNING

TIPS & INFORMATION

GRILLING GUIDE

Grilling hints

WARNING

Always clean the grill/oven dish after every use. Excessive fat build up may cause a fire.

As a method of cooking, grilling can be used to:

• Enhance the flavours of vegetables, fish, poultry and meat.

• Seal the surface of the food and retain the natural juices.

NOTE: Below is a table indicating the door position whilst grilling for each of the product types.

DESCRIPTION DOOR POSITION DURING GRILLING

Grill in oven Door FULLY closed

Separate grill Door FULLY open

This table shows how to grill different types of meat:

MEAT METHOD

Beef

Lamb

Sausages Prick sausages to stop skin from bursting.

Poultry Divide into serving pieces. Brush with oil.

Fish Brush with oil or melted butter and

Bacon Remove rind. Grill flat.

You can use tenderloin, rump, sirloin. Brush with oil or melted butter, especially if the meat is very lean.

You can use loin chops, shortloin chops, chump chops, and forequarter chops. Remove skin or cut at intervals to stop curling. Brush with oil or melted butter.

lemon juice.

Grilling with separate grill underbench

Your separate grill underbench appliance comes with a handle accessory to pull out and push in the grill tray frame.

Guide to better grilling

IMPORTANT

Definite times can not be given for grilling as it is dependant on the size of the food and your own tastes.

These times should only be used as a rough guide and remember to turn the food over halfway through the cooking process (except with fan grill).

For better grilling results, follow these easy instructions:

1. Remove oven/grill dish and grill insert and preheat grill for about 3 minutes.

2. Choose only prime cuts of meat or fish. If the cut is less than 5mm thick it will dry out. If the cut is more than 40mm thick, the outside may burn whilst the inside remains raw.

3. Do not place aluminium foil under the food as this prevents fats and oils from draining away, which could result in a fire.

4. Baste the food during cooking with butter, olive oil or marinade.

5. Use tongs to turn food as a fork pierces the surface allowing juices to escape.

MEAT TIME

Steak 15 - 20 minutes

Chops 20 - 30 minutes

Fish 8 - 10 minutes

Bacon 4 - 5 minutes

Fan grill (multifunction grill in oven models only)

If your appliance has fan grill as a function, this will assist the grilling process by circulating the heat evenly around the food. The recommended temperature setting is 180°C for all fan grilling functions.

1. Place the oven/grill dish on the bottom rack.

2. Place meat/poultry on an oven shelf above the oven/ grill dish.

3. Wipe off any oil or fat which spatters while the oven is still warm.

There is no need to turn the meat as both sides are cooked at the same time.

Operating the oven may result in a hot grill tray frame even without the grill being used. As it may be a hot surface, it is not recommended to touch the grill tray frame directly.

OPERATION

WARNING

23GRILLING GUIDE

TIPS & INFORMATION

STEAM COOKING GUIDE

(WVE617 model only)

IMPORTANT

Cooking with steam is a great addition to straight ‘hot air’ cooking. Steam brings out all the natural flavours and goodness in the food, cooks evenly from surface to centre and retains more nutrients and vitamins. Steam assisted cooking consistently produces juicy, succulent interiors with crisp, golden exteriors.

A hot steam function is selected as per a standard function, but with the addition of the steam symbol being illuminated in the display. Selection of temperature is also the same as for a normal function but the lower temperature limit will be higher for a steam function.

This oven has 3 dedicated steam functions that have been individually tuned to produce the best result with a combination of steam and heat application.

Steam cooking - perfect for all kinds meat, poultry and fish dishes. The hot air ensures the outside is sealed whilst the steam keeps the inside tender.

Steam reheat - great for reheating dishes like rice, pasta and pizza that can suffer from dryness in normal ovens or sogginess in microwave ovens.

Pizza + Steam - This function creates a great pizza in terms of crispy crust and uniform browning on top.

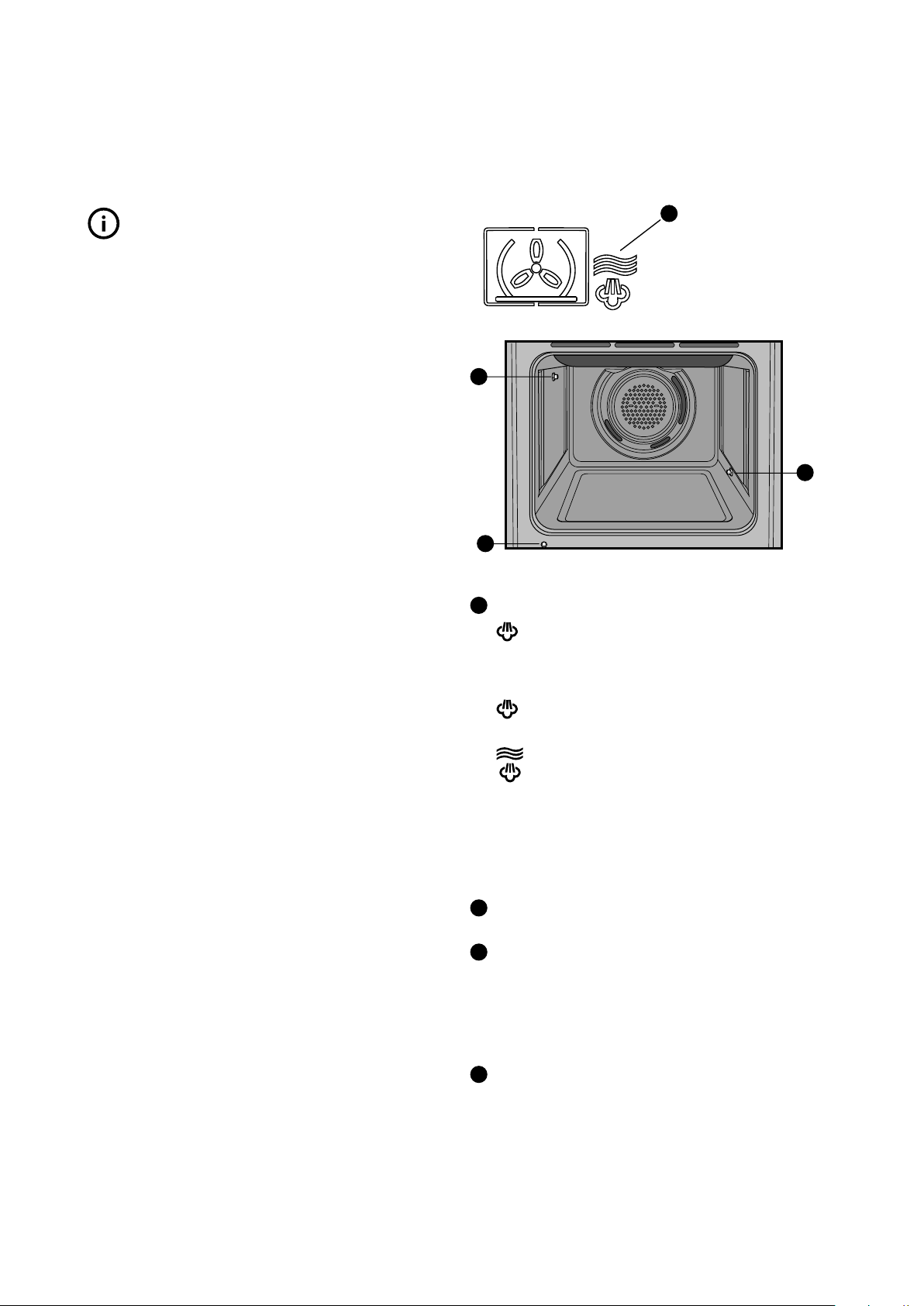

Steam product description

Water tank level Indicator

flashing and beeping – indicates the water tank

is empty and the user needs to refill the tank with water. The alarm sounds until the user refills the tank or selects a non-steam function.

flashing and beeping – indicates the water tank

NOTE: The key used for canceling the alarm may activate that function.

To be used with the draining pipe (supplied). When

always on – indicates water is present in tank.

is full when refilling. The alarm sounds for 100 seconds or until any button is pressed to cancel the alarm. The “full” symbol is then continuously displayed while the water tank remains full.

Steam outlet

This is where steam is injected into the oven.

Water overflow pipe

If the water tank is over filled, water will be dispensed into the oven from here. This is not a fault with the appliance as it prevents water spilling out of the water drawer which could create a hazard. If this occurs, mop up the overflow with a clean cloth and continue with the cooking function.

Water outlet valve.

cooking is finished, any water left in the tank is to be drained after the appliance has cooled down.

24 STEAM COOKING

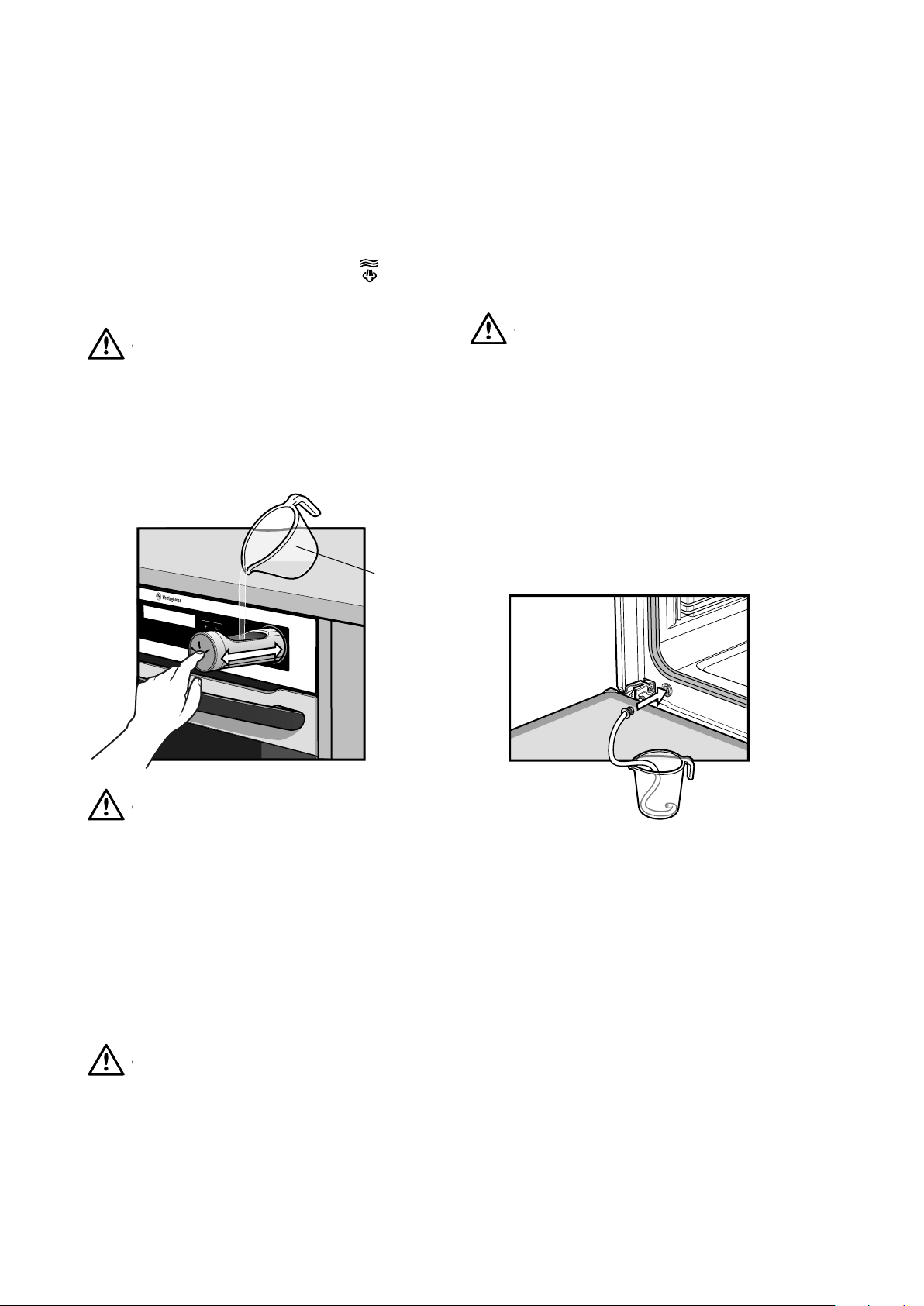

Steam operating sequence

WARNING

1. Open the water drawer in the control panel by pressing it.

2. Pour approximately 850mL of water into the drawer. Stop filling if alarm sounds and is displayed.

3. Close the water drawer.

6. Once cooking is complete, remove the food and turn off the oven. Leave the oven door ajar to aid drying out the oven.

7. Drain the water tank once the appliance is cool. (See “Emptying water tank”)

Emptying the water tank

WARNING

Take care when filling the water drawer. Spillage could create a slipping hazard. Immediately clean up any spills on the product, cabinet or floor. If the “overfull” alarm sounds immediately stop pouring water into the water drawer. If the tank is overfilled the excess will flow into the oven. This prevents leakage onto cabinets and is not a fault. Sponge up overflows if they occur.

Use measuring jug supplied

WARNING

Water in the tank can still be hot. Wait until the appliance is cool before the water tank is drained. Do not use the drained water to fill the water tank again.

The water tank must be emptied after every steam assisted cooking cycle.

1. Open the oven door to reveal the water outlet valve.

2. Insert the valve end of the supplied drain pipe into the water outlet valve. Ensure the other end is in a container that can take up to 1 litre.

3. Remove the drain pipe only when the water stops flowing.

4. Soak up any leakages with a sponge or cloth.

CAUTION

Do not use any liquid other than normal tap water. Do not use demineralised or distilled water. Doing so could affect the normal operation of the steam generator. Do not put solid matter into the water drawer.

4. Turn on the oven and select the steam cooking function and temperature. Set timer functions if desired.

5. Once the oven has reached the set temperature, place the food in the oven. A full water tank will last approximately 30 minutes. It may have to be refilled during a long cooking cycle, for example a roast.

WARNING

The steam will not be visible inside the oven when cooking with steam. Opening the oven door to place, remove or inspect the food will release it. Stand back when opening the door to avoid the risk of burns.

25STEAM COOKING

DEALING WITH COOKING PROBLEMS

PROBLEM CAUSES REMEDY

Uneven cooking • Incorrect shelf position • Select shelf suitable for cooking function. See

cooking function tables in cooking guide

• Oven tray too large • Experiment with other trays or dishes

• Trays not centralised • Centre trays

• Air flow in oven uneven • Rotate food during cooking

• Grill dish affecting thermostat • Remove grill dish from oven on bake modes

Baked products too brown on top

Baked products too brown on bottom

Cakes have a cracked thin crust

Baked products are pale, flat and undercooked

Cakes fallen in the centre

Roast meat, potatoes not browning in fan oven

Grilled meats outside is overcooked and centre is raw

Grilled chops and steaks curling

The steam cooking does not operate

It takes more than three minutes to empty the water tank or the water tank leaks from the steam outlet

Steam and condensation settle on the food and in the appliance

• Oven not preheated • Preheat oven

• Baking tins too large for the recipe • Use correct size tins

• Baking tins not evenly spaced • Stagger baking tins at least 3cm between tins and oven walls

• Products not evenly sized or

spaced on trays

• Baking temperature too high • Lower the temperature

• Baking tins too large for the recipe • Use correct size tins

• Baking tins are a dark metal or glass • Change to shiny, light tins or lower the temp

• Food too low in the oven • Cook one shelf higher

• Oven door opened too frequently

during baking

• Baking temperature too high • Lower the temperature

• Grill dish affecting thermostat • Remove grill dish from oven on bake modes

• Baking temperature too high • Lower the temperature

• Food too high in oven • Cook one shelf lower

• Cake batter over mixed • Mix just long enough to combine ingredients

• Pan too deep • Check size of pan

• Baking pans dark • Change to shiny pans

• Baking temperature too low • Raise the temperature

• Food too low in oven • Cook one shelf higher

• Baking time too short • Increase the cooking time

• Incorrect size tin • Use the correct size tin

• Baking temperature too low • Raise the temperature

• Baking time too short • Increase the cooking time

• Proportions of ingredients incorrect • Check recipe

• Door opened too early in baking • Do not open door until the last quarter of

• Poor air circulation • Elevate food onto a rack to allow air circulation

• Grill dish affecting thermostat • Remove grill dish from oven on bake modes

• Juices running out of meat • Do not pierce meat with a fork

• There is no water in the tank • Fill the water tank

• Limescale is obstructing the hole • Check the steam outlet opening and remove

• There are lime deposits in the

appliance

• The dish has been left in the oven

for too long

• Make into same size and shape, and spread evenly over trays

by 10°C

• Don’t open the door until at least half the cooking time has passed

cooking time

• Grill at lower insert position

• Cut into fat every 2cm

the lime

• Check the water tank and refer to the chapter on Cleaning the water tank

• Do not keep the dishes in the appliance for longer than 15-20 minutes after the cooking ends

26 COOKING PROBLEMS

GETTING TO KNOW THE OVEN

Get to know the oven with this ‘Simple Test Cake’

Although we strive for a perfect performing oven, it’s possible that there will be some variation in colour when baking. Therefore, we suggest this simple, easy and delicious to make Simple Test Cake, it can help you understand your new oven. All ovens do sometimes have hot or cold spots, therefore it is important to judge with your eye as you may require to rotate during baking.

‘Simple Test Cake’

125g butter, softened to room temperature

1 cup caster sugar

1 teaspoon pure vanilla essence

4 large eggs

2 cups self-raising flour

pinch of salt

4 tablespoons (80mL) full-cream milk

Method:

Butter base and sides of 2, 20cm straight-sided round or square cake pans. Then line the base with grease proof or baking paper.

Preheat oven to moderate ‘180 ensure oven shelf is in the centre position of oven.

Cream softened butter and sugar until light in colour.

Add vanilla essence.

Then add eggs one at a time, beating well after each addition.

Sift flour and salt into the mixture and beat until well combined.

Add milk and beat or stir to combine.

Spoon mixture equally between prepared cake pans.

Bake in preheated oven, middle shelf for about 25 to 35 minutes or until when tested with a fine cake skewer it comes out clean or the edges of the cakes have come away slightly from the sides of the cake pans.

Remove from oven to wire cake rack and rest for 5 minutes before removing from cake pans. Cool completely.

To Serve: sandwich together with your favourite jam or conserve, and dust top with pure icing sugar.

NOTE: If desired substitute butter for either margarine or olive oil spread. Recipe is based on the Australian standard metric 250mL cup and 20mL tablespoon sets.

C’ (170oC fan forced) and

27GETTING TO KNOW THE OVEN

WARNING

CARE AND CLEANING

WARNING

Ensure the oven is electrically isolated before cleaning. This can be done by switching off the appliance via the powerpoint or isolating switch (if available), or the switchboard.

Do not use steam cleaners, as this may cause moisture build up.

CAUTION

Do not use sharp metal implements or utensils on any surface, as these may leave permanent scratches or marks.

Enamel

Rub persistent stains vigorously with a nylon scourer or creamed powder cleansers.

NOTE: You can also use household oven enamel cleaners follow the manufacturer’s instructions carefully.

CAUTION

Do not use harsh abrasive cleaners, powder cleaners, steel wool or wax polishes on enamel.

Do not line the bottom of the oven or grill with foil or cookware.

Stainless steel

All grades of stainless steel can stain, discolour or become greasy. You must clean these areas regularly by following the procedures below, if you want your appliance to look its best, perform well and have a long life.

WARNING

Care must be taken when wiping exposed stainless steel edges.…they can be sharp!

WARNING

The door glass on this appliance is made from a tough, durable material that withstands heating and cooling without breaking. As a precaution however, do not put cold water on hot glass. Should you have any questions about the glass in your new appliance, please contact the customer care centre by dialling 1300 363 640.

Door glass that is damaged should be immediately replaced.

CAUTION

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Oven

WARNING

Always keep your appliance clean. Ensure that fats and oils do not accumulate around elements, burners or fans. Keep the oven dish, baking trays, grill dish and grill dish insert clean, as any fat deposits may catch fire. Wrap your meats in foil or an oven roasting bag to minimise cleaning. Any polyunsaturated fats can leave a varnishlike residue which is very difficult to remove. The upper element can be released to assist in cleaning.

Grill

WARNING

Always keep the grill dish and grill dish insert clean, as any fat deposits may catch fire. Ensure that fats and oils do not accumulate around the grill element. The grill element can be released to assist in cleaning the top of the grill cavity.

CAUTION

The oven door and control panel are decorated with a special stainless steel that resists finger marks and should only be cleaned with warm water and a mild detergent. DO NOT use stainless steel cleaners, abrasive cleaners or harsh solvents.

NOTE: Make sure you follow the polish or brushing lines in the steel.

Glass

Glass surfaces on doors and control panels are best cleaned immediately after soiling. A damp cloth may help remove baked on food deposits. Oven cleaners can be used to remove stubborn marks and stains.

28 CARE AND CLEANING

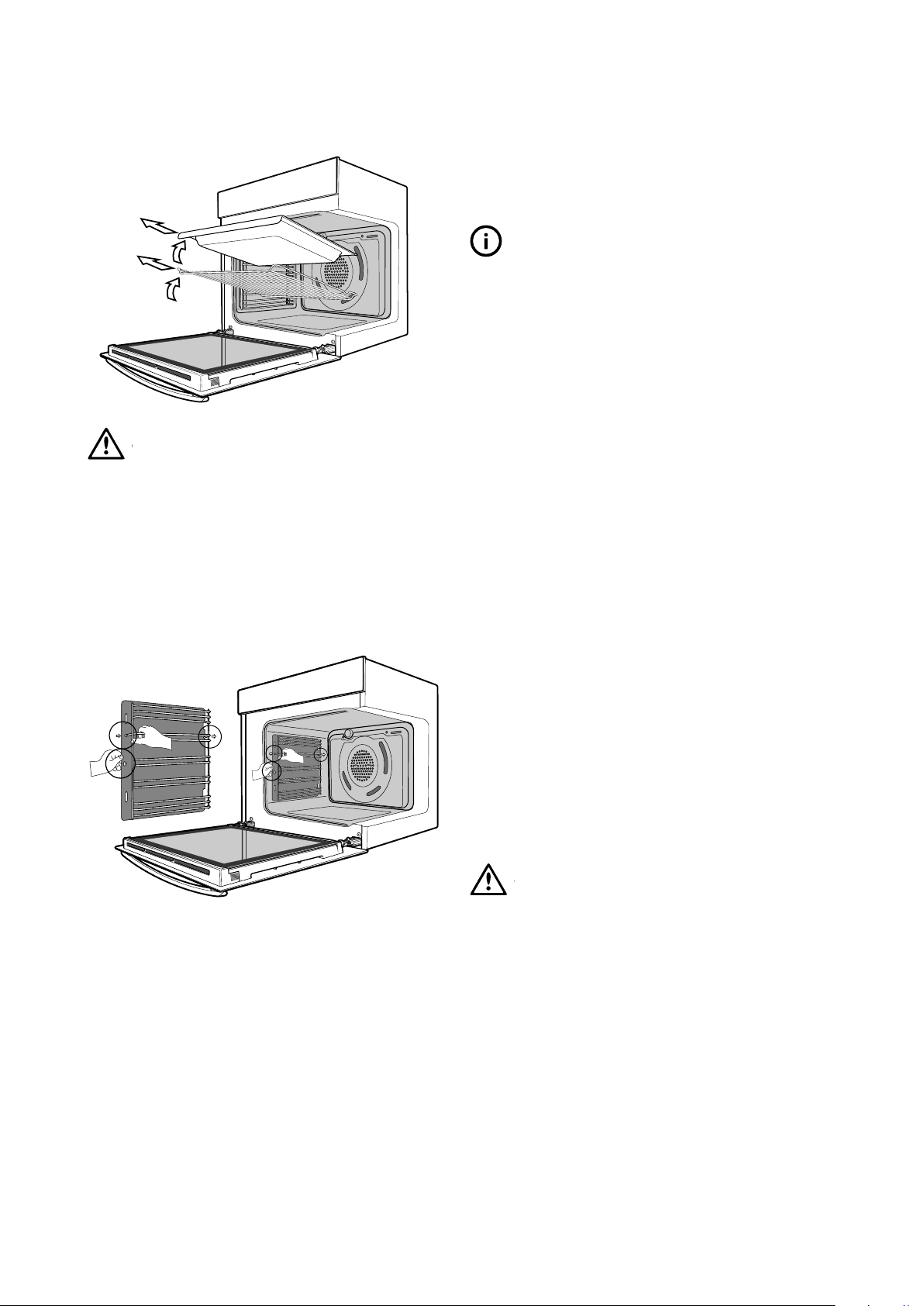

Cleaning your oven accessories

Removing the trays and shelves from your appliance

• Slide the dish and shelves towards you until they reach the front stop.

• Tilt them up at the front to clear the side supports, taking care not to spill the contents.

• For separate grill underbench model (WVG655), open the grill door and pull out the grill slide to its full extent. Carefully lift the dish from the support.

• Lift the dish and shelves clear.

• Wash the dish, insert and shelves in hot soapy water.

• Reverse the above steps to put the grill tray and shelves back again.

• Ensure that they are placed between the 2 support wires (excluding model WVEP618).

Removing catalytic liners (where fitted)

TIPS & INFORMATION

WARNING

IMPORTANT

Catalytic self-clean panels are coated with a specially formulated enamel coating over a base of regular enamel. This enamel coating has a rough and porous surface. During normal cooking, fats and other food splatter is partially absorbed into the surface and oxidised away. This oxidisation of the fat works best at high temperatures. You will find that if you do a lot of lower temperature baking, around 180°C, then the selfcleaning process may not be complete. If lightly soiled, you can set the oven to 250°C for around one hour to completely remove the soil.

CAUTION

Do not remove the slide mechanism on the separate grill underbench model (WVG655). The grill dish can easily be removed for cleaning.

Removing the side racks (excluding model WVEP618)

• Grasp the middle wire at the front.

• Pull firmly inwards while pushing back.

Should the panels become heavily soiled, they will need to be taken out of the oven and cleaned by hand. They can be cleaned by first soaking in warm soapy water for at least 2 hours and then wiping clean with a soft cloth.

NOTE: Solid cleaning powders, creamy cleansers, caustic oven cleaners, steel wool or other scourers will ruin the catalytic surface and must NEVER BE USED.

• Remove side racks as usual, however, be sure to hold

onto the side of the catalytic liner so that it does not drop when the pegs of the side racks are removed.

Removing and replacing the oven back light and side light (where fitted)

• Turn oven light glass anticlockwise to remove it for globe replacement.

• To remove side light, place a spoon under the light glass and lever off. Replace globe and snap glass cover back into position.

• A special high temperature resistant globe should be used. This can be purchased from Electrolux Customer Care Centre.

NOTE: :Light globes are not covered by warranty

WARNING

Make sure the appliance is turned off before you remove or replace parts, to avoid the possibility of electric shock.

29CARE AND CLEANING

WARNING

TIPS & INFORMATION

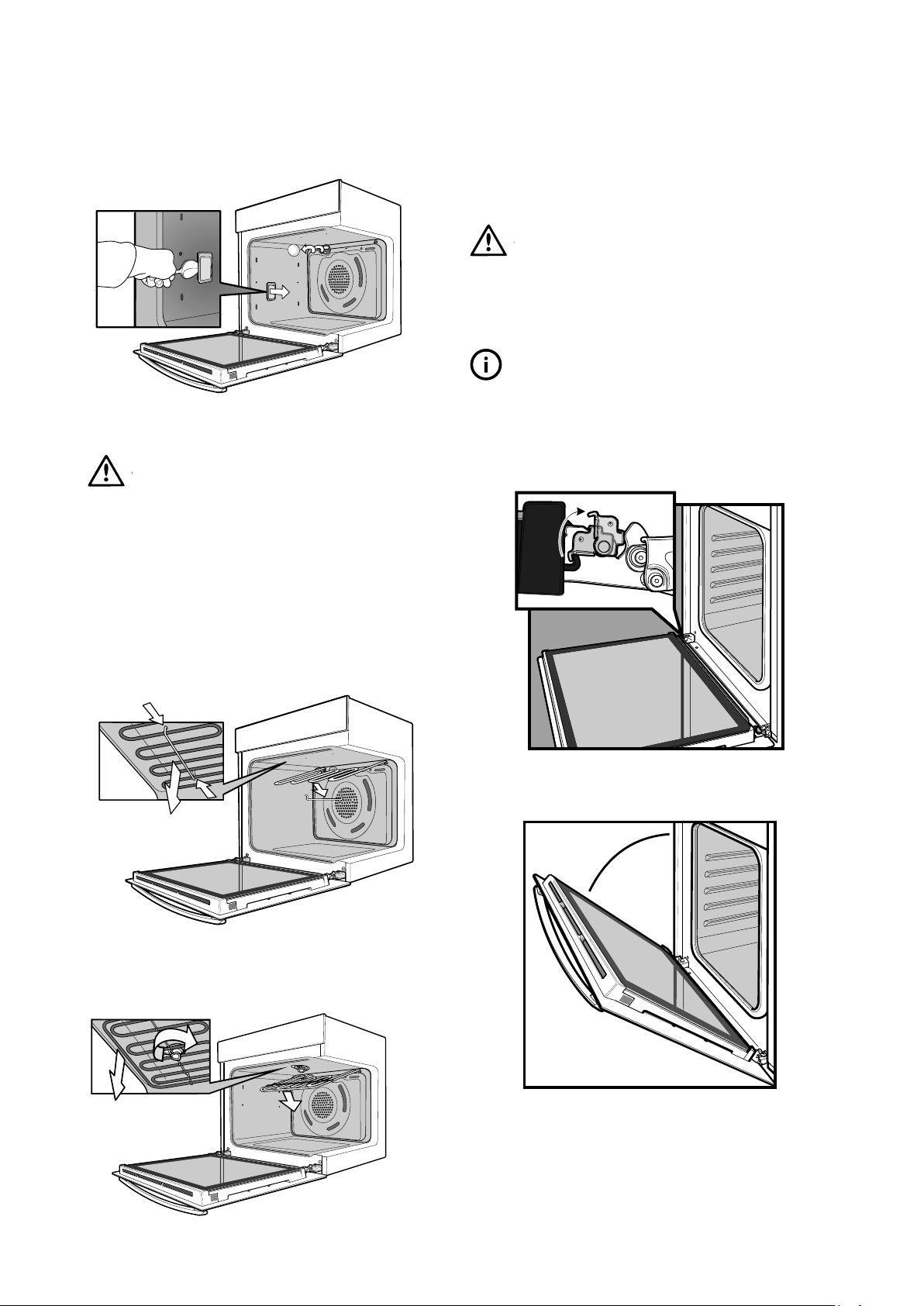

CARE AND CLEANING (CONTINUED)

Cleaning the triple glazed oven door (on selected models)

Do not lift the door by the handle. Rough handling will cause glass to break.

Removing the oven door

Your oven is equipped with a door that can be disassembled in order to clean all the panes of glass.

Releasing the grill element

WARNING

Make sure the appliance is turned off before you remove or replace parts, to avoid the possibility of electric shock.

Retaining wire models - The upper grill element is secured with a hanger clip which can be removed to help clean the oven cavity ceiling. To remove the hanging clip push the sides of the clip in the direction of the arrows. After cleaning, raise the grill element and secure clip back into position.

NOTE: Diagram shows a grill in oven model. The procedure is the same for separate grill models which use the same hanger clip in the grill compartment.

Remove the door before cleaning.

• Open the door fully to access the hinges then rotate

CAUTION

IMPORTANT

the ‘stirrups’ on both hinges fully towards the oven.

Rotating latch models - rotate latch 180o and the grill element will drop down freely. After cleaning, raise the grill element and secure by rotating the latch back 180o.

• Slowly close the oven door until it stops against the ‘stirrups’ (about 45°).

• Grasp the oven door with a hand each side of the door and remove it from the oven by pulling it towards you.

30 CARE AND CLEANING

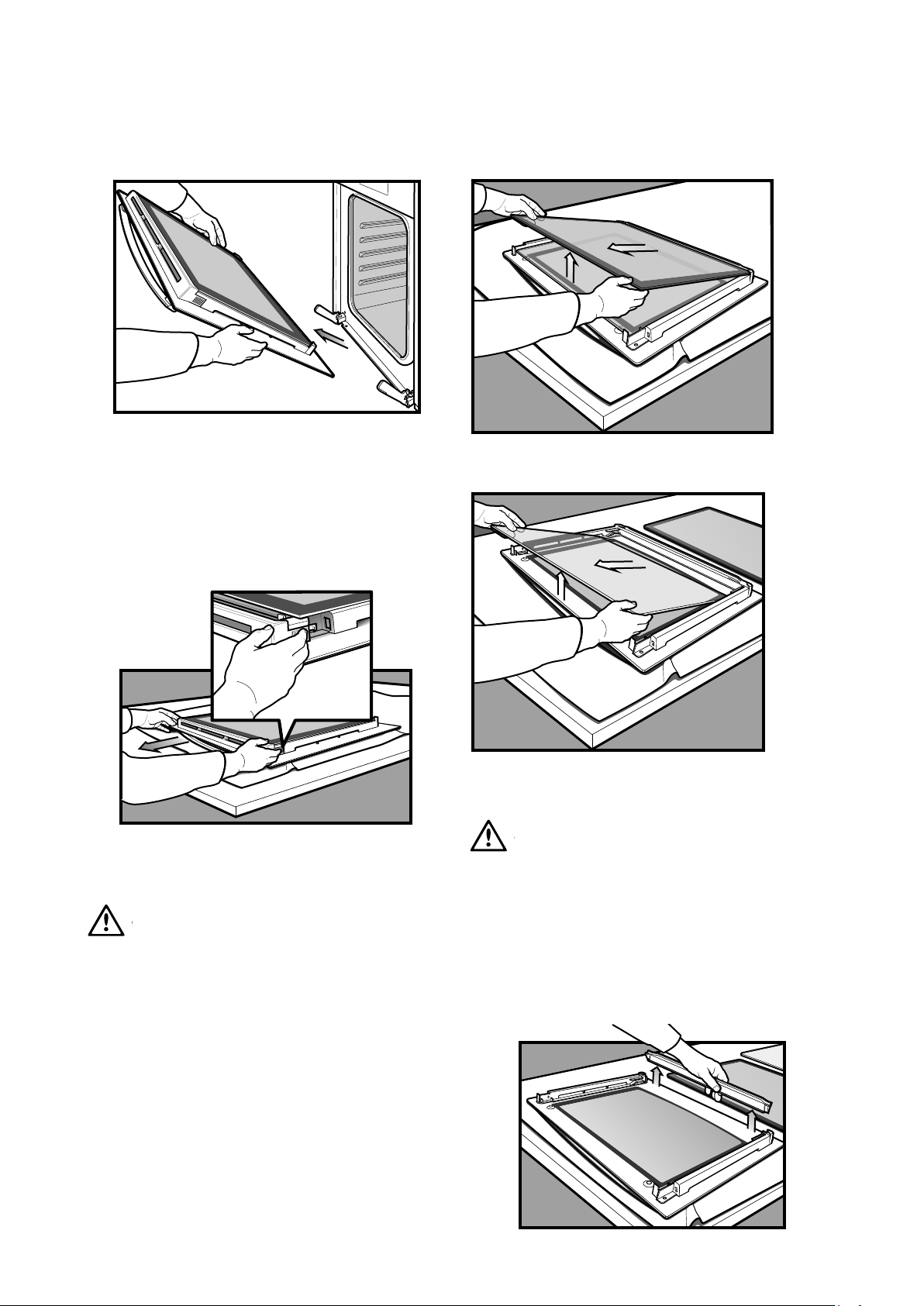

WARNING

• Lay the oven door with the outer side facing downwards on something soft and flat (for example a blanket on a kitchen table) to prevent scratches.

Removing oven door top trim

• Take hold of the grid embossed sections of the door trim at each end and press inwards to release the clips. Remove the door trim by pulling it towards you.

Removing the door glass panels

CAUTION

Rough handling, especially around the edges can cause the glass to break.

• Repeat this for the smaller clear glass panel (when fitted).

Cleaning the door glass panels

CAUTION

Do not to use harsh abrasives on the glass panes as the reflective surface plays a role in the function of the oven. Do not place glass in dishwasher. Hand wash only with a soft cloth and warm soapy water. When dry polish with a soft cloth and ensure the glass is dry before reassembly.

Removing bottom trim (on selected models)

• Lift the black bordered glass panel out of the guide and place on something soft and flat to prevent scratches.

• The bottom trim may be removed for cleaning by snapping out and lifting away from the glass.

31CARE AND CLEANING

CARE AND CLEANING (CONTINUED)

Re-assembling the bottom trim (on selected models)

• Push down to “snap” each side of bottom trim back into door columns.

Re-assembling the top door trim

• Take hold of the top door trim at each side and

• Push the trim down with its top edge over glass panel

Re-assembling the door glass panels

position it to the inside edge of the glass.

until the clip snaps in on each side of the trim.

• Insert the smaller clear glass panel (when fitted) first from above and at an angle to the profile of the door.

• Repeat for the black bordered glass panel ensuring the painted surface is facing to the downside.

• Push the middle of the trim down to ensure it is straight and firm against the glass panel.

32 CARE AND CLEANING

WARNING

TIPS & INFORMATION

Fitting the oven door

• Take hold of the oven door with a hand on each side and with the door at an angle of 45o, position the recesses at the bottom of the door onto the hinge arms of the oven. Let the door slide down the hinge arms as far as it will go.

• Open the door fully to access the hinges.

• Rotate the stirrups (see image below) until they lock into the hook. The oven door may now be closed.

Cleaning the quad glazed oven door (on selected models)

CAUTION

Do not lift the door by the handle. Rough handling will cause glass to break.

Removing the oven door

IMPORTANT

Your oven is equipped with a door that can be disassembled in order to clean all the panes of glass. Remove the door before cleaning.

• Open the door fully to access the hinges then rotate the ‘stirrups’ (highlighted in the image) on both hinges fully to open position.

hook stirrup

hook

stirruphook

• Slowly close the oven door until it is stops against the ‘stirrups’ (about 30°).

• Hold the oven door with a hand each side and remove it from the oven by pulling it towards you.

33CARE AND CLEANING

WARNING

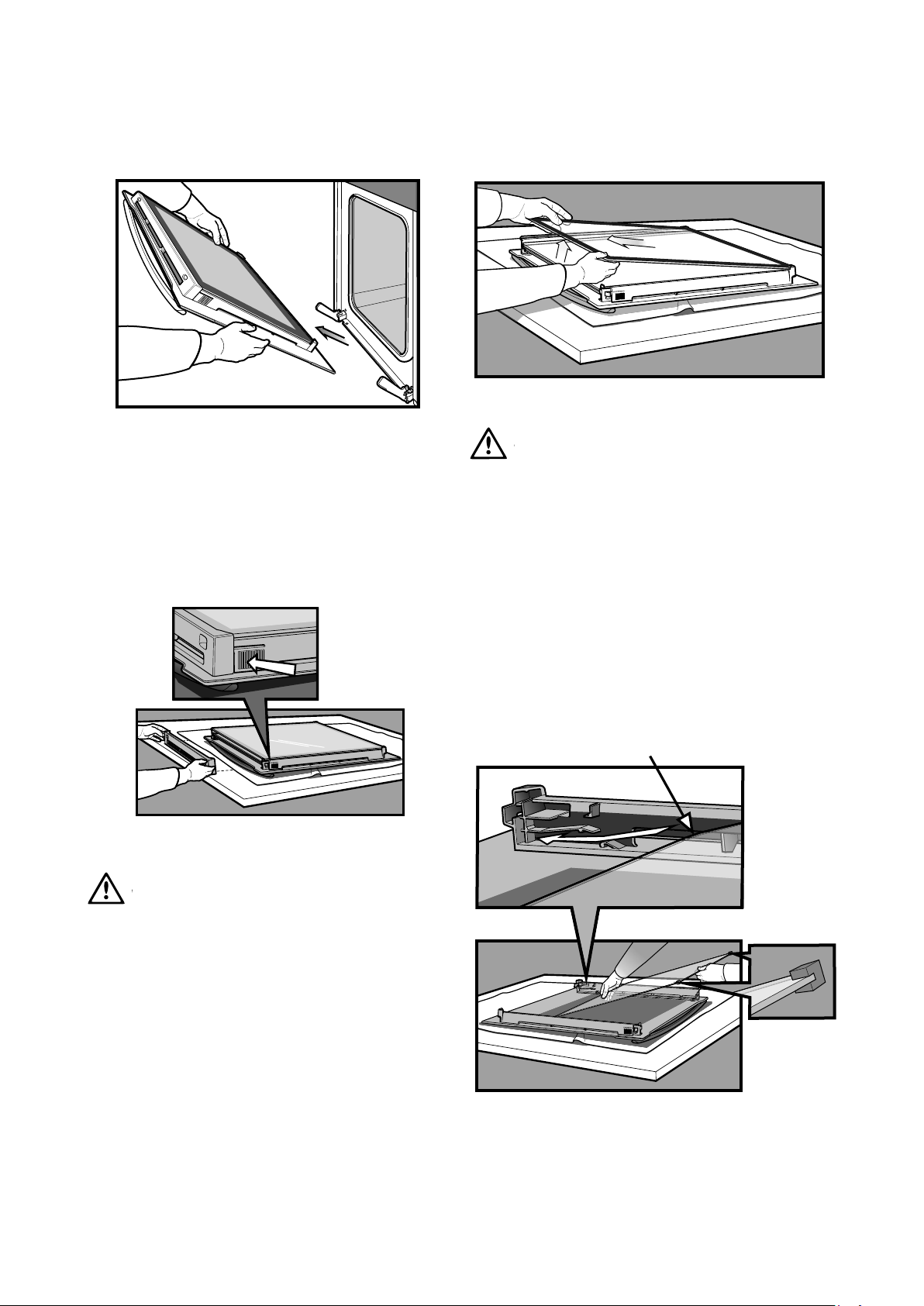

CARE AND CLEANING (CONTINUED)

Cleaning the door glass panels

• Lay the oven door with the outer side facing downwards on something soft and flat (for example a blanket on a kitchen table) to prevent scratches.

Removing oven door top trim

• Hold the embossed sections of the door columns at each end and press inwards to release the clips. Remove the upper door trim by pulling it towards you.

Removing the door glass panels

CAUTION

Re-assembling the quad glazed oven door (on selected models)

Re-assembling the door glass panels

• Assemble the silicone spacers to the upper corners of one of the clear glass panels. Position the panel into the lower position of the door, ensuring the chamfered corner of the panel is placed in the correct location as shown in the image below.

Chamfer to be located in this corner

CAUTION

Rough handling, especially around the edges can cause the glass to break.

• Lift the black bordered glass panel out of the guide and place on something soft and flat to prevent scratches.

• Repeat this for the smaller clear glass panels.

• When removing panel 3, ensure that the two rubber spacers are removed before cleaning. Do not misplace them!

34 CARE AND CLEANING

Silicone spacers

• Insert the remaining smaller clear glass panel into the middle position, ensuring the chamfered corner of the panel is placed in the correct location as shown in the image below.

Chamfer to be located in this corner

• Insert the black bordered glass panel into the upper position, ensuring the painted surface is facing the downside as per the image below.

Fitting the oven door

• Take hold of the oven door with a hand on each side and with the door at an angle of 30˚, position the recesses at the bottom of the door onto the hinge arms of the oven. Let the door slide down the hinge arms as far as it will go.

• Open the door fully to access the hinges.

• Rotate the ‘stirrups’ (see the image below) until they lock into the hook. The oven door may now be closed.

Replacing the top door trim

• Hold the top door trim at each side and position it to the inside edge of the glass.

• Push the trim down with its top edge over the glass panel until the clip snap in on each side of the trim.

• Push the middle of the trim down to ensure it is straight and firm against the glass panel.

stirrup in locked position

door column

Cleaning the side open door (on selected models)

Side open door models have been designed to allow for the inner glass panels to be removed for cleaning.

Removing side open door top trim

Take hold of the grid embossed sections of the door trim at each end and press inwards to release the clips. Then remove the door trim by lifting it upwards.

35CARE AND CLEANING

WARNING

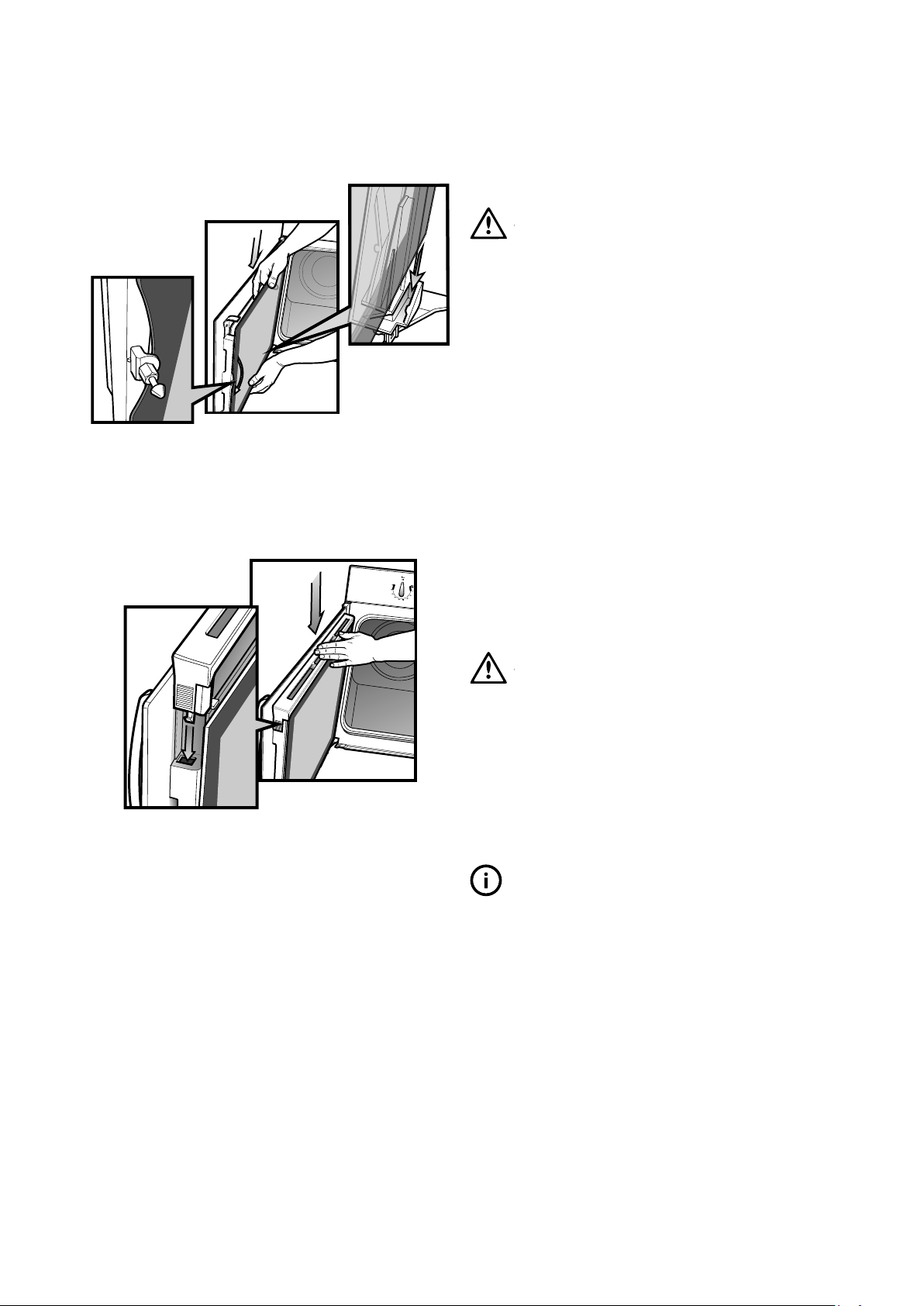

CARE AND CLEANING (CONTINUED)

CAUTION

Do not lift the door by the handle. Rough handling will cause glass to break.

Removing the door glass panels

CAUTION

Rough handling, especially around the edges can cause the glass to break.

• Take hold of the black bordered glass panel with a hand on its upper and lower edge. Lift and rotate the glass around the retainer to remove it from the guide.

• Repeat this for the smaller clear glass panel (when fitted).

Cleaning the door glass panels

CAUTION

Re-assembling the side open oven door (on selected models)

Re-assembling the door glass panels

• Ensure the rubber moulding is placed in the correct orientation on one of the upper corner of the smaller clear glass panel.

• Insert the smaller glass panel (when fitted) first from above and at an angle to the profile of the door.

• Take hold of the smaller clear glass panel (when fitted) with a hand on its upper and lower edge. Lift the glass to remove it from the retainer.

• The rubber moulding on the upper corner of the small clear glass panel may be removed. Please take care that it is not misplaced.

36 CARE AND CLEANING

• Repeat for the black bordered glass panel ensuring the painted surface is facing towards the outside of the door.

WARNING

TIPS & INFORMATION

Replacing top door trim

• Take hold of the top door trim at each side and position it to the inside edge of the glass.

• Push the trim down with its top edge over glass panel until the clip snaps in on each side of the trim.

Before carrying out the Pyrolytic cleaning function

WARNING

• Clean large deposits, spills or grease from the oven cavity.

• Please keep small children at a safe distance. The appliance becomes very hot.

• Never clean non-stick baking trays and tins in the oven during the pyrolytic cycle. High temperatures damage the non-stick coating and poisonous gas is released.

• Pyrolitic cleaning can release fumes that are not harmful to humans, including infants or persons with medical conditions, however you are strongly advised to provide good ventilation during and after each pyrolytic cleaning process.

• Unlike humans, some birds and reptiles can be extremely sensitive to the potential fumes emitted during the pyrolytic cleaning process. It is strongly advised to remove any pets (especially birds) from the vicinity of the appliance during and after each pyrolytic cleaning process.

• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all pyrolytic ovens when the pyrolytic self cleaning program is in operation.

Pyrolytic Cleaning of the Oven Cavity (WVEP615 & WVEP618 models only)

The oven has the Pyrolytic self-cleaning function, it cleans by burning off the spatters and accumulated dirt and grease from the oven liner, at high temperature. This process produces ash which can then be wiped out of the oven cavity. It is recommended you clean your oven regularly to keep the oven in its best condition.

• Light clean - this is an energy saving cycle that can be used on a regular basis if the oven is lightly soiled. Possibly after every 2nd or 3rd roast.

• Normal clean - use this as the regular cycle about once every 2-3 months.

CAUTION

• All accessories must be removed from the oven, including shelves, trays and side racks.

• During pyrolytic cleaning the air outlet vent above the door must be kept clear of any obstruction (e.g. tea towels).

• Do not use your oven to clean miscellaneous items (e.g. cookware).

• To prevent damage, do not use acids, sprays or similar cleaning agents.

IMPORTANT

During the pyrolytic cleaning function, it is advisable not to use a cooktop if it is fitted above the oven. This could cause overheating and damage to both appliances. The cooling fan will operate at an increased speed for Pyrolytic cleaning and will continue to run until the oven has cooled down. It is recommended to use the Pyro clean function regularly to keep the oven in its best condition.

37CARE AND CLEANING

WARNING

TIPS & INFORMATION

CARE AND CLEANING (CONTINUED)

Starting the Pyrolytic cleaning function (WVEP615 models only)

• Make sure all accessories are removed from the oven including shelves, trays and side racks.

• Turn the oven “Function” selector clockwise to select the “Pyro” position.

• Use the “+” or “–” buttons on the electronic clock to select between a pyrolytic cleaning time of 1:30 hours (light clean) or 2:30 hours (normal clean) for the appropriate level of cleaning.

• After 5 seconds from the last change, the oven will begin heating and the “Remaining time” will be displayed.

• The pyrolytic cleaning function can be stopped at any time during the cycle by turning the function selector counter-clockwise to the “OFF” position.

NOTE: The “Remaining time” does not include cool-down time for the oven.

Do not turn off the mains power supply to the oven during the pyrolytic cleaning cycle. This could damage the appliance.

Cleaning steam parts (WVE617 model only)

After some time, the water tank can accumulate mineral deposits. To prevent this from occurring, empty the water tank after each steam cooking session and clean the water tank every two to three months using the following process.

During the cleaning procedure, some water can drip from the steam outlet onto the cavity of the oven. Put a dripping pan on the shelf level directly below the steam inlet to prevent water from falling onto the bottom of the oven cavity.

CAUTION

IMPORTANT

Starting the Pyrolytic cleaning function (WVEP618 models only)

• Make sure all accessories are removed from the oven including shelves, trays and side racks.

• Switch on the appliance by pressing “On/Off”.

• Press the “Function” button repeatedly until the word “P1” is displayed.

• Press the “+” or “–” symbols to choose between “1hrs 30min” (light clean) or “2hrs 30min” (normal clean) for the appropriate level of cleaning.

• Press the “Pyro Accept” button to commence the cleaning process.

• The oven will begin heating and the “Remaining time” will be displayed.

• The pyrolytic cleaning function can be stopped at any time during the cycle by pressing the “On/Off”.

NOTE: The “Remaining time” does not include cool-down time for the oven.

During Pyrolytic cleaning

When the temperature in the oven approaches 300˚C, the door will automatically lock and a padlock symbol will appear on the display.

Cleaning procedure

1. With the oven turned off, fill the water tank with a cleaning solution of 850mL water and 5g citric acid. Leave the cleaning solution in the water tank for approximately 60 minutes.

2. Turn on the oven and set the oven function to ‘Steam cooking’. Set the temperature to 230°C. After 25 minutes, turn off the oven and let it cool for 15 minutes.

3. Again, turn on the oven and set the oven function to ‘Steam cooking’. Set the temperature to 180°C. After 10 minutes, turn off the oven and let it cool for 15 minutes.

4. Insert the supplied drain pipe and empty the tank of the remaining cleaning solution. When the tank is empty, remove the drain pipe.

5. To flush the water tank, refill the water tank with 850mL of fresh water and empty via the drain pipe.

6. Remove the drain pipe again and clean it by hand in warm water with soap.

7. To prevent the build up of calcium deposits it is recommended to use this procedure every 2 – 3 months.

After Pyrolytic cleaning

The door will only unlock when the oven has cooled to a safe temperature. Turning the function off will not unlock the door.

After cool-down, wipe the ash out of the oven with a soft damp cloth and warm water. To restore the enamel shine to more difficult areas, use a damp cloth with vinegar and detergent.

38 CARE AND CLEANING

WARNING

USING YOUR COOKTOP

CAUTION

The ceramic cooktop is made from ceramic glass,a tough durable material that withstands heating and cooling without breaking. However, it must be remembered that as it is GLASS, it may break. Treat it accordingly! Should you have any questions about the glass in your new appliance, please contact the Customer Care Centre by phoning 1300 363 640.

The heating elements are concealed under the smooth glass surface which has a pattern to show the location of the elements. The glass will retain heat for a period of time after the appliance has been turned off. This is indicated by a “HOT SURFACE” warning light. It will remain on whenever the glass surface exceeds 60°C.

Utensils

• Use pans with smooth, clean and dry bottoms to avoid scratching or burning residue into the glass.

• Ensure the pan bottom is the same size as the working element.

• We do not recommend ceramic glass pans because they do not conduct heat well. Stainless steel or enamelled saucepans are best.

• Do not use pans with copper or aluminium bottoms because they can leave traces which are difficult to remove from the glass.

• If buying new utensils, select enamelled steel pans with 2-3mm thick bottoms or stainless steel pans with sandwich bottoms 4-6mm thick. The pan bottom should be flat, or preferably, slightly concave at room temperature so that it lies flat on the glass surface when hot.

Cleaning your ceramic hotplate

1. Remove all spilt food and fat with a razor blade scraper (supplied with the unit) while the ceramic glass is still warm, but not hot. Wipe clean with dishwashing detergent on a damp cloth.

2. If aluminium foil, plastic items or high sugar content liquids/foods are allowed to melt on the ceramic glass, these should be removed immediately with a scraper before the surface has cooled down, otherwise pitting of the surface can occur.

NOTE: Items with high sugar content not only include jam and fruit but also vegetables such as peas, tomatoes and carrots.

3. When the ceramic glass is cool, apply a suitable cleaner (supplied with the unit).

4. It is important to follow the cleaner manufacturer’s instructions. Remove any cleaning residue from the surface as staining of the cooktop may occur.

5. Do not use abrasive sponges or scourers, oven sprays or stain removers as they may scratch the cooktop.

6. Any pitting, staining, scratches or other surface deterioration is excluded from the warranty.

7. All stains/water marks can be removed by vigorous cleaning, using the supplied ceramic cleaner.

Cooking hints

Bringing liquids to the boil

Use a high setting.

Before the liquid begins to boil, turn to a lower setting. This will stop the liquid from boiling over.

Cooking Do’s and Don’ts

• Do use the stored heat in the hotplate by turning the control off before the final few minutes of cooking.

• Do not place heat resistant mats, wire mats or aluminium foil under pots and pans.

• Do not allow pots and pans to boil dry, as damage to both pan and hotplate may result.

• Do not use round bottom woks, wok stands or similar utensils which could lead to overheating of the hotplates and possible damage to the cooking surface.

• Do not slide pans across the surface of the ceramic glass cooktop, it could result in scratching of the surface.

• Do not use the cooktop as extra bench space or as a cutting board.

• Do not allow children on or near the cooktop at any time.

Using retained heat

Turning to higher settings

Turning to lower settings

Cooking too fast

Cooking areas will stay hot after they are turned off. Turn the cooking area off befor cooking is finished and use the retained heat to finish cooking.

If the pot does not have a lid, use a higher setting.

If the pot has a lid, then use a higher setting. Use a lower setting for foods which will easily burn e.g. milk, white sauce.

If food is cooking too fast, take the pot off the cooktop. Turn the knob to a lower setting. Let the cooking area cool down and replace the pot.

39USING YOUR COOKTOP

TROUBLESHOOTING

Cooktop

PROBLEM POSSIBLE CAUSE SOLUTION

Heating elements not working

Benchtop becoming too hot and/or beginning to discolour

Food taking too long to cook

• Power not switched on

• Controls incorrectly set

• Household fuse blown

• Wrong type of cooking pot

• Pot may overhang the cooktop

• Pot is too large • Use a smaller pot

• Pot base is

not flat

• Pot may be

off centre

• Need to use a

larger element

• Check cooktop is plugged in and power is on

• Check correct knob turned for element

• Replace household fuse. If the fuse continues to blow, contact the Service Centre

• Make sure bases are not concave

• Place pot on centre of element so that it does not overhang

• Make sure pot base is flat or slightly convex

• Centre pot over element making sure it does not overhang the cooktop

• Move pot to a larger element

Faults

If there is a problem with the oven and/or grill, please:

• Check the points listed below before calling for service. It may be possible to avoid a call by fixing the problem yourself – and so continue cooking.

• For cooking problems refer to “Dealing with cooking problems”.

NOTE: We may charge for service even in the guarantee period if your problem is due to the causes listed below.

Data Plate

When you need information, service or spare parts please be prepared to tell us the:

• Model number

• Serial number

These are shown on the data plate. The data plate is visible when the oven or grill door is open.

If you need more information, please contact the Customer Care Centre on:

Australia: 1300 363 640 (Australia – Centre is open 8.00am – 5.00pm Monday – Friday Eastern Standard Time).

New Zealand 0800 436 245 (New Zealand – Centre is open 8.00am – 5.00pm Monday – Friday).

If you have a warranty or spare parts enquiry, you should call the number listed on the back page.

Cannot simmer food

Elements giving off smoke or odours when first used

Glass surface becomes milky white when pot is removed

• Using a round based wok

• Controls are incorrectly set

• Control set too high

• Element too large

• Protective oils

being removed in first cooking

• Base of pot is concave

• Use a flat based wok on electric cooktops

• Check controls are set correctly and increase if necessary

• Turn control to lower setting

• Use a smaller element

• Do not worry, this is normal

• Use a flat based pot

40 TROUBLESHOOTING

Oven

PROBLEM POSSIBLE CAUSE

Oven or grill not working

The oven seal is loose • The oven seal is only attached at each corner. It may seem like a loose fit but

Oven light not working

Oven not heating enough • Foil or trays on bottom of oven.

Clock flashing on display

Unit smoking when first used

Condensation build up

Door cannot be replaced after removal

Functions and temperature appear on display but oven does not work

When the door is open the fan stops (underbench only)

When a non fan mode is selected the fan starts

The light stays on when the door is closed

The light does not turn *ON* when the door is opened

Shelf or telescopic runner slides out when door is opened

• Time of day not set.

• Power not turned on.

• Controls are incorrectly set.

• Oven is in ‘Demo’ mode, refer to Using your oven section.

• Household fuse has blown or power supply is off.

NOTE: If the household fuse continues to blow, call the Customer Care Centre.

• Child-proof oven lock is activated. ‘LOCKED’ is displayed when control is touched. (Refer to Using your oven section)

when the oven door is closed it will function correctly.

• Light may be turned off at control panel.

• Lamp blown or loose in socket.

• Household fuse has blown.

NOTE: If the household fuse continues to blow, call the Customer Care Centre.

• Timer is in “AUTO” mode. (Refer to timer operating instructions)

• Household fuse has blown.

NOTE: If the household fuse continues to blow, call the Customer Care Centre.

• Reset time of day and any cooking functions you were using.

• Protective oils being removed.

• Reduce the amount of water used in cooking. (Sometimes condensation is normal)

• Stirrup not engaged properly.

• Oven is in ‘Demo’ mode, refer to Using your oven section.

• This is a function of the power board to help reduce the blast of air when opening the door.

• Most oven modes have a fast heat up function that uses the fan, fan element and top (boost) elements. Auto fast heat up can be overridden by selecting a temperature of 120°C or less, allowing the function to start, then increasing the temperature to the desired level.

• An oven function has been selected.

• The light has been turned on at the control panel.

• Oven light may need replacing.

Oven cavity is not level, you can perform a check using a level to verify this (refer to installation section). If not level refer to installer.

NOTE: Only authorised personnel should carry out servicing.

41TROUBLESHOOTING

WARNING

INSTALLING YOUR APPLIANCE

WARNING

To avoid any potential hazard, you must follow our instructions when you install your appliance. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.

• This appliance must be installed by an authorised person according to all codes and regulations as stated in the local municipal building code and other relevant statutory regulations.

• Wiring connections must be in accordance with AS/ NZS 3000 Wiring Rules and any particular conditions of the local authority.

• Refer to data plate for rating information. The data plate is positioned behind the bottom of the oven door.

• Disconnection in the fixed wiring must occur in accordance with the AS/NZS3000 wiring rules.

• Wiring should be protected against mechanical failure. Refer to AS/NZS3000 clauses 3.3.2.6, 3.9, 3.10

• A means of disconnection with a contact separation of at least 3mm must be supplied in the fixed wiring.

• This range must be connected with cable of 75°C rating minimum.

• This product has passed the insulation resistance test after manufacture. If the resistance reading is low at installation, it is probably caused by moisture from the atmosphere being absorbed by the elements after the range has been produced. (Pass at 0.01MΩ AS/NZS 3000 Wiring Rules Clause 8.3.6.2).

Rated power input

MODEL TOTAL kW A1 kW A2 kW

WVE645 8.7 2.3 6.4

WARNING

This appliance must be properly earthed.

• Do not lift the appliance by the door handles.

• Prepare the cupboard opening to match your appliance measurements. (See diagrams)

• Slide appliance into the cupboard, ensuring that the supply cable (where fitted) does not kink.

• To prevent tipping, use the screws supplied to secure your oven into the cupboard. Use just 2 screws for underbench and separate grill underbench ovens, and 4 screws for separate grill wall ovens. Remove the bottom door in separate grill wall ovens to provide access to the bottom 2 screwing points.

• For appliances fitted with a flexible supply cord, if the cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard. The plug must be accessible after installation.

• Where the appliance is built into a cabinet, the cabinet material must be capable of withstanding 70°C. Installation into low temperature tolerant cabinetry (e.g. vinyl coated) may result in deterioration of the low temperature coating by discolouring or bubbling.

• If the appliance is installed adjacent to vinyl-wrapped surfaces, use an installation kit available from the vinyl-wrap supplier.

• Electrolux Home Products cannot accept responsibility for damage caused by installation into low temperature tolerant cabinets.

• After installation, test and ensure that the appliance operates correctly before handing it over to the customer. It is recommended that this product is not installed in an unvented living space, particularly if that space incorporates sleeping quarters.

MODEL

WVE613 597 x 596 x 573 16A 2.3kW 9.6A 2.5

WVES613 597 x 596 x 573 16A 2.3kW 9.6A 2.5

WVE614 597 x 596 x 573 16A 2.3kW 9.6A 2.5

WVE615 597 x 596 x 573 16A 3.0kW 12.5A 2.5

WVE616/606 597 x 596 x 573 16A 3.0kW 12.5A 2.5

WVEP615 597 x 596 x 573 16A 3.1kW 12.9A 2.5

WVE617 597 x 596 x 573 16A 3.1kW 12.9A 2.5

WVEP618 597 x 596 x 573 16A 3.1kW 12.9A 2.5

WVE626 890 x 596 x 573 25A 5.3kW 22.4A 4.0

WVE636 1083 x 596 x 573 32A 6.2kW 25.8A 6.0

WVE645 597 x 596 x 573 40A 8.7kW 36.3A 6.0

WVE655 727 x 596 x 573 25A 4.9kW 20.4A 4.0

WVE665 890 x 596 x 573 25A 5.3kW 22.1A 4.0

WVE607 597 x 596 x 573 16A 3.1kW 12.9A 2.5

Note: Electrical connection is 230-240 volts AC 50Hz. Wiring minimum temperature rating 75°C.

42 INSTALLATION

PRODUCT DIMENSIONS (H X W X D) MM

MINIMUM FUSE RATING

MAXIMUM POWER RATING

MAXIMUM CURRENT RATING

WIRE SECTION (MM²)

• If a powerpoint is fitted it must be accessible with the

WARNING

appliance installed, as the plug must be accessible after installation.

• This appliance must be mounted on a flat surface for the full width and depth of the product.

• To avoid overheating, the appliance must not be installed in a recess or cupboard behind a decorative door.

Hard wiring detail

1. Remove terminal cover plate from rear panel of appliance.

2. Fit wires through hole in cover plate and make connections to terminals.

3. Engage wires into plastic clip. Secure plastic clip with two long silver screws (supplied in separate bag).

4. Replace cover plate onto rear panel.

Cabinet construction for your appliance

For the best integration within a kitchen, install the appliance in a standard 600mm wide cupboard that gives a flush fit with the surrounding cupboard fronts as shown in Fig. A. A recess of 20 mm is ideal.

With the exception of pyrolytic ovens, the appliance can also be installed using a proud fit to the surrounding cupboard as shown in Fig. B.

CAUTION

For all Pyrolytic clean oven models, the oven must be installed as a flush fit to the surrounding cupboards and the “Infill panel” MUST not exceed 100mm in length. This ensures a 16mm gap is maintained between the cabinet and oven side to prevent the cupboard overheating.

Fig. A

16mm

568mm

553mm

15mm

8mm min clearance

Flush Fit

Fig. B

Proud Fit

Cupboard door

16mm

Infill panel

Oven

Infill panel

Oven

600mm

568mm

600mm

100mm max for Pyro oven

20mm

100mm max

oven

for Pyro

Second active wire only required (optional) for multi-phase products

Plastic clips

Plastic clip securing points

Levelling oven

Place a level in the oven as below, making sure the level sits on the front and rear forms.

✓

43INSTALLATION

INSTALLING YOUR APPLIANCE

WARNING

Non-pyrolytic underbench ovens and side open door oven

Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed over the oven is too deep. Refer to cooktop installation instructions for required clearance between cooktop and oven.

Power point connection for the WVE617 must be accessible with the appliance fully installed. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

upper infill (if required)

A B C

Flush fit 600 600 581min

Proud fit 565 590 560min

558

mounting holes

use black installation screws supplied

596

Pyrolytic underbench oven

CAUTION

NOTE: Dimension “D”. A requirement for all pyrolytic clean ovens – for proper ventilation there must be a gap at the bottom rear of the cabinet. This can be a full width opening 20mm deep.

upper infill (if required)

GAS TYPE

Flush fit 600 600 581min 20

Proud fit 565 590 560min 20

558

A B C D

INSTALLATION

use black installation screws supplied

mounting holes

596

Separate grill underbench oven

WARNING

NOTE TO INSTALLER: For separate grill underbench installations where a cooktop is installed directly above the appliance, a minimum clearance distance of 10mm must be allowed for between the bottom of the cooktop & the top of the separate grill underbench oven.

A B C

Flush fit 600 731 581min

Proud fit 565 723 560min

561

use black installation screws supplied

mounting holes

use black installation screws supplied

Separate grill wall oven & duo oven

CAUTION

NOTE: Dimension “D”. A requirement for all separate grill wall ovens and all duo ovens – for proper ventilation there must be a gap at the bottom rear of the cabinet. This can be a full width opening 20mm deep.

A B C D

Flush fit 600 893 581min 20

Proud fit 565 885 560min 20

650mm min

561

596

use black installation screws supplied

mounting holes

use black installation screws supplied

45INSTALLATION

INSTALLING YOUR APPLIANCE

WARNING

Double oven

561

450mm min.

GAS TYPE

A B C

Flush fit 600 1086 581min

Proud fit 565 1078 560min

use black installation screws supplied

mounting holes

use black installation screws supplied

Combo oven – cooktop cut-out dimensions

A minimum gap of 40mm must be maintained between the top of the underbench oven and the bottom of the cooktop to ensure adequate ventilation and space for the interconnection lead.

The cooktop must be installed above the underbench oven.

596

COOKTOP DIMENSIONS

Overall Cooktop Dimensions

Width 610mm

Depth 515mm

Depth of base 45mm

COOKTOP CUT-OUT DIMENSIONS

A B

Cooktop 560mm 490mm

A minimum gap of 40mm must be maintained between the top of the underbench oven and the bottom of the cooktop to ensure adequate ventilation and space for the interconnection lead.

CAUTION

The cooktop MUST be installed above the underbench oven.

46 INSTALLATION

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: WESTINGHOUSE BUILT-IN OVENS, COOKTOPS AND

FREESTANDING COOKER

This document sets out the terms and conditions of the product warranties for Westinghouse Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the

Competition and Consumer Act 2010;

(b) ‘Appliance’ means any Electrolux product purchased by you and

accompanied by this document;

(d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products

Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

 (e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis

warranty;

(f) ‘you’ means the purchaser of the Appliance not having purchased

the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Appliances, purchased

and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any nonexcludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this warranty

continues in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.

4. Repair or replace warranty: During the Warranty Period, Electrolux

or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy

oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits

ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will

bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this

warranty.

7. Exclusions: You may not make a claim under this warranty unless the

defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

 (a) lightglobes,batteries,ltersorsimilarperishableparts;

(b) parts and Appliances not supplied by Electrolux;

 (c) cosmeticdamagewhichdoesnotaecttheoperationofthe

Appliance;

(d) damage to the Appliance caused by: (i) negligence or accident;

(ii) misuse or abuse, including failure to properly maintain or service;

(iii) improper, negligent or faulty servicing or repair works done by

anyone other than an Electrolux authorised repairer or ASC;

(iv) normal wear and tear;

(v) power surges, electrical storm damage or incorrect power supply;

(vi) incomplete or improper installation;

(vii) incorrect, improper or inappropriate operation;

(viii) insect or vermin infestation;

(ix) failure to comply with any additional instructions supplied with

the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the

Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;

 (b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;

or defaced

8. How to claim under this warranty: To enquire about claiming under

this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms

of this warranty;

(b) have the model and serial number of the Appliance available;

(d) telephone the numbers shown below.

9. Australia: For Appliances and services provided by Electrolux in

Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. ‘Acceptable quality’ and ‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Appliances and services provided by Electrolux

in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

11.Condentiality: You accept that if you make a warranty claim, Electrolux

and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in New Zealand

PLEASE CALL 0800 10 66 10

(New Zealand only)

WCook_Warr_Apr17

Important Notice

AUSTRALIA

ELECTROLUX HOME PRODUCTS

163 O’Riordan Street, Mascot NSW 2020

electrolux.com.au

NEW ZEALAND

ELECTROLUX (NZ) Limited

3-5 Niall Burgess Road, Mount Wellington

electrolux.co.nz

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call (Australia only)

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in New Zealand

PLEASE CALL 0800 10 66 20

(New Zealand only)

47WARRANTY

For more information on all Westinghouse appliances, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website:

AUSTRALIA

phone: 1300 363 640 fax: 1800 350 067 email: customercare@electrolux.com.au web: westinghouse.com.au

NEW ZEALAND

phone: 0800 436 245 fax: 0800 225 088 email: customercare@electrolux.co.nz web: westinghouse.co.nz

TOP SERVICE

Electrolux Top Service encompasses the after sales service including Delivery, Home Service and Spare Parts.

and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation.

P/No: A10927502 Rev A ECN 097359

Westinghouse WVE606SA, WVEP615W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
