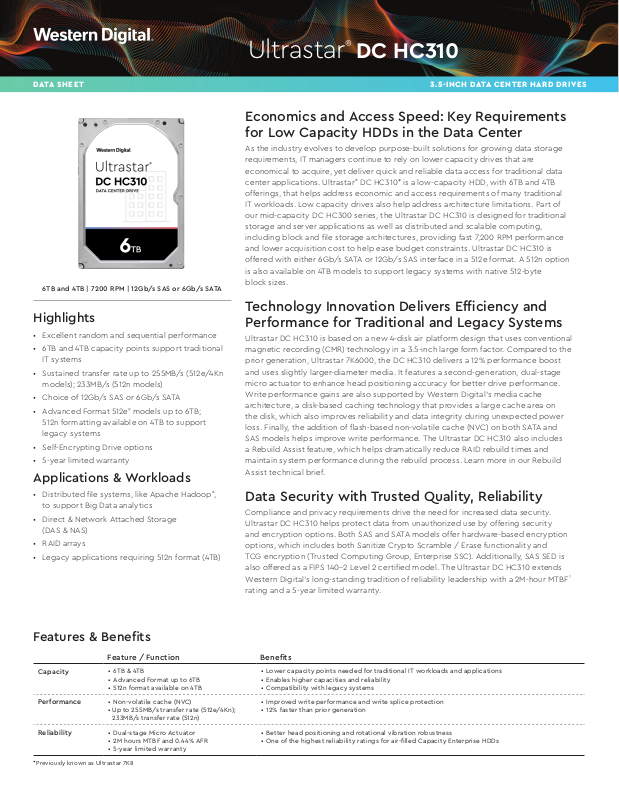

Ultrastar
®
DC HC310
DATA S H E ET
6TB and 4TB | 7200 RPM | 12Gb/s SAS or 6Gb/s SATA
Highlights
• Excellent random and sequential performance
• 6TB and 4TB capacity points support traditional IT systems
• Sustained transfer rate up to 255MB/s (512e/4Kn models); 233MB/s (512n models)
• Choice of 12Gb/s SAS or 6Gb/s SATA
• Advanced Format 512e9 models up to 6TB; 512n formatting available on 4TB to support legacy systems
• Self-Encrypting Drive options
• 5-year limited warranty
Applications & Workloads
• Distributed file systems, like Apache Hadoop®, to support Big Data analytics
• Direct & Network Attached Storage (DAS & NAS)
• RAID arrays
• Legacy applications requiring 512n format (4TB)
3.5-INCH DATA CENTER HARD DRIVES
Economics and Access Speed: Key Requirements for Low Capacity HDDs in the Data Center
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on lower capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Ultrastar® DC HC310* is a low-capacity HDD, with 6TB and 4TB offerings, that helps address economic and access requirements of many traditional IT workloads. Low capacity drives also help address architecture limitations. Part of our mid-capacity DC HC300 series, the Ultrastar DC HC310 is designed for traditional storage and server applications as well as distributed and scalable computing, including block and file storage architectures, providing fast 7,200 RPM performance and lower acquisition cost to help ease budget constraints. Ultrastar DC HC310 is offered with either 6Gb/s SATA or 12Gb/s SAS interface in a 512e format. A 512n option is also available on 4TB models to support legacy systems with native 512-byte block sizes.
Technology Innovation Delivers Efficiency and Performance for Traditional and Legacy Systems
Ultrastar DC HC310 is based on a new 4-disk air platform design that uses conventional magnetic recording (CMR) technology in a 3.5-inch large form factor. Compared to the prior generation, Ultrastar 7K6000, the DC HC310 delivers a 12% performance boost and uses slightly larger-diameter media. It features a second-generation, dual-stage micro actuator to enhance head positioning accuracy for better drive performance. Write performance gains are also supported by Western Digital’s media cache architecture, a disk-based caching technology that provides a large cache area on the disk, which also improves reliability and data integrity during unexpected power loss. Finally, the addition of flash-based non-volatile cache (NVC) on both SATA and SAS models helps improve write performance. The Ultrastar DC HC310 also includes a Rebuild Assist feature, which helps dramatically reduce RAID rebuild times and maintain system performance during the rebuild process. Learn more in our Rebuild Assist technical brief.
Data Security with Trusted Quality, Reliability
Compliance and privacy requirements drive the need for increased data security. Ultrastar DC HC310 helps protect data from unauthorized use by of fering security and encryption options. Both SAS and SATA models offer hardware-based encryption options, which includes both Sanitize Crypto Scramble / Erase functionality and TCG encryption (Trusted Computing Group, Enterprise SSC). Additionally, SAS SED is also offered as a FIPS 140–2 Level 2 certified model. The Ultrastar DC HC310 extends Western Digital’s long-standing tradition of reliability leadership with a 2M-hour MTBF² rating and a 5-year limited warranty.
Features & Benefits
Feature / Function Benefits
Capacity
Performance
Reliability
*Previo usly kn own as Ultr asta r 7K8
• 6TB & 4TB
• Advanced Format up to 6TB
• 512n format available on 4TB
• Non-volatile cache (NVC)
• Up to 255MB/s transfer rate (512e/4Kn); 233MB/s trans fer rate (512n)
• Dual-stage Micro Actuator
• 2M hours MTBF and 0.44% AFR
• 5-year limited warranty
• Lower c apacity points needed for traditional IT workloads and applications
• Enables higher capacities and reliability
• Improved write performance and write splice protection
• 12% faster than prior generation
• Better head positioning and rotational vibration robustness
• One of the high est reliability ratings for air-filled Cap acity Enterprise HDDs
Ultrastar
®
DC HC310
DATA S H E ET 3.5-INCH DATA CENTER HARD DRIVES
Specifications
Configuration SATA Models SAS Models
Model # HU S7 26TxTAL E6y z
HUS726T4TALA6yz
Interface SATA 6G b/s SAS 12Gb/s
Capacity
1
6TB / 4TB
Form Factor 3.5-inch
Sector size (bytes)
3
4Kn: 4096
512n*/512e: 512
Max . areal density
(Gbits/sq. in., max)
512e/4Kn: 782, 696 (4TB)
512n*: 753
HU S7 26TxTAL 52y z HUS726T4TALS2yz
4Kn: 4096, 4104 ,
4160, 42 24
512n*/512e: 512, 520,
528
← ←
Performance
Data buffer (MB)
4
256
Rotational spe ed (RPM) 7200
Latenc y average (ms) 4.16
Interface transfer r ate (MB/s, max) 600 1200
Sustained transfer rate
(M iB/s ec , ty p .) (M B/s e c, t yp .)
5
512e/4Kn: Up to 243
512n*: 222
512e/4Kn: Up to 255
512n*: 23 3
Reliability
Error Rate (non-recoverable bits read) 1 in 10
Load/Unload cycles (at 40°C) 600,000
2
MTBF
Annual f ailure rate (AFR)
2
2M hours
0.4 4%
Availability (hrs/day x days/wk) 24×7
Limited Warranty (yrs) 5
15
SATA Models SAS Models
Acoustics
Idle/Operating (Bels, typical) 2.9 / 3.6
Power
Requirement +5 V, +12 V
Operating (W, typical)
8
Idle (W )
7
7.0 12.1
5.9 7.0
Physical
z-height (mm, max) 26.1
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, ma x) 715
Environmental (operating)
Ambient Temperature 5°C to 60°C
Shock (h alf-sign wave, 2 ms, G) 70
Vibration (G RMS, 5 to 500 Hz) 0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature -40°C to 70°C
Shock (h alf-sign wave, 2 ms, G) 300
Vibration (G RMS, 2 to 20 0 Hz) 1.04 (XYZ)
NOTE: See “H ow to Read Model Number” below for possibl e values of x, y and z in m odel nu mbers .
1
One meg abyte (MB) is eq ual to one million by tes, one
gigaby te (GB) is equa l to 1,000MB (one billio n bytes), and one te rabyte (T B) is equal to 1,0 00GB (one tr illion bytes) when referring to storage capacity. Accessible capaci ty will vary fro m the state d capacity due to formatting, system software, and other factors.
2
MTBF and AF R specification s are based o n a
sample population and are estimated by statistical measurements and acceleration algorithms under typic al opera ting cond itions fo r this drive m odel. MTBF and AF R ratings do not pred ict an individua l drive’s rel iabilit y and do not consti tute a warra nty.
5601 Great Oaks Parkway San Jose, CA 95119, USA
US ( Toll -F re e): 800.801.4618 International: 408.717.6000
www.wdc.com/dc-hc310
3
Advance d Format dr ive: 4K (4096-byte) physic al sec
4
Portion of buffer capacity used for drive firmware
⁵ 1MiB = 1,048, 576 bytes (220), 1MB = 1,0 00,000 byte s
(106) ⁶ Excludes command overhead ⁷ SATA models: 8K Qu eue Depth = 1 @ 40 IOPS,
SAS model s: 4K Queue Depth = 4 @ Ma x IOPS ⁸ Idle spe cification is base d on use of Idle_A ⁹ 512e model s can be conve rted to 4Kn f ormat an d
vice vers a.
© 2018–2019 Weste rn Digita l Corporation or i ts affiliates. A ll rights r eserve d. Produce d 4/18, Rev 8/19. Western D igital, the Wester n Digital logo, an d Ultras tar are registered trademarks or trademarks of Western Digital Corporation or its affiliates in the US and/or other countries. Apache®, Apache Hadoop, and Hadoop® are either re gistered trade marks or tradem arks of The Apache S oftware Found ation in the United S tates and/or othe r countries. All ot her mark s are the prop erty of their respec tive owners. Refer ences in th is public ation to Western Digi tal products , program s, or serv ices do not imply th at they will b e made available in a ll countries. Produc t specific ations provided a re sample s pecifications t hat are subj ect to change and d o not const itute a warr anty. Pictures show n may vary f rom actua l products.
How to Read the Ultrastar Model Number
HUS726TxTALE6yz = xTB SATA 6Gb/s 512e
H = Western Digital U = Ultrastar S = Standard 72 = 7200 RPM 6T = Max capacity in series (6TB) xT = Capacity of this mo del (6T = 6TB, 4T = 4TB) A = Generation code L = 26.1mm z-height E6⁹ = Interface (512e SATA 6Gb/s)
(A6* = 512n SATA 6Gb/s, S2* = 512n SAS 12Gb/s, 52⁹ = 512e SAS 12Gb/s)
y = Power Disable Pin 3 status
(0 = Power Disable Pin 3 support L = Legacy Pin 3 config – No Power Disable Support)
z = Data Security Mode
1 = SED**: Self Encrypting Dr ive. TCG-Enterprise and Sanitize Crypto
Scramb le / Erase. 4 = Base (SE)**: No Encryption. Sanitize Overwrite only. 5 = SED-FIPS: SED w/ certification (SAS only).
* Available on 4TB capacities ** ATA Security Fe ature Set co mes sta ndard on SATA
