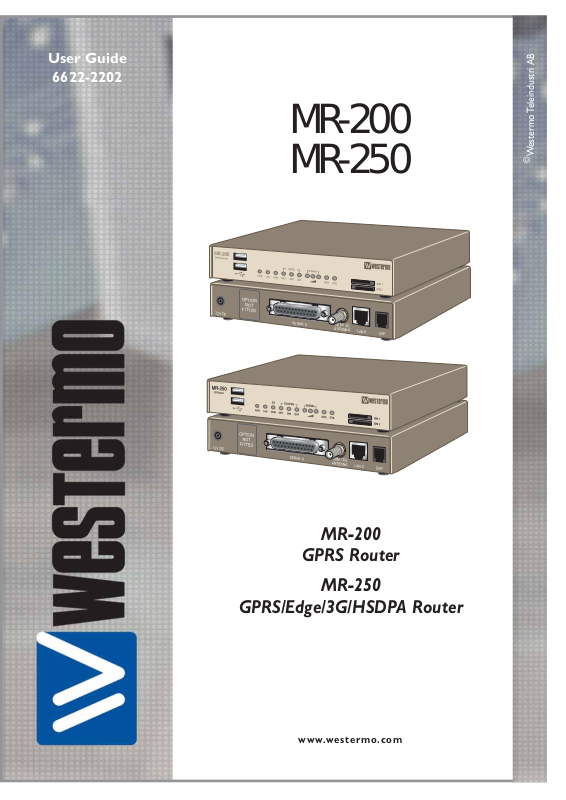

Westermo MR-200 User Manual

User Guide

SERIAL

0

LAN 0 EXP.ANTENNA

GSM / 3G

OPTION

NOT

FITTED

12V DC

6622-2202

MR-200
MR-250

©

Westermo Teleindustri AB

MR-200

GPRS Router

MR-250

GPRS/Edge/3G/HSDPA Router

www.westermo.com

Legal information

The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.

Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.

More information about Westermo can be found at the following Internet address:

http://www.westermo.com

2

6615-2202

Safety

!

!

Before using this unit:

Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.

Hazardous voltages may occur within this unit when connected to a power supply.
Prevent access to hazardous voltages by disconnecting the unit from its power

supply.
Prevent damage to internal electronics from electrostatic discharges (ESD) by

discharging your body to a grounding point (e.g. use of wrist strap).

Before installation:

This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is

restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be

possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.

This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Installation section).

Care recommendations

Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.

This unit must not be operated with covers or lids removed.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling beyond the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not
waterproof.-Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.

GSM specific safety

Please read and follow the guidelines listed below. The precautions must be observed
during all phases of the operation. Breaking these rules may be dangerous, illegal or affect
performance of the unit and/or invalidate the unit’s approval and/or warranty.

6615-2202

3

General

Remember to follow any special regulations and warnings in force in any area and never
use the unit whenever it’s forbidden to use it. Do not use the unit when it may cause
interference or danger. A wireless device exposed to interference above specified limits
could result in deteriorated performance.

Hospitals or other Medical environment

Do not use the unit in a medical environment such as health care facilities. Follow any
regulations or rules that instruct you to not use the unit.

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation
of six (6”) inches be maintained between cellular wireless equipment and a pacemaker
to avoid potential interference with the pacemaker. These recommendations are consist­ent with the independent research by and recommendations of-Wireless Technology
Research.

Persons with pacemakers:
… Should ALWAYS keep the the unit and its antenna more than six inches from their

pacemaker when the unit is turned ON.

… If you have any reason to suspect that interference is taking place, turn your wireless

equipment OFF immediately.

Hearing Aids

Some digital wireless equipment may interfere with some hearing aids. In the event of
such interference, you may want to consult your service provider [or call the customer
service line to discuss alternatives.]

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to
determine if they are adequately shielded from external RF energy.-Your physician may be
able to assist you in obtaining this information.

Turn the wireless equipment OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be using equip­ment that could be sensitive to external RF energy.

Aircraft

Do not use the unit in an aircraft. The use of a wireless unit in an aircraft may be danger­ous to the operation of the aircraft, disrupt the wireless network, and may be illegal.

Failure to observe these instructions may lead to suspension or denial of cellular services
to the offender, legal action, or both.

Vehicle

If the unit is incorrectly installed in a vehicular environment, the operation of the unit
could interfere with the vehicle electronics. Faulty installation and/or operation can con­stitute a safety hazard.

4

6615-2202

For Vehicles equipped with an airbag

An air bag inflates with great force. DO NOT place objects, including either installed or
portable wireless equipment, in the area over the air bag or in the air bag deployment
area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, seri­ous injury could result.

Blasting areas

Do not use the unit where blasting is in progress or in “blasting areas”.
Observe restrictions and follow any regulation or rules.

Explosive atmospheres

Do not use the unit in any area with a potentially explosive atmosphere.
Potentially explosive areas are often, but not always, clearly marked.
They include fuelling areas such as petrol stations, below decks on boats, fuel or chemical
transfer or storage facilities, and areas where the air contains chemicals or particles, such
as grain, dust, or metal powder.

RF energy

The MR-200 is a low power radio transmitter and receiver. When it is ON, it receives
and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF signals. However, certain elec­tronic equipment may not be shielded against the RF signals from the wireless unit. All
radio-transmitting devices send signals, which may cause interference in different elec­tronic devices. To avoid interference, place the units antenna a sufficiently long distance
from other electronics.

Critical applications

Cellular units operate using radio signals and cellular networks cannot be guaranteed to
connect in all conditions. Therefore you should never rely solely on a wireless device for
essential communications, for example medical emergencies.

Backup copies

Remember to make backup copies of all important data, for example PIN/PUK codes,
contents of SIM card etc.

Antenna care

Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the unit and may violate current regulations.

Do not touch the antenna unnecessarily when the unit is in use. Contact with the anten­na affects call quality and may cause the unit to operate at a higher power level than
otherwise needed.

Maintenance

No maintenance is required, as long as the unit is used as intended within the specified
conditions.

6615-2202

5

Agency approvals and standards compliance

Type Approval / Compliance

Safety EN 60950, IT equipment

R&TTE
Article 3.1b
Article 3.2

EN 301 489-1
EN 301 511

6

6615-2202

Declaration of Conformity

Westermo Teleindustri AB

Declaration of conformity

The manufacturer

Herewith declares that the product(s)

Type of product Model Art no

GPRS/Edge/3G/HSDPA Router MR-200/

is in conformity with the following EC directive(s).

No Short name

1999/5/EC radio and telecommunications terminal equipment (R&TTE)

References of standards applied for this EC declaration of conformity.

No Title Issue

EN 60950-1 Information technology equipment — Safety 2001 + A11
EN 301 489-7 V1.3.1 Electromagnetic compatibility and Radio spectrum

EN 301 511 V9.0.2 Global System for Mobile communications (GSM);

Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden

Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services

Harmonized EN for mobile stations in the GSM 900
and GSM 1800 bands

MR-250

3622-0101 /
3622-0110

The last two digits of the year in which the CE marking was affixed: 10

Pierre Öberg
R&D Manager
3rd May 2010

Org.nr/
Postadress/Postal address

S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna

Sweden Int+46 16428000 Int+46 16428001

Tel.

Telefax

Postgiro

Bankgiro

Corp. identity number Registered office

6615-2202

7

Type tests and environmental conditions

Environmental

Temperature Operating –20 to +50°C

Packaging

Enclosure Pressed steel

Dimension W x H x D 160 x 120 x 32 mm

Weight 0.53 kg

Mounting Horizontal on 35 mm DIN-rail or flat on

level surface

8

6615-2202

Description

The MR-200 router is an GPRS router designed to be compatible with the current and
future requirements of remote telemetry and industrial control systems applications. The
unit has an integral Ethernet port and a 25 pin RS-232 serial interface for local connec­tivity.

The Ethernet interface supports Multicasting (IGMP), VLAN, SNMP, SNTP, FTP, SNMP as
well as all the standard TCP, UDP and DHCP protocols.

The inbuilt RS-232 port can be used to connect legacy serial based equipment such as
PLCs, RTUs or IEDs. Alternatively the internal serial port can be used as a backup con-

nection to the remote site when used in conjunction with a suitable Westermo Modem.
The MR-200 router has an integrated stateful inspection firewall and can support 5

IPSEC VPN (Virtual Private Network) terminations which can be secured using optional
3DES, AES, SSL, SSH encryption, and MD5, SHA1 key exchange protocols. These features
ensure that the remote sites can use the latest security technology to resist denial of
service attacks and hacking. The VPN’s can be used as a way of increasing security and to
create secure tunnels, running between sites. The VPNs can be used to interconnect the
sites effectively replacing the requirement for dedicated leased lines. The VPN tunnels can
be terminated on either another MR-200 ADSL router or on a Westermo DR-200 ADSL
router. An optional license for 50 VPN terminations is also available.

The MR-200 can also be used for remote sites access, allowing the user to browse WEB
pages, monitor / edit PLCs or access any device connected to the LAN. The MR-200 will
allow devices connected on the LAN side to send emails or connect to FTP servers for
transferring files.

The MR-200 supports VRRP (Virtual Redundant Router Protocol) allowing multiple physi­cal routers to share a single gateway and provide multiple backup WAN connections.
For complex network applications the MR-200 supports OSPF and RIP2. The MR-200
is supplied with a complete mounting kit for DIN rail, wall or shelf mounting. The wide
temperature range and 24VDC supply ensure that the MR-200 can be used in industrial
applications without the need for modification or consideration of the environmental
conditions.

The MR-250 has got all the functionality of the MR-200 plus EDGE, 3G and HSDPA
capapbility. The MR-250 will at all times use the communication method with the fastest
transmission speed. If HSDPA is not available the unit will automatically switch down to
3G, EDGE or GPRS respectively.

Features:

… GPRS Router (MR-200)
… EDGE/3G/HSDPA (MR-250)

… Ethernet port switch
… Dual SIM card operation
… Integrated RS-232 terminal server port
… SNMP management protocol
… Firewall

… IPsec VPN support (5 tunnels)
… VRRP, OSPF, RIP2 redundant protocols
… DIN Rail, wall or shelf mounted
… –20˚C to +55˚C
… 24 VDC supply
… DES • 3DES • AES • SSL • SSH

(optional)

6615-2202

9

Interface specifications

Power

Rated voltage 12 VDC MR-200

11 – 28 VDC MR-250

Rated current 250 mA @ 12 VDC MR-200

450 mA @ 12 VDC MR-250

Rated frequency DC

RS-232

Electrical specification RS-232 V.24
Data rate 300 bit/s – 115.2 kbit/s
Data format 7 or 8 data bits, Odd, even or no parity, 1 or 2 stop bits
Transmission range 2 m
Connection 25-pin D-sub female (DCE)

Antenna

Frequency bands GSM850: 824 – 849 and 869 – 894 MHz

GSM1800 TX 1710 – 1785 and RX 1805 – 1880 MHz
GSM1900 TX 1850 – 1910 and RX 1930 – 1990 MHz
UMTS2100 TX 1920 – 1980 RX 2110 – 2170 (MR-250 only)

Data rate GPRS: up to 85.6 kbit/s

HSDPA: up to 7.2 Mbit/s

Connection SMA female, impedance: 50 ohm

SIM

Electrical specification 3 volts SIM supported

Ethernet

Electrical specification IEEE std 802.3. 2000 Edition

Data rate 10 Mbit/s or 100 Mbit/s, auto-negotiated

Protocol UDP,TCP, ICMP, HTTP and ARP

Duplex Full- or half duplex, auto-negotiated

Circuit type TNV-1

Transmission range 100 m

Connection RJ-45 shielded, auto MDI/MDI-X

10

6615-2202

Connections

SIM Card Sockets

The two sockets at the right side of the front panel are for the GSM SIM card(s)
that you will receive from your service providers. Details of how to insert these
correctly are given in section 2 below.

LED Indicators

(for details

see next page)

USB Host Connectors*

RS-232 interface**

Power interface cord

Cable Description

Black – VDC

Red + VDC

* The USB host connectors may be used to con-

Antenna interface

Ethernet interface

nect compatible USB 2.0 client devices such as
memory sticks, serial adapters, etc. Note that the
total current available to power USB devices is
collectively 0.5A (i.e. for both ports).

** RS-232 D-sub

25-position Direction Description
No. 2 In Transmit Data (TD)
No. 3 Out Receive Data (RD)
No. 4 In Request To Send (RTS )
No. 5 Out Clear To Send (CTS)
No. 6 Out Data Set Ready (DSR)
No. 7 – Signal ground (SG)
No. 8 Out Data Carrier Detect (DCD) )
No. 15 In Transmitter Clock (TxC)
No. 17 Out Receiver Clock (RxC)
No. 20 In Data Terminal Ready (DTR)
No. 24 In External Transmitter Clock (ETC)

Not used

6615-2202

11

LED Indicators

LED Status Description

PWR ON In service

OFF Out of service

LAN ON Network connection on LAN port

OFF No connection on LAN port
Flash Transmit or recive data on LAN port

GSM This indicator is connected directly to the GSM module within

the router and operates as described in the GSM Status Indicator
Functions table below.

NET ON A wireless network has been detected

OFF No wireless network has been detected

SIM ON A valid SIM card is installed in the unit

OFF No valid SIM card is installed in the unit

DAT Flash Data is being transferred over the wireless network

OFF No data is being transferred over the wireless network

Signal The three indicators labelled SIGNAL illuminate to indicate the GSM signal strength as

follows:
None illuminated < -113 dBm (effectively no signal)
1 LED illuminated >= -112 dBm and <= –87 dBm (weak)
2 LED’s illuminated >= -86 dBm and <= –71 dBm (medium)
3 LED’s illuminated >= -70 dBm and <= –51 dBm (strong)

GPS ON GPS option fitted and has been successfully configured by the unit

OFF GPS option not fitted or not successfully configured

DTE ON Terminal connected to the serial port and the DTR signal is on

OFF No connection on serial port Data is transmitted or received on

the serial port

Flash Data is transmitted or received on the serial port

GSM Status Indicator Functions

OFF GSM module is in SLEEP or Charge-only mode.

600 ms ON / 600 ms OFF No SIM card inserted or no PIN entered, or network search

in progress, or ongoing user authentication, or network login
in progress.

75 ms ON / 3 s OFF Logged on to network (monitoring control channels and user

interactions), no call in progress.

75 ms ON / 75 ms OFF / 75 ms
ON / 3 s OFF

Flashing LED is On when data packets were exchanged in GPRS online

ON Connected to remote party or exchange of parameters while

One or more GPRS contexts activated.

mode during the last second.

setting up or disconnecting call.

Reset switch

This is located on the underside of the unit near the front. Pressing the switch gently with the tip of
a pen or other suitable implement will generate a hardware reset.
Refer to page 15 (restoring factory defaults).
It is important to allow the MR-2xx to complete the restore procedure. DO NOT press the reset
button again or power cycle the unit for at least 2 minutes.

12

6615-2202

Installation

Mounting / Removal

The router should be positioned on a smooth, level surface making sure that there is
adequate ventilation. Do not expose the router to extremes of heat or cold, strong
magnetic fields or liquids.

It is important to remember that these products are wireless devices just like a mobile
phone, so they will only operate reliably over the GSM network if there is a good signal.
For many applications the stub aerial provided will be suitable but in some circumstances
it may be necessary to use a window-mounted or magnetically mounted aerial with an
extended cable to allow the aerial itself to be positioned to provide the best possible
signal reception. Sarian Systems can supply a range of suitable aerials.

Step 1 – Installing the SIM card(s)

The router incorporates two separate SIM card holders so that if your application
demands it, you may install SIM cards for two different networks. This means that one
wireless service may be used as a back-up service in the event that the primary service
fails in some way. By default, SIM 1 is the default SIM used for access to the primary net­work and SIM 2 is used for the back-up network.

Note: SIM 1 and SIM 2 cannot be used to access two networks simultaneously.

The SIM card(s) should be inserted into SIM cardholders on the right of the front panel
as illustrated below.

In both cases, the end of the SIM card with the chamfered corner should be inserted first.
For SIM 1 the contacts should be face down. For SIM 2 the contacts should be face up.

The easiest way to get started is to use SIM-cards without PIN-code. If the PIN-code is
activated it is possible to set this up in the settings for the router.

Step 2 – Fitting the wireless antenna

The router is supplied with a “stub” antenna suitable for with the model you have
ordered. Alternatively you may have ordered a different type of antenna separately. In
either case this should be screwed onto the SMA aerial connector on the rear of the
unit.

Step 3 – Connecting the LAN cable

Plug one end of one of the supplied 2 metre CAT5 STP cable into the RJ45 socket
labelled LAN 0. Plug the other end into the LAN socket on your PC or notebook.

6615-2202

13

Step 4 – Connecting the serial cable

For connection to a serial terminal device, connect the 25-way D plug on the serial cable
provided to the SERIAL connector on the rear of the unit. Connect the other end of the
cable (9-way D socket) to the terminal. If the serial connector on the terminal is not a 9­way D plug, you will need a suitable adapter.

Step 5 – Connecting the GPS antenna (if applicable)

If you have purchased the router with the GPS option fitted, this connector is used to
connect the GPS antenna. A range of suitable antennas are available for purchase sepa­rately. To connect the antenna, screw the SMA termination firmly onto the rear panel
connector.

Step 6 – Connecting the power supply

Plug the jack plug on the mains adapter into the socket labelled 12VDC. When power is
first applied, the ON indicator will illuminate and the unit will initiate a series of diagnos­tic self-tests. During this process one or more of the other indicators, will flash to show
that the unit is busy. When the flashing stops, the unit is ready to use.

The unit is now ready to be configured.

14

6615-2202

Getting started

IP Address

The default IP address of the MR-2xx when delivered is 192.168.0.99.

IP address configuration

The IP address is configurable by the Web tool and/or by using a terminal program.
Below is an description of how to configure the IP address by using a terminal program.

1. If the address is known, connect to the unit from a Web browser with the address of
the MR-2xx. If the address is unknown, connect the serial RS-232 interface to a
terminal program with settings:
Data rate: 115.2 bit/s
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None

2. Use any terminal-program to setup the IP-address, gateway and subnetmask.
Eth 0 ipaddr xxx.xxx.xxx.xxx (set up IP-address)
Eth 0 gateway yyy.yyy.yyy.yyy (set up Gateway)
Eth 0 mask zzz.zzz.zzz.zzz (set up subnetmask)
Eth 0 status (check settings)
Config 0 save (save configuration)

3. The unit is now ready for a complete configuration by the Web tool. Address MR-2xx
in a browser with the configured IP address. Note that the used computer have to be
on the same network as MR-2xx.

Username and Password for configuration

The MR-2xx is username and password protected. These are used when connecting with
Web browser during configuration and with Telnet for diagnostics.

Default username: username
Default password: password

Restore Factory default settings

Note! This will clear your customized settings.

The factory default settings can be restored using the reset switch on the bottom of the
unit. Pressing (~15 sec) the switch gently with the tip of a pen or other suitable imple­ment will generate a hardware reset.

Note! If the default address of the unit is valid on the connected network it is possible
to access the unit directly from a browser.

It is important to allow the MR-2xx to complete the restore procedure. DO NOT press
the reset button again or power cycle the unit for at least 2 minutes.

6615-2202

15

Configuration by Web Tool

The MR-2xx includes an easy-to-use Web configuration tool. The Web tool is very
intuitive and includes useful help information for the configurable parameters.

Connect and login to the MR-2xx on the default IP address and with default username
and password combination (or your customized if configured) using a standard Web
browser.

Basic GPRS/3G setup

The following setup must be done to get basic GPRS connectivity.

PPP Account

Username: If your GPRS provider supplied one
Password: If your GPRS provider supplied one

GPRS/3G Module

APN: Access Point Name from your provider goes here
Press Save then press OK
Press Reboot then press Reboot
The settings must be saved to one of the two profiles and then restarted.

When the router is restarted it will make a connection to the GPRS-network and it
should be possible to browse the Internet from the connected computer.

Note: The Gateway and DNS address must be set on the computer to the IP address of
the router.

Network status

Status of the GSM-interface can be found in the menu GPRS-module.

Status of the PPP-interface and IP-address in the GPRS-network can be found in the menu PPP.

16

6615-2202

Convenient configuration

Basic IP Address

• Static IP

To change the default IP-address 192.168.0.99 and subnet mask to something else.

Basic IP Address

• DHCP

Minimum assigned IP address: eg 192.168.0.2
IP address range: eg 20 (highest address will then be 192.168.0.22)
DNS server address: Address of router (192.168.0.99 default setting)
Gateway address: Address of router (192.168.0.99 default setting)
Mask: 255.255.255.0
All settings above must be saved to one of the two profiles and then restarted.
After that change the IP-address of the client computer to accept an IP-address from the
DHCP server in the MR-2xx and verify that the computer receive a correct IP-address.

Time

To setup the internal clock of the router to get correct time in logs etc.

GPRS/3G Module

This menu is used to change the PIN code of SIM 1.

6615-2202

17

Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden

Phone [phone] Fax [phone]

E-mail: [e-mail]

Westermo Web site: www.westermo.com

Subsidiaries

Westermo Data Communications AB
Svalgången 1
SE-724 81 Västerås
Phone: [phone] • Fax: [phone]
[e-mail]

Westermo Data Communications Ltd
Talisman Business Centre • Duncan Road
Park Gate, Southampton • SO31 7GA
Phone: [phone] • Fax.:[phone]
E-Mail: [e-mail]

Westermo Data Communications GmbH
Goethestraße 67, 68753 Waghäusel
Tel.: [phone] • Fax.:[phone]
E-Mail: [e-mail]

Westermo Teleindustri AB have distributors in several countries, contact us for further information.

Westermo Data Communications S.A.R.L.
9 Chemin de Chilly 91160 CHAMPLAN
Tél : [phone] • Fax : [phone]
E-mail : [e-mail]

Westermo Data Communications Pte Ltd
2 Soon Wing Road #08-05
Soon Wing Industrial Building
Singapore 347893
Phone [phone] • Fax [phone]
E-Mail: [e-mail]

REV.D 6622-2202 2010.05 Westermo Teleindustri AB, Sweden
