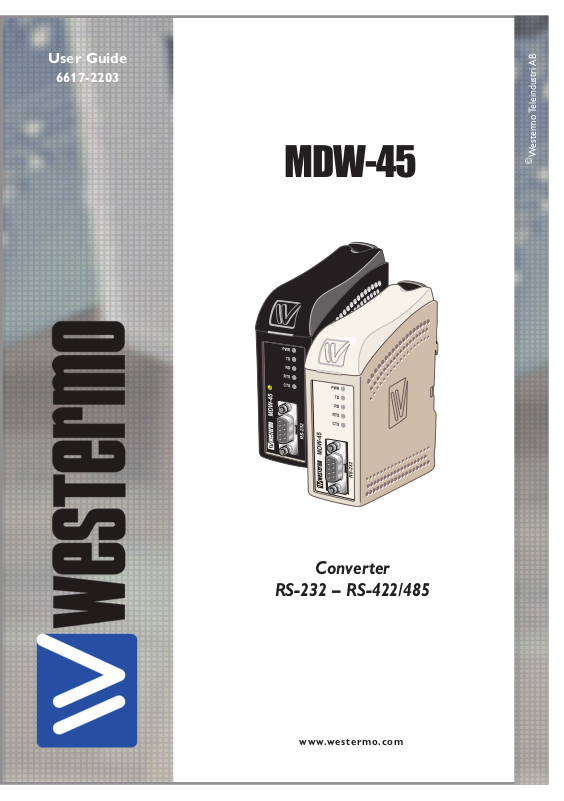

Westermo MDW-45 User Manual

User Guide

6617-2203

MDW-45

Westermo Teleindustri AB

©

Converter

RS-232 – RS-422/485

www.westermo.com

2

6617-2203

Legal information

The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.

Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.

More information about Westermo can be found at the following Internet address:

http://www.westermo.com

3

6617-2203

Safety

!
!

Before using this unit:

Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.

Hazardous voltage may occur within this unit when connected to power supply
or TNV circuits.

Prevent access to hazardous voltage by disconnecting the unit from power supply
and all other electrical connections.

Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap).

Before installation:

This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is

restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be

possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.

This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Installation section).

Care recommendations

Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.

This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause

damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-

proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical

part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo dis-

tributor office or Westermo Tech support.

Maintenance

No maintenance is required, as long as the unit is used as intended within the specified
conditions.

4

6617-2203

Agency approvals and standards compliance

Type Approval / Compliance

EMC EN 61000-6-2 Immunity industrial environments

EN 55024 Immunity IT equipment

EN 61000-6-3 Emission residential environments

FCC part 15 Class B

EN 50121-4 Railway signalling and telecommunications apparatus

IEC 62236-4 Railway signalling and telecommunications apparatus

Safety EN 60950 IT equipment

Ex* EN 60079-0 and EN 60079-15 Explosive atmospheres – General requirements and type

* Only MDW-45 LV EX

"n" electrical appratatus

FCC Part 15.105 Notice: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a partic­ular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

… Reorient or relocate the receiving antenna.
… Increase the separation between the equipment and receiver.
… Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

… Consult the dealer or an experienced radio/TV technician for help.

5

6617-2203

ATEX Information (Applicable for MDW-45 LV EX only)

General

This unit is intended for use in Zone 2 hazardous location only.

Marking

II 3 G
Ex nA IIC 136°C (T3) Gc
SPECIAL CONDITION

WARNING – DO NOT SEPARATE WHEN ENERGIZED

Indicate that this unit complies with relevant European standards that are
harmonised with the 94/9/EC Directive (ATEX).

II

3

G

Ex Indicates that this unit is in conformity with relevant European Ex standard(s).

nA

IIC Gas group, a typical gas i hydrogen.

136°C (T3)

Gc

SPECIAL

CONDITION

Equipment group II.
This unit can be installed in all places with an explosive gas atmosphere other
than mines susceptible to firedamp.
Equipment category 3.
A category is the classification according to the required level of protection.
This unit ensures the requisite level of protection during normal operation
and is intended for use in areas in which explosive atmosphere caused by
gases, vapours, mists, or dust mixtures are unlikely to occure or, if they do
occure, are likely to do so only infrequently and for a short periode only.
Indicates protection concerning explosive atmospheres caused by gases,
vapours or mists (G).

The type of protection used.
This unit is a non-sparking device "nA" which is constructed to minimize
the risk of occurence of arcs or sparks capable of creating an ignition
hazard during conditions of normal operation.

Maximum surface temperature assigned = 136°C with the next highest
temperature class T3 (T3 = 200 °C).
This unit is classified in accordance with its maximum surface temperature
(external and internal).
Equipment protection level Gc (EPL Gc)
Equipment for explosive gas atmospheres, having a "enhanced" level of protec­tion, which is not a source of ignition in normal operation and which may have
some additional protection to ensure that it remains inactive as an ignition
source in the case of regular expected occurences. EPL Gc are analogous to
the ATEX Categories (Category 3 G = EPL Gc).
This unit has a special condition for safe use.
The special conditon for safe use contains safety related information that is
necesarry for the correct installation and safe use.

6

6617-2203

Ratings and safety control drawing

Power 12 – 48 VDC; 95 mA

Ambient temperature –40ºC ≤ Ta ≤ +70ºC

Maximum surface temperatur 136 ºC (temperatur class T3)

Degree of protection IP21

Installation spacing Minimum 25 mm above / below and minimum 10 mm left / right

RS-232

Position Direction* / description Input /Output values

1 Not connected
2 Out / Received Data (RD)
3 In / Transmitted Data (TD)
4 Not connected
5 – / Signal Ground (SG)
6 Out / Data Set Ready (DSR)
7 In / Request To Send (RTS)
8 Out / Clear To Send (CTS)
9 Not connected

RS-422/485

Position Direction* / description Input /Output values

1 In / R+ line RS-422 U
2 In / R– line RS-422
3 In / Out / T+ line RS-422/485

4 In / Out / T– line RS-422/485

U

= ± 12 Vpk

max

I

= ± 60 mA

max

Data rate:

1.2 – 115.2 kbit/s

= ± 5 Vpk

max

I

= ± 250 mA

max

Data rate:

1.2 – 115.2 kbit/s

Power – LV

Position

Galvanically isolated via power transformer and optocoupler.
Capacitively isolated via Y1 capacitor rated 440 Vrms 3300 pF.

Direction* /
description

1 In / COM

2 In / +VA

3 In / +Voltage B

4 In / Common

Intput values

Uin = 9.6 – 57.6 VDC
Maxin = 0.16 A @ 9.6 VDC
PIn = 2 W

7

6617-2203

SPECIAL CONDITION FOR SAFE USE

Ambient temperature:

This unit is designed for use in extreme ambient temperature conditions according to the following:
–40ºC ≤ Ta ≤ +70ºC

Installation in an apparatus cabinet:

This unit requires installation in an Ex certified apparatus cabinet suitable for the area of use and
providing a degree of protection of at least IP54.

Resistance to impact:

This unit requires installation in an apparatus cabinet where adequate resistance to impact is pro­vided by the apparatus cabinet. See "Installation in an apparatus cabinet" above for requirements on
the external apparatus cabinet.

Resistance to light:

This unit requires installation in an apparatus cabinet where it is protected from light
(for example daylight or light from luminaires).
See "Installation in an apparatus cabinet" above for requirements on the external apparatus cabinet.

Secureness of plugs:

When this unit is installed in an explosive atmospheres, all connectors must be mechanically secured
to prevent loosening.

Conductor temperature:

When this unit is installed in locations with high ambient temperature, special precautions shall be
taken upon the choice of external conductor(s) and the temperature rating of the conductor(s).

Directive 94/9/EC alongside with other directives:

Directive 2004/108/EC (EMC) applies and to assure a safe performance of this unit under the scope
of Directive 94/9/EC, refer to the electromagnetic immunity level specified under "Type tests and
environmental conditions" in this manual.

Standards and date of compliance

EN 60079-0 and EN 60079-15
2011-06-15

8

6617-2203

Declaration of Conformity, Low Voltage and LV EX

Westermo T eleindustri AB

Declaration of conformity

Org.nr/

Postadress/Postal address

Tel.

Telefax

Postgiro

Bankgiro Corp. identity number Registered office

S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna

Sweden Int+46 16428000 Int+46 16428001

The manufacturer Westermo Teleindustri AB

SE-640 40 Stora Sundby, Sweden

Herewith declares that the product(s)

Type of product Model Art no

RS-232 – RS-422/485 Converter MDW-45 LV 3617-0001

MDW-45 LV EX 3617-5001

is in conformity with the following EC directive(s).

No Short name

2004/108/EC Electromagnetic Compatibility (EMC)
94/9/EC1 Equipment Explosive Atmospheres (ATEX)

References of standards applied for this EC declaration of conformity.

No Title Issue
EN 55024 Information technology equipment - Immunity 1998 + A1:2001 +

A2:2003

EN 61000-6-1 Electromagnetic compatibility – Immunity residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission residential environments 2007
EN 61000-6-4 Electromagnetic compatibility – Emission industrial environments 2007
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission

and immunity of the signalling and telecommunications apparatus

2006

EN 60079-0 Explosive atmospheres – Equipment – General requirements 2009
EN 60079-15 Electrical apparatus for explosive gas atmospheres –

Construction, test and marking of type of protection “n” electrical
apparatus

2005

The last two digits of the year in which the CE marking was affixed: 11

Pierre Öberg
Technical Manager
29 June 2011

1

Applicable for MDW-45 LV EX only.

9

6617-2203

Declaration of Conformity, High Voltage

Westermo T eleindustri AB

Declaration of conformity

Org.nr/

Postadress/Postal address

Tel.

Telefax

Postgiro

Bankgiro Corp. identity number Registered office

S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Esk ilstuna

Sweden Int+46 16428000 Int+46 16428001

The manufacturer

Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden

Herewith declares that the product(s)

Type of product Model Art no
RS-232 – RS-422/485 Converter MDW-45 HV 3617-0101

is in conformity with the following EC directive(s).

No Short name

2004/108/EC Electromagnetic Compatibility (EMC)
2006/95/EC Low Voltage (LVD)

References of standards applied for this EC declaration of conformity.

No Title Issue
EN 55024 Information technology equipment - Immunity 1998

+A1:2001
+A2:2003

EN 61000-6-1 Electromagnetic compatibility – Immunity for residential

environments

2007

EN 61000-6-2 Electromagnetic compatibility – Immunity for industrial

environments

2005

EN 61000-6-3 Electromagnetic compatibility – Emission for residential

environments

2007

EN 61000-6-4 Electromagnetic compatibility – Emission for industrial

environments

2007

EN 50121-4 Railway applications -- Electromagnetic compatibility --

Emission and immunity of the signaling and telecommunications
apparatus

2006

EN 60950-1 Information technology equipment -- Safety -- General

requirements

2006
+A11:2009

The last two digits of the year in which the CE marking was affixed: 10

Pierre Öberg
Technical Manager
31th August 2010

10

6617-2203

Type tests and environmental conditions

Electromagnetic Compatibility
Phenomena Test Description Level

ESD EN 61000-4-2 Enclosure contact ± 6 kV

RF eld AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz

RF eld 900 MHz ENV 50204 Enclosure 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV

Surge EN 61000-4-5 Signal ports unbalanced ± 2 kV line to earth, ± 2 kV line to line

RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz

Magnetic eld, power freq. EN 61000-4-8 Enclosure 100 A/m, 50 Hz, 16.7 Hz & 0 Hz
Pulse Magnetic eld EN 61000-4-9 Enclosure 300 A/m, 6.4 / 16 ms pulse
Voltage dips and interruption EN 61000-4-11 AC power ports 10, 20 & 5000 ms, interruptions

Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz
Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz
Voltage dips and interruption EN 61000-4-29 DC power ports 10 & 100 ms, interruption

Radiated emission EN 55022 Enclosure Class B

FCC part 15 Class B

Conducted emission EN 55022 AC power ports Class B

FCC part 15 AC power ports Class B
EN 55022 DC power ports Class B

Dielectric strength Signal port to all other 2 kVrms 50 Hz 1min

MDW-45 LV EX Any port to any port

Environmental

Temperature Operating –40 to +70°C

Humidity Operating 5 to 95% relative humidity

Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz

Shock IEC 60068-2-27 Operating 15 g, 11 ms

Packaging

Enclosure, MDW-45 UL 94 PC / ABS Flammability class V-1
Enclosure, MDW-45 EX Cabelec 6141
Dimension W x H x D 35 x 121 x 119 mm
Weight 0.19 kg
Degree of protection IEC 529 Enclosure IP 21
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail

Enclosure air ± 8 kV

20 V/m 80% AM (1 kHz), 800 – 960 MHz
20 V/m 80% AM (1 kHz), 1 400 – 2 700 MHz

Power ports ± 2 kV

Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line

Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz

10 & 500 ms, 30% reduction
100, 200 & 1 000 ms, 60% reduction

10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage

Power port to all other 3 kVrms 50 Hz 1min

and enclosure

Storage & Transport –40 to +70°C

Storage & Transport 5 to 95% relative humidity

2 kVrms 50 Hz 1min (@ rated power < 60V)
0,5 kVrms 50 Hz 1 min

2 g, 8 – 500 Hz

11

6617-2203

Fuctional description

RS-422/485RS-232

3

4

T+

T−

TD LEDTD LED

3

TD

CTS
LED

S2:4

F1

0V

+5V

1

2

R+

R−

RTS

CTS

RD

RD

LED

7

8

2

B

B

0V

SG

S1:6

DSR

6

+5V

5

S2:2

S2:1

S2:3

Power
supply

Isolated power supply

0V

+5V

+5V

Bus termination

0V

B

B

+5V

Bus termination

0V

B

B

A

A

A

RTS LED

MCU

The MDW-45 is an RS-422/485 to RS-232 converter. This device can be used in multid­rop and point to point applications to connect devices like PCs, PLCs, drives and other
automation equipment.

In 2-wire half duplex applications (RS-485) the MDW-45 can automatically control the
state of the data bus based just on the data it receives. This allows the unit to be used
with equipment that has no handshaking signal. The maximum transmission rate possible
is 115.2 kbit/s.

12

6617-2203

Interface specifications

Power

MDW-45 LV
MDW-45 LV EX

Rated voltage 12 to 48 VDC 95 to 240 VAC

Operating voltage 9.6 to 57.6 VDC 85.5 to 264 VAC

Rated current 95 mA @ 12 VDC

35 mA @ 48 VDC

Rated frequency DC 48 – 62 Hz / DC

Polarity Reverse polarity protected Polarity independent

Connection Detachable screw terminal Detachable screw terminal

Connector size 0.2 – 2.5 mm² (AWG 24-12) 0.2 – 2.5 mm² (AWG 24-12)

RS-422/485

Electrical specification RS-485

Data rate 1 200 bit/s – 115.2 kbit/s

Data format 7 or 8 data bit, Odd, even or none parity, 1 or 2 stop bit

Connection Detachable screw terminal

Connector size 0.2 – 2.5 mm² (AWG 24-12)

Transmission range In accordance with EIA RS-485

≤ 1200 m, depending on data rate and cable type

Settings 120 Ω termination and failsafe biasing 680 Ω , by DIP-switch

Protection Installation Fault Tolerant (up to ±60 V)

RS-232

Electrical specification RS-232

Data rate 1 200 bit/s – 115.2 kbit/s

Data format 7 or 8 data bit, Odd, even or none parity, 1 or 2 stop bit

Connection 9-pin D-sub female DCE

Transmission range 15 m

MDW-45 HV

110 to 250 VDC

88 to 300 VDC

21 mA @ 95 VAC
10 mA @ 110 VDC

13

6617-2203

Locations of Interface ports, LED`s and DIP-switches

S1 DIP-switch under lid

(for details see page 10)

RS-422/485 interface

LED indicators
(for details see page 8)

screw terminal

4-position Direction* Description

No. 1 In R+

No. 2 In R–

No. 3 In/Out T+

No. 4 In/Out T–

line RS-422

line RS-422

line RS-422/485

line RS-422/485

S2 DIP-switch
Termination
(for details see page 11)

RS-232 (DCE)

9-position Direction Description

No. 1 –

No. 2 Out Received Data (RD)

No. 3 In Transmitted Data (TD)

No. 4 –

No. 5 – Signal Ground (SG)

No. 6 Out Data Set Ready (DSR)

No. 7 In Request To Send (RTS)

No. 8 Out Clear To Send (CTS)

No. 9 –

Power connection, LV
screw terminal

2-position Description

No. 1 0 VDC

No. 2 12 – 48 VDC

Power connection, HV
screw terminal

2-position Description Product marking

No. 1

No. 2

AC: Neutral
DC: –Voltage

AC: Line
DC: +Voltage

N/–

L/+

Railway installation
close to the rails
(RS-232, RS-422/485)

For a cable located inside 3 m boundary and
connected to this port, the use of shielded
cable is recommended, this to minimize the
risk of interference. The cable shield should
be properly connected (360°) to an earthing
point within 1 m from this port. This earth­ing point should have a low impedance con­nection to the conductive enclosure of the
apparatus cabinet, or similar, where the unit
is built-in. This conductive enclosure should
be connected to the earthing system of an
installation and may be directly connected to
the protective earth.

14

6617-2203

LED Indicators

LED Status Description

PWR ON In service

OFF Out of service

TD ON Transmitted Data: Displays data received from the local RS-232 port

OFF No data

RD ON Received Data: Displays data leaving the modem on the RS-232 port

OFF No data

RTS ON Status of RTS from the RS-232 interface

OFF No RTS

CTS ON Status of CTS from the RS-232 interface

OFF No CTS

15

6617-2203

DIP-switch settings

Supervision table when selecting data format

7 bit

8 bit

No parity

Parity

1 stop bit

2 stop bit

Number of bit 910101011111112

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

!

Before DIP-switch settings:

Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).

S1

Selection of data rate

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

Selection of bus format

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

In RTS-control and Transmitter always active. The
switches for data rate and number of bits has
no effects.

1200 bit/sS1

2400 bit/sS1

4800 bit/sS1

9600 bit/sS1

19.2 kbit/sS1

38.4 kbit/sS1

57.6 kbit/sS1

115.2 kbit/sS1

2-wire RS-485S1

4-wire RS-422S1

Selection of data format

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

* See Supervision table when selecting data bits.

Turning time 1 – 1.5 bit time

Selection of bus control

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

S1

1 2 3 4 5 6 7 8

9 bit format*S1

10 bit format*S1

11 bit format*S1

12 bit format*S1

Data controlS1

RTS-control S1

Transmitter
always active

16

6617-2203

S2 Below panel, RS-422/485 termination

No termination and fail-safe

ON

1 2 3 4

Termination with fail-safe (2-wire)

ON

1 2 3 4

Termination with fail-safe (4-wire)

ON

1 2 3 4

Note! DIP-switch alterations are only effective after a power on.

Factory settings

ON

S1 S2

1 2 3 4 5 6 7 8

Data rate – 9600 bit/s, data format – 10 bit
Bus format, 2-wire

Note: Switch 1:8 is not used

ON

1 2 3 4

No termination
and fail-safe

17

6617-2203

Unit specific description

=Termination

Max 32 connections

Max 1 200 metres

Max 0.3 metre

=Termination

Max 32 connections

T+

T–

T+T– T+T– T+T–

R+

R–

T+

T–

R– R+ R+T– T–T+ R– R+ T– T+T+R–

When the converter is set to data-control mode the transmitter is activated by data on
TD (RS-232).The time the transmitter stays active corresponds to one character-time
plus the turning time for the set data rate and number of bits. If more data arrives on
TD before the turning time has expired the transmitter stays active for an additional
one character time and so on. In RTS-control mode the transmitter is activated by the
RS-232 RTS-signal. In this mode the dip-switches for data rate and number of bits have
no effect. The LED indicators show the status of the data signals. The fail-safe termination
ensures that the signal level at the receiver is in ‘mark state’ (differential>0.2 Volts) when
there is no data on the RS-485 bus. Full duplex is only possible if 4-wires are used.

Field of application

RS-422 and RS-485 were both designed for multidrop applications. When a system is
installed it should always form a bus structure (see diagrams). Star shaped networks
should never be created; there are other Westermo products that can be used to create
star net applications. To install a system according to the RS-422/485 specification it is
very important that the line is terminated at the correct points. The recommendation is
to terminate the receiver on the master unit and the final bus slave unit. See diagrams for
details of how this is done with RS-485 (2-wire) and RS-422 (4-wire).

N.B. R+/R–, T+/T– definitions are not standard, it can help to shift + and –

if the unit does not work.

18

6617-2203

Line connection

4-wire

RS-422/485

T+

T–

R+

R–

equipment

Transmitter

Receiver

MDW-45

Receiver

Transmitter

1

R+

2

R–

3

T+

4

T–

Twisted pairs

*) If shielded cable is used, connect the shield only at one end to avoid ground currents.

2-wire

MDW-45

Transmitter/
Receiver

Twisted pairs

3

T+/R+ T+/R+

4

T–/R– T–/R–

RS-422/485
equipment

Transmitter/
Receiver

Care recommendations

Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.

… This unit must not be operating with removed covers or lids.
… Do not attempt to disassemble the unit.
… There are no user serviceable parts inside.
… Do not drop, knock or shake the unit, rough handling above the specification may

cause damage to internal circuit boards.

… Do not use harsh chemicals, cleaning solvents or strong detergents to clean the

unit.
… Do not paint the unit. Paint can clog the unit and prevent proper operation.
… Do not expose the unit to any kind of liquids (rain, beverages, etc).

The unit is not waterproof. Keep the unit within the specified humidity levels.
… Do not use or store the unit in dusty, dirty areas, connectors as well as other

mechanical part may be damaged.

If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.

Westermo • SE-640 40 Stora Sundby, Sweden

Tel [phone] Fax [phone]

E-mail: [e-mail]

www.westermo.com

Sales Units

Sweden

Westermo Data Communications
Svalgången 1, Vallbyinstitutet, 724 81 Västerås
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.se

United Kingdom

Westermo Data Communications
Talisman Business Centre
Duncan Road, Park Gate, Southampton. SO31 7GA
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.co.uk

Germany

Westermo Data Communications
Goethe Strasse 67
DE-68753 Waghäusel
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.de

Austria

Westermo Data Communications
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.at

France

Westermo Data Communications
Bat. A, 9 Chemin de Chilly
FR-91160 Champlan
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.fr

Singapore

Westermo Data Communications
2 Soon Wing Road #08-05,
Soon Wing Industrial Building
Singapore 347893
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.com.sg

North America

Westermo Data Communications
939 N. Plum Grove Road, Suite F,
IL 60173 Schaumburg, USA
Tel: [phone] • Fax: [phone]
[e-mail] • www.westermo.com

Taiwan

Westermo Data Communications
F2, No. 188, Pao-Chiao Rd. Shing-Tien City,
Taipei 23145
Tel: [phone]
[e-mail] • www.cn.westermo.com

China

Westermo Data Communications
2F Building B
No.1618 Yishan Road
Shanghai 201103
Tel: [phone] • Fax: [phone]
[e-mail] • www.cn.westermo.com

Westermo Teleindustri AB have distributors in several countries, contact us for further information.

REV.C 6617-2203 2012-11 Westermo Teleindustri AB, Sweden – A Beijer Electronics Group Company
