Westcott 2092 User Manual
QUICK START GUIDE
Usage & Details
Warranty ............................................................................................................................................ 3
Frame Assembly ............................................................................................................................ 4
Attaching Fabrics .......................................................................................................................... 5
Frame Mounting ............................................................................................................................. 6
Build Options ................................................................................................................................... 7
Components & Accessories
Accessories ...................................................................................................................................... 16
Framework........................................................................................................................................ 17
Fabric Options ................................................................................................................................ 18
theC47™ Kits ..................................................................................................................................... 21
WarrantyTable of Contents
For lighting tips, instructional
videos, inspiration, and more,
visit WestcottU.com.
2
One-Year Limited Warranty
Westcott’s warranty obligations for this product are limited to the terms set forth below: The F.J. Westcott Co. (“Westcott”)
warrants this Westcott branded product against defects in materials and workmanship under normal use for a period of
ONE (1) YEAR from the date of retail purchase by the original end-user purchaser (“Warranty Period”). If a defect arises
and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, Westcott will
either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with
a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally
equivalent to the original product. This Limited Warranty applies only to products manufactured by or for Westcott that
can be identified by the “Westcott” trademark, trade name, or logo affixed to them.
This warranty does not apply: (a) to damage caused by accident, abuse, misuse, flood, fire, earthquake or other external
causes; (b) to damage caused by operating the product outside the permitted or intended uses described by Westcott;
(c) to a product or part that has been modified to alter functionality or capability without the written permission of
Westcott; or (d) to cosmetic damage, including but not limited to scratches, dents and broken plastic.
Please contact Westcott’s Repair Department for a Return Authorization Number “RMA” prior to requesting warranty
service. This RMA must be clearly written on the outside of the box to the left of the shipping label. Items sent in without
pre-authorization or that do not fall under the ONE (1) YEAR limited warranty will be returned at the expense of the sender.
Repair Dept.: 800-886-1689 / 419-243-7311 (International)
E-Mail: info@fjwestcott.com Subject: Attn: Repair Dept.
Shipping: F.J. Westcott Co, 1425-B Holland Rd, Maumee, OH 43537
FJWESTCOTT.COM
3
Frame Assembly
©Curt Pair
Attaching Fabrics
Scrim Jim Cine frame tubes, corner connectors, straight connectors, and fabrics are packaged unassembled and
may be purchased separately or in complete kits. Visit page 17 to see all available components.
1
Locate Components
Begin by locating the included Scrim
Jim Cine frame tubes and connectors.
Refer to the Build Options section
starting on page 7 for configuration
options and required components.
2 3
Arrange Components
On a flat surface, position frame
tubes and connectors next to each
other in the proper order. Align the
connectors’ positive-locking buttons
with the button receptacles on the
frame tubes.
Connect Frame Tubes
Connect any included straight frame
connectors with their corresponding
frame tubes first. Next,
connect each end of a
full frame tube to corner
connectors. Press and
hold the positive-locking
button and slide the
frame tube into place. The button will
‘click’ when connected properly.
4 5
Scrim Jim Cine fabrics are available in a wide variety of materials and sizes to control virtually any lighting. These
fabrics are easily attached to any corresponding Scrim Jim Cine frame. See pages 18-20 for all available fabrics.
1
Select a Fabric
Locate the preferred Scrim Jim Cine
fabric that you want to attach to your
assembled frame.
2
Attach Preferred Fabric
Place the fabric’s loop tape edge
onto the frame’s hook tape. Press to
secure.
3
Secure Fabric Corners
Place the fabric’s loop tape tabs
around the frame and attach to the
rear of the frame (for sizes 4' x 4' and
larger).
Repeat Corner Connections
Connect the open ends of the parallel
frame tubes with 2 corner connectors.
4
Frame Creation
Connect the 2 remaining straight
frame tubes to the remaining open
ends of the connected corner
connectors to create your frame.
FJWESTCOTT.COM
5
Frame Mounting

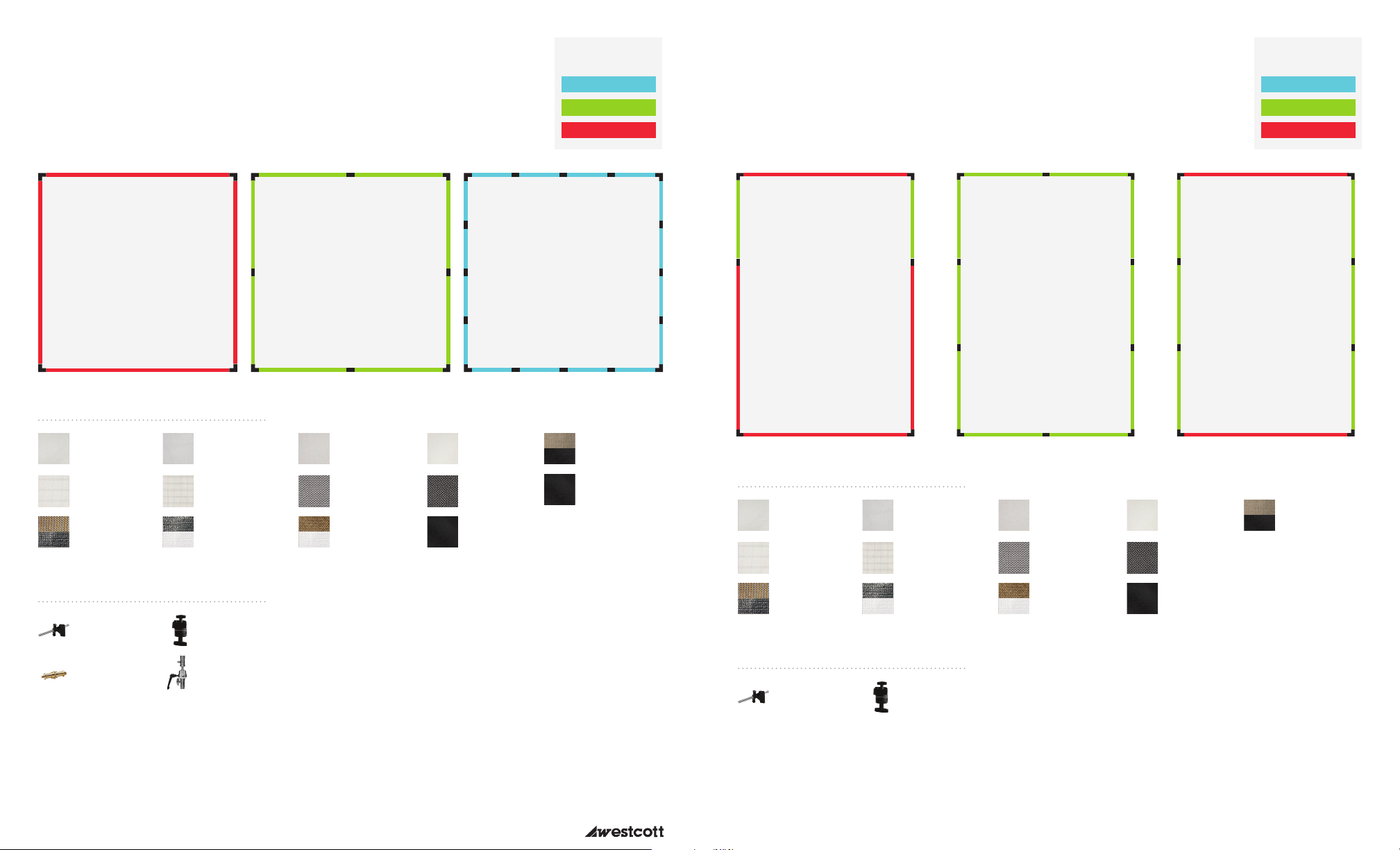

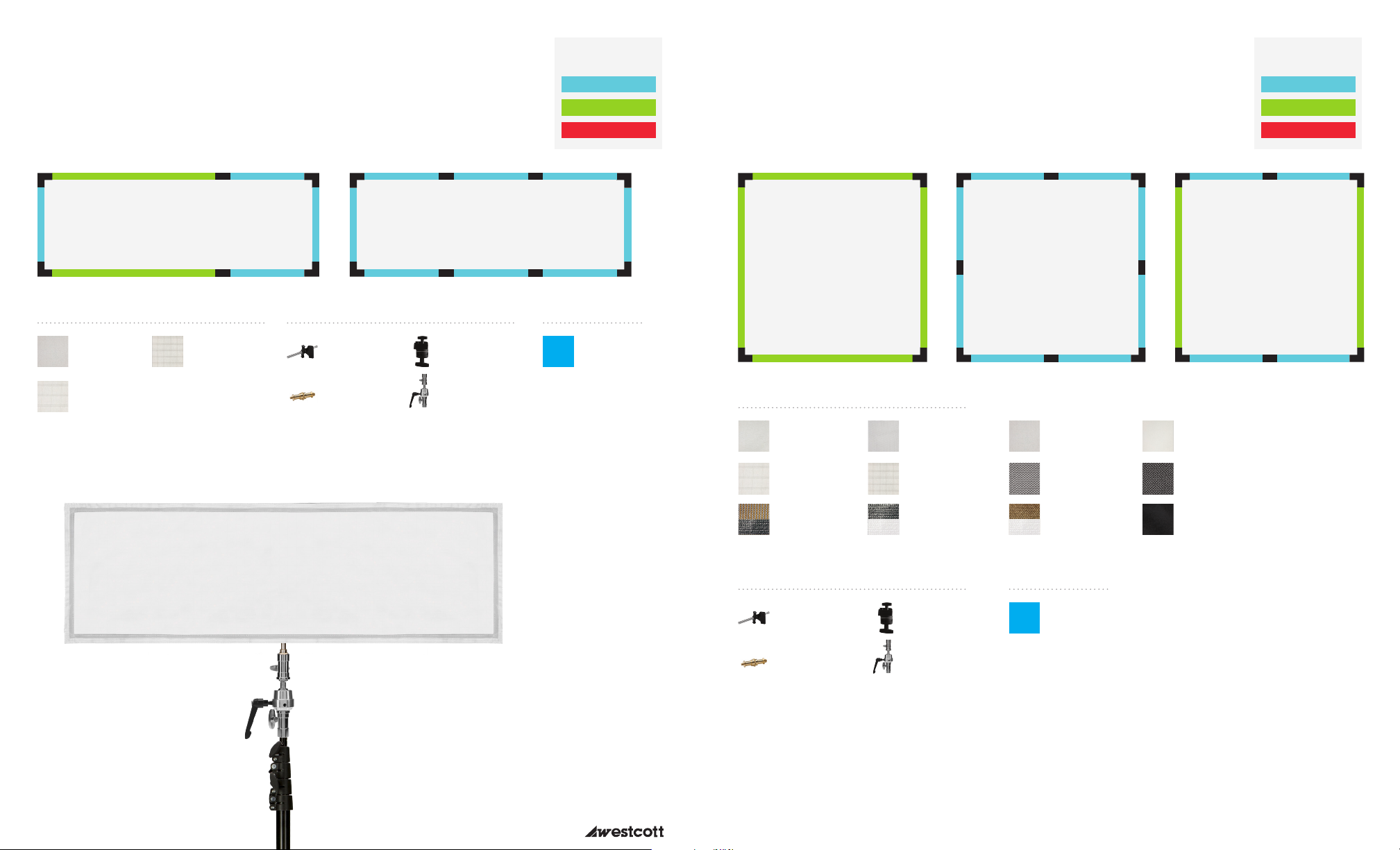

Build Options: 1' x 1' and 1' x 2'

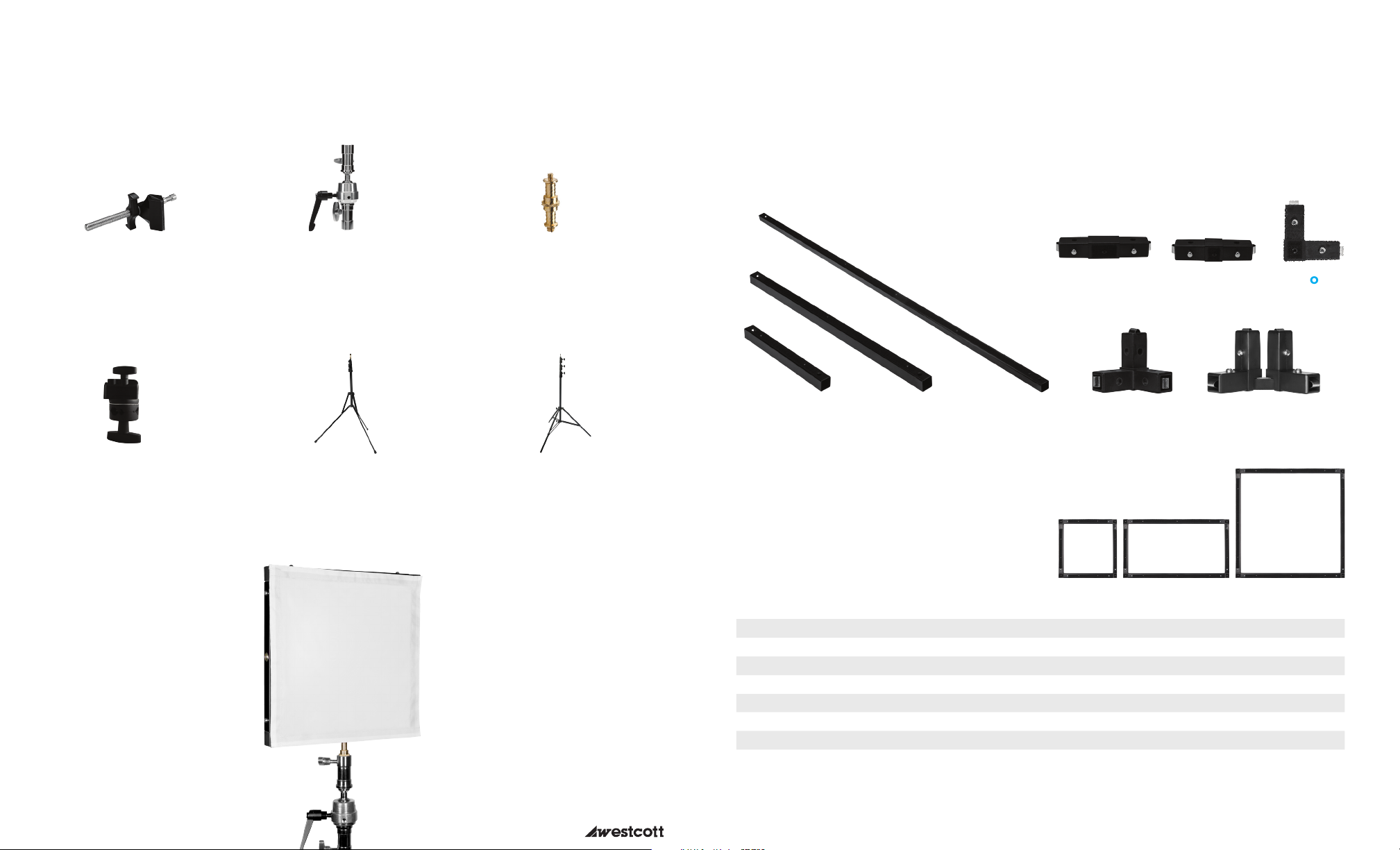

A Scrim Jim Cine frame can be mounted to a light stand or c-stand with a Center Jaw Vise Grip (#1980), or using a
Universal Stud (#8539) and Dual-Socket Magic Arm (#2199) or Grip Head (#1881).
See page 16 or visit fjwestcott.com for product details.
Mounting with Center Jaw Vise Grip
1 2 3
Attach Vise Grip to Mount
Securely mount the Vise Grip’s shaft
in the open socket of the DualSocket Magic Arm or Grip Head while
attached to a light stand or c-stand.
Loosen the Wing Nut
Loosen the Center Jaw Vise Grip’s
wing nut and separate the vise grip’s
center jaws.
Secure the Frame
Place your Scrim Jim Cine frame
between the jaws, ensuring that the
frame is aligned with the jaws’ grip
material and tighten the wing nut to
secure.
Mounting with Universal Stud
See page 17-19 or visit fjwestcott.com for additional frame and fabric options.
1' x 1' Cine Frames
Fabrics (pages 18-20)
FU L L-STO P
DIFFUSER
1/4-STOP
GRID CLOTH
1' x 1' Frame Kit
(4) 10" TUBES - #2000
(4) 2D CORNERS - #2024
1/2-STOP
GRID CLOTH
#1885
Mounts (page 16)
CENTER JAW
VISE GRIP
UNIVERSAL
STUD
1' x 2' Cine Frames
GRIP
HEAD
DUAL-SOCKET
MAGIC ARM
KEY
10" TUBE #2000
22" TUBE #2020
46" TUBE #2022

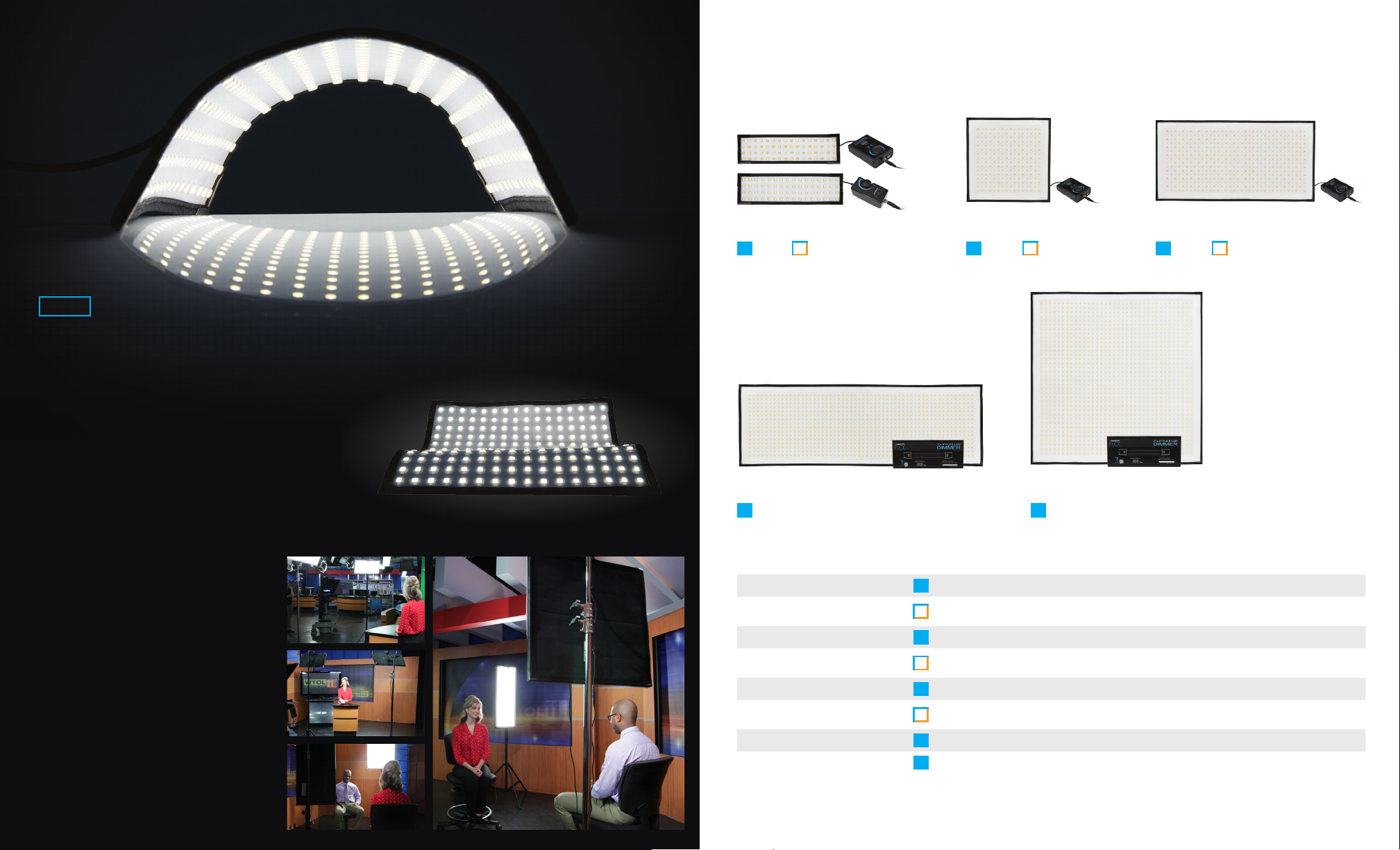

Flex (page 23)
FLEX LED
DAY LIG H T
D
FLEX LED
BI-COLOR
B
1 2 3
Attach Mount to Stand
Attach the Dual-Socket Magic Arm or
Grip Head to light stand or c-stand.
6
Attach Stud to Frame
Locate the 3/8"-16 receptacle on your
Scrim Jim Cine frame and screw the
3/8"-16-end of the Universal Stud into
this receptacle.
Attach Stud to Mount
Place this mounted stud into the
open socket of the Dual-Socket
Magic Arm or Grip Head and tighten
knob to secure.
1' x 2' Frame Kit
(2) 10" TUBES - #2000
(2) 22" TUBES - #2020
(4) 2D CORNERS - #2024
Fabrics (pages 18-20)
FU L L-STO P
DIFFUSER
1/4-STOP
GRID CLOTH
FJWESTCOTT.COM
#1886
1/2-STOP
GRID CLOTH
1' x 2' Build Option #2
(6) 10" TUBES - #2000
(2) 2" STR AIGHTS - #2023
(4) 2D CORNERS - #2024
Mounts (page 16)
CENTER JAW
VISE GRIP
UNIVERSAL
STUD
GRIP
HEAD
DUAL-SOCKET
MAGIC ARM
Flex (page 23)
FLEX LED
DAY LIG H T
D
FLEX LED
BI-COLOR
B
7
