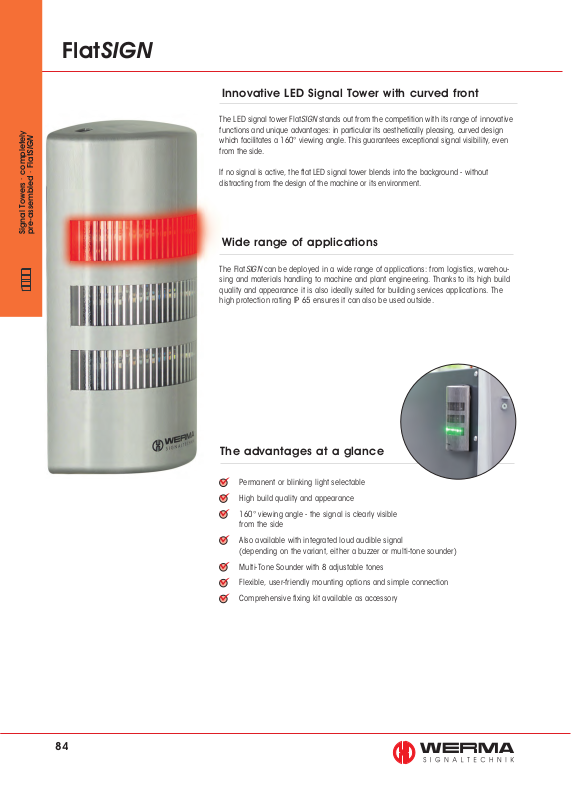

FlatSIGN
FlatSIGN
completely
pre-assembled
Signal Towers
Innovative LED Signal Tower with curved front
The LED signal tower FlatSIGN stands out from the competition with its range of innovative functions and unique advantages: in particular its aesthetically pleasing, curved design which facilitates a 160° viewing angle. This guarantees exceptional signal visibility, even from the side.  If no signal is active, the flat LED signal tower blends into the background - without distracting from the design of the machine or its environment.
Wide range of applications
The FlatSIGN can be deployed in a wide range of applications: from logistics, warehou­sing and materials handling to machine and plant engineering. Thanks to its high build quality and appearance it is also ideally suited for building services applications. The high protection rating IP 65 ensures it can also be used outside.
The advantages at a glance
Permanent or blinking light selectable
High build quality and appearance
160° viewing angle - the signal is clearly visible from the side
Also available with integrated loud audible signal (depending on the variant, either a buzzer or multi-tone sounder)
Multi-Tone Sounder with 8 adjustable tones
Flexible, user-friendly mounting options and simple connection
Comprehensive fixing kit available as accessory
84
691 FlatSIGN
In its inactive state, the signal tower
blends into the background thanks to
its colourless, translucent housing
• Innovative LED signal tower with curved front
• 160° signal visibility - the signal is transparently visible from the side
• Permanent or blinking light
• With optional integrated, high-output buzzer
• Simple, user-friendly mounting
• Comprehensive fi xing kit for a wide range of mounting options (accessory)
selectable
TECHNICAL SPECIFICATIONS:
Dimensions (L x H x W): 195 mm x 105 mm x 48.2 mm Lower part: PC-ABS, black Upper part: PC, transparent or silver Lens: PC, transparent Fixing: Wall mounting Connection: Screw terminal max. 1.5 mm Current consumption: Optical signal: 30 mA per tier
Audible signal: 30 mA
Light effects: Permanent or blinking light selectable Audible signal: Buzzer or multi-tone sounder (8 tones)
ORDER SPECIFICATIONS:
Voltage 24 V DC 115-230 V AC Audibel Signal Multi-tone Sounder Buzzer
FlatSIGN with transparent housing
FlatSIGN without audible signal, red/yellow/green 691 100 55 691 100 68 FlatSIGN with audible signal, red/yellow/green 691 200 55 691 200 68
Life duration
up to 50,000 hrs
2
FlatSIGN
completely
pre-assembled
Signal Towers
FlatSIGN in metallic finish
The fixing kit consists of two
tube clamps and an adaptor
(accessory)
FlatSIGN in Metal Design
FlatSIGN without audible signal, red/yellow/green 691 300 55 691 300 68 FlatSIGN with audible signal, red/yellow/green 691 400 55 691 400 68
ACCESSORIES:
Fixing kit 975 691 01 Contents: 2 tube clamps for tube (Ø 24-25 mm) and adaptor
No special accessories needed for mounting on a fl at surface.
FlatSIGN is ideal for mounting on fl at surfaces such as walls or enclosures. The comprehensive fi xing kit, available as an accessory, permits more mounting options.
• If the signal tower is to be connected via surface wiring, then it can be simply attached using the adaptor.
• The adaptor also enables the tower to be quickly and simply mounted onto electrical installation back-boxes.
• In addition, the adaptor enables simple mounting onto aluminium profi les.
• For tube mounting (Ø 24-25 mm) the adaptor and the two tube clamps are employed.
TECHNICAL DIAGRAMS:
See note on page 347
see page 311
235 g
IP 65
+50°C
-30°C
80 dB
691 X00 55
8
