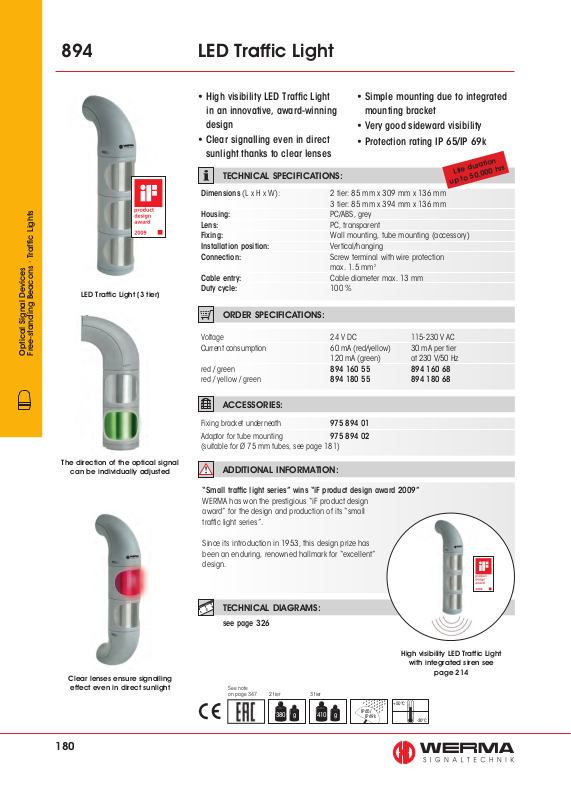

894 LED Traffic Light
LED Traffic Light (3 tier)
Optical Signal Devices
Free-standing Beacons · Traffic Lights
• High visibility LED Traffic Light
in an innovative, award-winning
design
• Clear signalling even in direct
• Simple mounting due to integrated
mounting bracket
• Very good sideward visibility
• Protection rating IP 65/IP 69k
sunlight thanks to clear lenses
TECHNICAL SPECIFICATIONS:
Dimensions (L x H x W): 2 tier: 85 mm x 309 mm x 136 mm
3 tier: 85 mm x 394 mm x 136 mm
Housing: PC/ABS, grey
Lens: PC, transparent
Fixing: Wall mounting, tube mounting (accessory)
Installation position: Vertical/hanging
Connection: Screw terminal with wire protection
max. 1.5 mm
2
Cable entry: Cable diameter max. 13 mm
Duty cycle: 100 %
ORDER SPECIFICATIONS:
Voltage 24 V
Current consumption 60 mA (red/yellow) 30 mA per tier
120 mA (green) at 230 V/50 Hz
red / green 894 160 55 894 160 68
red / yellow / green 894 180 55 894 180 68
115-230 V AC
DC
Life duration
up to 50,000 hrs
The direction of the optical signal
can be individually adjusted
Clear lenses ensure signalling
effect even in direct sunlight
ACCESSORIES:
Fixing bracket underneath 975 894 01
Adaptor for tube mounting 975 894 02
(suitable for Ø 75 mm tubes, see page 181)
ADDITIONAL INFORMATION:
“Small traffic light series” wins “iF product design award 2009”
WERMA has won the prestigious “iF product design
award” for the design and production of its “small
traffic light series”.
Since its introduction in 1953, this design prize has
been an enduring, renowned hallmark for “excellent”
design.
TECHNICAL DIAGRAMS:
see page 326
High visibility LED Traffic Light
See note
on page 347
2 tier 3 tier
380 g 410 g
IP 65/
IP 69k
+50°C
with integrated siren see
page 214
-30°C
180
