Werma EvoSIGNAL Mini Catalog Page

Tube mounting

Beacons & Traffic Lights

Bracket mounting with cable gland

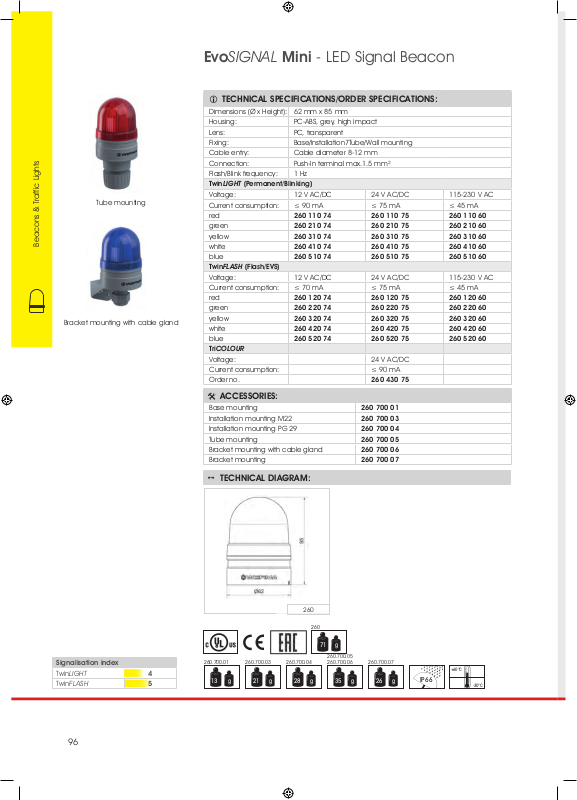

EvoSIGNAL Mini - LED Signal Beacon

L TECHNICAL SPECIFICATIONS/ORDER SPECIFICATIONS:

Dimensions (Ø x Height): 62 mm x 85 mm
Housing: PC-ABS, grey, high impact
Lens:
Fixing:
Cable entry: Cable diameter 8-12 mm
Connection:
Flash/Blink frequency:

TwinLIGHT (Permanent/Blinking)

Voltage: 12 V AC/DC 24 V AC/DC 115-230 V AC
Current consumption: ≤ 90 mA ≤ 75 mA ≤ 45 mA
red 260 110 74 260 110 75 260 110 60
green 260 210 74 260 210 75 260 210 60
yellow 260 310 74 260 310 75 260 310 60
white 260 410 74 260 410 75 260 410 60
blue 260 510 74 260 510 75 260 510 60

TwinFLASH (Flash/EVS)

Voltage: 12 V AC/DC 24 V AC/DC 115-230 V AC
Current consumption: ≤ 70 mA ≤ 75 mA ≤ 45 mA
red 260 120 74 260 120 75 260 120 60
green 260 220 74 260 220 75 260 220 60
yellow 260 320 74 260 320 75 260 320 60
white 260 420 74 260 420 75 260 420 60
blue 260 520 74 260 520 75 260 520 60

TriCOLOUR

Voltage: 24 V AC/DC
Current consumption: ≤ 90 mA
Order no. 260 430 75

PC, transparent
Base/Installation7Tube/Wall mounting

Push-In terminal max.1.5 mm²
1 Hz

Signalisation index

TwinLIGHT
TwinFLASH

# ACCESSORIES:

Base mounting 260 700 01
Installation mounting M22 260 700 03
Installation mounting PG 29 260 700 04
Tube mounting 260 700 05
Bracket mounting with cable gland 260 700 06
Bracket mounting 260 700 07

 TECHNICAL DIAGRAM:

260

260

71 g

260.700.01 260.700.03 260.700.04

4
5

13 21 28 35 26g g g g g

260.700.05

260.700.06

260.700.07

IP 66

+60°C

-30°C

96
