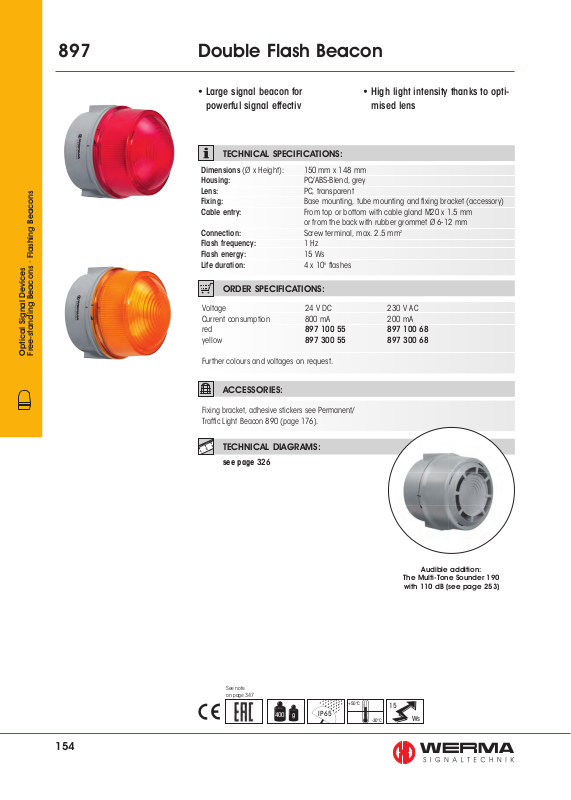

Werma 897 Double Flash Beacon Catalog Page
Double Flash Beacon897
Optical Signal Devices
Free-standing Beacons · Flashing Beacons
• Large signal beacon for
powerful signal effectiv
• High light intensity thanks to optimised lens
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 150mm x 148 mm
Housing: PC/ABS-Blend, grey
Lens: PC, transparent
Fixing: Base mounting, tube mounting and fi xing bracket (accessory)
Cable entry: From top or bottom with cable gland M20 x 1.5 mm
or from the back with rubber grommet Ø 6-12 mm
Connection: Screw terminal, max. 2.5 mm
2
Flash frequency: 1 Hz
Flash energy: 15 Ws
6
Life duration: 4 x 10
fl ashes
ORDER SPECIFICATIONS:
Voltage 24 V DC 230 V
Current consumption 800 mA 200 mA
red 897 100 55 897 100 68
yellow 897 300 55 897 300 68
Further colours and voltages on request.
AC
ACCESSORIES:
Fixing bracket, adhesive stickers see Permanent/
Traffi c Light Beacon 890 (page 176).
TECHNICAL DIAGRAMS:
see page 326
Audible addition:
The Multi-Tone Sounder 190
with 110 dB (see page 253)
154
See note
on page 347
400 g
IP 65
+50°C
-30°C
15
Ws
